Kemppi Promig 100 User manual

1923460E
0601
Operation instructions • english
Gebrauchsanweisung • deutsch
Gebruiksaanwijzing • nederlands
Manuel d’utilisation • français
PROMIG
100

2 – Promig 100/0601 © KEMPPI OY
CONTENTS
1. PREFACE........................................................................................................................ 3
1.1. Introduction .......................................................................................................................3
1.2. Product introduction ..........................................................................................................3
1.2.1. Operation control and connectors................................................................................... 3
1.2.2. Accessories and cables ..................................................................................................4
1.3. Operation safety................................................................................................................7
2. INSTALLATION ............................................................................................................... 7
2.1. Assembly of the MIG system ............................................................................................7
2.2. Installation of MIG system.................................................................................................9
2.2.1. Equipment corresponding to wire diameter..................................................................... 9
2.2.2. Mounting of intermediate cable and wire liner................................................................. 9
2.2.3. Mounting of MIG welding gun ....................................................................................... 10
2.2.4. Operating switch positions of the Promig 501, 501L and 530 when
the Promig 100 subfeeder is used ................................................................................ 10
2.2.5. Mounting and locking of wire reel (Promig 501, 501L and 530).................................... 11
2.2.6. Automatic wire feed to intermediate cable and gun ...................................................... 11
2.2.7. Adjustment of pressure ................................................................................................. 11
2.2.8. Adjustment of tightness of reel brake (Promig 501, 501L and 530).............................. 12
2.2.9. Burn back time .............................................................................................................. 12
2.2.10. Ground cable................................................................................................................. 12
2.3. Shield gas .......................................................................................................................12
2.3.1. Installing gas bottle ....................................................................................................... 12
2.4. Main switch I/O ............................................................................................................... 13
2.5. Operation of cooling unit .................................................................................................13
3. CONTROL PANEL OPERATIONS................................................................................ 14
3.1. Welding method selecting switch....................................................................................14
3.2. The Promig 501, 501L and 530 has the MC control panel..............................................14
3.3. The Promig 501, 501L and 530 has the ML control panel ..............................................15
4. OPERATIONS OF REMOTE CONTROL UNITS ..........................................................16
5. DISPOSAL OF THE MACHINE..................................................................................... 16
6. SERVICE, OPERATION DISTURBANCES .................................................................. 17
7. ORDERING NUMBERS ................................................................................................ 17
8. TECHNICAL DATA........................................................................................................ 18
9. TERMS OF GUARANTEE............................................................................................. 19

Promig 100/0601 – 3
© KEMPPI OY
X1
X3
X4
X5
X2
b
H11
R1 R2
S1
S2 S3
1. PREFACE
1.1. INTRODUCTION
Congratulations on having purchased this product. Properly installed Kemppi products should
prove to be productive machines requiring maintenance at only regular intervals. This manual
is arranged to give you a good understanding of the equipment and its safe operation. It also
contains maintenance information and technical specifications. Read this manual from front to
back before installing, operating or maintaining the equipment for the first time. For further
information on Kemppi products please contact us or your nearest Kemppi distributor.
The specifications and designs presented in this manual are subject to change without prior
notice.
In this document, for danger to life or injury the following symbol is used:
Read the warning texts carefully and follow the instructions. Please also study the Operation
safety instructions and respect them when installing, operating and servicing the machine.
1.2. PRODUCT INTRODUCTION
Promig 100 is a sub-feeder for demanding use, connectable to the Promig 501, 501L and 530
wire feeder, extending the reach of the air- and liquid-cooled Kemppi Pro gas-shielded arc
welding system up to 50 m.
Use of the Promig 100 demands the mounting of the Prosync 50 synchronizing set to the
Promig 501, 501L and 530 wire feeder.
These operation instructions handle the Promig 100 sub-feeder, assembly and installation of the
MIG system with accessories.

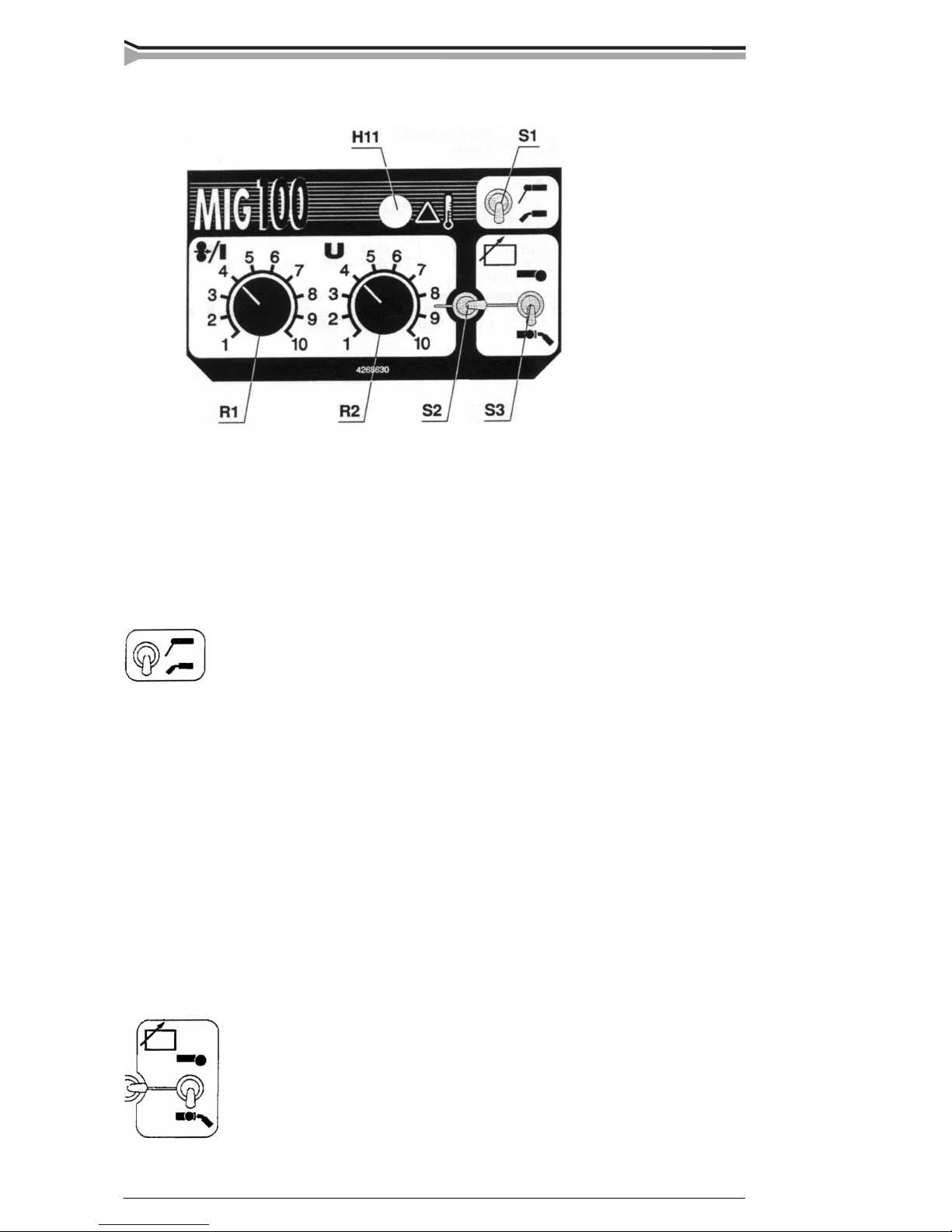

1.2.1. Operation control and connectors
X4 Connection for control cable
Remote control unit
X5 Connection of cable for MMA welding
b Locking of cooling liquid hoses
H 11 Warning lamp for thermal shield
R1 Wire feed speed control
R2 Welding voltage control
S1 Selection for welding method MMA/MIG
S2 Control mode selection
Local/Remote control
S3 Control mode selection
Gun/Remote control unit
X1 Central connector for intermediate cable
EURO
X2 Connection of welding gun EURO
X3 Connection for control cable

4 – Promig 100/0601 © KEMPPI OY
Promig 501, 501L, 530
Pro 3200
Pro 4200
Pro 5200
Promig 501, 501L, 530
Procool
10/30
Pro 3200
Pro 4200
Pro 5200
Pro Power source
Procool 10/30
Cooling liquid circulation unit
Promig 501, 501L and 530
Wire feed unit
RMT10, R10, R20
Remote control units, see page 16
1 Control cable
5 Cooling liquid hose R3/8 - Snap connector
8 Shielding gas hose Snap connector - 0
9a Welding current cable
12a Intermediate cable MIG air-cooled
12b Intermediate cable MIG liquid-cooled
16d Extension cable for remote control
1.2.2. Accessories and cabels
20 Earth cable
21 MMA welding cable
22a MIG gun air-cooled
22b MIG gun liquid-cooled

Promig 100/0601 – 5
© KEMPPI OY
Cables and hoses
Pro A B C
Combination Extension cable bundle Intermediate cable MIG welding gun
equipment
Pro 3200/4200
/5200+P40+
Promig 501+
Promig100
Pro 3200/4200
/5200+P30W+
Procool 10/30+
Promig 501+
Promig 100
Nominal length Order No. Air-cooled Liquid-cooled Nominal length Order No. Air-cooled Liquid-cooled Nominal lenght Order No.
1 5 8 9a m 12a 12b m 22a 22b m
PMT 32 – 3,0 6253213
PMT 32 – 4,5 6253214
PMT 35 – 3,0 6253513
PMT 35 – 4,5 6253514
PMT 42 – 3,0 6254213
1 – 1 1 10 6260313 PMT 42 – 4,5 6254214
MMT 32 – 3,0 6253213MMT
MMT 32 – 4,5 6253214MMT
1 – 1 1 15 6260315 X – 15 6260211 MMT 35 – 3,0 6253513MMT
1 – 1 1 20 6260317 X – 25 6260213 MMT 35 – 4,5 6253514MMT
1 – 1 1 25 6260319 MMT 42 – 3,0 6254213MMT
MMT 42 – 4,5 6254214MMT
– PMT 30W 3,0 6253043
1 2 1 1 10 6260314 – PMT 30W 4,5 6253044
1 2 1 1 15 6260316 – X 15 6260225 – PMT 42W 3,0 6254203
1 2 1 1 20 6260318 – X 25 6260227 – PMT 42W 4,5 6254204
1 2 1 1 25 6260320 – PMT 52W 3,0 6255203
– PMT 52W 4,5 6255204
– MMT 30W 3,0 6253043MMT
– MMT 30W 4,5 6253044MMT
– MMT 42W 3,0 6254203MMT
– MMT 42W 4,5 6254204MMT
– MMT 52W 3,0 6255203MMT
– MMT 52W 4,5 6255204MMT

6 – Promig 100/0601 © KEMPPI OY
ø 0,6...0,8 mm ø 1,0 mm 3134140
ø 0,9...1,6 mm ø 2,0 mm 3133700
ø 1,6...2,4 mm ø 4,0 mm 3134130
ø 0,8...1,6 mm ø 2,5 mm 3134290
ø 1,6...2,4 mm ø 3,0 mm 3134710
Fe
Mc
Fc
Ss
Al
ø 2,0 mm 3134120
ø 4,0 mm 3134110
ø 2,5 mm 3134300
ø 3,0 mm 3134720
ø 2,0 mm 4267220
ø 4,0 mm 4267030
ø 2,0 mm 4267220
ø 4,0 mm 4270180
ø 2,0 mm 4266970
ø 4,0 mm 4270180
ø 2,4 mm 4268210
ø 3,0 mm 4268560
Promig 511
Fe
Ss
Al
Fe
Fc
Mc
Fe
Fc
Mc
Ss
Al
ø 0,6/0,8 3133810 ø 1,0/1,2 3133210 ø 1,4-1,6/2,0 3133820 ø 2,4 3133880
Vetorattaan valintalevyn siirto, flyttning av distansbricka, flytting av avstandsskive for
matehjul, hvordan flytter man justerskiven, relocation of selection plate, Versetzen der
Wahlschalterplatte, verplaatsing van selectie plaat, remise en place de la rondelle de
sélection
Vetoratas, dr vhjul, trekktannhjul, dr vhjul, gearwheel, Aufz ehrad,
aandr jfrol, galet d'entra nement
ø 1,0/1,2 3133940 ø 1,4-1,6/2,0 3133990 ø 2,4 3134030
ø 1,2/1,2 (L) 3142210 ø 1,4/1,4 (L) 3142220 ø 2,0/2,0 (L) 3142230
ø 1,6/1,6 (L) 3141130
ø 1,6/1,6 (L) 3142200 ø 2,4 (L) 3142240
ø 1,2/1,2 (L) 3137380 ø 3,2 3134060
ø 1,2/1,2 (L) 3137390
ø 0,8/0,8 (L) 3143180 ø 1,0/1,0 (L) 3138650 ø 1,6/1,6 (L) 3141120 ø 3,2 3133910
ø 28 mm (0 - 8 m/min) 4265240, ø 40 mm (0 - 25 m/min) 4265250
Muovi, plast, plast, plastic, plastic, Kunststoff, plastic, plastique
ø 28 mm (0 - 8 m/min) 4287860, ø 40 mm (0 - 25 m/min) 4297270
Teräs, stål, stål, stål, steel, Stahl, staal, acier
Syöttöpyörän uran valinta, val av matarhjulspår, valg av matehjul spor, valg af spor i
trådhjul, selection of feed wheel groove, Auswahl der Transportrollennut, selectie van
de draaddiameter groef, sélection de la gorge du galet
4292030
pressure
adjustment
Wire guide tubes
Feed rolls
white red yellow
orange
red
orange yellow
orange brown grey
black
blue
black
yellow black
blue
Trapezoid
Plain
Knurled
(L) = Ball race
orange
white
blue
silver
yellow
orange
blue
silver
yellow
plastic
brass
plastic
plastic
plastic
plastic
yellow
yellow

Promig 100/0601 – 7
© KEMPPI OY
1.3. OPERATION SAFETY
Please study these Operation safety instructions and respect them when installing, operating and
servicing the machine.
Welding arc and spatters
Welding arc hurts unprotected eyes. Be careful also with reflecting arc flash. Welding arc and
spatter burn unprotected skin. Use safety gloves and protective clothing.
Danger for fire or explosion
Pay attention to fire safety regulations. Remove flammable or explosive materials from welding
place. Always ensure that you have sufficent fire fighting equipment available where you are
welding. Be prepared for hazards in special welding jobs, eg. for the danger of fire or explosion
when welding containertype work pieces. Note! Fire can break out from sparks even several
hours after the welding work has been finished!
Mains voltage
Never take welding machine inside a work piece (eg. container or truck). Do not place welding
machine on a wet surface. Always check cables before operating the machine. Change damaged
cables without delay. Damaged cables may cause an injury or set out a fire. Connection cable
must not be crushed, it must not touch sharp edges or hot work pieces.
Welding power circuit
Isolate yourself by using proper protective clothing, do not wear wet clothing. Never work on
a wet surface or use defect cables. Do not put the MIG-gun or welding cables on welding
machine or on other electric equipment. Do not press the MIG-gun switch, if the gun is not
directed towards a work piece.
Welding fumes
Take care that there is sufficient ventilation during welding. Take special safety precau-
tions when welding metals which contain lead, cadmium, zinc, mercury or beryllium.
2. INSTALLATION
2.1. ASSEMBLY OF THE MIG SYSTEM
1 Installation of power source
Read paragraph ”Installation” in operation instructions 1913170 for Pro power sources and
carry out the installation according to that.
2 Mounting of Pro power source to transport wagon
P40 6185261, air-cooled MIG system mounting
P30W 6185262, liquid-cooled MIG system mounting
3 Put the Promig 501, 501L and 530 onto the power source and lock it with bolts to handles
of power source, or mount to the wire feeder cables and roll carriage which extend the reach,
see page 7
4 Mount the control panel to the Promig 501, 501L and 530
MC 6263501
ML 6263502
MXE 6263503
5 Mount the synchronization set to the Promig 501, 501L and 530
Prosync 50 6263121
6 Connecting cables
Connect cables according to figures.
Air-cooled system. Liquid-cooled system.
You can change polarity of filler wire by interchanging the Promig welding current cable and
earth cable with welding cable connectors of Pro power source.

8 – Promig 100/0601 © KEMPPI OY
A001
JUMPER BLOCK
7 Max. wire feed speed
When the unit is delivered the max. wire feed speed is 18 m/min, which is enough for most
welding works. If you need a higher speed, you can increase the max. wire feed speed
to 25 m/min by replacing the gear wheel on motor shaft to a bigger one. The big gear
wheel D40 is delivered in accessory drawer of the Promig 501, 501L and 530 and in the
Promig 100 it is in plastic bag under cover.
When necessary speed is changed according to following:
1. Open cover of control box of the Promig 501, 501L and 530 and move
JUMPER BLOCK’s WFS jumper on control card A001 to point 25 m/min.
2. Change the gear wheel in both feeder units as follows:
- Open tightening lever (20). Remove lower feed rolls (21). Release screw (23) and
its washer. Remove gear wheel D28 (24) from motor shaft.
- Loosen screws (25) (3 pc) 1 twist. Mount the D40 gear wheel onto motor shaft.
Screw the screw (23) with its washer back.
- Put feed rolls (21) back to their axles, however don’t fasten yet fastening screws
of feed rolls (22).
- Lift the motor so that the tooth gap between gear wheel and both lower feed
rolls is approx. 0,2 mm.
- Tighten screws (25). Check gear teeth gaps, when necessary put the motor into a
better position. Screw on the mounting screws of feed rolls (22).
Too small gap between gear wheel and feed rolls will overload motor.
Too big gap for its part might cause too rapid wearing for teeth of feed rolls and
gearwheel.

Promig 100/0601 – 9
© KEMPPI OY
2.2. INSTALLATION OF MIG SYSTEM
2.2.1. Equipment corresponding to wire diameter
Promig wire feed rolls are available with plain groove, knurled groove and with U groove for
different purposes.
Feed rolls with plain groove: General feed roll for all kinds of wires.
Feed rolls with knurled groove: Special feed roll for cored wires and steel wires.
Feed rolls with U groove: Special roll for aluminium wires.
Promig wire feed rolls have two grooves for different filler wire diameters. Correct wire groove
is selected by moving selecting washer (28) from one side to another in feed roll.
Feed rolls and wire guide tubes of wire feed unit have colour codes in order to make identifica-
tion easier.
Feed rolls: white for 0,6... 0,8 mm fillerwires
red for 0,9 ... 1,32 mm fillerwires
yellow for 1,4... 2,0 mm fillerwires
Wire guide tubes: orange for 0,6... 1,6 mm fillerwires
blue for over 1,6 mm fillerwires
In delivery the Promig 100 is equipped with red feed rolls with plain groove and with orange
wire guide tubes for welding filler wires of 0,9...1,32 mm.
2.2.2. Mounting of intermediate cable and wire liner
The intermediate cable is connected with the EURO adaptor to the Promig 501, 501L and
530 wire feeder. Remote control and synchronizing connectors of the intermediate cable are
connected to the corresponding connectors in the feeder unit.
The tip of the intermediate cable on the sub-feeder side is pushed into the opening at the
rear of the Promig 100. The EURO adaptor is fastened carefully and the control/synchronizing
connector is pressed down on its place.
The cooling liquid hoses are placed into room reserved for them according to enclosed figure.
See in mounting of connectors that they really are fast, especially the EURO adaptors should be
tightened tightly enough that no voltage losses or sparking wouldn’t come up in connectors.
When you are fastening the intermediate cable to the sub-feeder, loosen the fastening screw 31
(see figure) of the wire guide tube in order to ensure the electric contact. A bad connection is
heated up in welding and connecting parts may even be destroyed.
Wire liner Length Symbol colour Order number
Steel spiral 15 m yellow 4188594
25 m yellow 4188596
Plastic 15 m black 4271020
25 m black 4271030
Wire liner of the intermediate cable is either of steel spiral or plastic. The plastic wire liner
is always used in welding of aluminium or stainless steel. The steel spiral is used in welding
of cored wire. In welding of solid steel wire you can use as wire liner both the steel spiral
and the plastic wire liner.

10 – Promig 100/0601 © KEMPPI OY
When delivered the intermediate cable is equipped with steel spiral wire liner.
The intermediate cable should be as straight as possible in mounting of the wire liner. Push the
wire liner into the intermediate cable from the Promig 501, 501L and 530 end, tighten the jacket
nut. The extra wire liner is cut off on the sub-feeder end; push the large pass of the wire liner into
the intermediate cable and cut off the wire liner at 40 mm length from the snap connector. Fasten
the tip of the wire liner with end connectors and jacket nut to the snap connector.
2.2.3. Mounting of MIG welding gun
In order to ensure trouble-free welding, check in operation instructions of gun used by you that
wire guide tube and contact tip of gun are according to manufacturer’s recommendation suitable
to be used for wire feed diameter and type in question.
Too tight a wire guide tube might cause for wire feed unit a bigger stress than normally as well
as disturbances in wire feed.
Screw snap connector of gun tight that there won’t come any voltage losses on connecting
surface. A loose connection will heat gun and wire feed unit.
When you are using liquid-cooled gun, mount liquid hoses according to figure.
Promig units have for overheating of liquid-cooled PMT gun and for overload of wire feed
motor a yellow pilot lamp for overload, which is operating as follows:
- Thermo shield of Kemppi PMT gun is operating: Equipment stops welding, yellow signal
lamp H11 is lighted and is illuminated in periods of 0,5 s until thermo shield has returned.
- Motor is overloaded: 2 different functions
1. Motor is overloaded to some extent: Signal lamp H11 is lighted and is illuminated
in periods of 0,25 s, equipment doesn’t stop welding. The lamp is not extinguished
until welding is started again after stop.
2. Motor is overloaded a lot: Equipment stops welding, signal lamp H11 is lighted and is
illuminated in periods of 0,25 s until welding is started again.
2.2.4. Operating switch positions of the Promig 501, 501L and 530
when the Promig 100 subfeeder is used
Welding mode switch (S21 or S31) is set on position MIG two-sequence procedure or MIG
four-sequence procedure according to necessarity.
Control mode selection switches (S22 or S32) are set on position for remote control.
With the above-mentioned selections the welding controls were transmitted to control panel of
the Promig 100, see the paragraph:”Control panel operations”.
SELECTO-/SYNERGIC-operations as well as the welding dynamics are adjusted on the Promig
501, 501L and 530 panel, also the digital displays for wire feed speed, current and voltage
are still operating on the panel, see the paragraph ”Control panels operations” in the operation
instructions for the Promig 501, 501L and 530.
NOTE! When the Promig 100 is switched on you can select the MMA characteristics on the
Promig 501, 501L and 530 panel only if the control mode selection switch is on position for
local control.

Promig 100/0601 – 11
© KEMPPI OY
28 28

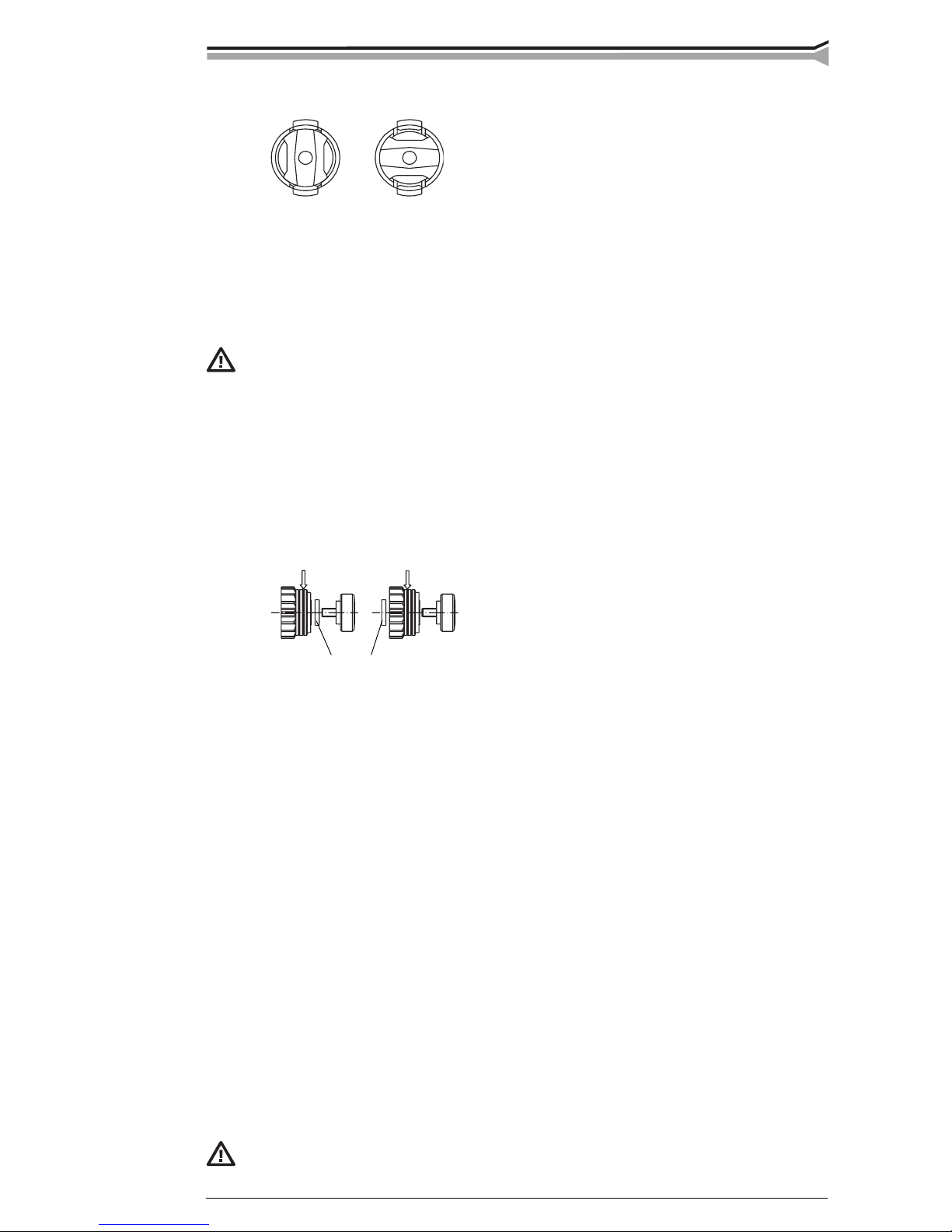

2.2.5. Mounting and locking of wire reel (Promig 501, 501L and 530)
LOCKED OPEN
- Release locking nails of wire reel hub by turning locking knob a quarter round.
- Mount the reel at its place.
Note rotating direction of reel!
- Lock the reel with locking knob, locking nails of hub remain to outside position and will
lock the reel.
Check that in filler wire reel there are no parts sticking out, which could e.g. chafe
against chassis or door of wire feed unit. Dragging parts might expose chassis of
wire feed unit under voltage.
2.2.6. Automatic wire feed to intermediate cable and gun
Automatic wire feed in Promig wire feed units makes change of wire reel more rapid. In reel
change the pressure of feed rolls need not to be released and filler wire goes automatically to
correct wire line.
- Make sure that groove of feed roll match the diameter of welding wire used. Feed roll groove
is selected by moving the groove selecting washer (28).
- Release the wire end from reel and cut off the bent length. Be careful that the wire does
not spill from the reel to sides!
- Straighten about 20 cm of the wire and see that the end of it has no sharp edges (file off
if necessary). A sharp edge may damage the wire guide tube of intermediate cable and gun
as well as contact tip.
- Draw a bit of loose wire from wire reel. Feed wire through back liner to feed rolls. Don’t
release pressure of feed rolls!
- Press the switch for running-in of wire on the reel box of the Promig 501, 501L and 530 and
push the wire a bit until the wire runs through the feed rolls into the intermediate cable. See
that wire is in grooves of both feed roll pairs!
- Press the gun switch and feed a bit wire until wire goes through feed rolls of the sub-feeder to
gun. See that wire is in grooves of both feed roll pairs!
- Press still the gun switch until wire has come through contact tip.
Automatic feed may sometimes fail with thin wires (Fe, Fc, Ss: 0,6...0,8 mm, Al: 0,8...1,0 mm).
Then it might be possible that you must open feed rolls and feed wire manually through feed
rolls.
2.2.7. Adjustment of pressure
Adjust the pressure of feed rolls with the control screw (20) so that the wire is fed into the
wire guide tube evenly and allows a little braking when coming out from the contact tip without
slipping at the feed rolls.
Excessive pressure causes flattening of the filler wire and damage to the coating.
It also causes undue wear of the feed rolls as well as friction.

12 – Promig 100/0601 © KEMPPI OY
41

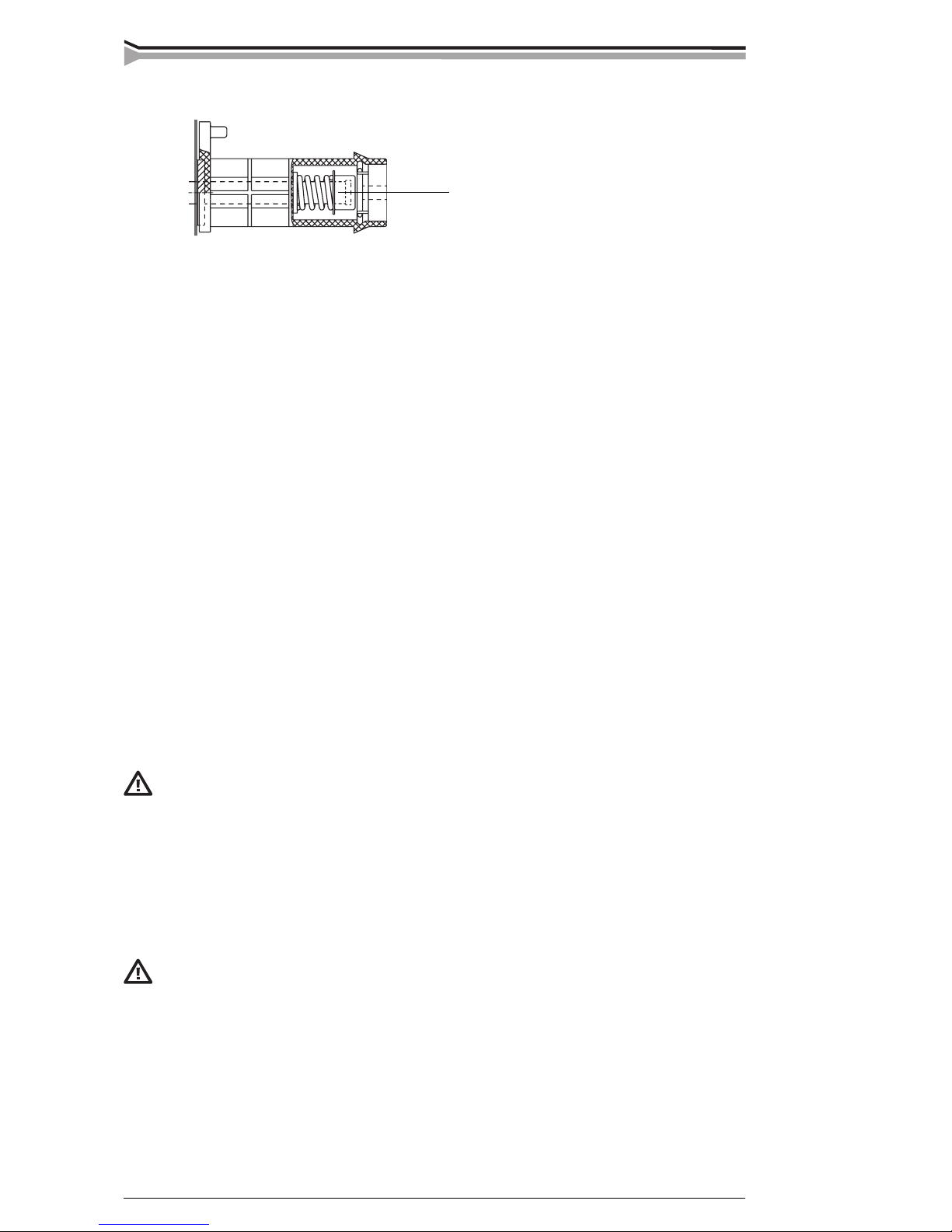

2.2.8. Adjustment of tightness of reel brake (Promig 501, 501L and 530)
Brake force is adjusted through hole in locking device of reel hub by screwing the control screw
(41) with screwdriver.
Adjust brake force as so big that the wire is not allowed to become too loose on the reel so that
it would spill from the reel when the rotation of the reel stops. Need for brake force is increased
with increase of wire feed speed.
Since the brake loads for its part the motor, you shouldn’t keep it unnecessarily tight.
2.2.9. Burn back time
Electronics of feed unit controls stopping of welding automatically so that the wire end doesn’t
melt fastened to the contact tip or the work piece. Automatics work regardless of the wire
feed speed.
2.2.10. Ground cable
Fasten earthing press of ground cable carefully, preferably direct to welding piece. Contact
surface of press always should be as large as possible. Clean the fastening surface from paint
and rust!
Use in your MIG equipment 70 mm2. Thinner cross-sectional areas might cause overheating of
connectors and insulations.
Make sure that the welding gun in your use is designed for max. welding current needed by
you!
Never use a damaged welding gun!
2.3. SHIELD GAS
Handle gas bottle with care. There is a risk for injury if gas bottle or bottle valve
is damaged!
For welding steels, mixed gases are normally used. Check that the regulator is suitable for the
gas. The flow rate is set according to the welding power used in the job. A suitable flow rate is
normally 8 - 10 l/min. If the gas flow is not suitable, the welded joint will be sporous. Contact
your local Kemppi-dealer for choosing gas and equipment.
2.3.1. Installing gas bottle
Always fasten gas bottle properly in vertical position in a special holder on the
wall or on a carriage. Remember to close gas bottle valve after having finished
welding.

Promig 100/0601 – 13
© KEMPPI OY
E
B
D
C
A
F
G
Parts of gas flow regulator
A Gas bottle valve
B Press regulation screw
C Connecting nut
D Hose spindle
E Jacket nut
F Gas bottle pressure meter
G Gas hose pressure meter
The following installing instructions are valid for most of the gas flow regulator types:
1. Step aside and open the bottle valve (A) for a while to blow out possible impurities from
the bottle valve.
2. Turn the press regulation screw (B) of the regulator until no spring pressure can be felt.
3. Close needle valve, if there is one in the regulator.
4. Install the regulator on bottle valve and tighten connecting nut (C) with a wrench.
5. Install hose spindle (D) and jacket nut (E) into gas hose and tighten with hose clamp.
6. Connect the hose with the regulator and the other end with the wire feed unit.
Tighten the jacket nut.
7. Open bottle valve slowly. Gas bottle pressure meter (F) shows the bottle pressure.
Note! Do not use the whole contents of the bottle. The bottle should be filled when the
bottle pressure is 2 bar.
8. Open needle valve if there is one in the regulator.
9. Turn regulation screw (B) until hose pressure meter (G) shows the required flow
(or pressure). When regulating flow amount, the power source should be switched on and
the gun switch pressed simultaniously.
Close bottle valve after having finished welding. If the machine will be out of use for a long
time, unscrew the pressure regulation screw.
2.4. MAIN SWITCH I/O
When you turn the main switch of the Pro power source into I -position, pilot lamp close to it
is lighted and the equipment is ready for welding. The equipment is returned to that welding
method with which the welding was last carried out before the main switch was turned to
zero position.
Always start and switch off the machine with the main switch, never use the
mains plug as a switch.
2.5. OPERATION OF COOLING UNIT (PROCOOL 10/30)
Operation of cooling unit is controlled in such a way that pump is started when welding is
started. After welding stop pump is rotating for approx. 5 min cooling the liquid to ambient
temperature. Purpose of this operation is to make maintenance intervals of pump longer.
Read in operation instructions for the Procool 10/30 unit the trouble situations of the liquid
circulation system and protection against torch etc. damage.

14 – Promig 100/0601 © KEMPPI OY
3. CONTROL PANEL OPERATIONS
Welding method selection (S1): MIG / MMA (MIG two-sequence procedure or four-sequence
procedure is determined according to mode selection of the Promig 501, 501L and 530.
Control mode selection: (S2) local control / remote control, (S3) remote control unit / gun
control unit
Local controls: wire feed speed/MMA current (R1), welding voltage (R2)
Warning light for thermal shield (H11)
3.1. WELDING METHOD SELECTING SWITCH
MMA
MMA welding with stepless welding current control
MIG
MIG welding, the switch of the Promig 100 must be on this position when
the MIG welding is started
MIG two-sequence procedure is selected on the Promig 501, 501L and 530 panel.
MIG/MAG welding with two-sequence procedure of welding gun start switch.
1. switch pressed: welding starts
2. switch open: welding stops
MIG four-sequence procedure is selected on the Promig 501, 501L and 530 panel.
MIG/MAG welding with four-sequence procedure of welding gun start switch.
1. switch pressed: shielding gas flow starts
2. switch open: welding starts
3. switch pressed: welding stops
4. switch open: shielding gas flow stops
Local control: Control potentiometers R1 and R2 on panel are used.
Remote control: Adjustments are carried out from remote control unit
R20 which is connected to remote control connector X4 of subfeeder.
If you use the remote control unit R10, adjust wire feed speed or MMA welding
current with potentiometer of the R10 and voltage with potentiometer U on panel.
Gun control: Wire feed speed is adjusted with control module RMT which is
connected to Kemppi PMT welding gun and welding voltage is adjusted with
potentiometer U on panel.

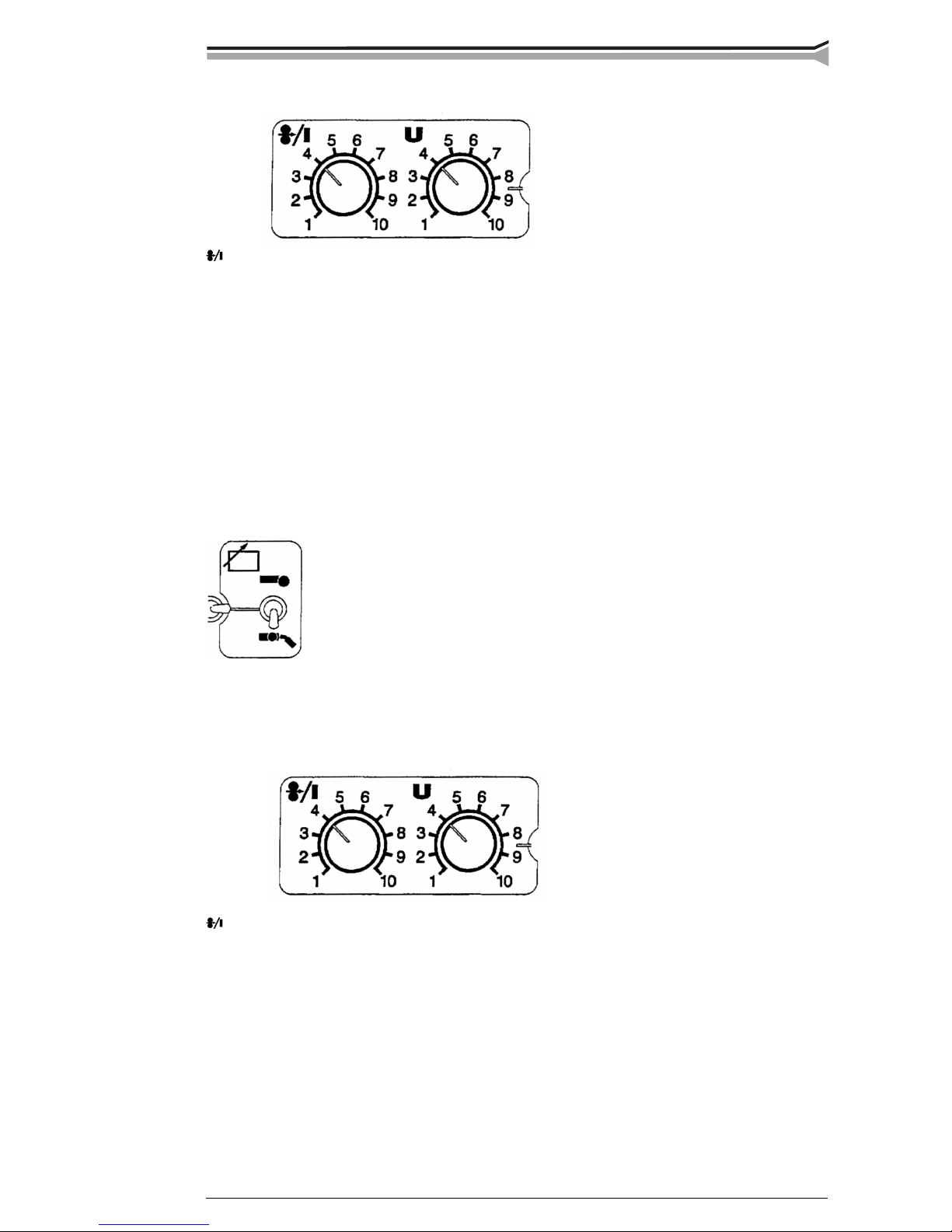

3.2. THE PROMIG 501, 501L AND 530 HAS THE MC CONTROL PANEL
Control mode selecting switch

Promig 100/0601 – 15
© KEMPPI OY
Local controls
potentiometer
SELECTO OFF: Local control for wire feed speed 0...18 m/min or 0...25 m/min
SELECTO ON: Channel selection
SELECTO SET: Local control for wire feed speed 0...18 m/min or 0...25 m/min
MMA welding: Welding current control, 10 A ... max. current of power source
U-potentiometer
SELECTO OFF: Local control for voltage of Pro power source, 10 V ... max. MIG voltage
of power source
SELECTO ON: Fine adjustment for arc length
SELECTO SET: Local control for voltage of Pro power source, 10 V ... max. MIG voltage
of power source
MMA welding: No operation
Local control: Control potentiometers R1 and R2 on panel are used
Remote control: Adjustments are carried out from remote control unit R20
which is connected to remote control connector X4 of subfeeder. If you use
the remote control unit R10, adjust wire feed speed/welding power or MMA
welding current with potentiometer of the R10 and voltage/arc length with
potentiometer U on panel.
Gun control: Wire feed speed/welding power is adjusted with control module
RMT which is connected to Kemppi PMT welding gun and welding voltage/arc
length is adjusted with potentiometer U on panel.
Local controls
potentiometer
MIG/MAG: Local control for wire feed speed 0...18 m/min 0... 25 m/min
SYNERGIC MIG: Power control, min. and max. powers according to filler wires
SYNERGIC PULSED MIG: Power control, min. and max.powers according to filler wires
MMA welding: Welding current control, 10 A ... max. current of power source
U-potentiometer
MIG/MAG: local control for voltage of Pro power source, 10 V... max.
MIG voltage of power source
SYNERGIC MIG: Fine control for arc length -9...0...9
SYNERGIG PULSED MIG: Fine control for arc length -9...0...9
MMA welding: No operation
3.3. THE PROMIG 501, 501L AND 530 HAS THE ML CONTROL PANEL
Control mode selecting switch

16 – Promig 100/0601 © KEMPPI OY
R20
R61
R63
R10
R61
RMT10

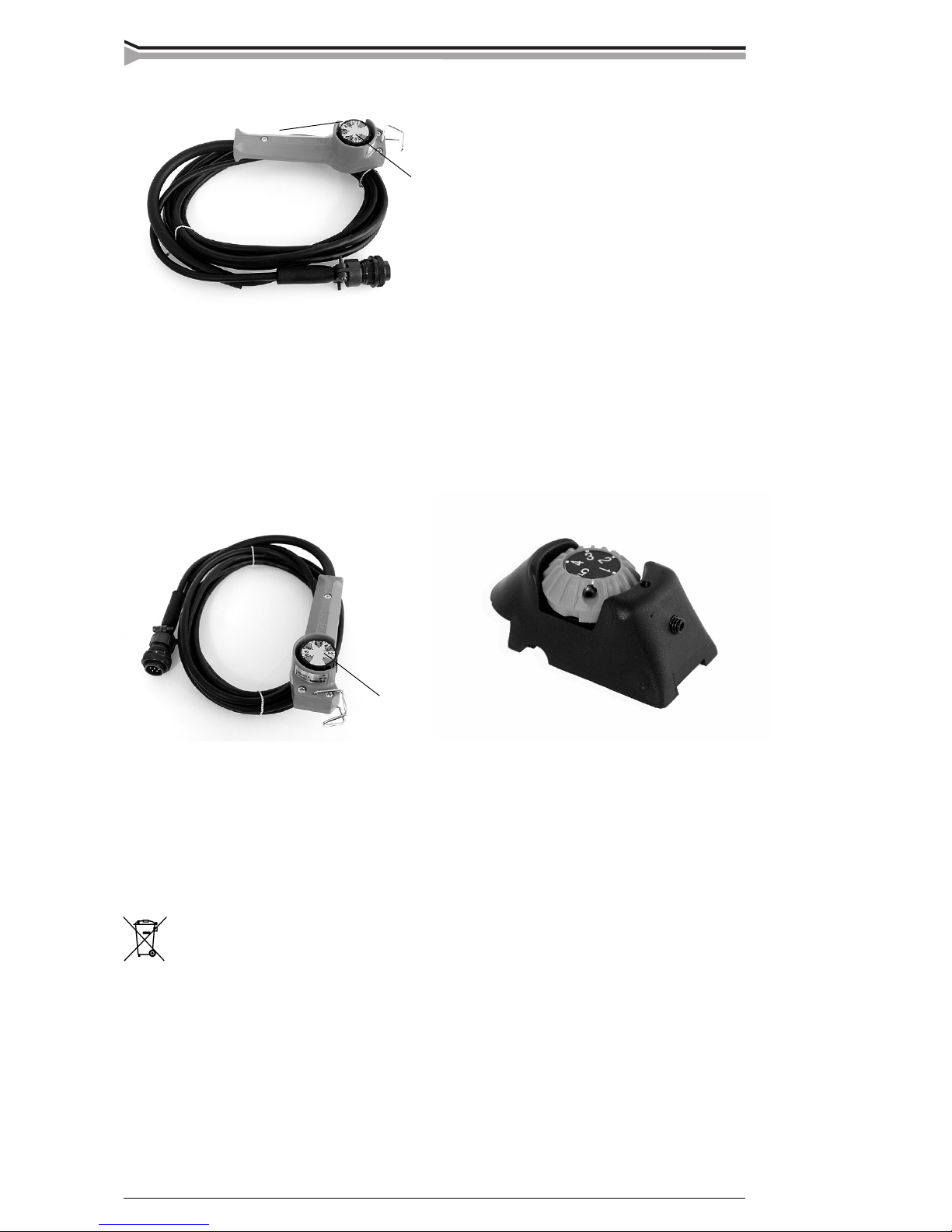

4. OPERATIONS OF REMOTE CONTROL UNITS
MIG R63 Setting for wire feed: I 1…18m/min, II 1…25m/min
R61 Setting for voltage: 10 V…max. voltage of power source (35…45V)
Selecto R63 Channel selection: 1…5 corresponding to settings 1, 4, 6, 8, 10 of knob
R61 Fine adjustment for arc length: 1…10
Synergic MIG R63 Setting for power (wire feed speed): according to wire min. … max.
R61 Fine adjustment for arc length: 1…10
Synergic PULSMIG R63 Setting for power (wire feed speed): according to wire min. … .max.
R61 Fine adjustment for arc length: 1…10
MMA R63 Setting for power: 10 A…max. power of power source
R61 NO OPERATION
MIG R61 Setting for wire feed: I 1…18m/min, II 1…25m/min
Selecto R61 Channel selection: 1...5 corresponds in the R10 settings 1, 4, 6, 8, 10 of knob
Synergic MIG R61 Setting for power (wire feed speed): according to wire min …. max.
Synergic PULSMIG R61 Setting for power (wire feed speed): according to wire min. … max.
MMA R61 Setting for power: 10 A…max.power of power source
5. DISPOSAL OF THE MACHINE
Do not dispose of electrical equipment together with normal waste!
In observance of European Directive 2002/96/EC on Waste Electrical and Electronic Equipment and
its implementation in accordance with national law, electrical equipment that has reached the end of
its life must be collected separately and returned to an environmentally compatible recycling facility.
As the owner of the equipment, you should get information on approved collection systems from our
local representative.
By applying this European Directive you will improve the environment and human health!

Promig 100/0601 – 17
© KEMPPI OY

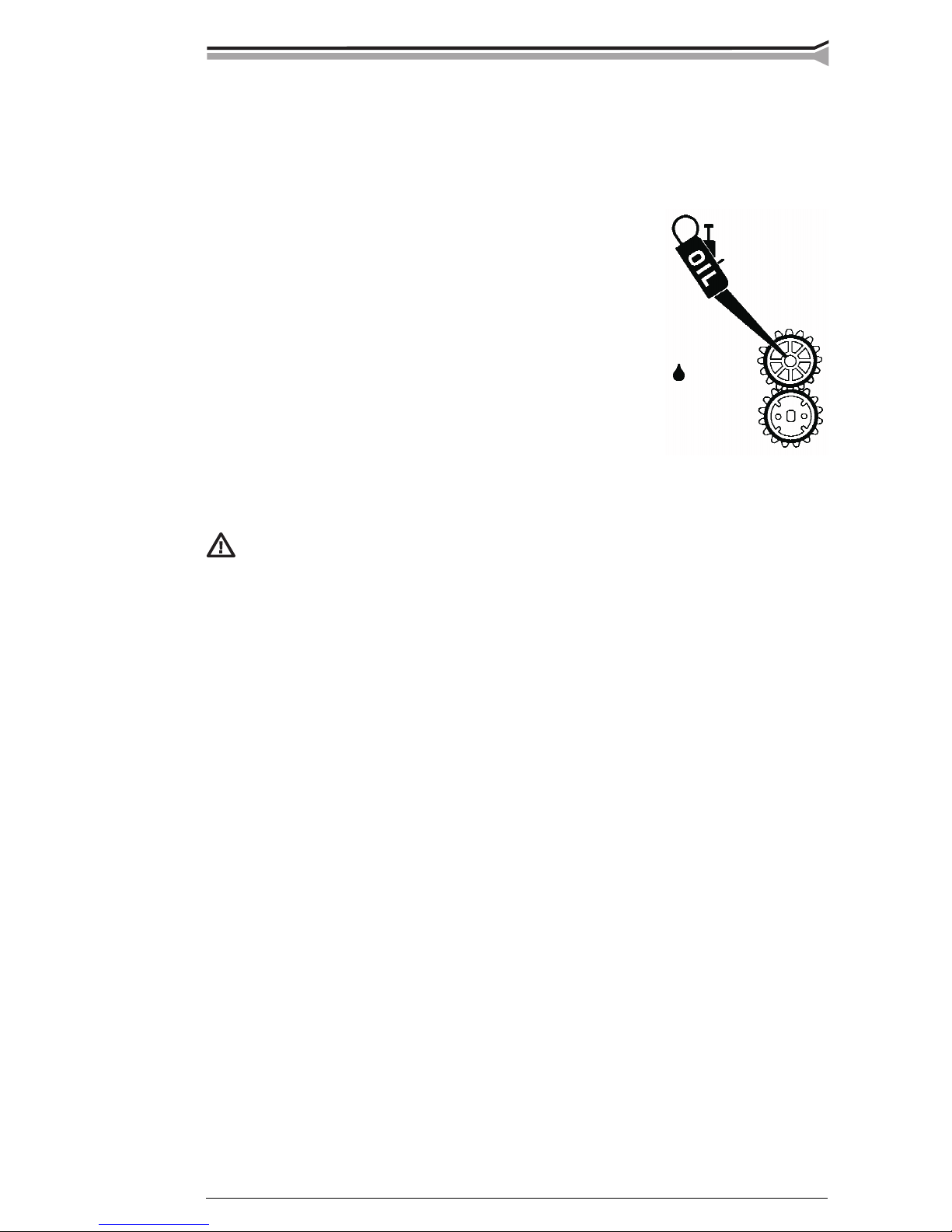

6. SERVICE, OPERATION DISTURBANCES
The amount of use and the working environment should be taken into consideration when
planning the frequency of maintenance of Promig.
Careful use and preventive maintenance will help to ensure trouble-free operation.
The following maintenance operations should be carried out at least every six months:
Check:
- The wear of the grooves of the feed rolls. Excessive wear of groo-
ves causes problems in wire feed.
- The wear of the wire guide tubes of wire feed. Badly worn feed
rolls and wire guide tubes should be discarded.
- The wire guide tube in the gun connector should be set as near
the feed rolls as possible, but not touching them and the wire must
follow a straight line from the end of the tube to the groove of
the feed roll.
- Reel brake adjustment
- Electric connections
* oxidized couplings must be cleaned
* loose couplings must be tightened
Clean dust and dirt from the equipment.
When using compressed air, always protect your eyes
with proper eye protection.
In case of problems contact the Kemppi works in Lahti, Finland or your Kemppi dealer.
twice a
year
7. ORDERING NUMBERS
Promig 100 6236305
Promig 501 6231501
Promig 501L 6232505
Promig 530 6232530
Prosync 50 6263121
Pro 3200 6131320
Pro 4200 6131420
Pro 5200 6131520
Procool 10 6262012
Procool 30 6262016
P40 6185264
P30W 6185409
RMT10 6185475
R10 6185409
R20 6185419
5 /0,95 m 4269340
8 /1,5 m 4269030
16d/10 m 6185481
20 /5 m - 50 mm26184511
20 /5m - 70 mm26184711
21 /5 m - 50 mm26184501
21 /5m - 70 mm26184701
Hub for wire reel 4289880

18 – Promig 100/0601 © KEMPPI OY
8. TECHNICAL DATA
Working voltage (safety voltage) 50 VDC
Rated power 150 W
Max. load of sub-feeder
(nominal values) 60 % ED 500 A
100 % ED 390 A
Max. load of intermediate cables
Air-cooled K 60 % ED 350 A
100 % ED 270 A
Liquid-cooled W 60 % ED 500 A
100 % ED 390 A
Operation principle 4 roll feed
Diameter of feed roll 32 mm
Wire feed speed I 0…18m/min
Wire feed speed II 1) 0…25m/min
Filler wires to be welded
Steel, solid wire ø 0,8… 1,6 mm
Steel, cored wire ø 0,8… 1,6 mm
Stainless steel ø 0,8… 1,6 mm
Aluminium ø 1,0… 1,6 mm
Gun adaptor Euro adaptor
Operation temperature range - 20…+ 40 °C
Storage temperature range - 40…+ 60 ° C
Degree of protection IP 23
The product meets conformity requirements for CE marking.
Dimensions of sub-feeder length 575 mm
width 185 mm
height 200 mm
Weight 8,9 kg
Lengths of intermediate cables 15 m and 25 m
1) Speed range is changed by changing the gear wheel of motor both in the Promig 100 sub-
feeder and in the Promig 501, 501L and 530 wire feeder. In addition you must change the
place of the jumper block selection on circuit card A001 of the Promig 501, 501L and 530.

Promig 100/0601 – 19
© KEMPPI OY
9. TERMS OF GUARANTEE
Kemppi Oy provides a guarantee for products manufactured and sold by them if defects in
manufacture and materials occur. Guarantee repairs must be carried out only by an Authorised
Kemppi ServiceAgent. Packing, freight and insurance costs to be paid by orderer. The guarantee is
effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee
are not binding on guarantor.
Limitations on guarantee
The following conditions are not covered under the terms of guarantee: defects due to natural wear
and tear, non-compliance with operating and maintenance instructions, connection to incorrect or
faulty supply voltage (including voltage surges outside equipment spec.), incorrect gas pressure,
overloading, transport or storage damage, fire of damage due to natural causes i.e. lightning or
flooding.
This guarantee does not cover direct or indirect travelling costs, daily allowances or accommodation.
Note: Under the terms of guarantee, welding torches and their consumables, feeder drive rolls and
feeder guide tubes are not covered. Direct or indirect damage due to a defective product is not
covered under the guarantee. The guarantee is void if changes are made to the product without
approval of the manufacturer, or if repairs are carried out using non-approved spare parts.
The guarantee is also void if repairs are carried out by non-authorised agents.
Undertaking guarantee repairs
Guarantee defects must be informed to Kemppi or authorised Kemppi Service Agents within the
guarantee period. Before any guarantee work is undertaken, the customer must provide proof of
guarantee or proof of purchase, and serial number of the equipment in order to validate the guarantee.
The parts replaced under the terns of guarantee remain the property of Kemppi.
Following the guarantee repair, the guarantee of the machine or equipment, repaired or replaced,
will be continued to the end of the original guarantee period.

KEMPPI OY
PL 13
FIN – 15801 LAHTI
FINLAND
Tel [phone]
Telefax [phone]
www.kemppi.com
KEMPPIKONEET OY
PL 13
FIN – 15801 LAHTI
FINLAND
Tel [phone]
Telefax [phone]
e-mail: myynti.fi@kemppi.com
KEMPPI SVERIGE AB
Box 717
S – 194 27 UPPLANDS VÄSBY
SVERIGE
Tel [phone]
Telefax [phone] 94
e-mail: [e-mail]
KEMPPI NORGE A/S
Postboks 2151, Postterminalen
N – 3103 TØNSBERG
NORGE
Tel [phone]
Telefax 33 34 60 10
e-mail: [e-mail]
KEMPPI DANMARK A/S
Literbuen 11
DK – 2740 SKOVLUNDE
DANMARK
Tel [phone]
Telefax 44 941 536
e-mail:[e-mail]
KEMPPI BENELUX B.V.
Postbus 5603
NL – 4801 EA BREDA
NEDERLAND
Tel [phone]
Telefax [phone]
e-mail: [e-mail]
KEMPPI (UK) Ltd
Martti Kemppi Building
Fraser Road
Priory Business Park
BEDFORD, MK443WH
ENGLAND
Tel [phone]
Fax [phone]
e-mail: [e-mail]
KEMPPI FRANCE S.A.
65 Avenue de la Couronne des Prés
78681 EPONE CEDEX
FRANCE
Tel [phone]
Telefax (01) 30 90 04 45
e-mail: [e-mail]
KEMPPI GmbH
Otto – Hahn – Straße 14
D – 35510 BUTZBACH
DEUTSCHLAND
Tel [phone]
Telefax (06033) 72 528
e-mail:[e-mail]
KEMPPI SP. z o.o.
Ul. Piłsudskiego 2
05-091 ZA¸BKI
Poland
Tel [phone]
Telefax [phone]
e-mail: [e-mail]
KEMPPI WELDING
MACHINES AUSTRALIA PTY LTD
P.O. Box 404 (2/58 Lancaster Street)
Ingleburn NSW 2565, Australia
Tel. [phone]
Telefax [phone]
e-mail: [e-mail]
www.kemppi.com
Ver. 9
