Kenall Tekdek led tl50 User manual

www.kenall.com |P: 800-4-Kenall |F: 262-891-9701 |10200 55th Street Kenosha, Wisconsin 53144, USA

This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents

INSTALLATION INSTRUCTIONS

TD17-TL_F-5589_091118

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed, including the following:

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH

THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS

BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT TO

AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.

SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING

ORIENTATION, OR MOUNTING RESTRICTIONS.

SAVE THESE INSTRUCTIONS

Luminaire for Parking Garages

TEKDEK™LED

TL50 SENSOR ADJUSTMENT FOR TD17

2. Hold cone rmly and twist sensor lens off.

Cone

Sensor Lens

3. Adjust sensor to desired time, Mode and Dim Level (see page 4)

1. Remove four (4) lens screws for sensor

time adjustment.

Lens Screws

4. Reverse steps 8-10 for re-assembly.

www.kenall.com |P: 800-4-Kenall |F: 262-891-9701 |10200 55th Street Kenosha, Wisconsin 53144, USA

This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents

INSTALLATION INSTRUCTIONS

TD17-TL_F-5589_091118

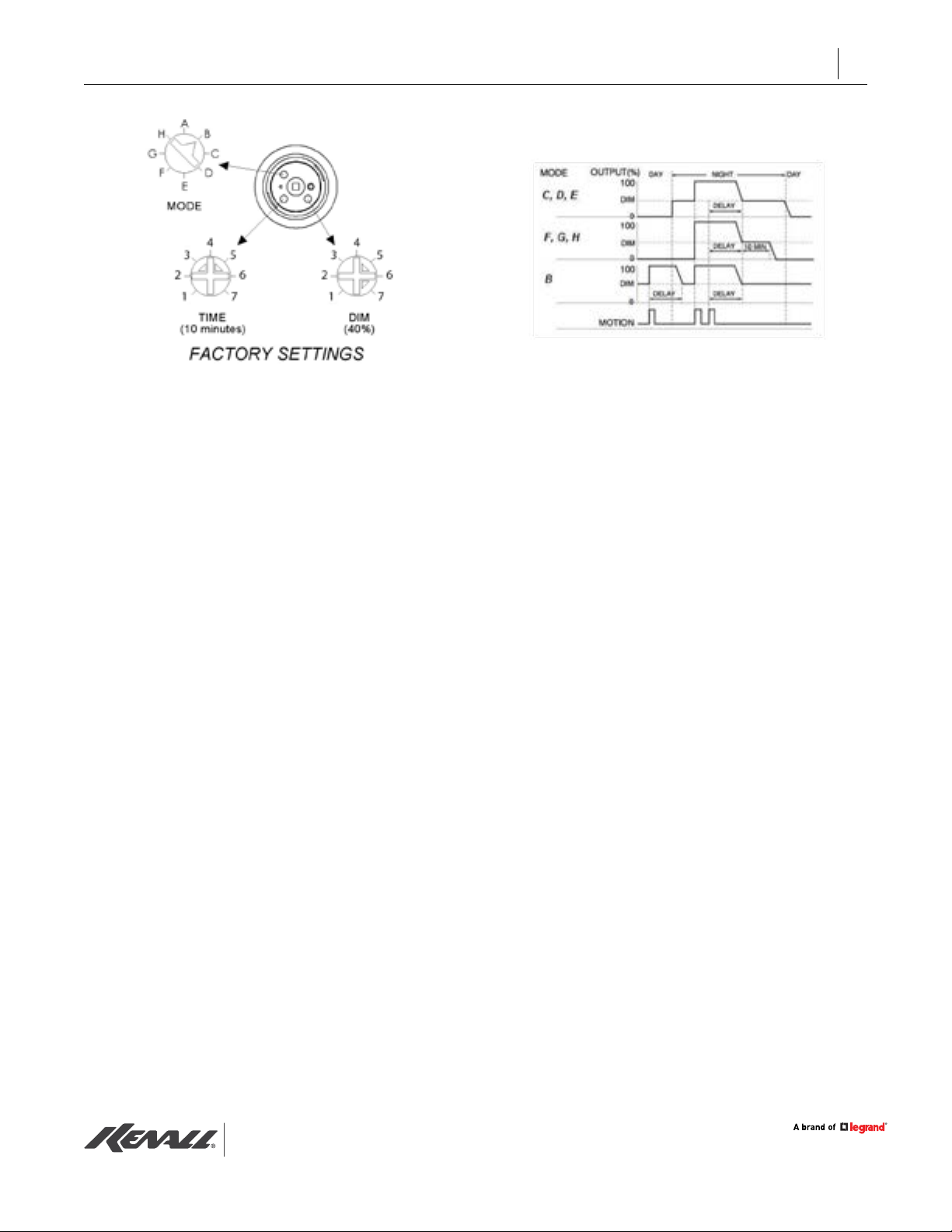

FOR TL50 SENSOR ADJUSTMENT

MODE

A. Testing: This mode used to test the sensor is operational

- Light will switch ON for 5 seconds and dim for 10 seconds when movement is detected.

B. Hi-Low (Factory Setting): Luminaire will go full ON during occupancy & move to the DIM level during non-

occupancy.

C. Daylighting-low: 20 ~ 50 lux

D. Daylighting-mid: 80 ~ 130 lux

E. Daylighting-high: 500 ~ 600 lux

For modes C, D, and E, when ambient light level exceeds the above estimated values, the luminaire will turn

OFF. When the ambient light is below this threshold, the luminaire will go full ON during occupancy and move

to the DIM level during non-occupancy.

F. Daylighting-low with Time-off delay: 20 ~ 50 lux

G. Daylighting-mid with Time-off delay: 80 ~ 130 lux

H. Daylighting-high with Time-off delay: 500 ~ 600 lux

For modes F, G, and H, when ambient light level exceeds the above estimated values, the luminaire will turn

OFF. When the ambient light is below this threshold, the luminaire will go full ON during occupancy and move

to the DIM level after sensor time-out expires. If occupancy is not detected after 10 minutes of the time-out

expiring, the luminaire will turn OFF.

Note: Light level not guaranteed as the environment will affect actual light level readings.

Setting Time-Out Dim-Level

1 1 min 0%

2 3 min 15%

3 5 min 20%

4 10 min 25%

5 15 min 30%

6 20 min 40%

7 30 min 50%
