Kendro HERAsafe KS 9 User manual
Kendro
Operating
Instructions
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
Valid:
07.2003
/
50077504

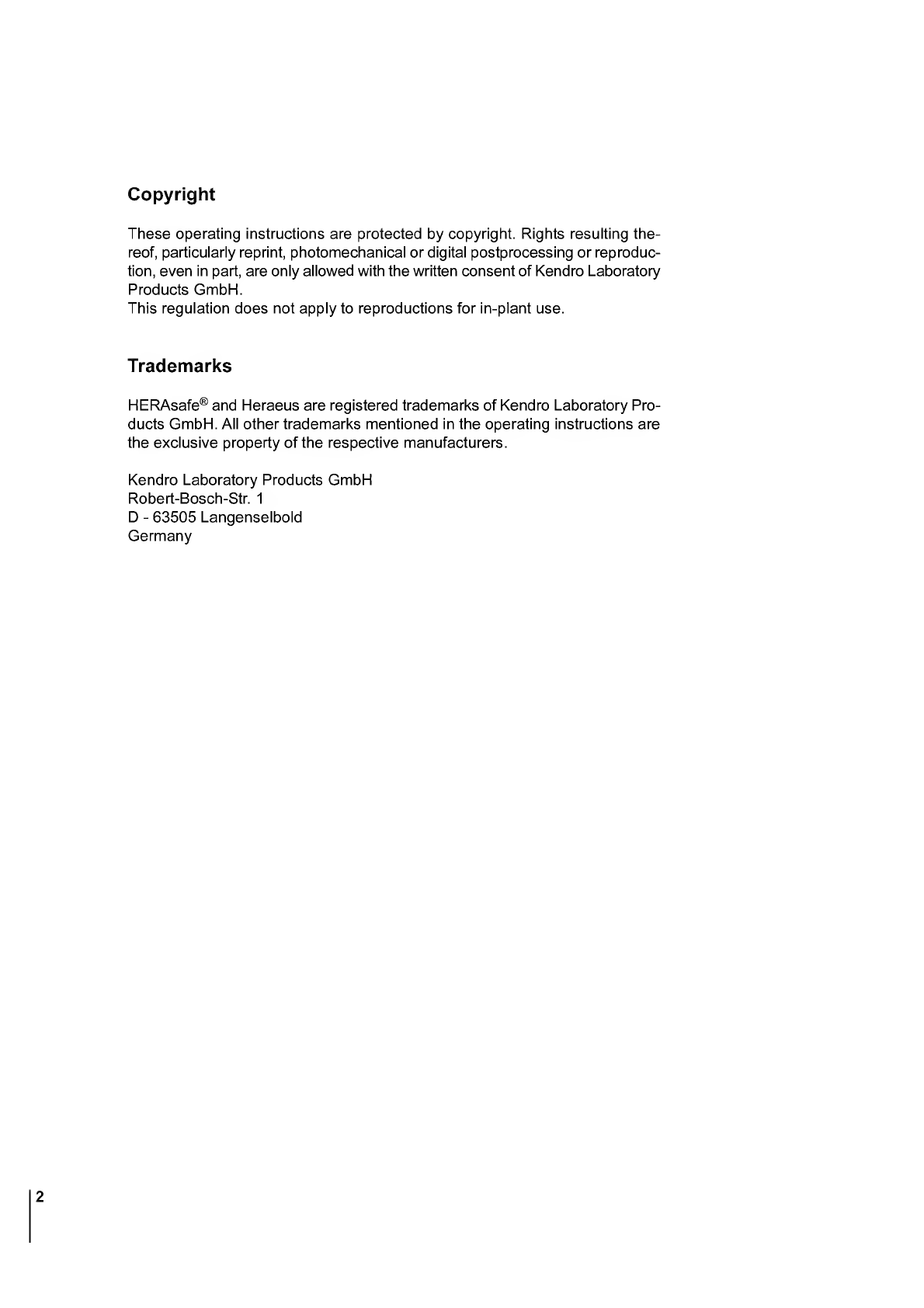

Copyright
These
operating
instructions
are
protected
by
copyright.
Rights
resulting
the¬
reof,
particularly
reprint,
photomechanical
or
digital
postprocessing
or
reproduc¬
tion,
even
in
part,
are
only
allowed
with
the
written
consent
of
Kendro
Laboratory
Products
GmbH.
This
regulation
does
not
apply
to
reproductions
for
in-plant
use.
Trademarks
HERAsafe®
and
Heraeus
are
registered
trademarks
of
Kendro
Laboratory
Pro¬
ducts
GmbH.
All
other
trademarks
mentioned
in
the
operating
instructions
are
the
exclusive
property
of
the
respective
manufacturers.
Kendro
Laboratory
Products
GmbH
Robert-Bosch-Str.
1
D
-
63505
Langenselbold
Germany
••Kendro
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe

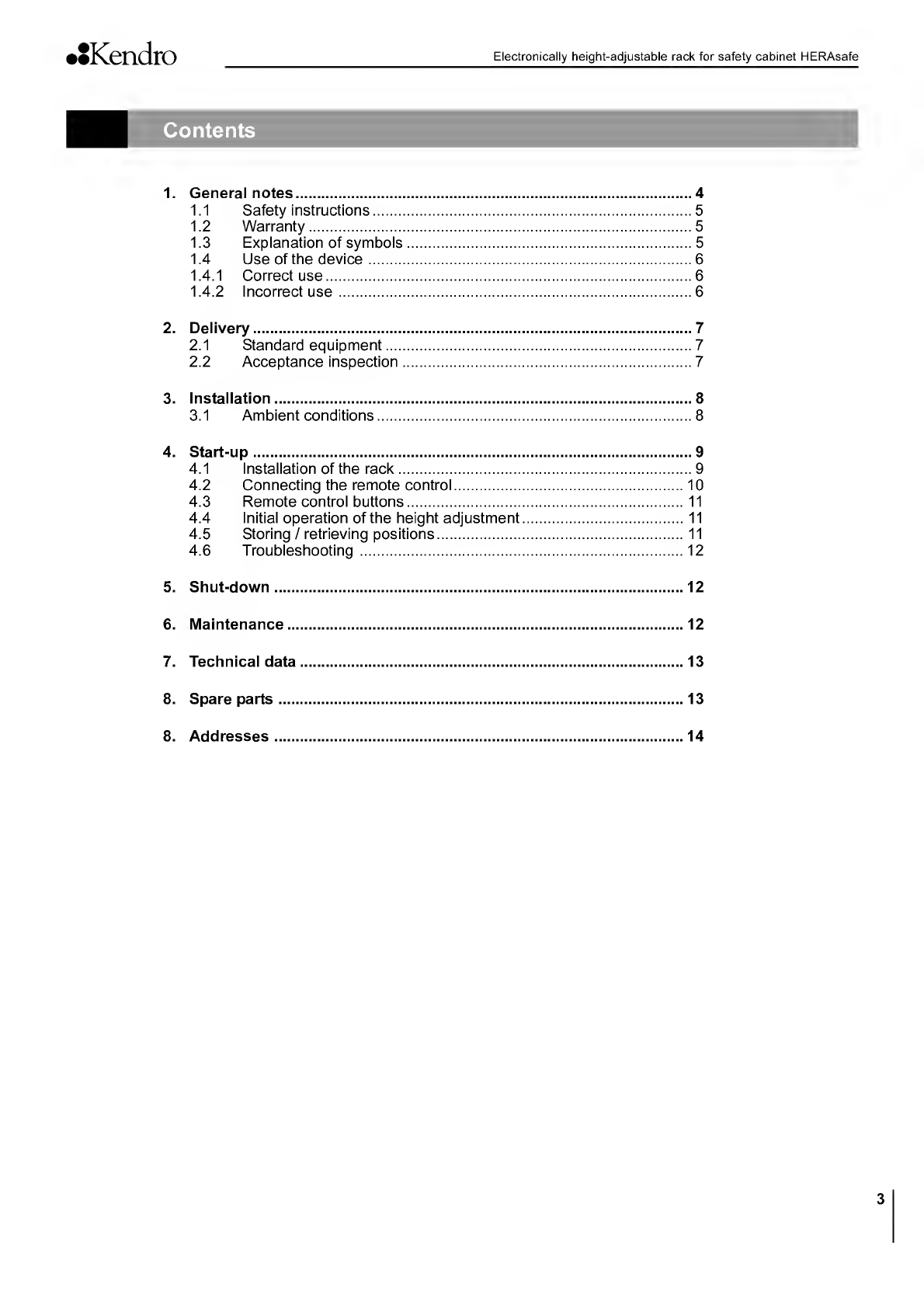

Contents
1.
General
notes.4
1.1
Safety
instructions.5
1.2
Warranty.5
1.3
Explanation
of
symbols.5
1.4
Use
of
the
device.6
1.4.1
Correct
use.6
1.4.2
Incorrect
use.6
2.
Delivery.7
2.1
Standard
equipment.7
2.2
Acceptance
inspection.7
3.
Installation.8
3.1
Ambient
conditions.8
4.
Start-up.9
4.1
Installation
of
the
rack.9
4.2
Connecting
the
remote
control.10
4.3
Remote
control
buttons.11
4.4
Initial
operation
of
the
height
adjustment.11
4.5
Storing
/
retrieving
positions.11
4.6

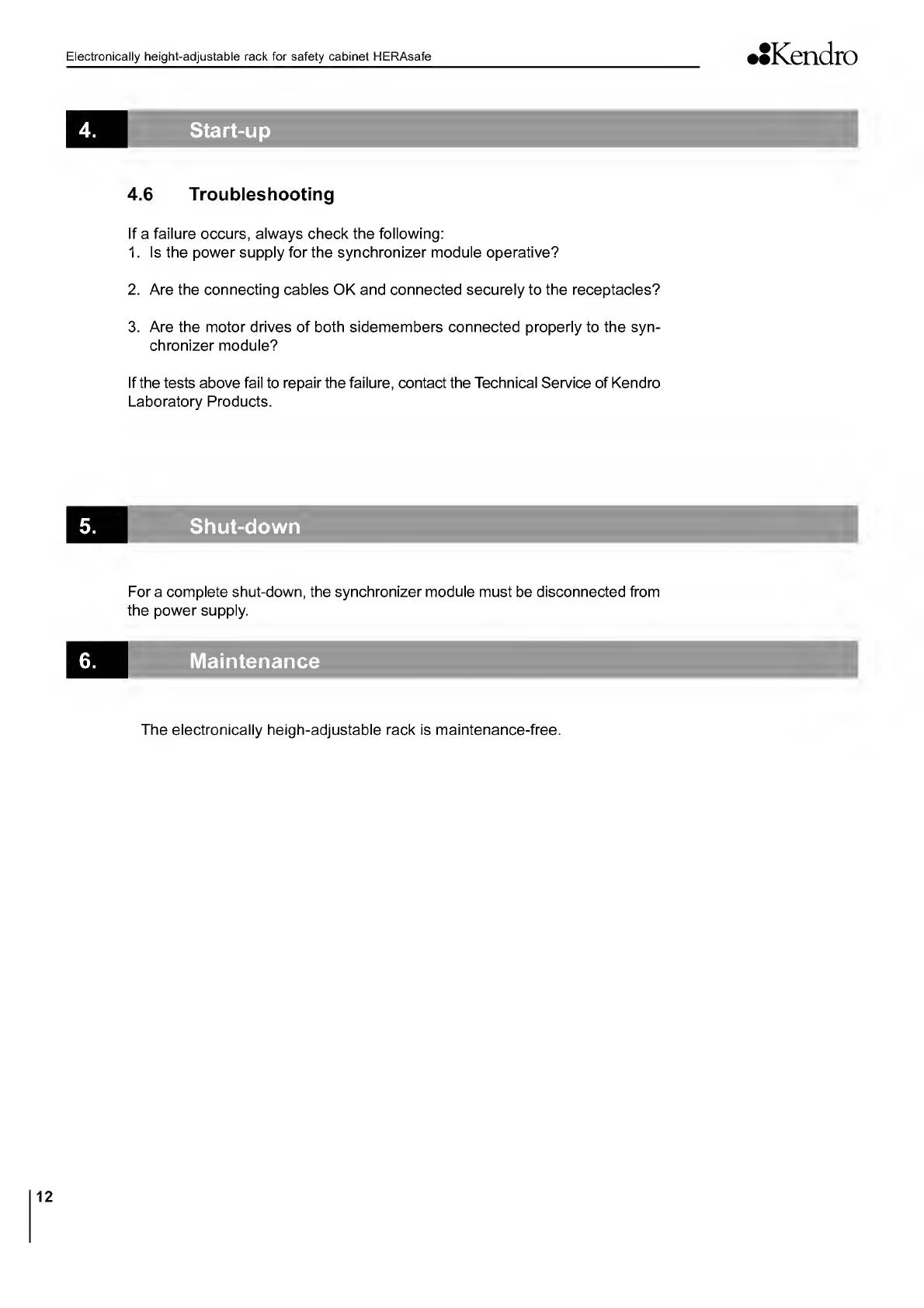

Troubleshooting.12
5.
Shut-down.12
6.
Maintenance.12
7.
Technical
data.13
8.
Spare
parts.13
8.
Addresses.14
3
The
following
are
the
addresses
of
the
international
Kendro
Sales
Organisations.
Postal
address
Germany
Postal
address
USA
Kendro
Laboratory
Products
GmbH
Kendro
Laboratory
Products
Inc.
Robert-Bosch-Stralie
1
275
Aiken
Road
D
-
63505
Langenselbold
Asheville,
NC
28804
USA
Enquiries
from
Germany
Enquiries
from
North
America
Phone
Phone
+1
800-879
7767
Sale
0800
1
536376
Fax
+1
828-658
0363
Service
0800
1
112110
E-Mail
Fax
Sale/Service
0800
1
112114
Enquiries
from
Latin
America
E-Mail
Phone
+1
828-658
2711
Fax
+1
828-645
9466
Enquiries
from
Europe,
Middle
East
E-Mail
and
Africa
Phone
+49
(0)6184/90-6940
Enquiries
from
Asia
Pacific
Fax
+
49
(0)
6184/
90-7474
Phone
+852-2711
3910
E-Mail
Fax
+852-2711
3858
E-Mail
4
••Kendro
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
1.
General
notes
1.1
Safety
instructions
These
safety
instructions
describe
the
height-adjustable
rack
for
the
safety
cabinet
HERAsafe.
The
height-adjustable
rack
has
been
manufactured
in
keeping
with
the
latest
technological
developments
and
has
been
tested
before
delivery
for
its
correct
function.
It
may,
however,
present
potential
hazards
if
it
is
not
used
according
to
the
intended
purpose
or
outside
of
operating
parameters.
Therefore,
the
fol¬
lowing
procedures
must
always
be
observed
for
safety
reasons:
•
The
height-adjustable
rack
must
be
operated
only
by
trained
and
authorized
personnel.
•
Repairs
to
the
rack
must
be
carried
out
only
by
trained
and
authorized
ex¬
pert
personnel.
•
The
contents
of
the
operating
instructions
are
subject
to
change
without
further
notice.
•
For
translations
into
foreign
languages,
the
German
version
of
these
ope¬
rating
instructions
is
binding.lease
•
Keep
these
operating
instructions
close
to
the
device
so
that
safety
instructions
and
important
information
are
always
accessible.
•
Should
you
encounter
problems
that
are
not
detailed
adequately
in
these
ope¬
rating
instructions,
please
contact
Kendro
Laboratory
Products
immediate¬
ly
for
your
own
safety.
1.2
Warranty
Kendro
Laboratory
Products
warrant
the
operational
safety
and
functions
of
the
electronically
height-adjustable
rack
only
under
the
condition
that:
•
the
rack
is
operated
and
serviced
exclusively
in
accordance
with
its
inten¬
ded
purpose
and
as
described
in
these
operating
instructions,
•
the
rack
is
not
modified,
•
only
original
spare
parts
and
accessories
that
have
been
approved
by
Kendro
Laboratory
Products
are
used.
Der
Gewahrleistungszeitraum
beginnt
mit
der
Auslieferung
der
Vorrichtung
an
den
Besteller.
5
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
IKendro
1.
General
notes

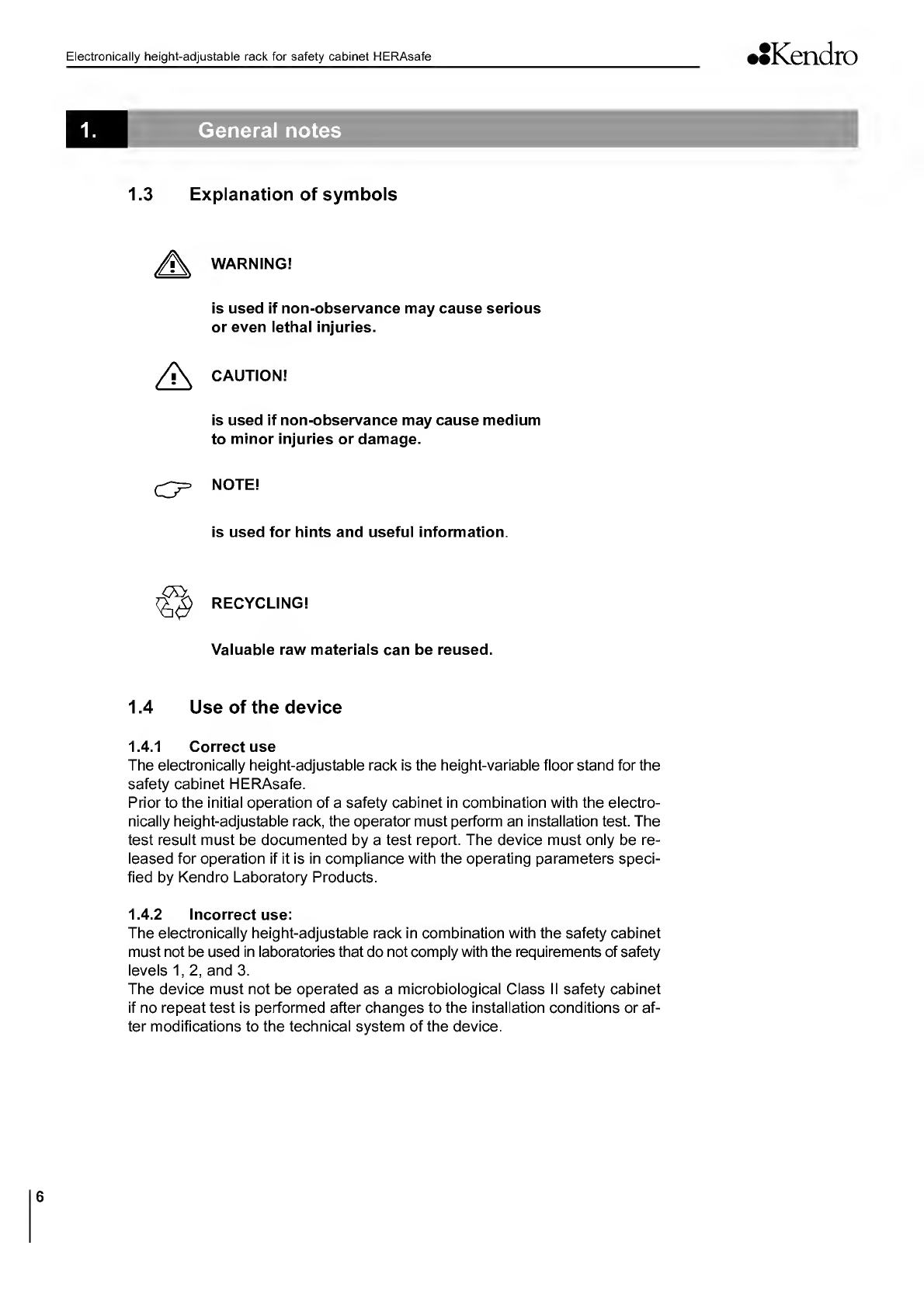

1.3
Explanation
of
symbols
/
■
V
WARNING!
is
used
if
non-observance
may
cause
serious
or
even
lethal
injuries.
/i\
CAUTION!
is
used
if
non-observance
may
cause
medium
to
minor
injuries
or
damage.
NOTE!
is
used
for
hints
and
useful
information.
RECYCLING!
Valuable
raw
materials
can
be
reused.
1.4
Use
of
the
device
1.4.1
Correct
use
The
electronically
height-adjustable
rack
is
the
height-variable
floor
stand
for
the
safety
cabinet
HERAsafe.
Prior
to
the
initial
operation
of
a
safety
cabinet
in
combination
with
the
electro¬
nically
height-adjustable
rack,
the
operator
must
perform
an
installation
test.
The
test
result
must
be
documented
by
a
test
report.
The
device
must
only
be
re¬
leased
for
operation
if
it
is
in
compliance
with
the
operating
parameters
speci¬
fied
by
Kendro
Laboratory
Products.
1.4.2
Incorrect
use:
The
electronically
height-adjustable
rack
in
combination
with
the
safety
cabinet
must
not
be
used
in
laboratories
that
do
not
comply
with
the
requirements
of
safety
levels
1,
2,
and
3.
The
device
must
not
be
operated
as
a
microbiological
Class
II
safety
cabinet
if
no
repeat
test
is
performed
after
changes
to
the
installation
conditions
or
af¬
ter
modifications
to
the
technical
system
of
the
device.
6
••Kendro
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe

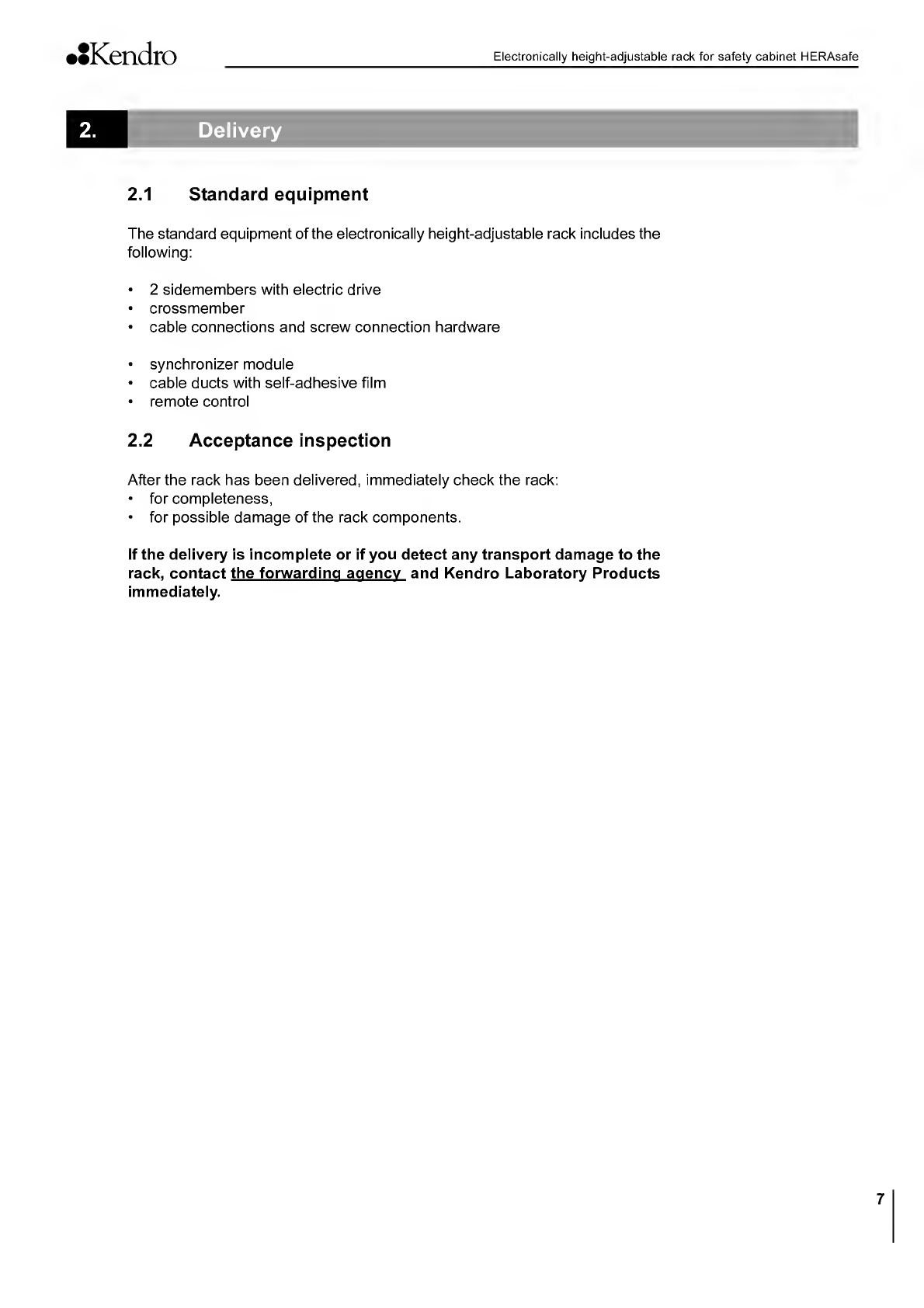

2.
Delivery
2.1
Standard
equipment
The
standard
equipment
of
the
electronically
height-adjustable
rack
includes
the
following:
•
2
sidemembers
with
electric
drive
•
crossmember
•
cable
connections
and
screw
connection
hardware
•
synchronizer
module
•
cable
ducts
with
self-adhesive
film
•
remote
control
2.2
Acceptance
inspection
After
the
rack
has
been
delivered,
immediately
check
the
rack:
•
for
completeness,
•
for
possible
damage
of
the
rack
components.
If
the
delivery
is
incomplete
or
if
you
detect
any
transport
damage
to
the
rack,
contact
the
forwarding
aaencv
and
Kendro
Laboratory
Products
immediately.
7
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
••Kendro
3.
Installation
3.1
Ambient
conditions
The
operational
safety
and
correct
function
of
the
rack
depend
on
the
location
where
it
is
to
be
operated.
The
safety
cabinet
in
combination
with
the
electro¬
nically
heigh-adjustable
rack
must
be
operated
only
at
locations
that
meet
the
ambient
conditions
listed
below.
Location
requirements:
•
The
electrical
system
of
the
device
has
been
designed
for
an
operating
height
of
up
to
2000
m
above
sea
level.
•
The
flooring
of
the
location
must
be
adequately
strong
and
not
flammable.
•
The
room
in
which
the
device
is
installed
must
be
of
adequately
height.
For
devices
not
connected
to
an
exhaust
system,
the
distance
between
the
ex¬
haust
air
opening
at
the
device
ceiling
and
the
room
ceiling
must
be
at
least
200
mm.
•
The
temperature
within
the
room
must
be
between
15°
C
and
40°
C.
•
The
relative
humidity
in
the
vicinity
of
the
device
must
not
exceed
90
%.
NOTE
-
Flexible
connections
If
the
safety
cabinet
is
connected
to
an
exhaust
system
or
if
media
connections
are
installed,
flexible
connections
are
required.
NOTE
-
Temporary
storage
If
the
rack
and
the
electronic
components
are
stored
only
temporarily
(up
to
four
weeks),
the
ambient
temperature
may
be
between
-20°
C
and
+60°
C
at
a
relative
air
humidity
of
up
to
90
%.
For
longer
storage
periods,
the
location
re¬
quirements
apply.
8
IKendro
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
Start-up

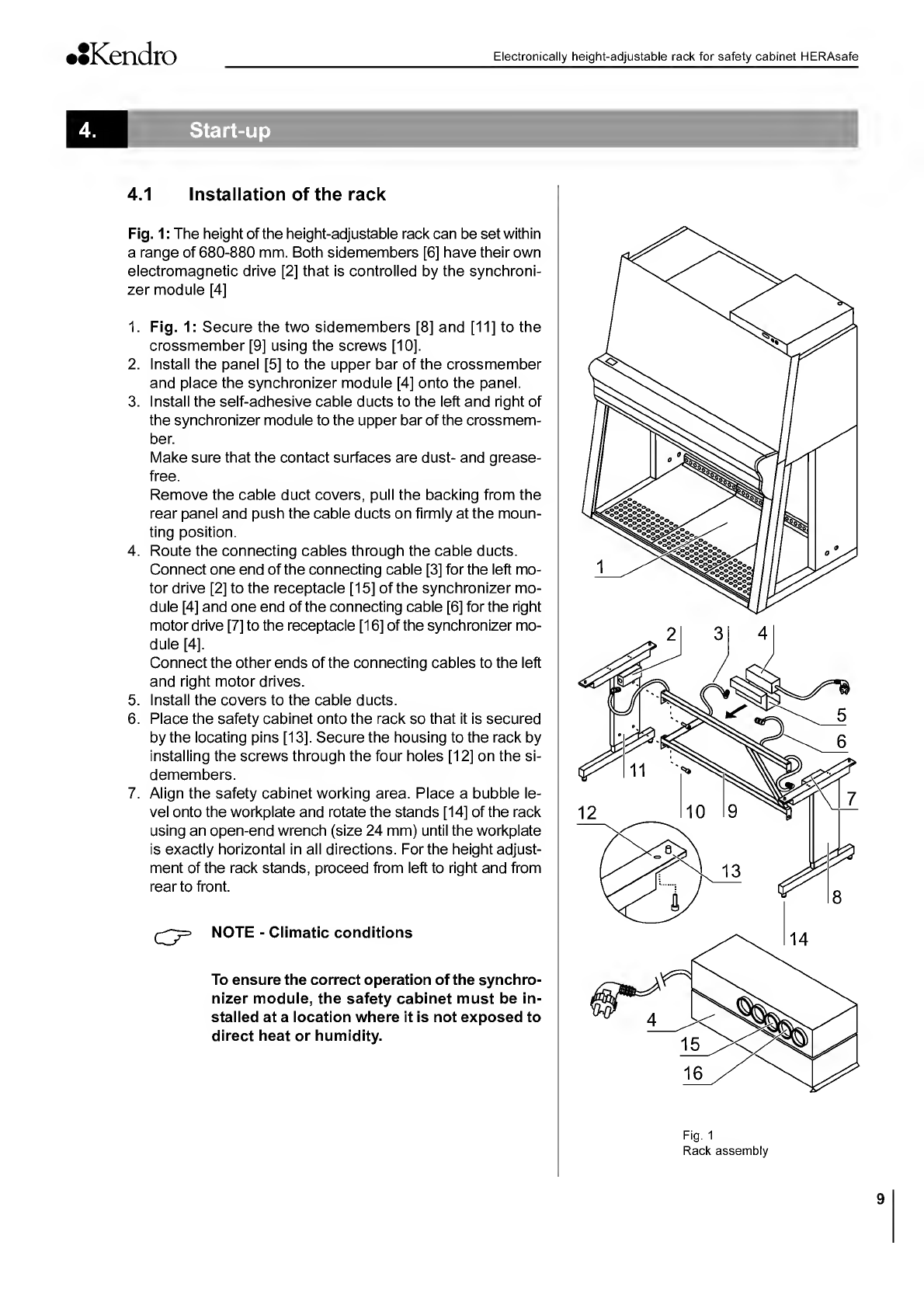

4.1
Installation
of
the
rack
Fig-1
:
The
height
of
the
height-adjustable
rack
can
be
set
within
a
range
of
680-880
mm.
Both
sidemembers
[6]
have
their
own
electromagnetic
drive
[2]
that
is
controlled
by
the
synchroni¬
zer
module
[4]
1.
Fig.
1
:
Secure
the
two
sidemembers
[8]
and
[11]
to
the
crossmember
[9]
using
the
screws
[10].
2.
Install
the
panel
[5]
to
the
upper
bar
of
the
crossmember
and
place
the
synchronizer
module
[4]
onto
the
panel.
3.
Install
the
self-adhesive
cable
ducts
to
the
left
and
right
of
the
synchronizer
module
to
the
upper
bar
of
the
crossmem¬
ber.
Make
sure
that
the
contact
surfaces
are
dust-
and
grease-
free.
Remove
the
cable
duct
covers,
pull
the
backing
from
the
rear
panel
and
push
the
cable
ducts
on
firmly
at
the
moun¬
ting
position.
4.
Route
the
connecting
cables
through
the
cable
ducts.
Connect
one
end
of
the
connecting
cable
[3]
for
the
left
mo¬
tor
drive
[2]
to
the
receptacle
[15]
of
the
synchronizer
mo¬
dule
[4]
and
one
end
of
the
connecting
cable
[6]
for
the
right
motor
drive
[7]
to
the
receptacle
[16]
of
the
synchronizer
mo¬
dule
[4],
Connect
the
other
ends
of
the
connecting
cables
to
the
left
and
right
motor
drives.
5.
Install
the
covers
to
the
cable
ducts.
6.
Place
the
safety
cabinet
onto
the
rack
so
that
it
is
secured
by
the
locating
pins
[13],
Secure
the
housing
to
the
rack
by
installing
the
screws
through
the
four
holes
[12]
on
the
si¬
demembers.
7.
Align
the
safety
cabinet
working
area.
Place
a
bubble
le¬
vel
onto
the
workplate
and
rotate
the
stands
[14]
of
the
rack
using
an
open-end
wrench
(size
24
mm)
until
the
workplate
is
exactly
horizontal
in
all
directions.
For
the
height
adjust¬
ment
of
the
rack
stands,
proceed
from
left
to
right
and
from
rear
to
front.
NOTE
-
Climatic
conditions
To
ensure
the
correct
operation
of
the
synchro¬
nizer
module,
the
safety
cabinet
must
be
in¬
stalled
at
a
location
where
it
is
not
exposed
to
direct
heat
or
humidity.
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
IKendro
E
Start-up
4.2
Connecting
the
remote
control
Fig.
2
:
The
height
adjustment
of
the
rack
is
remote-controlled.
The
remote
control
handset
[1]
is
connected
directly
to
the
receptacle
of
the
synchronizer
module;
the
connecting
cable
supplies
the
handset
with
voltage.
1.
Connect
the
connector
[2]
of
the
connecting
cable
to
the
receptacle
[5]
of
the
synchronizer
module
[4].
WARNING
-
High
voltage!
Contact
with
current-carrying
components
may
cause
a
lethal
electric
shock.
Before
connecting
the
device
to
the
power
sup¬
ply
system,
check
plug
and
power
supply
cable
for
possible
damage.
Do
not
use
damaged
components
to
connect
the
device
to
the
power
supply
system!
Check
the
routing
of
the
connecting
cables.
The
traveling
motion
of
the
rack
must
not
cau¬
se
the
connecting
cables
to
be
pinched
or
squeezed!
2.
Connect
the
grounding
plug
[3]
of
the
synchronizer
module
to
a
properly
grounded
and
fused
outlet.
3.
Make
sure
that
the
cables
are
not
subject
to
tensile
or
pres¬
sure
forces
and
that
the
traveling
motion
of
the
rack
does
not
cause
the
connecting
cables
to
be
pinched
or
squee¬
zed.
Remote
control
connection
10
••Kendro
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
E
Start-up
4.3
R
emote
control
buttons
Fig.
3
:
The
handset
has
a
total
of
seven
function
buttons.
[1]
Reset
button
O
for
reinitializing
the
control.
[2]
Down
button
▼▼
for
lowering
the
rack.
[3]
Up
button
▲
A
for
raising
the
rack.
[4]
Store
button
(D
for
selecting
the
store
function.
[5]
Memory
button
©
for
storing
position
1.
[6]
Memory
button
©
for
storing
position
2.
[7]
Memory
button
©
for
storing
position
3.
4.4
Initial
operation
of
the
height
adjustment
Fig.
3
:
For
the
initial
operation
of
the
height
adjustment,
the
synchronizer
module
must
be
initialized.
1.
To
start
initialization:
Press
the
Store
button
(§)
three
times
in
rapid
succession.
2.
Lower
both
sidemembers
all
the
way
down
to
the
stop
(until
the
relays
switches
audibly):
Keep
the
Down
button
TV
depressed.
3.
The
height
adjustment
synchronizer
and
the
remote
con¬
trol
are
now
operational.
4.5
Storing
/
retrieving
positions
Fig.
3:
Positions
can
be
stored
using
the
three
memory
but¬
tons
[5],
[6]
and
[7],
Each
button
can
be
assigned
with
one
position.
If
a
new
psition
is
to
be
stored,
the
existing
position
is
overwritten.
1
_
2
3
Fig.
3
Height
adjustment
start-up
1.
Move
the
rack
to
the
desired
position.
Keep
the
Down
button
TV
/
Up
button
A
A
depressed.
2.
Select
the
store
function:
Press
the
Store
button
(§)
three
times
in
rapid
succession.
3.
Select
the
memory
location:
Press
the
Memory
button
©,
@
or
@.
4.
To
retrieve
a
stored
position
from
the
memory:
Press
the
Memory
button
©,
©
or
©.
11
o
©
©
©
©
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
IKendro
4.
Start-up
4.6
Troubleshooting
If
a
failure
occurs,
always
check
the
following:
1.
Is
the
power
supply
for
the
synchronizer
module
operative?
2.
Are
the
connecting
cables
OK
and
connected
securely
to
the
receptacles?
3.
Are
the
motor
drives
of
both
sidemembers
connected
properly
to
the
syn¬
chronizer
module?
If
the
tests
above
fail
to
repair
the
failure,
contact
the
Technical
Service
of
Kendro
Laboratory
Products.
5.
Shut-down
For
a
complete
shut-down,
the
synchronizer
module
must
be
disconnected
from
the
power
supply.
6.
Maintenance
The
electronically
heigh-adjustable
rack
is
maintenance-free.
12
••Kendro
Electronically
height-adjustable
rack
for
safety
cabinet
HERAsafe
7.
Technical
data
Dimensions:
Height
adjustment
range
680
-
880
mm
Depth
750
mm
Width
KS
9
1000
mm
Width
KS
12
1300
mm
Width
KS
15
1600
mm
Width
KS
18
1900
mm
Input
voltage
EU
230
VAC,
50/60
Hz
Input
voltage
USA/CANADA
115
VAC,
50/60
Hz
Protection
type:
IP
20
Connection
to
power
supply:
EU
230
V
AC
grounded
outlet
USA/CANADA
115V
AC
grounded
outlet
Lift
force
2
x
3000
N
Temperature
resistance:
J
,
.
=
-10°
C
ambient
min.
J
..
,
=
60°
C
ambient
max.
Travel
speed
8
mm/s
8.
Spare
parts
Description
Part
No.
Electrical
lift
unit
left
50078613
Electrical
lift
unit
right
50078614
Synchronizer
module
230
V
50078615
Synchronizer
module
120
V
50078616
Remote
control
50078617
Operating
instructions
50077504
13
•SKendro"
Internet:
http://www.kendro.com
This manual suits for next models
3
Table of contents
Other Kendro Laboratory Equipment manuals
Kendro
Kendro SORVALL Biofuge primo User manual
Kendro
Kendro Labofuge 200 User manual
Kendro
Kendro HERAsafe KS User manual
Kendro
Kendro HERAsafe KS Series Operating instructions
Kendro
Kendro SORVALL RC-6 User manual
Kendro
Kendro Heraeus Multifuge 1 S User manual
Kendro
Kendro Multifuge 3 S-R User manual
Kendro
Kendro HERAcell 150 User manual
Kendro
Kendro Sorvall Legend T User manual
Kendro
Kendro Heraeus Biofuge haemo User manual
Popular Laboratory Equipment manuals by other brands
Waldmann
Waldmann ZAPP! Instructions for use
StellarNet
StellarNet zAP2 user manual
VERDER
VERDER Carbolite Gero AX 120 Installation, operation and maintenance instructions
cytiva
cytiva VIA Thaw L1000 operating instructions
Esco
Esco Labculture User and service manual
ICS Schneider Messtechnik
ICS Schneider Messtechnik testo 865s instruction manual
