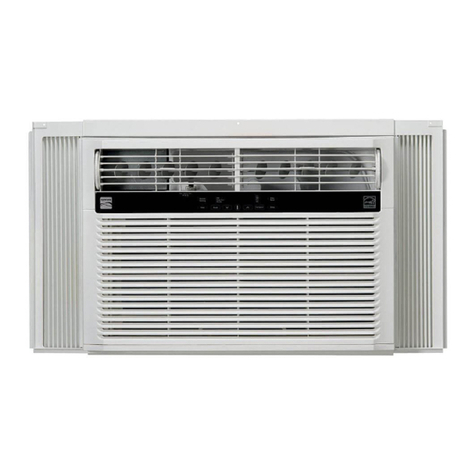

Kenmore 580.77157710 User manual

Kenmore Elite®
Smart Room Air Conditioner
Aire Acondicionado Inteligente Para Habitación
Models/Modelos: 580.77157710 (15000 BTU)
580.77187710 (18000 BTU)
580.77247710 (25000 BTU)
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
MFL66921603
Use & Care Guide
Manual de Uso y Cuidado
SMART
CONTROL

2
TABLE OF CONTENTS PRODUCT RECORD
In the space below, record the date of purchase, model,
and serial number of your product. You will find the
model and serial number printed on an identification
plate located on the outside of the cabinet, or behind
the filter at the bottom of the unit. Use a flashlight to
help read the numbers, or remove the cabinet front as
instructed in the Care and Cleaning section.
Have these items of information available whenever you
contact Sears concerning your product.
Model No.
Date of Purchase
Serial No.
Save these instructions and your sales receipt for future
reference.
IMPORTANT SAFETY INSTRUCTIONS ............................. 3-5
GROUNDING REQUIREMENTS ............................................5
FEATURES AND BENEFITS
Key Parts and Components .....................................................6
Electrical Data ..........................................................................6
INSTALLATION REQUIREMENTS
Key Dimensions and Specifications .......................................7
Items Included ...........................................................................7
Tools Required ...........................................................................7
INSTALLATION INSTRUCTIONS
Window Requirements .............................................................8
Preparation of Cabinet ............................................................8
Cabinet Installation.............................................................. 9-11
HOW TO USE
Control Panel and Remote Control....................................... 12
Inserting the Remote Control Battery................................... 13
Ventilation................................................................................ 13
Air Direction............................................................................. 13
Additional Features ................................................................ 14
Smart Features ........................................................................ 14
FCC Notice .............................................................................. 15
Wireless LAN Module Specifications .................................. 15
Open Source Software Notice.............................................. 15
CARE AND CLEANING
Air Filter.................................................................................... 16
Cleaning the Air Conditioner ................................................ 16
TROUBLESHOOTING GUIDE
Normal Sounds You May Hear............................................. 17
Before Calling for Service ................................................18-19
WARRANTY...................................................................... 20
SERVICE ..........................................................BACK COVER

3
SAFETY MESSAGES
There are many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
Read all instructions before using this air conditioner.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property
damage and/or serious bodily harm or death.
All safety messages will follow the safety alert symbol and the word WARNING or CAUTION as
shown below.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
All safety messages are intended to make you aware of potential hazards and
how to reduce the chances of any injury. The safety message may also point out
the negative consequences in case instructions are not properly followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Risk of Fire or Explosion
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. Read product labels for flammability and
other warnings.
NOTE: The power supply cord with this air conditioner
contains a current detection device designed to reduce
the risk of fire. Refer to the Electrical Data section for
operation of the current device.
In the event that the power supply cord is damaged, it
cannot be repaired, and it must be replaced with a cord
from the product manufacturer.
WARNING
Avoid fire hazard or electric shock.
Do not use an extension cord or an adapter plug.
Do not remove any prong from the power cord.
3-prong
grounding
plug and
current
detection
device
3-prong grounding
type wall receptacle
Do not,
under any
circumstances,
cut, remove,
or bypass the
grounding
prong.
WARNING
Electrical Requirements
The complete electrical rating of your new room air
conditioner is stated on the product label. Refer to the
rating when checking the electrical requirements.
xBe sure the air conditioner is properly grounded. To
minimize shock and fire hazards, proper grounding
is important. The power cord is equipped with a
threeprong grounding plug for protection against
shock hazards.
xThe air conditioner must be connected to a properly
grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected
by a time delay fuse or circuit breaker, have a
qualified electrician install the proper receptacle.
xDo not run air conditioner without cabinet in place.
This could result in mechanical damage within the air
conditioner.
xDo not use an extension cord or an adapter plug.

4
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following.
Basic Safety Precautions
xBe sure the electrical supply is adequate for the model
you have chosen. This information can be found on
the product label, which is located on the side of the
cabinet.
xIf the air conditioner is to be installed in a window,
you will probably want to clean both sides of the glass
first. If the window is a triple-track type with a screen
panel included, remove the screen completely before
installation.
xDuring installation, make sure that the unit is secured
firmly in the window and installed as detailed in the
installation instructions in this Use & Care Guide. Save
this manual and the installation instructions for possible
future use in removing or reinstalling this unit.
xWhen handling the air conditioner, be careful to avoid
cuts from sharp metal fins on front and rear coils.
xUse an assistant to help lift and place the air
conditioner in the window.
Installation
xDo not use a damaged power cord or plug, or connect
to a socket which is loose or damaged.
xDo not modify or extend the power cord.
xDo not disassemble or modify the product.
xDo not place heavy objects on the power cord, and
keep the cord out of traffic areas where it presents a
trip hazard.
xPlug the product into a dedicated outlet. Do not use an
adapter to plug multiple appliances into one outlet.
xDo not place power cord near a heater.
Installation
xFollow installation instructions exactly to avoid
vibration or water leakage.
Operation and Maintenance
xThis product is intended for indoor residential use only,
not for industrial or other commercial applications. The
warranty is void if this product is ever used for other
than private household purposes.
xDo not block the air circulation/ventilation openings.
Operation and Maintenance
xIn the event of a gas leak, do not operate this or any
other appliance. Open doors or windows to ventilate
the room.
xDo not stop or start the product by inserting or pulling
out the power plug.
xIf the power cord needs to be replaced, the work must
be performed by authorized personnel only, using
genuine replacement parts.
xUnplug the product by pulling the plug head, not the
power supply cord.
xDo not operate with wet hands or in a damp
environment.
xDo not open the suction inlet grille of the product
during operation.
xUnplug the product if strange sounds, odors, or smoke
come from it.
xTurn off and unplug the unit before cleaning.
xNever touch the metal parts of the product while
removing the filter.
xDo not allow water to run into electric parts of the
product.
xUse a soft cloth to clean. Do not use wax, thinners, or
strong detergents.
xUnplug the air conditioner when not in use for long
periods.
xFor repair and maintenance, contact an Authorized
Service Center. See the warranty page for details or
call 1-844-553-6667.
xDo not step on the unit or place objects on top of it.
xClean the filter every two weeks. Insert the filter
properly before operating.
xDo not drink water drained from the air conditioner.
xDo not insert hands or objects into the air intake or
outlet during operation.
xIf batteries leak onto skin or clothing, rinse affected
areas well with clean water. Do not use the remote if
the battery has leaked.
xIf battery fluid is ingested, rinse well with water and
consult a physician immediately.
WARNING
CAUTION

5
IMPORTANT SAFETY INSTRUCTIONS
Risk of Fire or Explosion
xDo not use any means to accelerate the defrosting
process or to clean the product, other than those
recommended by the manufacturer.
xStore the appliance in a room without continuously
operating ignition sources such as open flames, an
operating gas appliance or an operating electric
heater.
xDo not pierce or burn the appliance. Be aware that
refrigerants may not contain an odor.
Risk of Fire or Explosion
This unit contains R32, a flammable refrigerant, and has
special safety precautions not normally associated with
older units. Please follow all precautions and advisories.
xUse caution while handling and prevent damage to
the unit. Do not put any holes into the product for any
reason, as this can cause damage to the product and
prevent it from cooling.
xMaintenance and cleaning of the product should be
performed by trained personnel. Failure to properly
clean the product can result in damage to the
refrigeration system and or the electrical system.
xKeep the air circulation/ventilation openings free from
obstruction.
xService should only be performed by technicians
properly trained and certified in the use of flammable
refrigerants. Any service performed by unauthorized
servicers/individuals will void all warranties.
xWhen storing the appliance, do not put in a room with
any open flame appliances, such as gas water heaters
or furnaces. Also keep away from electric heaters.
Damaged units should be repaired before storage.
CAUTIONWARNING
GROUNDING REQUIREMENTS
Grounding Instructions
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped
with a cord having an equipment-grounding conductor
and grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
DO NOT CUT OR REMOVE THE THIRD
(GROUND) PRONG FROM THE POWER PLUG.
IMPORTANT: Please read carefully.
To Connect Electricity
WARNING
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. Check
with a qualified electrician or service technician if you
are in doubt as to whether the appliance is properly
grounded. Do not modify the plug provided with the
appliance. If it does not fit the outlet, have a proper
outlet installed by a qualified electrician. Failure to
follow these warnings can cause serious injury, fire,
electric shock, or death.
WARNING
xBeing exposed to direct airflow for an extended period
could be hazardous to your health.
xRunning the fan will not prevent oxygen depletion.
Make sure to open doors or windows occasionally to
ventilate the room.
WARNING: This product contains chemicals known to
the State of California to cause cancer and birth defects
or other reproductive harm. Wash hands after handling.

6
FEATURES AND BENEFITS
Key Parts and Components
WARNING
Install this appliance in accordance with National Electric Code guidelines.
Air Filter
Front
Grille Air Intake
(Inlet Grille)
Air Discharge
Cabinet
Upper
Guide Remote Control
QR code emblem
(For establishing
smart app connection)
Horizontal
Air Deflector
(Vertical Louver)
Vertical Air Deflector
(Horizontal Louver)
Evaporator
Brace
Compressor
Condenser
Base Pan
Power Cord
Electrical Data
120 V 240 V
RESET
TEST
RESET
TEST
RESET
TEST
Power cord may include a current interrupter device.
Test and reset buttons are provided on the plug case.
Periodically test the device by first pressing TEST and
then RESET. If the TEST button does not trip or if the
RESET button will not stay engaged, stop using the air
conditioner and contact a qualified service technician.
WARNING
Never push the test button during operation.
Doing so can damage the plug.
Do not remove, modify, or immerse this plug. If
this device trips, the cause should be corrected
before further use.
CAUTION
The conductors inside this cord are surrounded
by shields, which monitor leakage current.
These shields are not grounded. Periodically
examine the cord for any damage. Do not use
this product in the event the shields become
exposed. Avoid shock hazard. This unit cannot
be user-serviced. Do NOT open the tamper-
resistant sealed portion. All warranties and
performance will be voided.
BTU & Wall Receptacle Power Supply
15000 BTU
Use 15 A, time-delay fuse
or 15 A circuit breaker.
Standard 120 V, 3-wire
grounding receptacle rated
15 A/120 VAC/60 Hz
18000 BTU
Standard 240 V, 3-wire
grounding receptacle rated
15 A/240 VAC/60 Hz
25000 BTU
Use 20 A, time-delay
fuse or 20 A circuit
breaker.
Standard 240 V, 3-wire
grounding receptacle rated
20 A/240 VAC/60 Hz
WARNING
DO NOT USE EXTENSION CORDS RISK OF
FIRE, SERIOUS INJURY OR DEATH.
xDo not use an extension cord with this
product.
xDo not use surge protectors or multi-outlet
adapters with this product.

7
INSTALLATION REQUIREMENTS
.H\'LPHQVLRQVDQG6SHFLoFDWLRQV
Description Window Air Conditioner
Electrical Requirements See electrical rating plate on unit
Dimensions
(without curtain panels) 26 in. (W) X 28.1 in. (D) X 17.7 in. (H)
66 cm (W) X 71.4 cm (D) X 44.9 cm (H)
Net Weight 15K BTU: 112 lb. (50.8 kg) / 18K BTU: 130 lb. (59 kg) / 25K BTU: 136 lb. (61.7 kg)
Items Included
Heatproof foam (2)
(adhesive-backed)
Right curtain panel
Left curtain panel
Drain joint pipe
Foam strip
(non-adhesive)
Foam-PE (2)
(adhesive-backed)
Frame guide (2)
Window locking bracket
Sill bracket (2)
Support
bracket (2)
Tools Required
Phillips-head screwdriver Flat-blade screwdriver Adjustable wrench
Level Measuring tape Knife
Scissors Pencil
Type A (12) Type B (7) Type C (5) Type D (2) Carriage Bolt (2) Lock Nut (4)

8
INSTALLATION INSTRUCTIONS
Window Requirements
Size
NOTE: Secure all supporting parts to firm wood,
masonry, or metal.
xThis room air conditioner is designed for installation in
standard double-hung windows with actual opening
widths from 29” to 41”.
xThe upper and lower window sash must open
sufficiently to allow a clear vertical opening of 19”
from the bottom of the upper sash to the inside sill.
xThe height offset between the inside sill and outside sill
must be less than 1 ¼".
29" to 41"
19" min
Clearance
Proper clearance enhances the cooling efficiency of the
product.
1If a storm window presents interference, fasten a 2”
wide wood strip to the inner window sill across the
full width of the sill. The wood strip should be thick
enough to raise the height of the window sill so that
the unit can be installed without interference by the
storm window frame.
2(See drawing.) The top of the wood strip on the
inside sill should be approximately ¾” higher
than the storm window frame or wood strip on the
outside sill to help condensation to drain properly to
the outside.
3If necessary, install a second wood strip (same
thickness as first strip) across the full width of the
outer sill, flush against the back of the inner sill.
Indoors
Inner Sill
Outer Sill
Storm
Window Frame
Wood Strip Mounted
on Top of Inner Sill ¾"
Clearance
Wood Strip
Outdoors
Preparation of Cabinet
1Remove the 4 screws which fasten the cabinet at
both sides and at the back. (2 of the screws will be
used later to refasten the sides of the cabinet to the
unit.)
Shipping
Screws
2Slide the unit from the cabinet by gripping the base
pan handle and pulling forward while bracing the
cabinet.
CAUTION
The unit is heavy. To prevent injury, use proper lifting
techniques when pulling unit forward from cabinet.
Obtain assistance from another person if possible.
3Cut the window sash seals (Foam-PE) to the
proper length. Peel off the backing and attach
the adhesive-backed foam to the underside of the
window sash and the bottom of the window frame.
Foam-PE
(Adhesive backed)
4Insert the lower curtain panel guides into the bottom
of the cabinet. Insert the guides so that the flange
faces to the rear of the cabinet.

9
INSTALLATION INSTRUCTIONS
5Insert the top and bottom rails of the curtain panels
into the upper and lower panel guides.
Upper Guide
Right Curtain Panel
Left Curtain Panel
Lower Guide
CAUTION
The lower panel guides are easily broken. Be careful
with them when installing the cabinet.
6Fasten the curtain panels to the unit with 10 type A
screws.
Screws (Type A)
Cabinet Installation
Center Line
Outside Sill
Inside Sill
1 ¼" max.
1Open the window. Mark a line on the center of the
inside sill and extending across the center of the
outside sill.
Loosely attach the sill bracket to the support bracket
using a carriage bolt and a lock nut.
Sill Bracket
Carriage
Bolt Lock Nut
Support Bracket
2Carefully place the cabinet in the window and align
the center hole on the cabinet bottom front with the
center line marked on the window sills. Align the
support brackets with the cabinet track holes and
mark the sill along the sides of each sill bracket.
Remove the cabinet from the window and attach
each sill bracket on the outside sill between the
marks using 2 type B screws.
Screws (Type B)
Sill Bracket
3Carefully place the cabinet back in the window
and align the cabinet track holes with the support
brackets. Attach each support bracket to the
cabinet through a cabinet track hole, using a type
D screw and a lock nut. Use the first track hole past
the sill bracket on the outer edge of the window
sill. Tighten the lock nuts on the support brackets to
secure them to the sill brackets. Be sure the cabinet
slants down toward the outside.
Screw (Type D)
Support Bracket
Lock Nut

10
INSTALLATION INSTRUCTIONS
4Pull each curtain panel out until it meets the window
sash track. Pull the bottom window sash down
behind the upper guide until they meet.
Front Angle
Sash Track
Upper Guide
Inside Window Sill
NOTE: Do not pull the window sash down so tightly
that the movement of the curtain panels is restricted.
5Attach the cabinet to the inside sill by driving 3 type
B screws through the cabinet and into the sill.
Sash Track
Front Angle
Screws (Type B)
NOTE: Install the cabinet with a very slight
downward tilt toward the outside.
CAUTION
Do not drill a hole in the bottom pan. The product
is designed to operate with approximately ½” of
water in the bottom pan.
6Use a screwdriver or power drill to attach the
curtain panels to the window sashes by driving type
C screws into the sashes through the cabinet holes
shown in the figure below.
Screws (Type C)
7With the aid of an assistant, slide the unit into the
cabinet. Reinstall the screws removed from the
cabinet sides in step 1.
CAUTION
xThe unit is heavy. Use an assistant to help lift the
unit and set it in place. Lifting and maneuvering
the unit by yourself could result in injury.
xHold the unit firmly in place until the window
frame is lowered to meet the top surface of the
unit directly behind the upper guide. If the unit
falls from the window, it could cause personal
injury or property damage.
8Cut the non-adhesive foam strip to the proper length
and insert it between the upper window sash and
the lower window sash.
Foam Strip
(Not adhesive
backed)
9Attach the window locking bracket with a type C
screw.
Window Locking Bracket

11
INSTALLATION INSTRUCTIONS
10 Cut the adhesive-backed heatproof foam to match
the size of the curtain panels. Remove the backing
from the heatproof foam and attach it to the curtain
panels.
Heatproof Foam
NOTE: Heatproof foam improves the cooling
capability of the air conditioner.
11 Fold out the vent control lever located to the left of
the control panel, as shown.
12 Connect the wire harness from the front grille
assembly to the air conditioner.
13 Attach the front grille assembly to the cabinet by
inserting the grille tabs into the slots on the front
of the cabinet. Push the grille in until it snaps into
place.
NOTE: Carefully guide the vent control lever through
the grille as you push the grille in.
14 Open the air inlet grille and secure the front grille
assembly with 1 type A screw through the bottom of
the front grille. (There are 2 type A screws packed
in a small bag. Use one and store one as a spare.)
The window installation of the room air conditioner
is now complete. See the Electrical Data section for
information on attaching the power cord to an electrical
outlet.

12
HOW TO USE
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read and follow this entire Use & Care Guide,
including the Important Safety Instructions, before operating this air conditioner.
Control Panel and Remote Control
Remote Control
1POWER
Press to turn the air conditioner ON or OFF.
2FAN SPEED BUTTON
Press to set the fan speed to Low, Medium, or High.
The display will show one, two or three bars.
3DELAY ON/OFF TIMER
Delay ON - When the air conditioner is off, set it to
automatically turn on from 1 to 24 hours later, at its
previous mode and fan settings.
Delay OFF - When the air conditioner is on, set it to
automatically turn off from 1 to 24 hours later.
Each press of the Timer button advances the timer
by 1 hour. After the last press the display returns to
the temperature setting.
4OPERATION MODE BUTTON
xPress the Mode button to cycle between 4 types
of air conditioner operation: Cool / Energy Saver
/ Fan Only / Dry.
Cool - This mode is ideal on hot days to cool and
dehumidify the room quickly. Use the Temp
buttons to set the desired room temperature and
use the Fan Speed button to set the desired fan
circulation speed.
Energy Saver - In this mode the compressor and
fan turn off when the set temperature is achieved.
Approximately every 3 minutes the fan turns on to
allow the unit sensor to accurately determine if more
cooling is needed.
Fan Only - In this mode the fan circulates air but
the compressor does not run. Use the Fan Speed
button to set fan speed to High, Medium or Low. In
this mode, you can not adjust the set temperature.
Dry - This mode is ideal for rainy and damp days
to dehumidify the room rather than cooling it
significantly. Humidity is removed from the room by
the combination of compressor operation and the
fan speed fixed at Low. The compressor and fan
turn off once the set temperature is reached. Fan
speed cannot be adjusted in Dry mode.
5TEMPERATURE CONTROL
The thermostat monitors room temperature to
maintain the desired temperature. The thermostat
can be set between 60 °F–86 °F (16 °C–30 °C).
Press or arrows to increase or decrease
temperature setting.
6REMOTE CONTROL SENSOR
Receives signal from Remote Control.
7FILTER RESET
The Filter Reset LED lights up to notify you that the
filter needs to be cleaned. After cleaning the filter,
press Temp and together on the control panel
to turn off the Filter Reset light. (The filter reset must
be done using the control panel, not the remote
control.)
NOTE: This feature is a reminder to clean the air
filter for more efficient operation. The LED light
turns on after 250 hours of operation.
8SMART CONNECT FUNCTION
SMART icon LED turns ON when unit is successfully
connected to the internet.
AUTO RESTART
If the air conditioner turns off due to a power
outage, it will restart automatically once the power
is restored, with the same settings as were set before
the unit turned off.
ENERGY SAVER
The unit defaults to the Energy Saver mode each
time the unit is switched on except in Fan mode or
when power is restored after an electrical power
outage.
CAUTION
The remote control will not function properly if
the AC infrared sensor is exposed to direct light
or if there are obstacles between the remote
controller and the air conditioner.

13
HOW TO USE
Inserting the Remote Control Battery
1Push the release in with your thumb and remove the
cover on the back of the remote control.
2Insert one new AAA 1.5 V battery, paying attention
to the polarity.
NOTE: One new battery is supplied with the air
conditioner for use in the remote control.
3Reattach the cover on the remote control.
NOTE
xDo not use a rechargeable battery. Make sure that the
battery is new.
xIn order to prevent discharge, remove the battery from
the remote control if the air conditioner is not going to
be used for an extended period of time.
xKeep the remote control away from extremely hot or
humid places.
xTo maintain optimal operation of the remote control,
the remote sensor should not be exposed to direct
sunlight.
Ventilation
Push the ventilation lever in to the closed position
to maintain the best cooling performance. Pull the
ventilation lever out to open the vent and draw fresh air
into the room.
Close Open
Air Direction
Airflow can be adjusted by changing the direction of the
air conditioner’s louvers.
$GMXVWLQJ+RUL]RQWDO$LUpRZ'LUHFWLRQ
The horizontal airflow is adjusted by moving the lever to
the left or right.
$GMXVWLQJ9HUWLFDO$LUpRZ'LUHFWLRQ
Touch the horizontal louvers to adjust the airflow up or
down.
NOTE: When the weather is extremely hot, the unit may
turn off automatically to protect the compressor.

14
Additional Features
Drain Pipe
In humid weather, excess water may cause the base pan
to overflow. To drain the water, remove the drain cap
and secure the drain pipe to the rear hole of the base
pan.
CAUTION
Take care when inserting the drain pipe. Push
away from the sharp fins to avoid slipping and
injuring yourself.
Press the drain pipe into the hole by pushing down and
away from the fins to avoid injury.
Drain Pipe
Slinger Fan
This air conditioner is equipped with a slinger fan. (See
drawing.)
The fan’s outer ring picks up the condensed water from
the base pan if the water level gets high enough. The
water is then picked up by the fan and expelled through
the condenser, making the air conditioner more efficient.
Ring
Smart Features
Getting Connected
You need the following devices and applications to use
the smart features of your air conditioner.
Required Devices: A wireless connection, Kenmore
Smart AC app, and a mobile device.
Required Application: Kenmore Smart AC app.
IMPORTANT: You must download the Kenmore Smart
AC app to your mobile device, connect your Kenmore
Elite Smart appliance to the internet, and register the
appliance to your account by following the prompts.
Connecting the Air Conditioner
Refer to the Quick Start Guide that came with your
smart appliance for detailed instructions on creating
a Kenmore account and setting up the appliance for
connected operation from your mobile device. For
additional assistance, visit http://www.kenmore.com/
smart
Remote Operation
Use a mobile device to control the air conditioner
remotely. Start, stop, change modes, adjust temperature,
and set schedules, all from a mobile device.
NOTE: When successfully connected to the internet, the
SMART icon LED on the unit control panel will turn ON.
HOW TO USE

15
HOW TO USE
FCC Notice
(for transmitter module contained in this product)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modifications in construction of this
device which are not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with
a minimum distance of 20 cm (7.8 inches) between
the antenna and your body. Users must follow the
specific operating instructions for satisfying RF exposure
compliance.
:LUHOHVV/$10RGXOH6SHFLoFDWLRQV
Operating
Frequency 2.412–2.462 GHz
Complies with IEEE 802.11b/g/n
Open Source Software Notice
To obtain the source code that is contained in this
product under open source licenses, visit https://
kenmore.com/opensource.
In addition to the source code, all referred license
terms, warranty disclaimers, and copyright notices are
available for download.

16
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read and follow this entire Use & Care Guide,
including the Important Safety Instructions, before operating this air conditioner.
xUnplug the air conditioner before cleaning to avoid the risk of electric shock. Failure to follow this
warning can cause serious injury, fire, electric shock, or death.
xNever use harsh chemicals, abrasive cleaners, or solvents to clean the air conditioner. They will damage
the finish.
Air Filter
Check the air filter at least twice a month to see if
cleaning is necessary. Trapped particles in the filter
can build up and block the airflow, reducing cooling
capacity and causing an accumulation of frost on the
evaporator.
Cleaning the Air Filter
1Pull down the air inlet grille by placing fingertips in
the depressions at the top of each side. Grasp the
fingertip tab at the top middle of the air filter and
pull the filter forward then up to remove.
2Wash the filter in lukewarm water (below
104°F/40°C).
3Gently shake the excess water from the filter and
reinstall it.
Cleaning the Air Conditioner
Wipe the front grille and inlet grille with a cloth
dampened in a mild detergent solution.
Clean the cabinet with a mild soap or detergent and
lukewarm water, then polish with liquid appliance wax.
CARE AND CLEANING

17
TROUBLESHOOTING GUIDE
Normal Sounds You May Hear
NOTE: Do not drill any holes in the base pan to eliminate these normal sounds. Doing so will void the warranty.
1High Pitched Whine
Today's high efficiency compressors may have a high-pitched whine during the cooling cycle.
2Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being moved by the fan.
3Gurgle/Hiss
Gurgling or hissing noise may be heard due to refrigerant passing through evaporator during normal operation.
4Pinging or Swishing
Droplets of water hitting condenser during normal operation may cause pinging or swishing sounds.
5Vibration
Unit may vibrate and make noise because of poor wall or window construction or incorrect installation.

18
Before Calling for Service
If your air conditioner does not function properly or does not function at all, check the following before you call for
service. If you cannot find a solution, turn off the air conditioner and call the Kenmore Customer Care Hotline at
1-844-553-6667.
Problem Possible Cause Solutions
Air conditioner turns on
and off rapidly. Outside temperature is extremely high. Set fan speed at the fastest setting for maximum cooling.
Dirty air filter. Airflow is restricted. Clean the air filter.
Noise when unit is
cooling. Window is vibrating due to improper installation. Refer to the installation instructions or check with the installer.
Normal sound of air movement. This is normal. If too loud, set the fan to a
lower speed.
Remote will not operate
air conditioner. The remote control is out of range of the sensor. Hold the remote control within 20 feet and a 120° radius of the front of the air
conditioner.
Path between sensor and remote is
blocked. Remove the obstruction or stand where there is a clear path between the remote
and the sensor.
Battery is not installed properly. Reinstall battery, checking the polarity.
Sensor is in direct path of sunlight. Position a piece of furniture or other object
to cast a shadow over the sensor.
Room too cold. Set temperature is too low. Increase the set temperature.
Air conditioner does not
start. The air conditioner is unplugged. Make sure the air conditioner plug is pushed completely into the outlet.
The current interrupter device on the
power cord has tripped. Press the RESET button located on the power cord plug. If the RESET button will
not stay engaged, discontinue use of the
air conditioner and contact a qualified
service technician.
House fuse has blown or circuit breaker
tripped. Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
Temperature setting is warmer than room
temperature. Set temperature to a lower setting.
Unit was turned OFF and ON too quickly. Built-in delay will prevent compressor from
turning on for 3 minutes.
Air conditioner blows
fuses or trips circuit
breaker.
Too many electrical devices are being
used on the same circuit. Unplug or relocate electrical devices using same circuit.
Unit is rated over 7.5 Amps. Unit should be plugged into a single circuit
outlet.
Unit is plugged into an extension cord. Do not use an extension cord to run the
unit.
Unit was turned OFF and ON too quickly. Turn unit OFF and wait 3 minutes before
restarting.
TROUBLESHOOTING GUIDE

19
TROUBLESHOOTING GUIDE
Problem Possible Cause Solutions
Air conditioner does not
cool as it should. Airflow is restricted. Make sure there are no curtains, blinds, or furniture blocking the front of the air
conditioner.
The temperature control is not set correctly. In COOL mode, press Decrease (v).
The air filter is dirty. Clean the filter at least every 2 weeks. (See
the Care and Cleaning section.)
The room was very hot. After the air conditioner is turned on, allow
time for the room to cool down.
Cold air is escaping. Check for open furnace floor registers and
cold air returns.
Cooling coils have iced up. See “Air conditioner freezing up” below.
Air conditioner freezing
up. The cooling coils are iced over. Ice may block the airflow and prevent the air conditioner from properly cooling the
room. Set the mode control to High Fan or
High Cool.
Water drips outside. Room is hot and humid. This is normal when the weather is hot and
humid.
Water drips inside. Air conditioner is not installed properly for
water drainage. Make sure the air conditioner slants slightly downward from the front of the
cabinet to the rear. Reposition or shim the
cabinet as necessary. DO NOT drill into
the drain pan.
Water collects in base
pan. Moisture is removed from the air and drains into the base pan. This is normal. It will occur for short periods in areas where there is low
humidity and for longer periods in very
humid areas.
For detailed information on the Energy Star program, visit www.energystar.gov.
If “CH” appears in the display, call the Kenmore Customer Care Hotline at 1-844-553-6667.

20
WARRANTY
Kenmore Elite Limited Warranty
WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed,
operated and maintained according to all supplied instructions.
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship.
A defective appliance will receive free repair or replacement at option of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page:
www.kenmore.com/warranty
This warranty applies for only 90 DAYS from the date of sale if this appliance is ever used for other than
private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or
screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance
installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to
repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems
resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized
service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly
operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident,
alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of
detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with
the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this
appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to
have the appropriate certification logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement
as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental
or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
6HDUV%UDQGV0DQDJHPHQW&RUSRUDWLRQ+RçPDQ(VWDWHV,/
