KENT Razor Plus 24C User manual

RazorTM Plus 24D-26D-28D
RazorTM Plus 24C-28C
PARTS LIST
KENT MODELS:
908 7041 020 - 908 7038 020 - 908 7039 020
908 7042 020 - 908 7040 020
909 5429 000(3)2006-02

2004-12
1
909 5429 000(3)2006-02
WHEN ORDERING PARTS
* Use the 8, 9 or 10 digit numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model ___________________ Serial No. ___________________
* = Optional
# = Modified item No. or New item No.
[] = Not shown
xxxxxx= Contained in a Kit
GENERAL VIEW 2-3
SOLUTION TANK 4-5
RECOVERY TANK 6-7
CHASSIS SYSTEM 8-9
WHEELS AND TRACTION 10-11
HANDLE ASSEMBLY 12-13
SOLUTION SYSTEM 14 - 15
SQUEEGEE SYSTEM 16 - 19
DISC SCRUB DECK SYSTEM 20 - 21
CYLINDRICAL SCRUB DECK SYSTEM 22 - 25
ACCESSORIES 26 - 29
CONTROL PANEL SYSTEM 30 - 31
WIRING SYSTEM 32 - 35
WIRING DIAGRAM 36
RECOMMENDED SPARE PARTS 37 - 38
TABLE OF CONTENTS
DESCRIPTION
PLAN
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C

2004-12
2
909 5429 000(3)2006-02

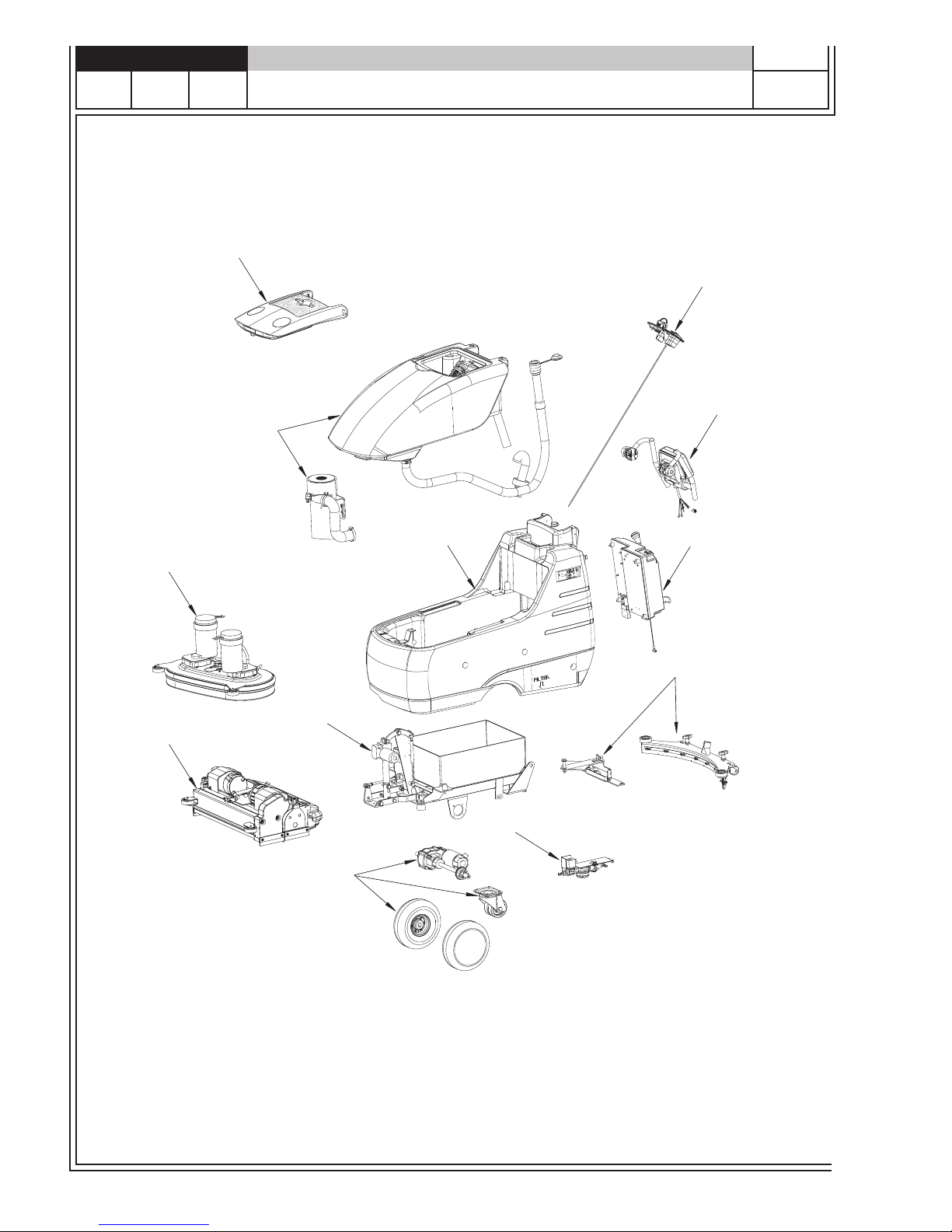

GENERAL VIEW
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
1
1
2
4
3
5
6
7
8
9
10
8

2004-12
3
909 5429 000(3)2006-02
GENERAL VIEW
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
Item No. Ref. No. Qty Description
1 Solution tank
2 Recovery tank
3 Chassis system
4 Wheels and traction
5 Handle assembly
6 Solution system
7 Squeegee system
8 Scrub deck system
9 Control panel system
10 Electrical system

2004-12
4
909 5429 000(3)2006-02
SOLUTION TANK
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
40
25
12
18
13
26
15
22
9
24
6
36
5
7
16
10
14
28
23
3
29
21
20
17
4
8
11
27
19
32
31
33
47
34
35
1
38
37
37
26
41
43
42
46 45 44
30
2006-02

2004-12
5
909 5429 000(3)2006-02
SOLUTION TANK
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
Item No. Ref. No. Qty Description
1* 909 5327 000 1 Extractible feed hose
[2]# 909 5475 000 1 Decal kit, RazorTM Plus 24D/ 26D/ 28D/ 24C/ 28C [(29, 40, page 5) (24, page 11) (59,66,67,68,69,
page 35)]
3 909 5234 000 1 Bracket, tank fixing
4 909 5236 000 1 Closure, fresh water hose
5 08095000 2 O-Ring
6 xxx xxxx xxx 1 Clamp (Elbow, solution tank kit)
7 56412093 2 Clamp
8 08603916 2 Clamp
9 xxx xxxx xxx 1 Gasket (Elbow, solution tank kit)
10 xxx xxxx xxx 2 Washer split (Tank fitting kit)
11 909 5235 000 1 Hose, fresh water
12 56325624 4 Cap, tank locking
13 145 9120 000 2 Washer flat 8x17
14 xxxxxxxx 2 Washer flat 8x24 (Tank fitting kit)
15 145 9341 000 5 Washer flat 5x20
16 xxx xxxx xxx 2 Screw hex hd M8x20 (Tank fitting kit)
17 145 1768 000 4 Screw socket hd M5x12
18 145 9828 000 1 Screw socket hd M8x35
19 xxxxxxxx 2 Screw sunk hd M8x12 (Tank fitting kit)
20 08812967 1 Clamp
21 08812966 1 Clamp
22 909 5835 000 5 Handwheel M5x10
23 xxxxxxxx 2 Washer flat 20,5x37 (Tank fitting kit)
24 xxx xxxx xxx 1 Elbow 90° ø10 (Elbow, solution tank kit)
25 909 5445 000 Fresh water tank
26 909 5238 000 1 Bumper, front
26 909 5771 000 1 Bumper, front for cylindrical deck
27 xxxxxxxx 2 Bushing (Tank fitting kit)
28 xxx xxxx xxx 2 Pin (Tank fitting kit)
29 xxxxxxxx 2 Decal, water faucet (Decal kit, RazorTM Plus 24D/ 26D/ 28D/ 24C/ 28C)
30# 56325553 2 Vibration damping
31 146 0116 00 2 Screw socket hd M6x25
32 909 5447 000 Cover, tank
33 08603117 2 Sleeve
34 909 5301 000 1 Rubber band
35 08603668 4 Screw cyl hd 4x14 thd form
36 08603228 1 Gasket
37 909 5381 000 1 Tank fitting kit (10-14-16-19-23-27-28)
38 909 5382 000 1 Elbow, solution tank kit (6-9-24)
40 xxx xxxx xxx 2 Decal RazorTM Plus (Decal kit, RazorTM Plus 24D/ 26D/ 28D/ 24C/ 28C)
41 909 5954 000 1 Screw M8x50
42 56325587 1 Washer flat 8x17
43 08361400 1 Nut hex low selflocking M6
44a 146 0454 000 3 Screw 3,9x16 thd forming - see TSB IT 2005 - 003
45a 909 5906 000 1 Plate rubber fixing - see TSB IT 2005 - 003
46a 909 5905 000 1 Water protection rubber - see TSB IT 2005 - 003
47# 909 6263 000 2 Column plate support
a: see TSB IT 2005 - 003
2006-02

2004-12
6
909 5429 000(3)2006-02

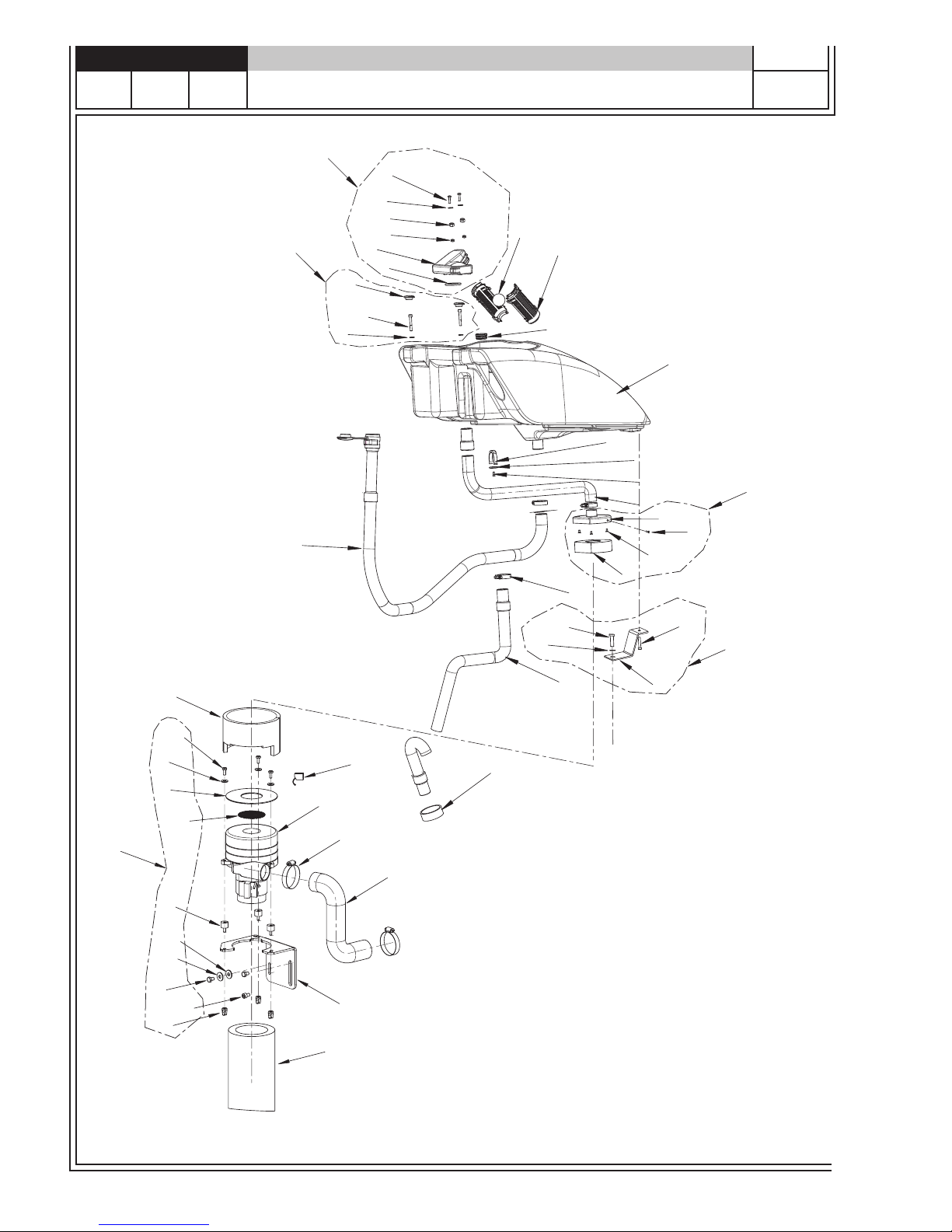

RECOVERY TANK
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
8
30
13
18
20
15
16
17
21
19
5
3
12
9
2
14
7
6
10
23
25
27
29
31
32
33
28
36
37
34
6
26
30
35
4
22
39
40
42
41
43
38
47
48
44
46
45
49
50
24
51
2006-02

2004-12
7
909 5429 000(3)2006-02
RECOVERY TANK
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
Item No. Ref. No. Qty Description
2 xxx xxxx xxx 1 Cover vacuum motor (Motor,vacuum cover kit)
3 08095000 1 O-ring
4 909 5246 000 1 Gasket
5 56412093 1 Clamp, hose fixing
6 56329145 5 Clamp, hose fixing
7 xxx xxxx xxx 1 Gasket, vacuum motor (Motor,vacuum cover kit)
8 909 5240 000 1 Drain hose
9 909 5245 000 1 Hose vacuum motor
10# 909 6230 000 1 Vacuum hose
12 145 1768 000 1 Screw socket hd M5x12
13 xxx xxxx xxx 2 Screw socket hd M6x55 (Cage float Hardware kit)
14 xxx xxxx xxx 3 Screw M5x10 SS (Motor,vacuum cover kit)
15 xxxxxxxx 2 Washer flat (Cage float fitting kit)
16 xxx xxxx xxxx 2 Screw pan hd 6x40 SS (Cage float fitting kit)
17 56391690 1 Floating ball
18 xxxxxxxx 1 Gasket (Cage float fitting kit)
19 909 5912 000 1 Kit recovery tank replace 909 5446 000
19 909 5910 000 1 Recovery tank
20 xxxxxxxx 1 Holder, float cage (Cage float fitting kit)
21 56324497 2 Cage, float
22 xxx xxxx xxx 2 Cap (Cage float Hardware kit)
23 909 5197 000 1 Acoustic insulation
24 xxx xxxx xxx 1 Washer 8 (Motor,vacuum fitting kit)
25 xxx xxxx xxx 1 Gasket (Motor,vacuum fitting kit)
26 909 5370 000 1 Vacuum motor kit
27 xxx xxxx xxx 1 Protection (Motor,vacuum fitting kit)
28 909 5300 000 1 Acoustic insulation
29 xxx xxxx xxx 3 Vibration damping (Motor,vacuum fitting kit)
30 xxx xxxx xxx 5 Washer flat (Motor,vacuum fitting kit-Cage float Hardware kit)
31 xxx xxxx xxx 1 Washer flat (Motor,vacuum fitting kit)
32 xxx xxxx xxx 1 Screw hex hd M8x16 (Motor,vacuum fitting kit)
33 xxx xxxx xxx 2 Screw M8x10 (Motor,vacuum fitting kit)
34 909 5199 000 1 Hose, flexible w/elbows
35# xxxxxxxx 3 Screw M6x12 (Motor,vacuum fitting kit)
36 xxx xxxx xxx 3 Wing nut M6 (Motor,vacuum fitting kit)
37 909 5200 000 1 Support
38 909 5371 000 2 Carbon brush
39# xxx xxxx xxx 1 Screw socket hd M6x12 (Tank, fitting kit)
40 xxx xxxx xxx 1 Washer flat 6x12,5 SS (Tank, fitting kit)
41 xxx xxxx xxx 1 Bracket (Tank, fitting kit) see TSB IT 2005-003
41 xxx xxxx xxx 1 Bracket (Tank, fitting kit) see TSB IT 2005-003
42 xxx xxxx xxx 1 Screw M6x10 (Tank, fitting kit)
43 xxx xxxx xxx 3 Screw thd form 3,5x9,5 (Motor,vacuum cover kit)
44 909 5383 000 1 Motor,vacuum cover kit (2-7-14-43)
45 909 5384 000 1 Cage float Hardware kit (30-13-22)
46 909 5476 000 1 Cage float fitting kit (15-16-18-20-49-50)
47 909 5386 000 1 Motor,vacuum fitting kit (24-25-27-29-30-31-32-33-35-36)
48 909 5387 000 1 Tank, fitting kit see TSB IT 2005-003 (39-40-41-42)
48 909 5919 000 1 Tank, fitting kit see TSB IT 2005-003 (39-40-41-42)
49 xxx xxxx xxx 2 Nut hex M6 SS (Cage float fitting kit)
50 xxx xxxx xxx 2 Nut blind M6 SS (Cage float fitting kit)
51 08602117 1 Cap for tank
2006-02

2004-12
8
909 5429 000(3)2006-02
CHASSIS SYSTEM
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C 2006-02
15
39
32
9
25
10
2
24 12
8
13
18
33
19
3
31 37
27
17
22
58
5
28
11
34
17
23
38
36
21
4
26
35
29
1
7
14
14
41
30
42
16
43
6
47
48
30
27
49
15 20
50 51
52
53
54 55
56
57

2004-12
9
909 5429 000(3)2006-02
CHASSIS SYSTEM
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
Item No. Ref. No. Qty Description
1# 909 6032 000 1 Actuator 24V (TSB 2005-022)
2 xxx xxxx xxx 1 Cable, stainless steel (Handwheel kit)
3 146 0987 000 3 Clamp
4 xxx xxxx xxx 2 Spring (Hardware fixing kit)
5 909 5193 000 1 Spring
6 08812361 2 Washer
7 xxx xxxx xxx 1 Washer (Lever kit)
8 909 5186 000 1 Support
9 xxx xxxx xxx 2 Head articulated M10 (Bar thd kit)
10 xxx xxxx xxx 1 Handwheel (Handwheel kit)
11 145 8053 000 1 Vibration damping, RazorTM Plus 24D/ 26D/ 28D
12 909 5182 000 2 Vibration damping
13 145 4284 000 2 Vibration damping
14 xxx xxxx xxx 2 Washer (Hardware fixing kit) (Lever kit)
15 xxx xxxx xxx 1 Washer (Bar thd kit) - (Hardware fixing kit)
16 145 6062 000 1 Connector
17 xxx xxxx xxx 5 Washer (Lever kit)(Hardware fixing kit)
18 xxx xxxx xxx 1 Washer (Handwheel kit)
19 909 5164 000 1 Chassis
20 xxx xxxx xxx 2 Screw hex hd M10x55 (Lever kit) - (Hardware fixing kit)
21 xxx xxxx xxx 2 Screw hex hd M12x20 (Hardware fixing kit)
22 xxx xxxx xx 1 Screw hex hd M12x30 (Lever kit)
23 xxx xxxx xxx 2 Screw hex hd M12x20 (Hardware fixing kit)
24 xxx xxxx xxx 1 Screw hex hd M5x12 (Handwheel kit)
25 xxxxxxxx 1 Screw hex hd M8x25 (Handwheel kit)
26 909 5184 000 1 Tube, jack motor
27 xxx xxxx xxx 2 Spacer (Lever kit) - (Hardware fixing kit)
28 909 5194 000 4 Nut hex selflock M10
29 xxx xxxx xxx 1 Nut hex selflock M10 (Hardware fixing kit)
30 xxxxxxxx 1 Nut hex selflock M12 (Hardware fixing kit)
31 xxx xxxx xxx 1 Nut hex M8 (Lever kit)
32 xxx xxxx xxx 2 Nut hex M10 (Bar thd kit)
33 xxx xxxx xxx 1 Nut hex M5 (Handwheel kit)
34 56325601 1 Nut hex M8, RazorTM Plus 24D/ 26D/ 28D
35 909 5190 000 1 Bracket
36 xxx xxxx xxx 1 Screw hex hd M12x160 (Hardware fixing kit)
37 xxx xxxx xxx 1 Lever (Lever kit)
38 909 5183 000 2 Lever
39 xxx xxxx xxx 1 Bar thd M10x185 (Bar thd kit)
40 909 5393 000 1 Bar thd kit(9-15-32-39)
41 909 5181 000 1 Battery container
42 909 5449 000 1 Harness machine
43 146 1555 000 2 Vibration damping
44 909 5390 000 1 Handwheel kit (2-10-18-24-25-33)
45 909 5391 000 1 Hardware fixing kit (4-14-15-17-20-21-23-27-29-30-36-49)
46 909 5392 000 1 Lever kit (7-14-17-22-27-31-37-58)
47 145 4523 000 2 Nut hex low M8
48 145 9120 000 2 Washer flat 8x17
49 xxxxxxxx 2 Nut hex M10 (Hardware fixing kit)
50 08603688 1 Nut hex low M5 selflocking SS, RazorTM Plus 24C - 28C
51 145 9133 000 1 Washer flat 5x10,RazorTM Plus 24C - 28C
52 145 9669 000 1 Screw M5x20,RazorTM Plus 24C - 28C
53 909 5804 000 1 Hose clamp ø16,RazorTM Plus 24C - 28C
54 145 9170 000 1 Screw hex hd M8x20
55 56325587 2 Washer flat 8x17
56 909 5891 000 1 Cable tank block
57 56003389 1 Nut hex self lock M8, RazorTM Plus 24C - 28C
58# 145 1235 000 1 Screw M10X60 (Hardware fixing kit)
2006-02

2004-12
10
909 5429 000(3)2006-02
WHEELS AND TRACTION
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
12
15
17
11
18
16
14
13
2
5
1
3
7
9
10
6
4
8
19
20
2121
22
23
6
25

2004-12
11
909 5429 000(3)2006-02
WHEELS AND TRACTION
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
Item No. Ref. No. Qty Description
1 xxxxxxxx 2 Retaining ring (Ball bearing kit)
2 xxx xxxx xxx 2 Retaining ring (Ball bearing kit)
3 xxxxxxxx 2 Retaining ring (Ball bearing kit)
4 909 5204 000 1 Drive motor 24V W200
5 xxxxxxxx 1 Washer (Ball bearing kit)
6 145 9228 000 5 Washer 6
7 56325573 1 Ball bearing (Ball bearing kit)
8 56325570 4 Screw hex hd M6x16
9 xxxxxxxx 1 Ballbearing holder (Ball bearing kit)
10 145 9776 000 2 Key 6x6x35
11 909 5203 000 2 Rim cover
12 909 5201 000 2 Wheel front
12* 909 5512 000 2 Oil resistant traction wheel
13 909 5202 000 1 Wheel rear
13* 909 5511 000 1 Softer pivoting rear wheel
14 145 4505 000 4 Washer flat
15 145 9171 000 2 Washer flat
16 909 5888 000 4 Screw hex hd with loctite M10x12
17 145 9116 000 2 Screw hex hd M8x25
18 145 5124 000 2 Carbon brush
19 909 5388 000 1 Ball bearing kit (1-2-3-5-7-9)
20 909 5403 000 2 Holder, carbon brush
21 909 5516 000 1 Clamp ø18
22 145 9261 000 1 Screw hex hd M6x16
23 145 9229 000 1 Washer flat 6x18
24 xxx xxxx xxx 2 Decal Nilfisk round(Decal kit, RazorTM Plus 24D/ 26D/ 28D/ 24C/ 28C)
25 145 4556 000 4 Washer ø10

2004-12
12
909 5429 000(3)2006-02
HANDLE ASSEMBLY
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
12
7
10 13
3
920
19
12
14
18
15
5
23
6
11
16
21
22
8
4
24
25
17
26
27
28

2004-12
13
909 5429 000(3)2006-02
HANDLE ASSEMBLY
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
2006-02
Item No. Ref. No. Qty Description
1 08048300 4 Nut M3
2 08093600 4 Screw cyl hd M3x16
3 56325716 4 Washer flat 4x9 SS
4 56340083 1 Cable fixing block
5 xxxxxxxx 1 Washer flat 6x12,5 (Handle Hardware kit)
6 56325661 6 Screw pan hd 3,6x16 thd form
7 56340224 1 Screw pan hd 6x25 thd form
8 08603668 4 Screw pan hd 4x14 thd form
9 909 5099 000 1 Rachet handle adjuster kit
10# 909 6038 000 1 Rod, potentiometer (TSB 2005-024)
11 56325662 2 Collar
12 56325659 1 Switch housing rear
13 56325664 2 Cam, microswitch handle
14 xxxxxxxx 1 Bushing, drive control (Handle Hardware kit)
15 xxxxxxxx 4 Washer flat 9x25 nylon (Handle Hardware kit)
16 56325660 1 Screw w/dome 6x50 thd f.
17 xxxxxxxx 2 Spring, drive control (Handle Hardware kit)
18 xxxxxxxx 5 Screw counters.hd 4,2x50 (Handle Hardware kit)
19 146 1852 000 2 Handwheel
20 146 1672 000 2 Screw M8x85
21 909 5211 000 1 Handle bar
22 909 5448 000 1 Harness, traction
23 909 5213 000 1 Switch housing front
24 08812377 2 Contact for microswitch
25 08604077 1 Screw pan hd phil M4x10
26 909 5389 000 1 Handle Hardware kit (5-14-15-17-18)
27 145 9120 000 2 Washer 8x17
28 08812580 2 Microswitch

2004-12
14
909 5429 000(3)2006-02
SOLUTION SYSTEM
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
6
7
11
21
1
12
18
22
15
9
8
17 10
mm 460
mm 640
14 17
20
13
19
23
24
3
25
30
26
2
mm 550
27
28
4
16
29
31
32
2006-02

2004-12
15
909 5429 000(3)2006-02
SOLUTION SYSTEM
RAZORTM Plus 24D/ 26D/ 28D/ 24C/ 28C
2006-02
Item No. Ref. No. Qty Description
1 56325638 1 Clamp
2 909 5207 000 1 Water filter (Solenoid valve kit)
3 xxx xxxx xxx 1 Valve (Kit valve complete-Kit valve with pipe holder)
4 145 9228 000 2 Washer 6
6 xxxxxxxx 1 Valve (Solenoid valve kit -Valve kit)
7 xxx xxxx xxx 1 Nipple (Solenoid valve kit)
8# xxx xxxx xxx 1 Net, water filter w/gasket (Solenoid valve kit)
9 xxx xxxx xxx 1 Washer split 5 (Solenoid valve kit -Valve kit)
10 909 5210 000 1 Support, solenoid valve
11 909 5443 000 1 Solenoid valve 24V (Solenoid valve kit)
12 145 9233 000 1 Washer
13 xxx xxxx xxx 2 Washer flat 5x10 (Solenoid valve kit)
14 145 9128 000 2 Washer 6x12,5
15 xxx xxxx xxx 1 Washer flat 5x20 (Solenoid valve kit -Valve kit)
16 xxxxxxxx 1 Clamp (Solenoid valve kit)
17 145 9261 000 3 Screw hex hd M6x16
18 08091200 1 Nut hex M6
19 xxx xxxx xxx 2 Screw socket hd M4x8 SS (Solenoid valve kit)
20 xxx xxxx xxx 1 Pipe holder female 1/2 - 90° (Kit valve complete)
21 xxx xxxx xxx 1 Pipe holder straight male 1/2 (Solenoid valve kit)
22 xxx xxxx xxx 1 Lever (Solenoid valve kit -Valve kit)
23 xxx xxxx xxx 1 Hose ø10 length 460 mm (Kit valve complete)
24 xxx xxxx xxx 2 Pipe holder ø11 (Kit valve complete-Kit valve with pipe holder)
25# xxx xxxx xxx 2 Clamp (Kit valve complete)
26 xxx xxxx xxx 1 Hose ø10 550 mm (Solenoid valve kit)
27# 909 5477 000 1 Solenoid valve kit (2-6-7-8-9-11-13-15-16-19-21-22-26-29)
28# 909 5395 000 1 Kit valve complete (3-20-23-24-30)
29 xxx xxxx xxx 1 Gasket (Solenoid valve kit)
30 909 5622 000 1 Hose ø10 length 640 mm (Kit valve complete)
31 909 5787 000 1 Kit valve with pipe holder (3-24)
32# 909 6046 000 1 Valve kit (6-9-15-22)

2004-12
16
909 5429 000(3)2006-02
SQUEEGEE SYSTEM
RAZORTM Plus 24D/ 26D/ 24C
85
3
16
7
6
15
17
11
1
4
18
9
12
14
2
13
10
23
35
28
19
29
34
30
37
33
20
21
32
38
36
22 31
27
26
25
24
39
40
42
43

2004-12
17
909 5429 000(3)2006-02
SQUEEGEE SYSTEM
RAZORTM Plus 24D/ 26D/ 24C
Item No. Ref. No. Qty Description
1 909 5218 000 1 Fork
2 08601574 1 Handwheel M8x55
3 08601854 2 Spacer ø7xø10x8
4 146 1232 000 1 Spacer ø15xø20x4
5 56325538 2 Washer flat 6x18
6 xxxxxxxx 1 Washer flat 10x30(Hardware squeegee holder kit)
7 xxxxxxxx 1 Screw hex hd M10x70(Hardware squeegee holder kit)
8 56325621 2 Screw hex hd M6x25
9 146 1498 000 1 Screw M12x30
10 08602422 1 Spacer ø8xø10x7
11 xxx xxxx xxx 1 Nut hex low M10 selflock (Hardware squeegee holder kit)
12 08361400 2 Nut hex low M6 selflock.
13 08600317 2 Nut hex low M8
14 08601509 1 Pin, squeegee support
15 xxxxxxxx 1 Bushing ø10,4xø14x45 (Hardware squeegee holder kit)
16 909 5216 000 1 Plate, squeegee support
17 xxxxxxxx 2 Washer flat 15x25 nylon (Hardware squeegee holder kit)
18 909 5217 000 1 Squeegee support
19 56471194 1 Latch (Kit squeegee RazorTM Plus 24D/ 26D /24C)
20 08603830 1 Blade front (Kit squeegee RazorTM Plus 24D/ 26D /24C)
20* 909 5629 000 1 Non marking front blade
21 56363855 2 Roller bumper (Kit squeegee RazorTM Plus 24D/ 26D /24C)
22 08603665 2 Squeegee wheel (Kit squeegee RazorTM Plus 24D/ 26D /24C)
23 909 5294 000 1 Weldment squeegee tool(Kit squeegee RazorTM Plus 24D/26D/24C)
24 08603687 4 Screw hex hd M5x20 SS(Kit squeegee RazorTM Plus 24D/26D/24C)
25 08603688 6 Nut hex self lock M5 SS(Kit squeegee RazorTM Plus 24D/26D/24C)
26 08812948 2 Spacer, squeegee wheel(Kit squeegee RazorTM Plus 24D/26D/24C)
27 08603879 1 Kit squeegee wheel (Kit squeegee RazorTM Plus 24D/26D/24C) (22-24-25-26-31-42)
28 08603685 2 Nut hex self lock M4 SS (Kit squeegee RazorTM Plus 24D/ 26D /24C)
29 08603684 2 Screw pan phil M4x10 SS (Kit squeegee RazorTM Plus 24D/ 26D /24C)
30 145 0461 000 10 Wing nut M6 (Kit squeegee RazorTM Plus 24D/ 26D /24C)
31 08603666 2 Bracket squeegee wheel(Kit squeegee RazorTM Plus 24D/ 26D /24C)
32 08812937 2 Spacer ø6,3xø9,5x21 (Kit squeegee RazorTM Plus 24D/ 26D /24C)
33 08603831 1 Strap front (Kit squeegee RazorTM Plus 24D/ 26D /24C)
34 08603834 1 Strap right rear (Kit squeegee RazorTM Plus 24D/ 26D /24C)
35 08603833 1 Strap left rear (Kit squeegee RazorTM Plus 24D/ 26D /24C)
36 08603675 2 Thumb nut squeegee fixing (Kit squeegee RazorTM Plus 24D/ 26D /24C)
37 08603832 1 Blade rear(Kit squeegee RazorTM Plus 24D/ 26D /24C)
38 08603880 1 Kit squeegee bumper roller (Kit squeegee RazorTM Plus 24D/ 26D /24C) (21-32- 43)
39 909 5372 000 1 Kit squeegee RazorTM Plus 24D/ 26D /24C assembled (19-20-21-22-23-24-
25-26-27-28-29-30-31-32-33-34-35-36-37-38-42-43)
40 909 5396 000 1 Hardware squeegee holder kit (6-7-11-15-17)
[41]* 08603973 1 Blades oil resistant kit RazorTM Plus 24D/ 26D /24C
42 08603896 2 Screw hex hd M5x45 SS (Kit squeegee RazorTM Plus 24D/ 26D /24C - Kit squeegee wheel)
43 08603689 2 Washer flat 6x18 SS (Kit squeegee bumper roller - Kit squeegee RazorTM Plus 24D/ 26D /24C)
2006-02

2004-12
18
909 5429 000(3)2006-02
RAZORTM Plus 28D/ 28C
SQUEEGEE SYSTEM
23
31
34
30
19
28
29
35
36
32
21
26
20
33
85
3
16
7
6
15
17
11
1
4
18
9
12
14
2
13
10
38
39
25
22 27
24
37
41
40
43
43
