KENT Tap Guard User manual



\\RAJ\LnK_Kent_2013\Mannual_2014 \ TAP GAURD MANUL\Size: 9.75 x 6.25Inch Last Modified on: 10 01 14 Job No. 0

Dear Customer
Welcome to the world of KENT, leader of water purification industry in India.
With a KENT product you have all the reasons to smile, since at KENT we take
pride in the quality and laboratory-tested performance of our products.
We are confident that your decision to own KENT Tap Guard will go a long way
in serving you with clean, safe and germ-free water-thus keeping you and your
family in good health. We assure you that you will be satisfied with its
performance and quality which comes without any compromise.
This manual will familiarize you with the operation and maintenance of KENT
Tap Guard. Before operating the unit, please read it thoroughly and retain it for
future reference. Should you need further assistance do not hesitate to contact
your nearest KENT dealer or branch.
Best Wishes
KENT RO SYSTEMS LTD.
1. Introduction. 1
2. Items in the box. 1
3. Salient Features. 1
4. Specifications. 2
5. Important Instructions. 2-4
6. Exploded Diagram of KENT UF Tap Water Purifier. 5
7. Installation Procedure 1-Choosing the Correct Adapter. 6
8. Installation Procedure 2-Attaching the Adapter (A-Type). 7-8
9. Installation Procedure 2-Attaching the Adapter (B-Type). 9-10
10. Installation Procedure 2-Attaching the Adapter (C-Type) 11-12
11. Installation Procedure 2-Attaching the Adapter (Universal Type). 13-14
12. Installation Procedure 3-Attaching the Filter Cartridge. 15
13. Switching between Filtered / Unfiltered water. 16
14. When to replace the Filter Cartridge. 16
15. Maintenance. 17
16. Backwashing the Filter Cartridge. 17
17. Basic Troubleshooting. 18
Contents

1
Please verify the below given items in the packaged box. Contact your retailer if you find damaged or lost parts.
S. No. Description Qty
1. Valve body with cap. 1 no.
2. Multilayer Hollow Fiber UF Membrane Cartridge Filter. 1 no.
3. Adapters. 3 nos.
4. Attachment tool. 1 no.
5. Backwash Syringe with adapter 1 no.
6. Instruction manual. 1 no.
 Ideal for water from most sources.
 Use of Hollow Fiber Ultra Filtration (UF) Membrane filters out bacteria as well as cysts, the deadly pathogens
irremovable by most of the tap purifiers.
 Use of granular Activated Carbon removes chlorine, odour and turbidity.
 Stainless steel screen for removal of large impurities.
 No use of chemicals such as chlorine, bromine or iodine for purification.
 Food-grade ABS Engineering Plastic construction for trouble-free maintenance and long life.
Introduction
Items in the box
Salient Features
Presenting the all-new KENT Tap Guard, which will provide your family with safe, clean and germ-free water. Now
just connect the innovative KENT Tap Guard to your tap and get instant, convenient and unlimited supply of
quality water suitable for brushing teeth, gargling, washing fruits/vegetables and cooking.
At the heart of KENT Tap Guard is the granular activated carbon and state-of-the-art Hollow Fiber UF Membrane.
While granular activated carbon eliminates the chlorine, odour and turbidity, the UF membrane effortlessly
removes bacteria & cysts along with suspended impurities to generate water much superior to the boiled water.
2
Please use water which meets drinking water quality standards.
Tap Guard does not remove dissolved impurities.
Important Instructions
Specifications
Product KENT Tap Guard
Model SX5-KR-01
Outer dimensions H (69mm), L (104mm) W (116mm)
Weight (filled to capacity) 335gm
Maximum water pressure 350kPa
Minimum water pressure 70kPa
Casing material ABS Engineering Plastic. ABS
Filter materials Granular activated carbon, Hollow fiber UF
membrane(polysulfone)
Initial filtration flow rate 2.0 litres/min @ 100kPa.
Filtration capacity / Free residual chlorine Total filtration volume 1500 litres (80% removal rate,
Japanese Industrial Standards (JIS) S3201 test results)
Unfilterable elements Sodium, minerals dissolved in water
Recommended cartridge use duration About 6 months if 8 Litres are used per day (varies with
water use, quality and pressure) With backwash,
membrane life can be enhanced
Tips for proper use
 If the unit is used every day, run water through the filter cartridge for 10 seconds before use to clean the outlet.
 If the unit has not been used for 2 days or more, run water through the filter cartridge for 60 seconds before use.
 If the unit has not been used for 2 weeks or more, we recommend replacing the filter cartridge before reuse as
it may have lost its effectiveness.
 Keep the purified water outlet clean.
 The filter cartridges must be replaced every 6 months. Its life span depends on consumed water volume, quality
and pressure.

3
If water leaks from the faucet attachment, the valve body or the spout may be damaged. Please take care when
removing the water purifier to avoid injury from the damaged part. (Refer Pg. 21 for “Basic Troubleshooting”.)
 Do not use soap, chemical detergents, thinner or alcohol to clean the unit.
 Do not use the purifier without a cartridge.
 Do not remove the cartridge during filtration.
 Do not run water of over 35°C through the filter cartridge.
 Do not run water of over 50°C through the unit under any condition.
 Do not block or attach other objects to the filtered water outlet.
 Do not allow water to freeze in the unit.
 Do not use the unit near objects which generate heat.
 In areas with high water pressure, open the faucet slightly while using the unit.
Preventing leaks or accidents
Preventing injury
4
 The unit cannot change hard water to soft water or soft water to hard water.
 In the event of extremely murky water, turn the water selection lever to “Unfiltered Spray” and run water until it
becomes clear before filtration.
 If attached to a faucet used for both hot and cold water, users should ensure that hot water above 35°C does
not enter the cartridge.
This may result in death of your fish in the event that dechlorination performance is lowered.
Do not use the filtered water in fish bowls or aquariums
Other precautions
Do not connect the unit to instantaneous water heaters. This could result in damage to the water heater.
Preventing damage to other appliances
 If the faucet is not tight enough, excessive load may cause water to leak from the faucet attachment, faucet or
the plumbing system.
 If the end of spout is covered with a plastic insulation cap, water may leak from the faucet attachment or
damage the cap due to excessive load.
[Note: Please remember that the damage to spout / the spout cap and leaks if any caused by the damage are
not covered under Warranty.
]
Avoid damage to the faucet and its parts
Change the cartridge if flow rate decreases dramatically due to Hollow Fiber UF Membrane blockage and does not
improve even after backwash. (Continued use of a blocked cartridge in areas with high water pressure can result
in cartridge breakage.)
Preventing damage to the filter cartridge

56
Exploded diagram of KENT Tap Guard
Valve body
Water selection
lever
Filter cartridge cap
See-through
window
Filter cartridge
Stainless steel screen
(removes large impurities)
Rubber gasket
(prevents water leakage)
Attachment nut
Unfiltered water
outlet (tap water)
Purified water outlet
(Purified water)
You will need to use only one of the four adapters included. Be sure to keep the remaining three, however, since you
might need them in the event of a move or additions / renovations to your present home.
Installation Procedure 1-Choosing the correct Adapter
Most of the faucetsOther faucets
C-Type
Adapters
For Aerated faucets with exterior screw threads For Aerated faucets with interior screw threads
B-TypeA-Type
Universal Type
13 mm - 24 mm
15 mm or more
Multilayer hollow
fiber UF membrane
cartridge filter

Remove the attachment nut from the valve body. Remove the aerator cap from your faucet
Using the attachment tool, vertically screw the aerator adapter Attachment completed.
Refer “Attaching the Filter Cartridge” on Page 18
Check to make sure your faucet spout is free of chips and / or cracks which
could result in water leakage.
For this type of faucet, place the attachment nut over the faucet pipe.
For this type of faucet, do not place attachment nut over the faucet pipe.
Instead, screw the adapter onto the faucet through the attachment nut and
tighten it with attachment tool.
Attachment Nut Aerator cap
Aerator cap
Attachment Nut
Attachment Nut
Attachment Tool
For aerated faucets
with exterior threads. Use the attachment tool. Please keep this
to enable removal.
If the faucet spout is made of plastic, exercise caution not to damage the
plastic threads.
Tighten the attachment nut securely to the valve body.
7 8
1 2
5
3
6
4
Installation Procedure 2-Attaching the Adapter (A-type)
A
Type
The nut may get damaged if tightened too much with a tool.
Be careful not to injure yourself with the broken pieces while
removing the damaged nut from spout.

For aerated faucets
(interior threads)
B
Type

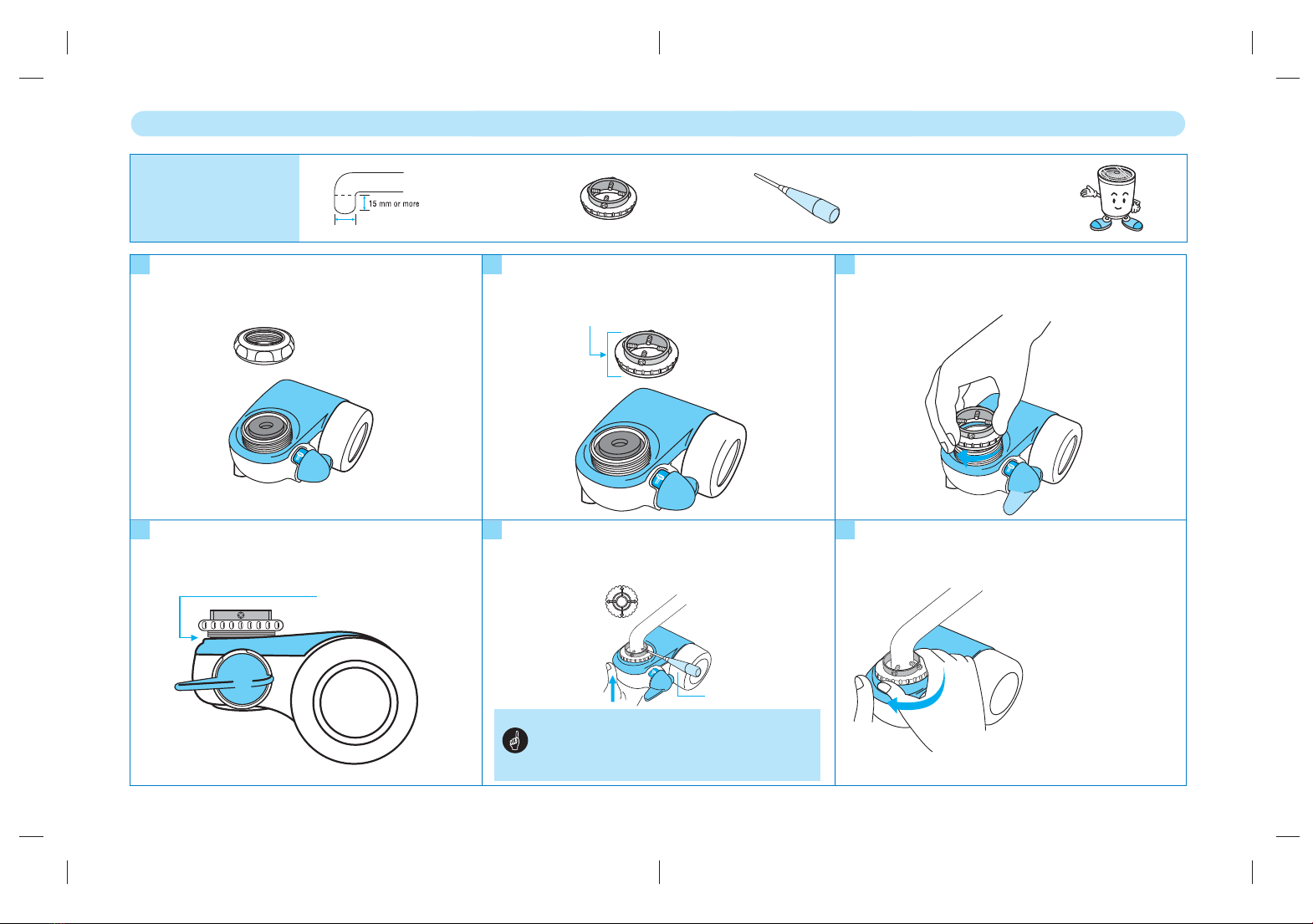

Remove the attachment nut from the valve body. Remove the aerator cap from your faucet.
Using the attachment tool, vertically screw the aerator adapter
onto the faucet spout.
Attachment completed
Refer “Attaching the Filter Cartridge” on Page 18
Check to make sure your faucet spout is free of chips and / or cracks which
could result in water leakage.
Screw the adapter onto the faucet through the attachment
nut and tighten.
Be sure to use the adapter whose threads match those of the faucet.
If the faucet spout is plastic, exercise caution not to damage
the plastic threads.
Tighten the attachment nut securely to the valve body.
9 10
12
5
3
64
Installation Procedure 2- Attaching the Adapter (B-Type)
Aerator Adapter
Attachment Tool
Aerator cap Aerator cap
Use the attachment tool. Please keep this
to enable removal.
With these types of faucets, you will be unable
to see the interior screw threads once you
remove the aerator cap.
Attachment Nut
The nut may be damaged if tightened too much with a tool. Be
careful not to injure yourself with the broken pieces while removing
the damaged nut from spout.

Other faucets
C
Type
Remove the attachment nut from the valve body.
Be sure to leave a little clearance between the screw fastener and
the valve body.
Holding the bottom of the valve body, push up firmly and tighten
the screw of the screw fastener evenly.
Refer “Attaching the Filter Cartridge” on Page 18
Turn the screw fastener about half a revolution, attaching it loosely.
11 12
12
5
3
6
4
Installation Procedure 2-Attaching the Adapter (C-Type)
Attachment Nut
Clearance
Screwdriver
The nut may be damaged if tightened too much with a tool. Be
careful not to injure yourself with the broken pieces when removing
the damaged nut from the spout.
Set the screw fastener on the valve body.
The rubber gasket assures a
tight fit to prevent water
leakage.
13 mm - 24 mm
Round Spout with no rim
Screw fastener
Screw fastener
You’ll need a Phillips-head screwdriver
Turn the screw fastener clockwise to secure it firmly to the valve
body and complete the attachment.

Use the attachment tool. Please keep this
to enable removal.
Remove the attachment nut from the valve body. Set the Universal Adapter on the valve body.
Put the clip in the adapter for a firm grip. Attachment completed.
Refer “Attaching the Filter Cartridge” on Pg 18
Tighten the attachment nut securely to the valve body.
The nut may be damaged if tightened too much with a tool. Be careful
not to injure yourself with the broken pieces when removing the
damaged nut from the spout.
Push fit the adaptor to the faucet and tighten the clip.
13 14
1 2
5
3
64
Installation Procedure 2-Attaching the Adapter (Universal-Type)
Attachment Nut
Universal Type
(For most types of faucets)

15
1

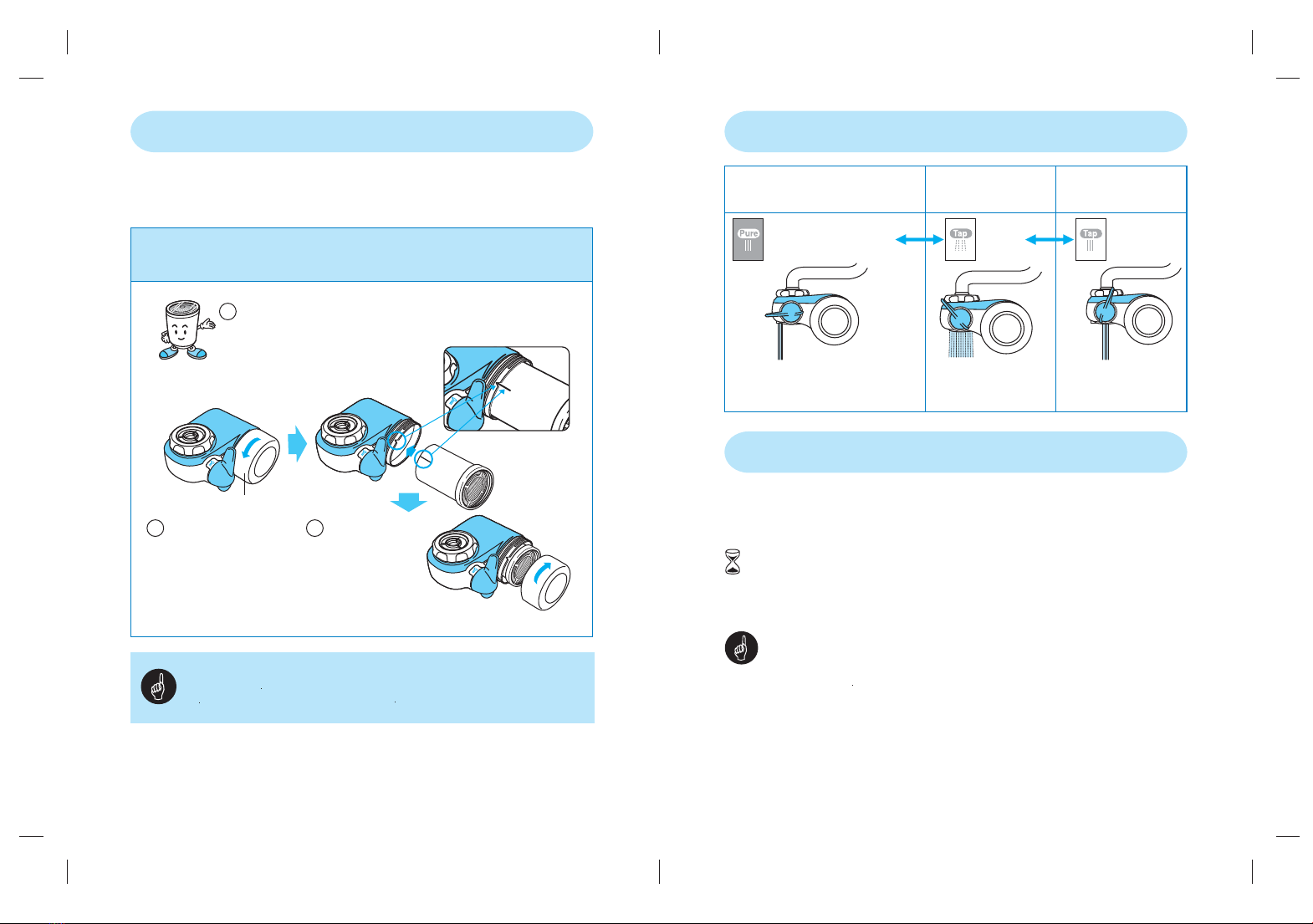

Installation Procedure 3-Attaching the Filter Catridge
Attaching/replacing the filter cartridge.
When removing the filter cartridge, follow the instructions in reverse order from step 3.
Don’t forget to turn off your faucet and set the water selection lever to “Unfiltered Straight”
before removing the filter cartridge.
Remove the cartridge
cap by turning it in the
direction of the arrow.
Push in the membrane
cartridge so that the line on
the catridge is at the V-shaped
notch on the purifier.
Turn the catridge cap
in the direction of the
arrow until stops.
Catridge cap
Cartridge line
Immediately after filter cartridge replacement, run a slow stream of water through the filter cartridge for 30
seconds before using. Not doing so will cause air to become trapped inside the filter cartridge and
reduce water flow.
2 3
16
Pure Water (Purified water).
The flow rate of filtered water is slower than
that of unfiltered water.
Use for brushing teeth, gargling, washing
fruits and vegetables and cooking.
Use for washing dishes or
other times when a lower flow
rate is preferred.
Use for a high flow rate.
Tap Water-Unfiltered Spray Tap Water-Unfiltered Straight
Switching between purified / unpurified water
When to replace the Filter Cartridge
You should change the filter cartridge in case of the below given events.
1. Recommended replacement period.
The filter’s dechlorination capacity is 1500 litres. For a family of 3-4 who use 8L of filtered water per day for
brushing teeth, gargling or washing fruits and vegetables 1500 litres translates into a filter cartridge service
life of 6 months. This life may be enhanced by backwashing the filter cartridge.
It is recommended to change the filter cartridge every 6 months or earlier.
2. Chlorine odour remains after filtration.
The filter cartridge is losing its ability to remove chlorine effectively. Granular activated carbon can remove
residual chlorine. When the removal capability is reduced below a certain level, the filtered water may smell
of chlorine.
In areas with high levels of residual chlorine content and / or high water pressure and therefore, a
high flow rate open the faucet only slightly to restrict water flow.
3. Conspicuous decrease in flow rate.
The Hollow Fiber UF Membrane contains billions of micro-pores small enough to remove impurities in
units of 0.1 micrometers in diameter. Membranes are arranged in a multilayer configuration for optimal
efficiency in filtering out micro-contaminants, red rust, coli and other bacteria and cysts. These
micro-pores gradually become clogged during use due to accumulations of rust and turbidity, resulting
in a drop in the flow rate from the filtered water outlet.

18
The Filter Cartridge should be cleaned at least once in 15 days.
CauseProblem
Water leaks from the
faucet attachment.
Check whether unit is properly
installed.
Solution
Install again.
Check whether the adapter threads
are damaged.
Contact Customer Care.
Check whether the faucet
spout is cracked or chipped.
Repair or replace the Faucet
or spout.
Check whether the attachment
nut is cracked.
Contact Customer Care.
Basic troubleshooting
1. Remove the cartridge cap by turning it in the
anticlockwise direction.
2. Remove the filter cartridge.
3. Fill the 20ml syringe with pure water.
4. Fit the syringe into the hole provided in the
centre of cartridge and slowly inject water from
syringe into the cartridge. Dirty water if any,
flows out of the side hole provided on cartridge.
5. Repeat operation if required.
Backwashing the filter cartridge
17
1. Remove tap purifier from the faucet in
reverse order of installation.
2. Rinse the purifier with unfiltered tap water.
Do not use detergent, thinner or alcohol
to clean the surface.
3. Use a clean toothbrush to clean the
filtered water outlet and rinse off any
contamination under running tap water
and wipe well with a clean cloth.
4. Rinse the stainless steel screen and the
unfiltered water outlet using a clean
toothbrush.
5. Backwash the Filter Cartridge regularly
(Refer Backwashing the Filter Cartridge).
Maintenance
Water drips down from the bottom
or the body (during filtration).
Check whether cartridge is properly
installed.
Install it again.
Install it again.
Check whether the rubber gasket
has slipped out from the cartridge.
Filter Cartridge
Rubber Ring
Slow water flow rate from the
unfiltered outlet.
Check whether the stainless
steel net and/or the unfiltered
outlet are clogged or dirty.
Wash the stainless steel net in water
and /or clean the spray outlet with
water and a toothbrush.
Filtered water retains an
Unpleasant odour.
Slow water flow rate from the
filtered outlet.
Check whether the time to
replace the cartridge has
passed.
Replace the filter cartridge.
Check whether the filter is
clogged.
Replace the filter cartridge.
