How to read this manual:
• Illustrations of DDX4025BT are mainly used for explanation. The displays and panels shown in this
manual are examples used to provide clear explanations of the operations. For this reason, they may be
different from the actual displays or panels.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For
operations using the remote controller (KNA-RCDV331: separately purchased), see page 45.
• < > indicates the various screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation. You can select the
indication language from the <Setup> menu. (Page44)
BEFORE USEBEFORE USE
VWARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit is
utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
DDXEntryE.indb2DDXEntryE.indb2 2013/10/3013:542013/10/3013:54

ENGLISH 3
Information on Disposal of Old Electrical and
Electronic Equipment and Batteries (applicable
for EU countries that have adopted separate
waste collection systems)
Products and batteries with the symbol (crossed-
out wheeled bin) cannot be disposed as household
waste.
Old electrical and electronic equipment and
batteries should be recycled at a facility capable of
handling these items and their waste byproducts.
Contact your local authority for details in locating a
recycle facility nearest to you.
Proper recycling and waste disposal will help
conserve resources whilst preventing detrimental
effects on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries
indicates that this battery contains lead.
For Israel
For DDX3025/DDX3055/DDX355
Declaration of Conformity with regard to the
EMC Directive 2004/108/EC
Declaration of Conformity with regard to the
RoHS Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12 Moriya-cho, Kanagawa-ku, Yokohamashi,
Kanagawa, 221-0022, Japan
EU Representative:
JVCKENWOOD NEDERLAND B.V.
Amsterdamseweg 37, 1422 AC UITHOORN, The
Netherlands
VCautions on the monitor:
• The monitor built into this unit has been
produced with high precision, but it may have
some ineffective dots. This is inevitable and is not
considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
For safety...
• Do not raise the volume level too much, as this
will make driving dangerous by blocking outside
sounds, and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
RHow to reset your unit
DDX4025DAB/DDX4025BT/DDX4055BT/
DDX3025/DDX3055
DDX355
If the unit fails to operate properly, press the Reset
button. The unit returns to factory settings when
the Reset button is pressed (except the registered
Bluetooth devices).
BEFORE USEBEFORE USE
DDXEntryE.indb3DDXEntryE.indb3 2013/10/3013:542013/10/3013:54

4
INITIAL SETTINGSINITIAL SETTINGS
Initial setup
When you power on the unit for the first time or
reset the unit, the initial setting screen appears.
• You can also change the settings on the <Setup>
screen. (Page42)
1
<Language>
(Page44)
Select the text language used for
on-screen information.
• Set <GUI Language> to
display the operation buttons
and menu items in the
selected language ([Local]:
initially selected) or English
([English]).
<AV Input>
(Page43)
Select an external component
connected to the iPod/AV-IN2
input terminal to play.
<R-CAM
Interrupt>
(Page43)
Select [On] when connecting
the rear view camera.
<Panel
Color>
(Page43)
Select the color of the buttons
on the monitor panel.
2Finish the procedure.
The <Top Menu> screen is displayed.
Setting the security function
You can set a security code to protect your receiver
system against theft.
RRegistering the security code
1Display the <Top Menu> screen.
On the source control screen:
2Display the <System> setting screen.
3Display the <Security Code Set> screen.
• To clear the registered security code, perform
steps 1and 2, then press [CLR] in <Security
Code>.
4 Enter a four-digit number (1), then
confirm the entry (2).
• Press [Clear] to delete the last entry.
• Press [Cancel] to cancel the setting.
5Repeat step 3to confirm your security
code.
Now, your security code is registered.
• When the unit is being reset or disconnected from
the battery, you are required to enter the security
code. Enter the correct security code, then press
[Enter].
DDXEntryE.indb4DDXEntryE.indb4 2013/10/3013:542013/10/3013:54

ENGLISH 5
INITIAL SETTINGSINITIAL SETTINGS
RActivating the security function
You can activate the security function to protect
your receiver system against theft.
1Display the <System> setting screen.
On the <Top Menu> screen:
2
The security indicator on the monitor panel
flashes when the vehicle ignition is off.
To deactivate the security function: Select [OFF]
for <SI>.
Clock settings
1Display the <Top Menu> screen.
On the source control screen:
2Display the <Setup> screen.
3Display the <Clock> screen.
4Set the clock time.
<NAV>*1Synchronizes the clock time with
the connected navigation unit.
<Radio Data
System>
Synchronizes the clock time with
FM Radio Data System.
<DAB>*2Synchronizes the clock time with
the digital radio (DAB).
<OFF> Sets the clock manually. (See
below.)
When selecting <OFF>:
Adjust the hour (1), then adjust the minute (2).
• Press [Reset] to set the minute to “00”.
5Finish the procedure.
*1Appears only when the navigation unit is connected.
*2Only for DDX4025DAB.
DDXEntryE.indb5DDXEntryE.indb5 2013/10/3013:542013/10/3013:54

6
BASICSBASICS
Component names and functions
DDX4025DAB/DDX4025BT/DDX4055BT/
DDX3025/DDX3055
DDX4025DAB/
DDX4025BT/DDX4055BT
DDX3025/DDX3055
DDX355
1Remote sensor
2Reset button/Power indicator/Security indicator
• Resets the unit. (Page 3)
• Lights up while the unit is turned on.
• Flashes when the security function is activated.
(Page 5)
3M(Eject) button
Ejects the disc.
4Loading slot
5MENU button
• Displays the <Top Menu> screen. (Press)
(Page 8)
• Turns off the power. (Hold) (Page 7)
• Turns on the power. (Press) (Page 7)
6AV/AV OUT button
• Displays the current source screen. (Press)
• Selects the AV source for external monitor or
amplifier. (Hold)
7For DDX4025DAB/DDX4025BT/DDX4055BT:
Volume/ATT/AUD knob
• Attenuates the sound. (Press) (Page 7)
• Adjusts the audio volume. (Turn) (Page 7)
• Displays the <Tone> screen. (Hold)
(Page 36)
For DDX3025/DDX3055: Volume/ATT knob
• Attenuates the sound. (Press) (Page 7)
• Adjusts the audio volume. (Turn) (Page 7)
For DDX355: Volume F/Gbuttons
• Adjusts the audio volume. (Press) (Page 7)
8For DDX4025DAB/DDX4025BT/DDX4055BT:
TEL/VOICE button
• Displays the <Handsfree> screen. (Press)
(Page 31)
• The function of the button when held varies
depending on the <TEL Key Long Press>
setting. (Page 44)
For DDX3025/DDX3055/DDX355: AUD/V.OFF
button
• Displays the <Tone> screen. (Press)
(Page 36)
• The function of the button when held varies
depending on the <AUD Key Long Press>
setting. (Page 44)
9Monitor panel*
pScreen (touch panel)
qFor DDX355 only
USB input terminal
wFor DDX355 only
iPod/AV-IN2 input terminal
* You can change the color of the buttons on the monitor panel.
(Page 39)
VCaution on the volume setting:
Digital devices produce very little noise
compared with other sources. Lower the
volume before playing these digital sources
to avoid damaging the speakers by sudden
increase of the output level.
DDXEntryE.indb6DDXEntryE.indb6 2013/10/3013:542013/10/3013:54

ENGLISH 7
BASICSBASICS
Common operations
RTurning on the power
DDX4025DAB/
DDX4025BT/DDX4055BT/
DDX3025/DDX3055
DDX355
RTurning off the power
DDX4025DAB/
DDX4025BT/DDX4055BT/
DDX3025/DDX3055
DDX355
(Hold) (Hold)
RAdjusting the volume
To adjust the volume (00 to 35)
DDX4025DAB/DDX4025BT/
DDX4055BT/DDX3025/
DDX3055
Turn to the right to increase, and turn to the left to
decrease.
DDX355
Press Jto increase, and press Kto decrease.
• Holding the button increases/decreases the
volume continuously.
To attenuate the sound (only for DDX4025DAB/
DDX4025BT/DDX4055BT/DDX3025/DDX3055)
The ATT indicator lights up.
To cancel the attenuation: Press the same button
again.
RPutting the unit in standby
1Display all <Top Menu> items.
On the <Top Menu> screen:
2
DDXEntryE.indb7DDXEntryE.indb7 2013/10/3013:542013/10/3013:54

8
BASICSBASICS
RTurning off the screen
DDX4025DAB/DDX4025BT/
DDX4055BT*1
(Hold)
(Hold)
(Hold)
DDX3025/DDX3055*2
DDX355*2
To turn on the screen: Press MENU on the
monitor panel, or touch the display.
*1This operation works only when <TEL Key Long Press> is
set to [V-OFF]. (Page44)
*2 This operation works only when <AUD Key Long Press> is
set to [V-OFF]. (Page44)
Common screen operations
RCommon screen descriptions
You can display other screens any time to change
the source, show the information, or change the
settings, etc.
Source control screen
Performs source playback operations.
• The operation buttons vary depending on the
selected source.
12
Common operation buttons:
1Displays the <Top Menu> screen. (See below.)
• Pressing MENU on the monitor panel also
displays the <Top Menu> screen.
2Displays the screen of the connected navigation
unit.* (Page27)
<Top Menu> screen
Displays the source control screen and settings
screen.
1
3
2
Common operating buttons:
1Changes the playback source. (Page 9)
• Press [ALL SRC] to display all <Top Menu>
items. (Page 9)
• You can arrange the items to display on the
<Top Menu> screen (Page 40)
2Displays the <Handsfree> screen. (Page 31)
3Displays the <Setup> screen. (See below.)
<Setup> screen
Changes the detailed settings. (Page 42)
3
1
24
Common operating buttons:
1Selects the menu category.
2Displays the <Top Menu> screen.
3Changes the page.
4Returns to the previous screen.
* Appears only when a navigation unit is connected.
DDXEntryE.indb8DDXEntryE.indb8 2013/10/3013:542013/10/3013:54

ENGLISH 9
BASICSBASICS
RTouch screen operations
1
3
2
4
1Displays the video control menu while playing a
video.
2Displays the source control screen while playing
a video.
• The operation buttons disappear when the
screen is touched or when no operation is
done for about 5 seconds.
3Goes to the previous chapter/track.*
4Goes to the next chapter/track.*
* Not available for video from an external component.
Selecting the playback source
• You can change the items (other than [SETUP]) to
display on the <Top Menu> screen. (Page40)
[NAV]*1 Displays the navigation screen
when a navigation unit is
connected. (Page27)
[DISC] Plays a disc. (Page 10)
[TUNER] Switches to the conventional radio
broadcast. (Page 19)
[DAB]*2Switches to the digital audio
broadcast (DAB). (Page22)
[iPod] Plays an iPod/iPhone. (Page 15)
[USB] Plays files on a USB device.
(Page 14)
[TEL]*3 Displays the <Handsfree> screen.
(Page 31)
[Bluetooth]*3 Plays a Bluetooth audio player.
(Page 35)
[AV-IN1][AV-IN2]*4
Switches to an external component
connected to the AV-IN1 and iPod/
AV-IN2 input terminal. (Page 26)
*1When no navigation unit is connected, “No Navigation” appears.
*2Only for DDX4025DAB.
*3 Only for DDX4025DAB/DDX4025BT/DDX4055BT.
*4 Select an appropriate input setting in <AV Input>. (Page 43)
RTo display all sources and items on the
<Top Menu> screen
DDXEntryE.indb9DDXEntryE.indb9 2013/10/3013:542013/10/3013:54

10
DISCSDISCS
Playing a disc
• If a disc does not have a disc menu, all tracks on
it will be played repeatedly until you change the
source or eject the disc.
• For playable disc types/file types, see page 55.

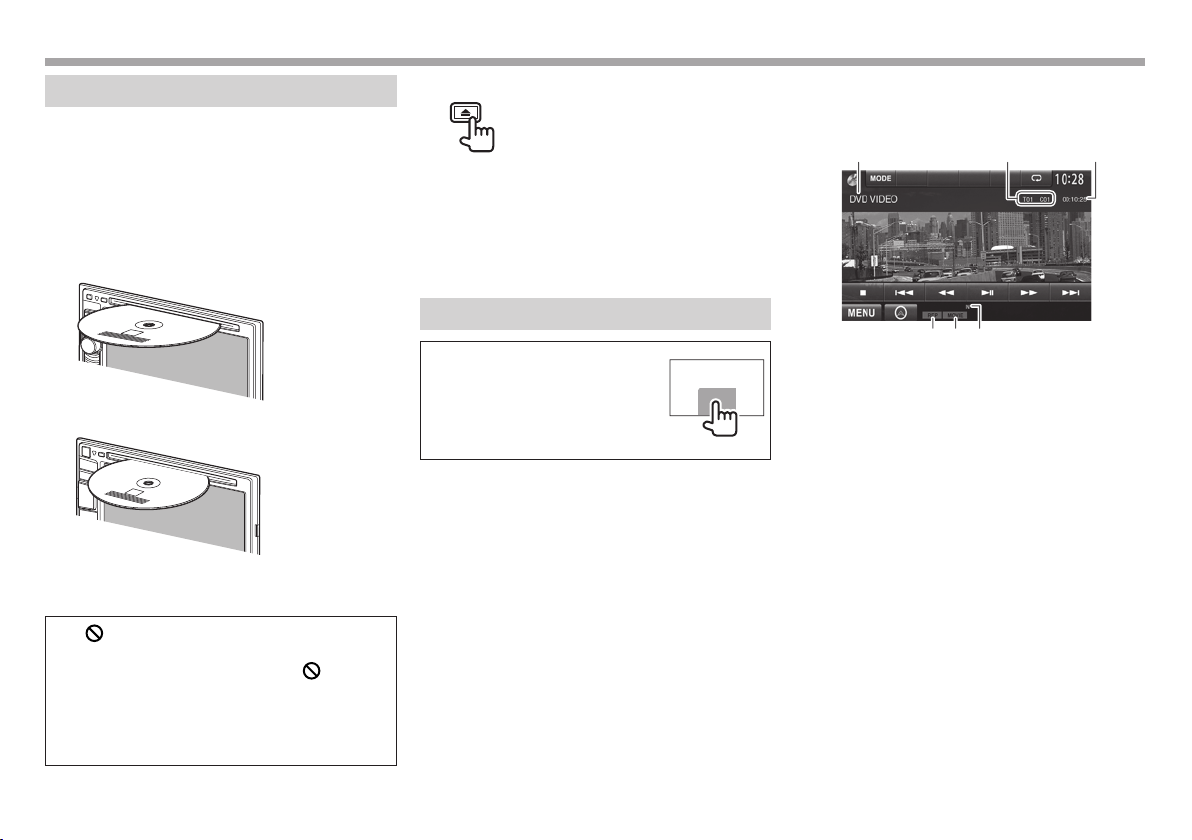

RInserting a disc
Insert a disc with the label side facing up.
DDX4025DAB/DDX4025BT/DDX4055BT/
DDX3025/DDX3055
DDX355
The source changes to “DISC” and playback starts.
• The IN indicator lights up while a disc is inserted.
• If “ ” appears on the screen, the unit cannot
accept the operation you have tried to do.
– In some cases, without showing “ ,”
operations will not be accepted.
• When playing back a multi-channel
encoded disc, the multi-channel signals are
downmixed to stereo.
REjecting a disc
• When removing a disc, pull it horizontally.
• You can eject a disc when playing another AV
source.
• If the ejected disc is not removed within
15 seconds, the disc is automatically inserted
again into the loading slot to protect it from dust.
Playback operations
• When the operation buttons
are not displayed on the screen,
touch the area shown on the
illustration.
– To change settings for video
playback, see page 37.
RIndications and buttons on the source
control screen
For DVD/VCD/DivX/MPEG1/MPEG2/JPEG
1
54 6
32
Playback information
1Media type
2Current playback item information
• DVD Video: Title no./Chapter no.
• DivX/MPEG1/MPEG2: Folder no./Track no.
• JPEG: Folder no./File no.
• VCD: Track no.
3Playing time
4Playback mode (Page13)
5File type (for DivX/MPEG1/MPEG2/JPEG)
6IN indicator
DDXEntryE.indb10DDXEntryE.indb10 2013/10/3013:542013/10/3013:54

ENGLISH 11
DISCSDISCS
Operation buttons
[O] [N]• Reverse/forward search during
playback.*1
• Plays back in slow-motion
during pause.
– For DVD-VR/VCD: Reverse
slow-motion playback is not
available.
[o]*2 Stops playback.
[ ]*3 Displays the folder/track list. (See
the far right column.)
[ ]
[ ]*4
Selects playback mode.
(Page13)
[IW]Starts/pauses playback.
[S] [T]• Selects a chapter/track. (Press)
• Reverse/forward search.*1 (Hold)
[ ] [ ]*3Selects a folder.
[MODE]*5 Changes the settings for disc
playback on the <DISC Mode>
screen. (Page13)
[MENU] Displays the <Top Menu> screen.
*1Search speed varies depending on the type of disc or file.
*2 Appears only for DVD/VCD.
*3 Does not appear for DVD/VCD.
*4 Does not appear for DVD/JPEG.
*5 Does not appear for VCD.
For CD/MP3/WMA/WAV/AAC
12
876 9
54
3
Playback information
1Media type
2Track/file information
• Pressing [<] scrolls the text if not all of the text
is shown.
3Current playback item information
• MP3/WMA/WAV/AAC: Folder no./Track no.
• CD: Track no.
4Playback status (I: play/W: pause)
5Playing time
6Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
7Playback mode (Page13)
8File type
9IN indicator
Operation buttons
[O] [N]Reverse/forward search.*1
[ ]*2 Displays the folder/track list. (See
the right column.)
[ ] [ ] Selects playback mode.
(Page13)
[IW]Starts/pauses playback.
[S] [T]Selects a track.
[ ] [ ]*2Selects a folder.
[MODE]*2 Changes the settings for disc
playback on the <DISC Mode>
screen. (Page13)
[MENU] Displays the <Top Menu> screen.
*1 Search speed varies depending on the type of disc or file.
*2Does not appear for CDs.
RSelecting a folder/track on the list
1
2 Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• If you want to play all tracks in the folder,
press [I] on the right of the desired folder.
• You can change the page to display more
items by pressing [ ]/[ ].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
DDXEntryE.indb11DDXEntryE.indb11 2013/10/3013:542013/10/3013:54

12
DISCSDISCS
RVideo menu operations
You can display the video menu screen during video
playback.
• Available items on the screen differ depending on
the types of the loaded disc and playback files.
• The operation buttons disappear when the screen
is touched or when no operation is done for about
5 seconds.
*
*
[ZOOM] Displays the picture size selecting
screen. (Page38)
[Aspect] Selects the aspect ratio. (Page38)
[Picture
Adjust]
Displays the picture adjustment
screen. (Page37)
[Audio]* Selects the audio type.
[Subtitle]* Selects the subtitle type.
[Angle]* Selects the view angle.
[MENU]* Displays the disc menu (DVD).
[T MENU]* Displays the disc menu (DVD).
[CUR]* Displays the menu/scene selecting
screen.
• [J] [K] [H] [I]: Selects an item.
– For DivX: [H] [I] skips back or
forward by about 5 minutes.
• [Enter]: Confirms the selection.
• [Return]: Returns to the previous
screen.
[Highlight]* Switches to the direct disc menu
mode. Touch the target item to
select.
• To restore the screen, press AV on
the monitor panel.
* Does not appear for MPEG1/MPEG2.
For VCD
1
2
[ZOOM] Displays the picture size selecting
screen. (Page38)
[Aspect] Selects the aspect ratio. (Page38)
[Picture
Adjust]
Displays the picture adjustment
screen. (Page37)
[Audio] Selects the audio channel (ST: stereo,
L: left, R: right).
[Return] Displays the previous screen or menu.
[MENU] Displays the disc menu.
[Direct] Displays/hides the direct selecting
buttons. (See below.)
• To select a track directly, press [Direct] to display
the direct selecting buttons, then...
– When you enter a wrong number, press [Direct/
CLR] to delete the last entry.
• To deactivate the PBC function, stop playback,
then use the direct selecting buttons to select a
track number.
DDXEntryE.indb12DDXEntryE.indb12 2013/10/3013:542013/10/3013:54

ENGLISH 13
DISCSDISCS
RSelecting playback mode
[ ]Selects Repeat playback mode.
[ ]Selects Random playback mode.
• For DVD: Repeat play is available.
For VCD (without PBC)/CD/DivX/MPEG1/MPEG2/
MP3/WMA/WAV/AAC: Repeat and Random play
are available.
– You cannot activate the repeat mode and the
random mode at the same time.
• Each time you press the button, the playback
mode changes. (The corresponding indicator
lights up.)
– Available items differ depending on the types of
loaded disc and playback file.
C-REP Repeats current chapter.
T-REP Repeats current title/program.
REP Repeats current track.
FO-REP Repeats all tracks of the
current folder.
FO-RDM Randomly plays all tracks of
the current folder, then tracks
of the next folders.
RDM Randomly plays all tracks.
To cancel Repeat/Random playback: Press the
button repeatedly until the indicator disappears.
Settings for disc playback
• The items shown on the <DISC Mode> screen are
different depending on the discs/files played back.
RSetting items
<Menu
Language>
Select the initial disc menu
language. (Initial for DDX4025DAB/
DDX4025BT/DDX3025: English, for
DDX4055BT/DDX3055/DDX355:
Russian) (Page57)
<Audio
Language>
Select the initial audio language.
(Initial for DDX4025DAB/
DDX4025BT/DDX3025: English, for
DDX4055BT/DDX3055/DDX355:
Russian) (Page57)
<Subtitle
Language>
Select the initial subtitle language
or turn subtitles off (Off). (Initial for
DDX4025DAB/DDX4025BT/DDX3025:
English, for DDX4055BT/DDX3055/
DDX355: Russian) (Page57)
<Down Mix> When playing back a multi-channel
disc, this setting affects the signals
reproduced through the front and/or
rear speakers
.
• Dolby Surround: Select this to
enjoy multi-channel surround
sound by connecting an amplifier
compatible with Dolby Surround.
• Stereo (initial): Normally select
this.
<Dynamic
Range
Control>
You can change the dynamic range
while playing Dolby Digital software.
• Wide: Select this to enjoy a
powerful sound at a low volume
level with its full dynamic range.
• Normal: Select this to reduce the
dynamic range a little.
• Dialog (initial): Select this to
reproduce movie dialog more
clearly.
<Screen
Ratio>
Select the monitor type to watch a
wide screen picture on the external
monitor.
16:9
(Initial) 4:3 LB 4:3 PS
<File Type>*Select the playback file type when a
disc contains different types of files.
• Audio: Plays back audio files.
• Still Image: Plays back JPEG files.
• Video: Plays back DivX/MPEG1/
MPEG2 files.
• Audio&Video (initial): Plays back
audio files and DivX/MPEG1/
MPEG2 files.
*For playable file types, see page 55.
If the disc contains no files of the selected type, the existing files are
played in the following priority: audio, video, then still picture.
DDXEntryE.indb13DDXEntryE.indb13 2013/10/3013:542013/10/3013:54

14
USBUSB
Connecting a USB device
You can connect a USB mass storage class device
such as a USB memory, Digital Audio Player etc. to
the unit.
• For details about connecting USB devices, see
page 52.
• You cannot connect a computer or portable HDD
to the USB input terminal.
• For playable file types and notes on using USB
devices, see page 56.
When a USB device is connected...
The source changes to “USB” and playback starts.
• All tracks in the USB device will be played
repeatedly until you change the source.
To disconnect the USB device safely:
Press [M], then disconnect the USB device after “No
Device” appears.
Playback operations
• When the operation buttons
are not displayed on the screen,
touch the area shown on the
illustration.
– To change settings for video
playback, see page 37.
RIndications and buttons on the source
control screen
12
765
4
3
Playback information
1Track/file information (for MP3/WMA/WAV/AAC)
• Pressing [<] scrolls the text if not all of the text
is shown.
2Current playback item information
• DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC:
Folder no./Track no.
• JPEG: Folder no./File no.
3Playback status (I: play/W: pause)
4Playing time
5Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
6Playback mode (See the right column.)
7File type
Operation buttons
[O] [N]Reverse/forward search.*1
[ ] Displays the folder/track list.
(Page15)
[ ]Selects repeat playback mode.
*2 *3
• REP: Repeats the current track.
• FO-REP: Repeats all tracks in the
current folder.
[ ]Selects random playback mode.
*2 *3
• FO-RDM: Randomly plays all
tracks in the folder.
• RDM: Randomly plays all tracks.
[ M]Disconnects the USB device safely.
[IW]Starts/pauses playback.
[S] [T]Selects a track.
[ ] [ ] Selects a folder.
[MODE] Changes the settings on the <USB
Mode> screen. (Page15)
[MENU] Displays the <Top Menu> screen.
*1Search speed varies depending on the file type.
*2 To cancel random or repeat mode, press the button repeatedly until
the indicator disappears.
*3 You cannot activate the repeat mode and the random mode at the
same time.
DDXEntryE.indb14DDXEntryE.indb14 2013/10/3013:542013/10/3013:54

ENGLISH 15
USBUSB
R<USB Mode> settings
Setting <File Type>
[Audio] Plays back audio files.
[Still Image] Plays back JPEG files.
[Video] Plays back DivX/MPEG1/MPEG2
files.
[Audio&Video]
(Initial)
Plays back audio files and DivX/
MPEG1/MPEG2 files.
• For playable files, see page 56. If the USB device
contains no files of the selected type, the existing
files are played in the following priority: audio,
video, then still picture.
Setting <Screen Ratio>
Select the monitor type to watch a wide screen
picture on the external monitor.
[16:9] (Initial) [4:3 LB] [4:3 PS]
Setting <Drive Select>
Press [Next]. Switches between internal memory
and the memory source of the connected device
(such as mobile phone).
RSelecting a folder/track on the list
1
2 Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• If you want to play all tracks in the folder,
press [I] on the right of the desired folder.
• You can change the page to display more
items by pressing [ ]/[ ].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
iPod/iPhoneiPod/iPhone
Preparation
RConnecting iPod/iPhone
• For details about connecting iPod/iPhone, see
page 52.
• For playable iPod/iPhone types, see page 56.
Connect your iPod/iPhone using the appropriate
cable according to your purpose.
• To listen to music: USB Audio cable for iPod/
iPhone—KCA-iP102 (optional accessory) or USB
2.0 cable (accessory of the iPod/iPhone)
• To watch video and listen to music: USB Audio
and Video cable for iPod/iPhone—KCA-iP22F/
KCA-iP202 (optional accessory)
– You cannot connect iPod nano (7th Generation)/
iPod touch (5th Generation)/iPhone 5 with
KCA-iP22F/KCA-iP202.
RSelecting preference settings for iPod/
iPhone playback
When the source is “iPod”...
1
2
<Audiobooks> Select the speed of audio
books.
<Artwork> Shows/hides the iPod artwork.
DDXEntryE.indb15DDXEntryE.indb15 2013/10/3013:542013/10/3013:54

16
iPod/iPhoneiPod/iPhone
RSetting <AV Input> for iPod/iPhone
playback
Select an appropriate input setting for <AV Input>
according to the connection method of the iPod/
iPhone.
• You can change the setting only when [STANDBY]
is selected on <Top Menu>. (page7)
1Display the <Input> setting screen.
On the <Top Menu> screen:
2
[AV-IN2] Select this when the iPod/iPhone
is connected using KCA-iP102
(optional accessory) or the USB 2.0
cable (accessory of the iPod/iPhone).
[iPod] Select this when the iPod/iPhone
is connected using KCA-iP22F/
KCA-iP202 (optional accessory).
Playback operations
• When the operation buttons
are not displayed on the screen,
touch the area shown on the
illustration.
– To change settings for video
playback, see page 37.
RIndications and buttons on the source
control screen
12
65
4
3
Playback information
1Song/video information
• Pressing [<] scrolls the text if not all of the text
is shown.
2Track no./Total track number
3Playback status (I: play/W: pause)
4Playing time
5Artwork (Shown if the song contains Artwork)
• To change the Artwork display, see page 15.
6Playback mode (Page17)
DDXEntryE.indb16DDXEntryE.indb16 2013/10/3013:542013/10/3013:54

ENGLISH 17
iPod/iPhoneiPod/iPhone
Operation buttons
[O] [N]Reverse/forward search.
[APP] Select to control playback from iPod/
iPhone.*1
[ ] Displays the audio/video file list. (See
the right column.)
[ ]Selects repeat playback mode.
• REP: Functions the same as
“Repeat One.”
• ALL: Functions the same as
“Repeat All.”
[ ]Selects random playback mode.*2
• RDM: Functions the same as
“Shuffle Songs.”
• A-RDM: Functions the same as
“Shuffle Albums.”
[IW]Starts/pauses playback.
[S] [T]Selects an audio/video file.*3
[MODE] Changes the settings for iPod/iPhone
playback on the <iPod Mode>
screen. (Page15)
[MENU] Displays the <Top Menu> screen.
*1When using iPod with video, you can control playback only from the
unit.
*2 To cancel random mode, press the button repeatedly until the
indicator disappears.
*3 Resume playback is unavailable for video files.
RSelecting an audio/video file from the
menu
1
2 Select the menu ( : audio or : video)
(1), a category (2), then a desired item
(3).
• Select the item in the selected layer until a
desired file starts playing.
• If you want to play all items in the layer, press
[I] on the right of the desired item.
Audio menu:
Video menu:
• You can change the page to display more
items by pressing [ ]/[ ].
• Press [ ] to return to the top layer.
• Press [ ] to return to the upper layer.
• Available categories differ depending on the type
of your iPod/iPhone.
DDXEntryE.indb17DDXEntryE.indb17 2013/10/3013:542013/10/3013:54

18
iPod/iPhoneiPod/iPhone
Controlling playback from the iPod/
iPhone
You can play back the audio/video files or use App
by operating iPod/iPhone itself instead of the unit.
• When you are using Garmin StreetPilot® Onboard,
the screen appears. For Garmin StreetPilot®
Onboard for iPhone, visit the Garmin web site:
www.garmin.com
Garmin App:
• The current position of your vehicle appears on
the map. When the vehicle moves, the map scrolls.
• The screens of the iPhone and unit are not the
same.
• To return to the normal mode, press [APP].
DDXEntryE.indb18DDXEntryE.indb18 2013/10/3013:542013/10/3013:54

ENGLISH 19
TUNERTUNER
Listening to the radio
RIndications and buttons on the source
control screen
12 3
465789
p
q
Tuner reception information
1Band
2Preset no.
3The station frequency currently tuned in
4ST/MONO indicator
• The ST indicator lights up when receiving an
FM stereo broadcast with sufficient signal
strength.
5AF indicator
6Seek mode
7LO.S indicator (See the far right column.)
8RDS indicator: Lights up when receiving a Radio
Data System station.
9EON indicator: Lights up when a Radio Data
System station is sending EON signals.
pText information
• Pressing [<] scrolls the text if not all of the text
is shown.
• Pressing [Radio Text] switches the information
between Radio Text, Radio Text Plus, and PTY
code.
qStandby reception indicators
Operation buttons
[P1] – [P6] • Selects a stored station. (Press)
• Stores the current station. (Hold)
[MODE] Changes the settings for tuner
reception on the <TUNER Mode>
screen. (See the right column.)
[TI] Activates/deactivates TI standby
reception mode. (Page20)
[MONO]* Activates/deactivates monaural
mode for better FM reception.
(Stereo effect will be lost.)
• The MONO indicator lights up
while monaural mode is activated.
[TEXT] Changes the display information.
(See the right column.)
[PTY]* Enters PTY search mode. (Page20)
[AM] Selects the AM band.
[FM] Selects the FM band.
[SEEK] Changes the seek mode.
• AUTO1: Auto Search
• AUTO2: Tunes in the stations in
memory one after another.
• MANU: Manual Search
[S] [T]Searches for a station.
• The search method differs
according to the selected seek
mode. (See above.)
[MENU] Displays the <Top Menu> screen.
* Appears only when FM is selected as the source.
RChanging the display information
The preset list and the station name for FM Radio
Data System (when PS signal is coming in) are
displayed.
• Pressing [TEXT] again displays the text
information for the station currently being
received.
RTuning in FM stations only with strong
signals—Local Seek
1
2
[ON] Select this to tune in only to stations
with sufficient signal strength. The LO.S
indicator lights up.
[OFF] Deactivate the function.
DDXEntryE.indb19DDXEntryE.indb19 2013/10/3013:542013/10/3013:54

20
TUNERTUNER
Presetting stations
RStoring stations in the memory
You can preset 6 stations for each band.
Automatic presetting—AME (Auto Memory)
1
2
(Hold)
Local stations with the strongest signals are found
and stored automatically.
Manual presetting
1Tune in to a station you want to preset.
(Page 19)
2Select a preset number.
(Hold)
The station selected in step 1is stored.
RSelecting a preset station
FM Radio Data System features
RSearching for FM Radio Data System
programs—PTY Search
You can search for your favorite programs being
broadcast by selecting the PTY code.
1
2Select a PTY code.
(Hold)
• You can change the page to display more
items by pressing [ ]/[ ].
PTY Search starts.
If there is a station broadcasting a program of
the same PTY code as you have selected, that
station is tuned in.
• Only English/Spanish/French/German/Dutch/
Portuguese are available for the text language
here. If another language has been selected in
<Language> (Page44), the text language
is set to English.
RActivating/deactivating TI/News
Standby Reception
TI Standby Reception
The unit is in standby to switch to Traffic Information
(TI) if available. (The TI indicator lights up in white.)
• If the TI indicator is lit in orange, tune into another
station providing Radio Data System signals.
To deactivate TI Standby Reception: Press [TI].
(The TI indicator goes off.)
• The volume adjustment for Traffic Information is
automatically memorized. The next time the unit
switches to Traffic Information, the volume is set
to the previous level.
• For DDX4025DAB: The TI Standby Reception can
also be activated or deactivated from “DAB”
source control screen. (Page24)
DDXEntryE.indb20DDXEntryE.indb20 2013/10/3013:542013/10/3013:54
