Kenwood PS Series User manual

©PRINTED IN JAPANB63-0147-10(N)
46503
REGULATEDDCPOWERSUPPLY
PSseries
INSTRUCTION MANUAL
KENWOOD CORPORATION
KENWOOD

TABLE OF CONTENTS
1. OUTLINE •••• -.0.-0 . 4
2. FEATURES ..................................... 4
3. SPECIFICATIONS 5
4. ^PRECAUTIONS FORUSE• • • • • 10
5. PANEL EXPLANATION 16
5- 1 FrontPanel...........••••••16
5-2 Rear Panel• • • • • 19
6. OPERATIONS ................ 30
6-1 Connecting Power Cord 30
6-2Connecting Load with Main Output Terminal• ......31
6-3 Setting VoltageandCurrentonFrontPanel••••••••••32
6-4 Setting ofOver-Voltage Protection OVP•••••33
6-5Turning Output OnandOffonFrontPanel• 33
6-6Turning Output On Automatically ......34
6-7Detaching Grill •••• ...................35
6-8AssemblingControl20-Pin Connector •••• 36
6-98-pinControl Connector ••••••• ..a....... ......33
6-10VoltageControlby External Voltage39
6-11VoltageControl using External Resistor © •••••••••40
6-12VoltageControl using External Resistor (2)• 41
6-13CurrentControlby External Voltage• 42
6-14CurrentControl using External Resistor 43
6-15 Remote VoltageSensingFunction• 44
6-16Turning Main RelayOnandOffthrough Remote Control46
6-17Turning Output OnandOffthrough Remote Control• • 47
6-18MonitoringVoltageandCurrent• .....o.. 4
6-19MonitoringAlarmCondition••••49
6-20Monitoring Other Conditions50
6-21 Resetting Over-Voltage Protection 51
6-22 Resetting AlarmCondition• 52
2

7. APPLICATIONS 53
7-1 Series Operation * 53
7-2 Charging Battery • • ........ 54
8. TROUBLES SHOOTING ••••• • * 55
9. EXTERNAL DI MENTIONS FIGURE • * 57
This manual describes the handling and operationprocedures of13 types of
PS Power Supply Units. Most descriptions, except the rating unique to
each type, arecommon.
Descriptions unique tothe types are specified with types.
Read the corresponding descriptions.
3

1. OUTLINE
ThePSSeriesareswitching type small-sizedandlight-weightregulatedDC
power supplies. With outstanding reliability anda variety ofprotective
functionsas power supply units, they areideal industrial power supply
units suitablefor reliabi1ity tests, endurance tests, aging, etc.of
variouselectronicpartsandassemblies.
2. FEATURES
OCompact design with half the size and weight oftypical models currently
in useduetotheswitching system
OSimultaneous digital output voltageandcurrentdisplayon 7-segment LED's.
Easy setvoltageandcurrentconfirmation.
OA variety of fail-safe functionsandrushcurrentprotector circuit remar-
kably improve theoperationsafetyandloadprotection.
OEnhanced rack mounting densityduetothefrontairintake type forcedair
cooling system
Anair filter buiIt inthefront grill keeeps out dust and other foreign
matters.
OControl through the GP-IB byusinganoptional GP-IB adapter GP-600
OControls the output voltageandcurrentbyusingexternalvoltageoran
external resistor. Has many other controlfuncitons.
OExpandable current supply capacity
If thecurrent supply capacityofthePSSeriesyouareusingis
insufficient, itmaybe expanded byourfactoryat your option by connecting
additionalPSSeries power supply unit(s).
4

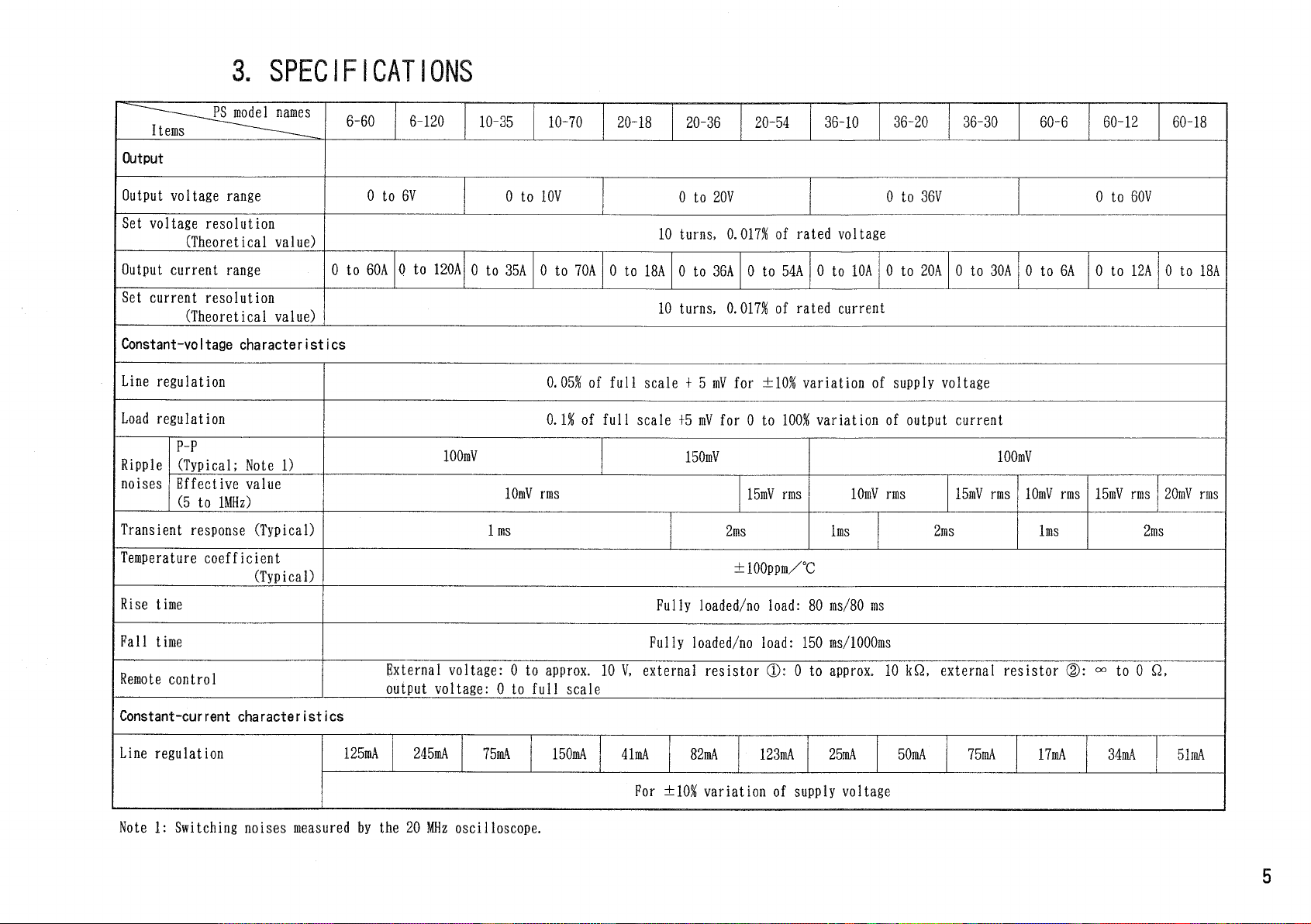

3. SPECIFICATIONS
^~~^^-^_PSmodel names
Items ~~"—
8-60 6-120 10-35 10-70 20-18
20-36
20-54 36-10
36-20 36-30 60-6 60-12 60-18
Output
Output voltage range 0
to6V
0 to10V
0 to20V
0 to36V 0 to60V
Setvoltageresolution
(Theoretical value)
10 turns, 0.017% of ratedvoltage
Output current range 0 to60A
0 to120A
0 to35A 0 to70A
0 to18A
0 to36A
0 to54A
0 to10A 0 to20A
0 to30A
0 to6A 0 to12A 0 to18A
Setcurrentresolution
(Theoretical value)
10 turns, 0.017% of ratedcurrent
Constant-voltage characteristics
Line regulation
0.05% of full scale + 5 mV for ±10% variation of supply voltage
Load regulation 0.1%
of full scale +5mV for 0 to100% variation of output current
Ripple
noises
P-P
(Typical; Note 1)
lOOmV
150mV
lOOmV
Ripple
noises
Effective value
(5 to1MHz)
lOmV rms 15mVrms
lOmV rms 15mVrms lOmV rms 15mVrms 20mVrms
Transient response (Typical)
1 ms
2ms 1ms 2ms 1ms 2ms
Temperature coefficient
(Typical)
±100ppm/°C
Rise time
Fully loaded/no load: 80 ms/80 ms
Fall time
Fully loaded/no load: 150ms/lOOOms
Remote control
External voltage: 0 to approx. 10V, external resistor ®:0 to approx. 10kQ, external resistor ®:00to0 Q,
output voltage: 0 to full scale
Constant-current characteristics
Line regulation
125mA 245mA
75mA 150mA
41mA
82mA 123mA
25mA 50mA 75mA
17mA 34mA
51mA
Line regulation
For±10% variation of supply voltage
Note 1: Switchingnoises measured bythe20MHz osci1loscope.
5

Items
__PSmodel names
6-80 6-120 10-35 10-70 20-18 20-36 20-54 36-10 36-20 36-30 60-6 60-12 60-18
Load regulation
125mA 245mA
75mA
150mA
41mA
82mA
123mA
25mA 50mA 75mA
17mA
34mA
51mA
For 0 to 1001 variation of output current
Ripple noise (5to1MHz)
120mArms 260mArms
70mA rms
160mArms
40mA rms
92mA rms
120mArms 20mA rms
60mA rms 80mA rms 12mArms
44mA rms 55mA rms
Temperature coefficient
±200ppm/°C
Remote control
External voltage: 0 to approx.
10 V, external resistor: 0 to
approx. 10kQ, output voltage
: 0 to ful 1 scale
Meters and
indicators
Voltmeter
Indication and
accuracy
Three and half digits, red LED, 0.1%rdg±2 digits (at 23
± 5°C) * 1
Voltmeter
Minimum reading
lOmV
Ammeter
Indication and
accuracy
Three and half digits, red LED, 0. 5% rdg±3 digits (at 23
± 5°C) *2
Ammeter
Minimum reading
100mA
10mA
100mA
10mA
100mA
10mA
Constant-voltage
operation indicator
Green CVLED goes on.
Constant-current
operation indicator
Red CCLED goes on.\
Output ON indicator
Red OUTPUTLED goes on.
OVP circuit operation
indicator
Red OVPLED goes on.
Alarm indicator
Red ALARMLED goes on.
Output signals
Constant-voltage operation
Open col
ector, active Low
Constant-currentoperation
Open col
ector, active Low
OVP circuit operation
Open col
ector, active Low
*1 When the remote sensingfunction is used.
*2 When the remote sensingfunction is not used.
6

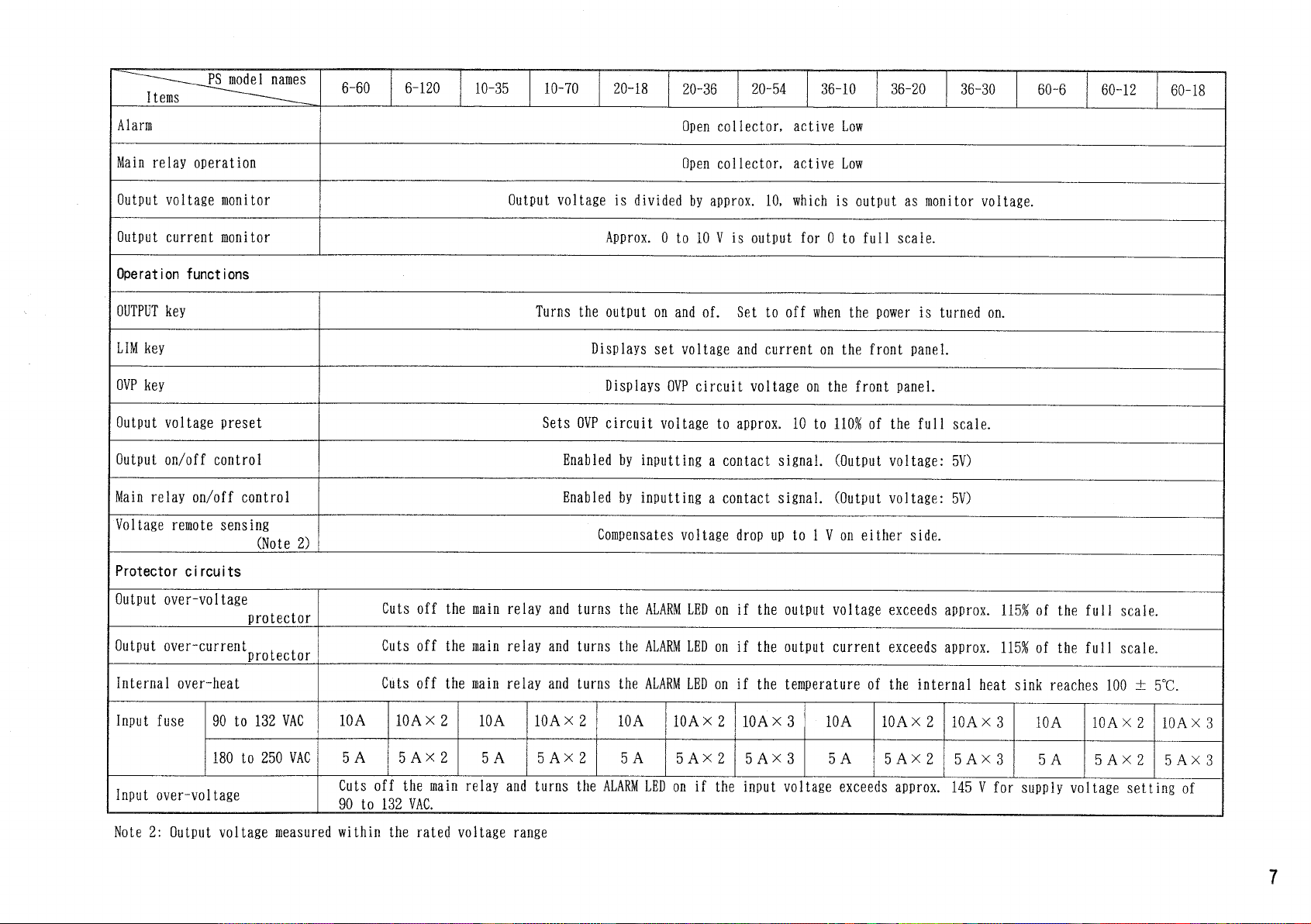

~~ -____PSmode 1 names
Items " —
6-60 6-120 10-35 10-70 20-18
20-36
20-54 36-10 36-20
36-30
60-6 60-12 60-18
Alarm
Open collector, active Low
Main relay operation
Open collector, active Low
Output voltage monitor
Output voltage is divided by approx. 10, which is output as monitor voltage.
Output current monitor
Approx. 0 to10V is output for 0 to full scale.
Operation functions
OUTPUT key
Turns the output onand of. Setto off when the power is turned on.
L1M key
Displays set voltage and current onthe front panel.
OVPkey
Displays OVP circuit voltage onthe front panel.
Output voltagepreset
Sets OVP circuit voltage to approx. 10to1101ofthe full scale.
Output on/offcontrol
Enabled by inputting a contact signal. (Output voltage: 5V)
Main relay on/offcontrol
Enabled by inputting a contact signal. (Output voltage: 5V)
Voltage remote sensing
(Note 2)
Compensates voltage drop upto1 V on either side.
Protector ci rcuits
Output over-voltage
protector
Cuts off the main relay and turns theALARMLEDon if the output voltage exceeds approx. 1151ofthe full scale.
Output over-current , .
protector
Cuts off the main relay and turns theALARMLEDon if the output current exceeds approx. 115%ofthe full scale.
Internal over-heat
Cuts off the main relay and turns theALARMLEDon if the temperature ofthe internal heatsinkreaches 100± 5°C.
Inputfuse 90
to132VAC
10A 10AX 2
10A 10AX 2 10A 10AX
2 10AX 3
10A 10AX
2
10AX 3
10A 10AX 2
10AX 3
Inputfuse
180 to250VAC
5 A
5 Ax2 5 A
5 Ax2 5 A
5 Ax2
5 AX3
5 A
5 AX2
5 AX3 5 A
5 AX2
5 Ax3
Inputover-voltage
Cuts off the main relay and turns theALARMLEDon if the inputvoltage exceeds approx. 145V for supplyvoltage setting of
90 to132VAC.
Note 2: Output voltage measured within the ratedvoltage range
7

——__PSmode 1 names
Items ——
6-60 6-120 10-35 10-70 20-18 20-36 20-54 36-10 36-20 36-30 60-6 60-12 60-18
Environmental conditions
Operation temp, range
0 to 50°C
Operation humidity range
30 to80%RH
Storage temp, range
-20 to 70°C
Storage humidity range
20 to 80% RH
Coo 1ing mechanism
Front air intake type forced air coolingwith a fan
To-ground voltage
±250 VDC
Insulationresistance (atthe room temperature and humidity of70%)
Between chassis and mains
500 VDC,30MQor more;
Between chassis and
output terminals
500 VDC,20MQor more:
Dielectric strength
1500 VACfor1 minute between the chassis and mains or between the mains and output terminals
Input voltage
Voltage, Frequency
90 to132 VAC/180 to250VAC, 50/60 Hzj single-phase
Power
consumption
AC90 to132V
Approx. 470W
Approx. 940W
Approx. 4401 Approx.870W
Approx. 450W
Approx. 900W
Approx. 1300W
Approx. 4501
Approx. 9001
Approx. 1300W
Approx.4501
Approx. 900W
Approx. 1300W
Power
consumption
AC90 to132V
Approx. 840VA Approx. 1600VA
Approx. 800VA
Approx. 1500VA
Approx. 800VA
Approx. 1500VA
Approx. 2200VA
Approx. 800VA
Approx. 15001
Approx. 22001
Approx. 800VA
Approx. 1500VA
Approx. 22001
Power
consumption
AC180 to 250V
Approx. 460W
Approx. 91011
Approx. 430W
Approx. M
Approx. 430W
Approx. 850W
Approx. 1300W Approx.4301
Approx. 850W
Approx. 1300W
Approx. 430W
Approx. 850W
Approx. 13001
Power
consumption
AC180 to 250V
Approx. 1000VA Approx. 1900VA
Approx. 950VA
Approx. 1800VA
Approx. 950VA
Approx. 1800VA
Approx. 2600VA
Approx. 950VA
Approx, 1800VA
Approx. 2600VA
Approx. 950VA
Approx. 1800VA
Approx. 2600VA
8

-—____PSraodel names
Items ———.
6-60 6-120 10-35 10-70 20-18 20-36 20-54 36-10 36-20 36-30 60-6 60-12 60-18

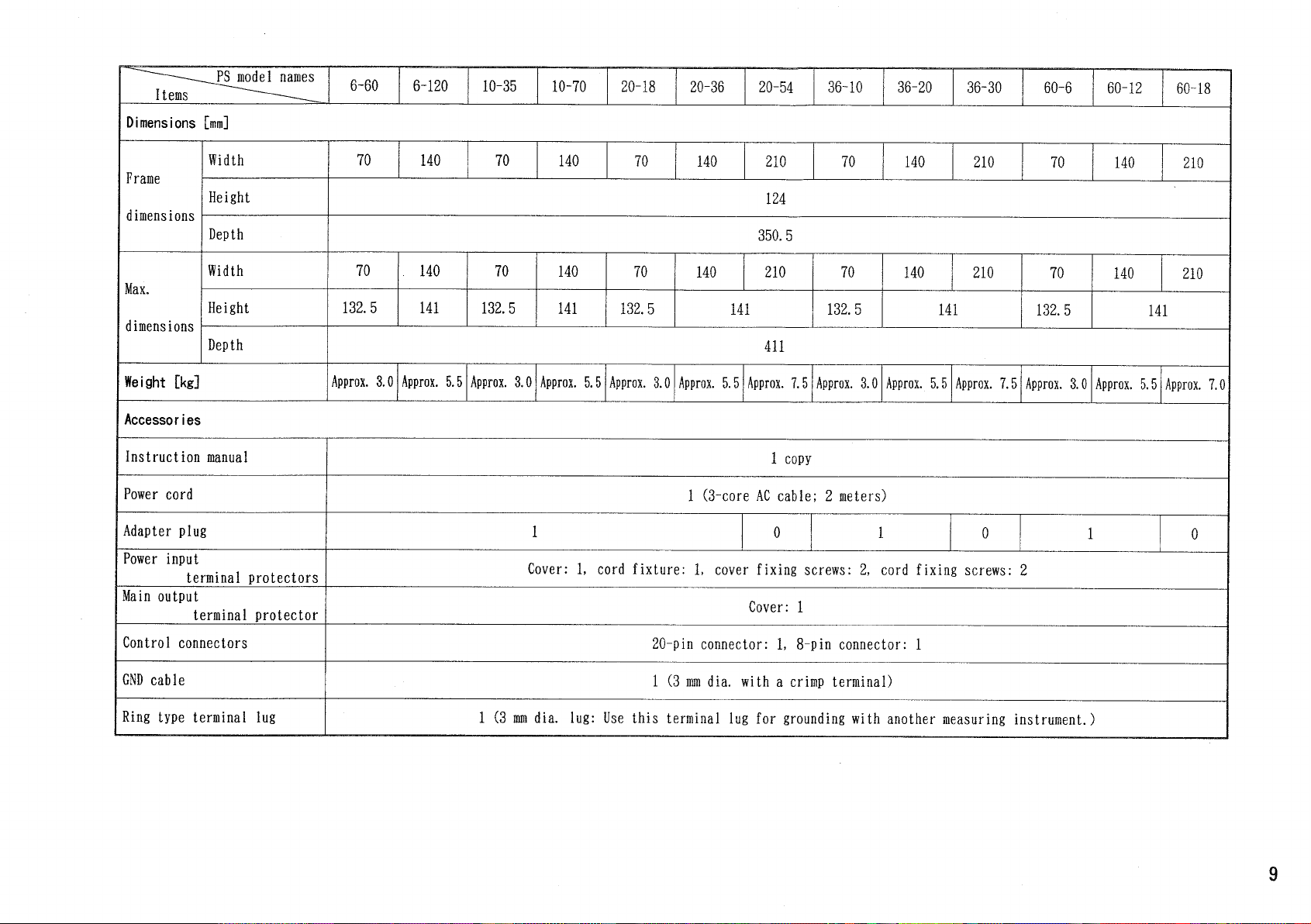

Dimensions [mm]
Frame
dimensions
Width 70 140 70 140 70 140 210 70 140 210 70 140 210
Frame
dimensions
Height
124
Frame
dimensions
Depth
350. 5
Max.
dimensions
Width 70 140 70 140 70 140 210 70 140 210 70 140 210
Max.
dimensions Height
132.5 141 132.5 141 132.5 141 132.5 141 132.5 141
Max.
dimensions
Depth 411
Weight[kg]
Approx. 3.0
Approx. 5.5
Approx. 3.0
Approx. 5.5
Approx. 3.0
Approx. 5.5
Approx. 7.5 Approx. 3.0 Approx. 5.5
Approx. 7.5
Approx. 3.0
Approx. 5.5
Approx. 7.0
Accessories
Instruction manual 1
copy
Power cord
1 (3-core AC cable; 2 meters)
Adapter plug
1
0
1
0
1
0
Power input
terminal protectors
Cover: 1, cord fixture: 1, cover fixing screws: 2, cord fixing screws: 2
Main output
terminal protector Cover:
1
Controlconnectors 20-pinconnector:
1, 8-pinconnector: 1
GND cable
1(3mm dia.with a crimp terminal)
Ringtypeterminal lug 1(3mm
dia. lug:Use this terminal lugfor groundingwithanothermeasuringinstrument.)
9

4. PRECAUTIONSFORUSE
1) Checking the supplyvoltage
*Use thePS Series within the ratedsupplyvoltage range.
The power rating ofthePS Series is90to 132/180 to250VAC, single-phase,
50/60 Hz.
'<The ratedvoltage is indicated onthe rating platebeside the power input
terminals onthe rearpanel.
*The supplyvoltage rating (100VAC range or200VAC range) issetinthe
factory. Ifyou want to change the factory-set rating, pleasecontact
your dealer orour distributor.
2) Connecting thepower cord
Use the power cordincluded inthe accessories. Screw it onto the power input
terminals, then be sure toputthe protection cover onto the terminalblock.
10
WARNING

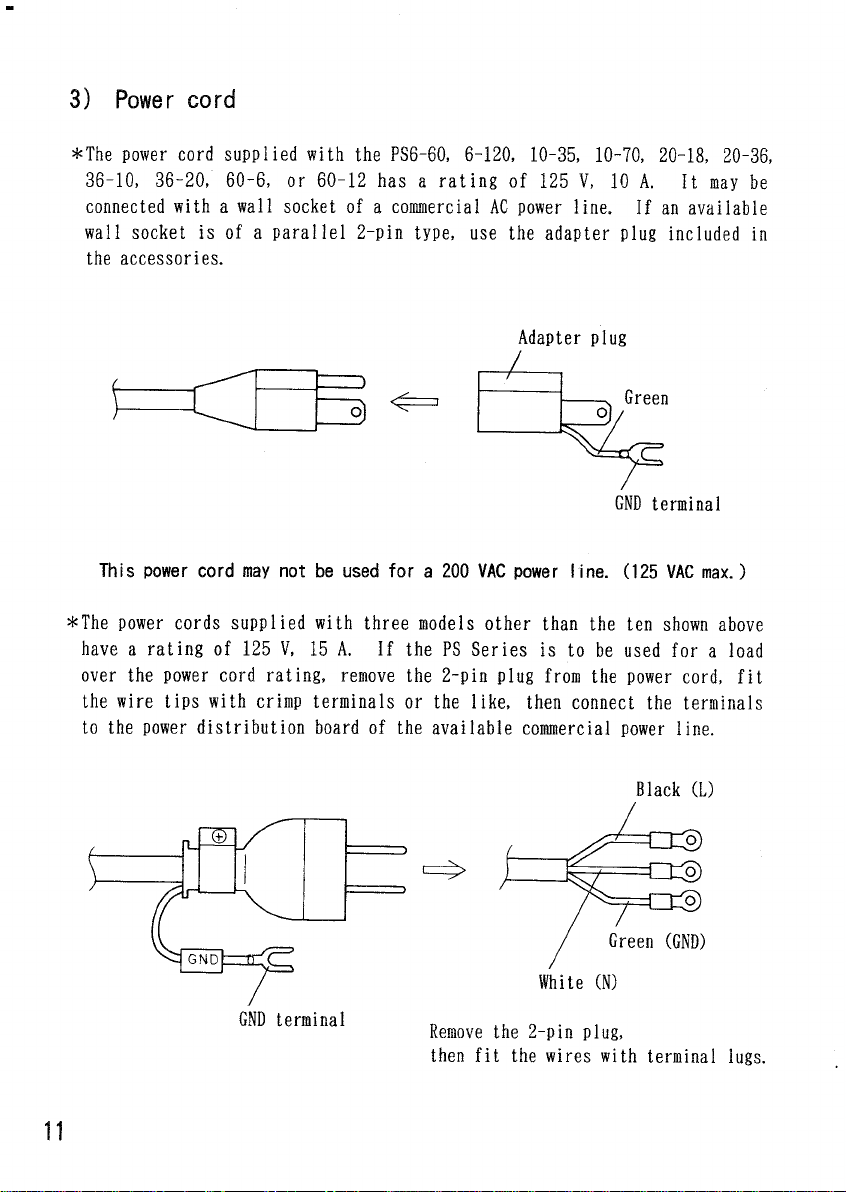

3) Power cord
*The power cordsuppliedwith the PS6-60,6-120,10-35,10-70,20-18,20-36,
36-10,36-20, 60-6,or60-12hasa rating of125V,10A.Itmaybe
connectedwith a wall socket ofa commercial AC power line. Ifan available
wall socket isofa parallel 2-pintype, usethe adapterplugincluded in
the accessories.
*The power cordssuppliedwiththree models otherthan theten shown above
have a rating of125V,15A.IfthePS Series istobe used fora load
over the power cord rating, remove the 2-pinplug from the power cord, fit
the wire tips withcrimp terminals orthe like, thenconnect the terminals
to the power distribution board ofthe available commercial power line.
Remove the 2-pinplug,
thenfit the wires withterminal lugs.
n
Adapter plug
Green
GND terminal
This power cord maynotbe used fora 200VACpower Iine. (125VACmax.)
GND terminal
Black (L)
Green (GND)
White (N)

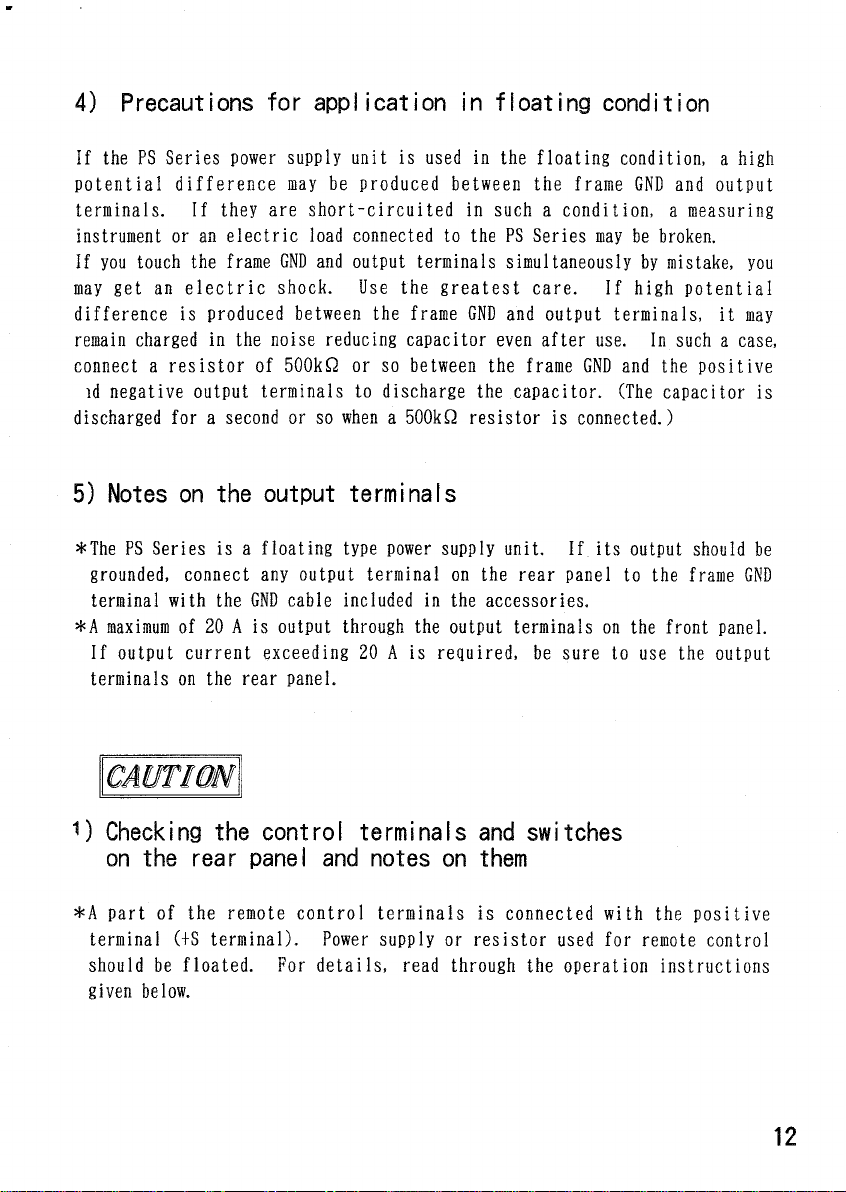

4)Precautions for applicat ion in floating cond i t i on
If thePS Series power supply unit is used inthe floating condition, a high
potential difference maybe produced between the frame GNDand output
terminals. If they are short-circuited in such a condition, a measuring
instrument oran electric loadconnected tothePS Series maybe broken.
If you touch the frame GNDand output terminals simultaneously by mistake, you
maygetan electric shock. Usethe greatest care. If highpotent ial
difference is produced between the frame GNDand output terminals, itmay
remaincharged inthe noise reducing capacitor even after use.In such a case,
connect a resistor of500kQorso between the frame GNDandthe positive
id negative output terminals to discharge the capacitor. (The capacitor is
discharged fora second orsowhena 500kQ resistor is connected.)
5) Notesonthe output terminals
*The PS Series isa floating type power supply unit. If itsoutputshould be
grounded, connect any output terminal onthe rear panel tothe frame GND
terminal with theGND cable included inthe accessories.
*A maximum of20A is outputthrough the output terminals onthe front panel.
If output current exceeding 20A is required, be sure tousethe output
terminals onthe rear panel.
1)
Checking the controlterminals and switches
onthe rear panel and notes on them
*A part ofthe remote control terminals is connected with the positive
terminal (+S terminal). Power supply or resistor used for remote control
should be floated. For detaiIs, readthrough the operation instructions
given below.
12
CAUTION

*The switches onthe rear panel are used to select an remote control method
and to change over the voltage remote sensingfunction. They aresetas
shown below inthe factory:

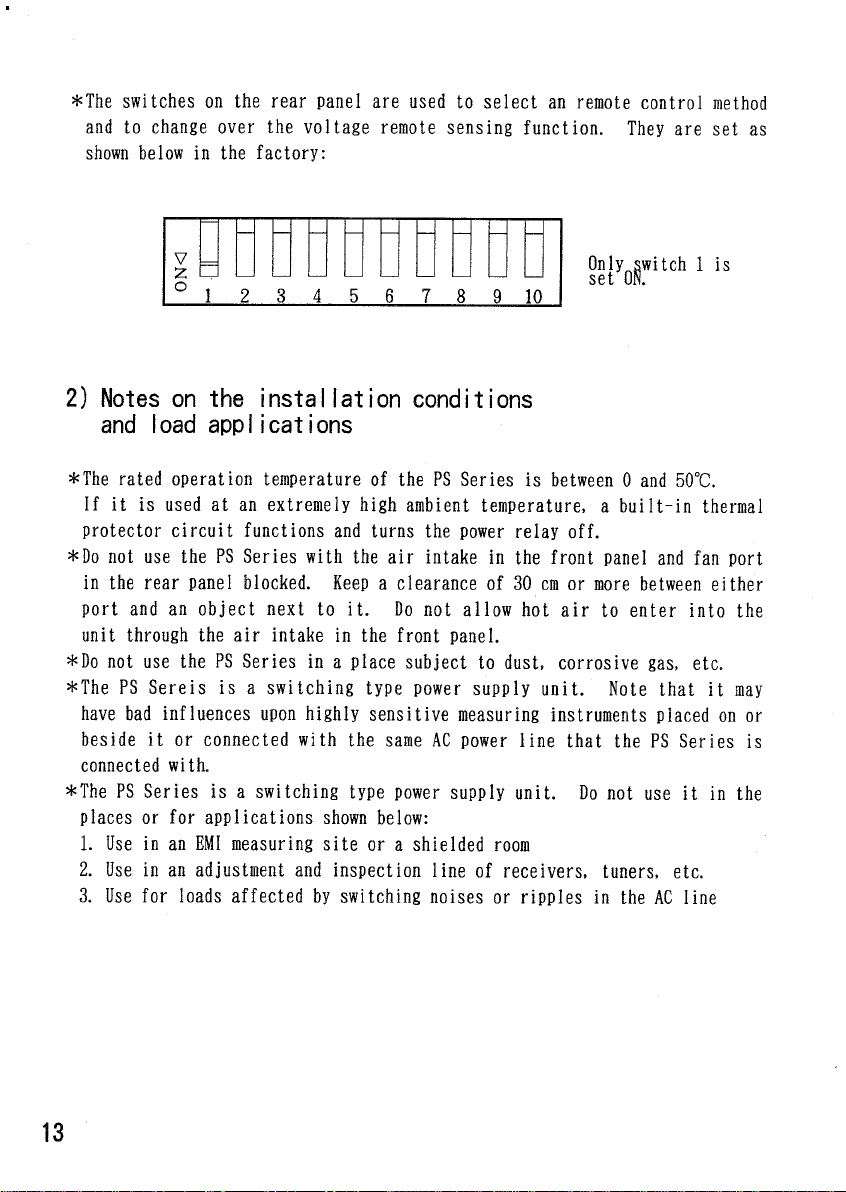

Only switch 1 is
set ON.
2) Notesonthe instalI ation condi t ions
and load applicat ions
*The ratedoperation temperature ofthePS Series is between 0 and 50°C.
If itis used atan extremely high ambient temperature, a built-in thermal
protector circuit functions and turns thepower relay off.
*DonotusethePS Serieswith theair intake inthe front panel andfan port
in the rear panel blocked. Keepa clearance of30cmormore between either
port andan objectnext to it. Donot allow hotairto enterinto the
unit through theair intake inthe frontpanel.
*DonotusethePS Series ina placesubject to dust,corrosive gas,etc.
*The PS Sereis isa switching type power supply unit. Note that itmay
have bad influences upon highly sensitive measuring instrumentsplaced onor
beside itor connected with thesameACpower line that thePS Series is
connected with.
*The PS Series isa switching type power supply unit. Donotuseitinthe
places orfor applications shown below:
1. UseinanEMI measuring site ora shielded room
2. Useinan adjustment and inspection line of receivers, tuners, etc.
3. Usefor loadsaffected by switchingnoises or ripples intheAC line
13

3) Notes onpoweron procedure
*When approx. a second has passed since thePS Series is powered on, decimal
points are displayed onthe voltage and currentindicator LED's. In approx.
three seconds sincethen, all digits and segments of these LED's goon.
Then, theOUTPUT switch becomes functional in approx. a second. In principle,
the OUTPUT switch is inactive when the power is turned on.
(Approx. a second after power on)
Onlydecimal
points goon.
Voltage and currentindicator LED's goon.
OUTPUT switch is inactive.
*When thePS Series is powered on,theAC line voltage may drop temporarily,
since largerushcurrentflows through thePS Series. Thus, be careful to
use other measuring instruments onthe same AC power line that thePS Series
is connected with.
Approx. three seconds
(Initial condition)
14

4) Notes on poweroff procedure
When the power of the PS Series is turned off with thePOWER switch on it, the
ALARM LEDonthe front panel goes on, which does not mean a trouble or
abnormality ofthePS Series. Ifthe power is turned on againwith the
ALARM LED lighting, the ALARM LED keeps lighting and operation ofthePS
Series is disabled.Beforeturning onthe power again, be sure to confirm
that theALARM LED is off.
The ALARM LED goes on.
Beforeturning onthe power again,
besure to confirmthat theALARM LED is off.
15
Trun the poweroff with thePOWER switch.

5. PANELEXPLANATION
5-1 Front Panel
©POWER switch
Press this switch, andthe internal sub-power supply is turned onandthe
main AC relay is activated in approx. a second (switchdepressed).Press it
again, andthe internal sub-power supply is turned off andthe main AC relay
is deactivated(switchreleased).
©Voltmeter
Displays output voltage andset voltage.Alsodisplays the polarity.
©Ammeter
Displays output current andset current. No polarity display.
©VOLTAGE control
Controlsvoltage of constat-voltageoperation.Clockwiserotationincreases
set voltage.
©CURRENT control
Controlscurrent of constant-currentoperation.Clockwiserotationincreases
set current.
16

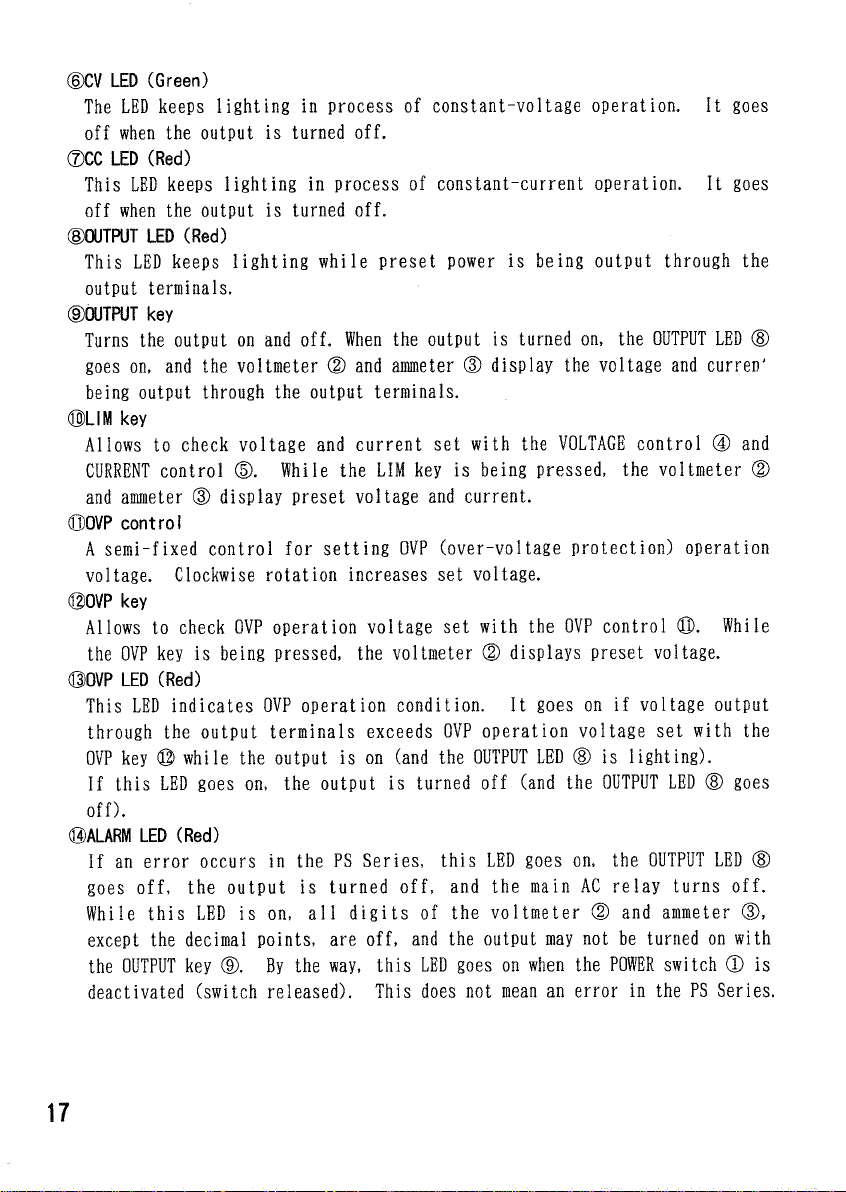

(DCV LED (Green)
The LED keeps lighting in process of constant-voltageoperation. It goes
off when the output is turned off.
®CC LED(Red)
This LED keeps lighting in process of constant-currentoperation. It goes
off when the output is turned off.
©OUTPUT LED(Red)
This LED keeps 1ightingwhilepreset power is being output through the
output terminals.
©OUTPUT key
Turns the output onand off. Whenthe output is turned on,theOUTPUTLED®
goes on,andthe voltmeter © and ammeter © display the voltage and currenJ
being output through the output terminals.
©LIM key
Allows to check voltage and current set with the VOLTAGE control ® and
CURRENT control ©. While theLIMkeyis beingpressed, the voltmeter ©
and ammeter © displaypresetvoltage and current.
©OVP control
A semi-fixedcontrol for setting OVP (over-voltageprotection)operation
voltage. Clockwise rotation increases set voltage.
©OVP key
Allows to check OVP operationvoltage set with theOVP control ©. While
the OVPkeyis beingpressed, the voltmeter © displayspresetvoltage.
©OVP LED(Red)
This LED indicates OVP operationcondition. It goes on if voltage output
through the output terminals exceeds OVP operationvoltage set with the
OVPkey© while the output ison(andtheOUTPUTLED© is lighting).
If this LED goes on,the output is turned off(andtheOUTPUTLED© goes
off).
©ALARI LED (Red)
If an erroroccurs inthePS Series, this LED goes on,theOUTPUTLED©
goesoff, the output is turned off, andthe main AC relay turns off.
While this LEDison,al1 digits ofthe voltmeter © and ammeter ®,
except the decimal points, are off, andthe output maynotbe turned on with
the OUTPUTkey©.Bytheway, this LED goes on when the POWER switch ® is
deactivated (switch released). This does not mean an error inthePS Series.
17

©Auxiliary output terminals (Positive: red negative:white)
These terminals outputthe power ofthePS Series, whichisset while the
OUTPUT LED® ison.The maximum output current is20A. Note that the
power outputthrough theseterminals hasworse electrical characteristics.
©Master or ill
Air isletinthrough this grill for cooling the inside ofthePS Series.
They havedust-proof filters inside. Wash the filters with water perio-
dically to avoidclogging up.
©Slave grill (Only models otherthanthe PS6-60, 10-35, 20-18, 36-10or60-6)
Same as above explanation.
©Slave power LED(Red; Only models otherthanthe PS6-60, 10-35, 20-18, 36-10
or60-6)
Goes on when the internal main AC relay functions andthe slave power unit
is turnedon.
©Rubber shoes
18

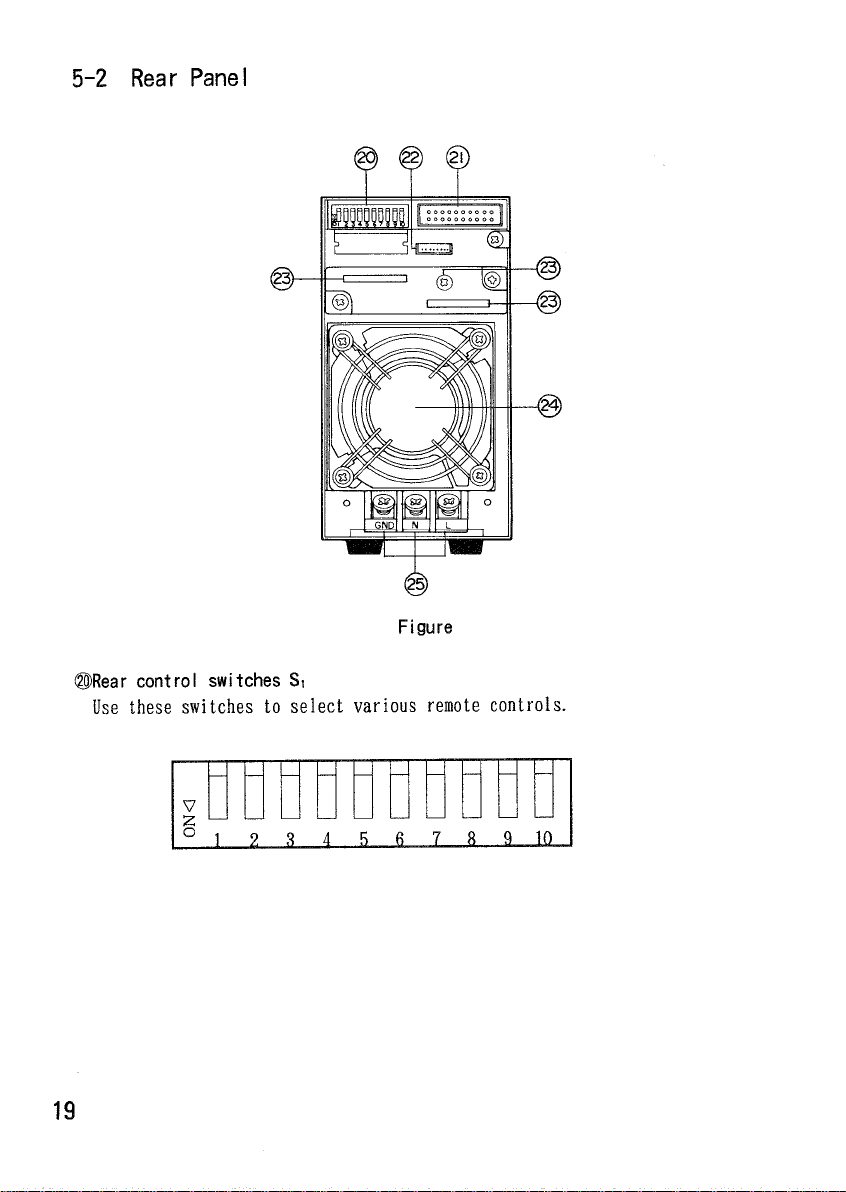

5-2RearPanel
19
Figure
©Rear controlswitches Si
Use theseswitches to select various remote controls.

*1: POWER SELECT switch
1
ON
Themain relay is turned on when thePOWER switch CDonthe front
panel is activated (switch depressed). Itis turned offwhen the
POWER switch is deactivated (switch released).
OFF Themain
relay is controlled externally through the controltermi-
nalblock Ji © onthe rearpanel.
*2 and3: OUTPUT SELECT switches
2 3
OFF OFF The
output ofthePS Series maybe turned onand off with
the OUTPUT key® onthe front panel.
ON OFF
The output ofthePS Series maybe turned onand off with
the OUTPUT key® onthe front panel.
OFF ON
The output ofthePS Series maybe turned onandoff
externally through the controlterminalblock Ji © on
therearpanel.
ON ON
The output ofthePS Series is turned on automatically when
the main AC relay is activated.
NOTE: If the OUTPUT SELECT switches 2 and3 areset ON,the output ofthe
PS Series maynotbe turned onor off with the OUTPUT key® or
through the remote controlterminalblock Ji@.
20
