Thank youforpurchasingthisnewDCPowerSupply. This unit hasbeencarefullyen-
gineeredandmanufacturedto rigid qualitystandards,andshouldgiveyousatisfactory
anddependableoperationformany years.
The following explicitdefinitionsapplyinthisInstructionManual.
WARNING: Risk offireorelectricshockmayoccur.DONOT DISREGARD!
CAUTION: Equipmentdamagemayoccur,butnotpersonalinjury.
NOTE : Ifdisregarded,inconvenienceonly,noriskofequipmentdamageor
personal injury.
IMPORTANT:
1. Please readthisInstructionManualcarefullybeforeplacingyourDCPowerSupply
in service.
2. Save thisInstructionManual.
2

1.
BEFORE OPERATION
TO PREVENT ELECTRIC SHOCK, FIRE ANDOTHERINJURY.
PLEASE NOTETHEFOLLOWINGS:
Donotplacethisunit,whereitwillbeexposedtodirect
sunlightorclosetoheatingappliances.
Donotplaceanythingontopofthecabinet.
Donotdroppiecesofmetal,needles,coinsandother elec-
tricallyconductivematerials into theunit.
Donottouchthepowerplug,whenyourhandsarewet.
To ensuregoodventilation,donotputanythingontopof
thecabinetandallowatleast15cm(6inches)of space be-
hindtheunit.
Donotpullthepowercord,whendisconnectingitfromthe
AC walloutlet. Grasp theplugandensurethatyourfingers
donottouchthelivepins.
Donotplacetheunitin areas of excessive dust,highhu-
midity oronunstable surfaces.
Ifanabnormalodororsmokeisdetected,immediately turn
thepoweroffandpulloutthepowerplug.
Contact the KENWOOD servicestationoryourdealer.
To avoidriskofelectricshock,undernocircumstances
shouldtheunitbeopened:
CLEANING
1. Turnthepoweroff,beforecleaningtheunit.
2. Donotuseanytypeofabrasivepad,thinner,benzineor
any substanceswhichmaydamagetheunit.
3. Wipethe front panelandotherexterior surfaces ofthe
unitwitha softdryclothora softcloth lightly moistened
withwater.
WARNING
3

2. SPECIFICATIONS AND ACCESSORIES
2-1. SPECIFICATIONS
MODEL
SPECIFICATIONS
PS-32
PS-51
Power requirement
240 VAC± 10%,50Hz
Outputvoltage 13.8 VDC (Reference)
Rated outputcurrent 20 A (25% duty cycle)
15 A (50% duty cycle)
20 A (25% duty cycle)
16 A (50% duty cycle)
20 A max.(Continuousoperationfor1 hour)
Outputvoltage
regulation Within±0.7V (at240VAC± 10%variation
with 16A)
Within±0.7V (atloadcurrentvariation from
2 to 1 5 A)
Within±0.7V (at240VAC± 10%variation
with 16A)
Within±0.7V (atloadcurrentvariation from
2 to20A)
Ripple voltage Less than20mVrms(at13.8 VDC/15 A) Less than20mVrms(at13.8 VDC/20 A)
Power consumption Approx.500W (at13.8 VDC/20 A)
Dimensions (Wx H x D)
Dimensions in[ ]
include projections.
173x96x296 mm[173x107x322mm]
6-13/16" X3-25/32" x 11-21/32" [6-13/16" X4-7/32" X 12-11/16"]
Weight Approx.7.2kg(15.8lbs) Approx.7.1kg (1 5.6lbs)
NOTE:
Rating aresubjecttochange without noticeduetoadvancementsintechnology.
2-2.ACCESSORIES
Please unpackyournewDCPowerSupplycarefully,andconfirmthatthe accessories listedbelowareincludedinthebox.
IfanyoftheitemsaremissingcontactthedealerwheretheDCPowerSupplywaspurchased.
Spare fuse, 3A, F05-3022-05 1 ea.
Instructionmanual B50-8364-XX 1 copy
Afterunpacking
Shipping container:
Save theboxesandpackingintheeventyour unit needstobetransportedforremoteoperation,maintenanceor service.
4

3. INSTALLATIONANDCONNECTION
NOTE:
The followinginstructionsareforusebyeitheryour
KENWOOD dealer,anauthorized KENWOOD servicefacili-
ty,orthefactory.
WARNING:
Never connectACpowertotheDCPowerSupply until in-
stallationiscomplete.
3-1. INSTALLATION
CAUTIONS:
1. Priortoinstallation,checkthatthecorrectfuseisin-
stalled.
2. Choosea locationthatisrelativelyfreefromvibration.
3. Donotplacetheunitina placewhichisexposedtodirect
sunlight,neara heater,etc.
4. Donotstoreorusetheunitina dustylocationorina
moistatmosphere. Select a wellventilatedlocation.
5. Tomaintaingoodventilation:
Remove thepackingmaterials.
Donotcovertheunit.
Place theunitatleast10cm(4")awayfromthe walls.
3-2.CONNECTION
WARNING:
Never connectACpowertotheDCPowerSupply until in-
stallationiscomplete.
CAUTIONS:
1. BeforeconnectingordisconnectingtheDCPowerCa-
ble, besureto turn offthe POWER switchesof both the
radioandtheDCPowerSupply.
2. ObservepolarityoftheDCPower Cable. Theradiooper-
ates on13.8VDC,negativeground.
NOTES:
1. TheDCPowerSupplywillnotoperateif the output ter-
minals areshorted.
2. TheDCPowerSupplymaynotoperateifthe POWER
switch isturnedonwiththeradiointransmitmodebe-
cause theprotectioncircuitmayoperate.
1. ConnecttheDCPowerCablefromtheradiototheOut-
putTerminalsonthe Rear Panel, asshowninFig.3-1.
Red lead-> Plus (+ ) Terminal
Black lead->Minus(-)Terminal
2. ConnecttheACpowerCabletotheACoutlet.
5
Minus(-)
Terminal
Black FuseHolders
TotheRadio
Red
,Plus( + ) Terminal
OutputTerminals
ACoutlet
Fig. 3-1.

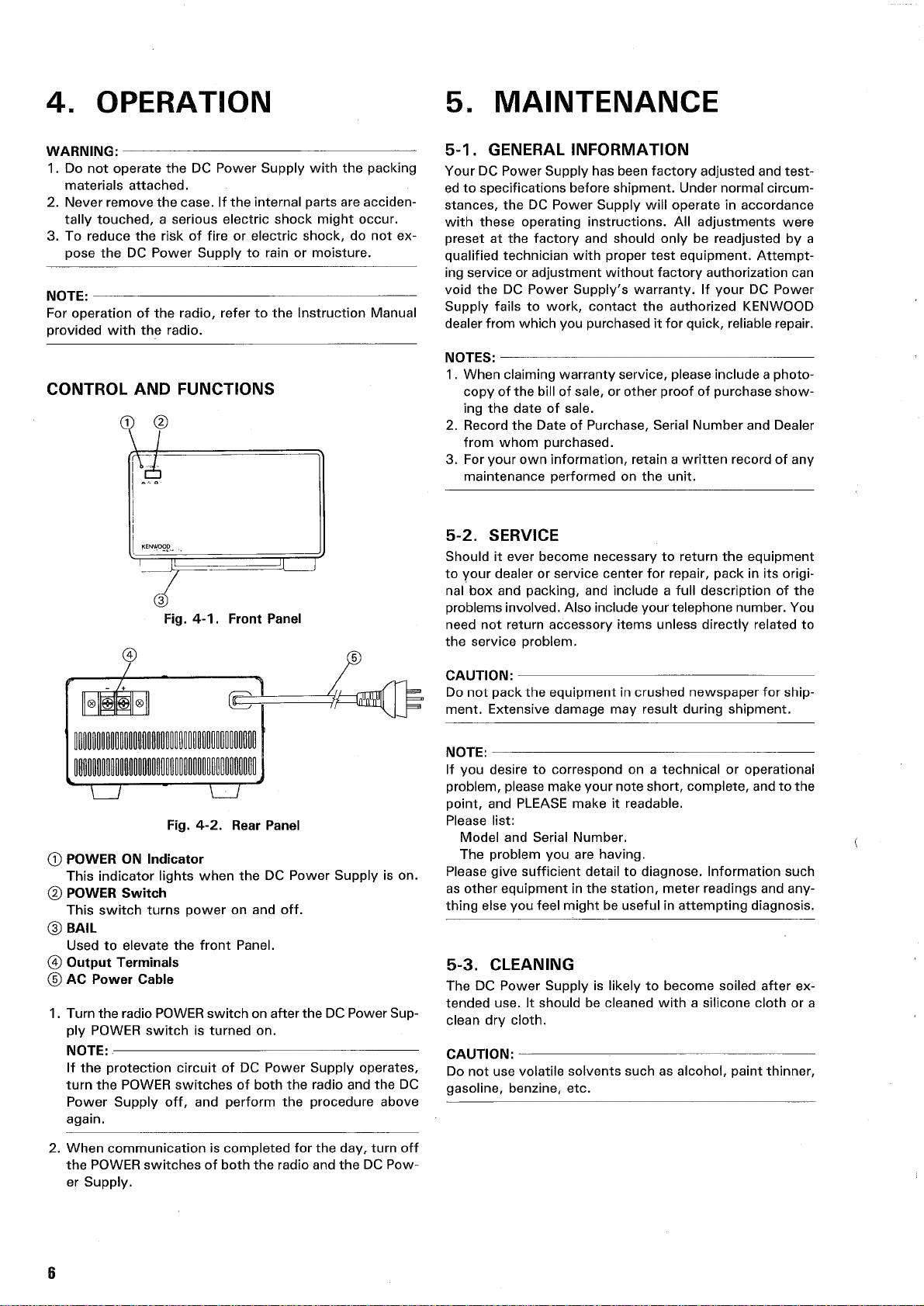

4.OPERATION
5. MAINTENANCE
WARNING:
1. DonotoperatetheDCPowerSupplywiththepacking
materials attached.
2. Neverremovethe case. Iftheinternalpartsareacciden-
tallytouched,a seriouselectricshock might occur.
3. Toreducetheriskoffireorelectricshock,donotex-
pose theDCPowerSupplytorainormoisture.
NOTE:
For operationoftheradio,refertotheInstructionManual
providedwiththeradio.
CONTROL ANDFUNCTIONS
Fig. 4-1.FrontPanel
©POWERONIndicator
This indicatorlightswhentheDCPowerSupplyison.
©POWERSwitch
This switchturnspoweronandoff.
© BAIL
Used toelevatethe front Panel.
©OutputTerminals
©ACPowerCable
1. Turntheradio POWER switchonaftertheDCPower Sup-
ply POWER switchisturnedon.
NOTE:
IftheprotectioncircuitofDCPowerSupplyoperates,
turn the POWER switchesof both theradioandtheDC
Power Supplyoff,andperformtheprocedureabove
again.
2. Whencommunicationiscompletedfortheday, turn off
the POWER switchesof both theradioandtheDCPow-
er Supply.
5-1. GENERAL INFORMATION
Your DCPowerSupplyhasbeenfactoryadjustedandtest-
ed tospecificationsbeforeshipment.Undernormalcircum-
stances, theDCPowerSupplywilloperateinaccordance
withtheseoperatinginstructions.Alladjustmentswere
preset atthefactoryandshouldonlybereadjustedbya
qualifiedtechnicianwithpropertestequipment.Attempt-
ingserviceoradjustment without factoryauthorizationcan
voidtheDCPowerSupply'swarranty.IfyourDCPower
Supply failstowork,contacttheauthorized KENWOOD
dealer fromwhichyoupurchaseditforquick,reliablerepair.
NOTES:
1. Whenclaimingwarranty service, pleaseincludea photo-
copyofthe bill of sale, orotherproofofpurchaseshow-
ingthedateof sale.
2. RecordtheDateof Purchase, Serial NumberandDealer
fromwhompurchased.
3. Foryourowninformation,retaina writtenrecordofany
maintenance performedontheunit.
5-2. SERVICE
Should iteverbecome necessary toreturntheequipment
toyourdealerorservicecenterforrepair,packinitsorigi-
nal boxandpacking,andincludea full descriptionofthe
problemsinvolved.Alsoincludeyourtelephonenumber.You
need notreturn accessory itemsunlessdirectlyrelatedto
theserviceproblem.
CAUTION:
Donotpacktheequipmentincrushednewspaperforship-
ment. Extensive damagemayresultduringshipment.
NOTE:
Ifyoudesiretocorrespondona technicaloroperational
problem,pleasemakeyournoteshort,complete,andtothe
point, and PLEASE makeitreadable.
Please list:
Modeland Serial Number.
The problemyouarehaving.
Please givesufficientdetailtodiagnose.Informationsuch
as otherequipmentinthestation,meterreadingsandany-
thing else youfeel might beusefulinattemptingdiagnosis.
5-3.CLEANING
The DCPowerSupplyislikelytobecomesoiledafterex-
tendeduse.Itshouldbecleanedwitha siliconeclothora
clean drycloth.
CAUTION:
Donotusevolatilesolventssuchasalcohol,paintthinner,
gasoline, benzine,etc.
6
Fig. 4-2.RearPanel

CIRCUIT DIAGRAM
•SCHEMATICDIAGRAM Q1,Q2:2N5885
D 1 : S 2 5 V B 1 0
D 2 : T L R 2 0 5
Note:
Circuitissubjecttochange without noticeduetoadvancementintechnology.

• AVRUNIT(X43-3030-00)
Note:
Circuit is subject to change without notice due to advancement in technology.
ati2SAS62 m
02. 03. 1S:2SC24S8 (Y)
D.4:2SB941 (Q)
01.s. onsuss
0 2. 3>0$A3A1
04.6>UZ». 1BL
D7SUZ15BH
TH1(32027
TR2ISTP411

5-4. FUSE REPLACEMENT
Ifthefuseblows, DISCONNECT theACPowerCableand
contactandauthorizedKENWOODservicefacility;either
yourKENWOODdealer,orthefactorytorepairthe cause.
NOTE:
The following instructionsareforusebyeitheryour
KENWOOD dealer,anauthorized KENWOOD servicefacili-
ty,orthefactory.
WARNING:
1. NeverconnecttheACcabletotheAC outlet until fuse
replacementhasbeenmade.
2. Neverusea fuseofhigherrating.Replace with a new
fuse ofthesamerating.
Ifthefuseblows,checkforthe cause beforereplacingthe
defectivefuse.(Replacementfusesareavailable from your
authorizedKENWOODdealer.)
5-5. SUPPLY CORD REPLACEMENT
Ifthesupplycordofthisapplianceisdamaged,itmustonly
bereplacedbya repairshopappointedbythemanufacturer,
because specialpurposetoolsarerequired.
5-6.ORDERING SPARE PARTS
NOTE:
The following instructionsareforusebyeitheryour
KENWOOD dealer,anauthorizedKENWOODservicefacili-
ty,orthefactory.
Whenorderingreplacementorsparepartsfortheequip-
ment,besuretospecifythefollowing:
Model and Serial Number.
Schematic Numberofthepart.
PrintedCircuitBoardNumberonwhichthepartis
located.
Part NumberandName,if known,andQuantitydesired.
Part Numbersformostreplacementpartsarecontainedin
the Service Manual(usuallyavailableasan option from KEN-
WOOD dealer).
