Original operating instructions
Single-axis weed brush Weedo II
Pos: 3 / Anleitungen / Bookmark / Kersten front page language-dependent area @ 15 \ mod_1549625757522_6.docx @ 257657 @ @ 1
=== End of list for bookmark title page ===
Order number:B00100
from machine no .:62954
Rev .: R00
Was standing:
2019-03-01

DE
2019-03-01 2 / 79

DE

Pos: 5 / Anleitungen / Bookmark / Kersten Copyright 2019 @ 14 \ mod_1547822953748_6.docx @ 252265 @ @ 1
All rights reserved. This documentation is protected by copyright. Kersten Arealmaschinen GmbH reserves
all rights that have not been expressly granted. Without prior written consent and except in cases permitted
by law, this documentation may not be reproduced, distributed or made publicly available in any other way.
We reserve the right to make changes without prior notice. The original document was published in German.
All translations are copies of the original document.
Copyright 2019 by Kersten Arealmaschinen GmbH
=== End of list for bookmark copyright ===
2019-03-01 3 / 79
Kersten Arealmaschinen GmbH
Empeler Strasse 95
46459 Rees
Germany
Telephone: [phone]
Fax: [phone]
[email protected]
http://www.kersten-maschinen.de/

DE

Pos: 7 / Anleitungen / Bookmark / Kersten Service @ 5 \ mod_1499148449207_6.docx @ 95389 @ @ 1
Information on the operating instructions
These instructions enable safe and efficient handling of the machine. The
instructions are part of the machine and must be kept in the immediate vicinity of
the machine and accessible to personnel at all times.
The personnel must have read and understood these instructions carefully before
starting any work. The basic prerequisite for safe working is compliance with all of
the safety instructions and instructions in this manual.
In addition, the local occupational safety regulations and general safety regulations
apply to the area of application of the machine.
Co-Applicable Documents
In addition to these instructions, the following documents and the safety
instructions listed there must be observed:
• Operating instructions of the supplier components

Customer service from the manufacturer
The customer service of the machine manufacturer is available for technical
information:
=== End of list for bookmark service ===
2019-03-01 4 / 79
Manufacturer address
Kersten Arealmaschinen GmbH
Empeler Strasse 95
46459 Rees
Germany
Service phone
+ 49 2851 9234-10
fax
+ 49 2851 9234-44
e-mail
[email protected]
Internet
http://www.kersten-maschinen.de
Please have the following information ready for inquiries:
• Machine / device type
• Order number of the machine
• In case of problems: exact description or exact error messages

DE
1 foreword 6
2nd overview 7
2.1 Overview of uniaxial weed brush 7
2.2 Single-axis weed brush 8th
2.3 Weed brush with splash guard 9
3rd safety 11
3.1 Symbols in this manual 11
3.2 Pictograms 13
3.3 Intended Use 15
3.4 Work and danger areas 16
3.5 Safety during the work process 18th
3.6 Safety devices 21
3.6.1 Emergency shutdown via dead man's lever 22
3.6.2 Splash guard 23
3.7 Security marking 23
3.8 Residual risks 24th
3.8.1 Fundamental dangers at work 24th
3.9 environmental Protection 28
3.10 Safety instructions for maintenance / troubleshooting 29
3.11 Safety instructions for disassembly and disposal 32
4th Functional description 33
4.1 Single-axis weed brush 33
4.2 Weed brush with splash guard 34
5 Transport, packaging and storage 36
5.1 safety instructions 36
5.2 Transport inspection 36
5.3 packaging 36
5.4 Transport of the machine 37
6 Assembly / installation, installation, initial commissioning 39
6.1 safety instructions 39
6.2 Connect / disconnect hydraulic hoses 39
7 service 40
7.1 safety instructions 40
7.2 Adjust the handrail in height and inclination 40
7.3 Overview of the function levers for starting 42
7.4 Internal combustion engines regulate with the throttle 43
2019-03-01 5 / 79

DE
7.5 Prepare the internal combustion engine for starting 44
7.6 Start the internal combustion engine 45
7.7 Weed brush driving with the dead man's device 46
7.8 Drive 48
7.9 Off 49
7.10 Requirements for optimal weed removal 50
7.11 Set working height 51
December 7th
7.12 Align the weed brush horizontally 53
7.13 Change the direction of rotation of the weed brush 54
7.14 Swing the weed brush around the transverse axis 55
7.15 Swing the weed brush around the longitudinal axis 56
7.16 Setting the height of the splash guard 57
7.17 Setting the position of the splash guard in the plane 58
8th maintenance 60
8.1 safety instructions 60
8.2 spare Parts 60
8.3 Maintenance work 61
8.3.1 Check safety devices for function 61
8.3.2 Daily check 62
8.3.3 Maintenance after 20 operating hours / long downtimes 63
8.3.4 Maintenance after 100 operating hours / long downtimes 64
8.3.5 Changing brush elements 65
8.3.6 Change the brush plate 66
8.4 Measures after maintenance 67
8.5 Storage 67
9 Faults / troubleshooting 68
9.1 safety instructions 68
9.2 Cause of the fault and its remedy 68
9.3 Malfunction table 68
10th Disassembly, disposal 70
10.1 safety instructions 70
10.2 Disassembly 70
10.3 disposal 70
11 Technical data single-axis weed brush Weedo II 72
11.1 layout 72
11.2 General technical data 73
11.3 Key engine data Weedo II (Honda) 74
2019-03-01 6 / 79

DE
11.4 Engine key figures Weedo II (Briggs & Stratton) 75
11.5 Declaration of conformity 76
2019-03-01 7 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE

Item: 10 / Instructions / 2 Overview / Kersten / 1 Foreword @ 5 \ mod_1499071751798_6.docx @ 95313 @ 1 @ 1

1 foreword
Dear Customer,
Thank you for choosing a quality product from Kersten.
This product was manufactured according to the latest manufacturing processes
and extensive quality assurance measures, because our goal is only achieved
when you are satisfied with your device.
Before using this machine or attachment for the first time, please read these
operating instructions carefully and in full.
If you have any information on this safety data sheet or the productIf you do not
understand the specific assembly or operating instructions, please contact your
seller or the machine manufacturer directly.
Keep these operating instructions within easy reach. You can then read important
information and instructions if necessary.
We hope you enjoy your Kersten device
Dipl.-Ing. (FH) Robert Bosch
executive Director
Pos: 11 / Anleitungen / 0 Allgemein / #### Seitenumbruch #### @ 0 \ mod_1443087965231_0.docx @ 92 @ @ 1
2019-03-01 8 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
Item: 13 / Instructions / 2 Overview / General / 2 Overview (heading) @ 1 \ mod_1459939839800_6.docx @ 12628 @ 1 @ 1

2 overview
Item: 14 / Instructions / 2 Overview / Kersten / 2.1 Overview Weedo II @ 14 \ mod_1548316863714_6.docx @ 254307 @ 2 @ 1

2.1 Overview of uniaxial weed brush

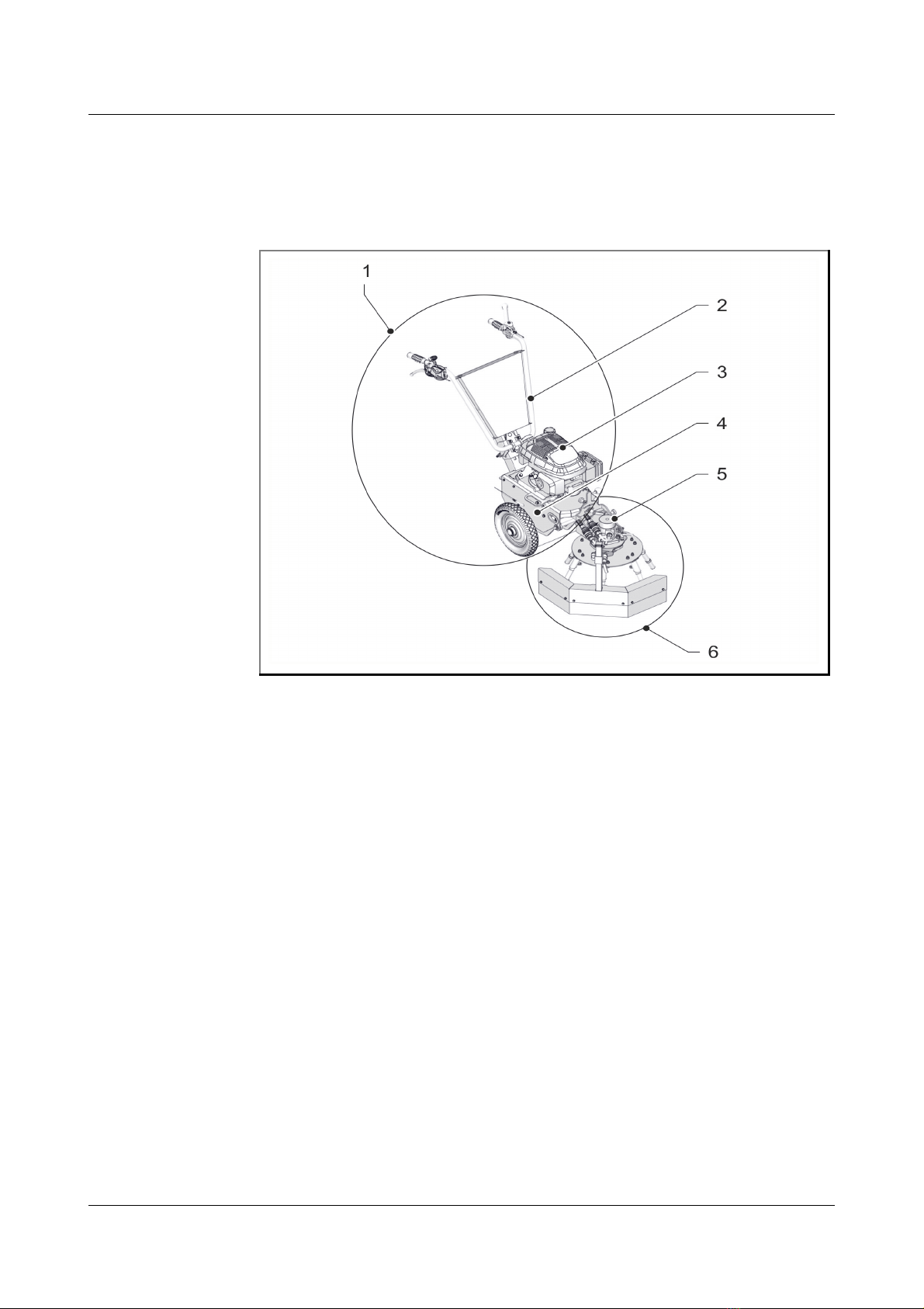

Fig.: Overview of uniaxial weed brush
1 Carrier vehicle
2nd Handholm
3rd Internal combustion engine
4th Vehicle frame
5 Hydraulic motor
6 Weed brush
The uniaxial weed brush is used for weed removal. The uniaxial weed brush
consists of the carrier vehicle (1) and the weed brush (6). The carrier vehicle (1)
has no traction drive, but is pushed forward on the hand rail (2). An internal
combustion engine (3) is attached to the vehicle frame (4). The internal combustion
engine (3) drives a hydraulic motor (5). The hydraulic motor (5) rotates the weed
brush (6). The weeds are removed from the ground with the help of brush elements
on the rotating weed brush (6).
Item: 15 / Instructions / 2 Overview / Kersten / 2.2 Weedo II single-axis weed brush @ 14 \ mod_1547824405776_6.docx @ 252343 @ 2 @ 1
2019-03-01 9 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
2.2 Single-axis weed brush

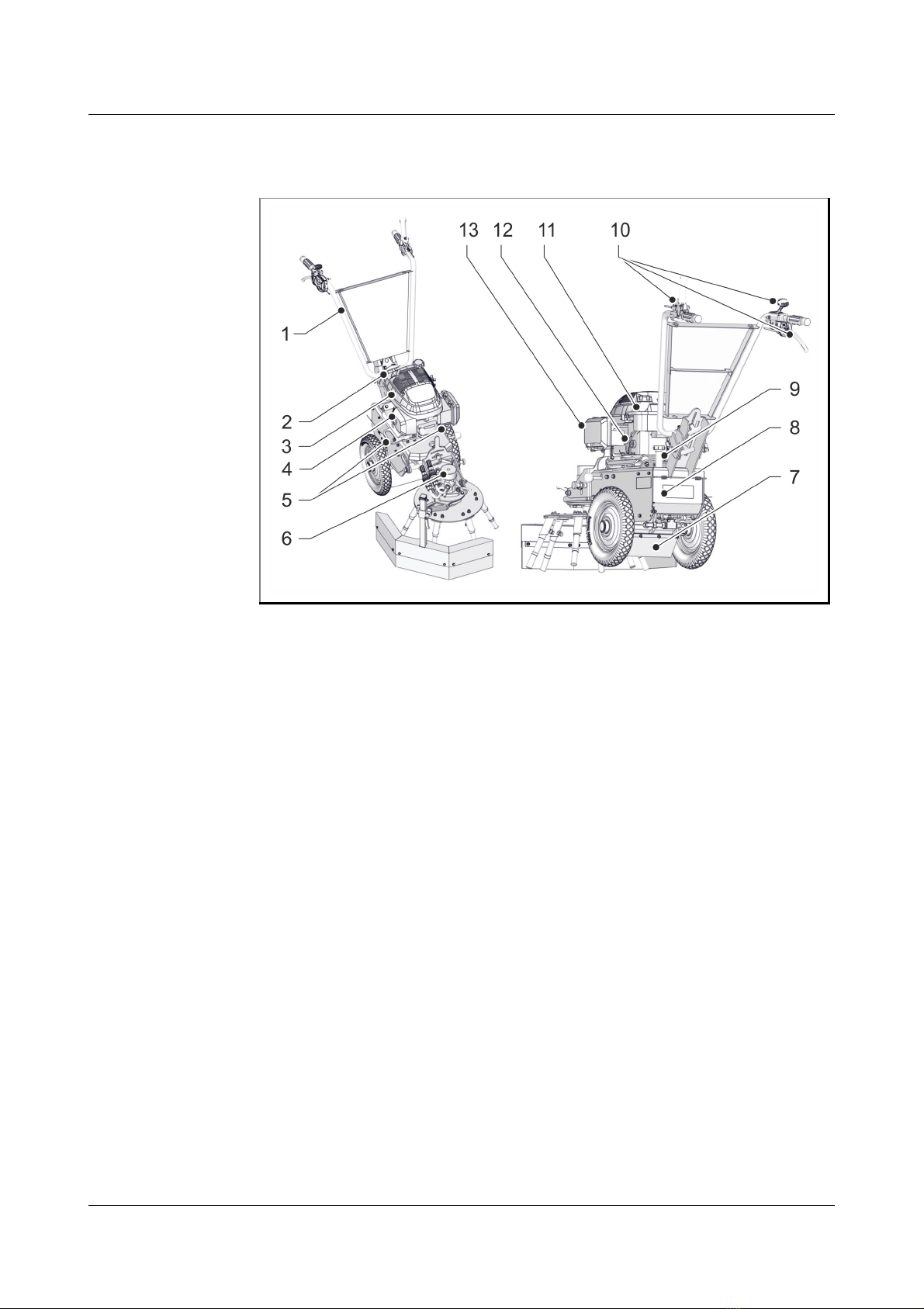

Fig.: Overview of front and back (exemplary)
1 Handholm
2nd Reversing starter of the internal combustion engine
3rd Petrol tank
4th Engine oil filler neck
5 Handles
6 Weed brush hydraulic motor
7 Underbody splash guard
8th Hydraulic pump (not visible)
9 Hydraulic oil filler neck
10th Function lever
11 Petrol filler neck
12th Fuel tap
13 Filter unit
The uniaxial weed brush is moved forward on the handle (1). There is an internal
combustion engine on the vehicle frame. After opening the petrol tap (12), the
internal combustion engine is put into operation by actuating the reversing starter
(2). The petrol tank (3) of the internal combustion engine can be supplied with fuel
via the petrol filler neck (11). Oil can be supplied to the oil tank of the internal
combustion engine via the engine oil filler neck (4). The internal combustion engine
2019-03-01 10 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
has a filter unit (13). The arrangement of these components may differ depending
on the type of engine installed.
2019-03-01 11 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
The internal combustion engine supplies the energy for a hydraulic pump (8)
installed in the chassis. The hydraulic pump (8) ensures the circulation of the
hydraulic oil and drives the hydraulic motor (6). The hydraulic motor (6) rotates the
weed brush. Suitable hydraulic fluid can be filled in via the hydraulic oil filler neck
(9).
The uniaxial weed brush is operated or set using various function levers (10) on
the handle (1).
An underbody splash guard (7) prevents material loosened from the floor from
being thrown backwards in the direction of the operator.
Carrying handles (5) can be used for lifting or lashing the uniaxial weedbrush can
be used.
Item: 16 / Instructions / 2 Overview / Kersten / 2.3 Weed brush Weedo II @ 14 \ mod_1547824679334_6.docx @ 252366 @ 2 @ 1
2.3 Weed brush with splash guard
Fig. : Overview of weed brush with splash guard
1 Hydraulic hoses
2nd Hydraulic motor
3rd Working head
4th Brush plate
5 Wire rope braid as a brush element
6 Rubber washcloth
7 Splash guard frame with signal tape
8th Swivel arm
2019-03-01 12 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
The weed brush is screwed to the uniaxial weed brush over the working head (3).
The weed brush consists of a steel structure with a hydraulic motor (2) driven by
hydraulic hoses (1). The brush plate (4) is mounted on the hydraulic motor (2). The
brush plate (4) can be equipped with wire rope braids (5) or a tuft.
By turning the brush plate (4), the brush elements (5) remove the weeds from the
joints. Removed material is caught by a side-mounted splash guard frame with
signal tape (7) and rubber spray flaps (6) attached to it. The splash guard frame (7)
is screwed to the working head (3) via the swivel arm (8).
Pos: 17 / Anleitungen / 0 Allgemein / #### Seitenumbruch #### @ 0 \ mod_1443087965231_0.docx @ 92 @ @ 1
2019-03-01 13 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
Pos: 19 / Anleitungen / 3 Sicherheit / Allgemein / 3 / 3.1 Sicherheit - Symbols in these instructions @ 3 \ mod_1480928218861_6.docx @ 59557 @ 12 @ 1

3 safety

3.1 Symbols in this manual
safety instructions
The following occupational safety symbols stand for all information on occupational
safety that indicate a danger to life and limb and are identified by a pictogram, a
signal word and a signal color.
In the documentation, you will find an explanation of the dangerous situations at
the relevant points.
Pay attention to these notes!
Observe the locally applicable safety and accident prevention regulations!
2019-03-01 14 / 79
DANGER
Type and source of the hazard
This symbol warns of an immediate danger to the life and health of people.
Failure to follow these instructions will result in severe health effects,
life-threatening injuries and extensive property damage.
• Action that must be avoided so that the danger does not arise
WARNING
Type and source of the hazard
This symbol warns of an impending danger to the life and health of people, as
well as environmental and property damage.
Failure to heed these instructions can result in serious health effects, including
life-threatening injuries, or extensive environmental and property damage.
• Action that must be avoided so that the danger does not arise
ATTENTION
Type and source of the hazard
This symbol warns of an impending danger to the health of people as well as
environmental and property damage.
Failure to follow these instructions can result in moderate or minor health effects,
including injury, or extensive environmental and property damage.
• Action that must be avoided so that the danger does not arise
NOTE
Type and source of machine or system damage
This symbol warns of a dangerous situation and is used to indicate a note on
handling the machine or system.
Failure to follow these instructions can result in extensive property damage.
• Action that must be avoided so that the machine or system damage does
not occur

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
Tips and recommendations
Other markings
The following markings are used in this manual to highlight instructions, results,
lists, references and other elements:
2019-03-01 15 / 79
This symbol highlights useful tips and recommendations, as well as information
for efficient and trouble-free operation.
Labelling
Explanation
1st, 2nd, 3rd ...
Step-by-step instructions
🡺
Results of action steps
•
Listings without a fixed order
[Button]
Operating elements (e.g. buttons, switches), display
elements (e.g. signal lights)
"Display"
Screen elements (e.g. buttons, assignment of function keys)

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
Item: 20 / Instructions / 3 Safety / General / 3.01 Pictograms @ 6 \ mod_1504524108960_6.docx @ 100806 @ 2 @ 1 Pictograms

3.2 Pictograms
Item: 21 / Instructions / 3 Safety / General / 3.01.01 Follow instructions @ 6 \ mod_1504524190747_6.docx @ 100929 @ @ 1
Follow instructions
Item: 22 / Instructions / 3 Safety / General / 3.01.02 Wear protective clothing @ 6 \ mod_1504524212794_6.docx @ 100981 @ @ 1
Wear protective clothing
Item: 23 / Instructions / 3 Safety / General / 3.01.03 Wear safety shoes @ 6 \ mod_1504524207408_6.docx @ 100968 @ @ 1
Wear safety shoes
Item: 24 / Instructions / 3 Safety / General / 3.01.04 Wear protective gloves @ 6 \ mod_1504524202422_6.docx @ 100955 @ @ 1
wearing safety gloves
Item: 25 / Instructions / 3 Safety / General / 3.01.05 Wear safety glasses @ 6 \ mod_1504524665367_6.docx @ 100994 @ @ 1
wear safety glasses
2019-03-01 16 / 79
Only use the marked machine after reading the instructions.
This sign indicates that protective clothing must be worn in the area concerned.
Protective work clothing is tight-fitting work clothing with low tear resistance, with
narrow sleeves and no protruding parts.
This sign indicates that safety shoes must be worn in the area concerned.
Safety shoes protect the feet from crushing, falling parts and slipping on slippery
surfaces.
This sign indicates that protective gloves must be worn in the area concerned.
Protective gloves are used to protect the hands from friction, abrasions, punctures,
cuts or deeper injuries as well as from contact with hot surfaces.
This sign indicates that safety glasses must be worn in the area in question.
The safety glasses serve to protect the eyes from flying parts and liquid splashes.

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
Pos: 26 / Anleitungen / 3 Sicherheit / Allgemein / 3.01.07 Operating instructions and safety instructions @ 6 \ mod_1504525116752_6.docx @ 101019 @ @ 1
Operating instructions and safety instructions
Item: 27 / Instructions / 3 Safety / General / 3.01.08 Never open protective devices when the engine is running @ 6 \ mod_1504525122035_6.docx @ 101031 @ @ 1
Item: 28 / Instructions / 3 Safety / General / 3.01.09 Observe the information in the technical manual @ 6 \ mod_1504525127214_6.docx @ 101043 @ @ 1
Item: 29 / Instructions / 3 Safety / General / 3.01.10 Only touch machine parts when they have come to a complete standstill @ 6 \ mod_1504525132632_6.docx @ 101055 @ @ 1
Item: 30 / Instructions / 3 Safety / General / 3.01.11 Danger from parts thrown out while the engine is running @ 6 \ mod_1504525142310_6.docx @ 101067 @ @ 1
2019-03-01 17 / 79
Read and observe the operating instructions and safety instructions before starting
up.
Never open or remove protective devices while the engine is running.
Follow the instructions in the technical manual.
Lubrication point!
Only touch machine parts when they have come to a complete standstill.

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
Pos: 31 / Anleitungen / 3 Sicherheit / Kersten / Weedo II / 3.02 Intended use Weedo II @ 14 \ mod_1548252978167_6.docx @ 253251 @ 2 @ 1

3.3 Intended Use
Pos: 32 / Anleitungen / 3 Sicherheit / Kersten / Weedo II / 3.02.1 Work and danger areas Weedo II @ 14 \ mod_1548252889286_6.docx @ 253207 @ 2 @ 1
2019-03-01 18 / 79
Danger from throwing parts while the engine is running.
Keep a safe distance!
WARNING
Risk of injury / environmental damage due to improper use of the machine!
Improper use of the machine creates the risk of injury and damage to the
environment and property (on the machine or system).
• The uniaxial weed brush as well as the alternative brush elements
approved by the manufacturer are built for weed removal on relatively
small areas as part of the green area and plant maintenance.
• Everyone beyondongoing use is considered improper use. The
manufacturer is not liable for any damage resulting from this, the operator
alone bears the risk.
• For determinationProper use includes compliance with the operating,
maintenance and repair conditions specified by the manufacturer.
• The uniaxial weed brush may only be used, serviced and repaired by
persons who are familiar with it and have been informed of the dangers.
• The relevant accident prevention regulations as welle The other generally
recognized safety-related and occupational medical rules must be
observed.
• Unauthorized changes to the machine lead to the manufacturer's
disclaimer for the resulting damage.

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE

3.4 Work and danger areas

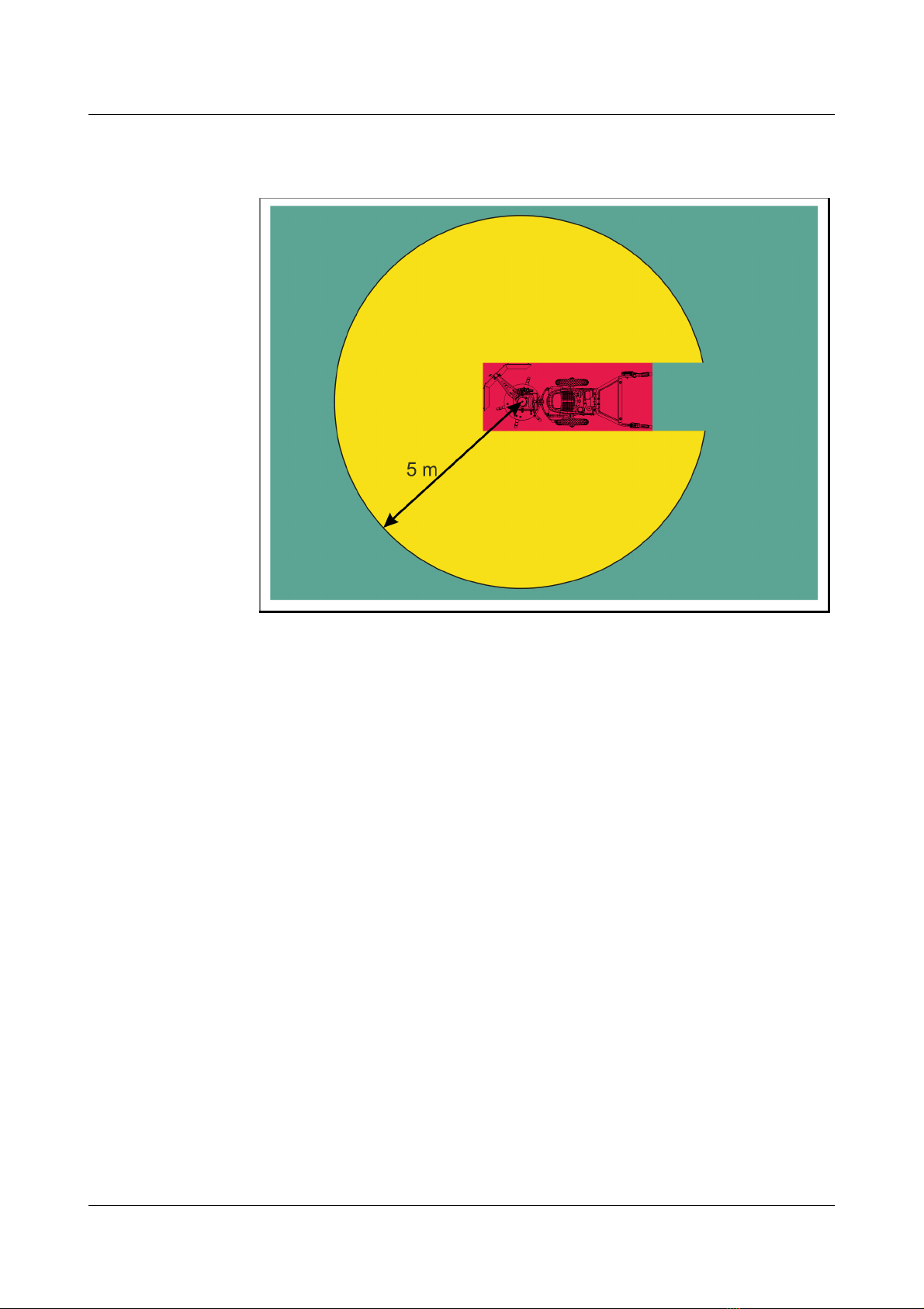

Fig.: Work area, safety area and danger area
• RED 🡺 Danger zone
• YELLOW 🡺 Safety area (radius of 5 meters around the brush plate)
• GREEN 🡺 Workspace
2019-03-01 19 / 79

Single-axis weed brush Weedo II
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here. DE
2019-03-01 20 / 79
WARNING
Risk of injury / danger of environmental damage from working / staying in
the danger zone!
Working / staying in the danger zone creates the risk of injury and damage to the
environment and property (on the machine or system).
• Dhe user is responsible towards third parties in the danger and safety area
of the machine!
• Staying in the danger and safety area of the machine is prohibited! All
persons must be directed out of the danger and security area. The safety
area has a radius of 5 m around the brush plate.
• When people approach the danger and safety area, the machine must be
shut down.
• Of the The operator must ensure that there are no people or property in
the discharge area (safety area).
• Before switching on the attachment and starting up, both the danger area
and the safety area must be checked. Pay special attention to children and
animals. Pay attention to sufficient visibility!
• Park the attachment in areas that are difficult to see and make sure that
nobody is in the danger and safety area.
• Foreign objects must be removed from the surface to be worked before
starting work. Pay attention to other foreign objects when working and
remove them in good time.
• When working in enclosed areas, the safety distance from the edge must
be maintained so as not to damage the machine or brushes.
• When working in the immediate vicinity of public roads and paths, these
should not be used if possiblenot along, but as far as possible across. This
minimizes the risk of injury for third parties due to objects flying out.
• When working on public streets and squares or in the immediate vicinity,
there are signs and danger signs to be drawn up to draw the attention of
third parties.
