Everbloom T333615K2 User manual

Small parts are included; we advise you to keep them away from children
and pets. We also suggest having another person help you assemble.
Thank You!
You’re only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Important Notes
Please Read the instructions carefully to familiarize yourself with every
detail and step involved. Keep this manual for future reference. Find a
suitable space to assemble the Trellis Kit.
Model# T333615K2
Trellis Assembly Kit
Installation Guide
Subscribe at www.everbloom-garden.com for extra
savings and upgrading information!
Questions or Comments?
Email us at [email protected]
Everbloom-Garden.com
Copyright © 2022 Dynaforge Trading LLC.

Trellis Assembly Kit
Installation Guide
Installation 1
Everbloom Trellis Assembly Kit can be firmly attached to Raised or
Elevated Garden Bed to expand your growing space vertically for your
climbingvines and veggies.
It takes at lease two peopleto assemble this trellis.
Create an additional solid growing
space of 33” height on EverBloom
E143612 Trough Planter Box /
E213612 Deep Trough Planter Box /
E283612 Elevated Trough Planter Box
with T333615K2
1
Before installation, please
be sure that the top back
long board hasn’t been
installed, or has been
taken off.
1. Align the corner connector
and the outer corner
post, as shown in Pic.1.
The lower two screw holes
of the connector and the
top two screw holes of the
corner post should align.
Insert bolts from inside of the
corner post to the corner
connector as shown in
Pic.1a and Pic. 1b.
Tighten
the nylon lock nut by hand,
as shown in Pic.1c.
Note:
Pay attention to the position
and direction of the bolts
and nuts.
view from back
view from back
view from front
1a 1b 1b
Model# T333615K2
Parts Includes:
Stainless
Steel
Long Bolt
X 4
33” Extension
Pole
X 2
Corner
Connector
X 2
Steel Wire
Panel
X 2
Stainless
Steel
Bolt
X 16
Stainless
Steel Nylon
Nut
X 20
Nut Driver
X 1
Corner
Bracket
X 4
Hex Key
X 1
Connector
Washer
X 8
(900 x 380mm)
35.4 x 15in
R143638 Deep Root Raised Garden Bed /
S333618W Self-Watering Mobile Elevated Plant

4. Insert the top back long board, as shown in Pic.4.
4
view from front
3. Install another corner connector following the steps above, as shown in
Pic.3 and Pic.3a.

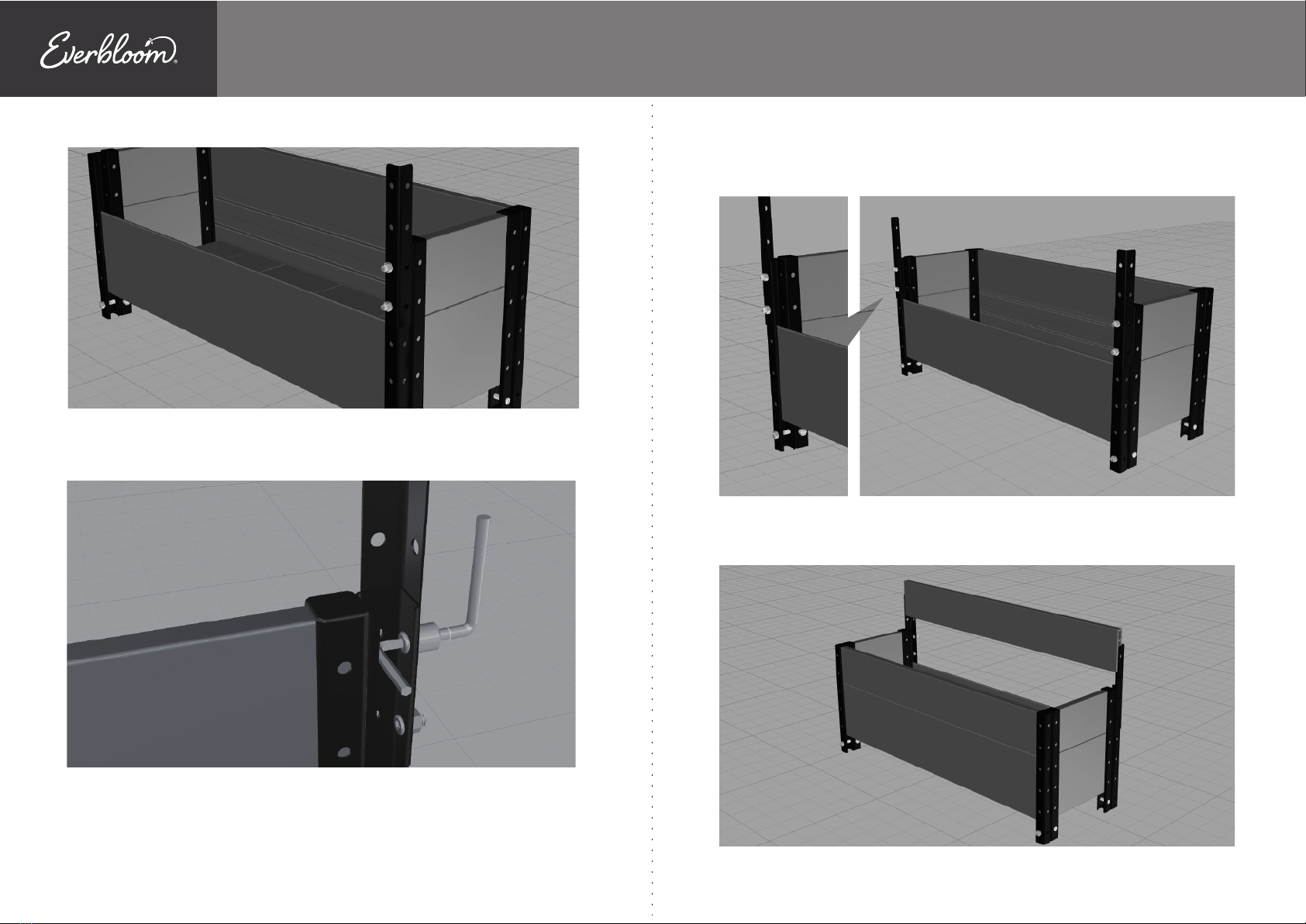

2. Tighten bolts and nuts with hex key and nut driver, as shown in Pic.2.
Note:
Please lift the corner connector when you tighten the bolts and nuts. Be sure
the screw hole centers of connector and post align. If the corner connector is
installed lower, it may cause difficulty in fixing the extension poles.
view from back
1c
33a
view from front
Model# T333615K2
1c
2

5. Attach the extention pole to the corner connector, as shown in Pic.5. Be
sure the slot of the pole is facing to the other corner connector, as shown
in Pic.5a.
5
6. Insert bolts from inside of the extention pole to the corner connector, as shown
in Pic.6 and Pic. 6a. Tighten the nylon lock nut by hand, as shown in Pic.6b.
Note:
Pay attention to the position and direction of the bolts and nuts.
view from back
5a
6 6a
6b
view from front
view from back view from front
view from back
Model# T333615K2

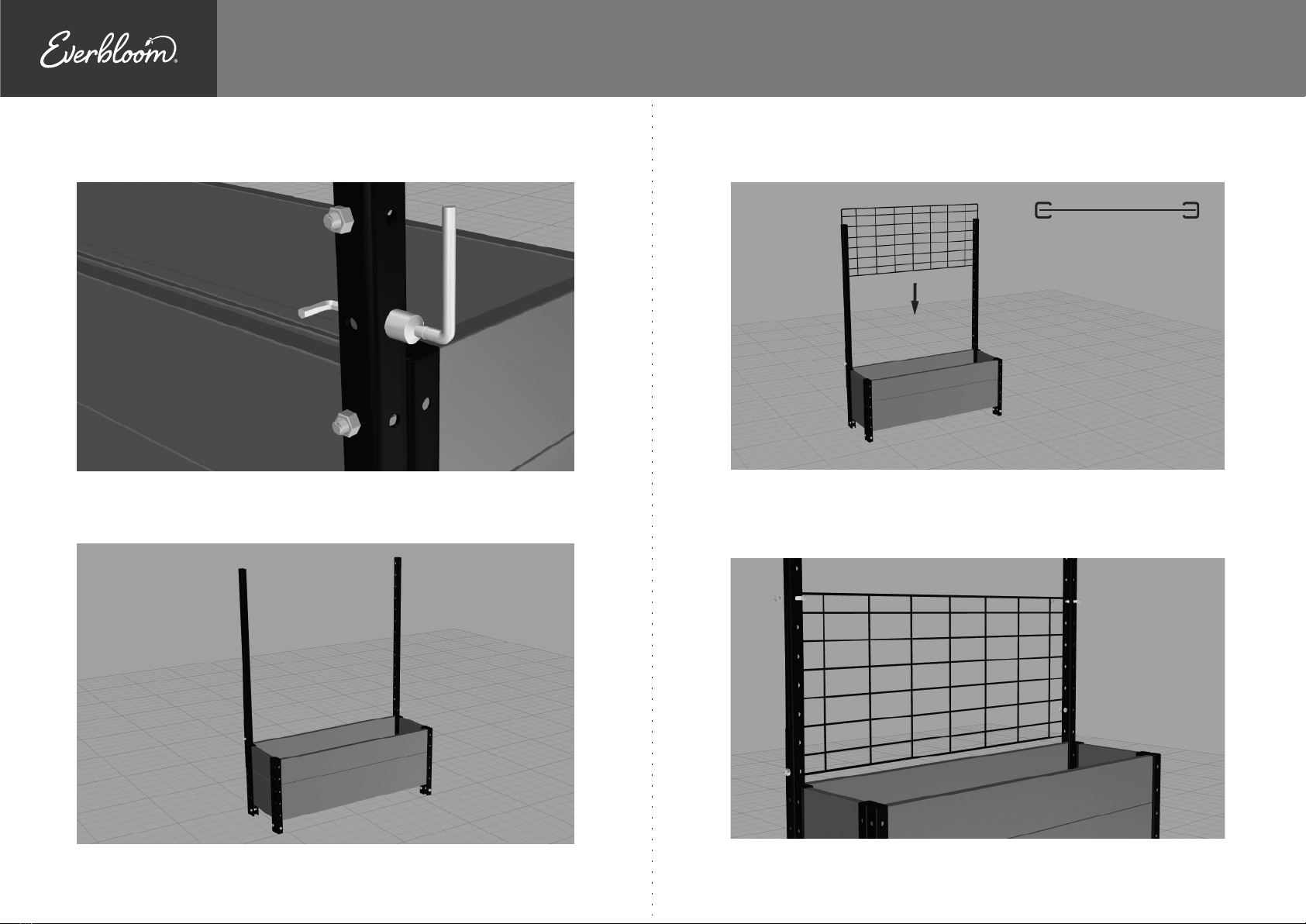

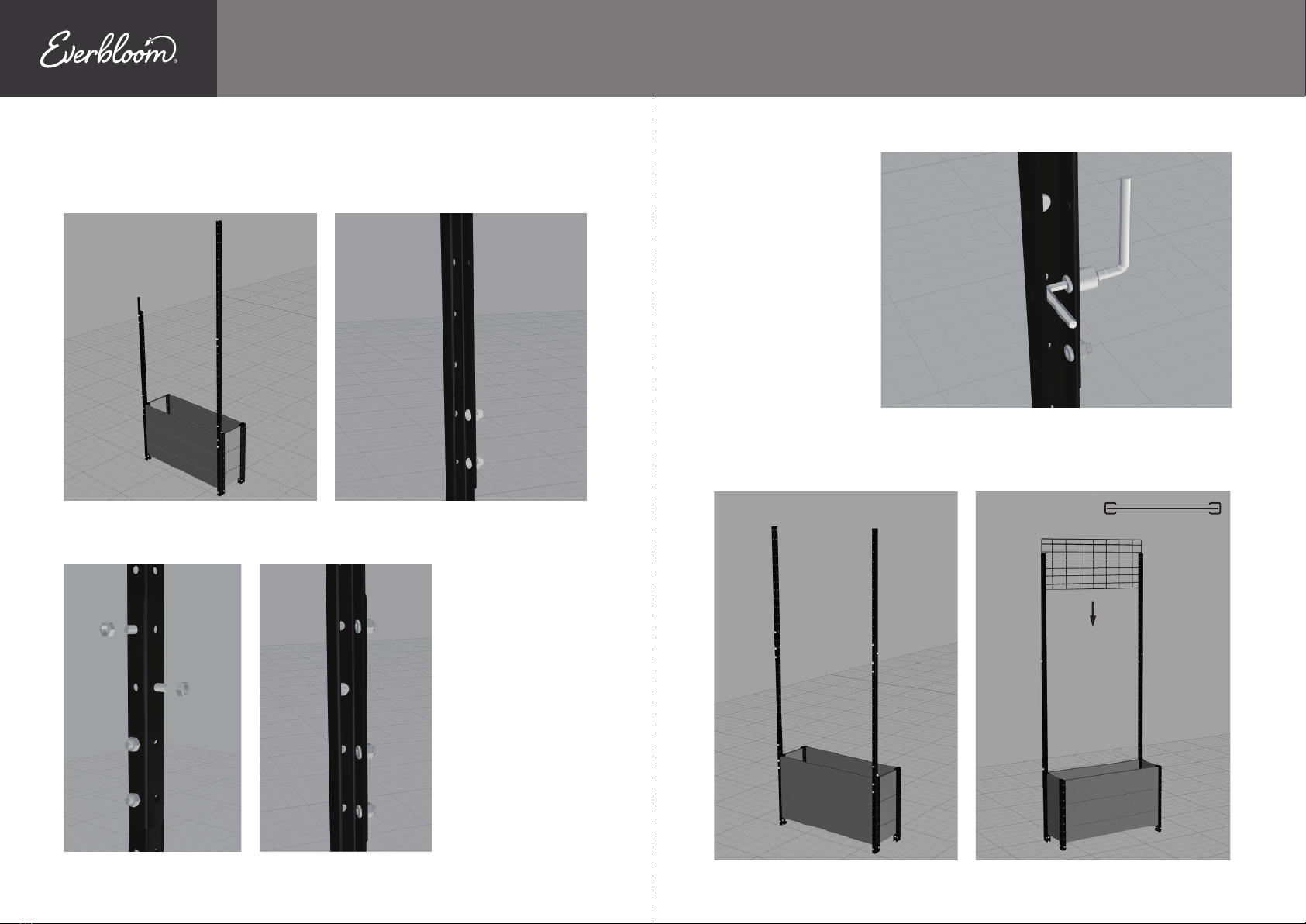

8. Install another extention pole following step 4-6 above, as shown in Pic.8.
9. Slide the steel wire panel from above, as shown in Pic.9.
10. Fix the steel wire panel with long bolt and nut, as shown in Pic.10 and
Pic.10a.
7. Tighten the bolts and nuts with hex key and nut driver, as shown in Pic.7.
7
8
9
top view
10
view from back
view from front
Model# T333617K2

11. Slide another steel wire panel and fix it with long bolts and nuts, as
shown in Pic.11. One Trellis Kit bulit on E213612
Deep Trough Planter Box
One Trellis Kit bulit on R143638
Deep Root Raised Garden Bed
One Trellis Kit bulit on S333618W
Self-Watering Mobile Elevated Garden
One Trellis Kit bulit on E283612
Elevated Trough Planter Box
10a
Note:
You can choose different heights as you wish when installing steel wire panels
on the extension poles.
11
the 1st hole
from top
the 8th hole
from top
Model# T333615K2
Model# T333615K2

Installation 2
Create an additional solid growing space of 66” height on EverBloom
R143638 Deep Root Raised Garden Bed /
E213612 Deep Trough Planter Box with T333615K2
This installation need 2 Trellis Assembly Kits.
Before installation, please be sure that the
top back long board hasn’t been installed,
or has been taken off.
Then, follow step 1 to 8 of installation 1.
9. Align the corner connector and the extention pole, as shown in Pic.1. The
lower two screw holes of the connector and the top two screw holes of
extention pole should align.
Insert bolts from inside of corner post to the corner
connector as shown in Pic.12 and Pic.12a.
Fasten the nylon lock nut by hand,
as shown in Pic.12b.
12 12a
view from back view from front
Model# T333615K2
12b
10. Install another corner connector following the steps above, as shown in
Pic.13 and Pic.13a.
13 13a

11. Attach the extention pole to the corner connector, as shown in Pic.14. Be
sure the slot of the pole is facing to the other corner connector, as shown in
Pic.14a.
14a14
12.
Insert bolts from inside of the extention pole to the corner connector, as shown
in Pic.15. Fasten the nylon lock nut by hand, as shown in Pic.15a.
Note:
Pay attention to the
position and direction
of the bolts and nuts.
15 15a
view from back view from front
Model# T333615K2
13. Tighten all eight
bolts and nuts with
hex key and nut driver,
as shown in Pic.16.
16
14. Install another extension pole followingstep 11-13 above, as shown in Pic.17.
17
15. Slide the steel wire panel from above, as shown in Pic.18.
top view
18

16. Fix the steel wire panel with long bolt and nut, as shown in Pic.19 and
Pic.19a.
19the 7th hole from bottom
19a
view from back
Model# T333615K2
17. Slide the second steel wire panel from above and fix it with long bolts and
nuts , as shown in Pic.20. Please pay attention to the bolts position.
18. Slide the remaining two steel wire panels from above and fix them with
long bolts and nuts , as shown in Pic.21 and Pic.22.
Note:Please
pay attention
to the positions
of the bolts.
20
the 14th hole
from bottom
the 8th hole the 1st hole
from above from above
21 22

* Three Panels make wider interstices
19. Fasten all the bolts and nuts, then you can get a solid growing space of
66” height, as shown in Pic.23. Also you can adjust the positions of these steel
wire panels slightly as you like. Style in Pic.24 just is a sample.
23 24
Model# T333615K2
2kit built on R143638
S333618W Self-Watering Mobile Elevated Garden

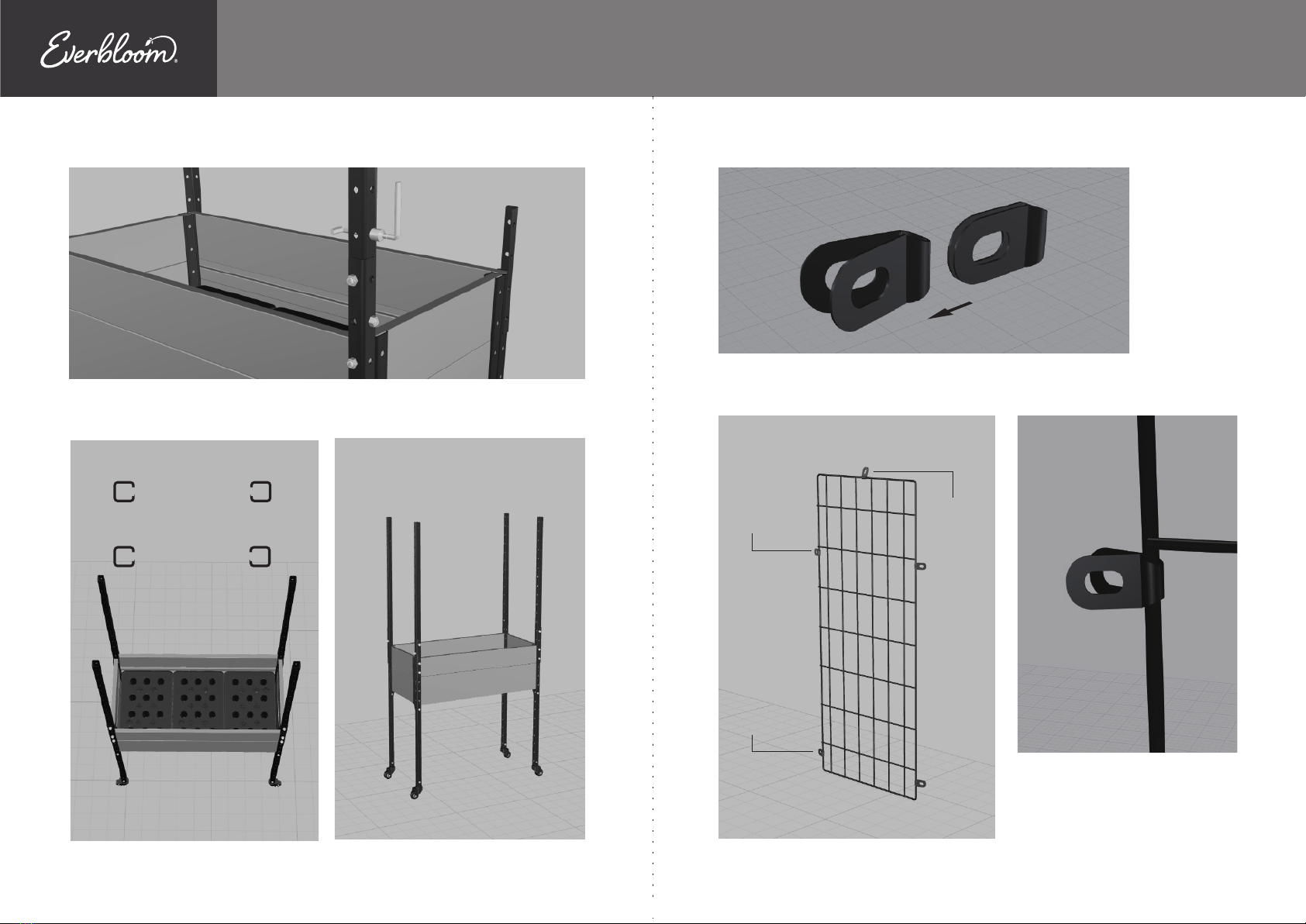

1. Open all the steel connector washers, as shown in Pic.25.
25
2. Clamp the connector washers onto the steel wire panel, as shown in
Pic.26 and Pic.26a.
Note:
Pay attention to the position and direction of the connector washer on the panel.
26 26a
Installation 3
Create a 36”x15” bottom tray on EverBloom

Model# T333615K2
4. Align the steel wire panel to four post brackets, as shown in Pic.28. Then,
fasten a connector washer on the steel wire panel to post bracket with
bolt and nut, as shown in Pic.28a and Pic.28b.
3. Close all the connector washers, as shown in Pic.27.
27
28
5. fasten the other three connector washers on the steel wire panel to post
brackets with bolts and nuts, as shown in Pic.29.
10
28a 28b
29

Model# T333615K2
Installation 4
Create a pergola of 36” height on EverBloom
S333618W Self-Watering Mobile Elevated Garden with T333615K2
This installation need 2 Trellis
Assembly Kits.
Before installation, please be
sure that the top long boards
haven’t been installed, or
have been taken off.
1. Align the corner connector to outer corner post, as shown in Pic.30. The
lower two screw holes of the connector and the top two screw holes of
corner post should align.
Insert bolt from inside of corner post to the corner
connector as shown in Pic.30a and Pic. 30b. Turn on the nylon lock nut by
hand, as shown in Pic.1c.
view from back view from front
30b
30 view from back
30c
30a

Model# T333615K2
2. Tighten bolts and nuts with hex key and nut driver, as shown in Pic.31.
31
3. Install another three corner connector follow steps above, as shown in
Pic.32 to Pic.35.
Note:
Please lift the corner connector when you tighten the bolts and nuts. Be sure the
screw hole centers of connector and post align. If the corner connector is
installed lower, it may cause difficulty in fixing the extension poles.
34
32
33
34
35

Model# T333615K2
4. Insert the top long boards, as shown in Pic.36.
5. Attach the extention pole to the corner connector, as shown in Pic.37. Be
sure the slot of the pole is facing to the other corner connector on the same
long board, as shown in Pic.37a.
6. Insert bolt from inside of the extention pole to the corner connector, as shown
in Pic.38 and Pic. 38a. Turn on the nylon lock nut by hand, as shown in Pic.38b.
Note:
Pay attention to the position and direction of the bolts and nuts.
38 6a 38a view from back view from front
36
37 37a
view from front view from back
38b view from back

Model# T333615K2
7. Tighten the bolts and nuts with hex key and nut driver, as shown in Pic.39.
8. Install another three extention poles follow step 4-6 above, as shown in
Pic.40 to Pic.41.
40
9. Open all the steel connector washers, as shown in Pic.42.
42
10. Clamp the connector washers onto the steel wire panel, as shown in Pic.43
and Pic.43a.
Note:
Pay attention to the position and
direction of the connector washer
on the panel.
13a
43a
39view from back
4140
the 3rd
grid from
top
the 1st
grid from
bottom
center
of top
43

Model# T333615K2
11. Close all the connector
washers, as shown in Pic.44.
44
12. Align the steel wire panel to two extention poles, as shown in Pic.45 and
Pic.45a.
45a
13. Fasten a connector washer on the steel wire panel to extention poles
with bolt and nut, as shown in Pic.46, Pic.46a and Pic.46b.
45
2nd hole
3rd hole
from
bottom
45a
view from back 46 view from front 46a
view from back 46b

Model# T333615K2

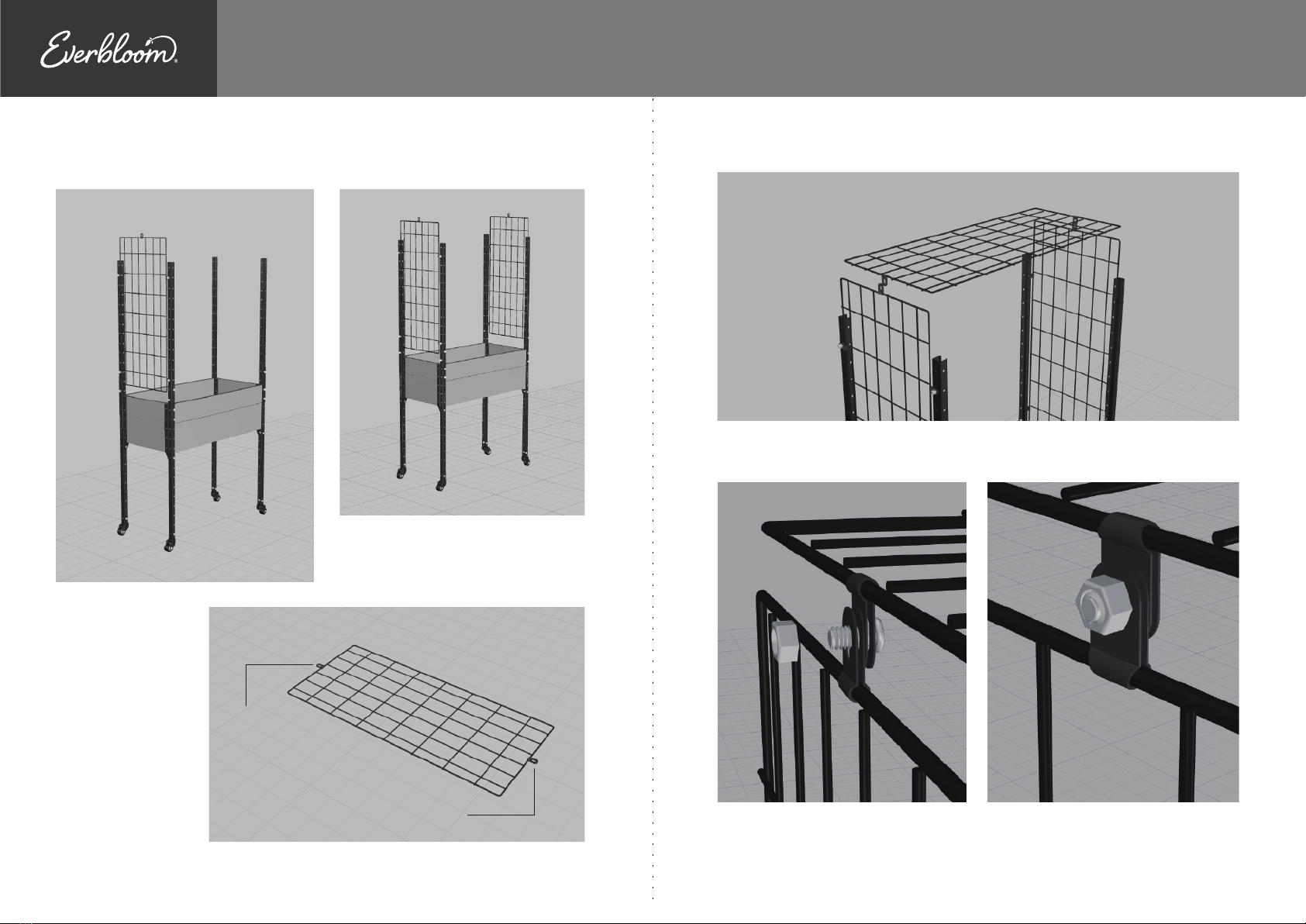

14. Fasten the other three connector washers on the steel wire panel to exten-
tion poles with bolts and nuts, as shown in Pic.47.
15. Install another steel wire panel
follow step 8 to 12, as shown in
Pic.48.
16. Clamp the
connector washers
onto the third steel
wire panel. Then,
close the both
connector washers,
as shown in Pic.49.
17. Align the steel wire panel to those two installed panels, as shown in Pic.50.
18. Fasten two connector wshers with bolt and nut, as shown in Pic.51 and
Pic.51a.
Note:
The direction of these two connector washers should be opposite.
13a
51a51
47
48
center
of short side
center
of short side
49
50

Model# T333615K2

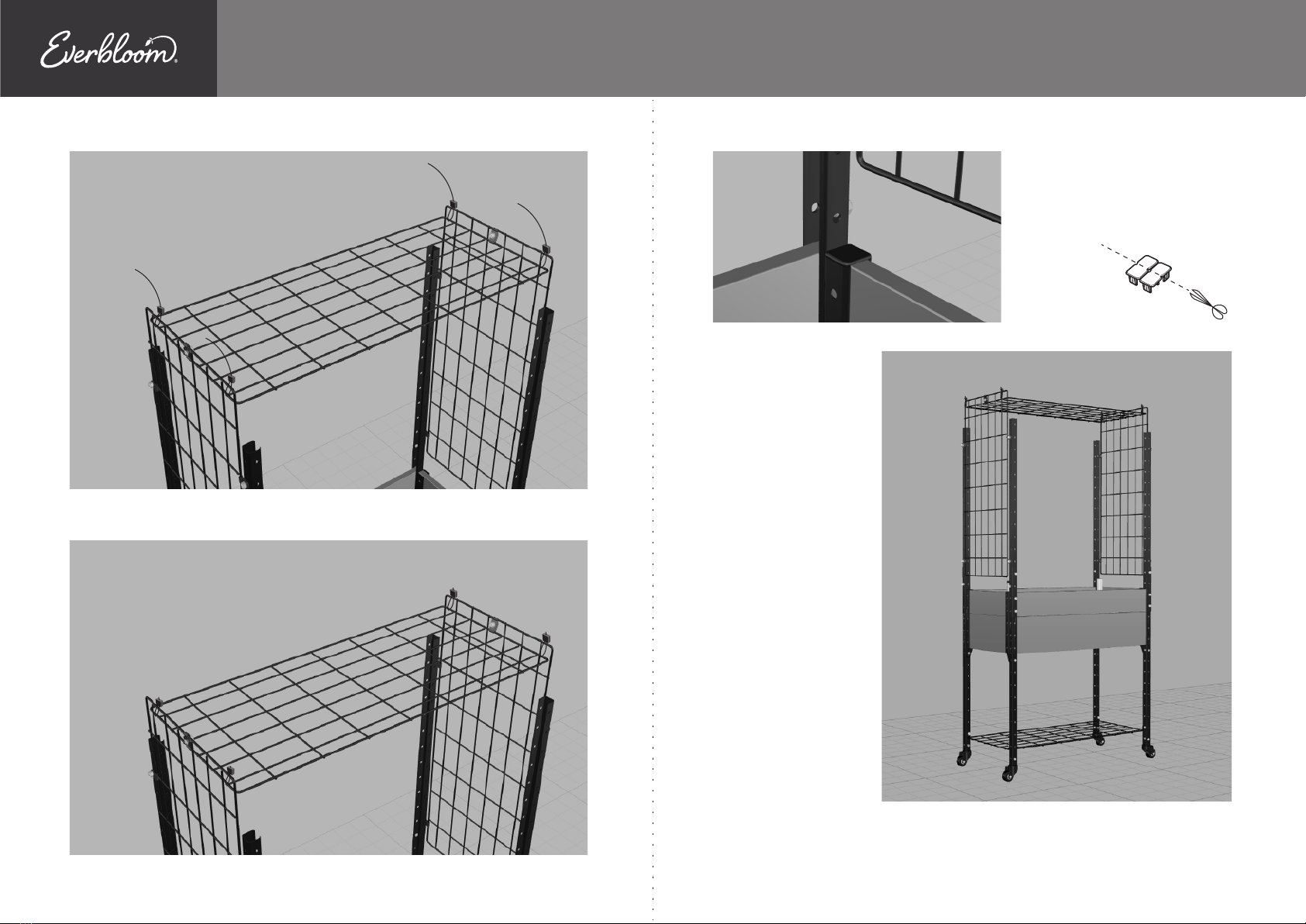

19. Tighten the bolt and nut, as shown in Pic.52.
20. Fasten the other two connector washers, as shown in Pic.53 and Pic.53a.
53 53a
21. Put the roof panel between the two straight panels, as shown in Pic.54.
22. Fasten the roof panel with side panels with cable ties at four corners, as
shown in Pic.55 and Pic.55a.
55
54
52

55
23. Tighten all the cables ties and cut extra ties, as shown in Pic.56.
Model# T333615K2
55a
56
24. Use post caps from garden
bed to cover 4 ends of post
brackets and trim by scissor, as
shown in Pic.57.
25. Then you can
get a pergola of 36”
height on EverBloom
Self-Watering Mobile
Elevated Garden, as
shown in Pic. 58.
57
Note: Use the remaining panel to make a tray on this
elevated garden bed, which can reinforce the stability
of the structure.
58

Model# T333615K2
Installation 5
Fix garden beds on firm grounds to provide more stability on EverBloom
E143612 Trough Planter Box /
E213612 Deep Trough Planter Box /
E283612 Elevated Trough Planter Box
with corner brackets in T333615K2
For E143612 Trough Planter Box and E213612 Deep Trough Planter Box,
please follow steps below.
1. First, take off the bolt and nut of inner pole of post bracket as shown in
Pic.59 and Pic.59a.
2. Then, take off just the nut of outer pole of post bracket, as shown in Pic.60
and Pic.60a. Note: Do not take off the bolt.
59 59a
60 60a
3. Attach the corner bracket to the
bolt, as shown in Pic.61.
4. Fasten the nut by hand, as shown
in Pic.62.
5. Insert the bolt fasten the nut, as shown in Pic.63 and Pic.64.
61 62
63 64
The addition of trellis kit will lift up the gravity center of the whole
product, which may cause a safety hazard of falling down, especially
in commercial use. So this trellis kit includes 4 piece of safety corner
bracket for securing the planter boxes on ground or other solid objects
surrounding by when necessary.
