GETTING TO KNOW YOUR OPTIMA HYBRID
AND PLUG-IN HYBRID
Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is
committed to quality, innovation, safety and — above all — your satisfaction.
Using This Guide
The information contained in this guide is a brief overview that will help you become familiar with the operation and features of your new Kia
vehicle. The flipbook format facilitates information access, while the detailed illustrations help to ensure the instructions are easy to follow.
This Features & Functions Guide, and the specific operational and safety information it provides, is not a substitute for your Owner’s Manual. In
the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds
you to carefully read your Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle
specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.
www.kia.com
Consumer - Roadside Assistance†16
1-800-333-4KIA (4542)
See Back Pages for Vehicle Maintenance Schedule
Always check the Owner’s Manual for complete operating information and safety warnings.

VIDEOS & QR CODES . . . . . . . . . . . . . . . . .02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Hybrid/Plug-In Indicators at Startup . . . . . . . . . . . 06

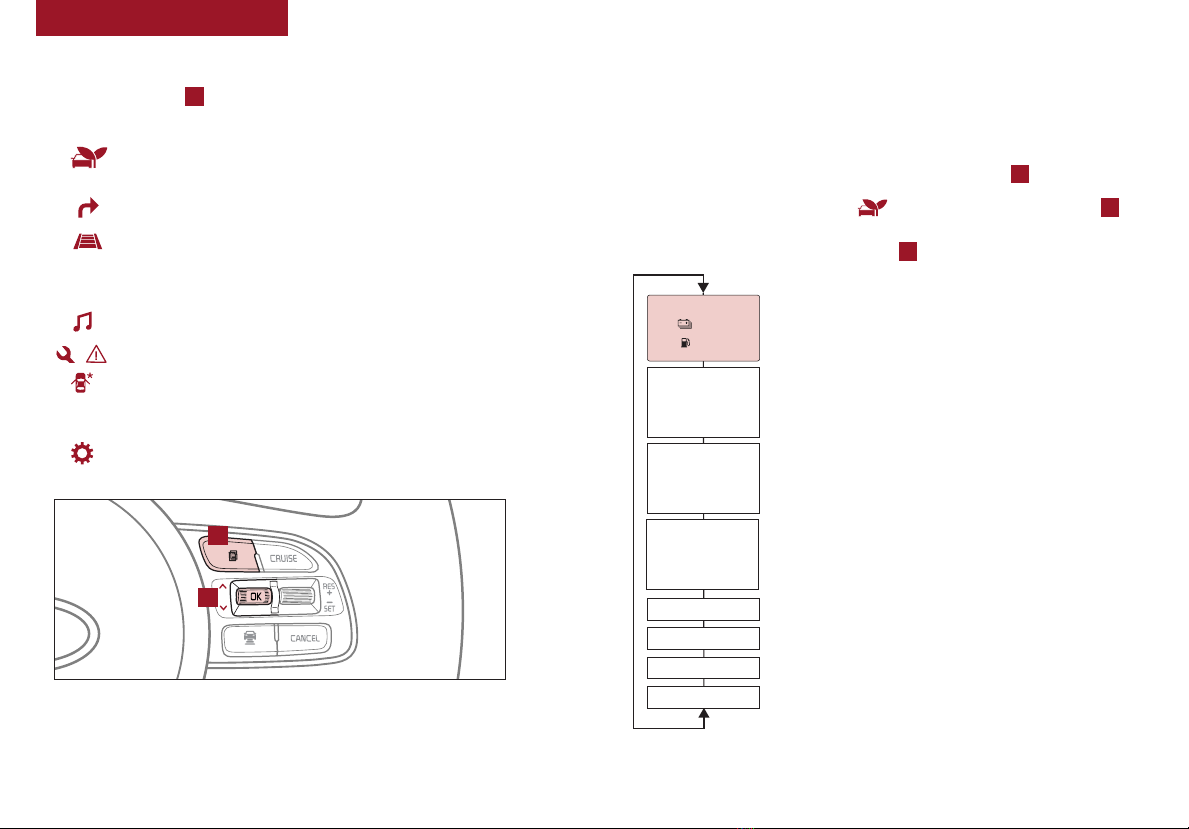

LCD Instrument Cluster Modes . . . . . . . . . . . . . . 07
Trip Modes/Trip Computer . . . . . . . . . . . . . . . . 07
Fuel Economy. . . . . . . . . . . . . . . . . . . . . . . 08
User Settings . . . . . . . . . . . . . . . . . . . . . . . 09

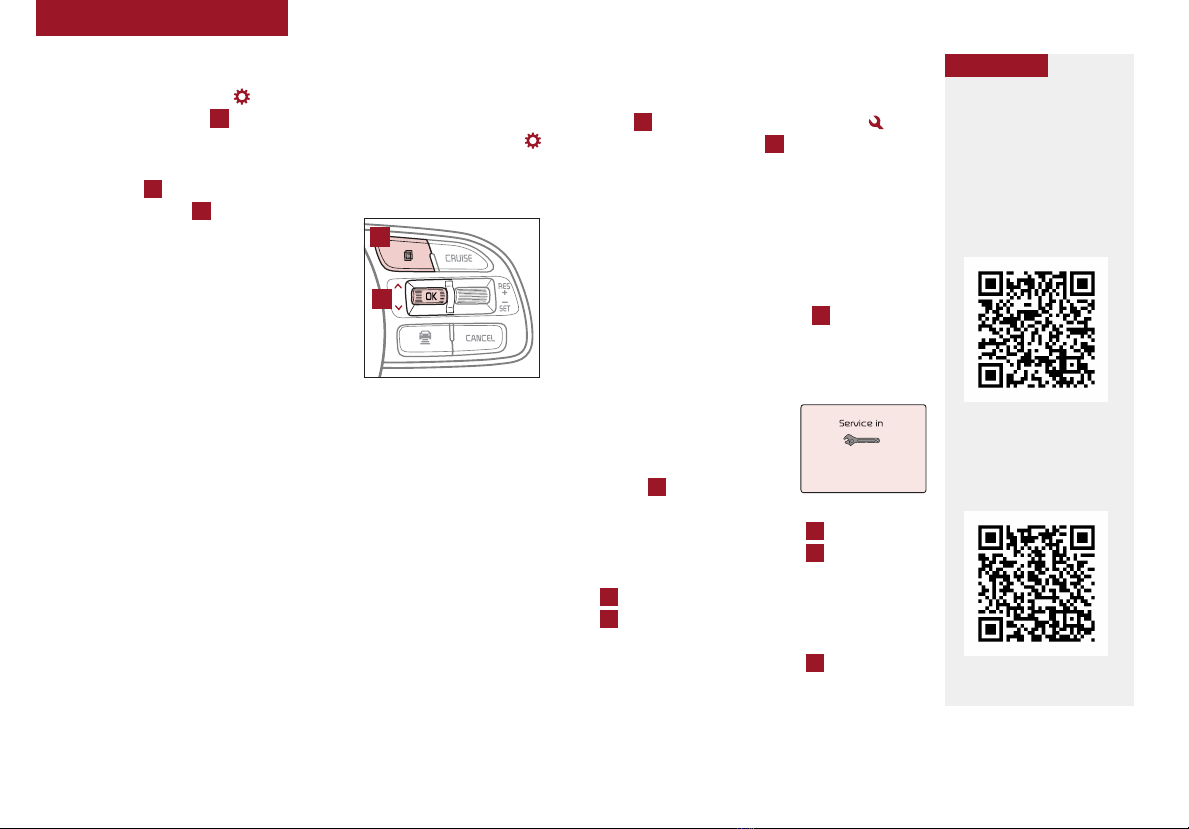

Service Interval Mode . . . . . . . . . . . . . . . . . . 09
Drive Mode Integrated Control System* (Hybrid) /
Active ECO System* (Plug-In Hybrid) . . . . . . . . . 10
HYBRID / PLUG-IN SYSTEM
UVO link with Navigation Display* . . . . . . . . . . . . 11
Instrument Cluster – Energy Flow . . . . . . . . . . . . 12

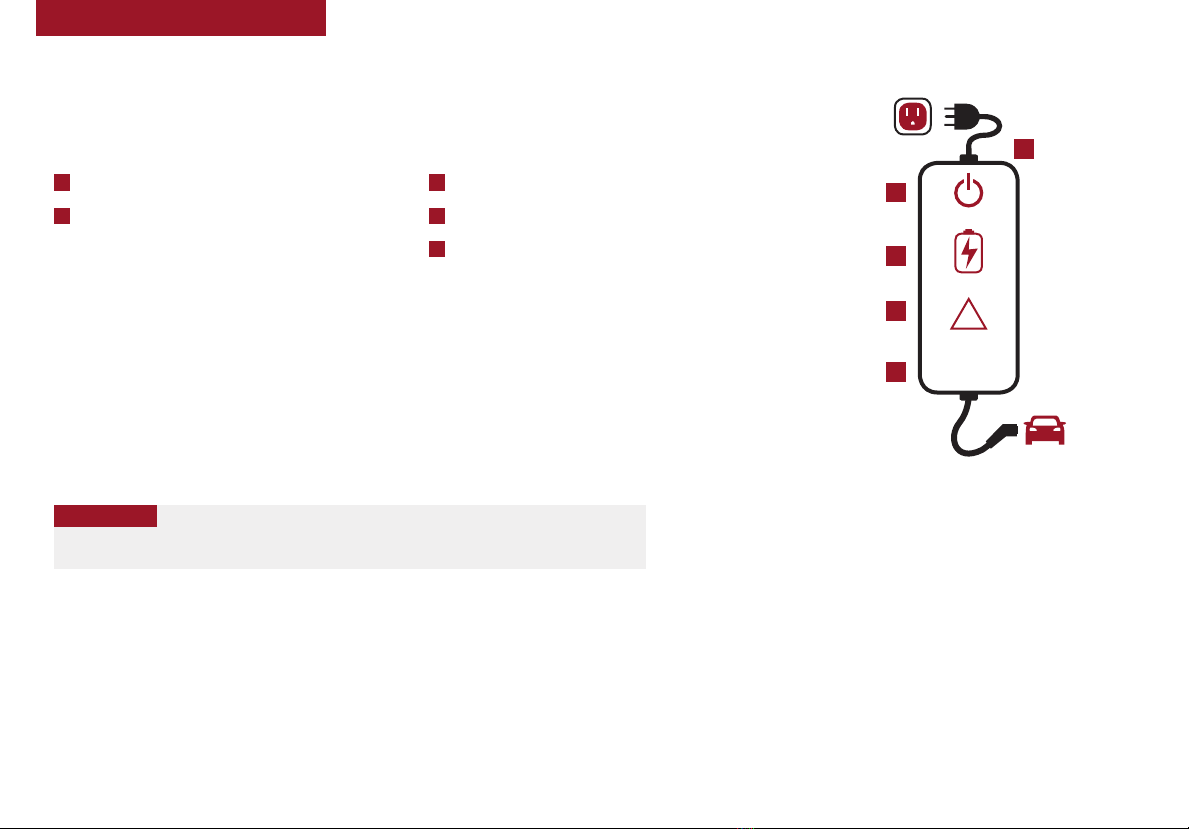

Charging the Plug-In Hybrid Vehicle* . . . . . . . . . . . 14
DRIVER’S PANEL

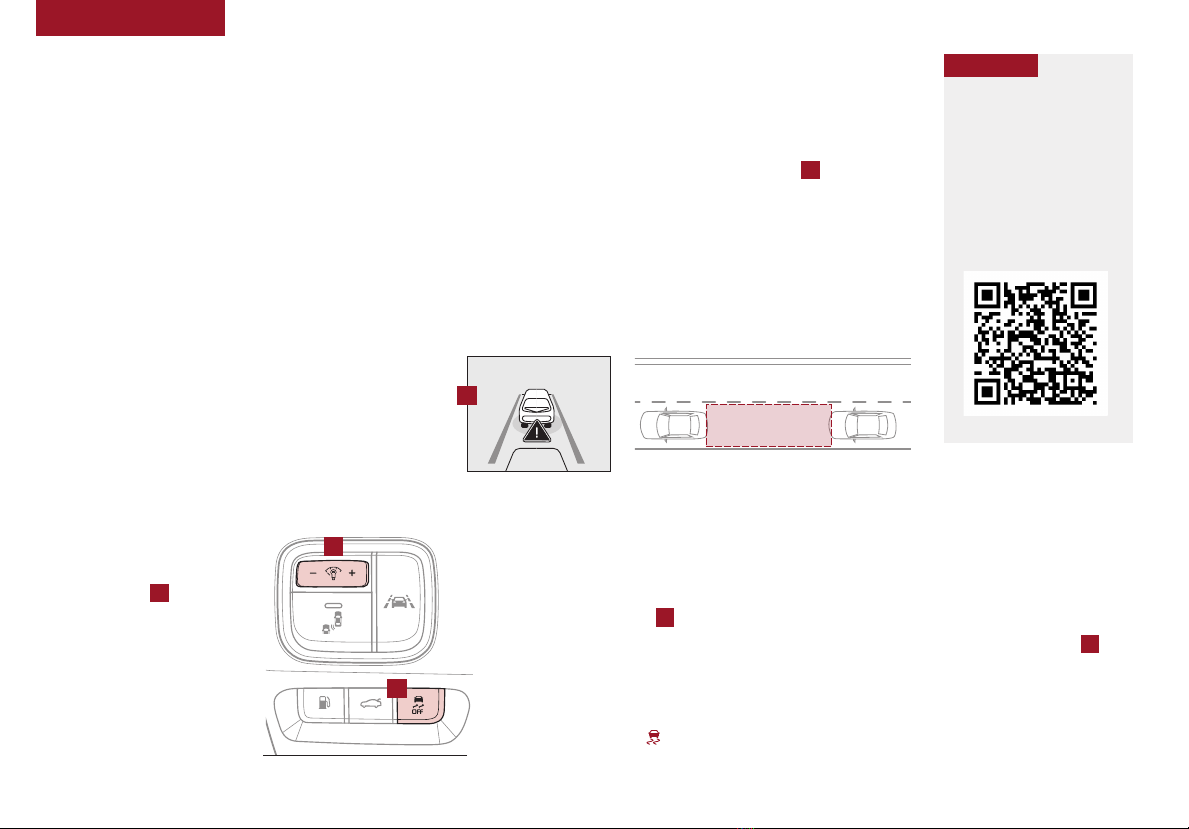

Blind-Spot Collision Warning (BCW) . . . . . . . . . . . 16
Rear Cross-Traffic Collision Warning (RCCW)* . . . . . . 16
Lane Keeping Assist-Line (LKA-L) /
Lane Departure Warning (LDW) . . . . . . . . . . . . 17
Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)*†/
Forward Collision Warning (FCW) . . . . . . . . . . . 18
Instrument Panel Dimmer . . . . . . . . . . . . . . . . 18
Electronic Stability Control (ESC) . . . . . . . . . . . . . 18
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . 19
Engine Start/Stop Button. . . . . . . . . . . . . . . . . 19
Power Windows, Window Lock & Central Door Lock . . . 20
Automatic Door Lock/Unlock . . . . . . . . . . . . . . . 20
Power/Heated Outside Mirrors* . . . . . . . . . . . . . 20
Power Folding Outside Mirrors* . . . . . . . . . . . . . 20
STEERING WHEEL CONTROLS
Headlights & High Beams. . . . . . . . . . . . . . . . . 21
High Beam Assist* . . . . . . . . . . . . . . . . . . . . 21
Turn Signals & Fog Lights . . . . . . . . . . . . . . . . 21
Windshield Wipers & Washers . . . . . . . . . . . . . . 22
Wiper Service Mode . . . . . . . . . . . . . . . . . . . 22
Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . 23
Heated Steering Wheel Button*. . . . . . . . . . . . . . 23
Bluetooth®Wireless Technology . . . . . . . . . . . . . 24
Audio Controls . . . . . . . . . . . . . . . . . . . . . . 26
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 26
Smart Cruise Control (SCC) with Stop & Go System . . . 27
AUDIO SYSTEM
Android Auto™/ Apple CarPlay®Setup* . . . . . . . . . 28
UVO link Activation . . . . . . . . . . . . . . . . . . . . 29
UVO link* (Hybrid) . . . . . . . . . . . . . . . . . . . . 30
UVO link with Navigation* . . . . . . . . . . . . . . . . 31
CENTER PANEL
Wireless Smartphone Charging System . . . . . . . . . 32
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 33
Aux/Multilmedia USB/iPod®Ports, Power Outlets
& USB Charger Ports. . . . . . . . . . . . . . . . . . 33
Automatic Climate Control (UVO link)* . . . . . . . . . . 34
Automatic Climate Control (Systems with Navigation*). . 35
Automatic Gear Shift with Sportmatic®Shifting . . . . . 36
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . 36
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . 37
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . 37
SEATING
Driver Position Memory System* . . . . . . . . . . . . . 38
Front Seat Headrest Adjustment . . . . . . . . . . . . . 38
Power Adjustable Driver’s Seat* . . . . . . . . . . . . . 39
6-Way Manual Adjustable Driver’s Seat* . . . . . . . . . 39
OTHER KEY FEATURES
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . 40
Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . 40
Smart Trunk* . . . . . . . . . . . . . . . . . . . . . . . 41
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . 42
Panoramic Sunroof Operation* . . . . . . . . . . . . . . 42
Driver Attention Warning (DAW)* . . . . . . . . . . . . . 43
Hood Release Lever and Latch . . . . . . . . . . . . . . 44
Fuel Filler Lid and Trunk Release . . . . . . . . . . . . . 44
Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . 44
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . 44
Parking Distance Warning-Reverse (PDW-R)* . . . . . . 45
Rear View Monitor . . . . . . . . . . . . . . . . . . . . 45
Hybrid/Plug-In Battery Air Intake . . . . . . . . . . . . . . . 46
Child-Protector Rear Door Lock . . . . . . . . . . . . . 47
Tire Mobility Kit. . . . . . . . . . . . . . . . . . . . . . 47
SAFETY FEATURES
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . 48
Seat Belts. . . . . . . . . . . . . . . . . . . . . . . . . 48
Seat Belt Retractor Locks . . . . . . . . . . . . . . . . 48
LEGAL DISCLAIMERS. . . . . (See Inside Back Cover)
MAINTENANCE SCHEDULE . . . (See Back Cover)
ESSENTIAL FEATURES
*IF EQUIPPED
PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
OPTIMA HYBRID /
Air Conditioning / Climate Control . . . . . . . . . . . . . 34
Audio System – Android Auto™/ Apple CarPlay®Setup* . .28
Audio System – UVO link Activation* . . . . . . . . . . . .29
Audio System – UVO link* (Hybrid) . . . . . . . . . . . . . 30
Audio System – UVO link with Navigation* . . . . . . . . . 31
Aux/Multilmedia USB/iPod®Ports, Power Outlets
& USB Charger Ports . . . . . . . . . . . . . . . . . . .33
Bluetooth®Wireless Technology . . . . . . . . . . . . . . 24
Charging the Plug-In Hybrid EV Battery* . . . . . . . . . . 14
Cruise Control. . . . . . . . . . . . . . . . . . . . . . . . 26
Digital Clock. . . . . . . . . . . . . . . . . . . . . . . . . 33
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . .10
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . .08
Hybrid/Plug-In Hybrid Displays . . . . . . . . . . . . . . .11
Instrument Cluster - Hybrid/Plug-In Displays . . . . . . . . 12
Passenger Airbag Off Indicator . . . . . . . . . . . . . . .48
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . .47
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . 05
Windshield Wipers & Washers . . . . . . . . . . . . . . . 22
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe personal injury and
death. The driver’s primary responsibility is in the safe and
legal operation of a vehicle, and any handheld devices, other
equipment or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle
or that are not permissible by law should never be used during
operation of the vehicle.

OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
2*IF EQUIPPED
1. If you’re having trouble scanning codes, check the following:
•The code should be centered and focused in your mobile device’s camera screen
•Consider moving your device closer to or farther away from the code
•The code should be well lit, without significant shadow
2. After scanning, if a “connecting” message appears and then nothing happens or there’s a “connection error” message, this typically indicates that your device is having trouble
connecting to the Internet
QUICK TIPS
VIDEOS & QR CODES – SMARTPHONES, TABLETS AND COMPUTERS
One Click Fuel Cap Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
www.youtube.com/KiaFeatureVideos
QR CODE
Kia provides a number of video resources to assist you with becoming familiar with the features and functions found in your
Kia vehicle. You can access these resources by snapping the QR Codes with your smartphone/tablet (mobile devices) or by
visiting the following website: www.youtube.com/KiaFeatureVideos. Continue reading for a more in-depth look at QR
Codes and for instructions on how to use them.
What are QR Codes?
A QR Code is a square, two-dimensional barcode that can be
read by mobile devices loaded with an appropriate barcode
or QR Code Reader App. The app reads the barcode image
and then launches/uploads the specific information the
code contains, such as URLs, text, photos, videos and so
much more.
How to Use QR Codes
If you have a mobile device with a QR Code Reader App, you
can snap the code with your phone and you’ll be provided a
video with additional information pertaining to the topic. For
example, in the Fuel Cap section, if you would like additional
information, just snap the code with your mobile device to
view the selected Kia Features & Functions Video.
How to Snap a QR Code
1. With your mobile device, download a QR Code Reader
App. With many devices, you can do this through an app
store or marketplace
2. Open the QR Code Reader App on your mobile device
3. The app will utilize your device’s camera. Center the code
in the camera viewing area:
•With some apps, as soon as the app recognizes the
code, it will launch the corresponding video
•With other apps, you will have to snap or take a
picture of the code. The app will then launch the
corresponding video
•For operation specifics, refer to the instructions that
come with the QR Code Reader App
•Avoid scanning from a significant angle
•Confirm that the device’s app supports 2D QR Code scanning
•Try another QR Code Reader App; not all apps are created equal
REMINDER: When accessing videos
on your mobile device, standard
cellular data rates may apply.

3
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.

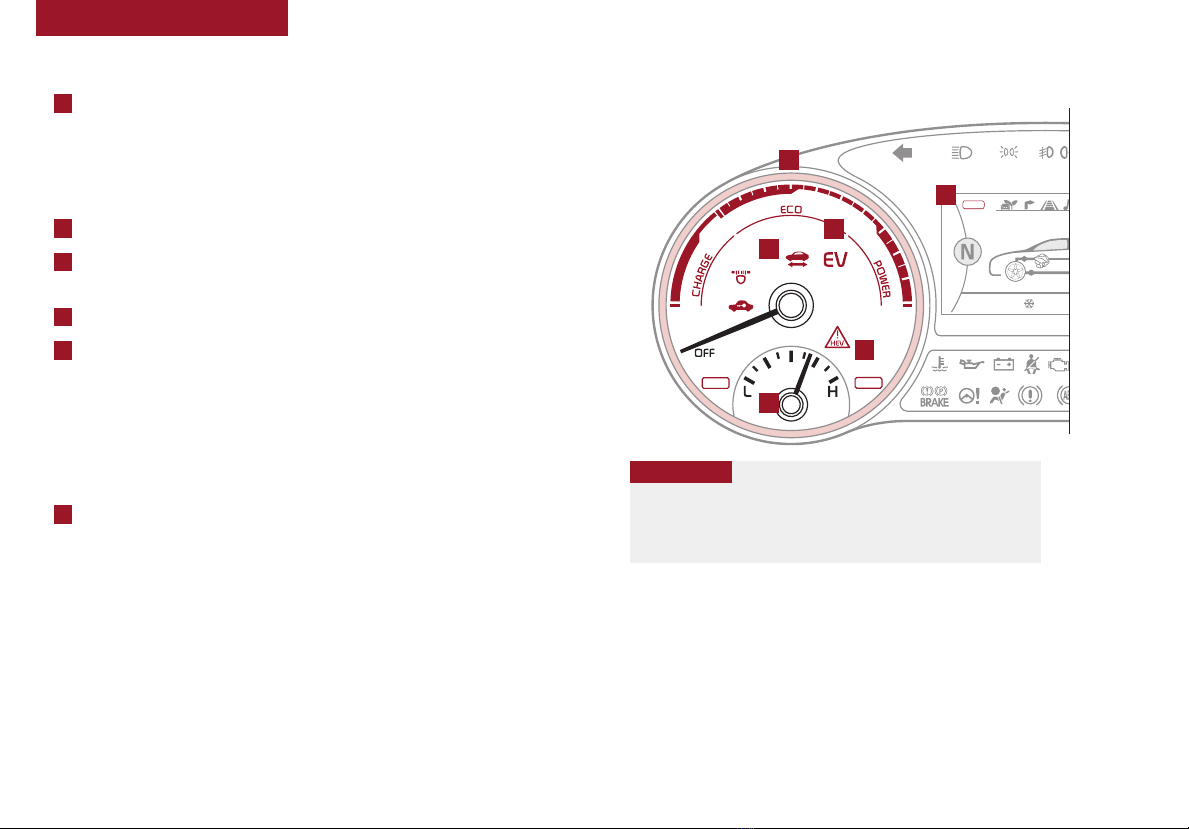

AECO Guide
BState of Charge (SOC) Gauge
CTurn Signal Indicators
DGear Shift Position Indicator
EIndicator and Warning Lights
FSpeedometer
GFuel Gauge 20
0
0 160
20 140
40 120
60 100
80
260
240
MPH
km/h
40 220
60 200
80 180
100 160
120 140
120
km/h
A
G
F
B
E
E
D
C C
Instrument Cluster Overview
Your vehicle’s instrument cluster & indicator light locations may differ from those in the
illustrations. For more information on the instrument cluster, the LCD Warning Messages
and the function of all indicator and warning lights, please refer to the Owner’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not
appear in illustration. On the vehicle, they may appear in the LCD.
INSTRUMENT CLUSTER
(Hybrid Cluster shown)

4*IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
High Beam Assist Indicator*
High Beam Indicator
Tail Light Indicator
Front Fog Light Indicator*
Master Warning Light*
Forward Collision-Avoidance Assist (FCA)*
Lane Departure Warning (LDW) On/Off
Indicator Light
Electronic Brake Force (EBD) System Warning Light
(Two separate indicators on Instrument Cluster lit
at same time)
Immobilizer Indicator*
READY Indicator
EV EV Mode Indicator
Active ECO Indicator
SPORT Mode Indicator Light*
Hybrid System Warning Light*
Engine Coolant Temperature Warning Light*
Engine Oil Pressure Warning Light
12V Charging System Warning Light
Seat Belt Warning Light
Malfunction Indicator
Low Tire Pressure Light/Tire Pressure Monitoring
System (TPMS) Malfunction Indicator
Electronic Stability Control (ESC) Indicator/
ESC Malfunction Indicator
Electronic Stability Control (ESC) OFF Indicator
Parking Brake & Brake Fluid Warning Light
Electronic Power Steering (EPS) System Warning Light*
Airbag Warning Light
Parking Brake Light
Anti-lock Braking System (ABS) Warning Light
Electronic Parking Brake Indicator
Low Fuel Level Warning Light
Cruise ON/OFF Indicator*
Trunk Open Warning Light
Auto Hold Indicator
Door Ajar Warning Light
(red color) (yellow color) Regenerative Brake Warning Light
Adaptive Front-Lighting System-Height (AFS-H) Light*
Your vehicle’s instrument cluster & indicator
light locations may differ from those in the
illustrations. For more information on the
instrument cluster, the LCD Warning Messages
and the function of all indicator and warning
lights, please refer to the Owner’s Manual.
This illustration is for demonstration purposes
only. Some indicators and warning lights may not
appear in illustration. On the vehicle, they may
appear in the LCD.
20
0
0 160
20 140
40 120
60 100
80
260
240
MPH
km/h
40 220
60 200
80 180
100 160
120 140
CHG
HEV
INSTRUMENT CLUSTER
(Plug-In Hybrid cluster shown)

5
25
35
35
35
A
Tire Pressure Monitoring
System Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
Tire Pressure Monitoring System (TPMS)†25
The TPMS indicator functions as both Low Tire Pressure Light
and TPMS Malfunction Indicator. The indicator is designed to
illuminate if it detects one or more tires is significantly underinflated, the
vehicle has a spare tire installed without TPMS or the outside temperature
becomes significantly lower.
The LCD screen in the instrument cluster will display the Low Tire Pressure
indicator Ashowing which tire(s) is underinflated. Inflate tire(s) to
specifications using an accurate digital tire pressure gauge to turn off Low
Tire Pressure Light . See front driver’s door jamb for PSI specification.
When there is a problem with the TPMS, the TPMS Malfunction Indicator
will blink for approximately one minute and then illuminate–see dealer
for service.
•Even with TPMS, tire pressure should be checked manually at least once a
month. Only adjust tire pressure on “cold tires” that have been sitting for 20
minutes, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended
tire inflation pressures and stay within the load limits and weight distribution
recommended for your vehicle
•In winter or cold weather, the TPMS light may illuminate if the tire pressure was
adjusted to the recommended tire inflation pressure during warm weather
QUICK TIP
REMINDERS:
• Check the recommended tire pressure label located on the left side of driver’s door jamb,
which is visible when the door is opened
• Consult your dealer for service if Low Tire Pressure Light remains illuminated after
inflating your tire(s)
• Personal electronic devices (such as laptops, wireless chargers, remote start systems,
etc.) may interfere with TPMS system, which may cause the Malfunction Warning Indicator
(Check Engine Light) to illuminate
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED †LEGAL DISCLAIMERS ON BACK INSIDE COVER
INSTRUMENT CLUSTER
This illustration is for demonstration purposes
only. Actual image on vehicle may vary.

6*IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Hybrid / Plug-In Indicators at Startup
AECO Guide -Indicates how economically the vehicle is being driven.
•Blue zone: High-efficiency range
•Green zone: Normal-efficiency range
•White zone: Low-efficiency range
BEV Mode -Illuminates when only the electric motor is powering the vehicle.
CReady -Illuminates when the Hybrid/Plug-In system is operational.
Even if the engine is off, the vehicle can be driven.
DState of Charge (SOC) -Displays the Hybrid/Plug-In battery charge status.
EActive ECO -Automatically activated each time the vehicle is started. Turn
system ON/OFF using the ECO button on the center console.
•Active ECO ON (Eco indicator illuminated): Adjusts the engine, transaxle
and A/C system to help conserve fuel
•Active ECO OFF (Eco indicator not illuminated): Provides more
power when driving up steep roads or carrying heavy loads
FService Indicator -Illuminates when a malfunction occurs in the vehicle’s
Hybrid/Plug-In system. Have an authorized Kia dealer address the concern
as soon as possible.
20
0
0 160
20 140
40 120
60 100
80
260
240
MPH
km/h
40 220
60 200
80 180
100 160
120 140
CHG
HEV
324025 km
-12°C
ECO
A
B
D
C
E
F
If Active ECO is turned off, switch back to Active ECO as soon as
possible to help enhance fuel efficiency and to restore the ECO ON
center display.
QUICK TIP
REMINDER: Avoid starting or driving the vehicle when the fuel tank is empty.
As the engine will be incapable of charging the high-voltage Hybrid/Plug-In
battery, the battery will lose its charge and may be damaged.
Your vehicle’s instrument cluster & indicator light locations may differ from
those in the illustrations. For more information on the instrument cluster,
please refer to the Owner’s Manual.
This illustration is for demonstration purposes only. Some indicators and
warning lights may not appear in illustration. On the vehicle, they may
appear in the LCD.
INSTRUMENT CLUSTER

7
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information
related to driving. It appears on the display when the Engine Start/Stop
button is in the ON position.
To cycle through the Trip modes, press the Mode button A.
When in the Trip Computer mode , press the Select/Reset button B
to cycle through the screens. When displaying TRIP A or TRIP B screens,
press and hold the Select/Reset button Bto reset the Tripmeter to zero.
LCD Instrument Cluster Modes
Press Mode button Ato scroll through different LCD Instrument Cluster
Modes.
Trip Computer Mode: Displays driving information for tripmeter,
fuel economy, etc.
Turn-by-Turn Mode*: Displays the state of the navigation
Assist Mode*: Displays the state of the Smart Cruise Control
with Stop & Go, Lane Keeping Assist (LKA), Lane Departure
Warning (LDW), Drive Attention Warning (DAW) and Tire Pressure
A/V Mode*: Displays the state of the multimedia system
Service Modes: Informs on upcoming service intervals, tire
pressure status, warning messages related to TPMS, Blind-Spot
Collision Warning malfunction and when any door is not securely
closed
User Settings Mode: Change settings of the doors, lamps and
other features
Your vehicle’s steering wheel buttons may differ from those in the illustrations.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to
driving and always exercise caution when using the steering-wheel-mounted controls while driving.
REMINDERS:
•Appearance of Trip Computer display may differ
as equipped
•All stored driving information (except Odometer and
Range) is reset if the battery is disconnected
Your vehicle’s instrument cluster & indicator light
locations may differ from those in the illustrations. For
more information on the instrument cluster, please refer
to the Owner’s Manual.
This illustration is for demonstration purposes only.
Some indicators and warning lights may not appear in
illustration. On the vehicle, they may appear in the LCD.
Your vehicle’s steering wheel buttons may differ from
those in the illustrations.
INSTRUMENT CLUSTER
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
FUEL ECONOMY
•Average Fuel Economy
•Instant Fuel Economy
ACCUMULATED INFO
•Tripmeter
•Fuel Economy
•Timer
DIGITAL SPEEDOMETER
DRIVING STYLE
ENGINE TEMPERATURE
ENERGY FLOW
DRIVE INFO
•Tripmeter
•Fuel Economy
•Timer
Range
125mi.
423mi.
(Buttons located on Steering Wheel – Type A shown)
(Plug-in Hybrid screen shown above)
A
B

8*IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Fuel Economy Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
Fuel Economy
There are several factors that contribute to your vehicle’s fuel
economy, such as maintenance of your vehicle, driving style,
environmental conditions, vehicle weight and vehicle aerodynamics.
Below are some tips on how to help improve fuel economy:
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a
moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
For more information on Fuel Economy, you can snap the QR Code at right
to view a video or refer to the Owner's Manual.
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations.
For more information on the instrument cluster, please refer to the Owner’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not
appear in illustration. On the vehicle, they may appear in the LCD.
(Plug-in Hybrid screen shown)
INSTRUMENT CLUSTER
When the Instrument Cluster LCD screen is in
the Trip Computer mode, the screen displays fuel
economy information related to the driving range
and average fuel economy.
To change modes, go to User Settings in the LCD
Instrument Cluster modes.
Range (Plug-in Hybrid) - Estimates how far you
can go before refueling is required.
Average Fuel Consumption - Calculates
average fuel consumption from the distance
driven and amount of fuel injected into the
engine/total fuel used.
FUEL ECONOMY
•Average Fuel Economy
•Instant Fuel Economy
ACCUMULATED INFO
•Tripmeter
•Fuel Economy
•Timer
DIGITAL SPEEDOMETER
DRIVING STYLE
ENGINE TEMPERATURE
ENERGY FLOW
DRIVE INFO
•Tripmeter
•Fuel Economy
•Timer
Range
125mi.
423mi.

9
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
Service Interval Mode
To enter Service Interval mode, press the Mode
button A, scroll to Service Interval mode and
press Select/Reset button B. System will display
number of miles remaining until next service is
due, as well as type of service.
When service is required, the following will be
displayed:
Service Required
To reset the Service Interval mode system, press
and hold the Select/Reset button Bfor more than
1 second.
To turn Service Interval In OFF, go to User Settings.
Service Interval Setting
To set the service interval
when in User Settings mode:
•Press the Select/Reset
button Bup/down and
scroll to Service Interval.
Press the Select/Reset button Bto enter
•Press the Select/Reset button Bup/down and
toggle to ON, then press the Select/Reset button
Bagain. Then press the Select/Reset button
Bto scroll and select the desired miles or
months for your next service
•Press the Select/Reset button Bagain to enter
User Settings
To enter the User Settings mode in the LCD Instrument Cluster Modes,
press the Mode button Awhen the vehicle is at a standstill and with the
Engine Start/Stop button* in the ON position and select User Settings .
You can navigate the selections on the display by pressing the Select/
Reset button Bup/down, and then selecting the item by pressing the
Select/Reset button Bagain.
Driving Assistance:
•Driver Attention Warning*
•Lane Safety*
•Forward Collision-Avoidance Assist (FCA)*
•Forward Collision Warning (FCA)*
•Blind-Spot Collision Warning Timing
•Rear Cross-Traffic Collision Warning (RCCW)
•Coasting Guide*
•Start Coasting*
Door/Trunk:
•Automatically Lock
•Automatically Unlock
•Smart Trunk*
•Two-Press Unlock
•Horn Feedback*
Lights:
•One-Touch Turn Signal
•Ambient Light Brightness*
•Ambient Light Color*
•Headlight Delay
Sound:
•Parking Distance Warning-
Reverse Volume*
•Welcome Sound*
To view a video on your
mobile device, snap these
QR Codes or visit the listed
website.
Refer to page 2 for more
information.
LCD Display Video
LCD Display:
Maintenance Video
QR CODES
www.youtube.com/KiaFeatureVideos
www.youtube.com/KiaFeatureVideos
(Buttons located on Steering Wheel – Type A)
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
A
B
Service in
Off
Service Required
1500 mi
30 days
0000 mi.
These illustrations are for demonstration purposes only. Some
indicators and warning lights may not appear in illustration. On
the vehicle, they may appear in the LCD.
Convenience:
•Seat Easy Access*
•Welcome Mirror/Light*
•Wireless Charging System*
•Wiper/Light Display
•Gear Position Pop-Up*
•Icy Road Warning*
Other features:
•Fuel Economy Reset
•Fuel Economy Unit
•Temperature Unit
•Tire Pressure Unit
Language*
•Reset
Service Interval:
•Enable Service Interval
•Adjust Interval
•Reset
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, please refer to the Owner’s Manual.
INSTRUMENT CLUSTER

10 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Drive Mode Integrated Control System* (Hybrid) / Active ECO System* (Plug-In Hybrid)
The Drive Mode may be selected based on the driver's preferences
and road conditions.
To cycle through the different Drive Modes A, press the DRIVE MODE*/
ACTIVE ECO* button B. The instrument cluster will display SPORT*
or ECO when selected. When in NORMAL mode, it will not display in
the instrument cluster.
Drive Mode System
Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
(Buttons located
below Gear Shift -
Type B shown)
ACTIVE
ECO
HEV
DRIVE
MODE
B
B
ECO Mode (Active ECO)
Active ECO is designed to help improve
fuel economy by controlling several vehicle
components. When activated, it optimizes
drivetrain operations such as engine power and
transmission.
To turn ON, press the DRIVE MODE*/ACTIVE ECO*
button B. The button light will turn on, and the
green ECO indicator light in the instrument cluster
will illuminate (indicating that you are getting
optimal fuel efficiency). Active ECO system will
remain on even when the ignition is cycled.
To turn the Active ECO system OFF, press the
button Bagain.
To help improve your fuel economy:
•Drive at a moderate speed, accelerating smoothly
and at a moderate rate
•Keep tires inflated to the recommended pressure
•Be sure the wheels are properly aligned
QUICK TIPS
For more information on Active ECO, refer to your Owner’s
Manual or contact your local dealership.
Your vehicle’s instrument cluster & indicator light locations may
differ from those in the illustrations. For more information on the
instrument cluster, please refer to the Owner’s Manual.
These illustrations are for demonstration purposes only. Some
indicators and warning lights may not appear in illustration. On
the vehicle, they may appear in the LCD.
A
Hybrid*
A
Plug-in Hybrid*
REMINDERS:
•The system is turned ON and in ECO mode when ignition is in the
ON position
•When NORMAL mode is selected, the indicator will display and system remains on.
When ignition is cycled, the system will default to ECO
•When ECO mode is selected, the following may occur to help improve fuel economy:
– Acceleration may be slightly reduced even when the accelerator is fully depressed
– Air conditioner performance may be limited
– Shift pattern of the automatic transmission may change
– System’s power will be limited when driving uphill
•Steering effort may be slightly increased in Sport mode
INSTRUMENT CLUSTER

11
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED †LEGAL DISCLAIMERS ON BACK INSIDE COVER
UVO link†1 with Navigation†13 Display*
When equipped, the UVO link with Navigation Display provides information on economical driving and system modes.
To enter the display mode to see this information, press the Home button on the audio control unit screen. Press the HYBRID/PHEV button.
Then select one of the menus A.
Energy Flow - Displays the current flow of power between
the Hybrid's/Plug-In Hybrid's main powertrain components.
ECO Level - The more economically you drive, the more
the ECO Level increases.
ASystem Home Screens
ECO Driving - Displays the average fuel economy over the duration of a
trip and the ECO level awarded based on the driving style.
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l ECO Driving
ECO Level History
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
17.7 MPG
l Hybrid Fuel
Economy
l Electric
Motor Use
l l l ECO Driving
Economy
Reset
15
10
5
KW Now 10 20 30 min
45
30
15
MPG Now 10 20 30 min
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l ECO Driving
ECO Level History
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
17.7 MPG
l Hybrid Fuel
Economy
l Electric
Motor Use
l l l ECO Driving
Economy
Reset
15
10
5
KW Now 10 20 30 min
45
30
15
MPG Now 10 20 30 min
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l ECO Driving
ECO Level History
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
17.7 MPG
l Hybrid Fuel
Economy
l Electric
Motor Use
l l l ECO Driving
Economy
Reset
15
10
5
KW Now 10 20 30 min
45
30
15
MPG Now 10 20 30 min
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l ECO Driving
ECO Level History
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
17.7 MPG
l Hybrid Fuel
Economy
l Electric
Motor Use
l l l ECO Driving
Economy
Reset
15
10
5
KW Now 10 20 30 min
45
30
15
MPG Now 10 20 30 min
Plug-In Hybrid
ECO Driving
Jul. 19 3:22 AM
Energy Information
Charging
Stations
Set Charging
Times
EV Range Gas Stations
ECO Driving
ECO LevelFuel Economy History
Jul. 19 3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor
Battery
Battery Information
Jul. 19 3:22 AM
Energy Information
Energy FlowBattery Information
Jul. 19 3:22 AM
Total Range
Electric Remaining Charging Time
Gasoline Normal (240V) 1 h 20 m
350 80%
50
300
mi
mi
mi
Engine Electric
Motor
Battery
Plug-In Hybrid
ECO Driving
Jul. 19 3:22 AM
Energy Information
Charging
Stations
Set Charging
Times
EV Range Gas Stations
ECO Driving
ECO LevelFuel Economy History
Jul. 19 3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor
Battery
Battery Information
Jul. 19 3:22 AM
Energy Information
Energy FlowBattery Information
Jul. 19 3:22 AM
Total Range
Electric Remaining Charging Time
Gasoline Normal (240V) 1 h 20 m
350 80%
50
300
mi
mi
mi
Engine Electric
Motor
Battery
Plug-In Hybrid
ECO Driving
Jul. 19 3:22 AM
Energy Information
Charging
Stations
Set Charging
Times
EV Range Gas Stations
ECO Driving
ECO LevelFuel Economy History
Jul. 19 3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor
Battery
Battery Information
Jul. 19 3:22 AM
Energy Information
Energy FlowBattery Information
Jul. 19 3:22 AM
Total Range
Electric Remaining Charging Time
Gasoline Normal (240V) 1 h 20 m
350 80%
50
300
mi
mi
mi
Engine Electric
Motor
Battery
Hybrid Screen*
Hybrid Screen*
Hybrid Screen*
Hybrid Screen*
Plug-In Hybrid Screen*
Plug-In Hybrid Screen*
Plug-In Hybrid Screen*
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations.
For more information on the instrument cluster, please refer to the Owner’s Manual.
These illustrations are for demonstration purposes only. Some indicators and warning lights may not
appear in illustration. On the vehicle, they may appear in the LCD.
HYBRID / PLUG-IN SYSTEM

12 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations.
For more information on the instrument cluster, please refer to the Owner’s Manual.
These illustrations are for demonstration purposes only. Some indicators and warning lights may not
appear in illustration. On the vehicle, they may appear in the LCD.
Instrument Cluster – Energy Flow
Optima Hybrid/Plug-In’s instrument cluster LCD screen displays the following Hybrid/Plug-In system modes to
inform the driver of its status. To change modes, go to User Settings in the LCD Instrument Cluster modes.
EV Propulsion - The electric motor
is moving the vehicle.
Engine-Only Propulsion - The engine is moving
the vehicle.
Power Assist - Both the electric motor AND the
engine are moving the vehicle.
Engine Generation - While the vehicle is stopped,
the engine is charging the Hybrid/Plug-In battery.
HYBRID / PLUG-IN SYSTEM

13
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations.
For more information on the instrument cluster, please refer to the Owner’s Manual.
These illustrations are for demonstration purposes only. Some indicators and warning lights may not
appear in illustration. On the vehicle, they may appear in the LCD.
Instrument Cluster – Energy Flow
Optima Hybrid/Plug-In’s instrument cluster LCD screen displays the following Hybrid/Plug-In system modes to
inform the driver of its status. To change modes, go to User Settings in the LCD Instrument Cluster modes.
Power Reserve - While the engine powers the vehicle,
it is also recharging the Hybrid/Plug-In battery.
Engine Brake/Regeneration - The regenerative braking
system is recharging the Hybrid/Plug-In battery.
Vehicle Stop - The vehicle’s Hybrid/Plug-In
system is standing by.
Engine Generation/Regeneration - The engine and the regenerative
braking system are both recharging the Hybrid/Plug-In battery.
HYBRID / PLUG-IN SYSTEM

14 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
POWER
E
(Control box on charging cable)
Charging the Plug-In Hybrid Vehicle*
Level 1 Charging – “Trickle” Charge
A Level 1 or “trickle” charger is the most common type of charging system for a Plug-In Hybrid. This type of
charger uses 110 volts of household electricity and takes up to 9 hours for a full charge.
AICCB - In-Cable Control Box
BPower - Indicates that the charger is plugged in
and functioning
CCharge - Indicates that the vehicle is charging
DFault - Indicates charge failure
ECharge Amperage
REMINDER: Do not use an extension cord. Plug Trickle charger directly into wall socket.
Level 2 Charging – “Normal” Charge
A Level 2 or “normal” 240-volt charger is the recommended charging system for your Optima Plug-In Hybrid.
This type of charger uses 240 volts of electricity and takes approximately 2.5-3 hours for a full charge
based on Kia Motors Corporation testing with SAE J1772 charger performed at 3.3kW. This charger
can possibly be installed at your home or found at a public charging station.
REMINDER: Shape of charger and how to use the charger may be different for each manufacturer.
Please see Owner’s Manual for more information.
A Level 2 or “normal” 240-volt charger is recommended for regular charging of the vehicle.
QUICK TIPS
REMINDER: For more detail and/or subsequent steps in charging your vehicle, please see the Owner's Manual.
HYBRID / PLUG-IN SYSTEM
B
A
C
D
CHARGE
FAULT
!
BA 10A 12A
This illustration is for demonstration purposes only.
Actual feature on vehicle may vary.

15
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
F
G
POWER
CHARGE
FAULT
E
REMINDERS:
•For more detail and/or subsequent steps in charging your vehicle, please see the
Owner’s Manual
•The charge door lock will unlock/open only when driver’s side door is unlocked
Charging the Plug-In Hybrid Vehicle* (Continued)
To charge the Optima Plug-In Hybrid vehicle using a normal/trickle charger:
1. Connect the ICCB Aplug to a dedicated 15 amp, properly grounded outlet
2. Check if the power light (green) Bon the ICCB turns on
3. Press the brake pedal and engage the parking brake
4. Turn off all switches, put the shift lever in P (Park), and turn off
the vehicle
5. Open the charging door Eby pressing the charging door
(Ensure doors are unlocked)
6. Remove any dust or water on the charging connector and charging inlet F
7. Hold the charging connector handle Gand connect it to the vehicle’s charging
inlet Fby pushing the connector until you hear a “clicking” sound
8. Charging begins automatically (Ensure the charge indicator light is
illuminated on your instrument cluster, indicating the vehicle is charging)
Checking the Charging Status
The charging status can be checked by viewing the charging status indicator
on the dash panel. The lights will progressively become lit as the vehicle
approaches a full charge.
After charging has started, the estimated charging time is displayed on the
Instrument Cluster LCD Ifor about 1 minute. It is also displayed when the
driver’s door is opened with charging in progress.
Remaining time
1h 10m
I
HYBRID / PLUG-IN SYSTEM
These illustrations are for demonstration
purposes only. Actual features on vehicle
may vary.
50%

16 OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE *IF EQUIPPED †LEGAL DISCLAIMERS ON BACK INSIDE COVER
Blind-Spot Collision Warning (BCW)*†6
The BCW system uses radar sensors to help alert the driver in certain situations before
changing lanes. The light on the BCW button Awill illuminate when turned ON. The
outside rearview mirror warning lights will also illuminate for 3 seconds.
The system will become active when the vehicle is traveling faster than 18 mph and will
alert the driver if another vehicle is detected by the radar sensor.
1st-stage alert: When another vehicle is detected within the BCW System boundary B,
a yellow indicator will illuminate on the outside rearview mirrors.
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn signal, a
flashing yellow indicator will illuminate on the outside rearview mirrors and the system
will sound an alert.
REMINDERS:
•The BCW system will not show a warning if the vehicle speed is only 6 mph above the surrounding vehicles
•If the BCW is turned ON and the ignition is cycled, the BCW system returns to ON
Rear Cross-Traffic Collision Warning (RCCW)*†6
If the RCCW system sensors detect approaching vehicles from the rear left or rear right
side of the vehicle C, the system will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will appear on the LCD screen. The
RCCW system is active under the following conditions:
•When the vehicle is in Reverse
•When the vehicle moves in reverse from a parking position
•When the vehicle is moving slower than 6 mph
REMINDERS:
•The RCCW feature can be turned OFF/ON in User Settings and will remain OFF/ON as selected
•The RCCW system will show a warning if the approaching vehicle speed is between
2.5-22 mph within sensing range. See Owner's Manual for other conditions
Blind-Spot Collision
Warning w/ RCCW Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
B
C
(Buttons are located left
of the Steering Wheel)
A
These illustrations are for demonstration
purposes only. Actual images or buttons
on vehicle may vary.
The BCW and RCCW systems are supplemental systems. Do not solely rely on
these systems and always pay attention to drive safely. For more information on
Blind-Spot Collision Warning, please refer to the Owner’s Manual.
DRIVER'S PANEL

17
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED †LEGAL DISCLAIMERS ON BACK INSIDE COVER
Lane Keeping Assist-Line (LKA-L)*†6 / Lane Departure Warning (LDW)*†6
With the Engine Start/Stop button in the ON position, press the LKA-L button Ato turn the system ON. The instrument
cluster indicator will illuminate white. It will remain white when vehicle is traveling slower than 40 mph and the
system does not detect the lane markers. When the LKA-L system detects the lane markers and can assist the steering,
the LKA-L icon will illuminate green.
If the LKA-L detects that you are moving outside of your lane, the system may give an audible warning and display an
LDW (Lane Departure Warning) alert on the instrument cluster. If the vehicle continues to move outside of the lane, the
LKA-L will provide steering inputs, trying to prevent the vehicle from moving outside its lane.
Standard LKA-L is the operating mode by default when the LKA-L button is depressed to ON. To switch between modes
(Standard LKA-L, Active LKA-L and Lane Departure), go to User Settings in the Instrument Cluster.
All systems will operate under the following conditions:
•The vehicle exceeds approximately 40 mph
•The vehicle is between the lane markers
•The LKA-L system recognizes the lane the vehicle is
traveling in
DRIVER'S PANEL
Lane Keeping Assist
Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
www.youtube.com/KiaFeatureVideos
QR CODE
The Lane Keeping Assist-Line (LKA-L)* is not a substitute for safe and
proper driving. Always drive safely and use caution. LKA-L may not always
alert the driver if the vehicle is driven outside of its lane.
When the LKA-L sensor detects the lanes
traveling in, the indicators are illuminated
When the LKA-L sensor does not detect
the lanes traveling in, the indicator will not
illuminate
When the LKA-L sensor detects the vehicle moving outside of the lane the vehicle’s traveling
in, a yellow indicator will illuminate, either on the left or right lane
Lane Keep Assist Lane Keep Assist Lane Keep Assist Lane Keep Assist
REMINDERS:
• The LKA-L/LDW will not issue a
warning if the turn signal or hazard
signal is activated
• LKA-L/LDW will return to its previous
state when the ignition is cycled
• LKA-L/LDW may not always alert
the driver if the vehicle is about to be
driven outside of its lane. Refer to the
Owner’s Manual for more information.
A
(Button located in panel to the
left of steering wheel)

18 OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE *IF EQUIPPED †LEGAL DISCLAIMERS ON BACK INSIDE COVER
Electronic Stability Control (ESC)†8
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers.
It is a good idea to keep the ESC turned ON for daily driving whenever possible.
Press ESC OFF button Cto disable Traction Control in ESC (ESC OFF indicator will illuminate).
To turn both Traction Control and Stability Control off, press and hold ESC OFF button C(ESC
OFF indicator will illuminate, and an alert sounds).
REMINDERS:
•ESC is active by default at vehicle startup
•The ESC Indicator Light in the instrument cluster
will illuminate whenever the ESC is in operation
Instrument Panel
Dimmer
Toggle switch Bup or down
to adjust display brightness
of the instrument panel
illumination.
REMINDER: The Instrument Panel
Dimmer does not adjust brightness
on the audio system screens; use
the system’s setup menu to adjust
brightness on the screens. (Located left of Steering Wheel)
B
C
Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)*†6 /
Forward Collision Warning (FCW)†6
The FCA-Ped is designed to help alert the driver and, under certain conditions, apply emergency braking when rapidly approaching
a vehicle that is slowing down, braking or stopped. Initially, the FCA-Ped provides Forward Collision Warning (FCW) when it detects
a potential collision with a vehicle in front, emitting an audible warning and visual alert on the instrument cluster A. Adjust the alert
settings (Early, Normal, Late) in the User Settings. To turn the FCA-Ped/FCW off, go to User Settings again and turn off.
If the system detects that the collision risk has increased, the Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)
automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision.
FCA-Ped can be turned ON in the User Settings menu on the Instrument Cluster display. The FCA-Ped/FCW will become active
when the:
• Engine Start/Stop button is ON • Vehicle is traveling faster than 5 mph • Electronic Stability Control (ESC) is ON
REMINDERS:
• The FCA-Ped/FCW will be activated by default when the ignition is
cycled ON, even when previously set to OFF
• The FCA-Ped/FCW will not operate when the vehicle is traveling faster
than approximately 50 mph
• If the FCA-Ped is operating and the ESC (Electronic Stability Control) is
turned off, the FCA-Ped system is automatically turned off
• When FCA-Ped system is off, the FCA-Ped warning indicator is on in
the Instrument Cluster
Forward Collision-
Avoidance Assist-
Pedestrian Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
For more information on Electronic Stability Control
(ESC) and its specific features and operations,
please refer to your Owner’s Manual.
These illustrations are for demonstration purposes
only. Actual features on vehicle may vary.
The Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped)* / Forward Collision Warning
(FCW) are not substitutes for safe and proper driving. Always drive safely and use caution.
FCA-Ped/FCW may not always alert the driver when the vehicle is approaching another vehicle.
Collision Warning
A
DRIVER'S PANEL
