Kichler Lighting Humble 300415 User manual

Product images may vary slightly from actual product.
60" Humble
INSTRUCTION MANUAL
Model# 300415
READ AND SAVE THESE INSTRUCTIONS REV 14-FEB-2022

2 | KICHLER.COM
Net Weight: 10.30 kgs (22.66 lbs)
Gross Weight 11.50 kgs (25.30 lbs)

TABLE OF CONTENTS
SAFETY RULES...........................................................4
TOOLS AND MATERIALS REQUIRED ...................6
PACKAGE CONTENTS...............................................6
MOUNTING OPTIONS...............................................7
HANGING THE FAN ...................................................8
INSTALLATION OF SAFETY SUPPORT................11
ELECTRICAL CONNECTIONS ..............................12
FINISHING THE INSTALLATION ...........................14
INSTALLING THE GLASS SHADE......................... 15
INSTALLING THE WALL CONTROL .....................16
CONTROL SYSTEM SET-UP ................................. 17
OPERATING INSTRUCTIONS................................ 17
TROUBLESHOOTING.............................................20
FCC INFORMATION .................................................21
60" Humble | 3

4 | KICHLER.COM
installation of this fan, a qualified licensed electrician is
strongly recommended.
5. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70 and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
6. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum
of 15.9 kg (35 pounds). Use only CUL Listed outlet boxes
marked “FOR FAN SUPPORT”.
7. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN TO
OUTLET BOX MARKED “ACCEPTABLE FOR FAN
SUPPORT”.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other
items be cautious when working around or cleaning the
fan.
READ AND SAVE THESE INSTRUCTIONS
SAFETY RULES
WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.
DON’T SECURE THIS FAN TO AN OUTLET BOX.
1. CAUTION - RISK OF SHOCK-
Disconnect power at the main circuit breaker panel
or main fusebox before starting and during the
installation.
2. WARNING: This fixture is intended for installation in
accordance with the National Electrical Code (NEC)
and all local code specifications. If you are not familiar
with code requirements, installation by a certified
electrician is recommended.
3. WARNING: To reduce the risk of fire or electric shock,
use only the control provided with the fan.
4. WARNING: To reduce the risk of fire, electric shock,
or Personal Injury mount to an outlet box marked
“Acceptable For Fan Support of up to 15.9 kg (35 lbs)”.
For outlet box mounting, use mounting screws (and
lock washers) provided with the outlet box. Most
outlet boxes commonly used for the support of light
fixtures are not acceptable for fan support and may
need to be replaced. Due to the complexity of the

15. Electrical diagrams are reference only. Light kits that
are not packed with the fan must be Listed and marked
suitable for use with the model fan you are installing.
Switches must be General Use Switches. Refer to the
Instructions packaged with the light kits and switches
for proper assembly.
16. Note: “All set screws must be checked, and re-tightened
where necessary, before installation.”
10. Do not operate reversing switch white fan blades are
in motion. Fan must be turned o and blades stopped
before reversing blade direction.
11. CAUTION: The fan must be mounted with a minimum
of 2.1m (7 feet) clearance from the trailing edge of the
blades to the floor.
12. WARNING: make sure the power is disconnected
before cleaning your fan.
13. Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
14. After making electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the
other side of the outlet box.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.
SAFETY RULES
60" Humble | 5

6 | KICHLER.COM
TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters
Unpack your fan and check the contents . You should have the following items:
A. Fan blades (5)
B. Ceiling mounting bracket
C. Canopy
D. Canopy cover
E. Ball/downrod assembly
F. Coupling cover
G. Set of 5 blade bracket and
Pre-installed mounting screws
H. Fan motor assembly
I. LED module
J. Glass Shade
K. Package hardware
1) Safety cable hardware:
wood screw (1), flat washer (1)
2) Blade attachment hardware: screws
(22), washers (22)
3) Blade bracket attachment hardware:
screws (2)
4) Balance kit
5) Mounting hardware: wood screws(2),
flat washers(2), star washers(2),
wire nuts(3) screws(2)
L. Transmitter
M. Receiver
A
B
C
D
E
F
G
H
I
J
K
L
M

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect
the power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and
its support must be able to fully support the full weight of the fan
(up to 15.9 kg (35 pounds)). Do not use plastic outlet boxes.

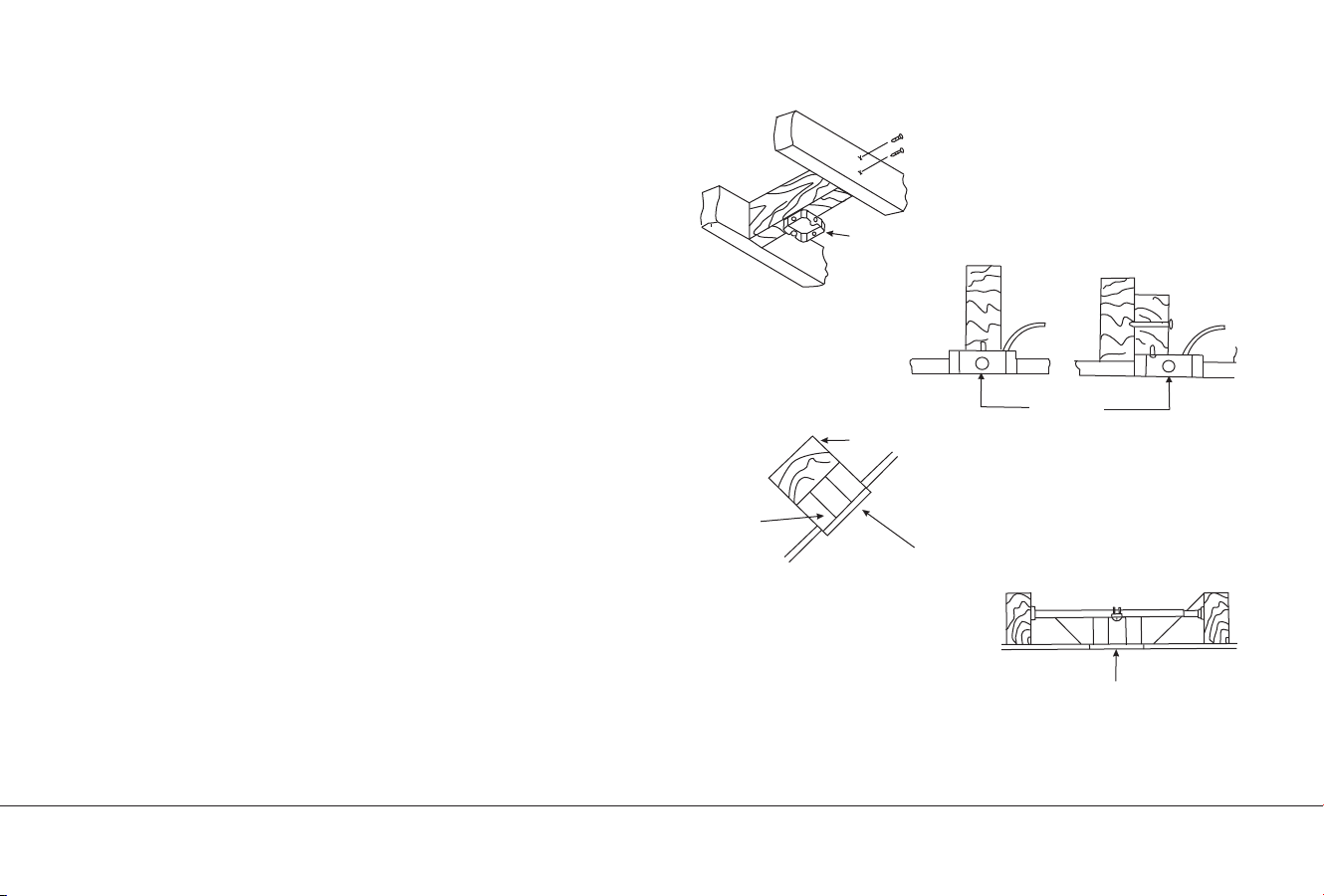

Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a joist hanger
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Fig. 3
Fig. 4
Outlet box
Recessed
outlet box
Ceiling
mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 22° ANGLE
60" Humble | 7

8 | KICHLER.COM
HANGING THE FAN
REMEMBER to turn o the power. Follow the steps below to hang your
fan properly.
NOTE: This ceiling fan is supplied with one type of hanging assembly;
a standard ceiling installation using a downrod with ball and socket
mounting.
Step 1. Pass the 120-volt supply wires through the center hole in the ceiling
hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the ceiling outlet box with the screws
and washers provided with your outlet box.
Fig. 5
Hook
Washers
Mounting screws
(supplied with electrical box)
Ceiling
Mounting
Bracket
cULus Listed
Electrical
Box
120V Wires

HANGING THE FAN(CONTINUED)
Standard Ceiling Installation
Step 3. Press canopy cover into the holes on the bottom of canopy in place (Fig 6).
Step 4. Loosen 3 screws from the wire plate (Fig. 7)
Step 5. Attach the fan blade (Fig. 8)
Caution: Remove the styrofoam blocks under the wire plate and clean up any
residue in motor housing before starting installation.
A. Fasten the blade bracket to motor using pre-installed mounting screws
through the hole on wire plate.
B. Attach the blade to the blade bracket using the screws and washers as
shown in Fig 8. Start screw into bracket. Repeat for the remaining screws.
C. Make sure the blade is straight and tighten each screw.
Step 6. Remove the hanger ball from the downrod assembly by loosening the set
screw, unscrewing and removing the cross pin and unscrewing the ball o the rod.
(Fig. 9)
Step 7. Loosen the two set screws and remove the hitch pin and retaining clip from
the coupling on the top of the motor assembly. (Fig. 10)
Fig. 6
Fig. 7
Fig. 8
Canopy
Canopy Cover
Screws
Screws
Screws
Fiber Washers
Blades
Blades
Bracket
60" Humble | 9

10 | KICHLER.COM
HANGING THE FAN (CONTINUED)
Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. (Fig.
11)
Thread the hanger ball onto the downrod, insert the cross pin through the
downrod and tighten. Tighten the set screw.
Step 9. Lift the motor assembly into position and place the hanger ball into the
ceiling mounting bracket.
Step 10. Tighten three set screws on coupling cover firmly (Fig. 12)
Rotate the entire assembly until the check tab has dropped into the registration
slot and seats firmly. (Fig. 13)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the check tab can cause
the fan to fall from the ceiling during operation. Take special care to make sure
this pin is reattached.
Fig. 9 Fig. 10 Fig. 13
Fig. 12
Fig. 11
Cross Pin
Hanger Ball
Downrod
Set Screw
Supply Wire
& Safety Cable
Downrod
Set Screws
Hitch Pin Coupling
Set Screws
Retaining Clip
Registration Slot
Downrod
Ceiling Canopy
Coupling Cover
Canopy Cover
Ball
Screws
Coupling
Downrod
Supply Wire & Safety Cable
Hanger Ball
Cross Pin
Set Screws
Canopy
Canopy Cover
Coupling Cover

INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from falling.
Please install it as follows:
Step 1. Attach the provided wood screw and washers to the ceiling joist next
to the mounting bracket but do not tighten. (Fig. 14)
Step 2. Adjust the length of the safety cable to reach the screw and washers
by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable clamp securely. Now, put the
loop in the end of the safety cable over the wood screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only, it’s a good idea to make the attachment with any
installation.
Fig. 14
Hanger Bracket
Safety Cable Attach safety cable
to ceiling joist with
screw and washer
60" Humble | 11

12 | KICHLER.COM
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o
the power at the main circuit panel.

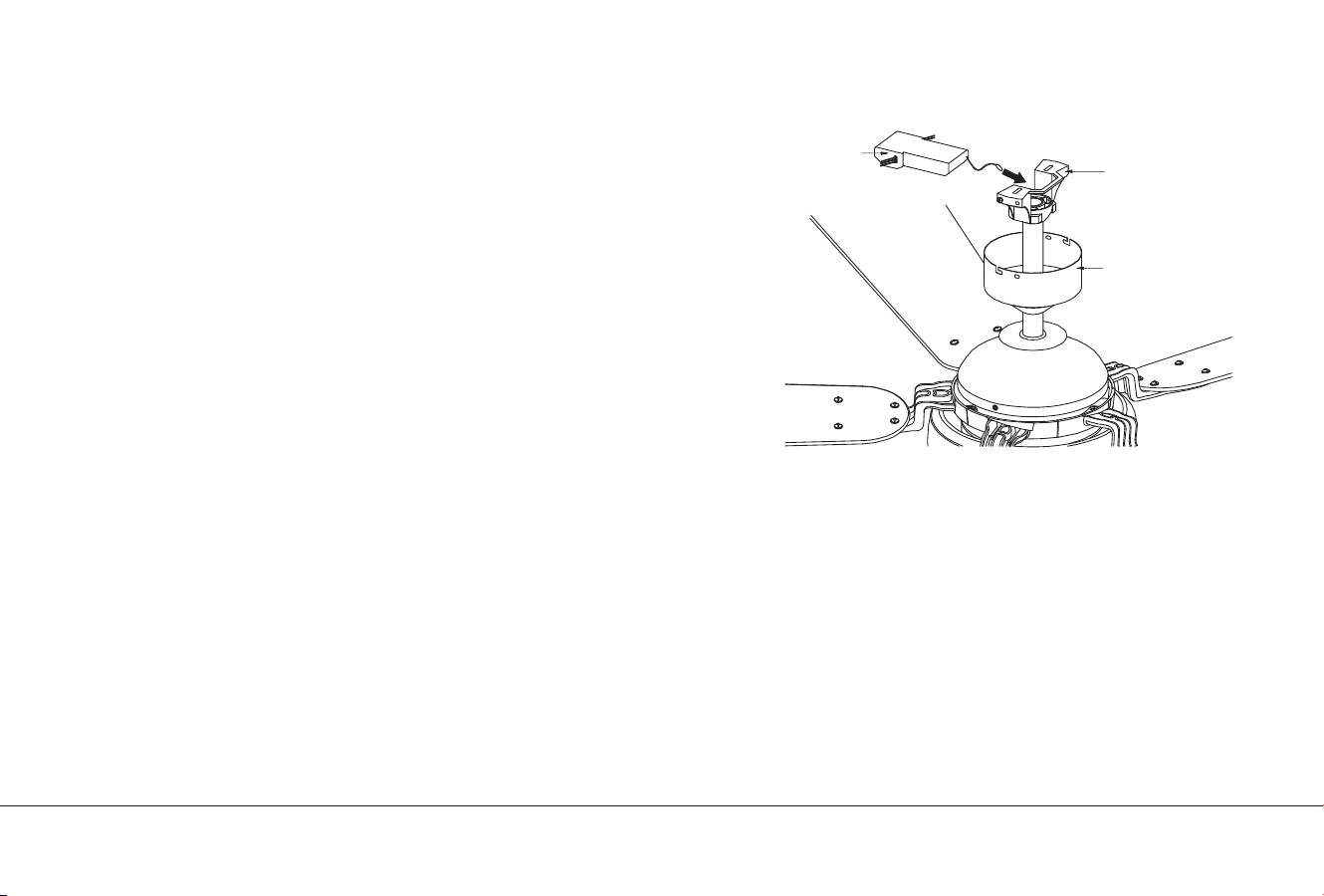

Step 1. Once the connection has been made, the receiver inserts into the
drop rod hanging bracket. The canopy comes up to cover the receiver and
bracket. (Fig. 15)
Fig. 15
Receiver Ceiling Mounting
Bracket
Ceiling Canopy

ELECTRICAL CONNECTIONS (CONTINUED)

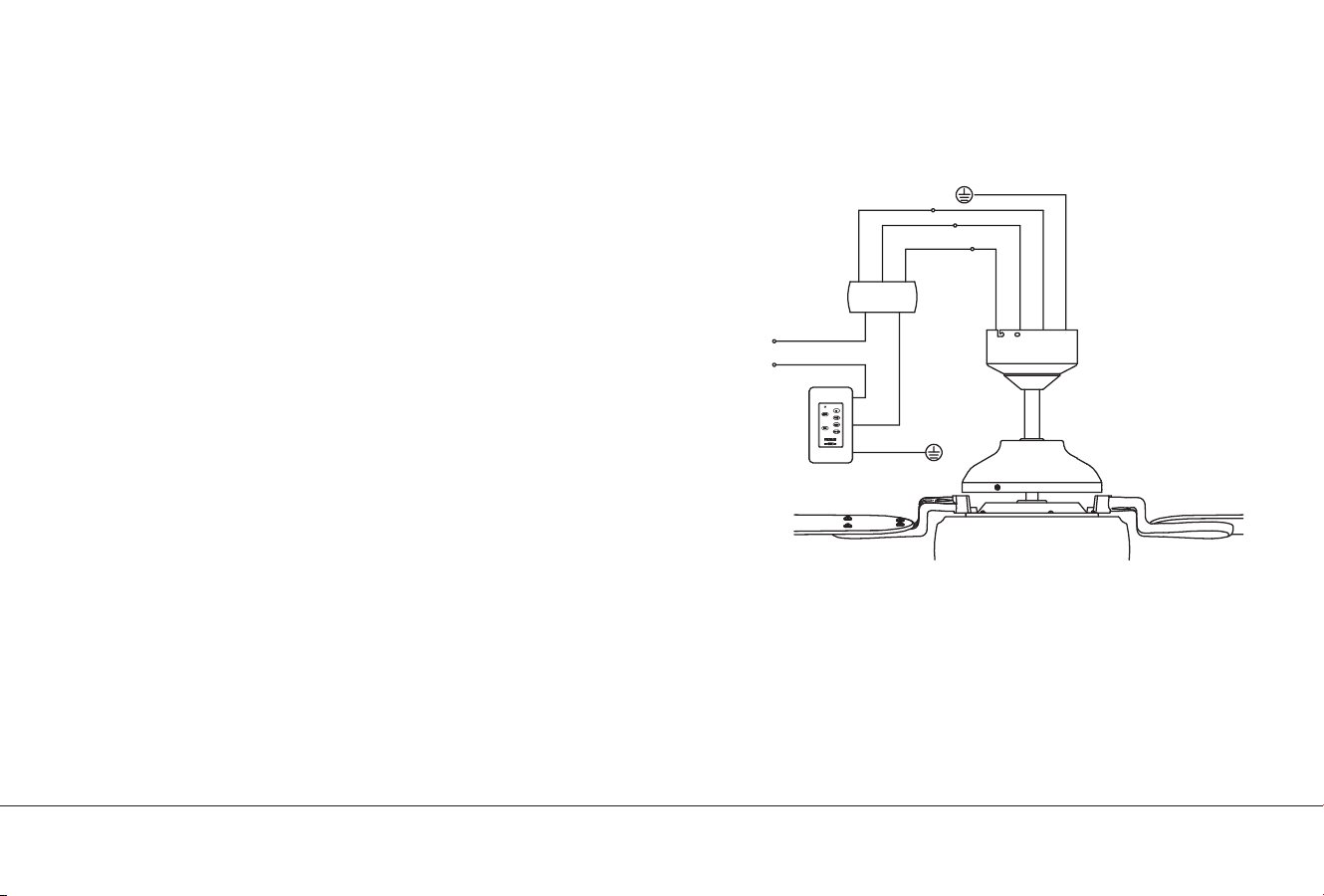

Step 2. Motor to Receiver Electrical Connections: (Fig. 16) Connect the
black wire from the fan to the black wire marked “TO MOTOR L” on the
receiver. Connect the white wire from the fan to the white wire marked “TO
MOTOR N” on the receiver. Connect the blue wire from the fan to the blue
wire marked “FOR LIGHT” on the receiver. Secure all the wire connections
with the plastic wire nuts provided.
Step 3. (Fig. 16) Receiver to House Supply Wires Electrical Connections:
Connect the black (hot) wire from the ceiling to the black wire marked “AC
in L” from the receiver. Connect the white (neutral) wire from the ceiling
to the white wire marked “AC in N” from the Receiver. Secure the wire
connections with the plastic wire nuts provided.
Step 4. (Fig. 16) If your outlet box has a ground wire (green or bare copper)
connect it to the fan ground wires; otherwise connect the hanging bracket
ground wire to the mounting bracket. Secure the wire connection with a
plastic nut provided. After connecting the wires, spread them apart so that
the green and white wires are on one side of the outlet box and black and
blue wires are on the other side. Carefully tuck the wire connections up
into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the
Remote Transmitter for optimal signal transmission between the wall
control and the fan’s receiving unit.
Remember to cut o excess lead wire and safety cable from fan body
before wiring in order to install receiver and canopy easily.
Fig. 16
REMOTE
CONTROL
RECEIVER
GREEN
TO MOTOR N
TO MOTOR L
FOR LIGHT
WHITE BLACK BLUE
BLUE BLACK WHITE GREEN
GREEN
AC 120V
AC IN N
AC IN L
AC IN L
TO MOTOR
60" Humble | 13

14 | KICHLER.COM
FINISHING THE INSTALLATION
Standard Ceiling Installation
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to ceiling and attach the canopy to
the ceiling mounting bracket using 4 screws at the top edge of
the mounting bracket. Insert each screw through the canopy
mounting hole and into the mounting bracket. Tighten all screws
securely. (Fig. 17)
Fig. 17
Outlet Box
Screws
Screws
Ceiling Mounting
Bracket
Canopy

INSTALLING THE GLASS SHADE
CAUTION: To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing glass shade.
Step 1. Raise glass shade to fan and then turn glass clock-wise until it
is firmly secured. (Fig. 18)
Fig. 18
60" Humble | 15

16 | KICHLER.COM
INSTALLING THE WALL CONTROL
WARNING: All wiring must be in accordance with the National Electrical Code and local
electrical codes. Electrical installation should be performed by a qualified licensed
electrician.
WARNING: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND NATIONAL
ELECTRIC CODES.
WARNING: Shut o main power at the circuit breaker or fuse panel before continuing.
Step 1. Remove the existing wall plate and switch from the wall outlet box. Disconnect wires
from existing switch. (Fig. 19)
Step 2. Install the wall control to the outlet box, connecting the wires with wire connectors
provided. (Fig. 20)
*Connect the black wire from the outlet box that supplies power to the wall control to black
wire marked “AC IN” from wall control.
*Connect the black wire from the outlet box that goes to the fan to black wire marked “TO
FAN” from wall control.
*Connect the bare copper ground wire from the outlet box to bare copper ground wire
from wall control.
*Connect the two white neutral wires in the outlet box together (if not already connected).
Step 3. Secure the wire connectors and make sure there are no loose strands or
connections. Carefully tuck wire connections back inside outlet box and secure the wall
control to outlet box with screws provided. Face plate will snap onto the transmitter.
Fig. 19
Fig. 20
Outlet Box
Switch
Wall Plate
Face Plate
Screw
Ground
Outlet Box
AC IN L
TO MOTOR L

CONTROL SYSTEM SET-UP
Step 1. After installation is complete, press the “LEARN” button for 3 seconds
within 30 seconds after AC power is turned on. Fan will turn on at medium speed
and light (if installed) will turn on. This confirms that the “SMART SYNC” setting
is active and ok. (Fig. 21)
Step 2. If you cannot finish the setting within the 30 seconds time frame, the
main power must be turned o and re-started again. This will repeat step 1 until
the “LEARN” feature is activated as indicated.
OPERATING INSTRUCTIONS
Restore power to ceiling fan and test for proper operation (Fig. 22)
1. Fan Control: To start the fan, press the selected speed button to run the fan
at the desired speed: “HI”-high speed; “MED”-medium speed; “LOW”-low
speed; Press the “FAN OFF” button to turn o the fan.
2. Light button: Press once to turn the light on or o. Continuous pressure on
the light button dims light in a continuous cycle from light to dark, or dark to
light.
3. “REV” button: Controls fan direction, forward or reverse.
4. If your ceiling fan has fluorescent lighting, please slide the switch to “O”
position. If the ceiling fan has incandescent or halogen lighting or LED, please
slide the switch to “D” position.
Fig. 21
60" Humble | 17

18 | KICHLER.COM
OPERATING INSTRUCTIONS
Restore power to the ceiling fan and test for proper operation.
Fig. 22
“HI” Button =
“MED” Button =
“LOW” Button =
“FAN OFF” Button =
“LIGHT” Button =
“REV” Button =
High Speed
Medium Speed
Low Speed
Motor O
Light ON or OFF
The “REV” button is used to set the fan forward or
reverse

OPERATING INSTRUCTIONS (CONTINUED)
Use the fan reverse switch, located on the wall control (Fig. 22),
to optimize your fan for seasonal performance.
WARNING: Turn fan o with wall control system and let blades
come to a complete stop before using the reverse switch.
Speed settings for warm or cool weather depend on factors such as
the room size, ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counter clockwise) A downward
airflow creates a cooling eect as shown in Fig. 23. This allows you to
set your air conditioner on a warmer setting without aecting your
general comfort.
Cool Weather Operation: Reverse (clockwise). An upward airflow
moves warm air o of the ceiling as shown in Fig. 24. This allows you
to set your heating unit on a cooler setting without aecting your
general comfort.
Fig. 23
Fig. 24
Fig. 22
60" Humble | 19

20 | KICHLER.COM
TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not touching any
other component.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type of control, choose and
install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip
of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade.
The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in
smoother operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a basic On/O
wall switch, if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other electrical wires and is extended around the inside of the
ceiling canopy.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO ENSURE THE PROPER OPERATION OF YOUR CEILING FAN,
NEVER ATTACH THE BLADE ASSEMBLIES UNTIL THE CEILING FAN HAS BEEN MOUNTED ON THE CEILING. DO NOT BEND THE
BLADE BRACKETS WHILE INSTALLING, BALANCING OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
