ITEM #0803774
MODEL #35157
LED CEILING FAN
1
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.
Français p. 16
Español p. 31
Distributed by Kichler® LLC. All Rights Reserved.

PACKAGE CONTENTS
2
A
Hanging Bracket
Down Rod
Canopy
Blade
Motor Coupling Cover
Motor Assembly
B
C
D
E
F
1
1
1
3
1
1
PART DESCRIPTION QTY
Led Housing
Light Kit
Canopy Hole Cover
Shade
Blade Plate
H
G
I
J
K
1
1
1
1
1
PART DESCRIPTION QTY
A
F
C
H
E
B
G
J
I
K
D

HARDWARE CONTENTS
3
SAFETY INFORMATION
Hanging bracket Screw
Hanging bracket Washer
Wire Connector
Blade Screw
Wire Connector
HARDWARE BAG REMOTE CONTROL
Remote Control and Receiver
Battery
Wood Screw
Lag Screw
Blade Plate Screw
Flat Washer + Spring Washer
Please read and understand this entire manual before attempting to assemble, operate or install the
product. Save this manual when finished.
WARNING:
• Important: When using an existing outlet box, be sure the box is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury or
death.
• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to
disconnect power supply prior to installation may result in serious injury or death.
• Warning - Connecting this fan to a light switch (on/off) has been known to cause damage to the
receiver. This fan must be wired to continually receive power. Failure to do so will drastically
reduce the lifespan of this fan.
• Do not install fan on a ceiling with a pitch greater than 20°.
• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.
• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of
the blades.
• Chemical Burn Hazard. Keep batteries away from children. This remote contains a lithium button
cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can
cause severe internal burns and can lead to death in as little as 2 hours. Always completely
secure the battery compartment. If the battery compartment does not close securely, stop using
the product, remove the batteries, and keep it away from children. If you think batteries might
have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Dispose of cells properly and keep away from children. Even used cells may cause injury.
Balance Kit

WARNING (continued)
CAUTION:
PREPARATION
4
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated assembly time: 30 minutes to 1 hour.
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses.
A B C
ASSEMBLY INSTRUCTIONS
• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.

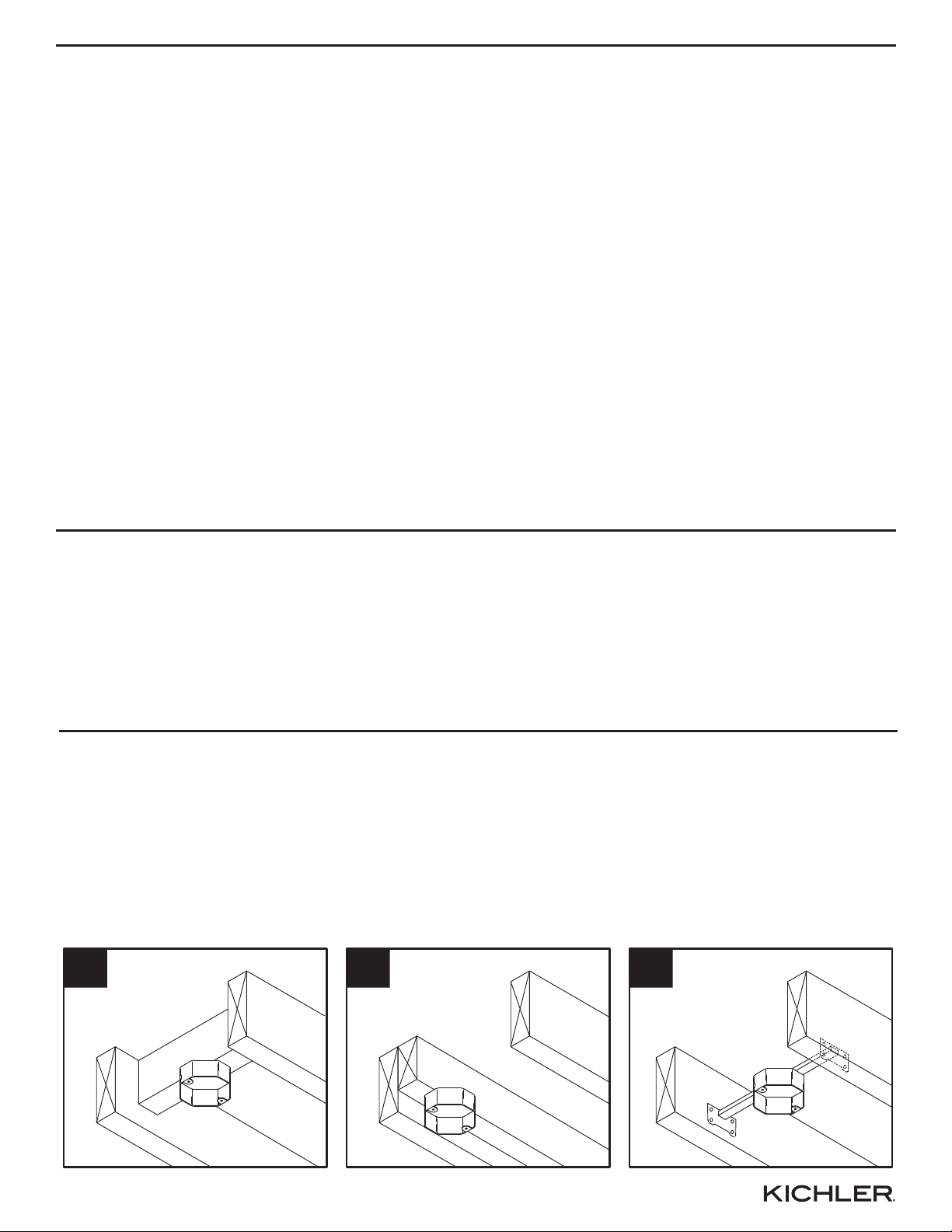

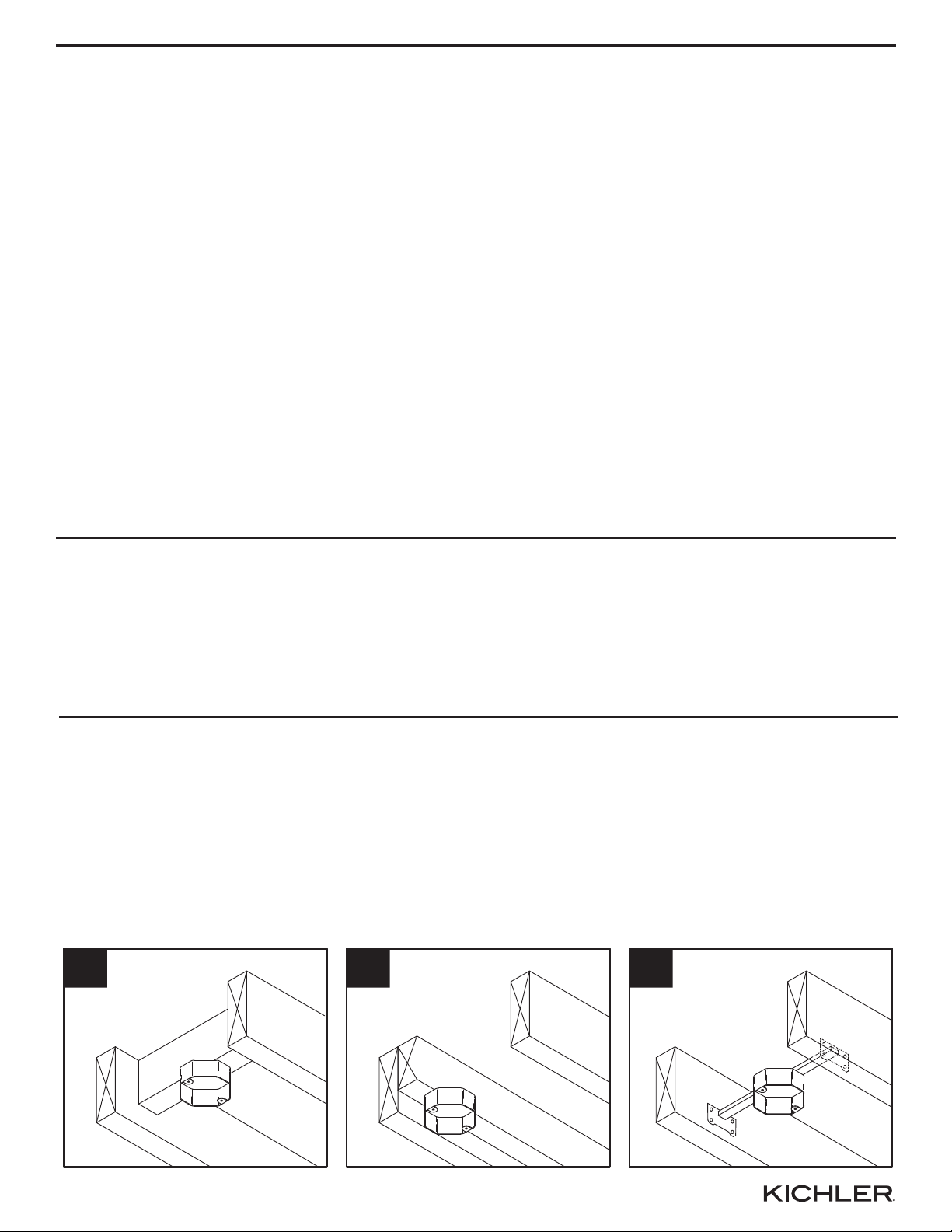

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed
device or variable speed control.
• Do not touch hot LED
• The LED light output is strong enough to injure human eyes. Precautions must be taken to
prevent looking directly at the LEDs with unaided eyes for more than a few seconds.
• Read and understand all instructions and illustrations completely before proceeding with assembly
and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate
completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts
out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate
the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all
local code specifications.
• Use ONLY the supplied LED driver to power fixture.
• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.
• This fixture is for indoor use only.

ASSEMBLY INSTRUCTIONS
5
1. Secure the hanging bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: If attaching the fan to a sloped ceiling,
make sure open end of mounting bracket is installed
facing the roof. Do not install fan on a ceiling with a
pitch greater than 20°.
2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair
and clevis pin that will be used on a later step.
1
A
Outlet Box
Hair Pin Safety Cable
Clevis Pin
2
F
Coupling

6
ASSEMBLY INSTRUCTIONS
3. Insert down rod (B) through canopy (C), canopy hole cover (I), and motor coupling cover (E).
Feed wires from the motor assembly (F) through the down rod (B), then insert the down rod (B)
into the coupling found on top of the motor assembly (F).
4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then
secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).
Hair Pin
Clevis Pin
Coupling
B
F
4
F
I
C
E
B
3

7
ASSEMBLY INSTRUCTIONS

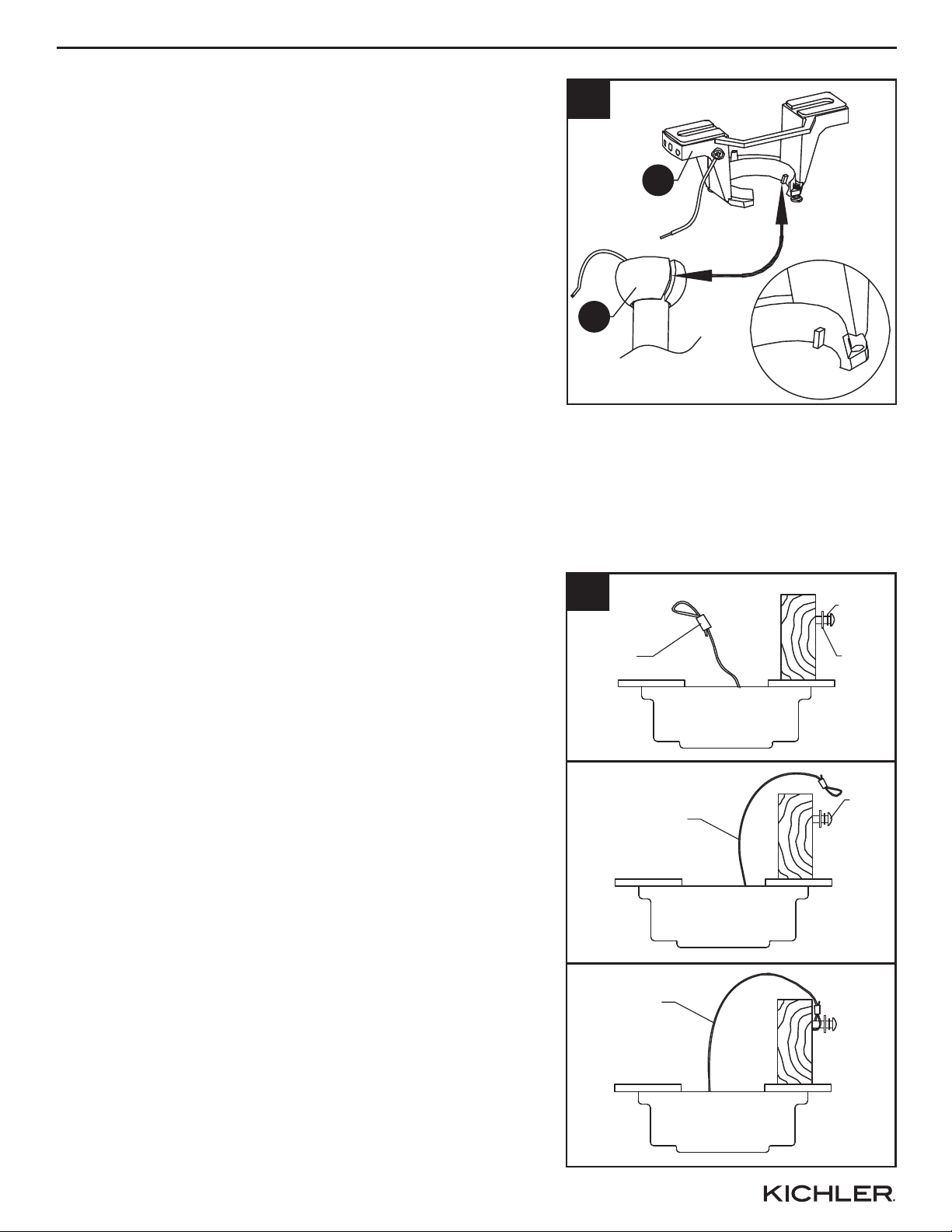

5. Carefully lift the fan and seat the downrod (B)/hanger
ball assembly on the hanging bracket (A). Be sure
the groove in the ball is lined up with the tab on the
hanging bracket (A).
B
A
5
6. For Canadian installation and for USA fans over 35
lbs, the safety cable must be installed into the house
structure beams using a 3” lag screw. Make sure
that when the safety cable is fully extended the lead
wires are longer than the cable and no stress is
placed on the lead wires.
Safety
Cable
Lag
Screw
Safety
Cable
Flat
Washer
Spring
Washer
6
Safety
Cable

ASSEMBLY INSTRUCTIONS
8

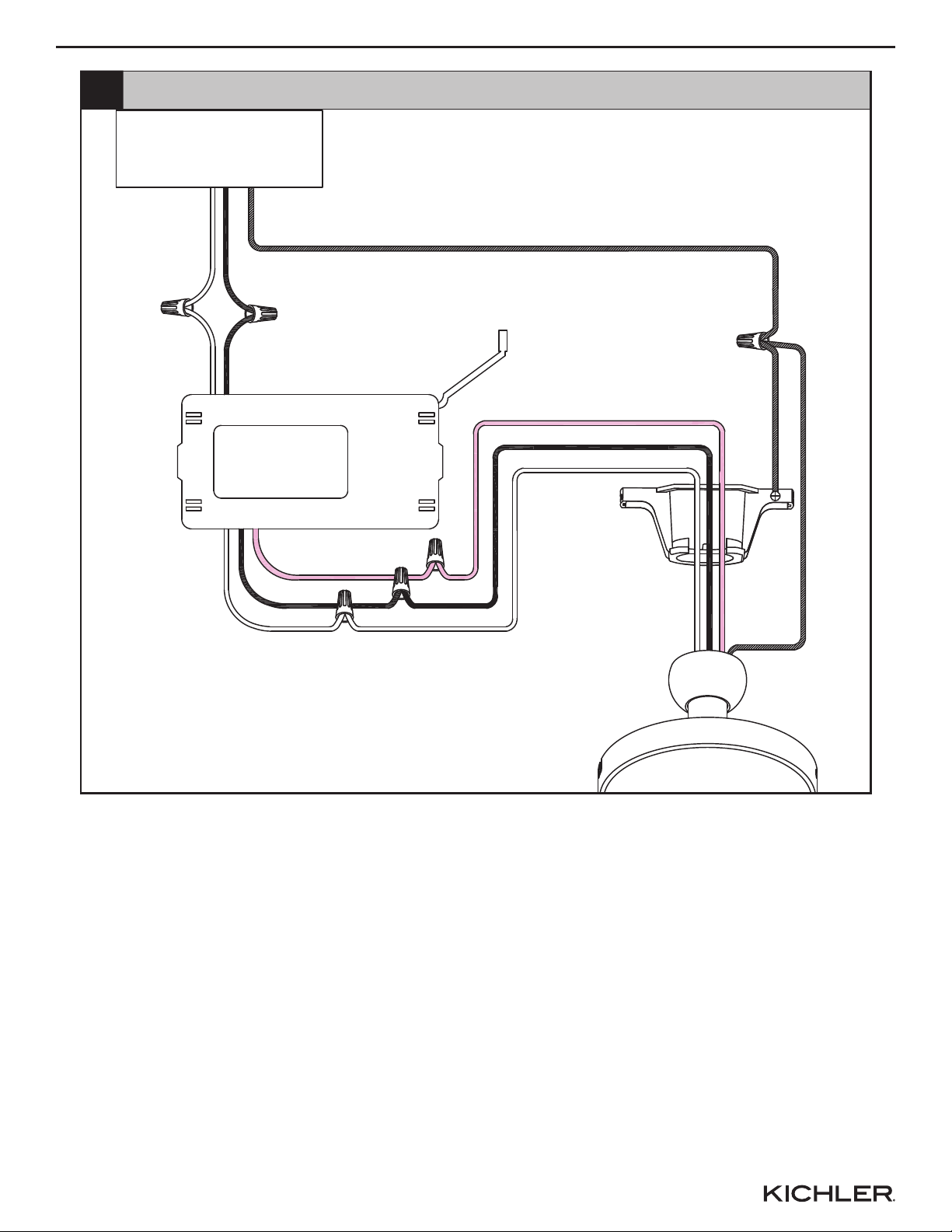

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical
tape (not included) around each wire connector and make sure no bare wire or wire strands are
visible after making connections.
• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.
• Connect BLUE wire from the fan to BLUE wire marked FOR LIGHT from the receiver.
• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.
• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.
• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
GREEN
GREEN
BARE
Receiver
BLUE
BLACK
WHITE
BLUE
BLACK
WHITE
7
WHITE BLACK
WHITE BLACK
Outlet Box

ASSEMBLY INSTRUCTIONS
9

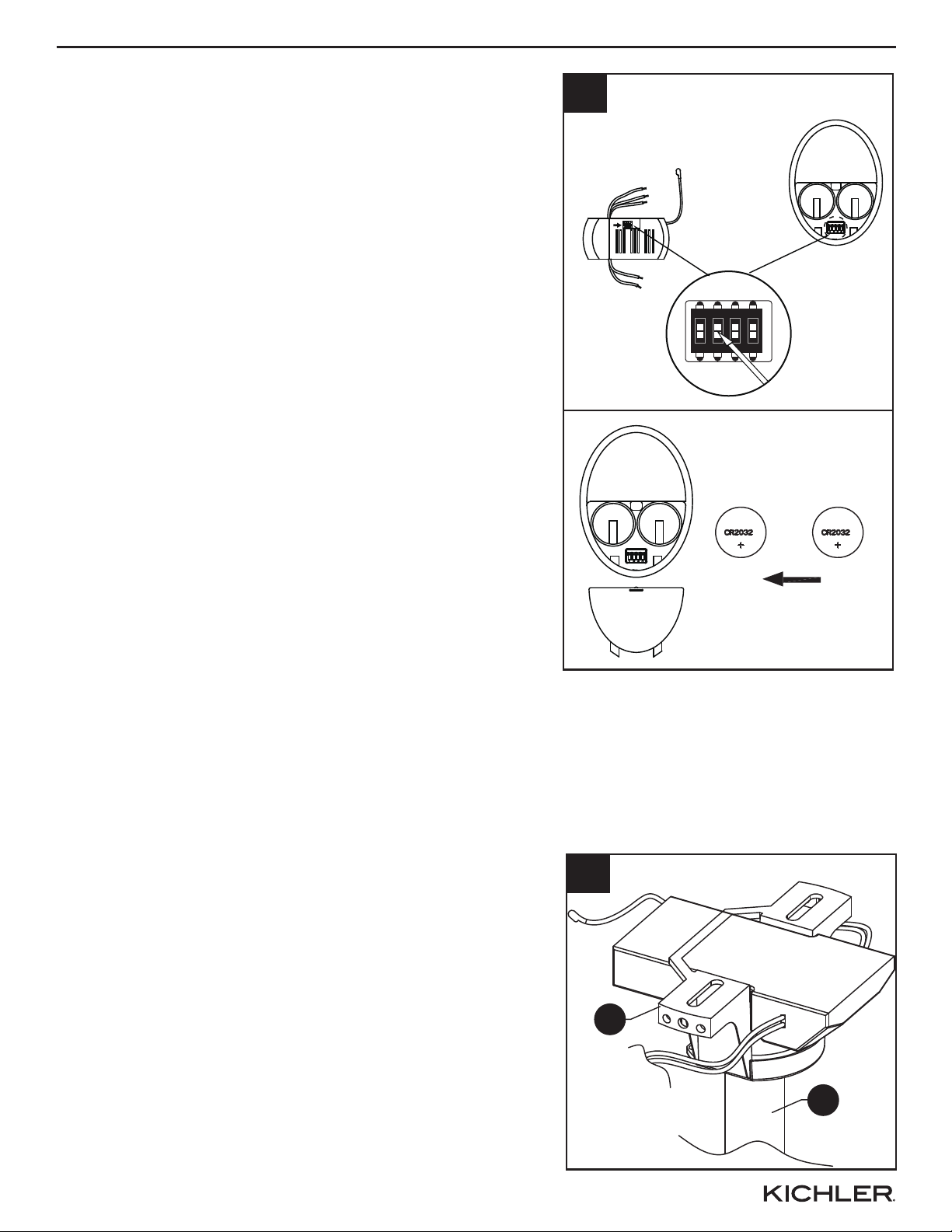

8. Install the batteries (3-Volt CR2032) into the
remote. Make sure the batteries are seated
correctly in each recess with the positive
symbol facing up, then replace battery cover.
Test the remote control by pushing any button.
A blue light should illuminate. If no blue light
appears make sure the batteries are seated
properly.
This fans control system is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The code switches preset
at the factory are all up. Do not use this
position. Simply change the combination code
on your remote contol and receiver as below.
Remove the remote control battery cover and
slide the dip switch code to your choice of
either up or down using a small ballpoint pen
(not included). Next, slide the dip switch code
on the receiver to the same position you just
set the remote control to. Replace the battery
cover.
If you are using more than one fan
in the same area and want to control them
separately, change fan’s dip switch code
settings in the remote control and receiver to a
new pattern.
9. Once wiring step has been completed, slide the
wired remote receiver in between the hanging
bracket (A) and the top of the downrod ball (B) with
the flat side of the receiver facing the ceiling. Turn
lead wires upward and carefully push them into the
outlet box, with the white and green wires to one
side of the box and the black wires toward the other
side.
9
A
B
ON ECE
1234
8REMOTE CONTROL
RECEIVER
ON ECE
ON ECE
NOTE: Remove batteries if remote has
not been used for a long period of time
in order to avoid damage. Store remote
away from excessive heat or humidity.

ASSEMBLY INSTRUCTIONS
10

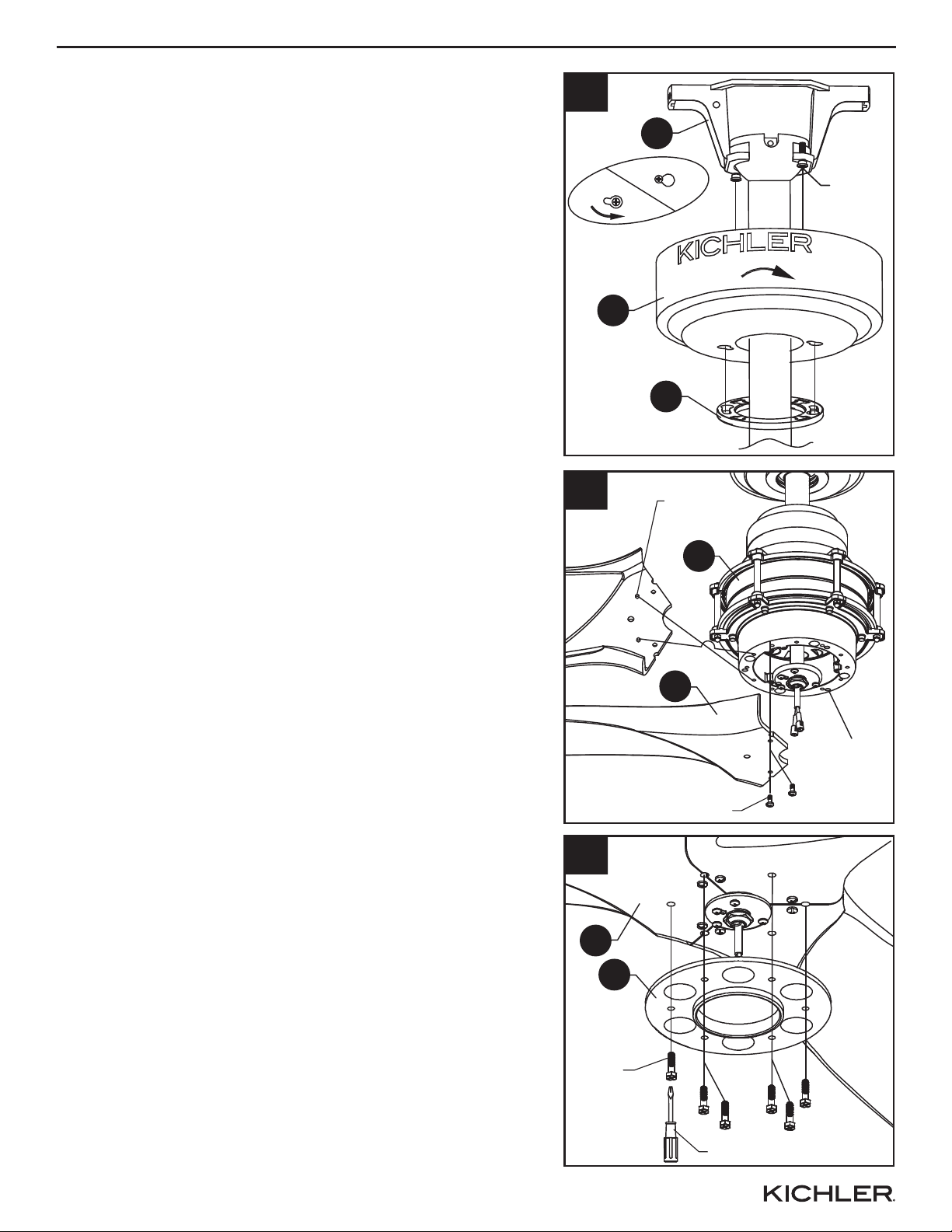

12. Attach blade plate (K) to blades (D) with blade plate
screws using phillips screwdriver (not included).
11.Raise blade (D) to the flywheel located on the motor
assembly (F). Align the center hole on the blade (D)
with the hole on the flywheel marked with a red dot.
Fit the two protrusions on the blade (D) into the
holes on the flywheel. Insert the blade screws into
the two screw holes on the inner side of the flywheel.
Tighten all screws.
Repeat for remaining blades.
10.Loosen the two shoulder screws without fully
removing the hanging bracket (A). Assemble canopy
(C) by rotating keyhole slot in canopy over shoulder
screws in hanging bracket (A). Tighten shoulder
screws. Securely attach and tighten the canopy hole
cover (I) over the shoulder screws in the hanging
bracket (A) utilizing the keyhole slot twist-lock
feature.
10
A
C
I
Shoulder
Screw
D
K
12
Blade
Plate
Screw
Screwdriver
11
F
Blade Screw
Red Dot
Blade
Protrusion
D

ASSEMBLY INSTRUCTIONS
11
13.Remove the mounting screw
marked with a red dot label from the
motor assembly (F) and loosen but
do not remove the other 2. Feed
the wires from the motor assembly
(F) through the center hole in the
LED housing (G). Position keyhole
slots around the screws and twist
clockwise. Insert the screw that you
had previously removed. Tighten all
screws.
14.Connect wires from the motor assembly
(F) to the LED kit (H). Remove screws
from the LED housing (G). Assemble the
LED kit (H) to LED housing (G) using the
3 previously removed screws. Tighten all
screws.
F
G
13
Preassembled
Mounting Screw
H
Preassembled
Mounting Screw
G
F
14

ASSEMBLY INSTRUCTIONS
REMOTE CONTROL
12

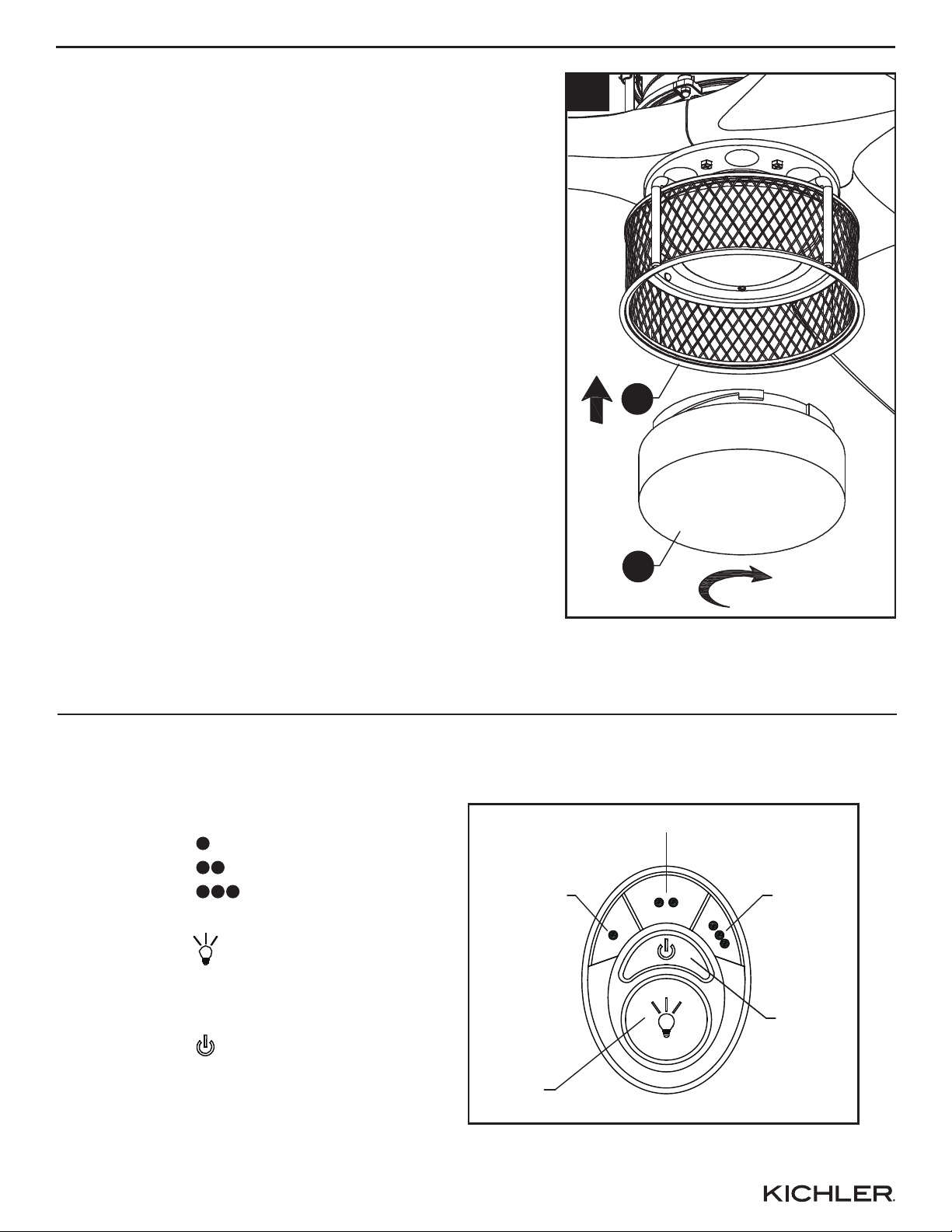

15.Screw shade (J) onto LED housing (G).
REMOTE CONTROL
Low
Speed
Light
On / Off
Medium Speed
High
Speed
Power
Speed Buttons:
Low Speed
Medium Speed
High Speed
Light Button:
This button turns the light ON and OFF
as well as controlling the brightness setting.
Power Button:
This button turns the fan OFF.
15
J
G

13
Balancing Weight
Plastic Clip
5G
• Tighten screws on the mounting bracket, outlet box, the downrod , fan blades to blade holders,
and blade holders to the motor housing.
• Measure the distance from the tip of each blade to the ceiling. All blades should have the same
vertical distance from the ceiling. Adjust any bent blade holder, by gently pressing up or down on
the brackets, until all blades are at an equal distance from the ceiling.
If wobbling persists, you may need a blade balancing kit to stabilize the ceiling fan. A blade
balancing kit consists of a plastic clip and two balancing weights.
Determining the blade that needs to be balanced is a trial-and-error task.
1. Place a numbered piece of masking tape on each blade so you don't lose track of which blade is
which.
2. One blade at a time, attach the slotted plastic clip over the center of the blade edge and turn the
fan on. Observe which blade has the clip on when the ceiling fan wobbles the least.
3. Place the plastic clip on the edge of the blade, halfway between the blade holder and the blade
tip. Turn fan on and determine improvement.
4. If there is no improvement, turn off the fan again. Slide the clip along the length of the blade to
locate the source of instability.
5. Once you've found the faulty blade, press a balancing weight on the centerline. The weight
should be parallel to the clip.
STEPS TO BALANCING THE CEILING FAN
Balance Kit

14
CARE AND MAINTENANCE
REVERSE
At least twice a each year tighten all screws and lower canopy to check mounting bracket screws
and downrod assembly. Clean fan housing with only a soft brush or lint free cloth to avoid
scratching the finish. Clean blades with a lint free cloth. Shut off main power supply before
beginning any maintenance. Do not use water or a damp cloth to clean the ceiling fan.
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna, increase the separation between the equipment and
receiver, and connect the equipment into an outlet on a circiut different from that to which the fan is
connected.
Use the fan reversing switch to optimize your fan for seasonal performance.
Note: Wait for fan to stop before reversing the switch.
• In warmer weather, counterclockwise movement of the fan will result in downward airflow
creating a wind chill effect. Push switch to the left.
• In cooler weather, clockwise movement of the fan will result in upward airflow that can help move
stagnant hot air off the ceiling area. Push switch to the right.

WARRANTY
Rev.04-16-19
Kichler offers the following limited lifetime warranty to the Original Purchaser of a Kichler Ceiling Fan: if the Fan’s motor
or motor-related parts should fail due to what Kichler, in its sole discretion, determines to be a defect in material or
workmanship, Kichler will, at its option, either repair or replace the defective part free of charge.
Except as provided below, for one (1) year following the purchase date, if any part other than the motor or motor-related
parts, including, but not limited to, blades, light kits, downrods, switches, housing, or finish should fail due to what Kichler,
in its sole discretion, determines to be a defect in material or workmanship, Kichler, at its option, will repair or replace the
defective part free of charge.
To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly defective parts or
products to the authorized Kichler distributor that the product was purchased from with PROOF OF PURCHASE, Original
Purchaser’s name and return address and a description of the claimed product defect.
If any of the warranted products are found by Kichler, in its sole discretion, to be defective, such products will, at Kichler’s
sole option and cost, be replaced, repaired or refunded less an amount directly attributable to Original Purchaser’s prior
use of the product. Kichler will return the repaired or replaced product prepaid freight. This warranty does not cover labor
or other costs or expenses to remove or install any defective, repaired or replaced product.
The parties hereto expressly agree that Original Purchaser’s sole and exclusive remedy against Kichler shall be for the
repair, replacement or refund of defective products as provided herein. This warranty extends only to product ownership
by the Original Purchaser; is not transferable whether to heirs, subsequent owners, or otherwise; and is void if the Original
Purchaser ceases to own the product.
This warranty does not apply to any products that have been subjected to misuse, mishandling, misapplication,
connected to voltage at more than 5% above standard North American voltage, unusual use (including but not limited to
use in an environment where the annual average ambient operating temperature is below 27 or above 95 degrees
Fahrenheit), neglect (including but not limited to improper maintenance), accident, acts of god such as high winds,
improper installation or care, failure to follow the Product’s written instructions for normal use and care, improper
packaging of products returned to Kichler, modification (including but not limited to use of unauthorized parts or
attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt water or salt air will
void any and all warranties on exterior finishes. This warranty only applies when all components, including transformers,
have been provided by Kichler. Substituting another manufacturer’s product and/or components will render the warranty
completely void.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR INFRINGEMENT. ORIGINAL
PURCHASER SHALL IN NO EVENT BE ENTITLED TO, AND KICHLER LIGHTING SHALL NOT BE LIABLE FOR,
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT
LIMITED TO LOSS OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO
REPUTATION AND/OR LOSS OF CUSTOMERS.
15
Printed in China
Distributed by Kichler® LLC.
All Rights Reserved.

ARTICLE #0803774
MODÈLE #35157
VENTILATEUR DE PLAFOND À DEL
16
Des questions, des problèmes, des pièces manquantes? Avant de retourner le produit à
votre détaillant, appelez notre service à la clientèle au 1-800-554-6504, entre 8 h et 16 h 30
(HNE) du lundi au vendredi.
JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d’achat
Distribué par Kichler®LLC. Tous droits réservés.

17
A
Support de suspension
Tige
Pavillon
Pale
Cache raccord du moteur
Ensemble moteu
B
C
D
E
F
1
1
1
3
1
1
Boîtier DEL
Kit d’éclairage
Cache-trou du pavillon
Abat-jour
Plaque de pale
H
G
I
J
K
1
1
1
1
1
A
F
C
H
E
B
G
J
I
K
D
CONTENU DE L’EMBALLAGE
PIÈCE DESCRIPTION QT É
PIÈCE DESCRIPTION QT É

QUINCAILLERIE INCLUSE
18
Vis du support de suspension
Rondelle du support de suspension
Capuchon de connexion
Vis de pale
Capuchon de connexion
SACHET DE QUINCAILLERIE TÉLÉCOMMANDE
Télécommande et Récepteur
Pile
Vis à bois
Tire-fond
Vis de plaque de pale
Rondelle plate + rondelle ressort
Ensemble d'équilibrage
CONSIGNES DE SÉCURITÉ
Veuillez lire et assurez-vous d'avoir compris l’intégralité du présent guide avant d’assembler, d’utiliser ou
d’installer ce produit. Conservez ce manuel lorsque vous avez terminé.
AVERTISSEMENT :
• Important : Lorsque vous utilisez une boîte de sortie existante, assurez-vous que la boîte est fermement
attachée à la structure du bâtiment et peut supporter le poids total du ventilateur. Le non-respect de cette
recommandation peut entraîner des blessures graves ou la mort.
• Coupez les disjoncteurs et l'interrupteur mural qui contrôlent les fils d'alimentation du ventilateur.
Avertissement : Si l'alimentation électrique n'est pas coupée avant l'installation, il peut en résulter de
graves blessures ou la mort.
• Avertissement – Connecter ce ventilateur à un interrupteur pour lampe (marche/arrêt) endommage le
récepteur. Ce ventilateur doit être câblé afin de recevoir du courant en continu. Le non-respect de cette
recommandation réduira considérablement la durée de vie de ce ventilateur.
• Ne pas installer sur un plafond incliné à plus de 20°.
• IMPORTANT : Assurez-vous que le boîtier de connexion est correctement mis à la terre ou qu'un fil de
terre (vert) est présent.
• Assurez-vous que le site d'installation choisi offre une hauteur minimum de 2,13 m (7 pi) entre le sol et le
dessous des pales.
• Risque de brûlure chimique. Gardez les piles hors de portée des enfants. Cette télécommande contient
une pile bouton au lithium. Si une pile bouton au lithium neuve ou usagée est avalée ou pénètre dans le
corps, elle peut entraîner de graves brûlures internes et entraîner la mort en moins de 2 heures. Verrouillez
toujours complètement le compartiment des piles. Si le compartiment des piles ne se ferme pas
correctement, cessez d'utiliser l'appareil, retirez les piles et gardez l’appareil hors de portée des enfants. Si
vous pensez que des piles ont pu être avalées ou placées à l'intérieur d'une partie du corps, consultez
immédiatement un médecin.
• Jetez les piles de façon appropriée et conservez-les hors de portée des enfants. Même des piles usagées
peuvent provoquer des blessures.

AVERTISSEMENT (suite)
19
A B C
ATTENTION:
PRÉPARATION
Avant de commencer l’assemblage du produit, assurez-vous que toutes les pièces sont présentes.
Comparez les pièces avec la liste du contenu de l’emballage et la liste de la quincaillerie. En cas de
pièces manquantes ou endommagées, ne tentez pas d’assembler le produit.
Temps d’assemblage approximatif : de 30 à 60 minutes.
Outils nécessaires pour l’assemblage (non inclus) : tournevis cruciforme, tournevis à tête plate, pinces à
dénuder, ruban isolant, escabeau, lunettes de sécurité.
INSTRUCTIONS POUR L'ASSEMBLAGE
• AVERTISSEMENT – Pour réduire le risque d'incendie, de choc électrique ou de blessures corporelles,
installez le ventilateur sur une boîte de sortie marquée "Convient pour supporter un ventilateur de 15,9
kg (35 lb) maximum" et utilisez les vis de montage fournies avec la boîte de sortie et/ou fixez
directement sur la structure du bâtiment. La plupart des boîtes de sortie utilisées couramment comme
support de luminaires ne conviennent pas au support d'un ventilateur et devront être remplacées.
Consultez un électricien qualifié de cas de doute.
• Avertissement - Risque d'incendie, de choc électrique ou de blessures corporelles. Les ventilateurs de
plafond peuvent être fixés directement sur un élément porteur de la structure du bâtiment (voir
exemples sur les figures A et B) et/ou être montés sur une boîte de sortie marquée "Convient pour
supporter un ventilateur de 15,9 kg (35 lb) à 31,8 kg (70 lb)" (voir exemple sur la figure C).
• Pour réduire les risques d'incendie ou de choc électrique, n'utilisez pas ce ventilateur avec une
commande de vitesse à semi-conducteurs ou une commande de variation de vitesse.
• Ne touchez pas les DEL chaudes.
• La lumière produite par les DEL est assez puissante pour blesser les yeux humains. Il est impératif de
prendre des précautions pour éviter de recevoir directement dans les yeux non protégés la lumière
des DEL pendant plus de quelques secondes.
• Prenez soin de lire et de comprendre l'intégralité des instructions et des illustrations avant de
commencer l’assemblage et l’installation de cet appareil.
• Si vous avez des doutes à propos de l’installation, ou si le luminaire ne fonctionne pas correctement,
veuillez contacter un électricien qualifié agréé.
• Toutes les pièces doivent être utilisées tel qu’indiqué dans ces instructions. Ne remplacez pas les
pièces, n'en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect
de ces instructions peut annuler les homologations UL, CSA et/ou ETL de cet appareil.
• Cet appareil est conçu pour une installation en conformité avec le code électrique national des
États-Unis (National Electric Code - NEC) et avec toutes les spécifications du code électrique local.
• Utilisez UNIQUEMENT le pilote de DEL fourni pour faire fonctionner le luminaire.
• Le câble du pilote n'est pas conçu pour une utilisation à travers ou dissimulée derrière les murs, les
sols ou les plafonds.
• Cet appareil est conçu pour une utilisation en intérieur uniquement.

INSTRUCTIONS POUR L'ASSEMBLAGE
20
1. Fixez le support de suspension (A) à la boîte de
sortie du plafond à l'aide des vis et des rondelles
fournies avec le support de suspension.
Important : Si vous fixez le ventilateur sur un plafond
incliné, assurez-vous que l'extrémité ouverte du
support de fixation est installée face au toit. Ne pas
installer de ventilateur sur un plafond incliné à plus
de 20°.
2. Desserrez les vis de réglage situées sur le raccord au-dessus de l'ensemble moteur (F). Puis
retirez la goupille de verrouillage et la clavette qui seront utilisées dans une étape ultérieure.
1
A
Boîte de
sortie
Goupille de
verrouillage Câble de sécurité
Clavette
2
F
Raccord
