56” Incus™ LED FAN
INSTRUCTION MANUAL
Product images may vary slightly from actual product.
P
r
o
d

TABLE OF CONTENTS
SAFETY RULES.......................................................................... 4
5
5
6
9
12
13
15
TOOLS REQUIRED....................................................................
PACKAGE CONTENTS.............................................................
MOUNTING OPTIONS.............................................................
HANGING THE FAN..................................................................
INSTALLATION OF SAFETY SUPPORT..........................
ELECTRICAL CONNECTIONS.............................................
FINISHING THE INSTALLATION........................................
INSTALLINGTHELEDASSEMBLY............................................. 16
17
18
20

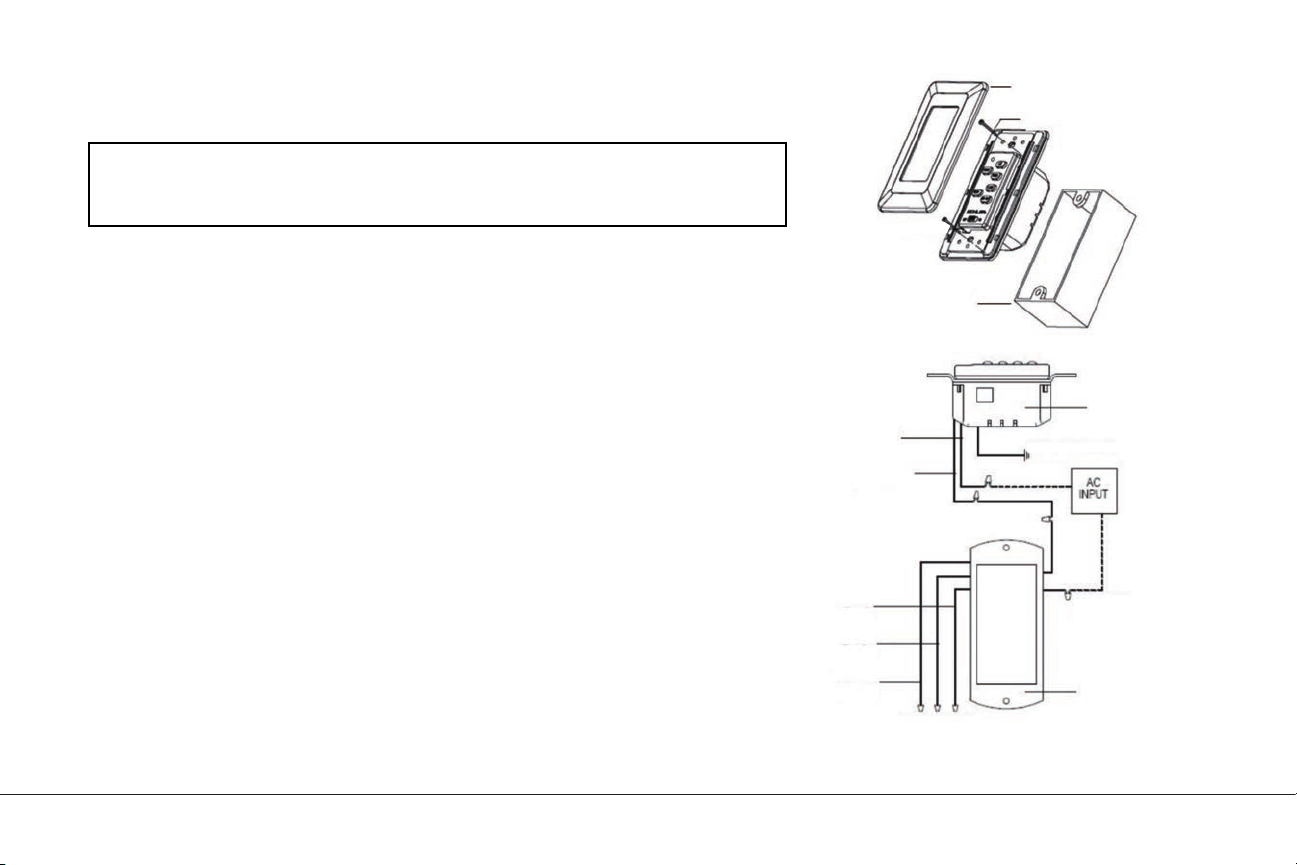

INSTALLING THE WALL TRANSMITTER........................
OPERATION INSTRUCTION .............................................
TROUBLESHOOTING.............................................................
56” Incus™ LED FAN | 3
ATTACHING THE FAN BLADES ........................................ 7
INSTALLING THE BLADE ARM PLATE ......................... 8

4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, insure electricity has been
2. All wiring must be in accordance with the National Electrical Code
and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support
of light fixtures are not acceptable for fan support and may need
to be replaced. Due to the complexity of the installation of this fan,
a qualified licensed electrician is strongly recommended.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
4. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only CUL Listed outlet boxes marked "FOR FAN SUPPORT".
5. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
6. To operate the reverse function on this fan, press the reverse
button while the fan is running.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
10. After marking electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet
box.
11. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO
NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
Unpack your fan and check the
contents. You should have the
following items:
a. Fan blades (3)
b. Canopy & Ceiling mounting
bracket
1)
2)
3)
Mounting hardware:
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
Blade attachment hardware:
Screw (9 + 2 spare)
Fiber washer ( 9 + 2 spare)
Blade arm plate hardware: Screw
(5 + 2 spare) i
j
g
h
a
b
c
d
e
f
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Blade arm plate
g. 17W LED assembly
h. Receiver
i. Wall Transmitter
j. Part bag contents
1 2 3 4 5
56” Incus™ LED FAN | 5
Safety cable hardware:
wood screw, spring washer,
flat washer
Balance Kit
4)
5

6 | KICHLER.COM
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
MOUNTING OPTIONS
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 30° ANGLE
Outlet box
Fig. 4

ATTACHING THE FAN BLADES
Step 1. Insert the blade through the slot on the blade arm plate .
(Fig.1) Secure the blade with three blade screws and fiber washer
provided.
Step 2. Repeat same process for the remaining blades.(Fig.2)
Fig. 1
fiber washer blade screw
56” Incus™ LED FAN | 7
Blades
Fig. 2
Blade arm plate slot

8 | KICHLER.COM
Fig. 4
Fig. 3

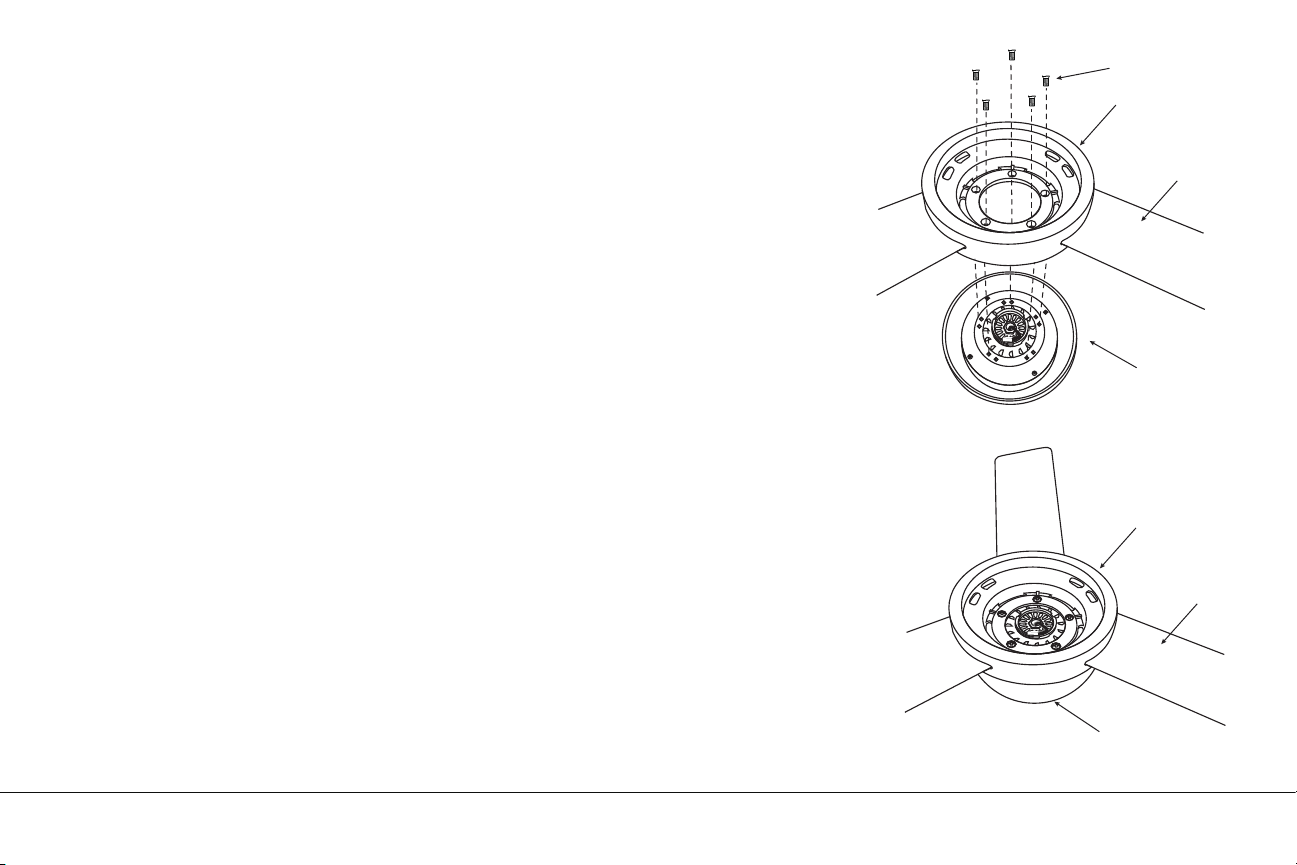

INSTALL THE BLADE ARM PLATE
Step 1. Align the 5 holes from the blade arm plate to the fan motor
assembly. Secure it with the 5 blade arm screws provided. (Fig.3) blade
blade arm plate
fan motor
assembly
blade arm plate screw
blade
blade arm plate
fan motor assembly

56” Incus™ LED FAN | 9
HANGING THE FAN
REMEMBER
To properly install your ceiling fan, follow the steps below.

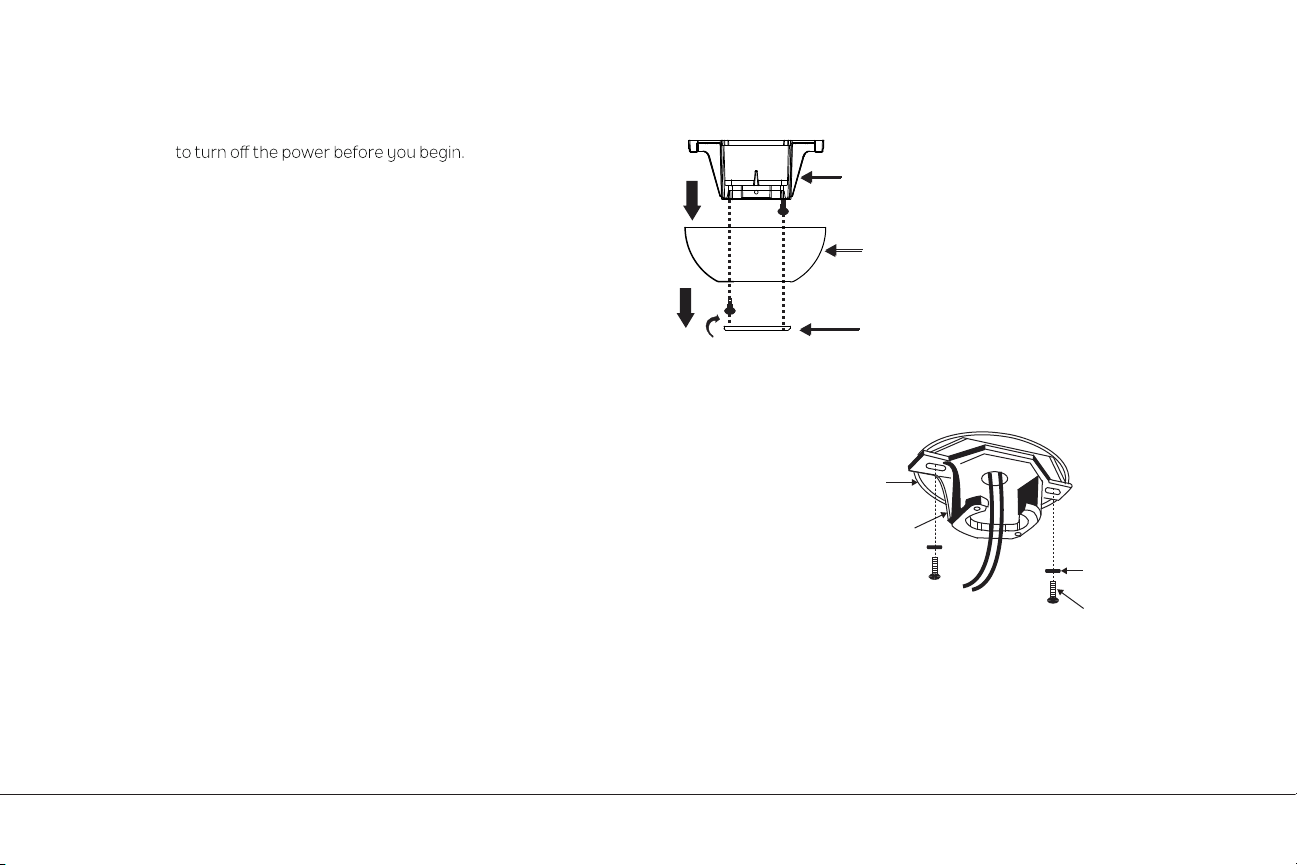

Step 1. Remove the decorative canopy bottom cover from the canopy
by turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save one of the two screws. Loosen the remaining screw
by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box
through the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the
screws and washers included with the outlet box. (Fig.6)
Fig. 6
Hanger bracket
Ceiling
canopy
Canopy
cover
Ceiling
hanger
bracket
Mounting screws (supplied
with electrical box)
UL Listed
electrial
box
120V Wires
Washers
Fig. 5

Step 5. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing the cross
Step 6. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig. 7)
Step 7. Carefully feed the electrical lead wires from the fan up through
the downrod. Thread the downrod into the coupling until the Hitch pin
holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws.
(Fig. 7)
HANGING THE FAN(continued)
Fig. 7
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws
10 | KICHLER.COM
(Fig. 7)

Fig. 8
Fig. 9
HANGING THE FAN(continued)

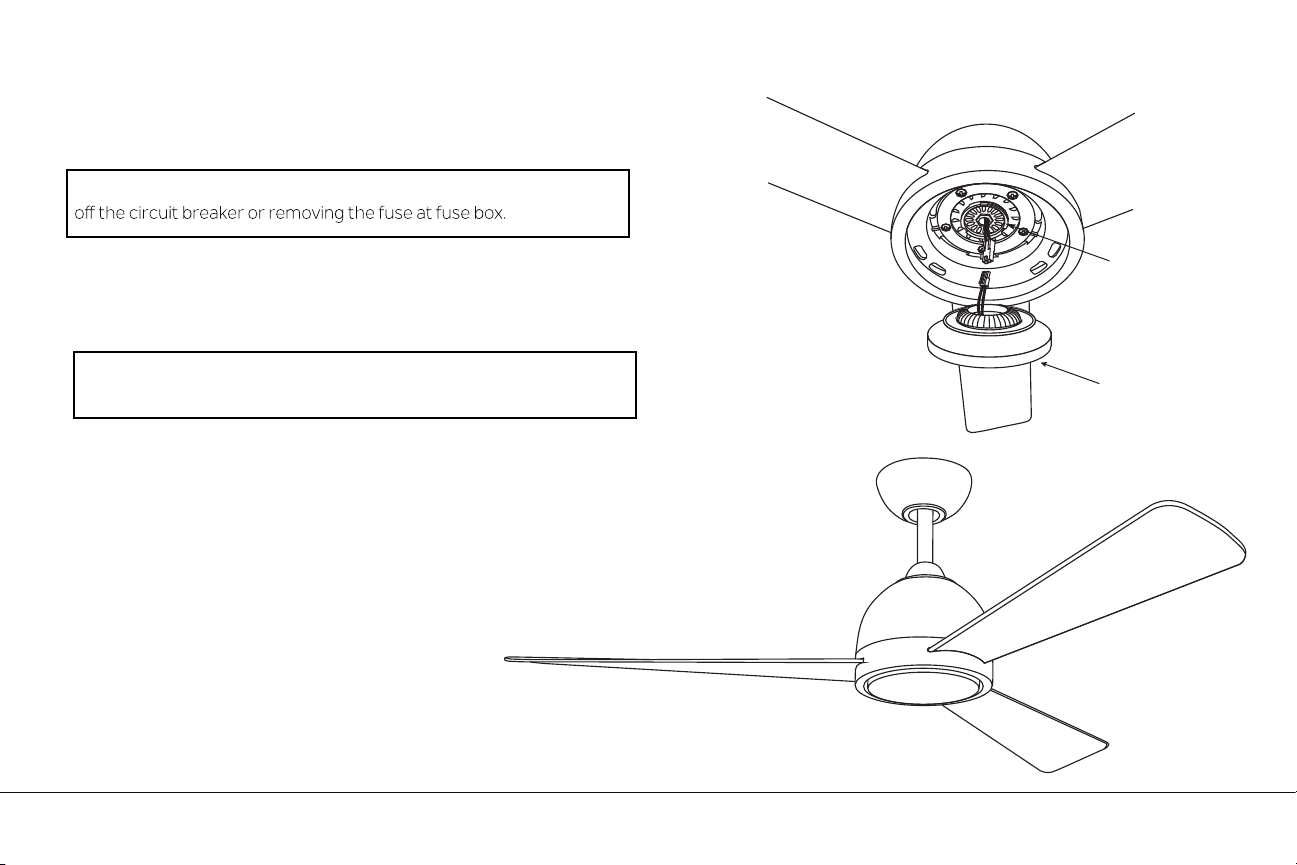

Step 8. Slip the coupling cover , canopy cover and canopy onto the
downrod. (Fig. 8)
Thread the hanger ball onto the downrod, insert the cross pin through
the downrod and tighten. Now tighten the set screw. (Fig. 8)
Step 9. Lift the motor assembly into position and place the hanger ball
into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into the
"Registration Slot" and seats firmly. (Fig. 9)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to reattach the cross pin and seat the "Check Tab"
can cause the fan to fall from the ceiling during operation. Take special
care to make sure this pin is reattached.
Registration slot
Canopy
Canopy cover
Set screws
Hitch pin Retaining clip
Coupling cover
56” Incus™ LED FAN | 11

A safety support cable is provided to help prevent the ceiling fan from
falling.
Step 1. Attach the provided wood screw and washers to the ceiling joist
next to the mounting bracket but do not tighten. (Fig. 10)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the cable
clamp, forming a loop at the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
Fig. 10
Ceiling mounting
bracket Attach
safety cable
to ceiling joist
with screw and
washer
12 | KICHLER.COM

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have
turned
Follow the steps below to connect the fan to your household wiring.
Use the wire connecting nuts suppled with your fan. Secure the
connectors with electrical tape. Make sure there are no loose wire
strands or connections.
Step 1. Insert the receiver into the ceiling mounting bracket with the
flat side of the receiver facing the ceiling. (Fig. 11) For best
performance, make sure the Black Antenna, on the end of the
receiver, remains extended and not tangled with any of the electrical
wires.
Receiver
Hanger
bracket
Fig. 11
56” Incus™ LED FAN | 13

ELECTRICAL CONNECTIONS
(continued)
Step 2. Motor to Receiver Electrical Connections: (Fig. 12) Connect the
black wire from the fan to the black wire marked "TO MOTOR L" on
the receiver. Connect the white wire from the fan to the white wire
marked "TO MOTOR N" on the receiver. Connect the blue wire from
the fan to the blue wire marked "FOR LIGHT" on the receiver. Secure
all the wire connections with the plastic wire nuts provided.
Step 3. (Fig. 12) Receiver to House Supply Wires Electrical
Connections: Connect the black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver. Connect the white(neutral)
wire from the ceiling to the white wire marked "AC in N" from the
Receiver. Secure the wire connections with the plastic wire nuts
provided.
Step 4.(Fig.12) If your outlet box has a ground wire (green of bare
copper) connect it to the fan ground wires; otherwise connect the
hanging bracket ground wire to the mounting bracket. Secure the wire
connection with a plastic nut provided. After connecting the wires,
spread them apart so that the green and white wires are on one side
of the outlet box and black and blue wires are on the other side.
Carefully tuck the wire connections up into the outlet box.
Note: Fan must be installed at a maximum distance of 30 feet from
the wall transmitter for optimal signal transmission between the
transmitter and the fan's receiving unit.
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
White (neutral)
White ("to motor N")
Ground
(green) (Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Black ("to motor L")
Blue (for light)
Blue (for light)
Black (motor)
14 | KICHLER.COM
Fig. 12

Fig. 13
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of
the key hole slots over the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in place at the narrow
section of the key hole. See figure 13.
Step 3. Align the remaining circular hole on the canopy with the
remaining hole on the Ceiling Mounting Bracket. Insert and tighten the
mounting screw you removed earlier and the mounting screw from
Step 2 above. Now, attach the canopy cover to the mounting screw
heads by inserting the screw heads into the bottom side of the canopy
cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy and
canopy cover are snug. (Fig. 13)
WARNING: Make sure the "Check Tab" at the bottom of the hanger
bracket is properly seated in the "Registration Slot" on the side of the
hanger ball before attaching the canopy to the bracket. Failure to
properly seat the "Check Tab" could damage the electrical wires when
to ceiling fan blade direction is changed while the fan is running.
FINISHING THE INSTALLATION
56” Incus™ LED FAN | 15

INSTALLING THE LED ASSEMBLY
NOTE: Before starting installation, disconnect the power by turning
Step 1. While holding the LED assembly under your fan ,firmly snap the
wire connection plugs together .(Fig.14)
Step 2. Attach the LED assembly to the switch box by twisting tightly.
(Fig.14)
16 | KICHLER.COM
NOTE:This is an integrated LED light kit assembly and can not be
disassembled to prevent electronic shock. Fig. 14
switch box
17W LED assembly

INSTALLING THE WALL TRANSMITTER
Step 1. Remove the existing wall plate and switch from the wall outlet box.(Fig.19)
Step 2. Make the electrical connections as shown in Fig.20 . If your outlet box has a
ground wire (Green or Bare Copper) connect the transmitter’s ground wire directly
to one of the screws from the outlet box. Secure all wire connections with the plastic
wire nuts provides.
Step 3. Carefully tuck the wire connections inside the wall outlet box . Use the screws
provided to secure the wall transmitter and wall plate to the wall outlet box.
WARNNING: HOOK UP ‘IN SERIES”ONLY. DO NOT CONNECT NEUTRAL SUPPLY
WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO
THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Fig. 19
OUTLET BOX
FACE PLATE
SCREW
AC POWER
(BLACK)
RECEIVER LIVE
(BLACK)
WALL CONTROL
GROUND /EARTH
FOR LIGHT
(BLUE)
AC POWER
(BLACK) L
AC POWER
(WHITE) N
TO MOTOR L
(BLACK)
TO MOTOR N
(WIHTE)
TO CEILING FAN
RECEIVER
Fig. 20
56” Incus™ LED FAN | 17

Fig. 22
18 | KICHLER.COM
1.Use a small flat screw driver and gently pry the faceplate apart from the top of wall transmitter.(Fig.21)
2. After installation is complete, AC power is turned on and SWITCH is at ON position within 30
seconds,press and hold the LEARN button for 3 seconds. Fan will turn on at medium speed and light (if
installed) will turn on. This confirms that the SMART SYNC setting is active and ok. (FIG. 21)
3. If user cannot finish the setting within the 30 seconds time frame, the main power must be turned
off and re-started again. This will reset the unit. Repeat step 2 until the LEARNING feature is activated
as indicated.
LIGHT FUNCTION SELECT SWITCH(Fig.21)
1. D means " dimmer "
O means " only on/off,no dimmer"
The light of this fan can be dimmer, so it has been set to "D" at factory side. If you want the light to be only
on/off ,please kindly switch it to "O"
WALL TRANSMITTER OPERATION (Fig. 22)
ON/OFF: Active the wall transmitter or Lock the wall transmitter.
FAN OFF :Turn off the ceiling fan.
HI : Turn on the fan at high speed.
MED : Turn on the fan at medium speed.
LOW: Turn on the fan at low speed.
LIGHT: Turns the light ON or OFF. Press and hold the button to set the desired brightness.
REV: Press this button for forward/reverse airflow of ceiling fan.
Fig. 21
LEARN
OPERATION INSTRUCTION
ACTIVATING THE LEARNING PROCESS(Fig.21)
NOTE：The control system for this fan is equipped with a learning frequency function which
has 56K code combinations to prevent potential interference from other remote units.
The frequency on your receiver and wall transmitter units have been preset at the factory. No
frequency change is necessary. If the fan is non-functional or if you desire to install another fan
within the same home or area with a separate frequency code, please see below "leaning
process "section of this instruction manual to code-paring the receiver and wall transmitter.
light function selection switch
faceplate

Fig. 23
Fig. 24
NOTE: To change the direction of the rotation of the blades,the fan
muse be in operation.
Warm weather - Forward (counter clockwise) A downward airflow
comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm
REVERSE FUNCTION
23
24
56” Incus™ LED FAN | 19

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION:
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are not compatible with ceiling fan motors or
remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling
above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a
TROUBLESHOOTING
20 | KICHLER.COM
