Kidde PE910UK User manual

For your convenience, write down the following
information. If you call our Consumer Hotline,
these are the first questions you will be asked.
Lithium (non-replaceable sealed in) Battery-Operated
Opitcal Smoke Alarm with HUSHTM Control to temporarily
silence nuisance alarms.
Thank you for purchasing this smoke alarm. It is an
important part of your family’s home safety plan. You can
trust this product to provide the highest quality safety
protection. We know you expect nothing less when the lives
of your family are at stake.

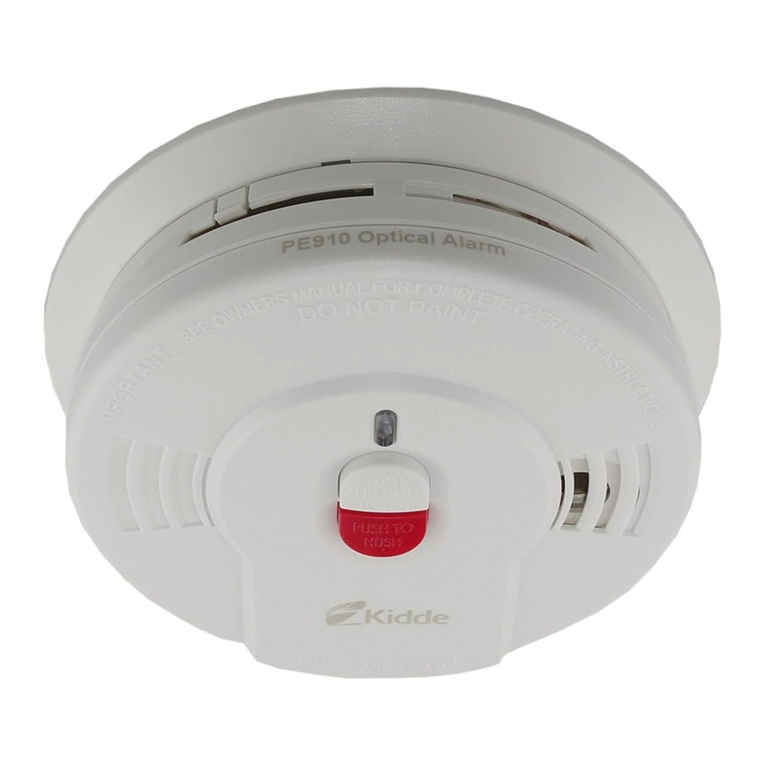

PE910UK
Smoke Alarm
User’s Guide
For model: PE910UK
Smoke Alarm Model Number
(located on back of alarm):
Date Code (located on back of alarm):
Kidde recommends replacing this
alarm ten years from the date code.
Date of Purchase:
Where Purchased:
0310-7201-00
EN14604: 2005
Licence No. KM524754
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 1

Ionisation sensing alarms may detect invisible fire particles (associated with fast
flaming fires) sooner than photoelectric alarms. Photoelectric sensing alarms may
detect visible fire particles (associated with slow smoldering fires) sooner than
ionisation alarms. Home fires develop in different ways and are often unpredictable.
For maximum protection, Kidde recommends that both Ionisation and Photoelectric
alarms be installed.
IMPORTANT! READ ALL INSTRUCTIONS BEFORE INSTALLATION AND KEEP THIS
MANUAL NEAR THE ALARM FOR FUTURE REFERENCE.
CONTENTS OF THIS MANUAL
1 -- RECOMMENDED LOCATIONS FOR ALARMS
2 -- LOCATIONS TO AVOID
3 -- INSTALLATION INSTRUCTIONS
4 -- OPERATION AND TESTING
5 -- NUISANCE ALARMS
6 -- MAINTENANCE
7 -- LIMITATIONS OF SMOKE ALARMS
8 -- GOOD SAFETY HABITS
9 -- KIDDE RECOMMENDATIONS
10 -- SERVICE AND WARRANTY
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with Local Authority
or Supplier for recycling advice.
1. RECOMMENDED LOCATIONS FOR ALARMS
• Locate the first alarm in the immediate area of the bedrooms. Try to monitor the
exit path as the bedrooms are usually farthest from the exit. If more than one
sleeping area exists, locate additional alarms in each sleeping area.
• Locate additional alarms to monitor any stairway as stairways act like chimneys for
smoke and heat.
• Locate at least one alarm on every floor level.
• Locate an alarm in every bedroom.
• Locate an alarm in every room where electrical appliances are operated (i.e.
portable heaters or humidifiers).
• Locate an alarm in every room where someone sleeps with the door closed.
The closed door may prevent an alarm not located in that room from waking the
sleeper.
• Smoke, heat, and combustion products rise to the ceiling and spread horizontally.
Mounting the smoke alarm on the ceiling in the center of the room places it closest
to all points in the room. Ceiling mounting is preferred in ordinary residential
construction.
• For mobile home installation, select locations carefully to avoid thermal barriers that
may form at the ceiling. For more details, see MOBILE HOME INSTALLATION below.
• When mounting an alarm on the ceiling, locate it at a minimum of 10 cm (4”)
from the side wall. (see Figure 1).
• When mounting the alarm on the wall, use an inside wall with the top edge of the
alarm at a minimum of 10 cm (4”) and a maximum of 30.5 cm (10”) below the
ceiling. (see Figure 1).
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 2

• Put smoke alarms at both ends of a bedroom hallway or large room if the hallway
or room is more than 9.1 m (30 feet) long.
• Install Smoke Alarms on sloped, peaked or cathedral ceilings at or within 0.9 m (3
ft) of the highest point (measured horizontally). Smoke alarms in rooms with ceil-
ing slopes greater than .3 m in 2.4 m (1 foot in 8 feet) horizontally shall be located
on the high side of the room. A row of detectors shall be spaced and located
within 0.9 m (3 ft) of the peak of the ceiling measured horizontally (see Figure 3).
MOBILE HOME INSTALLATION
Modern caravans and mobile homes have been designed and built to be energy effi-
cient. Install smoke alarms as recommended above (see Figures 1 and 2).
In older caravans and mobile homes that are not well insulated compared to present
standards, extreme heat or cold can be transferred from the outside to the inside
through poorly insulated walls and roof. This may create a thermal barrier which can
prevent the smoke from reaching an alarm mounted on the ceiling. In such units,
install the smoke alarm on an inside wall with the top edge of the alarm at a mini-
mum of 10 cm (4”) and a maximum of 30.5 cm (12”) below the ceiling (see Figure 1).
If you are not sure about the insulation in your caravan or mobile home, or if you
notice that the outer walls and ceiling are either hot or cold, install the alarm on an
inside wall. For minimum protection, install at least one alarm close to the bedrooms.
For additional protection, see SINGLE FLOOR PLAN in Figure 2.
WARNING: TEST YOUR SMOKE ALARM OPERATION AFTER MOBILE HOME HAS
BEEN IN STORAGE OR UNOCCUPIED AND AT LEAST ONCE A WEEK DURING USE.
BEDROOM KITCHEN
LIVING ROOM
BEDROOM
BEDROOM
BEDROOM
SINGLE FLOOR PLAN
NOT
IN THIS
AREA
(4”)
10 cm
MINIMUM
CEILING
DEAD AIR
SPACE
SIDE
WALL
MINIMUM
(12”)
30.5 cm
MAXIMUM
BEST
HERE NEVER
HERE
ACCEPTABLE
HERE
(4”)
10 cm
Smoke Alarms for Minimum Protection
Smoke Alarms for Additional Protection
Ionisation Type Smoke Alarms with
Hush® Control or Photoelectric Type
FIGURE 2 FIGURE 3
FIGURE 1
(3’)
0.9 m
(3’)
0.9 m
(4”)
102 mm
NOT
IN THIS
AREA
ANYWHERE
IN THIS
AREA
(3’)
0.9 m
(102 mm)
4"
NOT
IN THIS
AREA
ANYWHERE
IN THIS AREA
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 3

2.LOCATIONS TO AVOID
• In the garage. Products of combustion are present when you start your
motor vehicle.
• Less than 10 cm (4”) from the peak of an “A” frame type ceiling.
• In an area where the temperature may fall below 4ºC (40ºF) or rise above38ºC
(100ºF), such as garages and unfinished attics.
• In dusty areas. Dust particles may cause nuisance alarm or failure to alarm.
• In very humid areas. Moisture or steam can cause nuisance alarms.
• In insect-infested areas.
• Smoke alarms should not be installed within 3 ft (.9m) of the following: the door to a
kitchen, the door to a bathroom containing a tub or shower, forced air supply ducts
used for heating or cooling, ceiling or whole house ventilating fans, or other high air
flow areas.
• Kitchens. Normal cooking may cause nuisance alarms.
• Near fluorescent lights. Electronic “noise” may cause nuisance alarms.
• Smoke alarms are not to be used with detector guards unless the combination
(alarm and guard) has been evaluated and found suitable for that purpose.
3.INSTALLATION INSTRUCTIONS
CAUTION: THIS UNIT IS SEALED (INCLUDING THE BATTERIES). THE COVER IS
NOT REMOVABLE!
AA
FIGURE 4
When mounting
in a hallway, the
“A” line should
be parallel with
the hallway.
AA
Alignment Marks
(”A” Line) on
Mounting
Bracket
FIGURE 5
When wall
mounting, the
“A” line should
be horizontal.
1. To insure aesthetic alignment of the
alarm with the hallway or wall, the
“A” line on the mounting bracket
should be parallel with the hallway
when ceiling mounting or horizon-
tal when wall mounting.
AA
FIGURE 6
Remove
Install
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 4

2. After selecting the proper smoke alarm location as described in Section 1, attach
the mounting bracket to the ceiling as shown in Figure 3. For wall mounting see
Figure 4. Place the mounting plate on the wall; be sure the “A” line is horizontal
(parallel to the floor). Use the screws and wall plugs provided to secure the mount-
ing bracket (use 3/16” drill bit for wall plugs).
3. This alarm has batteries permanently sealed inside the alarm no battery installation
or maintenance is necessary.
ACTIVATING THE ALARM
This model is equipped with a feature that automatically activates the alarm
when the alarm is mounted to the mounting bracket for the first time. Once
activated, the batteries will supply power to the alarm for the life of the
alarm (10 years). Be sure that the mounting bracket is mounted correctly
before installing the alarm on the mounting bracket.
1. To activate the alarm, install the alarm on the mounting bracket (Figure 6) and
rotate the alarm clockwise (as indicated on the alarm cover) until the alarm ratchets
into place (the ratcheting function allows for aesthetic alignment). NOTE: The
alarm will mount to the bracket in four (4) positions (every 90 degrees).
The alarm is now activated!
2. After installation/activation, test your alarm by depressing and holding down the
test button for a minimum of 5 seconds (or until the alarm sounds). This should
sound the alarm. CAUTION: Due to the loudness (85 decibels) of the alarm,
always stand an arms length away from the unit when testing.
TAMPER RESIST FEATURE
Smoke Alarm Tamper Resist Feature
This alarm is equipped with a tamper resist feature that helps prevent someone from
removing the unit from the mounting bracket. When activated, it can be very effec-
tive in preventing smoke alarm removal or tampering.
Activate the smoke alarm tamper resist feature by breaking off the four posts in the
square holes in the mounting bracket (see Figure 7). When the posts are broken off,
the tamper resist on the base is allowed to engage the mounting bracket. Rotate the
alarm onto the mounting bracket until you hear the tamper resist tab snap into place,
locking the alarm on the mounting bracket. Using the tamper resist feature will help
deter children and others from removing the alarm from the bracket. NOTE: To
remove the alarm when the tamper resist tab is engaged, press down on the tamper
resist tab and rotate the alarm in the direction indicated by the arrows on the cover of
the alarm (see Figure 8).
FIGURE 7 FIGURE 8
Location of Posts:
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 5

4.OPERATION AND TESTING
OPERATION: The smoke alarm is operating once the alarm is activated (see Section 3)
and testing is complete. When products of combustion are sensed, the unit sounds a
loud 85db pulsating alarm until the air is cleared. If there is any question as to the
cause of the alarm, it should be assumed that the alarm is due to an actual fire and
the dwelling should be evacuated immediately.
HUSHTM CONTROL: The HUSHTM feature has the capability of temporarily ditto desen-
sitising the alarm circuit for approximately 10 minutes. This feature is to be used only
when a known alarm condition, such as smoke from cooking, activates the alarm.
The smoke alarm is desensitised by pushing the HUSH®button on the smoke alarm
cover. The alarm will silence immediately and the horn will chirp every 45 seconds for
10 minutes. This indicates that the alarm is in a temporarily desensitised condition.
The smoke alarm will automatically reset after approximately 10 minutes and sound
the alarm if particles of combustion are still present. The HUSHTM feature can be used
repeatedly until the air has been cleared of the condition causing the alarm. Pushing
the test/reset button on the alarm will end the temporarily desensitised period.
NOTE: DENSE SMOKE WILL OVERRIDE THE HUSHTM CONTROL FEATURE.
CAUTION: BEFORE USING THE ALARM HUSHTM FEATURE, IDENTIFY THE
SOURCE OF THE SMOKE AND BE CERTAIN A SAFE CONDITION EXISTS.
FLASHING LED LIGHT: This smoke alarm is equipped with a flashing red indicator light
with four modes of operation:
• The LED will flash every 40-45 seconds in the standby mode signifying that the
alarm is receiving power.
• The LED will flash every 0.5 seconds when the alarm is sounding. The flashing LED
and pulsating alarm will continue until the air is cleared.
TESTING: Test by pushing the test button on the cover and holding it down for a
minimum of 5 seconds (or until the alarm sounds). This will sound the alarm if the
electronic circuitry, horn, and batteries are working. If no alarm sounds, the unit has
defective batteries or other failure. DO NOT use an open flame to test your alarm, you
could damage the alarm or ignite combustible materials and start a structure fire.
SMOKE SENSING CHAMBER OPERATION: This alarm will "chirp" if it detects a
problem with the smoke sensing chamber. This chirp will occur approximately 20
seconds after the flash of the LED.
NOTE: WEEKLY TESTING IS REQUIRED.
TEST THE ALARM WEEKLY TO ENSURE PROPER OPERATION. Erratic or low sound
coming from your alarm may indicate a defective alarm, and it should be returned for
service.
If your alarm regularly nuisance alarms (See Section 5) when cooking,
this indicates the alarm may be mounted too close to the source e.g..
kitchen. However, by pressing the Hush button prior to cooking, you can
densisitise the alarm for approximately 10 minutes.
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 6

5.NUISANCE ALARMS
Smoke alarms are designed to minimise nuisance alarms. Cigarette smoke will not
normally set off the alarm, unless the smoke is blown directly into the alarm.
Combustion particles from cooking may set off the alarm if the alarm is located close
to the cooking area. Large quantities of combustible particles are generated from
spills or when broiling. Using the fan on a range hood which vents to the outside
(non-recirculating type) will also help remove these combustible products from the
kitchen.
This model PE910UK has a HUSHTM control that is extremely useful in areas prone to
nuisance alarms. For more information refer to Section 4, OPERATION AND TESTING.
If the alarm does sound, check for fires first. If a fire is discovered, get out and call
the fire service. If no fire is present, check to see if one of the reasons listed in Section
2 may have caused the alarm.
6.MAINTENANCE
BATTERY ACTIVATION AND DEACTIVATION
NOTE: Three Lithium-Ion batteries, permanently sealed inside the alarm, power this
unit; no battery installation or replacement is necessary for the life of the alarm.
WARNING! DO NOT ATTEMPT TO OPEN THE ALARM FOR ANY REASON!
To activate the alarm, attach the alarm to the mounting bracket by rotating in the
direction of the arrows on the cover, see ACTIVATING ALARM in Section 3
(INSTALLATION INSTRUCTIONS).
This alarm has a low battery monitor circuit which will cause the alarm to “chirp”
approximately every 40-45 seconds, for a minimum of thirty (30) days, at the end of
the life of the alarm to indicate that the alarm needs replacement. To deactivate the
alarm remove the alarm from the mounting bracket by rotating the alarm in the
direction indicated by the arrows on the cover of the alarm and locate the
crosshatched area on product label. NOTE: If the tamper resist feature has been
activated, see TAMPER RESIST FEATURE in Section 3 (INSTALLATION INSTRUCTIONS).
WARNING! DO NOT DEACTIVATE THE ALARM UNTIL THE END OF THE ALARM
LIFE, WHEN A “CHIRP” IS HEARD EVERY 40-45 SECONDS. ONCE THE ALARM IS
DEACTIVATED THE BATTERIES WILL BE DEPLEATED AND THE ALARM WILL NO
LONGER FUNCTION.
WARNING! ONCE THE ALARM HAS BEEN DEACTIVATED, IT CANNOT BE
REACTIVATED!
WARNING! ONCE THE ALARM HAS BEEN DEACTIVATED, IT CANNOT BE
MOUNTED ONTO THE MOUNTING BRACKET!
Break out the crosshatched area with a screwdriver or similar tool. Using a
screwdriver or similar tool slide the exposed piece towards the center of the alarm.
This will deactivate the alarm, stop the low battery “chirp” and render the alarm safe
for disposal by draining the batteries.
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 7

CLEANING YOUR ALARM
YOUR ALARM SHOULD BE VACUUMED ONCE A MONTH
If the tamper resist feature has been activated you will need to follow the instructions
in Section 3 to remove your alarm for maintenance.
To clean your alarm, remove it from the mounting bracket as outlined in the
beginning of this section. You can clean the interior of your alarm (sensing chamber)
by using compressed air or a vacuum cleaner hose and blowing or vacuuming through
the openings around the perimeter of the alarm. The outside of the alarm can be
wiped with a damp cloth.
After cleaning, reinstall your alarm and test your alarm by using the test button. If
cleaning does not restore the alarm to normal operation the alarm should be replaced.
7.LIMITATIONS OF SMOKE ALARMS
WARNING: PLEASE READ CAREFULLY AND THOROUGHLY
• Life safety from fire in residential occupancies is based primarily on early notification
to occupants of the need to escape, followed by the appropriate actions by those
occupants. Fire warning systems for dwelling units are capable of protecting about
half of the occupants in potentially fatal fires. Victims are often intimate with the
fire, too old or young, or physically or mentally impaired such that they cannot
escape even when warned early enough that escape should be possible. For these
people, other strategies such as protection-in-place or assisted escape or rescue are
necessary.
• Smoke alarms are devices that can provide early warning of possible fires at a
reasonable cost; however, alarms have sensing limitations. Ionisation sensing
alarms may detect invisible fire particles (associated with fast flaming fires) sooner
than photoelectric alarms. Photoelectric sensing alarms may detect visible fire
particles (associated with slow smoldering fires) sooner than ionisation alarms.
Home fires develop in different ways and are often unpredictable. For maximum
protection, Kidde recommends that both Ionisation and Photoelectric alarms be
installed.
• A battery powered alarm must have a battery of the specified type, in good condition
and installed properly.
• Smoke alarms must be tested regularly to make sure the batteries and the alarm
circuits are in good operating condition.
• Smoke alarms cannot provide an alarm if smoke does not reach the alarm.
Therefore, smoke alarms may not sense fires starting in chimneys, walls, on roofs,
on the other side of a closed door or on a different floor.
• If the alarm is located outside the bedroom or on a different floor, it may not wake
up a sound sleeper.
• The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm.
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 8

For maximum protection, a smoke alarm should be installed in each sleeping area
on every level of a home.
• Although smoke alarms can help save lives by providing an early warning of a fire,
they are not a substitute for an insurance policy. Home owners and renters should
have adequate insurance to protect their lives and property.
8. GOOD SAFETY HABITS
DEVELOP AND PRACTICE A PLAN OF ESCAPE
• Install and maintain Fire extinguishers on every level of the home and in the
kitchen, basement and garage. Know how to use a fire extinguisher prior to an
emergency.
• Make a floor plan indicating all doors and windows and at least two (2) escape
routes from each room. Second story windows may need a rope or chain ladder.
• Have a family meeting and discuss your escape plan, showing everyone what to do
in case of fire.
• Determine a place outside your home where you all can meet if a fire occurs.
• Familiarize everyone with the sound of the smoke alarm and train them to leave
your home when they hear it.
• Practice a fire drill at least every six months, including fire drills at night. Ensure
that small children hear the alarm and wake when it sounds. They must wake up in
order to execute the escape plan. Practice allows all occupants to test your plan
before an emergency. You may not be able to reach your children. It is important
they know what to do.
WHAT TO DO WHEN THE ALARM SOUNDS
• Alert small children in the home.
• Leave immediately by your escape plan. Every second counts, so don’t waste time get-
ting dressed or picking up valuables.
• In leaving, don’t open any inside door without first feeling its surface. If hot, or if you
see smoke seeping through cracks, don’t open that door! Instead, use your alternate
exit. If the inside of the door is cool, place your shoulder against it, open it slightly and
be ready to slam it shut if heat and smoke rush in.
• Stay close to the floor if the air is smoky. Breathe shallowly through a cloth, wet if
possible.
• Once outside, go to your selected meeting place and make sure everyone is there.
• Call the Fire Brigade by dialling 999 from your neighbour’s home - not from yours!
• Don’t return to your home until the fire officials say that it is all right to do so.
There are situations where a smoke alarm may not be effective to protect against fire. For
instance:
a) smoking in bed
b) leaving children home alone
c) cleaning with flammable liquids, such as gasoline
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 9

Photoelectric, also known as Optical alarms, are more likely to affected by dust
contamination. This is why regular vacuuming of the alarm is necessary to prevent
dust build up, and possible nuisance alarms.
9. KIDDE RECOMMENDATIONS
Smoke alarms shall be installed outside each separate sleeping area in the immediate
vicinity of the bedrooms and on each additional story of the family living unit,
including basements and excluding crawl spaces and unfinished attics. In new
construction, a smoke alarm also shall be installed in each sleeping room.
Smoke Detection - Are More Smoke Alarms Desirable? The required number of
smoke alarms might not provide reliable early warning protection for those areas
separated by a door from the areas protected by the required smoke alarms. For this
reason, it is recommended that the householder consider the use of additional smoke
alarms for those areas for increased protection. The additional areas include the
basement, bedrooms, dining room, utility room, and hallways not protected by the
required smoke alarms. The installation of the smoke alarms in the kitchen, attic (or
unfinished), or garage is normally not recommended, as these locations occasionally
experience conditions that can result in improper operation.
10. SERVICE AND WARRANTY
If after reviewing this manual you feel that your smoke alarm is defective in any way,
do not tamper with the unit. Return it for servicing to: Kidde Safety Europe,,
Mathisen Way, Colnbrook, Slough, Berkshire SL3 OHB. (See Warranty for in-warranty
returns).
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 10

QUESTIONS OR FOR MORE INFORMATION
Call our Consumer Hotline at 01753 685148 or contact us at
our website at www.kiddesafetyeurope.co.uk
Kidde Safety Europe, Mathisen Way, Colnbrook, Slough, Berkshire SL3 OHB, UK
©Copyright Walter Kidde Portable Equipment 2005. All Rights Reserved.
TEN YEAR WARRANTY
Kidde Safety warrants to the original purchaser that the enclosed smoke alarm will
be free from defects in material and workmanship or design under normal use and
service for a period of ten years from the date of purchase. The obligation of Kidde
Safety under this warranty is limited to repairing or replacing the smoke alarm or
any part which we find to be defective in material, workmanship or design, free
of charge to the customer, upon sending the smoke alarm with proof of date of
purchase, postage and return postage prepaid, to Warranty Service Department,
Kidde Safety Europe, Mathisen Way, Colnbrook, Slough, Berkshire SL3 OHB
This warranty shall not apply to the smoke alarm if it has been damaged,
modified, abused or altered after the date of purchase or if it fails to operate due
to improper maintenance or incorrect siting.
THE LIABILITY OF KIDDE SAFETY OR ANY OF ITS PARENT OR SUBSIDIARY
CORPORATIONS ARISING FROM THE SALE OF THIS SMOKE ALARM OR UNDER
THE TERMS OF THIS LIMITED WARRANTY SHALL NOT IN ANY CASE EXCEED THE
COST OF REPLACEMENT OF SMOKE ALARM AND, IN NO CASE, SHALL Kidde
safety OR ANY OF ITS PARENT OR SUBSIDIARY CORPORATIONS BE LIABLE FOR
CONSEQUENTIAL LOSS OR DAMAGES RESULTING FROM THE FAILURE OF THE
SMOKE ALARM OR FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS
OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE COMPANY’S
NEGLIGENCE OR FAULT.
This Warranty does not affect your statutory rights.
0310-7201-00.qxd:_ 2008.2.25 2:08 PM Page 11
