Kimberly-Clark PROFESSIONAL ICON User manual

Automatic Roll Towel
Recessed Dispenser Housing with
Trim Panel - User Guide
Faceplate** Cover Module*
Backplate Cage
Trim Housing
Use of this Dispenser
Not recommended for outdoor installation or in wet
environments. Do not attempt to clean the dispenser
with a water jet or by spraying the dispenser directly.
Follow the installation and usage instructions. Only
use genuine Kimberly-Clark Professional product
refills intended for the specific model. The dispenser
can be cleaned using a damp cloth and detergent,
do not use abrasive cleaning products.
* Not Included
** For additional faceplates, contact
your sales representative.

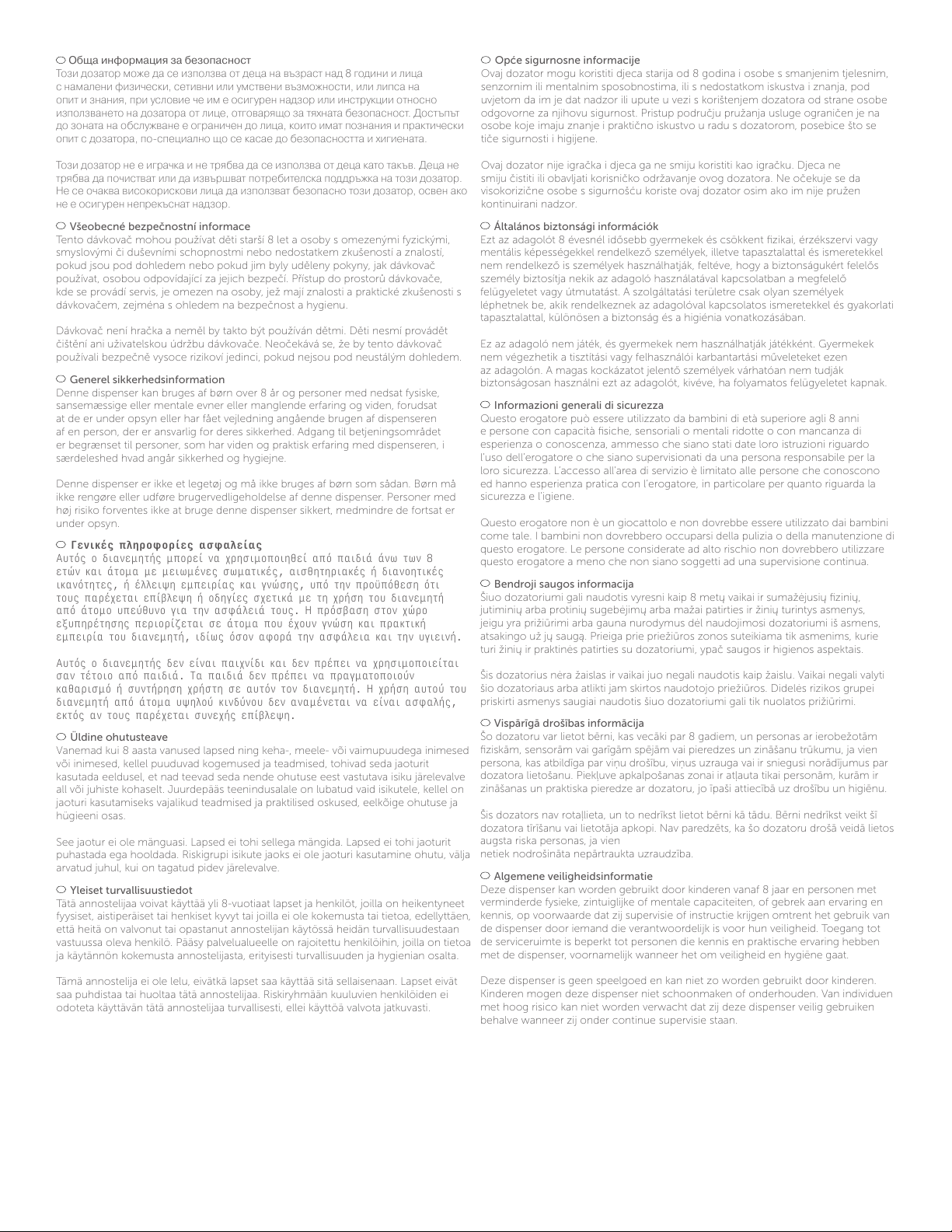

General Safety Information
This dispenser can be used by children over the age
of 8 years old and persons with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge, provided they have been given
supervision or instruction concerning use of the
dispenser by a person responsible for their safety.
Access to the service area is restricted to persons
who have knowledge and practical experience of the
dispenser, in particular as far as safety and hygiene
are concerned.
This dispenser is not a toy and shall not be used by
children as such. Children shall not perform cleaning
or user maintenance of this dispenser. High-risk
individuals are not expected to use this dispenser
safely unless continuous supervision is given.
Need more information?
These instructions and additional resources are
available at www.kcprofessional.com.
Use Caution, Edges may be sharp
when dispenser is open or during
faceplate installation.

Dispenser Access
Cover Removal
Remove dispenser cover
before installing the cage.
Refer to Dispenser Access
section for instructions to
unlock the dispenser.
1. Remove the cover by closing
it about halfway. Align bottom
edge of cover with vertical
alignment line. The key
feature on the inside of the
cover should line up with it’s
corresponding slot on the
dispenser body, allowing the
cover to be flexed o.
2. Remove the cover.
1. To unlock the dispenser, insert
key into lock and rotate the key
a quarter turn towards the wall.
Gently pull the cover forward.
2. Support the cover while
opening.
1. 2.
1. 2.

Cage Installation
Tools Required
5/8”
(4) 2.0”
8 Gauge
(4) 2.5”
8 Gauge
When installing the dispenser ensure to follow all
appropriate safety precautions and wear proper safety
equipment including gloves.
Note: This unit is for an install with studs on 16 inch
centers or less.
** For push buttons and other available parts,
contact your sales representative.
Tape Measure
Pin Punch
Drill
Metal Strapping
Installation Screws
Installation Screws
Hammer
Double Sided Tape
Pry Tool
Safety Glasses
Level
Flat Washer
File
Mallet
Screw Driver
Masking Tape
Pliers
Enclosed**
(x4)

Dispenser Removal
1. These instructions are for
converting an existing stainless
steel folded towel dispenser
with a trash can unit to a
recessed hard roll towel
dispensing system.
2. Locate the key and open
the door to the folded towel
dispenser.
1. 2.
2,5”2.5”
3. Now open the trash can lock
and remove the trash can part
of the installed wall unit. Set it
aside as it will be used again.
4. Determine how the system is
installed in the current location.
Determine where the screws
are located and ensure that the
system is properly secured.
5. Note that trash can system
needs to be securely installed.
Use 2.5 inch screws to tighten
the install if needed to provide a
secure install.
6. With the door closed and
locked to the towel dispenser,
take the pry tool and insert in
between the back recessed
housing and the door as
shown.
7. With a hammer pound the pry
tool down the side of the towel
dispenser.
8. When this process is completed
unlock, open the door and
inspect. This process will have
loosened the hinge system of
the folded towel dispenser.
3. 4.
5. 6.
7. 8.

Dispenser Removal
9. If present, remove and discard
the black folded towel holder.
1. Remove door and housing if
possible. Circumstances may
vary based on model.
2. Take the carriage bolts and the
angle brackets that came with
the dispenser and determine
whether the longer or the
shorter one is needed for the
install.
9. 10.
or
2.
3. 4.
1.
Carriage Bolt Method
There are two methods if installation that can be used for this dispenser, the carriage bolt
method and the strapping method. The Carriage Bolt Method and Strapping Method are
detailed in the following sections.
3. Carefully remove the cover on
the tape on back of housing.
4. Install the dispenser housing
in the area where the folded
towel dispenser was located.
This dispenser has a lip on top
and it is important to place the
lip over the top of the housing
still left in the wall as shown.
10. Take the housing frame to
be installed and turn it over.
Using the alcohol pads, clean
the bottom corners and allow
to air dry for 15 minutes. Then
place the VHB tape on each
bottom corner. Note: one or
two strips will be needed.
Leave the cover on the top
piece of tape.
