kincrome KP1012 User manual

500MM (20”)
HEAVY DUTY
PEDESTAL FAN
OSCILLATION,
ADJUSTABLE
HEIGHT
& TILT
INCLUDES
ANTI-TRIP
BASE
CONSTRUCTION
ENERGY
EFFICIENT
MOTOR
OSCILLATION,
ADJUSTABLE
HEIGHT
& TILT
INCLUDES
ANTI-TRIP
BASE
CONSTRUCTION
ENERGY
EFFICIENT
MOTOR
KP1012
ED1 (JULY 15)

2
500MM HEAVY DUTY PEDESTAL FAN
50FAN
Table of Contents
Know Your Product ....................... 2
Fan Safety Instructions ................ 3
Fan Assembly................................ 4
Fan Operation ............................... 5-6
Maintenance & Spare Parts......... 6-7
Warranty........................................ 7
Know Your Product
1. Front Safety Grill
2. Rear Safety Grill
3. 3 Speed Switch (On Rear Of Fan)
4. Fan Motor (On Rear Of Fan)
5. Oscillation Knob (On Rear Of Fan)
6. Fan Blade
7. Telescopic Locking Ring
8. Telescopic Stand
9. Anti-Trip Base
10. Tilt-Locking Knob (Below Fan Motor)
2
16
Specifications
Power……………………… ..................................................... 111W
Max. Motor Speed…............................................................1360/min
Diameter………………….......................................................500mm (20”)
Speed Selection……….........................................................3
Air Velocity…………..... ........................................................115m³/min
Blades……………………….....................................................5 X Aluminium
Head Action……………......................................................... Tiltable & Oscillating
Pedestal Height (Centre of blade to floor):......................................780mm x 1110mm
Climate Class………..... .......................................................T
Approvals……………….........................................................AS/NZS Compliant
Weight……………………….....................................................8.5kg
35
4
7
8
9
10

3
500MM HEAVY DUTY PEDESTAL FAN 500MM HEAVY DUTY PEDESTAL FAN
General Power Tools Safety Warnings
Save all warnings and instructions for future reference.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
1 Electrical Safety
a) Power lead plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
f) Do not operate powered products in explosive atmospheres, such as in the presence of flammable liquids, gases or
dust. Powered products create sparks which may ignite the dust or fumes.
g) Keep children and bystanders away while operating any powered products. Distractions can cause you to lose control.
2) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure
that the safety of the power tool is maintained.
3) Fan Additional Safety Instructions
a) This Fan is not intended for use by persons (including children) with physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the Fan by a
person responsible for their safety.
b) Children should be supervised to ensure that they do not play with the Fan.
c) Carefully read all instructions before operating the fan for the first time and save for future reference.
d) Do not use this Fan for anything other than its intended use. Do not use outdoors. Misuse may cause injury.
e) The installation of a residual current device (safety switch) is recommended to provide additional safety
protection when using electrical Fans. It is advisable that a safety switch with a rated residual operating current not
exceeding 30mA.
f) To protect against electric shock, do no immerse the fan, cord or plug in water or any other liquid.
g) Disconnect the power plug before dismantling, assembling or before cleaning and when the fan is not in use.
h) Avoid touching the moving parts of the fan.
i) Ensure the fan is on a dry and even surface.
j) Never insert fingers, pencils or any other objects through the guards.
k) The fan must have all guards assembled/fastened correctly, according to these instructions before use.
l) Do not operate in the presence of explosives and/or flammable fumes or liquids.
m) Never leave the fan running unattended.
n) Never carry the fan by the cord or pull the cord to disconnect from an outlet; instead, grasp the plug
and pull to disconnect.
o) It is recommended to regularly inspect the Fan. To avoid a hazard do not use the fan if power cord, power plug or Fan
becomes damaged in any way. Return the fan to the nearest authorised Service Centre for examination and/or repair.
4) Risk of Electric Shock
a) Never touch the mains plug and the socket with wet hands.
b) Do not pull the plug from the socket by pulling on the power cable.
c) Check the power cord and mains plug for damage before every use.
d) To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit
breaker (max. 30 mA nominal tripping current).
e) Check the appliance and the power cord regularly for any possible damage. Don’t use damaged appliances.
f) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.

4
500MM HEAVY DUTY PEDESTAL FAN
50FAN
5 Icons on Product
The following symbols are shown on the tool:
The Pedestal Fan is intended for indoor use only.
Read the instruction manual before use.
Warning
Electromagnetic compliance (C-Tick)
6) Unpacking
Unpack all the components from the box.
When unpacking the KP1012 500mm Heavy Duty Pedestal Fan, carefully inspect for any damage that may have occurred
during transit.
Check for loose parts, missing parts or damaged parts.
1. Ensure all packaging materials are disposed of as per your local council guide lines.
7) Assembling the Anti-Trip Base to the Telescopic Stand
1.
2.
3.
Place the anti-trip base (9) on the floor, with the screws facing upwards (Fig.1a), remove the 4 inner screws located
on the anti-trip base with a phillips head screw driver (not provided) (Fig.1b).
Once they have been removed, align the telescopic stand (8) square base with the 4 screws you removed in step 1,
then reinstall the 4 screws to secure the telescopic stand (8) to the anti-trip base (9) and tighten the screws (Fig.1c).
Once the telescopic stand (8) has been secured to the anti trip base (9), pull down the shroud cover, to
hide the screws (Fig.1d).
8) Assembling the Fan Motor to the Telescopic Stand
1.
2.
Allign the Fan Motor mounting bracket located at the bottom of the fan motor (4) onto the top of the telescopic
tube (8) (Fig.2a).
With the two screws supplied, secure the fan motor (4) to the telescopic stand (8) using a phillips head
screwdriver (not privided) (Fig.2b).
(Fig.2b)
(Fig.1a) (Fig.1b) (Fig.1c) (Fig.1d)
(Fig.2)

5
500MM HEAVY DUTY PEDESTAL FAN 500MM HEAVY DUTY PEDESTAL FAN

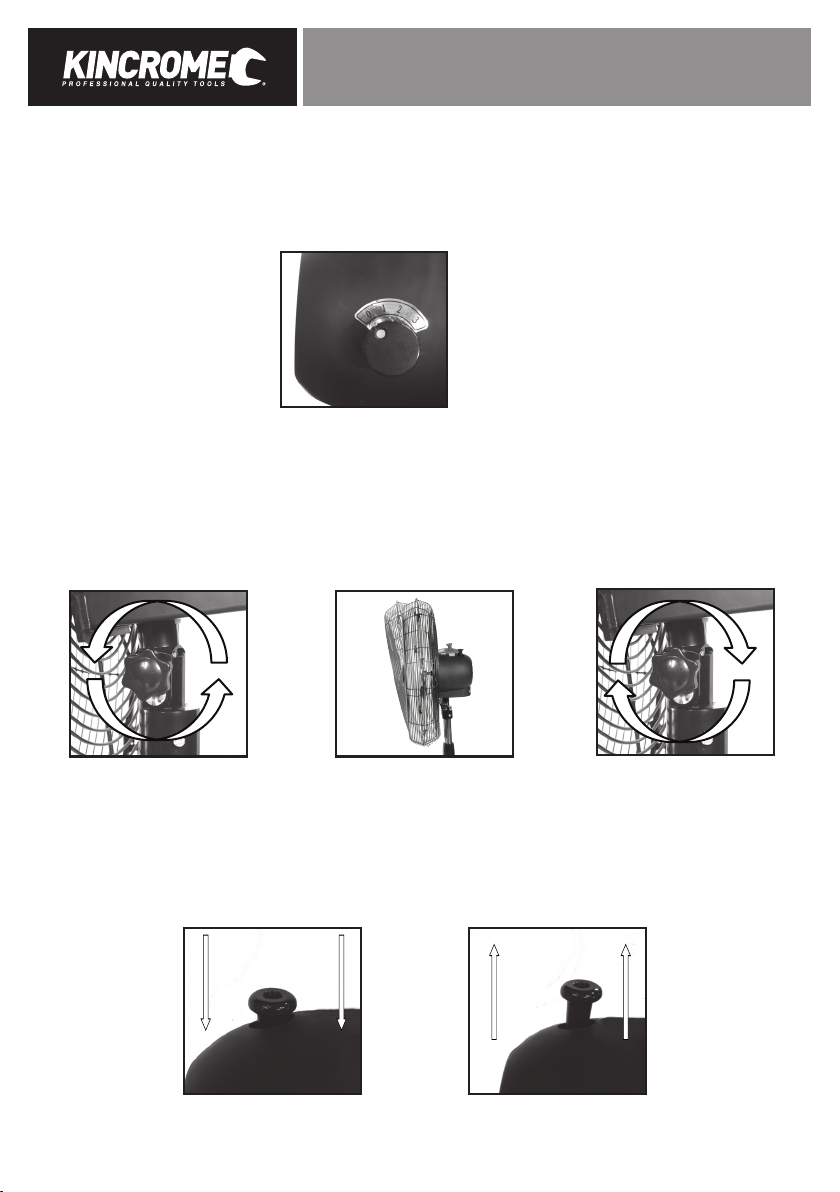

9) Operation
Caution: Prior to plugging in the unit ensure the switch is in the OFF (0) position.
1. Located at the rear of the fan motor (4) unit is the 3 speed switch (3) (Fig. 3).
2. Plug the unit into a wall socket and switch the socket ON.
3. Rotate the switch to the desired speed 0 – OFF, 1 – LOW, 2 – MEDIUM, 3 – HIGH.
4. To turn the unit OFF rotate the 3 speed switch (3) to the OFF position (0).
10) Fan Body Tilt Adjustment
Caution: Ensure the unit is turned OFF and unplugged, and the blades are stationary prior to making any adjustments.
1. To adjust the fan Tilt; loosen the tilt locking knob (10), located on the bottom of the fan motor (4) in an anti
2.
3.
4.
clockwise direction (Fig.4a).
Tilt the fan to the desired position (Fig.4b).
Re-tighten the tilt locking knob (10) in a clockwise direction, to lock the fan tilt in position (Fig.4c).
Plug the unit back in and turn ON to the desired speed.
11) Oscillating Adjustment
1. To adjust the fan Oscillation; push the oscillation knob (5) on the top of the fan motor (4) down to allow the
fan to oscillate from side to side (Fig.5a).
2. To stop the oscillation and use the fan in a fixed position pull the oscillation knob (5) up (Fig.5b).
Fig.3
(Fig.4a) (Fig.4b) (Fig.4c)
(Fig.5a) (Fig.5b)
OSCILLATION NON
OSCILLATION

6
500MM HEAVY DUTY PEDESTAL FAN
50FAN
12) Height Adjustment
Caution: Ensure the unit is turned OFF and unplugged, and the fan blades (6) are stationary prior to making any adjustments.
1. To adjust the fan Height; rotate the locking ring (7) on the telescopic stand (8) anti-clockwise (Fig.6a), this will allow you
to move the head up and down to the desired height (Fig.6b).
2. Once you have the fan at the desired height, rotate the locking ring (7) in a clockwise direction and firmly tighten (Fig.6c).
3. Plug the unit back in and turn ON to the desired speed.
13) Care & Maintenance
Caution: Prior to making any adjustments ensure the unit is turned OFF and unplugged, and the blades are stationary.
1. Disconnect the unit from the wall socket prior to cleaning the unit.
2. Remove the front safety grill (1), by unclipping the safety grill retaining clips located on the outer rim of the front and
rear safety grills (1 & 2) (Fig.7a & Fig.7b).
3. Remove the retaining bolt located on the bottom of the safety grill using a phillips head screwdriver
(not provided) (Fig.7c).
4. Clean the fan only with a slightly damp, soapy cloth, but ensure it is not too wet. After wiping down the unit with the
soapy cloth, dry any wet spots with a dry paper towel or dry clean cloth.
5. Do Not spray or rinse with any form of liquid and/or detergents.
6. To remount the front and rear safety grills do the reverse action to steps 2-3.
7. Store the fan in a clean dry area when not in use.
8. To prevent excess build up of dust and debris on the fan blade and grills purchase the optional accessory KP1001
500mm fan cover from your retailer (Fig.7d).
The fan cover will prevent dust build up leading to less cleaning of the fan blades and fan grills being required.
(Fig.6a) (Fig.6c)
(Fig.6b)
(Fig.7a) (Fig.7b) (Fig.7c) (Fig.7d)

7
500MM HEAVY DUTY PEDESTAL FAN 500MM HEAVY DUTY PEDESTAL FAN
14) Spare Parts
For a full list of available spare parts for this item visit the Kincrome website kincrome.com.au or alternatively contact Kincrome
Customer Service.
15) Office Contact Details:
Phone: [phone]
Fax: [phone]
Email: [email protected]om.au
Website: www.kincrome.com.au
16) Caring for the Environment
When a tool is no longer usable it should not be disposed of with household waste, but in an environmentally friendly way.
Please recycle where facilities exist. Check with your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution
in the environment. Please recycle packaging where facilities exist. Check with your local council authority
for recycling advice.
Notes:
17) Warranty
Warranty given by Kincrome Australia Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria (Tel [phone]). The applicable warranty
period (12 months) commences on the date that the product is purchased. If this product has materials or workmanship defects (other than defects
caused by abnormal or non warranted use) you can, at your cost, send the product to place of purchase, an authorised Kincrome service agent or one
of Kincromes addresses for repair or replacement. Your rights under this warranty are in addition to any other rights you have under the Australian
Consumer Law or other applicable laws. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For further
details please visit www.kincrome.com.au or call us. Due to minor changes in design or manufacture, the product you purchase may sometimes differ
from the one shown on the packaging.
