KingSlim D1 Dual User manual

USER MANUAL
KINGSLIM D1 Dual Dash Cam
v2.1

WHAT'S IN THE BOX
2
D1 Dual Dash Cam * 1 Waterproof
Rear Camera * 1
Car Charger with
External GPS * 1
23ft Rear Camera
Extension Cable * 1
Bracket * 1
Pry Tool * 1
Quick Start Guide * 1
Cable Clips * 5
Quick Start Guide
KingSlimD1 Dash Cam
V2.0
Screws * 2
Double-Sided Adhesive Tape
for Rear Camera * 1
EN

3

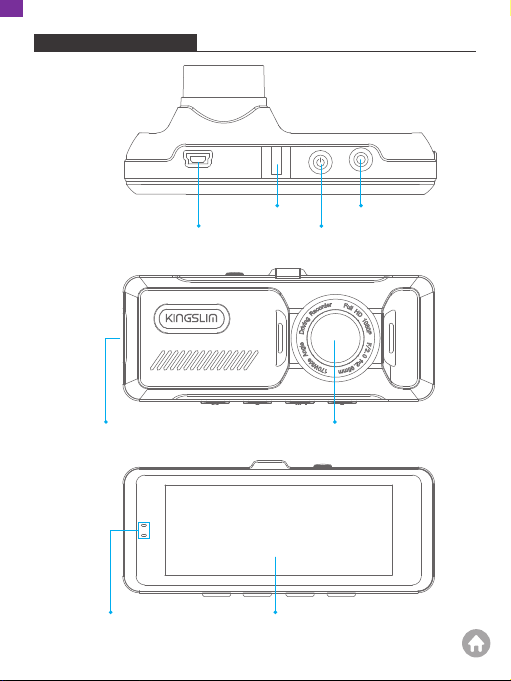

CAMERA OVERVIEW
Mini USB Power Port
Memory Card Slot
Power Button
Bracket Slot Rear Camera In
Lens
ScreenWorking Indicator
EN

4

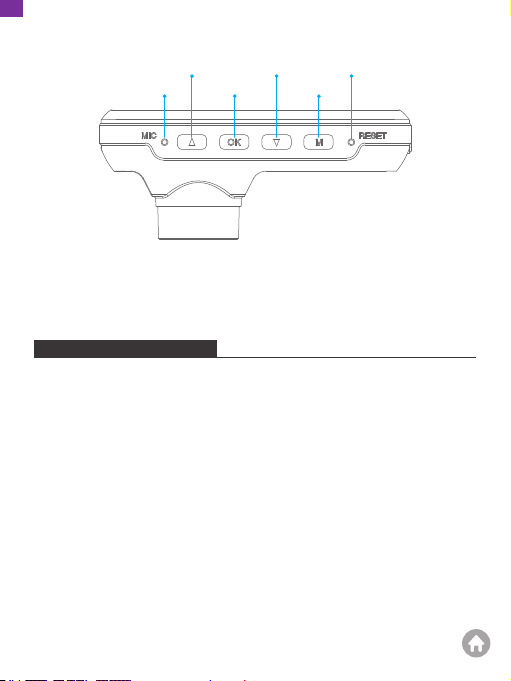

1. Power Button
Function 1: Press to wake up/turn off the screen.
Function 2: Long press to turn the camera on/off.
2. Menu Button
Function 1: Long press to enter the set-up menu.
Function 2: Press to switch the shooting mode/playback mode/recording mode.
Function 3: Press the menu button to lock the video during recording. Press the
menu button again to unlock.
Function 4: Press to exit the set-up menu.
3. OK Button
Function 1: Press to start/stop recording.
Function 2: In the shooting mode, press the OK button to shoot a photo.
Function 3: In the playback mode, press the OK button to start/stop videos.
Reset
Menu Button
Down Button
OK Button
Up Button
Microphone
PRODUCT OPERATION
EN

5
INSTALLATION

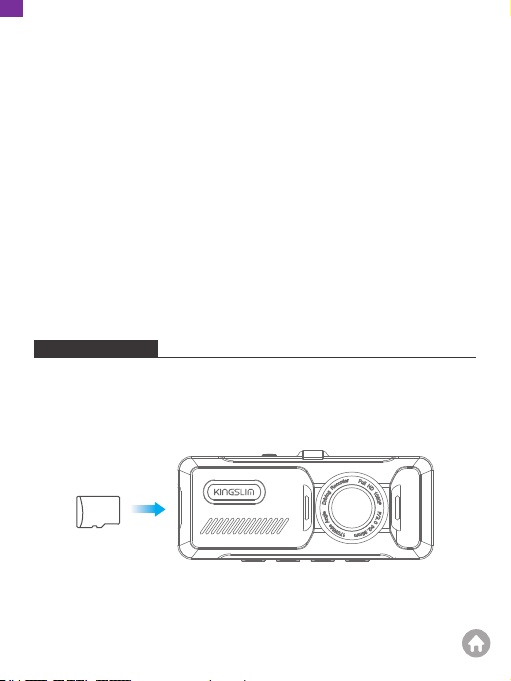

1. Insert the memory card (not included).
Tip: A Class 10 or higher memory card is highly recommended for the dash cam.
The dash cam supports a memory card up to 64GB. Please format your card in
the camera before using it in the dash cam.
4. Up Button
Function 1: In the set-up menu, press the up button to view the setting options.
Function 2: In the recording mode, press the up button to view the display modes.
Function 3: After pause recording, long press the up button to display the GPS
information.
5. Down Button
Function 1: In the set-up menu, press the down button to view the setting options.
Function 2: When recording, press the down button to turn audio on/off.
6. Working Indicator
Standby: The red and blue lights are on.
Recording during charging: The red light is on and the blue light is flashing.
Recording when fully charged: The blue light is flashing and the red light is off.
memory
card
EN

6
3. Install the dash cam on the windshield.
First, clean the windshield with a dry cloth. Second, take the film off the suction
cup and press the suction cup onto the windshield to make sure there is no air
inside the suction cup, and then rotate to secure the bracket.
4. Adjust the view angle of the dash cam to ensure a good view.
2. Insert the bracket into the bracket slot.
EN

7
5. Connect the USB power cable into the USB power port of the dash cam, then
plug the car charger into the cigarette lighter socket.

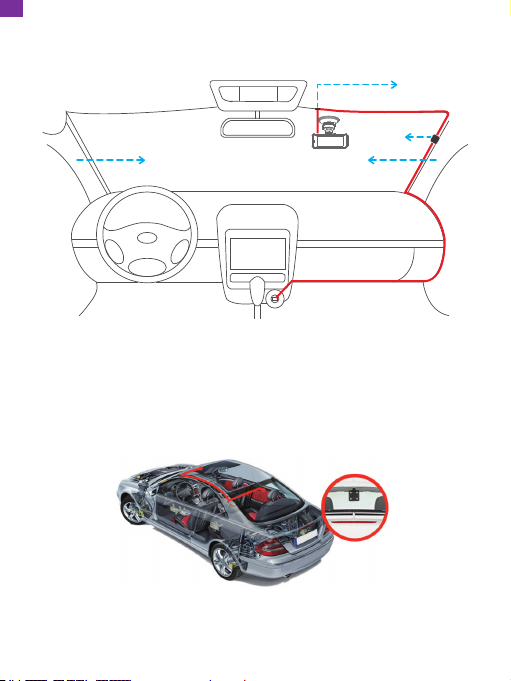

Cable clip
A-Pillar
A-Pillar
GPS
GPS
6. Connect the rear camera to the dash cam with the extension cable to check
that the rear camera works well.
7. Install the rear camera.
Position 1: Install the rear camera on the rear windshield. This installation is easier.
EN

8
Position 2: Install the rear camera near the license plate. Position 2 is highly
recommended. The rear image is crisp and clear for both rear viewing and as a
back-up camera.
Note:
①Pay attention to the connector position when connecting the rear camera with
the extension cable; please refer to the photo below.
②Clean the area to ensure the optimum adhesion before installing the rear
camera.
③If you choose position 1, clean the rear windshield regularly to ensure the image
quality.
④If you choose position 2, install the rear camera with the included adhesive
stickers or screws.
8. Use the pry tool to hide the cables.
EN

9
FORMATTING THE MEMORY CARD
Use a high-speed microSD card of Class 10 or higher. Please format your microSD
card in the camera's settings before using this dash cam.
1. Long press the menu button to access the set-up menu.
2. Press the down button to view "format", then press the OK button.
3. Select "Confirm" and then press the OK button.
RECORDING
1. After finishing formatting, connect a car charger and start the car engine.
The device will automatically turn on and begin recording.
2. Press the power button to turn on the device. Press the OK button to start
recording.
3. Every time you exit from the setting menu or playback menu, press the
OK button to start recording.

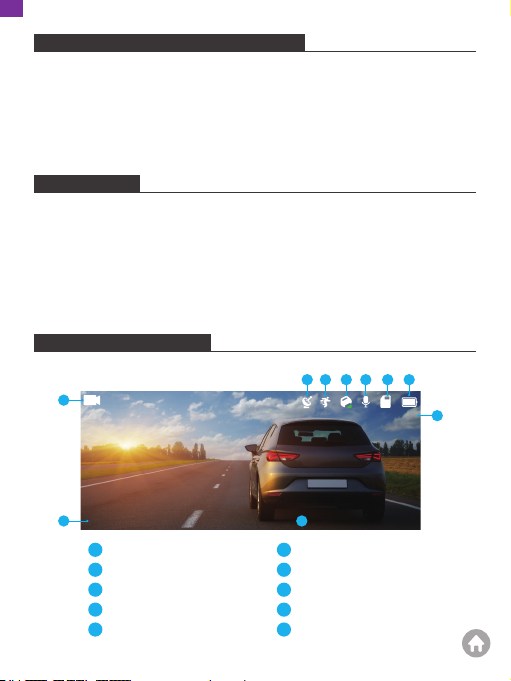

ICON INTRODUCTION
The Main Interface
Recording Resolution
GPS
Motion Detection
Gravity Sensor Indicator
Microphone Indicator
Memory Card Indicator
Power Status
Speed
Video Time
Date/Time
1
2
3
4
5
6
7
8
9
①
00 : 00 : 32 2021/01/20 08 : 02 : 30
1080FHD
70KM/H
1
2 3 4 6 7
8
910
EN
5
10

10
SETUP MENU
• Long press the menu button to enter the dash camera set-up menu.
• Press the up/down button to view the setting options. Select a setting option by
using the OK button.
• Press the menu button again to exit the set-up menu.
1. Resolution
Select "Resolution" and press the OK button to select the front camera recording
resolution of "1080FHD 1920×1080" or "720P 1280×720". The default setting is
"1080FHD 1920×1080". The rear camera recording resolution is "720P".
2. Loop Recording
If you enable Loop Recording and select the 3-minute option, the dash cam will
save videos every 3 minutes. New video files will overwrite the old ones to ensure
continuous recording when the microSD card is full. If it is set to Off, the camera
will not record anymore when the card is full. You will then need to format the
microSD card or replace it with a new one.
Options: Off/1 minute/3 minutes/5 minutes
Default Setting: 3 minutes
3. Photo Resolution
Set the photo resolution.
Options: 2M 1920×1080/5M 2592×1944/8M 3264×2448/12M 4032×3024
Default Setting: 2M 1920×1080
4. Video Audio
Sound will be recorded simultaneously with video.
Options: On and Off
Default Setting: On
5. Key Tone
Options: On and Off
Default Setting: On
EN

11
6. Date/Time
Set the date and time manually.
7. Date Stamp
Turn on the date stamp; recorded videos will show the time stamp.
Options: On and Off
Default Setting: On
8. Language Settings
Options: English/繁體中文/简体中文/日本語/Français/Deutsch/Polskie/ไทย/
Tiếng Việt/русский/Español/Italiana
Default Setting: English
9. Gravity Sensor
When the mode is turned on, it will automatically start recording and save content
if an impact or sudden braking is detected. The videos will be locked and will never
be overwritten by new files. The higher the sensitivity level, the easier it is to trigger
the emergency recording.
Options: Off/Low/Medium/High
Default Setting: Medium
10. Parking Monitoring
If an impact or sudden brake is detected during parking, the dash cam will
automatically start recording a 22-second video and save the content. The video
will be locked in the front or rear emergency video folder and will not be
overwritten by new video files.
Options: On and Off
Default Setting: Off
11. UTC
Choose the time zone manually. The device will then display the time in the
selected time zone.
Default Setting: UTC-5
After changing the time zone, restart your dash cam and make sure the time and
date are now correct.
EN

12
12. Speed Unit
You can set the speed unit that you prefer.
Options: KM/H and MP/H
Default Setting: KM/H
13. Motion Detection
In standby mode, the dash cam will automatically start recording when any motion
is detected.
Options: On and Off
Default Setting: Off
14. License Plate Setting
Enter your license plate number.
Options: On and Off
Default Setting: Off
15. Screen Saver
The display screen will turn off automatically after the set duration of inactivity.
Options: On and Off
Default Setting: On
16. Auto Power Off
The dash cam will be turned off automatically after the time you set.
Options: Off/1 minute/3 minutes/5 minutes
Default Setting: Off
17. Source Frequency
Choose the right frequency to avoid flickering. This should be based on your local
AC parameters.
Options: 60Hz/50Hz
Default Setting: 50Hz
EN

13
18. Format
Format the memory card.
Note:
① All data will be deleted. Before formatting your memory card, please remember
to back up your important data on another device.
② Before the memory card is inserted for the first time, please format it in the
camera to ensure that the card is compatible with the camera.
19. Reset
The dash cam will be reset to factory settings.
20. Version Number
Allow you to check the camera's version.
TROUBLESHOOTING
1. The dash cam is not recording.
• Check whether your memory card has enough space. Back up any important
data to another device first, and then format the memory card.
• Check if the loop recording in the settings menu is set to OFF.
Set "Loop Record" to 3 minutes.
2. The dash cam stops during recording.
During recording, a large amount of high-definition video data is processed.
Please use a high-speed memory card of Class 10 or higher.
3. A "File Error" prompt appears when playing back pictures and videos.
Use a genuine memory card, and be sure to format it.
DOWNLOAD THE GPS PLAYER
Download the GPS player: https://kingslim.net/pages/app-gps-download
EN

14
CAUTION!
1. Please place your device in a secure location and protect the lens from
scratches and dirt.
2. Do not expose the device to rain, moisture, or water under any circumstances.
3. Avoid leaving the device in direct sunlight for extended periods of time.
4. Do not remove or expose the internal battery.
4. The image is misty.
Ensure there are no fingerprints or other marks on the camera lens. Use a soft,
dry cloth to clean the lens. Clean the front windshield.
5. Crashing
If your device crashes, use a sharp object to press the reset button to restart the
device.
6. No sound on the video.
Ensure the audio recording mode is on.
7. The camera keeps turning on and off automatically.
Charge the camera with the included car charger. Do not charge the battery via
the USB data cable with other adapters.
EN
CONTACT US
For any inquiries about KingSlim products, please feel free to contact us.
We will respond within 24 hours.
Email: [email protected]
Tel: [phone] (US)
Official website: www.kingslim.net
