KingSlim D4 User manual

D4 Dash Cam
User Manual

GETTING STARTED
1. Memory card
2. First-time charging
3. Recording
4. Settings
5. Setting date & time
6. How to hide power cable inside your car’s dash board?
7. How to transfer videos to pc/mac?
8. Wifi
9. Camera specifications
10. What's in the box
11. Camera overview
12. Installation
13. Charging
14. Hardwire kit (sold separately) installation guide

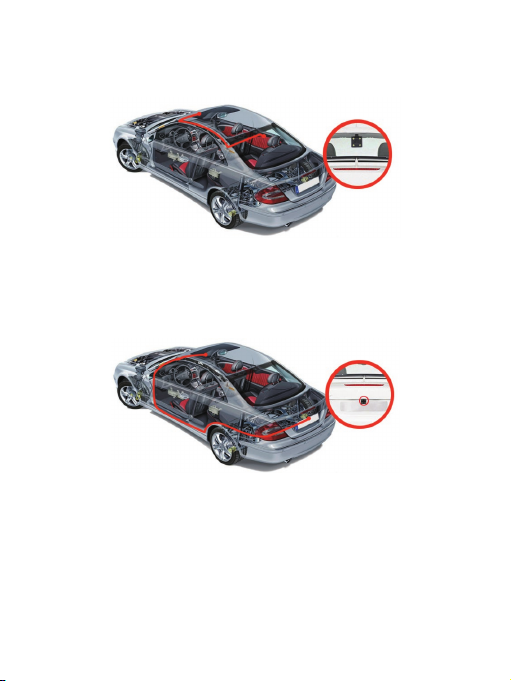

15. Install the rear camera
START RECORDING
1. Main interface
2. Gestures
3. Status icons
4. Led status light indicator
5. Time zone setting
CONTENTS
02
02
02
02
03
03
03
03
03
04
05
06
08
13
14
17
19
19
20
21
22
23

24
24
24
30
32
32
32
32
33
33
33
34
34
34
35
35
35
36
36
36
36
37
37
38
40
PLAYBACK
1. Dash cam playback
2. Kingslim app playback
3. Playback on pc/mac
SYSTEM SETTING
1. Resolution
2. Video encode
3. Speed unit
4. Screen dormant
5. Light source frequency
6. Impact sensitivity
7. Recording in parking mode
8. Date format
9. Audio recording
10. Volume
11. Loop recording
12. Time setting
13. Time zone setting
14. Languages
15. Format memory card
16. Gps info
17. Restore factory settings
18. About
GENERAL FAQ
CONTACT US

User agreement
By purchasing KINGSLIM Dash cam, it is assumed that by default you agree with precautions,
user warnings and all the terms & conditions of warranty. If for any reason you do not agree
with any of the terms mentioned in this manual, then you may return the product in its original
packaging unused within its return window for a full refund. Do not expose this product to rain,
moisture or water under any circumstances or it will result in external or internal damage. Do
not put the unit in a damp environment. This device is not designed to be damp proof. Do not
try to open the cover or try to repair it yourself. If the accessories for this device have any
problem, please contact the seller for assistance. This camera is intended to use inside motor
vehicle. Don’t install it where it will block the driver’s view of the road including mirrors or the
deployment of airbags. Please read this manual very carefully before using the camera or
installation and keep it safe for future reference. It will be helpful if you have any questions or
encounter any operational problems.
Pre-cautions
Please read and understand all instructions before using this product. If any damage is caused
by failure to follow the instructions, the warranty will be voided.
Warnings
Failure to comply with safety warnings and regulations can result in serious injury or death. Do
not place the camera loose on top of the dashboard or in-front of the air bags. Do not mount
the camera where it can be a distraction if it became loose and fall off the windshield while
driving. Do not expose this device to an excessive heat, dust or use any chemical substance or
cleaning solvent to clean this device. Instead use soft moist cloth for cleaning. Pay careful
attention when cleaning the lens surface. Use a soft, moist cloth to clean the lens to avoid
scratches which may compromise video quality. Removing the camera from the vehicle when
not in use is recommended. This prevents likelihood of theft or exposure to excessive heat to
prevent damage to unit. Do not operate or install the camera while driving, or attempt to
change any setting etc. Pull off the road first and only do so when it is safe. Do not drop,
puncture or disassemble this product. Do not use the charger if the cord is broken or damaged.
Keep out of reach of children. Do not leave the camera in the direct sunlight for a long period of
time or where temperature could go above 158°F (70°C). Some countries or USA states prohibit
drivers from mounting anything on windshield or prohibit mounting on certain area of the
windshield. It is owner/operator’s responsibility to mount or use of this device incompliance
with local laws. The company is NOT responsible for the loss of any data or your content during
operation or in any circumstance.
01

GETTING STARTED
Please read and understand warnings & safety instructions before operating.
1. Memory card
Before turning ON the camera, please insert the memory card in Class10 U3 or above of the known
brand at maximum of 256GB. Please format the memory card before use.
(See Page 08 for details)
Note:
The memory card is a consumable item and has a certain service life (please refer to the
description of the memory card of relevant brand for the specific product life). If the machine
prompts that it cannot be formatted, the card is wrong, or frequently prompts to format,
please replace the card with a new one. To ensure better protection of your memory card
and machine, please format it regularly within 2 months.
2. First-time charging
Now plug in to the power. The camera will turn on automatically as soon as it receives the power
and then it will prompt you with the initial setup on the screen for the first-time use. Make sure
to keep your camera plugging into the power all the time because the internal battery is ONLY
for emergency recording during parking mode.
Note:
1. You can use your iPhone or Android phone’s USB charger and USB cable to plug your dash
cam into your 110V power outlet.
2. If you don’t get the initial setup prompts for any reason, you can set the camera to factory
default settings, then re-start the camera to start the initial setup again.
3. Recording
KINGSLIM D4 4K dash cam is programmed to turn ON and start recording automatically when
it receives power, and when the power gets disconnected, it will stop recording, save the last
video safely and then shut down within 2 seconds automatically.
02

4. Settings
Now, by default all the settings are pre-set in a way that you can just start using the camera.
However, you can customize it further by learning more about the camera by either watching
How to Video or reading the User Manual so you can get the maximum benefit out of it and the
best use experience.
5. Setting date & time
Please set the correct date and time based on your location under the TIME ZONE SETTING by
going to camera’s system settings menu. (See Page 23 for details)
6. How to hide power cable inside your car’s dash board?
Many people on YouTube already demonstrated how and where to hide power cable inside
your car. You can view one of the possible ways on the link (this video is NOT recorded by us).
Video link: https://www.youtube.com/watch?v=CZYaV5Dh4ok
7. How to transfer videos to PC/Mac?
Insert memory card directly to your PC/Mac to view or download them. You can also connect
your camera to your PC/Mac with the USB data cable. Then Select Connect as a Flash Drive. We
recommend VLC Media Player to view your videos. You can get it free at www.videolan.org.
(See Page 30 for details)
8. Wifi
You can also connect KINGSLIM D4 Car Dash Cam to your smart phone directly by using built-in
Wifi feature. After your mobile phone is connected to the hotspot of our device, the 4G signal of
the mobile phone will be blocked, and it will automatically recover after disconnection. It is
recommended that you exit the APP or manually disconnect the device hotspot when you do
not need to connect the device to your phone. (See Page 25 for details)
03

9. Camera specifications
Sensor Sony IMX335
LCD touch screen 3 inch IPS
Video resolution 3840*2160 @30fps (front)*1080P (rear)
2560*1440p (front)+1080P (rear)
Photo resolution 12M
Lens aperture F/1.8
GPS Built in GPS
Wifi Built in
Video format MP4
Memory card Above Class10 U3 speed, max up to 256GB
G-sensor Built-in 3-Axis Impact Accelerometer Gravitational Sensor to lock &
protect the current video.
Anti flicker 60Hz, 50Hz
Loop recording Support-seamless recording
Parking Mode Support
24 hours/12 hours Support
Mic/Speaker Built-in Micro Phone & Speaker
Mini USB Function 1. Storage 2. Charging 3. Webcam
Auto Power ON/OFF Support
Power Interface 5V、1.5A
Battery Built-in li-ion battery 250mAh
Operation Temperature -4°F (-20°C) ~ 140°F（60°C)
SupportD/M M/D/Y Y/M/D
04

D4 Dual Dash Cam
* 1
Waterproof
Rear Camera * 1
Car Charger with
3.5m Power Cable * 1
Dash Cam Bracket
* 1
7m Rear Camera
Extension Cable * 1
Static Sticker
* 2
Double-sided Adhesive
Tape for Rear Camera * 4
Double-sided Adhesive
Tape for Dash Cam * 2
Screws
* 2
Car Crowbar
* 1
Cable Clips
* 5
Quick Start Guide
* 1
10. What's in the box
Quick Start Guide
KingSlimD4 Dash Cam
V1.0
05

11. Camera overview
RST
Memory Card Slot
Bracket Slot
Rear Camera IN
Power Button
Hold: Power on/off Press: Turn off/wake up screen
Front Camera
Please remove the front lens film
before use.
Speaker
MIC
Working Indicator
Mini USB Power Port
06

Screen
Vent
Mini USB Power Port
07

① To install
Make sure the camera is turned OFF first. Insert the memory card half way in. Then use the
finger nail to push the card all the way inward until it clicks and locks in place.
② To remove card
To remove the memory card, gently push its edge inward until it clicks, and then pops out,
then simply pull it out of the slot.
RST
RST
RST
Tip: We recommend formatting your memory card every 2 months to keep it
running smoothly. The memory card has a certain life span. After repeated
reading, writing, and wiping, the life of the memory card will be shortened.
When the card frequently reports errors, please replace it with a new one.
12. Installation
1. Memory card use
A Class 10 or above memory card is highly recommended for the D4 dash cam (memory card
is not included). D4 dash cam supports an up to 256GB memory card. Please format your card
in the camera before using this dash cam. Do not remove or insert the memory card when the
dash cam is turned on. This may damage the memory card. We recommend SAMSUNG
Classic10 U3 or higher speed memory SD card. You can purchase it from Amazon:
Click this link to purchase.
memory
card
08

00:00:34 2020-07-17 13:47 Settings
Language
Format SD
GPS Info
English
③ Formatting the memory card
Please format your memory card in the camera before using this dash cam and use a high-
speed memory card of Class10 or higher.
a. Tap the “Settings” icon to enter the Settings page.
b. Select "Format Memory Card", then tap the "Confirm" icon. Wait a few seconds to finish the
formatting and the system will exit automatically.
2. Install the dash cam on the bracket.
09

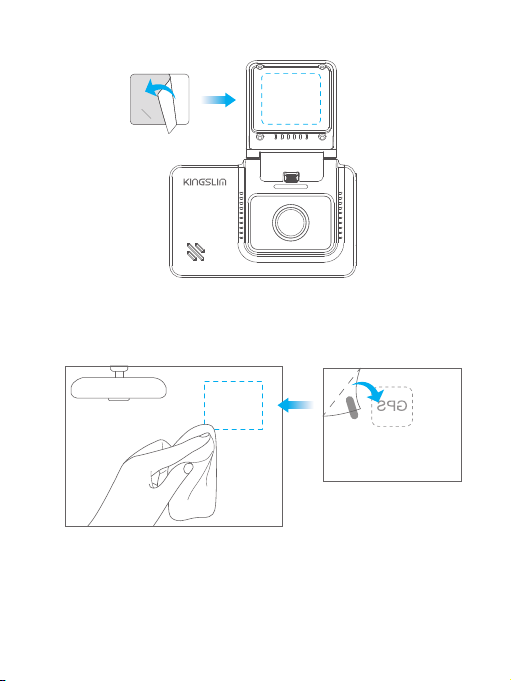

3. Take off one film on the dash cam bracket sticker, and apply it to the dash cam bracket.
4. Clean the windshield with a dry cloth, then take off the film of the static sticker, apply
the static sticker to the windshield and make sure there is no air inside.
10

5. Peel off the other film on the dash cam bracket sticker, and secure it on the static sticker.
Notes:
① If you want to remove the dash cam, please take off the static sticker.
② If you don't want to use static sticker, you can stick the dash cam on the windshield.
6. Adjust the viewing angle.
RST
11

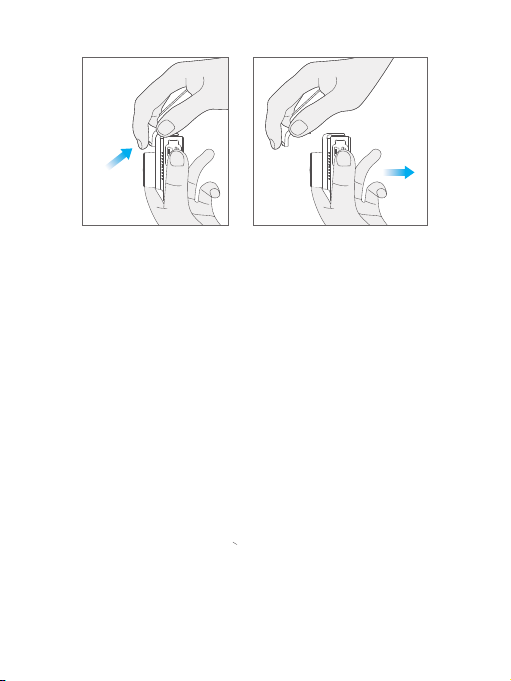

7. Press the buckle firmly with your finger, and push the camera out at the same time.
RST RST
12

13. Charging
1. Connect the USB power cable into the USB power port of D4 Dash Cam, then plug the car
charger into the cigarette lighter of your car.
Do NOT connect the camera to PC for charging. Instead use the 110V wall outlet.
The device will start up automatically and record as soon as power supplied, and the device will
save the last video file and power off automatically after cutting the power supply.
2. Turning your camera ON/OFF
Auto Power ON: KINGSLIM D4 is designed to turn ON automatically when it receives power,
i.e. when the car engine is started.
Auto Power OFF: The camera is also pre-configured to turn itself OFF automatically within few
seconds when the power gets disconnected, i.e. when the car key is turned to
LOCK position.
3. Note:
Some trucks/car’s 12V cigarette outlet is always HOT, which means it provides constant
power even when the car is turned off and locked. If this is the case for your vehicle, the auto
ON/OFF feature will not work. And if you leave the camera continuously recording when the
car is turned off, the it will drain your car/truck’s battery and you might not have enough
power to start your car for next time. To remedy this situation, you can do one of the two
options:
① Hardwire your dash cam to your car’s fuse box with KINGSLIM 3 lead auto trigger
hardwire kit. Visit www.kingslim.net to purchase one separately.
② Change the connection in the fuse box for your 12V outlet socket which only supplies
power when car key is turned to ACC or ON position.
RST
Car cigarette lighter socket Car cigarette lighter plug D4 Dash Cam
13

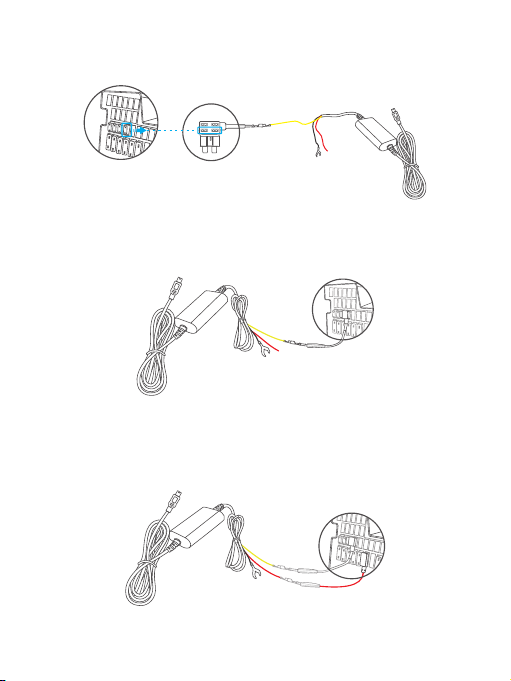

14. Hardwire kit (sold separately) installation guide
Notice:
1. We strongly suggest the professional installation of the hardwire kit. If you attempt to
install it by yourself, KINGSLIM will not take the responsibility or liability for any product
and vehicle damage or personal injuries due to improper operation during the process.
2. Make sure to turn off car’s engine before installing the hardwire kit.
3. Carefully utilize the tool to test and check the polarity and grounding before confirming
the installation.
4. For safety reason, we strongly recommend that you do not use any fuse slot for your
vehicle’s critical components, especially those for air bags.
1. Installation
① Connect the yellow wire with fuse taps.
Yellow wire (to constant fuse slot)
Red wire (to an ACC fuse slot)
Black wire (to a metal ground wire)
14

② Open the cover of fuse box and find a constant fuse slot. Remove the original fuse in the
constant fuse slot and install it into the bottom slots of the fuse tap.
③ Connect the fuse tap to the positive terminal of your constant fuse slot.
④ Connect the red wire of the hardwire kit to the positive terminal of the ACC fuse slot in the
fuse box. ACC fuse slot only has power when the ignition is on.
15

EN
⑤ Crimp the black wire and screw it down to any non-coated metal bolt/screw in your vehicle
to ground it.
⑥ Connect the USB connector of the hardwire kit to the USB input of your dash camera.
2. Low voltage protection
When the voltage detected by the hardwire kit is lower than 11.6V/23.5 (it varies depending on
your vehicle), the hardwire kit will automatically cut off the power after 60s.
Note:
Make sure that the camera’s view is not obstructed by any tint or any other objects. If your
vehicle has side curtain airbags, please be very careful when running any cables along your
vehicle windows. Ensure you are not running cable past any of the airbags as this can
prevent the airbags from deploying.
16

EN
15. Install rear camera
Position 1: Install the rear camera on the rear windshield. The installation is easier when using
this method. The power cables are routed as follows:
Position 2: It is recommended to install the rear camera near the license plate. In this way, the
image is crisp and clear for both rear viewing and reversing guide. The power cables
are routed as follows:
17
