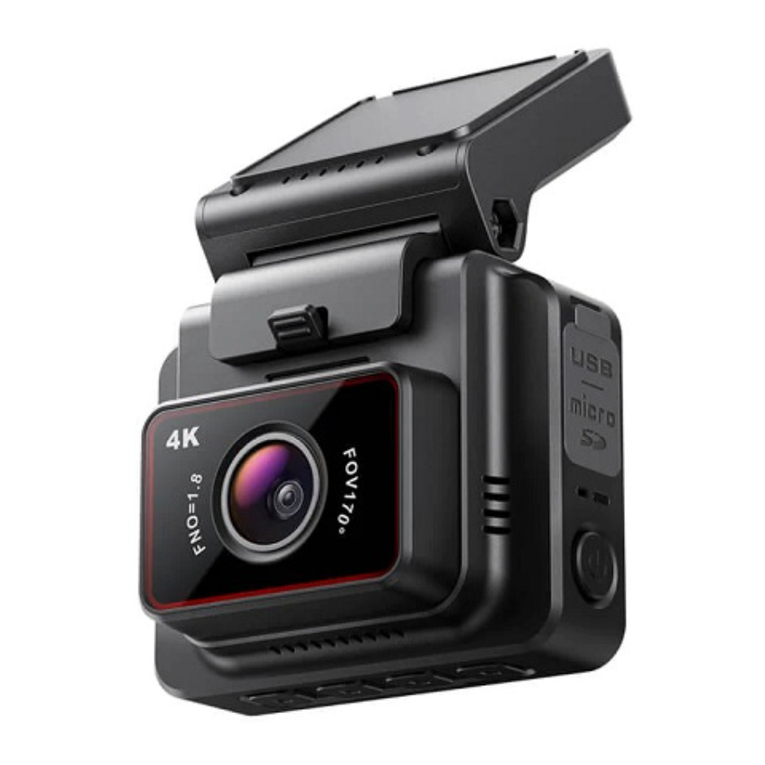

KingSlim D5 User manual
V2.0
D5
DASH CAM
User Agreement
By purchasing Kingslim dash cams, you agree to Kingslim's terms and conditions,
which include precautions, user warnings, and warranty coverage. If you do not
agree to any of these terms mentioned in this manual for any reason, you may
return the product unused and in its original packaging within the stated return
window for a full refund.
1. To prevent external or internal damage, never expose this dash cam to rain,
moisture, or water under any circumstances.
2. This device is not designed to be damp-proof, so avoid placing it in damp
environments. Also, please refrain from opening the cover or attempting to repair
the product yourself. Instead, contact us for assistance if there are any problems
with accessories.
3. This camera is intended for use inside your vehicle only. Do not install it in locations
that obstruct the driver’s view of the road, such as mirrors or airbag deployment
zones.
4. Please read this manual carefully before using or installing the camera, and keep
it for future reference. It can help answer any questions or address any difficulties
you may encounter while using this product.
Pre-cautions
Please read and understand all the instructions before using this product. If any
damage is caused by failure to follow the instructions, the warranty will be voided.
Warnings
1. Please take note of safety warnings and regulations as failure to comply may result
in serious injury or death.
2. Avoid placing the camera on top of the instrument panel or in front of the airbag
as it may fall and cause harm.
3. Do not mount the camera anywhere on the windshield that may loosen or distract
you while driving.
4. Refrain from exposing the device to extreme heat or dust, and avoid using any
chemical substances or cleaning solvents to clean it.
5. When cleaning the lens, be careful and use a soft, moist cloth to prevent scratches
that can compromise video quality.
6. We recommend removing the camera from your vehicle when not in use to prevent
theft or damage from exposure to extreme heat.
7. Operating or installing the camera while driving or making any adjustments is
strictly prohibited; please pull over first and do so only when it is safe.
8. Please handle the camera with care and refrain from dropping, puncturing, or
disassembling it.
9. If the car charger cord is broken or damaged, do not use it.
10. Keep this product out of reach of children, and avoid exposing it to direct sunlight
for extended periods or temperatures exceeding 158°F (70°C).
11. Please note that some countries or states in the United States prohibit drivers
from mounting anything on certain areas of the windshield, and it is the responsibility
of the owner or operator to comply with local laws when mounting or using this
device.
12. Lastly, please be advised that the company is not liable for any loss of data or
content during operation or under any circumstances.
Camera Specifications ---------------------------------------------------------------------- 01
Getting Started--------------------------------------------------------------------------------- 02
1. Inserting Memory Card -------------------------------------------------------------------- 02
2. First-Time Charging ------------------------------------------------------------------------- 02
3. Settings ----------------------------------------------------------------------------------------- 02
4. Recording ------------------------------------------------------------------------------------- 03
5. Setting Time Zone --------------------------------------------------------------------------- 03
What’s in the Box------------------------------------------------------------------------------ 04
Camera Overview ----------------------------------------------------------------------------- 05
Icon Introduction ----------------------------------------------------------------------------- 06
LED Indicators ---------------------------------------------------------------------------------- 08
Installation--------------------------------------------------------------------------------------- 09
1. Memory card use---------------------------------------------------------------------------- 09
2. Install the dash cam on the windshield----------------------------------------------- 12
3. Charging---------------------------------------------------------------------------------------- 13
4. Install the hardwire kit --------------------------------------------------------------------- 14
Start Recording -------------------------------------------------------------------------------- 15
Playback Videos ------------------------------------------------------------------------------- 16
1. Playback on the dash cam ---------------------------------------------------------------- 16
2. Playback on a computer------------------------------------------------------------------- 17
3. Playback on the Kingslim APP------------------------------------------------------------ 20
4. Playback on the phone’s album --------------------------------------------------------- 20
Setup Menu ------------------------------------------------------------------------------------- 21
About the Kingslim APP -------------------------------------------------------------------- 26
1. Download the Kingslim APP -------------------------------------------------------------- 26
2. Connect to the Kingslim APP------------------------------------------------------------- 26
Contents
3. Use the Kingslim APP----------------------------------------------------------------------- 29
4. Playback videos on the Kingslim APP-------------------------------------------------- 30
5. Download videos from the Kingslim APP--------------------------------------------- 31
General FAQ------------------------------------------------------------------------------------- 33
A Big Thank You ------------------------------------------------------------------------------- 35
Contact Us --------------------------------------------------------------------------------------- 36
Video resolution
Lens aperture
GPS
Wifi
Video format
Memory card
G-sensor
Light source frequency
Loop recording
Parking monitor
Mic/Speaker
Mini USB Function
Auto Power ON/OFF
Power Interface
Battery
Operation Temperature
4K, 2K, 1080P
F/1.8
Built-in
Built-in
MP4
Class 10 U3 or higher, capacity up to 256GB
Built-in 3-axis gyroscope
60Hz, 50Hz
Seamless loop recording
Support
Built-in Microphone & Speaker
Support
Support
5V/ 2A
Built-in 300mAh li-ion battery
-4°F (-20°C) - 140°F (60°C)
Camera specifications
Tip: Dash cams are electronic devices that contain various components, including a
processor, memory, camera lens, and other circuitry. When it's in use, it generates
heat due to the power consumption and operation of these components. The heat
generated during operation can cause the camera to heat up. Rest assured that
our dash cams are equipped with radiators and vents to dissipate heat, and they
operate within a temperature range of -4°F (-20°C) to 140°F (60°C). The dash cam
can still work normally though it heats up. We recommend you turn on the air
conditioning to dispel the heat inside your car before using your camera. Besides,
we suggest parking your car in a location that allows for sufficient airflow and to
protect your dash cam from direct sunlight or extreme temperatures.
Getting Started
Please read and understand warnings & safety instructions before operating.
1. Inserting Memory Card
To record video, you need to insert a memory card, and complete the formatting
process. We recommend you use a Class 10 U3 or higher memory card of
well-known brands at a maximum of 256GB.
Kind reminder:
1) Please format the memory card on the computer and then in the camera’s
settings for better compatibility.
2) We recommend you format the memory card every two months for better
performance. Reformatting will erase all data on the SD card, so make sure you
have backed up all your important files before formatting.
2. First-Time Charging
To begin using your dash cam, please plug it in. The camera will turn on automatically
as soon as it receives power and prompt you to complete the initial setup on the
screen for first-time use. It's important to keep your camera plugged into power at
all times since the internal battery is only for emergency recording during parking
mode.
Warm tips:
1) You can use your iPhone or Android phone’s USB charger to plug your dash cam
into a 110V power outlet.
2) If you don’t get the initial setup prompts for any reason, please reset your camera,
then restart it for the initial setup.
3. Settings
By default, all settings are pre-set so that you can start using the camera right away
without any additional adjustments. However, you can customize it further by
learning more about the camera by either watching How to Video on Youtube or
reading the User Manual so you can get the maximum benefit out of it and the best
user experience.
01-01-2023
4K
00:00:00
00:00:00
4. Recording
KINGSLIM 4K D5 dash cam is programmed to turn on and start recording automatically
when it receives power. It will also start recording after you finish changing settings.
To pause recording, please press the button. When unplugged, this dash cam
will also automatically stop recording, safely save the last video, and shut down
within 5 seconds.
5. Setting Time Zone
Before using this dash cam, please manually set the time zone according to your
location. To do this, please press the Settings button to enter the Setup
screen, then navigate to “TimeZone”, and then press the OK button to complete the
setting. When the GPS is functioning properly, the dash cam's date and time will
automatically synchronize with your local time. You can also manually set the date
and time by accessing the setup menu.
Setup
Wifi
EV
Timezone
Off
0
On
UTC/GMT-Off
GPS
Setup
Screen Saver
License
Frequency
Off
ON
MM/DD/YY
60Hz
Date/Time
Camera Overview
3
11
2
1
6
8
7
9
10
5
4
1
2
3
4
511
10
7
6
8
9
Function Button
Bracket Slot
Front Camera
Mini USB Power Port 1 (Power supply)
Mini USB Power Port 2
Memory Card Slot
Reset Hole
Indicator Light
Power Button
Speaker
Screen
01-01-2023
4K
00:00:01
00:00:01
01-01-2023
4K
00:00:00
00:00:00
Icon Introduction
Preview Screen
Recording Screen
21 3 4 5
6 98 10 11
2 3 4 5
76
1
1
2
3
4
5
6
Recording Resolution
Used Memory Storage
Parking Mode
GPS
Audio Recording (On)
Wifi (Off)
7
8
9
10
11
Power status
Date & Time
Playback
Settings
Start recording
1
2
3
4
5
Video Time
Audio Recording
Snapshot
Unlock Video
Pause Recording
1
2
3
4
5
6
Video File
Lock File
Photo File
Back
Previous
Next
Confirm
7
Album
Playback Screen
01-01-2023
4K
00:00:01
00:00:01
7
6
4 5 6 7
123
6
7
Emergency Video Time
Lock Video
LED Indicators
Purple light staying on
Blue light flashing
Red and purple lights
flashing alternatively
Charging+Not Recording
Fully Charged + Parking Mode On
Charging+Recording/ G-sensor Mode On
Setup Screen
The indicator light is located beside the Power button.
1
2
3
4
Back
Previous
Next
Confirm
Setup
Resolution
Loop Recording
Time Lapse
4K P30
1 Min
Low
Off
G-sensor
1 2 3 4
Installation
1. Memory card use
To record videos, you need a compatible memory card (sold separately). We
recommend you use a Samsung/Sandisk/Kingston Class 10 U3 or high memory
card for your D5 dash cam. This dash cam supports a memory card of up to 256GB.
Warm tip:
(1) To make your memory card more compatible with the dash cam, please format
it on your computer first and then in the camera settings before using it.
(2) Do not remove or insert the memory card when the dash cam is turned on as
this may cause damage to your card.
(3) You need to complete the formatting process each time you insert the memory
card.
1.1 Insert the memory card
Before inserting the memory card, please ensure that the camera is turned off.
Insert the card halfway into the slot, then use your finger or fingernail to push the
card all the way in until you hear a click indicating that it has locked into place.
Tip: Please follow the direction indicated on the camera to insert the card.
1.2 Format the memory card
(1) Format the memory card on the computer
We recommend you format your memory card on a computer first for better
compatibility. The following instructions are for your reference only.
➀Insert the SD card into the computer's card reader. If your computer does not
have a built-in card reader, you can use an external card reader that connects to
a USB port.
➁Open File Explorer (Windows) or Finder (Mac) and locate the SD card. It should
appear as a removable disk.
➂Right-click on the SD card and select "Format" (Windows) or "Erase" (Mac).
Alternatively, you can select the SD card and then click on the "Format" (Windows)
or "Erase" (Mac) button located in the toolbar.
➃Choose the file system format you want to use for the SD card. The most common
file system formats are FAT32 and exFAT. FAT32 is compatible with most devices
but has a maximum file size limit of 4GB. exFAT supports larger file sizes but may
not be compatible with some devices. Optionally, give the SD card a new name.
➄Select "Start" (Windows) or "Erase" (Mac) to begin the formatting process. This
will erase all data on the SD card, so make sure you have backed up all your
important files before formatting.
➅Wait for the formatting process to complete. It may take several minutes
depending on the size of the SD card.
➆Eject the SD card from the computer and remove it from the card reader.
(2) Format the memory card in the camera
Before recording videos, please format the memory card in the camera by accessing
the Setup screen. In case you have not yet done so, an error message will appear
prompting you to insert the memory card. Please follow the instructions below to
format the memory card.
➀Please press the Settings button to enter the Setup screen.
01-01-2023
4K
00:00:00
00:00:00
➁Press the Down button to locate the “Format” option, then press the OK button
to enter the formatting screen.
➂ On this screen, press the Down button to “Confirm”, then press the OK button to
complete formatting. The system will exit automatically.
Setup
Resolution
Loop Recording
Time Lapse
4K P30
1 Min
Low
Off
G-sensor
Setup
Date/Time
Date Stamp
Lauguage
MM/DD/YY
On
English
Format
Format
Format SD?
Cancel Comfirm
Format
Format SD?
Cancel Comfirm
Kind reminder: All data will be deleted after formatting. Be sure to back up your
important files before formatting. To ensure the memory card’s optimal performance,
we recommend formatting it every two months. Keep in mind that memory cards
have a limited lifespan, and frequent reading, writing, and erasing can shorten their
lifespan. If you’re prompted about frequent card errors or glitches, please replace
it with a new one.
1.3 Remove the memory card
If you want to remove the memory card, gently push its edge inward until it clicks,
then pops out, and then simply pull it out of the slot.
2. Install the dash cam on the windshield
➀Choose the right spot: Select a suitable location on your windshield where the
dash cam will have a clear and unobstructed view of the road ahead. Typically,
this is near the rearview mirror or on the passenger side of the windshield.
➁Prepare the area: Clean the area thoroughly with a microfiber cloth to remove
any dust, dirt, or oil that could affect the bracket's grip.
➂Attach the bracket: Attach the GPS bracket onto the dash cam by aligning the
notches, then press the buckle downward till the bracket is installed in place.
➃Place the dash cam: First, remove the protective film of the electrostatic sticker
and place the sticker onto the windshield. Second, peel off the protective film
from the 3M adhesive tape and attach it to the GPS bracket. Third, remove the
other film on the tape and firmly press the bracket onto the surface of the
electrostatic sticker on the windshield. Please make sure it sticks securely.
➄ Adjust the angle: Adjust the dash cam's angle by tilting the mount or rotating the
camera lens until it faces directly ahead.
➅ Plug in the dash cam. Simply connect the car charger to the dash cam, then
insert the charger into the car cigarette lighter for charging.
➆ Use the pry tool to hide the cables.
3. Charging
3.1 How to charge:
To charge your dash cam, please connect the car charger to the dash cam’s mini
USB power port, then insert the charger into the car’s cigarette lighter socket.
(Charger input: DC 12-24V, output: DC 5V 2A)
Cable Clip
Electrostatic Sticker
Note:
➀Please charge the dash cam for 30 minutes before using it. When charging,
please turn off the camera by long pressing the power button.
➁Kindly refrain from connecting the camera to your PC for charging purposes.
Please utilize the 110V wall outlet instead.
3.2 Turn your camera ON/OFF
Auto Power ON:
KINGSLIM D5 dash cam is designed to turn ON automatically when it receives power,
i.e. when the car engine is started.
Auto Power OFF:
The camera is also pre-configured to turn OFF automatically within a few seconds
when the power gets disconnected, i.e. when the car key is turned to the LOCK
position.
4. Install the hardwire kit
This camera comes equipped with a built-in battery designed specifically for parking
mode. To activate parking mode, it is necessary to leave the dash cam plugged in.
However, this can result in battery drain. For this reason, we highly recommend
installing a hardwire kit for your dash cam.
Installing the hardwire kit not only helps prevent the camera battery from draining
the car battery thanks to its smart low voltage protection system but also provides
a continuous and stable power supply.
Kind reminder: For your safety, we strongly advise that you have a professional
installer handle the hardwire kit installation.
01-01-2023
4K
00:00:01
00:00:01
Once you've successfully set up your dash cam, it will automatically turn on and start
recording as soon as it receives power. You'll know it's working when the indicator
light flashes purple and red alternately. To start recording, just press the button.
Start Recording
Other manuals for D5
2
Table of contents
Other KingSlim Dashcam manuals
KingSlim
KingSlim D1 Pro User manual
KingSlim
KingSlim D4 User manual
KingSlim
KingSlim D4 PRO User manual
KingSlim
KingSlim D1 Pro User manual
KingSlim
KingSlim D1 Dual User manual
KingSlim
KingSlim DL12 Pro User manual
KingSlim
KingSlim D4 User manual
KingSlim
KingSlim D1 Pro User manual
KingSlim
KingSlim D1 Pro User manual
KingSlim
KingSlim D6 User manual
KingSlim
KingSlim D2 User manual
KingSlim
KingSlim DL12 Pro User manual
KingSlim
KingSlim D2 User manual
KingSlim
KingSlim D6 User manual
KingSlim
KingSlim D4 User manual
KingSlim
KingSlim D4 User manual
KingSlim
KingSlim D4 PRO User manual
KingSlim
KingSlim D4 User manual
KingSlim
KingSlim D2 PRO User manual
KingSlim
KingSlim D1 Pro User manual
