KINGSONG KS-16S User manual

KS-16S
User
Manual

WARNING
Electric unicycle is designed for the outdoors and short distance personal
transport.
SAFETY IS THE NUMBER ONE PRIORITY!
PLEASE RIDE UNDER LOCAL LAW!
The user manual below is a quick and convenient guide of safety & item
functions/features to end user. We can’t ensure all types of situation emergen-
cy are covered. Therefore, we STRONGLY remind you to read this guide very
carefully, and ride with attention to ensure your safety.
Riding like all outdoor activities comes with it’s risks. You risk serious danger
and injury if you fall, collide or lose of control when riding, please ride with
caution and at your own risk.
Thanks you for purchasing King Song smart electric unicycle!

Contents
1. Product Details--------------------------------------------------------01
2. Safety--------------------------------------------------------------------04
3. Features-----------------------------------------------------------------06
4. Precautions and Preparation---------------------------------------07
5. Battery-------------------------------------------------------------------10
6. Maintenance-----------------------------------------------------------12
7. Warranty----------------------------------------------------------------13

1. Product Details

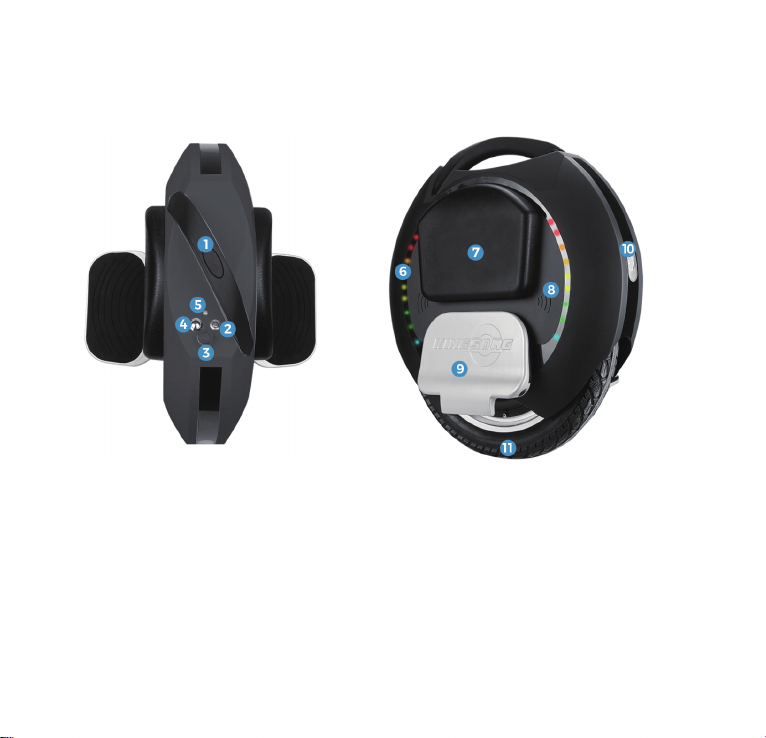

1.1 Diagram: KS-16S
1. Trolley Bar
2. Auxiliary Button
3. Charging Port
4. Power ON/OFF Button
5. Light Sensor
6. RGB Light
7. Pad
8. Speaker
9. Pedal
10. illuminating Light
11. Tire
01

16 x 2.125 inches
4.7 inches
18.2 x 7.7 x 19.9 inches
1200W
≈7h
Input AC 80~240V, Output DC 67.2V 2A
265 lbs
-10℃/+45℃
≤ 30°
≈49.7 miles
21.7 mph
12.4 mph
16S
Tire Size
Distance from
ground
Product Size
Rated Power
Charging Time
Charger Voltage
Max Load
Operating
Temperature
Climbing Angle
Mileage
Top Speed
Rated Speed
Model No
1.2 Specifications
02

1x Charger, 1x Manual, 1x Warranty card,
1x QC certificate
38.4 lbs
Standard
Accessory
Net Weight
1.3 Main Functions
• Light sensor: Detecting light intensity, Lights on when it is
dark, otherwise, it keeps off.
• BT/Speaker: BT makes us can access to riding information
in app like mileage etc; Audio BT is activated automatically
when power on, you can enjoy music during riding.
• Integrated trolley bar: wheels can be pushed to move
rather than lift up with this integrated trolley bar make the
wheel easier to be carried on.
• USB Port: Portable electrics can be charged Via this USB.
• RGB Light: Shinning during riding, indicates the battery
level while it is on and stop.
• Over side-lean protection: When the lean angle of wheel
exceeds 45°, motor will stop running and will recovery
automatically once back it vertically.
• Buzzer and voice prompt: To ensure safety, there will be
03

voice prompt to alert rider: over-voltage, over-power, low
battery etc. Voice prompt can be shut off through app, but
buzzer beeps can’t be.
• Tilt-back protection: When over-speed, low-battery, high
temperature, the pedal will title back to prevent further
acceleration.
2. Safety
As an outdoor sport and auxiliary transport device, serious
injury may occur any time during riding.
PLEASE BE CAUTIOUS ALL THE TIME, LEARN AND
PRACTISE STEP BY SETP BEFORE IT REGULARLY. READ
THE INSTRUCTIONS THROUGHLY AND CAREFULLY TO
LIMIT THE RISK OF INJURY.
2.1 Important
• Do not make rapid acceleration or deceleration or over
Incline forward or lean backwards.
• Do not use the EUC if there are any risks of accidental
fails.
• When there is alarm of over power, over voltage, low
04

battery, please decelerate at once.
2.2 Attention
• Please wear helmet, gloves. Elbow/Knee pads or other
protection garments.
• Please check the device before ever ride to make sure no
parts are loose or damaged.
• When there are crowded pedestrians, please slow down to
match their walking speed.
• When carry the device, please make sure the power is off.
• Do not ride on highways or any other prohibited places.
• Do not ride on wet, slippery surfaces, especially snowy
roads.
• Any person under 12 is strictly prohibited to use the EUC.
• Do not ride in bleak winter conditions.
• Riding backwards is dangerous. Try to avoid riding
backwards unless safety guaranteed.
• Don’t jump with the EUC.
Other sudden unpredictable risks may occur during use,
please ride with care. King Song will not be responsible for
any injuries caused by improper operations of the device.
05

3. Features
3.1 Integrated trolley bar
3.2 Front illuminating light & Rear Brake light
3.3 APP
• For Android app: Please access to our official website:
www.kingsongpro.com, android app can be downloaded.
• For IOS app: Please download from apple store,
‘kingsong’ is the exact one.
KingSong APP(Android) KingSong APP(IOS)
3.4 Riding Mode
Riding Mode refers to the torque during start-off and braking.
Expert Mode / Riding Mode / Learner Mode decelerate,
turning and so on.
06

Riding mode and Expert mode is for rider who want more
performance.
Experiment mode can satisfy the group who wants to
perform skills like jumping, also it can avoid pedal tilt back
when climbing up or down steep hills.
3.5 Self-inspection and horizontal calibration
Firstly, switch on the EUC and keep it standing still on the
ground until it finds it’s balance. Then login to the APP and
connect with the wheel to check the device information.
4. Precautions and Preparation
4.1 Precautions
• Please find a smooth surface to practice on.
• Warm up your body and ensure you're wearing safety gear
such as helmets, knee pads, elbow pads and wrist guards.
• Ensure the wheel's battery level.
• Check the unicycle for imperfections such as any
looseness, abnormal sound. We also highly suggest
pushing the unicycle by and to see if there's any friction
between tire and the case of the wheel.
07

• Have a friend assist you if required.
• Please do not accelerate or decelerate rapidly, please also
try to avoid over leaning or leaning too fast to prevent rider
injury.
• Padding up the wheel during the learning process is highly
recommended to ensure minimal scrapes on the exterior of
the wheel.
4.2 How to use
4.2.1 Starting on the unicycle
Hold the wheel with one hand and ensure the wheel sits
vertically on the ground. Unfold the pedals and switch on
the wheel, it will self-balance forwards and backwards, if it
does not, please ensure the wheel is upright. Quick
pressing the power button once the wheel is on will toggle
different light modes.
4.2.2 Standing on the unicycle
With the pedals unfolded on both sides please stand on it
with your preferred foot in the center of the pedal. Balance
the wheel under you by keeping the other foot on the other
side of the wheel. If you are left footed, keep your other
08

foot at around 5 o’clock, and if you are right footed please
keep the other foot at around 7 o’ clock.
If you are having a difficult time balancing the wheel under
you make sure you find a centre point of balance between
these three points: a) bottom of the tire b)where the top of
you leg touches the wheel c) your foot. Finding the
balance point between these three points will allow you to
more easily control the wheel under you.
4.2.3 Learning to ride forwards and braking
Whilst having the wheel balanced under you, use your
non-preferred foot to push off and lean forwards to begin
going forwards, once the wheel gets going please put your
non-preferred foot back onto the wheel. Focus on
balancing and not falling left or right. Try to look ahead
rather than down!
Have your hands out to help you balance!
To come to stop simply lean backwards and the wheel will
slow down and come to a stop. You may dismount your
non-preferred foot when standing.
09

Note: The harder you lean forwards or backwards will
dictate the speed in which the wheel accelerates and
decelerates.
4.2.4 Turning
When turning, lean your body gently to the side in which
you want to go and straighten up when you want to go
straight again!
As you become more experienced at riding you will find
other ways to turn such as; letting the wheel fall just side
to side, just turning the lower part of your body, leaning
your entire body. Advanced riders will usually incorporate a
combination of these.
5. Battery
WARNING
• Do not attempt to disassemble the battery.
• Do not allow the battery to get colder than -20°C or hotter
than 50°C, e.g. in a car. Do not expose the battery to fire.
Do not discard or destroy the battery. Refer to your local
laws and regulations regarding battery recycling and/or
10

disposal.
• To extend the battery's life, charge it frequently and avoid
draining the battery completely. At 30°C the battery range
and performance is at its best; whereas at temperatures
below 0°C range and performance are decreased.
Typically, at -20°C range can be half that of the same
battery at room temperature. Battery range will recover
when temperature rises.
NOTE
A fully-charged 16S can be stored for about 120 to 180 days
before requiring charging. Completely draining the battery
may cause permanent damage to the battery. Electronics
inside the battery record the charge-discharge condition of
the battery; damage caused by over-discharge or
under-discharge will not be covered by the Limited Warranty.
Temperature(℃)
Range
-20
40%
-10
60%
0
80%
10
90%
20
95%
30
100%
40
105%
50
110%
11

6. Maintenance
6.1 Cleaning
WARNING
• Make sure the 16S is powered OFF, the charge cable is
unplugged, and the silicone cap on the charge port is tightly
sealed before cleaning; otherwise you may expose yourself
to electric shock or damage the electronic components. Do
not wash your 16S with a power washer or high pressure
hose.
• Wipe your 16S clean with a soft, wet cloth. For stubborn
stains, use a toothbrush and toothpaste.
NOTE
• Do not wash your 16S with alcohol, gasoline, acetone, or
other corrosive/volatile solvents. These substances may
damage the appearance and internal structure of your 16S.
Storing
• Store the vehicle in a cool, dry place. Do not store it
outdoors for extended periods of time. exposure to
excessive sunlight or temperature extremes (both hot and
12

cold) may affect the vehicle’s appearance, battery life, and
tires.
7. Warranty
For warranty policy, please consult with the point of
purchaseor email to the manufacturer’s service team:
[email protected]
Again, we appreciate your purchasing of Kingsong products.
13

Kingsong Intell Co.,LTD
Address : BLDG 7, NO 71 XINGHU RD, 8TH INDUSTRY
PARK, HONGXING, YUTANG,GUANGMING,SHENZHEN
Tel : [phone]
E-mail : [email protected]
