Kino Flo Image L80 LED User manual

Image L80 LED Yoke Mount
Image L40 LED Pole-Op
Operation Manual
Part No. 3100114 Rev B 11-15-2019
Image L80 & L40 LED DMX
(True Match Firmware 4.0)
®
(Camera)

2

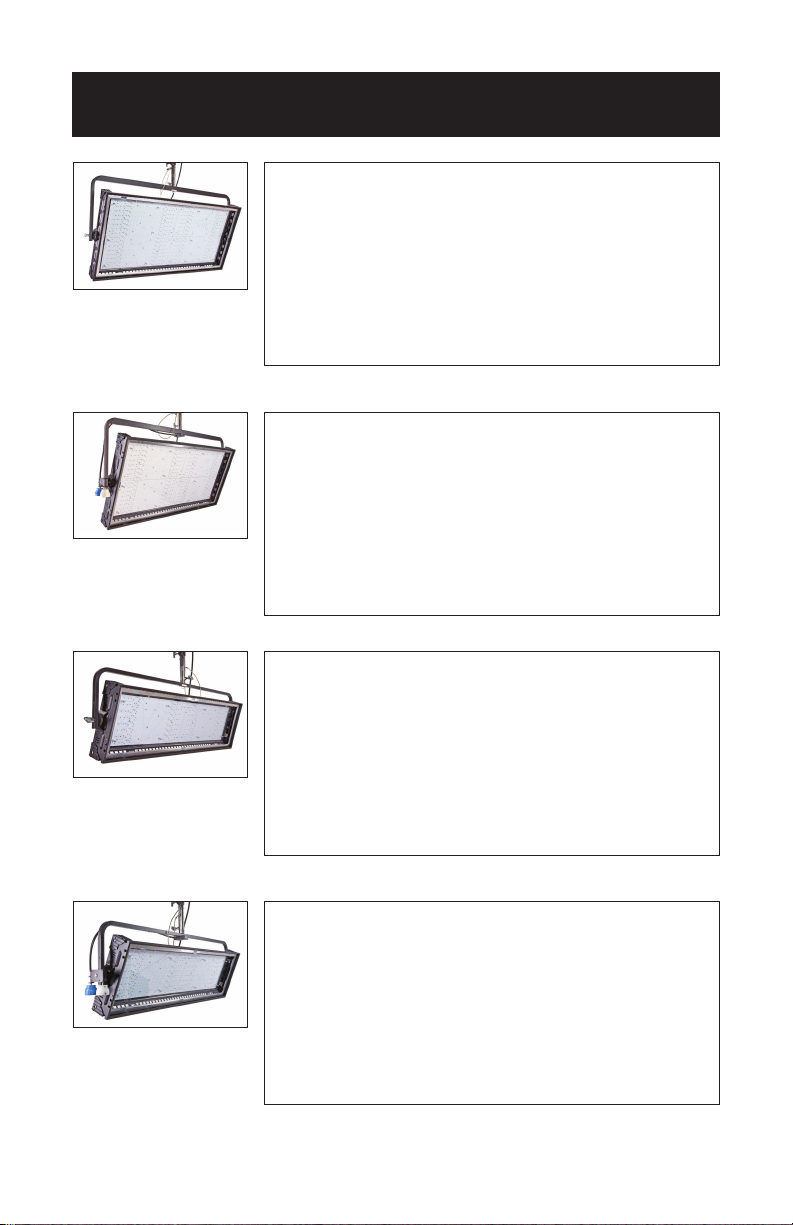

Image L80 & L40 LED Fixtures
Included w/ all Image Models
IMG-L40U
Image L40 LED DMX Yoke Mount, Univ
IMG-L80U
Image L80 LED DMX Yoke Mount, Univ
IMG-L80PU
Image L80 LED DMX Pole-Op, Univ
IMG-L40PU
Image L40 LED DMX Pole-Op, Univ
LVR-I80-S
Image L80 Silver Louver (Included)
LVR-I40-S
Image L40 Silver Louver (Included)
GFR-I80
Image L80 Gel Frame (Included)
GFR-I40
Image L40 Gel Frame (Included)
Image LED Yoke Mount
Image LED Pole-Op

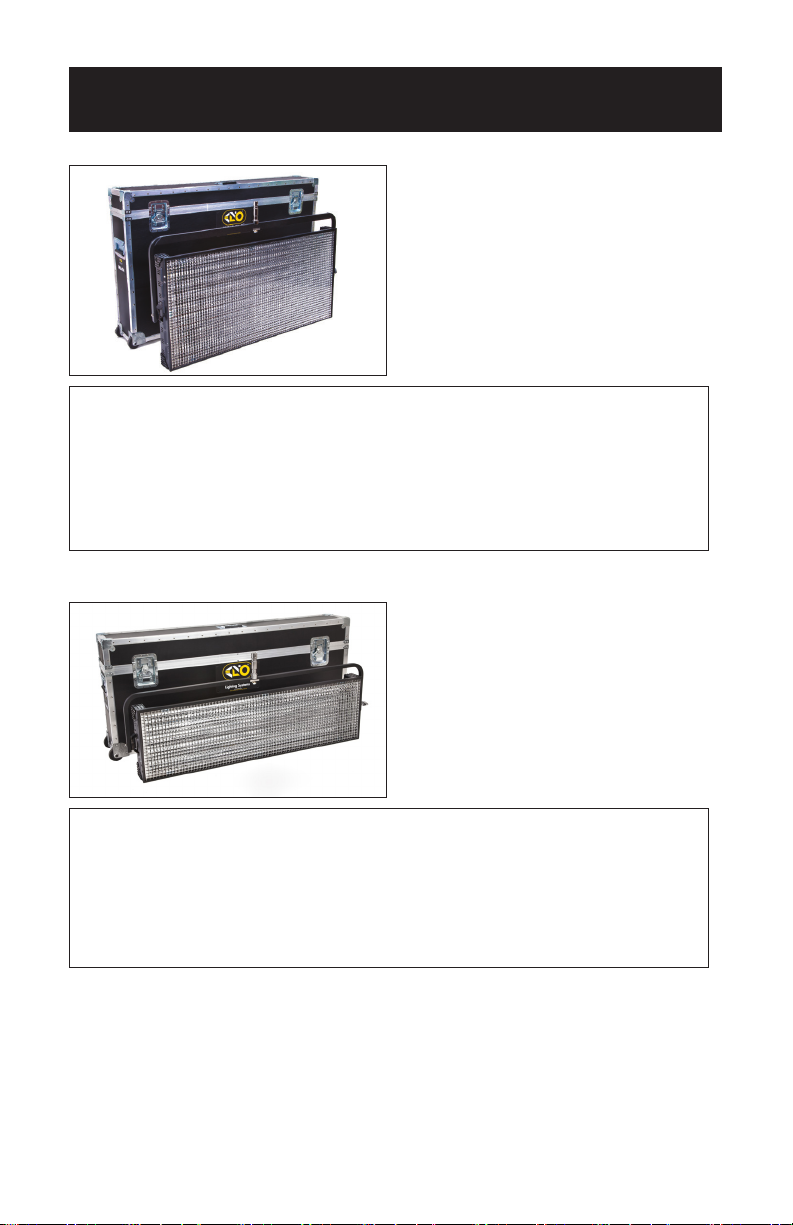

Image Yoke Mount Kits
3
KIT-IL40U
Image L40 LED DMX Kit, Univ
Kit Contents: Dimensions: Weight:
1 Image L40 LED DMX 58 x 9.5 x 25.5” 56 lb
1 Jr. Pin (147.5 x 24 x 65cm) (25.5kg)
1 Ship Case
KIT-IL80U
Image L80 LED DMX Kit, Univ
Kit Contents: Dimensions: Weight:
1 Image L80 LED DMX 58 x 9.5 x 36.5” 75.5 lb
1 Jr. Pin (147.5 x 24 x 93cm) (34.5kg)
1 Ship Case
Image Yoke Mount Kits
Image L40 LED
DMX Kit
Image L80 LED
DMX Kit

4

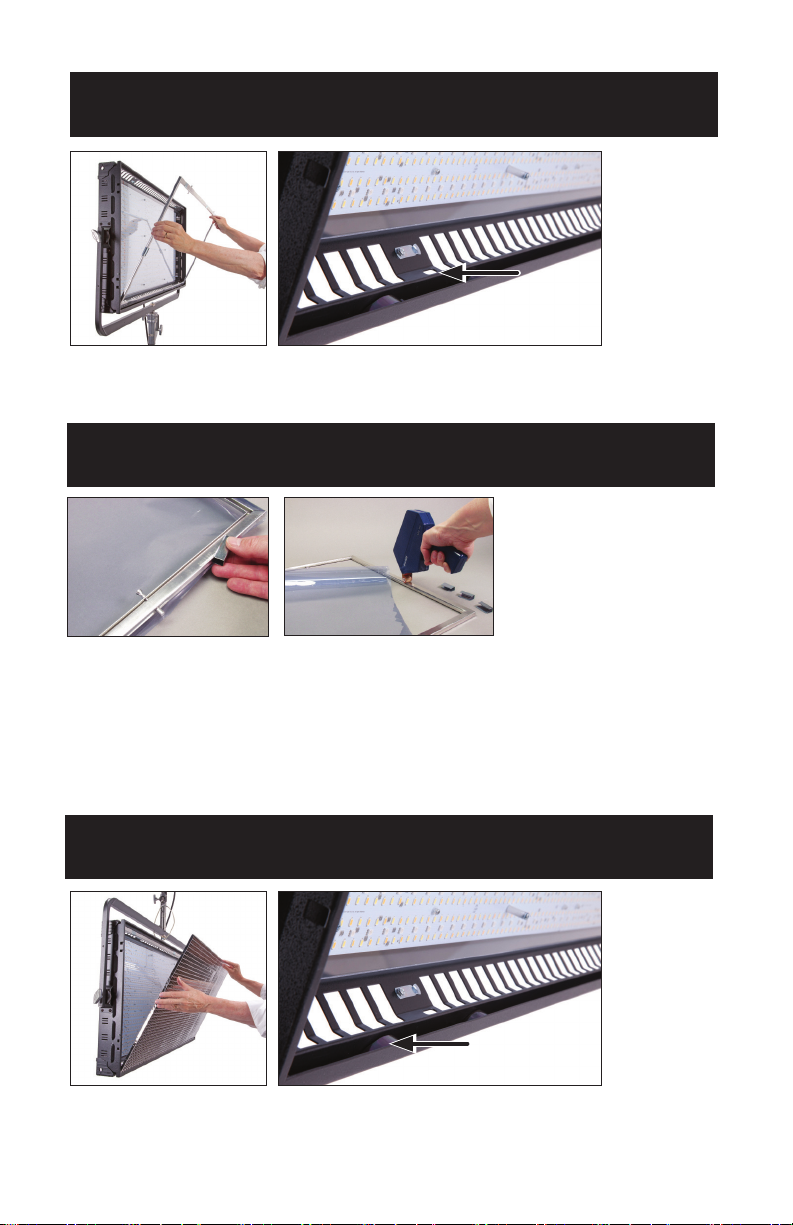

Inserting Louver
Inserting Gel Frame
Applying Gel to Frame
Place the long edge of the Louver into the lower channel containing a set of
leaf springs. Press down on the Louver and slip the upper edge of the louver
into the upper channel of the ixture. To remove, reverse the procedure.
The gel frame is secured to the ixture by 4 spring-loaded pins. Align the pins of the
gel frame with the oval receptacle holes on the edge of the ixture. Pull back the
pins and release into the receptacles to properly secure the gel frame.
A) The Gel Frame comes with gel clips. Cut the gel or diffusion to size and use the
clips to fasten to the frame.
Note: It is recommended to attach one clip on all four sides and two clips near all
four corners of the Gel Frame.
B) Another method is to apply transfer tape directly to the gel frame.
The clips are not necessary when taping the gel.

5

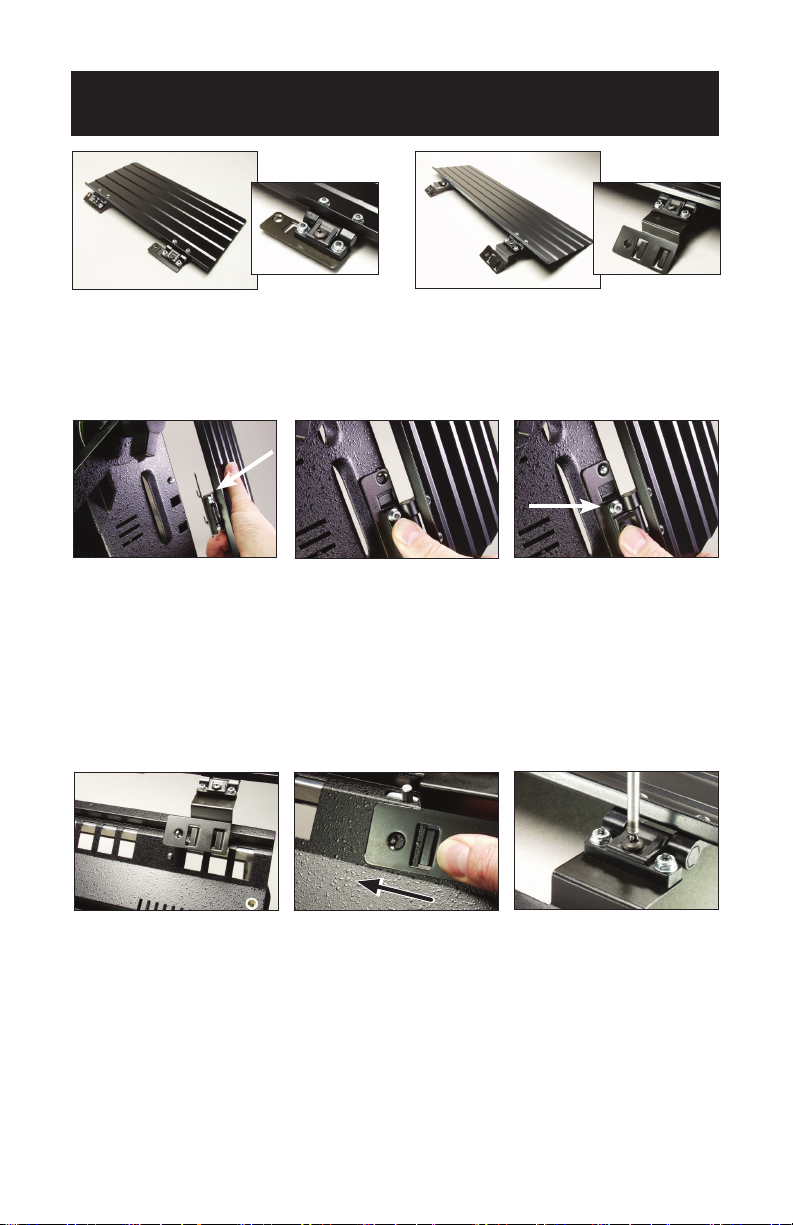

Mounting Barndoors
Side Door (x2) Top/ Bottom Door
(x2)
1) Align the hinge bracket tabs with the two square receptacles on the side of the ixture.
2) Press the tabs of both brackets into the square receptacles.
3) Slide the two brackets up until the silver lock pin snaps into place.
4) To release the barndoor, press the lock pin down and slide the bracket in reverse.
Side Doors
1) Align the two hinge bracket tabs with the two square vents closest to the silver lock pins.
2) Press the brackets down into the vent and slide them over to engage the lock pins with
the hole in the bracket.
3) To remove the barndoor, press down on the two lock pins and slide the brackets back.
4) Adjust the hinge tension with a Phillips head screwdriver.
Top and Bottom Doors

Image Yoke Mount
The Yoke has a ½” hole to accept industry standard
mounting hardware.
The Image L80 LED Yoke Mount can hang from a
grid by a junior pipe hanger using a Junior Pin Assembly
for Yoke (MTP-I80), sold separately.
The Image L40 LED Yoke Mount can also hang from a
grid by a junior pipe hanger using a Junior Pin Assembly
for Yoke (MTP-I80) or hang from a baby pipe hanger
using a Baby Receiver Assembly for Yoke (MTP-I40),
both sold separately.
Note: Because of weight capacity, the MTP-I40 can only
be used on the Image L40 LED Yoke Fixture.
MTP-I80 Junior Pin Assembly for Yoke (28mm)
MTP-I40 Baby Receiver Assembly for Yoke (16mm)
The Yoke Mount is also designed with two holes to allow
the yoke bracket to be placed in one of two positions.
The additional option is useful when hanging the units
in a studio with a low ceiling.
Warning: Use only 10-32 x 3/8” screws (supplied) to assemble yoke.
Note that threads on the ixture are self-locking and may seem tight.
Replacement screws: Part No. 2020058
Recommended torque setting:
USA: 18 lb-in
Metric: 2 Nm
6
2
1

7

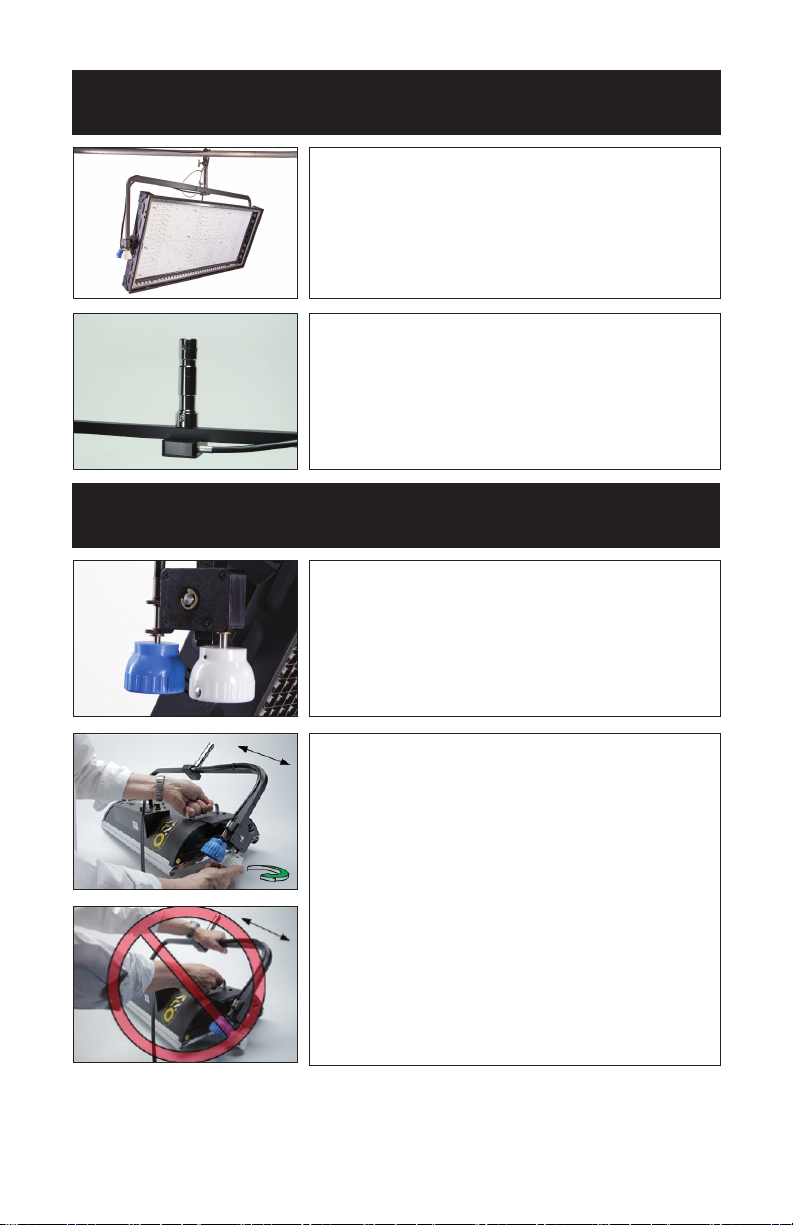

Image Pole-Op
Pole Operation
The Image L80 and L40 LED Pole-Op ixtures
include a yoke with an attached junior pin.
They can be hung from a grid with a junior pipe
hanger.
The Blue cup alters the Pan (left or right).
The White cup alters the Tilt (up or down).
Junior pin attached to Pole-Op Yoke
Warning!
Do not pull yoke to adjust tilt. Turn the white
knob counter clockwise to angle the yoke 90°.
(ParaBeam shown for illustration purposes only.)

8
Fixture Power
AC Input
The Image LED is powered AC and includes an IEC connection.
A locking power cord is included with the ixture. To remove the plug, move the
red tab to release. The ixture has a built-in power supply with universal input
from 100-240VAC.
Ambient Operating Temperature
The Image LED is designed to operate at temperatures from 14°F to 104°F
(-10°C to 40°C).

9
ABCD E F G H
Control Panel - White Mode
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls
the light source.
B) Menu: Provides access to menu options such as General settings, Reset,
DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
C) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and
6500K. G/M default value is 000. User can also use these preset buttons to
store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and Control knob.
Press for 3 seconds to restore displayed presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
G) Data Port: Mini B USB for irmware updates.
H) Control Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the Control knob to toggle between Fine and Coarse increments or
when selecting options within menus.
DMX Note: Each LED Fixture has an “AUTO TERMINATE” feature. The last
ixture that does not have an XLR cable attached to the DMX “Out” port will
automatically terminate.

10

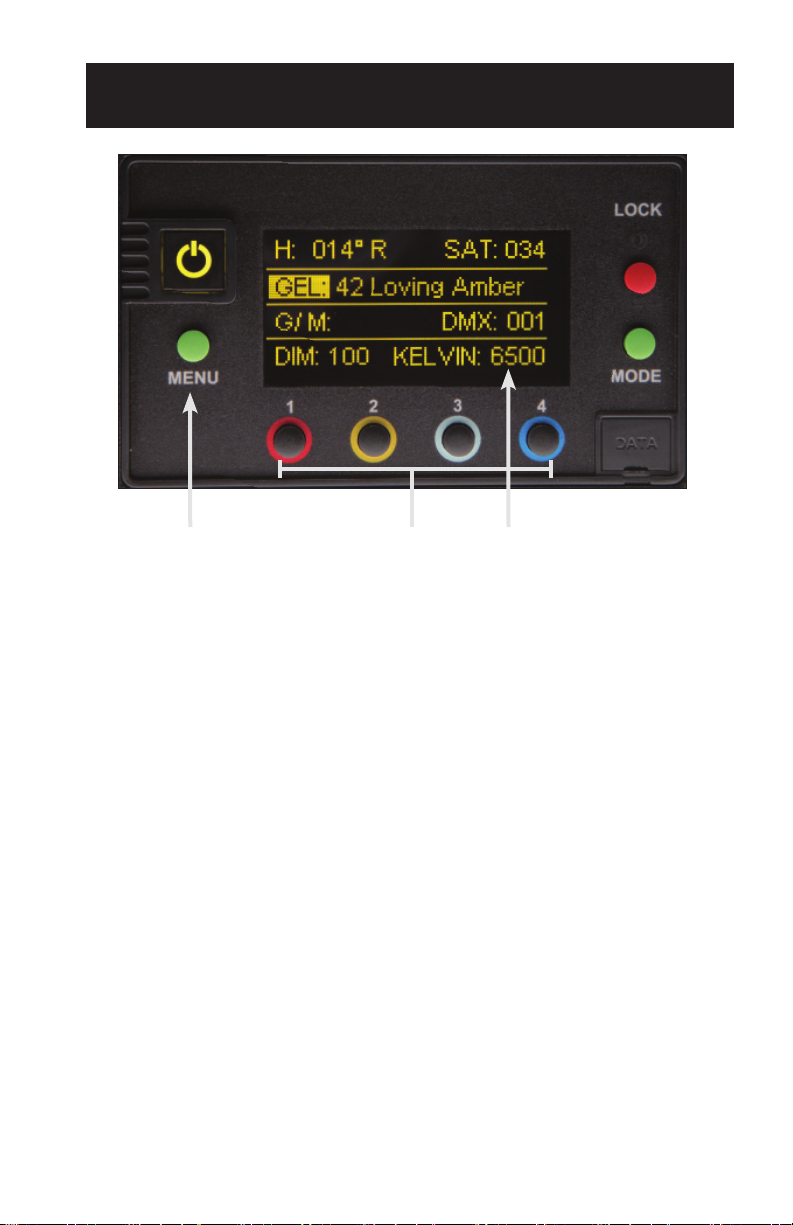

Control Panel - Gels/Hue Mode
A CB
A) Menu:
Provides access to menu options such as General settings (Gels/Hue Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to store
custom Kelvin between 2500K and 9900K and custom G/M, Gel, Hue and
Saturation settings.
C) Display:
Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and
DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K,
G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation settings.
When on the Gel function, pushing the Control knob in/out will apply the gel or
remove the gel. When in sub-menus, pressing Mode always returns you to
main display. When DMX is applied, use Mode to access DMX channel on
main display. Shortcut Tip: Long press will bring you back one step.
Gels/Hue Mode

11
A DCB

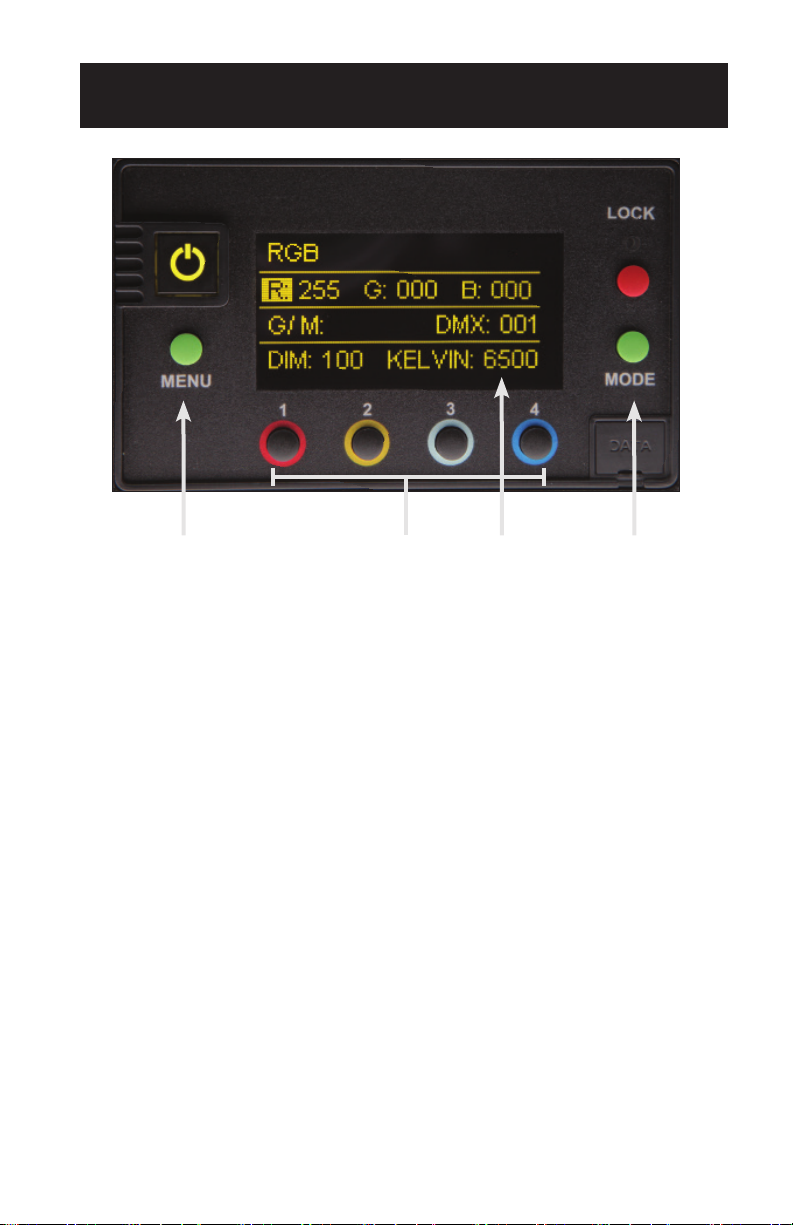

Control Panel - RGB Mode
A) Menu:
Provides access to menu options such as General settings (RGB Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to
store custom Kelvin between 2500K and 9900K and custom G/M, and
RGB settings.
C) Display:
Provides access to Dim, Kelvin, G/M, RGB and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, RGB settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
RGB Mode

12
CIE xy Mode
Control Panel - CIE xy
A) Menu:
Provides access to menu options such as General settings (CIE xy mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold or 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
User can also use these preset buttons to store custom xy settings.
C) Display:
Provides access to Dim, CIE xy coordinates and DMX Channel.
Factory reset will show: Dim = 10%, x = 0.460 , y = 0.411, G/M = 000,
DMX = 001.
D) Mode:
Press to navigate from Dim to xy settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied,
use Mode to access DMX channel on main display. Shortcut: Long press
will bring you back one step.
DA C
B

13
FX (Effects) Mode
Control Panel - FX (Effects)
FX mode provides access to effects including Candle, Fire, TV, Police, Lightning,
Paparazzi, Pulse and Scroll. Candle mode used as an example:
A) FX Option:
Choose the desired FX Mode by rotating the control knob. When on the
desired effect, there will be several pre-programed effects as well as control
parameters that can be altered.
B) Preset Buttons:
In FX Mode, Kelvin custom settings and any control functions displayed such
as Rate and Amplitude (Ampl) can be saved as a preset. Chosen values can
be assigned to any preset button by holding down the desired button for
3 seconds. The Kelvin display will lash once the setting is registered.
To restore presets to default factory settings, choose Reset under General
settings and Clear Presets. This method will reset all buttons in all Modes.
Shortcut: If only want to clear presets for Candle Mode, hold Lock button
for 3 seconds while Candle mode is displayed.
C) Mode:
Press to navigate from Dim to Kelvin and FX settings.
Shortcut: Long press will bring you back one step.
A C
B

The Camera LUT (Look-up Tables) feature harmonizes the Kino Flo light
sources to the camera. Depending on the camera and the Kelvin setting,
some differences are very subtle, while others can be more dramatic.
The corrections are applied as a CIE xy correction at each CCT (Kelvin) setting.
The default setting is targeting the CIE xyz response (human eye).
Press the green menu button to the left of the display screen and scroll down to
Camera LUT, then press the control knob. Menu with camera selection will be
displayed. Turn the control knob and press to select camera setting:
C1 Arri Alexa
C2 Sony Venice
C3 Panavision DXL
C4 Panasonic Varicam
The camera code (C1 for Arri Alexa), for example, will appear on the main menu
between DIM and CCT to designate that a camera setting is active.
Note: When the controller is reset, the camera settings will go to Kino Flo
Default mode.
Camera LUT
14

Color Space
Color Space deines the RGB color space used and only affects color – not Kelvin.
It is used in RGB mode and Hue Angle and Saturation. There are a few instances
in the FX (Effects) mode that are also affected when color is used. The RGB
color space deines the value of Red, Green, and Blue primaries (in CIE xy) and
the white point is ixed at 6500 Kelvin. Exception being ESTA E1.54 which is a
ixed point at 3200 Kelvin.
Press the green menu button to the left of the display screen and scroll down
to Color Space, then press the control knob. Menu with color selection will be
displayed. Turn the control knob and press to select Color Space options:
rec 709 / sRGB
P3 D65
rec 2020
ESTA E1.54
The color space rec 709 / sRGB is commonly used on computer monitors, SDTV
and HDTV television. There are slight gamma variations between rec 709 / sRGB,
but not enough to separate into 2 color spaces.
The color space P3 D65 is a common color space for digital movie projection.
The color space rec 2020 is used in ultra high deinition television (UHDTV).
The color space ESTA E1.54 is the standard for color communication in
entertainment lighting.
The color space is used when the controller is set to the RGB mode and when set to
the Hue Angle/ Saturation mode.
In RGB mode – the color space designation will be displayed at the top of the menu.
When changing the Red, Blue or Green values, the Kelvin will be locked in at 6500
for all color spaces except for ESTA E1.54 which will be locked in at 3200. When the
Kelvin is locked in, CCT will be displayed as CCT*. When using Green/Magenta the
CCT value is unlocked and color space selection has no impact.
In Hue Angle/Saturation mode – the color space designation will be displayed on
the Gel line and GEL will be displayed as GEL* and CCT will be displayed as CCT*.
The Color space will be displayed only when Hue Angle and Saturation are being
used. When using Green/Magenta or Gel, the CCT will be unlocked and color space
selection has no impact.
15

Accessories
BRD-I80 Image L80 Barndoors (Set of 4)
BRD-I40 Image L40 Barndoors (Set of 4)
KAS-I80-I Image L80 Ship Case
KAS-I40-I Image L40 Ship Case
7010016 Image L80 Pole-Op Assembly
7010015 Image L40 Pole-Op Assembly
MTP-I40 Baby Receiver Assembly for Yoke
(16mm)
LVR-I80-S Image L80 Louver/Silver
LVR-I40-S Image L40 Louver/Silver
MTP-I80 Junior Pin Assembly for Yoke
(28mm)
16

17
IMG-L80U Image L80 LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 400W
Amperage VAC: 4.0A at 120VAC, 2.0A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 41.5 lb (19kg)
Dimensions: 54 x 6.5 x 28”
(138.5 x 16.5 x 71cm)
IMG-L40U Image L40 LED DMX Yoke Mount, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 200W
Amperage VAC: 2.0A at 120VAC, 1.0A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 25 lb (11.5kg)
Dimensions: 54 x 6.5 x 17”
(137 x 16.5 x 43cm)
IMG-L80PU Image L80 LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 400W
Amperage VAC: 4.0A at 120VAC, 2.0A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 45.5 lb (21kg)
Dimensions: 54.5 x 6.5 x 28”
(138.5 x 16.5 x 71cm)
IMG-L40PU Image L40 LED DMX Pole-Op, Univ
AC Input Voltage: 100~240VAC 50/60Hz, 200W
Amperage VAC: 2.0A at 120VAC, 1.0A at 230VAC
Kelvin Range: 2500K~9900K
Dimming Range: 100%~1%
Weight: 27 lb (12kg)
Dimensions: 54.5 x 6.5 x 17”
(138.5 x 16.5 x 43cm)
Fixture Speciications
Image L80 LED
DMX Yoke
Image L40 LED
DMX Yoke
Image L80 LED DMX
Pole-Op
Image L40 LED DMX
Pole-Op

18
For latest Warranty information and Certiications,
see Kino Flo website at www.kinolo.com.

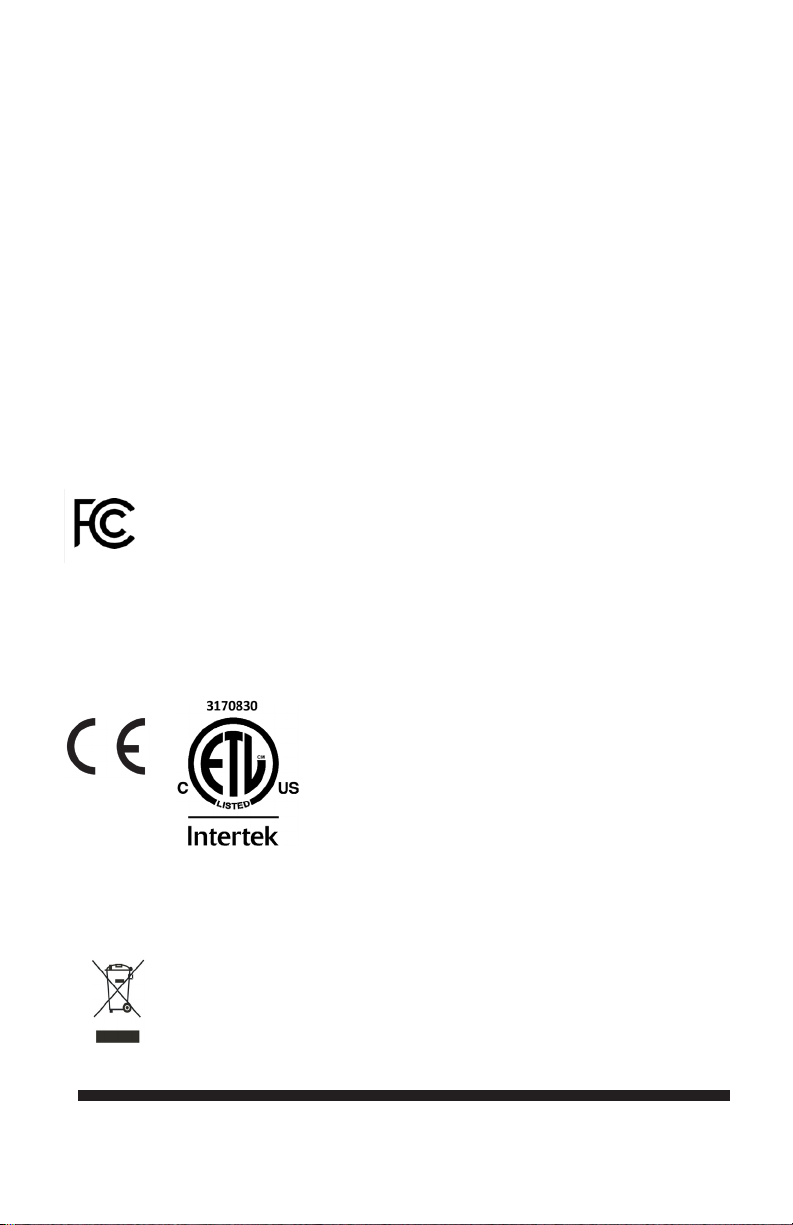

Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinolo.com
FCC Part 15 Veriication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
KINO FLO, INC
Image L80 & L40 LED
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101
The light source of this luminaire is not replaceable; when the light source reaches
its end of life the whole luminaire shall be replaced. The luminaire is intended for
professional use only.
