Kirisun PT8200 User manual

PT8200
INSTRUCTION MANUAL
FM MOBILE TRANSCEIVER
MOBILE RADIO

PT8200
Memo
23
INSTRUCTION MANUAL
VHF/UHF MOBILE RADIO
MANDATORY SAFETY INSTRUCTIONS TO INSTAL-
-LERS AND USERS
Use Only manufacturer or dealer supplied antennas.
Antenna minimum safe distance: 108 cm.
Antennas used for this transmitter must not exceed an
antenna gain of 3 dB.
The FCC (Federal Communications Commission) has
adopted a safety standard for human exposure to RF
energy which is below the OSHA (Occupational Safety
and Health Act) limits.
Antenna mounting: The antenna supplied by the manu-
-facturer or radio dealer must not be mounted at a location
such that during radio transmission, any person can come

Closer than the above indicated minimum safe dista-
nce to the antenna (i.e. 108cm).
To comply with current FCC RF Exposure limitations,
the antenna must be installed at or exceeding the minim--
um safe distance indicated above, and in accordance with
the requirements to the antenna manufacturer or supplier.
Vehicle installation: The antenna can be mounted at
the center of a vehicle metal roof or trunk lid if the minim-
um safe distance is observed.
Antenna substitution: Don't substitute any antenna for
the one supplied or recommended by the manufacturer
or radio dealer. You may be exposing person(s) toexcess-
-ive radio frequency radiation. You may contact your radio
dealer or the manufacturer for further instructions.
Maintain a separation distance from the antenna to
person(s) at least 108cm.
This transmitter is authorized to operate with a
maximum dutyfactor of50%, ina typical push-to-talk
mode, for satisfying FCC RF exposure compliance
requirements.
Warning

Caution:
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authorityto operate theequipment.
1. 1
2. 3
3. 6
4. 7
5. 11
5.1 11
5.2 12
6.Zone 12
7. 13
8. 13
9. 15
9.1 15
9.2 Nuisance Delete 15
9.3 16
10.OST 17
11. 17
12. 18
13. 19
14.21
Package-opened Inspection and Installing
Radio Overview
Basic Operation
Programmable Button Function
Radio Call
Selective Call
CallAlert
Talkaround
Utilities
ScanStart/End Scan Function
Edit Scan List
GPS Information View
Wired Clone Mode
Trouble Shooting Guide
Major Specifications
CONTENTS

1
1
1
1
4
2
4
Accessories
Fixed bracket
Power Cable
Hand Microphone
Microphone Hanger
M4*10 Combination Screw
M4*16 Self-tapping Screw
M5*16 Self-tapping Screw
Instruction Manual
Warranty Card
1
1
1.1 Supplied Accessories
1Package-opened Inspection and Installing
Please check the host in the package and the supplied acce-
ssories in the following table before using. Any articles are
found lost or damaged, please contact the distributor without
delay.
12
Quantity
Fixed bracket
Power Cable
Hand Microphone
Microphone Hanger
M4*10 Combination
Screw M5*16 / M4*16
Self-tapping Screw
1.2
1.2.1
1.2.2
Preparation
Connection of Power Cable
First of all, please check whether there is a hole for the
power cable on the insulating board. If no, please bore the
board with the suitable drill bit and fix a rubber grommet on it.
Afterwards, please have the cable pass through the
insulating board and lead from the car into the car engine.
Connect the red conductor to the positive terminal of the
accumulator and the black conductor to the negative terminal.
At last, ring the remained conductor and fix it.
Note: Please maintain the sufficient relaxation of the
power cable to make it convenient to dismantle the radio in
the state of power connection.
Radio Installing
Warning: For passengers' safety, please fix the radio firmly
on the fixed bracket so that the radio will not be loosened in
case of collision.
The fixed bracket is taken as an example. Draw the position
and drill a hole on the instrument panel first, and then install the
fixed bracket with 4 M5*16 self-tapping screws. (Note: please fix
the radio at the position convenient for operation and control,
and leave an enough space for fixation and connection of the
cable.)
Slide the radio into the fixed bracket and fix it with 4 M4*10
combination screws (plus plain washer and spring washer).
(Different combinations of fixing holes are selectable to adjust
the radio to the proper height and visual angle.)

3
2
2.1
Radio Overview
Description of External
View
1 power button
Press this button for a long time (more
than 1.5 seconds) to swith the radio on/off.
2 LED indicator
The red indicator will light while transmitting;
the green indicator will light when it receives the
carrier.
The led flashes orange on received correct DTMF/
2Tone signalling.
The red indicator flashes in the scanning process.
Note: When replacing the protective tube for the power cable,
please use the one of the same specification without fail. It is
not allowed to change it into the tube of higher capacity.
4
Connect the antenna and the power cable to the radio.
Install the microphone hanger at the position easy to use, with
2 M4*16 self-tapping screws. (The microphone and its cable sho-
-uld be fixed at the position not affecting safe driving.)
Connect the microphone to the microphone jack on the front
panel of the radio and put it on the hanger.
3 / button (programmable button)
4 LCD display screen
For details, see LCD Display .
5 Volume Control knob
To be used to adjust volume.
6 Microphone/Programming Interface
7 button (programmable button)
8 button (programmable button)
9 button (programmable button)
10 button (programmable button)
11 PTT button (on the hand microphone)
Press the PTT button first, and then speak to the microphone
to transmit the voice to the other. Release to receive.
2.2 Display Screen
P1 P2 P3
Display Description
It means the receiving signal strength. 4 lines
means the strongest signal.
Transmission power level
L means the transmission of signal for the
radio at the lower power;
M means the transmission of signal for the
radio at the medium power;

5
P2
6
H means the transmission of signal for the
radio at the high power;
Display Description
Call Received indicator.
The radio receives a selective call/call alert.
Monitor State Indicator.
Scan Indicator.
Companding Indicator.
Talkaround Indicator.
Scrambler Indicator.
OST Indicator.

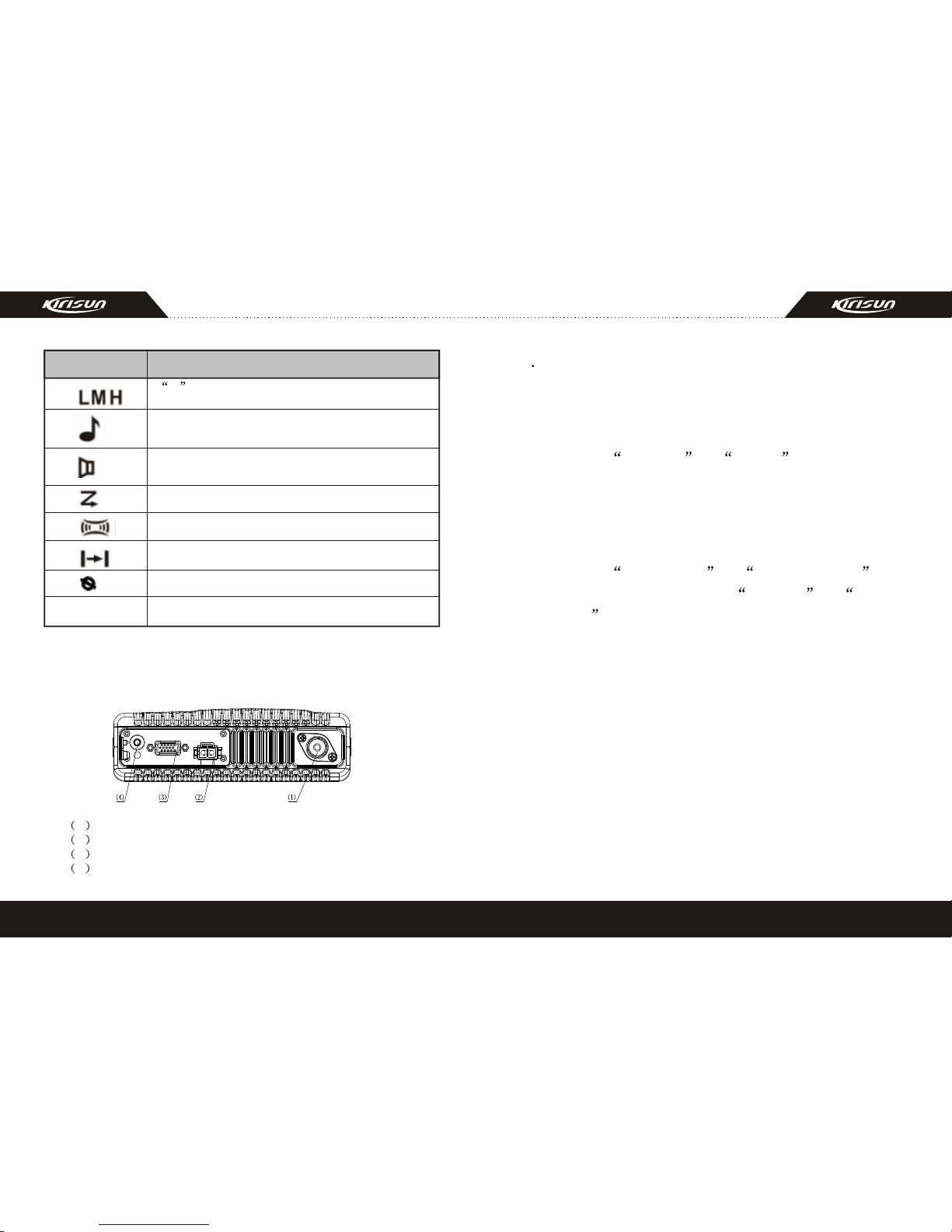

2.3 Rear Panel
1 Antenna Interface
2 Power Interface
3 15-Pin Connector foraccessories.
4 External Speaker Interface
3 Basic Operation
1.Startup:
Press the red POWER button for a long time (at least 1.5
seconds) to switch the radio on/off
2.Volume
Press the MONITOR or Squelch button to listen to
the background noise first, and then adjust the volume by
turning the volume control knob.
3.Channel
The radio can provide 128 conventional channels (There are
totally 16 groups and each has at most 16 channels).
Press the CHANNEL UP or CHANNEL DOWN button
to select the channel. Press the ZONE UP or ZONE
DOWN button to select the group you require.
4.Transmission
To send a call, press the PTT button and speak to the
microphone in the normal voice. Please keep the microphone
about 3 or 4 cm far from your mouth. After speaking, please
loosen the PTT button.
5. Receive
The radio will return to the receiving state after you loosen the
PTT button.
The distributor may have set the CTCSS/DCS signalling in the
programmed radio of your radio. On the channels with CTCS
S/DCS are set, you can only hear the call from other radio with
the same CTCSS/DCS.

78
4 Programmable Button Function
/ can be programmed as
one of the following functions.
Buttons Function Description
Buttons Function Description
0. None No function
1.Channel Up Select the next channel
2.Channel Down Select the previous channel
3.Zone Up Select the next zone
4.Zone Down Select the previous zone
5.Display Channel
Frequency
6.Display Channel
Name
7.Display Mode
Switch
8.OST Change the setup of preset CTCSS/DCS for the
current channel.
9.Power level
Selection
10.Squelch Level
Selection
Press this button and the LCD will show the
frequency of the current channel.
Press this button and the LCD will show the
name of the current channel.
Press this button and the LCD will show
Channel Number , Channel Name ,
Zone Number, Zone Name and Channel
Frequency alternately.
Press this button to enter the Squelch Level
Adjustment Mode first, and then press the
/ button to adjust the level. Press the button
to save the selected squelch level and
quit this mode.
11.Key lock To toggle between locking/unlockingyour radio
keypad.
12.Scan Start/end the scanning function of system.
13.Nuisance
Delete
14. Voice
Companding
15. Public
Address
16.Scrambler Enable or Disable voice scrambler function.
17. Home
Channel
18.Talkaround
19.VOX Selection
20. Monitor
momentary/
Call Cancel
When one channel continually generated
unwanted noise.this allow you temporary remove
the channel from the current active scan.
Start/end the voice compression/expansion
function.
Start/end the public address function.
Press this button and the function will be actived.
Press the PTT button and speak to the micro-
-phone so that you can hear your voice through
the external speaker . Press this button once
again and return to the normal user mode.
Changes to the home channels.
Enable or disable the VOX function.
Switch the radio between talkaround and
repeater mode.
Press this button to make selection among the
high, medium and low transmission power, and
H , M and L will be shown on the LCD
to represent the current transmission power.
Hold this button to close CTCSS, DCS, 2Tone
/DTMF signalling according to the set data.
Loosen this button to return to the normal
operation. Press this button in the selective call

910
Buttons Function Description Buttons Function Description
21.Monitor/
Call Cancel
22.Squelch off
monmentary/
Call Cancel
23.Squelch off
/Call Cancel
24.Emergency
Alarm
25.Radio Call
26.Call Button 1 Sends the DTMF/2Tone code assigned to call
1 key.
27.Call Button 2 Sends the DTMF/2Tone code assigned to call
2 key.
28.Call Button 3 Sends the DTMF/2Tone code assigned to call
Press this button to trigger this function and the
CTCSS, DCS, 2Tone/DTMF signalling will be
closed, so you can receive the signal that can't
be heard in the normal operation. Press this
button again to return to the normal operation.
Press this button in the selective call state to quit
such a state.
Hold this button to open the squelch. loosen this
button to return to the normal operation.
Press this button in the selective call state to quit
such a state.
29.Call Button 4
30.Menu Select
/Enter
31.Horn Alert
32.Tenancy
33.Lone worker
34.Scan List Edit
Press this button to open squelch, press it again
to returm to normal operation.Press the button in
the selective call state to quit such a state
Enables the emergeney mode.
Press this button and to enter the fast menu
mode of Radio Call .For detailed operation,
see Menu Operation .
To enter the menu mode or make menu
selections.
Enables the Horn Alert
Enables Lone worker function
Press this button and the radio will enter the
fast menu mode for scan list edit. For details,
see Menu Operation .
state to quit such a state. 3 key.
Sends the DTMF/2Tone code assigned to call
4 key.
Press this button to view tenancy remained time.
35.GPS Information
View
36.VOX Level
Selection
Press this button and the radio will enter the
menu mode of GPS Information Menu.
Press this button to enter the VOX Level Adju-
-stment Mode . Press / button to adjust
VOX level. Press button to save the selected
VOX level and quit this mode.
5. Radio Call
5.1 Selective Call
5.1.1 Send a Selective Call

11 12
A.Press Menu Select/Enter button to enter the menu
mode.
B.Press / button until RADIOCAL .
C.Press button to select SEL CALL .
D.Press / button until the required call list appears.
E.Press PTT button to send the selective call.
F.Press PTT button and speak to the microphone in normal
voice. Please keep the microphone about 3 to 4 cm far from
your mouth. After speaking, please loosen the PTT .
G.Press button to return to the previous operation.
5.1.2 Receive a Selective Call
Receiving a selective call, you will hear the alert tone and the
LED indicator will blink orange. Icon flashes and the
caller s
ID or name displays.
5.2 Call Alert
After the radio receives the call alert, the alert tone will sound and
the orange indicator flicker. icon flashes and the caller s ID
code or name shows until someone answers.
Press the PTT button for callback or other buttons for
cancellation.
A.Press Menu Selection/Enter button to enter the menu
mode.
B.Press / button until RADIOCAL .
C.Press button to select CALL ALT .
D.Press / button until the required call list is showed.
6. Select Zone
According to the setup of the communication network, the radio
can be distributed to different zones. Select the proper zone to
realize communicating with the radio from a different zone.
1.Select the zone through menu.
A.Press the Menu Selection/Enter button to enter the menu
mode.
B.Press / button until ZONE .
C.Press button for selection.
D.Press / button until the zone name you require is
E.Press PTT button to send the call.
F.After calling, press button to return the previous operation.
appeared.
E.Press button for selection.
2. Select the zone through ZONE UP or ZONE
DOWN button.
7. Talkaround
In the communication network, you can expand communication
range through the repeater, but when the mobile radio is out of the
communication range, you can connect with other radio in the
talkaround method. The talkaround function can be showed by
1.Select the talk around by menu.
A.Press the Menu Selection/Enter button to enter the menu
mode.
Press PPT button for callback.

13 14
8. Utilities
The item can help you customize some setups of the radio.
The operating steps go as follows:
A.Press the Menu Selection/Enter button to enter the menu
mode.
B.Press / button until UTILITY .
C.Press button for selection.
D.Press / button until the items you require are showed.
E.Press button for select. The radio will show the current setup.
F.Press / button to show all items that can be set with this
item.
G.Press button to select this setup.
H.Press button to return to the previous operation.
Change the setup items in the following table as per the
previous steps.
Items Selectable Setups Functions
Squelch Level
SQL LEV
Transmission
Power
PWR LEV
VOX Level
VOX LEV
Backlight
BACK LED .
MCU software
version
display
SOFT VER
SQL 0 ~ 9 Change the squelch level of the
radio.
PWR LOW
PWR MID
PWR HI
Select transmission power among
high, medium and low levels.
VOX 0 ~ 9 Change the VOX level of the
radio.
BLED OFF
BLED ON
BL AUTO
Select among such modes of
backlight as turnoff , normal
turn-on or auto
Eg R01.00 Show the software version.
B.Press / button until RPTRTALK .
C.Press button for selection.
D.Press / button until REPEATE or TALKRND .
E.Press button for confirmation.
2. Switch the talkaround or repeater mode through talkaround
button.
9. Scan
In order to receive the calls from many channels, the radio can
be programmed to scan these channels. At most there are 16
channels in each scan list. Each channel can use a scan list
together with others or alone.
9.1 Start/End Scan Function
You can press SCAN button directly or enable the scan
through the menu. When the scan function is started, icon
and your revert channel will display .

15 16
During sweep, the red indicator will flicker. When the scan is
landed on, the indicator will stop flickering.
1.Enter the scan state through menu mode.
A.Press the Menu Selection/Enter button to enter the
menu mode.
B.Press / button until SYS SCAN .
C.Press button for selection.
D.Press / button until SCAN ON? or SCAN OF?
E.Press button for select.
2.Use the scan button.
A.Press SCAN button to activate the scan function.
B.Press SCAN button again to disable the scan function.
9.2 Nuisance Delete
If a channel continuously generates noise or interference, press
the button to remove this channel from the scan list temporarily.
Note: the priority channel can't be removed and the last one in the
scan list, either.
9.3 Edit Scan List
9.3.1 Add or Delete the Channels in the Scan List
A.Press the Menu Selection/Enter button to enter the menu
mode.
B.Press / button until PROG LST .
C.Press button to select SCAN LIST .
D.Press / button until ADD LST? or DEL LST? .
E.Press button for selection.
F.Press / button until the channel you want to add or
9.3.2 Set Priority Channel
1.Press the Menu Selection/Enter button to enter the menu
mode.
2.Press / button until PROG LST .
3.Press button to select SCAN LIST .
delete.
G.Press button to complete operation you will see CHN
SAVE (If you added a channel)or CHN DEL .
H.Press button to return to the previous operation.
4.Press / button until ED PRIO? .
5.Press button for selection.
6.Press / button until PRIO#1? or PRIO#2? .
7.Press button to select the type of the required priority channel.
For example, in Step 7, the type of priority channel is DES? .
Press / button to select the required priority channel.
8.Press button to complete operation.
9.Press button to return to the previous operation.
10. OST
In a certain specific channel, you can revise the CTCSS/DCS
encode/decode setup of current channel.
The operating steps go as follows:
A.Press the OST button to enter the OST menu mode.
B.Press / button until the CTCSS/DCS encode/decode you
want.
C.Press button to select .

17 18
Note:
When the OST backup function is enabled, the radio retains
the OST code of each channel even if the channel is changed
or the radio is shut down.
In the OST state, P2 icon will display.
Press OST button again to return to normal operation.
11.GPS InformationView
If the radio starts the GPS function, you can view the current GPS
information. The specific operating steps go as follows:
A.Press GPS Information View button to enter the GPS infor-
-mation display mode.
B.Press / button until the items you require displays.
C.Press button for selection.
D.Press / button for page up of the following content.
E.Press button to return to the previous operation.
The specific content can be shown as follows:
1. Positioning star number: STAR NUM
2. Longitude LONGITUD
3. Latitude LATITUDE
4. Altitude ALTITUDE
5. Speed SPEED
6. Time TIME
If the wired clone function is enabled, the radio will not quit after
entering the wired clone mode. To return to normal user mode, the
user needs to restart the machine.
The operating steps go as follows:
1.Press [P1] and [P2] buttons for power-on until show CLONE
(for two seconds) and enter the clone mode. If the function is
disabled, it will enter the user mode.
2.Connect the slave radio with the wired clone cable first,and then
turn on .
12. Wired Clone Mode
3.Press the master radio s [P4] for starting clone.During transm-
-itting the data,the master radio lightes red,and the slave radio
lights green.
4.Press the [P4] button and the master will return to the clone
mode. Continuous clone will start from Step 3.
Note: The master displays success and the slave auto
matically restart upon successfally receipt of all data.
13. Trouble Shooting Guide
A.The power cable is not connected with the
accumulator or the host reliably. Please
connect the power cable reliably.
B.The protective tube of power cable is burnt
out. Please change it.
C.The power button is of poor contact. Please
change the silica gel button or PCB button.
Number Problem Solution
1 Power on
Failure

19 20
N Problem SolutionN Problem Solution
C.The IC U101 of phase lock loop is
broken.Please change IC.
5 The red
transmission
Indicator lights
but no sound
is heard.
3 No talkback
4 No receiving
signal
A.The frequency is not right. Please reselect
the channel of the same frequency.
B.The CTCSS/DCS code is not the same.
Please reset it.
C.Please check the TX/RX signalling system
of both.
D.It is out of the effective communication
range.
E.The FM IC U101 is broken. Please
change IC.
A.The power-amplifier tube Q23/Q25 is
broken, resulting in no power output.
Please change it.
B.The microphone is broken. Please change
it.
o.o.
D.The battery is out of power. Please charge
or change it.
E.CPU is broken, Please change the IC.
2 Phase lock
loop
unlocked
(Beeping)
A.The crystal X1 of phase lock loop is broken.
Please change it.
B.The oscillator tube is broken. Please
change it.
A.The antenna is not in good contact. Please
fasten the antenna head.
B.The high-frequency amplifying tube Q26 is
broken. Please change it.
C.The squelch level is set to high Please
reset the squelch level.
D.The mixed tube Q21 is broken. Please
change it.
The green
receiving dicator
lights but no
sound is heard.
C.The power amplifier U201 is broken.
Please change it.
A.The speaker is broken. Please change it.
B.The audio power amplifier U11 is broken.
Please change IC.
6
14. Major Specifications
Frequency Range: 136MHz--174MHz 350MHz--400MHz
400MHz--470MHz 450MHz--520MHz
Channel Number: 128 (divided into 16 zones and
at most 16 channels per zone)
Channel Spacing: 25 kHz (wide band)/ 20 kHz (medium band)
/12.5 kHz (narrow band)
Operating Voltage: 13.6V DC 10%

21 22
Operating Temperature: -25 -+55
External Dimension: machine only: 170mm*52mm*170mm;
plus fixed bracket: 185mm*62mm*170mm
Weight: machine only: 1450g; plus fixed bracket: 1690g
We, Kirisun Electronics(Shenzhen) Co., Ltd.
6/F, Bldg. H-2, East Industrial Zone Of Overseas
Chinese Town, Shenzhen 518053, China
Declare on our sole responsibility that this equipment complies with
the essential requirements of the Radio and Telecommunication
Terminal Equipment Directive,1999/5/EC,and that any applicable
Essential Test Suits measurement has been performed.
Description of equipment: FM Handheld Transceiver
Model No.: PT8200
This compliance is based on conformity with the following
harmonised standards or documents:
DECLARATION
OF CONFORMITY
0678
WenLiang, Fu
General Manager
Signature
Kirisun Electronics(shenzhen) Co., Ltd
Shenzhen, 25 Jun 2008
Place and date of issue
(1). EN 60950
(2). EN 301 489-1/-5
(3). EN 300 086-1/-2
