Kirsch Wood Blinds Tilt Automation III User manual

Wood Blinds Collection
Tilt Automation III Installation Instructions
Rev. C 5/3/22

2
GETTING STARTED
CONTENTS
GETTING STARTED............................................................................................................................ 1
Product View - Automation III.................................................................................................................. 1
Tools and Fasteners Needed.................................................................................................................... 2
Unpack the Blind ....................................................................................................................................... 2
INSTALLATION................................................................................................................................... 3
Installation Overview ............................................................................................................................... 3
STEP 1 — Install the Brackets .................................................................................................................. 3
Mount the Installation Brackets — Inside or Ceiling Mount ................................................................ 3
Mount the Installation Brackets — Outside Mount .............................................................................. 4
STEP 2 — Connect the Battery Wand or Rechargeable Battery Wand, If Applicable....................... 6
STEP 3 — Install the Blind ........................................................................................................................ 6
STEP 4 — Connect the Power Source, If Applicable.............................................................................. 8
Testing the Blind .....................................................................................................................................11
OPERATION ......................................................................................................................................12
Operate the Blind ....................................................................................................................................12
Operating the Automation App and Automation III Remote ............................................................12
Resetting the Blind (If Necessary).........................................................................................................13
TROUBLESHOOTING ......................................................................................................................14
CARE................................................................................................................................................... 17
Removing the Blind (If Necessary) ........................................................................................................17
Cleaning Procedures ..............................................................................................................................17
CHILD SAFETY..................................................................................................................................18
DECLARATIONS ...............................................................................................................................19
WARRANTY ......................................................................................................................................20

1
GETTING STARTED
Product View - Automation III
End
Bracket
Hold-Down
Brackets and Pin
(Optional)
1
Required with 2
1
∕ 2 " slat size; optional with 2" slat size.
2
Valance, slats, and bottom rail vary by product.
Intermediate
Bracket
(If Required)
Valance Splice
(If Required)
Valance
2
Corner Clips for
Valance Returns
(If Required)
End Bracket
Spacer Block
1
Intermediate
Bracket
Spacer Block1
Headrail Bracket Shim
(Optional)
2" or 4"
Extension
Brackets
(Optional)
End Bracket
Spacer Block
1
End
Bracket
12V Battery
Wand
Magnetic
Valance Clips
2
Transceiver
Assembly
Control
Button

2
GETTING STARTED
Thank you for purchasing the Kirsch®Wood Blinds Collection. With proper installation, operation, and care, your new blinds will
provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation.
Tools and Fasteners Needed
■
1
⁄ 4 " Hex and Flat blade screwdrivers
■ Ballpoint pen
■ Level (laser level is recommended)
■ Measuring tape and pencil
■ Power drill,
3
⁄ 32 " drill bit, and
1
⁄ 4 " hex driver (or socket wrench with
1
⁄ 4 " hex socket)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #6 Hex Head Screws (Provided). Two 1
1
⁄ 2 " screws are provided per installation bracket.
■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long enough for a secure attachment.
■ Speed Nuts and Screws (Provided). Extension brackets come with speed nuts and screws.
■ Drywall Anchor (Not Provided). Use drywall anchors when mounting into drywall.
■ Wire Retainers (Not Provided). If using 18V DC Power Supply, satellite battery mount or rechargeable battery wand, wire
retainers are recommended to secure the power cable.
Unpack the Blind
■ Remove the blind from the package. Keep the packaging until the blind operates to your satisfaction.
■ Refer to the packing list and check for all necessary parts.
■ Contents of your hardware package may vary depending upon the options chosen.
■ Do not remove the slat protector tape (if applied). Doing so will damage the slat finish.
■ Remove shipping protective piece in the headrail before installing (if applied).
Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
∕ 2 "
H
ex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
Wire R
etainers
(Not Provided)

3
INSTALLATION
INSTALLATION
Installation Overview
To install your blind, you will need to perform the following four steps
STEP 1: Install the Brackets
STEP 2: Connect the Power Cable
STEP 3: Install the Blind
STEP 4: Connect the Power Source, If Applicable
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows easily. To prepare for this important
first step, review the mounting types and basic window terminology illustrated below.
■ Refer to the appropriate page below based on your order:
➤ Inside/Ceiling Mount — Below
➤ Outside Mount — Page 4
STEP 1 — Install the Brackets
■ Two end brackets are used to mount horizontal blinds. Wider blinds also require one or two intermediate brackets, as shown in
the table below.
Mount the Installation Brackets — Inside or Ceiling Mount
Bracket Shims (Optional)
Bracket shims are used to gain clearance for valance clips with inside mounts.
One shim for each end bracket and two shims for each intermediate bracket are
included:
■ With each end bracket, first fold the shim and then position it on top of the
end bracket to gain the required clearance.
■ With each intermediate bracket, stack two unfolded shims.
NOTE: Bracket shims may also be used to level the blind whenever the
mounting surface is uneven. The shims can be cut along their fold line to make
them fit.
Outside Mount
Blind mounts
outside window
opening.
Inside Mount
Blind fits within
window opening.
Collectively, the sill
and jambs are
called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Width of Blind Intermediate
Brackets
Up to 48" 0
48
1
⁄ 8 " – 60" 1
60
1
⁄ 8 " – 96" 2
Single
Shim
Intermediate
Bracket

4
INSTALLATION
INSTALLATION
Attach the End Brackets
With inside or ceiling mounts, attach the two end brackets
flush against the sides of the window casement or to the
ceiling. Choose the most appropriate of the following
mounting methods:
■ Side/Top Mount (Inside mount only): Mount the end
brackets with one screw through a side hole and one
screw through a top hole, as shown below left.
■ Side Mount (Inside mount only): Mount the end
brackets with two screws through diagonal side holes.
■ Top Mount (Inside or ceiling mount): Top mount the
end brackets with screws through the two top holes, as
shown below right.
■ Ceiling mount only: If the end brackets are flush with
the back wall, attach them with one screw through a
top hole and one screw through a rear hole
■ Mark each screw hole.
■ Use a
3
⁄ 32 ” drill bit to drill holes for the mounting screws.
■ Attach the end brackets using the screws provided.
IMPORTANT: The front edges of the end brackets must align.
NOTE: For blinds with 2
1
⁄ 2 ” slats, spacer blocks are used with inside mounts to position the end brackets a minimum of
3
⁄ 8 ”
away from the glass. The spacing prevents the slats from rubbing the glass when they are tilted open.
Attach the Intermediate Brackets (If Required)
■ Evenly space the intermediate bracket(s)
between the two end brackets.
➤ Adjust spacing if needed to avoid
interference with internal headrail
mechanisms.
■ Attach the intermediate bracket(s) with two screws through diagonal top holes.
IMPORTANT: The rear of the end brackets and intermediate bracket(s) must align.
Proceed to “STEP 2 — Connect the Power Cable, If Applicable” on page 6
Mount the Installation Brackets — Outside Mount
To attach the end brackets, a flat vertical surface of at least 1
3
⁄ 4 ” is required.
Mark the End Bracket Locations
■ Mark where the ends of the headrail will be located.
➤ Center the headrail over the window opening at the desired height.
Use a pencil to lightly mark each end of the headrail.
➤ Alternatively, measure the width of the headrail and use that
width to mark the headrail end points over the window opening.
■ Make a second mark
1
⁄ 4 ” to the outside of the headrail
end marks. The outer marks are where the outside
edges of the end brackets will be located.
Side/Top
Mount
Top Mount
Intermediate
Bracket
End
Bracket
End
Bracket
Space Evenly Space Evenly
Mark
Measure and Mark
1
∕ 4 "Out from
Ends of Headrail
Mark

5
INSTALLATION
INSTALLATION
Attach the End Brackets
■ Attach the end brackets using two screw through diagonal holes.
➤ If using spacer blocks, use #6 screws long enough for a secure installation
(2½” long screw is recommended).
IMPORTANT: The tops of the end brackets must align.
CAUTION: The rear of the end brackets or spacer blocks must be flush against a
flat mounting surface. Do not mount end brackets on acurved molding .
Attach the Intermediate Brackets (If Required)
■ Evenly space the intermediate bracket(s)
between the two end brackets.
➤ Adjust spacing if needed to avoid
interference with internal headrail
mechanisms.
■ Attach the intermediate bracket(s) with
two screws through diagonal holes.
IMPORTANT: The tops of the end brackets and intermediate bracket(s) must align.
Extension Brackets (Optional)
Attach 2” or 4” extension brackets to the mounting
surface in the same locations where the end brackets
would be attached.
■ Use the provided screws to mount each extension
bracket.
IMPORTANT: The tops of the end brackets and
intermediate bracket(s) must align.
■ Attach the installation brackets to the extension
brackets using the screws and not provided, as
shown below.
Spacer Blocks for 2
1
⁄ 2 " Slat Size
NOTE: Spacer blocks are required for the 2
1
⁄ 2 " slat size and are optional for
2" slat sizes.
■ Attach a spacer block to each of the two end brackets.
■ If one or more intermediate brackets is required (see chart on <OV>), attach
a spacer block to each intermediate bracket.
■ If extension brackets will be used, it is not necessary to attach spacer blocks.
Proceed to “STEP 2 — Connect the Power Cable, If Applicable” on page 6
Intermediate
Bracket
End
Bracket
End
Bracket
Space Evenly Space Evenly
1
3
∕ 8 " Slat Size
End Bracket
with 2"
Extension Bracket
Intermediate Bracket
with 2" Extension Bracket
End and Intermediate Brack
ets
with 4" Extension Bracket
End Bracket with
2" Extension Bracket
Intermediate Bracket
with 2" Extension Bracket
End and Intermediate Brackets
with 4" Extension Bracket
1
3
∕ 8 ", 2", and 2
1
∕ 2 " Slat Sizes
1
3
∕ 8 " Slat Size
End Bracket
Intermediate
Bracket

6
INSTALLATION
INSTALLATION
STEP 2 — Connect the Battery Wand or Rechargeable Battery Wand, If Applicable
NOTE: When power is connected to the motor, a blue LED inside the control button housing will flash to indicate the blind is
ready for operation.
■ Refer to the appropriate page based on your order.
➤ For a headrail-mounted rechargeable battery wand, see below.
➤ For a battery wand, see below.
➤ For any other power options, the blind is installed first. See page “STEP  — Install the Blind” on page ; and then
continue to Step .
NOTE: The rechargeable battery wand is only available as satellite mount.
For the Battery Wand
Plug the Power Cable into the Battery Wand
■ Inside of the headrail: Connect the power cable (coming from the motor) into the socket on the battery wand.
Place the Battery Wand Inside the Headrail
■ From the top of the headrail: Place the battery wand inside the headrail in a location where it will not interfere with the
operation of the blind. Position its smooth, curved side toward the tiltrod.
■ Carefully tuck excess wire into the headrail. Be sure to avoid interference with internal headrail mechanisms.
STEP 3 — Install the Blind
Adding Projection for the Valance
The magnetic valance clips have a projection adjustment feature. By pulling the clips
outward, the clips can provide an additional
1
⁄ 4 " projections.
The clips oer two projection positions. When the clips are fully compressed, the
narrowest projection is
5
⁄ 8 ". The widest projection is
7
⁄ 8 ".
■ Remove the clips from the valance.
■ Insert a small flat blade screwdriver into the slot on one side of the magnet making
sure the screwdriver is all the way down in the slot.
■ Push the screwdriver in toward the magnet and then pull out to extend the clip.
■ Repeat on the other side until the magnet is level.
Tiltrod
Overhead View
Transceiver
Assembly
Battery Wand
Back
Front
5
∕ 8 "
Narrow Projection
7
∕ 8 "
Wide Projection

7
INSTALLATION
INSTALLATION
Attach the Magnetic Valance Clips to the Valance
The magnetic valance clips are adjustable for quick and easy valance attachment and have multi-position valance adjustment
capabilities.

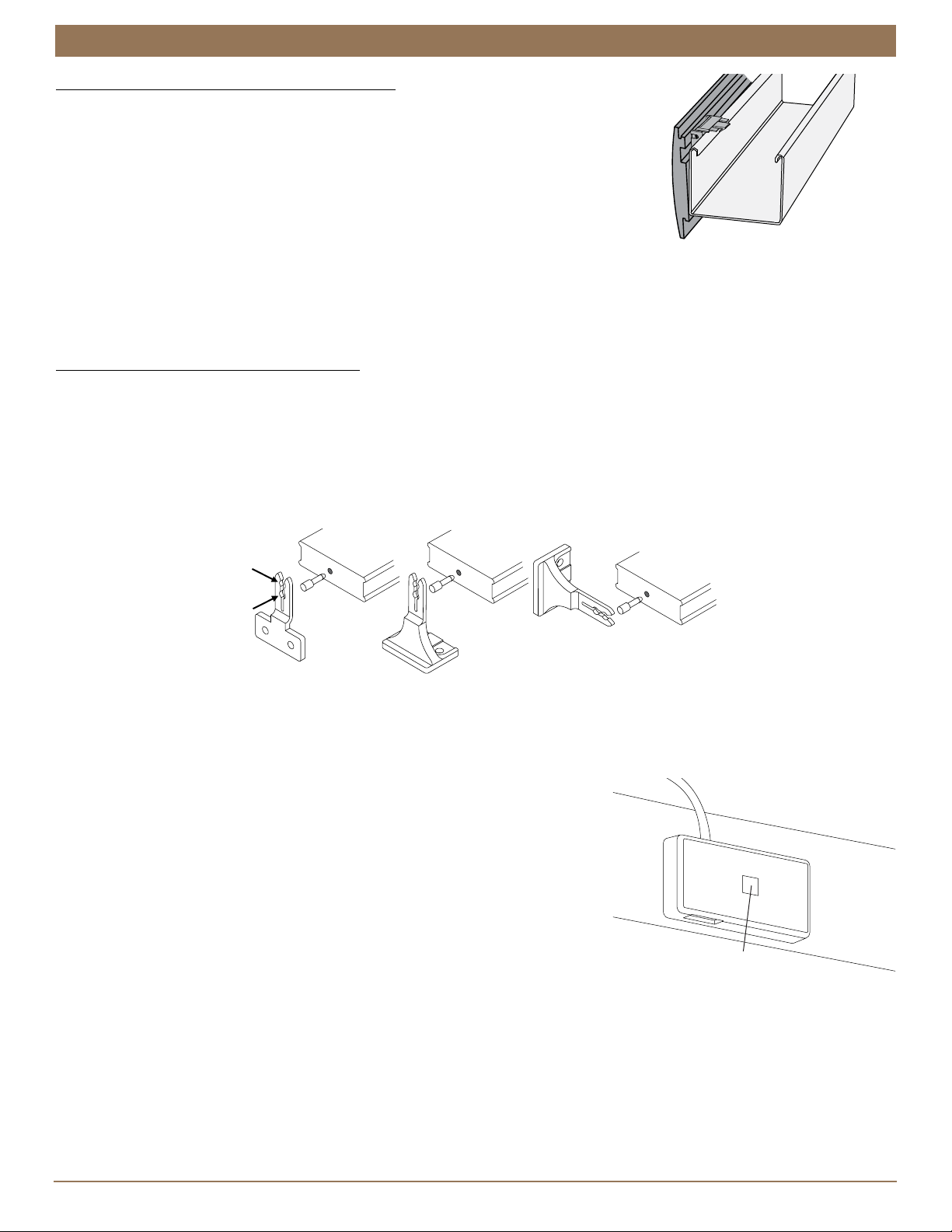

■ To install the clips, lay the valance face down on a protected surface with the back side up.
■ Insert the clip dovetail into the valance groove.
■ Twist the clip until it is straight with the clear tabs at the top of the valance.
➤ There are at least two clips per valance. For valances narrower than 36", position clips 5
1
⁄ 2 " in from the ends of the valance.
For valances 36" or wider, position the clips 10" in from the ends of the valance. Additional clips should be spaced evenly
between the two end clips.
Attach the Corner Clips (If Required)
If the valance came with returns, connect the returns to the valance using the corner clips
provided.
■ The notches on the rear of the valance and returns fit into the grooves of the corner clips.
■ Slide one end of each clip onto the rear of the valance until the center of the clip aligns with
the edge of the miter cut at each end.
■ Slide a return onto each corner clip until its miter is flush against the miter on the valance.
Attach the Valance Splice (If Required)
For valances that are spliced, join the two mitered valance pieces together by sliding the
valance splice clip over the back of the valance where the two halves meet.
Miters Meet
Valance
Valance
Return
(Cross-
Section)
Corner
Clip
Notch
Notch
Miters
Valance
Splice Clip

8
INSTALLATION
INSTALLATION
Mount the Headrail

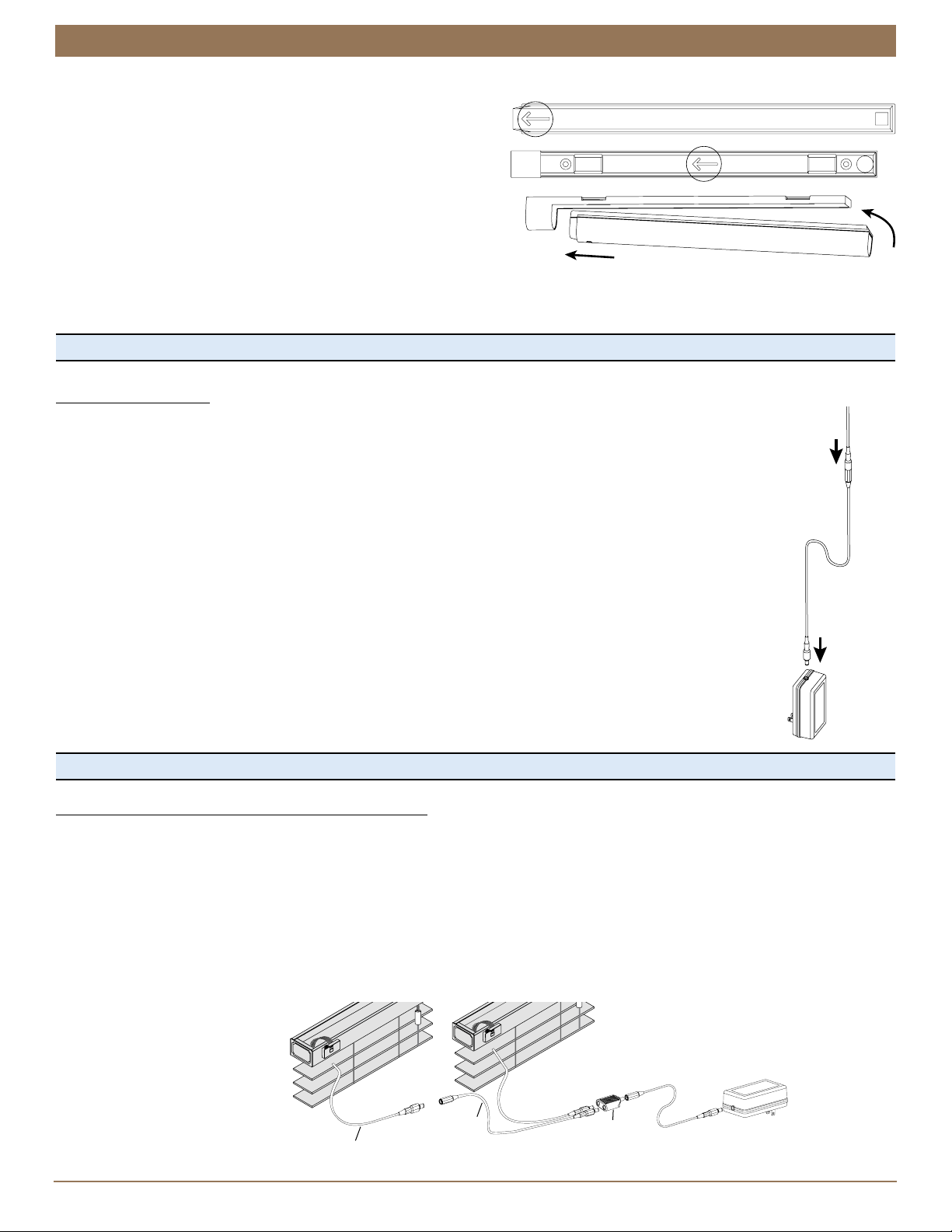

■ Tilt the headrail so that its back lip slides under
the front lip of the end brackets and intermediate
bracket(s).
■ Push the headrail against the back of the end
brackets.
■ Check that the front lip of the intermediate bracket(s)
is under the front lip of the headrail.
Adjust the Headrail Tightness

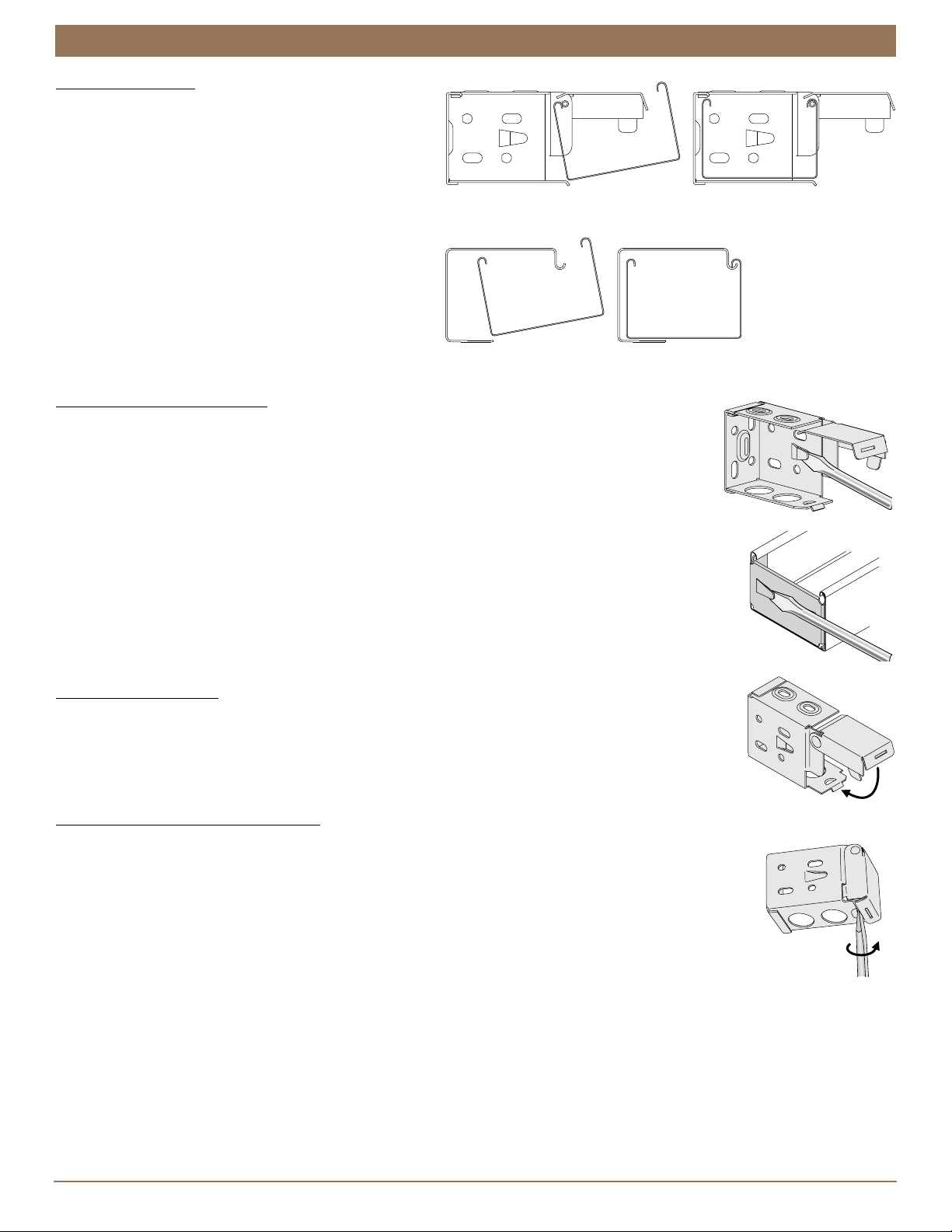

■ If the headrail is loose in the end brackets, bend the tabs on the end bracket outward.
NOTE: The tabs may also be bent inward if the headrail is difficult to install into the end brackets.
■ If your headrail end brackets do not have adjustable tabs, bend the tabs on the headrail end locks to
adjust headrail tightness.
Close the End Brackets
■ Push the cover down until it snaps over the locking tab on the bottom of the end bracket.
Open the End Brackets (If Necessary)
■ To open the end brackets, insert a flat blade screwdriver between the bottom of the cover and the quick
release tab, and twist.
➤ You can also push up on the bottom of the end bracket to release the locking tab.
STEP 4 — Connect the Power Source, If Applicable
Refer to the appropriate page based on your order.
➤ For a headrail-mounted rechargeable battery wand, see”Testing the Blind” on page 11.
➤ For a battery wand, see”Testing the Blind” on page 11.
➤ For an optional rechargeable battery wand, see page 9.
➤ For an optional 18V DC Power Supply, see page 10.
➤ For an optional 18V DC Power Supply with daisy-chain connections, see page 10.
➤ For any other Kirsch®power supplies, see applicable instructions.
End Bracket
Intermediate Bracket
1
3
∕ 8 "
Slat Size
1
3
∕ 8 "
Slat Size

9
INSTALLATION
INSTALLATION
Satellite Battery Wand
Mount the Satellite Battery Wand
NOTE: Refer to this section only if a battery wand or satellite battery pack was included with theh blind.
■ Decide where you want to attach the wall mount bracket. A satellite battery wand may be mounted in
any orientation.
■ Mark the screw holes on the mounting surface.
■ Drill the screw holes using a
3
⁄ 32 ” drill bit.
■ Remove the backing from the double-sided tape. Press the
bracket into place.
■ Attach the bracket using the screws provided.
■ Position the battery wand so the power cable is easily
connected to the socket.
■ Snap the battery wand into the bracket.
■ Install the battery wand cover with the slot aligned to the socket in the battery wand.
■ Plug the power cable from the blind into the extension cable.
■ Plug the other end of the extension cable into the socket in the battery wand.
■ Secure the power supply cable using wire retainers (not provided). If hiding
the cable behind the blind, make sure it does not impede the operation of the
blind.
Proceed to ”Testing the Blind” on page 11.
Rechargeable Battery Wand
Install the Rechargeable Battery Mount
■ Decide where you want to install the
rechargeable battery mount. This may be
mounted behind the headrail, or in any
desired location near the window covering. A
satellite battery mount may be installed in any
orientation.
➤ Make sure the provided cable is long enough
to connect the satellite battery mount and
the blind.
CAUTION: The rear of the battery mount must be flush against a flat mounting surface. Do not install brackets on curved molding.
■ Mark the screw holes.
■ Drill the screw holes using a
3
⁄ 32 ” drill bit.
■ Attach the battery mount using the screws provided.
CAUTION: Only use the screws provided with the battery mount, designed so that the screws will install flush with the mount.
Protrusion of the screws could result in either the battery wand not attaching properly causing a failure to connect, or the
wand falling out of the mount. Do not over-tighten the screws.
■ Connect the power cable from the motor side into the power socket on the
rechargeable battery mount.
NOTE: With longer extension cables, wire retainers (not supplied) are
recommended to secure the cable.
Wall Mount Bracket
Socket
Battery Wand Cover
Extension
Cable
Power Cable
from Blind
2"
Power
Socket
End
Allow 2" at power socket end for the extension cable jack.
Minimum flat mounting area = 15" x 1
1
⁄ 4 "
13"
15" Minimum Mounting Length
1"
Battery Mount
Extension
Cable
(If Needed)
Power Cable
from Blind

10
INSTALLATION
INSTALLATION
Insert the Rechargeable Battery Wand into the Battery Mount
NOTE: The rechargeable battery wand ships fully charged, so it is
ready to install out of the package.
■ Match the direction of the arrow on the underside of the
battery wand with the arrow on the battery mount.
■ Insert the nose of the battery wand into the cavity of the
battery mount.
■ Push the battery wand flush into the mount until the battery
snaps into place.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an injury risk and potentially damaging the
wand. Additionally, when mounting on a door, closing the door with excess force may cause battery wand to dislodge from the
mount, also posing an injury risk and possibly damaging the wand.
Proceed to ”Testing the Blind” on page 11.
18V DC Power Supply
NOTE: When power is connected to the motor, a blue LED inside the control button housing will flash to
indicate the blind is ready for operation.
Connect the Power Supply
■ Plug the power cable from the blind motor into the extension cable.
■ Plug the other end of the extension cable into the 18V DC Power Supply.
■ Plug the 18V DC Power Supply into a power source.
Proceed to “Testing the Blind” on page 11.
18V DC Power Supply with Daisy-Chain Connections
NOTE: The daisy-chain feature is only available with the 18V DC Power Supply option. Refer to this section only if you have an 18V
DC Power Supply with daisy-chain connections.
The daisy-chain feature allows up to three (3) Automation III automated blinds to be powered by a single 18V DC Power Supply.
However, each blind can operate independently.
■ Route the power cables from each blind to the Y Adapter, using an extension cable (if necessary).
■ Plug an extension cable into the Y Adapter and the 18V DC Power Supply. A two-blind configuration is shown below.
■ Plug the 18V DC Power Supply into a standard outlet.
■ An additional Y Adapter and two additional extension cables are used for three blinds.
Power Cable
from Blind
Extension
Cable
18V
DC
Power
Supply
Power Cable
from Blind
Extension
Cable Connector

11
INSTALLATION
INSTALLATION
Attach the Valance with Magnetic Valance Clips
■ Align the valance to the headrail.
■ Hold the valance securely from the front side with both hands.
■ Position the clips to the top-front lip of the headrail until it is level and in position.
■ Press the valance gently forward, just enough so the clips adhere to the headrail.
■ The magnetic valance clips allow for limited valance height adjustments by carefully
sliding the clip up or down while the magnets are adhered to the headrail. The clip’s tabs
rest on the top-front lip of the headrail, keeping the valance level and preventing the
valance from adjusting lower beyond that point.
■ To remove the valance, gently pull the valance up and toward you.
CAUTION: The entire surface area of the magnet inside each clip needs to maintain clean contact with the front surface area
of the headrail at all times.
Attach the Hold-Down Brackets (Optional)
The bottom rail will come with pre-drilled
3
⁄ 32 ” holes and hold-down pins that have been inserted in the center of the bottom rail
ends.
NOTE: Bottom rail design varies by product.
■ To mount the hold-down brackets, first fully lower the blind. Align the hold-down brackets with the hold-down pins in the
bottom rail.
■ Use the first slot with the 2½” slat size.
■ Use the second slot with the 2” slat size.
■ Maintain the correct slot alignment as you attach the hold-down brackets to the jamb, sill, or outside mounting surface.
■ Slide the hold-down pins into the appropriate slot or hole on the hold-down brackets.
■ If necessary with 2” outside mount blinds, the first slot of the hold-down brackets may be used in place of a spacer block.
Testing the Blind
Testing the blind with the control button will allow you to ensure that the motor
and power source are working correctly.
■ Press the control button on the front side of the headrail to test operation. If
the blind does not operate see “Troubleshooting” on page 14.
The control button can also be used in combination with the Automation App for
control of advanced blind functions and home access. Open the App, then press
and hold the control button to see a list of available functions. See “Using the
Automation III Remote” for more information.
Jamb
Mount
Second
Slot
First
Slot
Sill
Mount
Outside Mount
1
3
∕ 8 ", 2", and 2
1
∕ 2 " Slat Sizes
Control
Button
Front of
Blind
Transceiver
Assembly

12
INSTALLATION
OPERATION
Operate the Blind
Raising and Lowering the Blind
IMPORTANT: Whenever raising or lowering the blind, the slats must be in the open position.
■ Pull the single cord down and toward the center to raise and lower.
■ Hold the single cord to the outside to lock the blind in position.
Operating the Automation App and Automation III Remote
Syncing and Programming Your Remote
■ Activate the remote by pulling both plastic tabs from the back battery compartment.
■ Download the Automation App for your smartphone or tablet at getshadeapp.com.
■ Open the Automation App and follow the steps to set up your new blinds and remote.
■ Use the Automation App to program and manage your Automation III remote(s) as accessories.
■ For more details, refer to the digital Automation III Remote Control Guide
Basic Operation
■ Wake up the remote by picking it up or pressing ■STOP.
■ Press group number(s) 1,2,3,4,5 and/or 6 to select one or more groups. Selected group numbers light up white on the remote.
■ Press selected group number(s) 1,2,3,4,5 and/or6 a second time to deselect one or more groups. Deselected group numbers
are not lit.
OPEN
Tilt slats to
open at 50%
CLOSE
Tilt slats down
to closed position
LEFT ARROW
Tilt slats down
to closed postion
RIGHT ARROW
Tilt slats up to
closed position
STOP
Stops the bind’s
movement
Favorite
- Press once to send
selected blind(s) to
your Favorite position*
- Quickly press twice to
send selected blind(s)
to your second preset
Favorite position**
Group Numbers
Each number represents
a different group
* The default favorite position is the slats upward to 75% (tilted 45 degrees upward).
** Both favorite positions can be updated in the Automation App > Shade Settings

13
INSTALLATION
OPERATION
Further Operation and Programming Information
Automation App
The Automation App is required to program Automation III blinds, remotes, and gateways. The App is compatible with Apple®
and Android™ smartphones and tablets. For more information regarding setup and operation using the Automation App, refer to
https://www.kirsch.com/window-coverings-product-manuals.
Automation III Gateway
The Automation III Gateway is used to control blinds in larger projects as well as integrate Automation III blinds with third-party
integration systems. For information regarding programming of Automation III Gateways, refer to the digital Automation III
Gateway Guide.
Automation III Remote
For information regarding operation and programming of the Automation III remote, refer to the digital Automation III Remote
Control Guide.
Resetting the Blind (If Necessary)
Calibration Reset
The calibration reset is used to recalibrate the slat’s travel limits.
1. Press and hold the control button for approximately 6 seconds. The blind will move slightly. Release the control button (the light
flashes red).
2. The blind will tilt fully in one direction to set the first limit, then tilt in the opposite direction to set the second limit. The slats will
move slightly one more time to indicate the travel limits have been reset.
Resetting Blind Programming
The Automation App may be used to modify or reset any blind programming to Automation III Remotes, and Gateways. Blinds may
be added to or removed from Rooms in the App at any time. If necessary, blinds may also be deleted from the Automation App in
the Advanced Options section of the Shade Settings menu.
Electronic Limit Adjustments
Electronic limits are set at the factory and normally do not require readjustment. For window treatments that may need additional
adjustment or to set custom limit positions, go to Shade Settings in the Automation App to adjust limits.

14
INSTALLATION
TROUBLESHOOTING
Troubleshooting
If your blind is not operating correctly:
➤ Review the digital support guide for your control device.
➤ Refer to the following troubleshooting procedures for specific solutions for your blind.
If questions remain, please contract Kirsch®Customer Support at 844-KIRSCH2 (844-547-7242).
Problem The blind will not fit into the installation brackets.
Solution Check that the installation brackets are level and aligned. Adjust and/or shim to level, if necessary.
Be sure the heads of the screws are flush against the installation brackets.
Check that the headrail is completely inserted into the installation brackets. See “Mount the Headrail” on page 7.
Problem Batteries in the battery wand need to be replaced.
Solution Replace the batteries in the battery wand.
Squeeze the cap latch to release the cap and remove the cap from the
battery wand.
Install the batteries according to the instructions on the battery wand label.
Press the cap on until it latches.
NOTE: Kirsch recommends AA alkaline batteries for use with our battery-
powered blinds. These will provide more than one year operation, depending
on usage. Lithium and rechargeable batteries are not recommended.
Problem Rechargeable battery needs recharging.
Solution There are two methods for charging the rechargeable battery wand — the dual charging station or the single
charger.
CAUTION: The rechargeable battery wand can only be charged with these Kirsch provided charging options.
Attempting to charge battery wands with an alternative charger may result in permanent damage.
Removing the Rechargeable Battery Wand from the Mount
■ To safely remove the rechargeable battery wand from your mount, grasp the end of the battery wand that is
furthest away from the power socket.
CAUTION: Grasp the wand firmly prior to removal.
■ Using the indentation on the end of the battery wand, use your index finger to pull the battery out of the mount.
(Continued on next page.)
Cap
Latch
Battery
Wand
Squeeze

15
INSTALLATION
TROUBLESHOOTING
Problem Rechargeable battery needs recharging (continued).
Solution Recharging Via the Dual Charging Station
■ Plug the dual charging station into a standard AC outlet.
■ Insert the nose of the rechargeable battery wand into one of the slots of the dual
charging station.
■ The battery will firmly snap into place. A red light indicator on the front of the
charging station will turn on when the battery wand has been properly inserted
and being charged.
■ Once the battery has been fully recharged, the red light indicator will turn green.
Charging may take up to three hours, depending on your battery level.
■ Remove the battery wand from the charger.
Recharging Via the Single Charger
Remove the rechargeable battery wand from the mount, or insert the single charger
cable without removing from the shading.
■ Attach the plug adapter to the charger.
■ Plug the charger into a standard AC outlet.
■ Plug the charging cable into the charging outlet on the rechargeable battery wand.
The charging outlet is near the nose of the wand.
■ A red light indicator confirms the battery wand is properly inserted and is charging.
CAUTION: Do not attempt to plug the charging cable into the battery mount’s
power socket. Doing so will not only fail to charge the battery wand but could possibly
cause damage to both the single charger and the battery mount.
■ Once the battery has been fully recharged, the red light indicator will turn green.
Charging may take up to two hours, depending on your battery level.
■ Remove the charging cable from the battery wand.
Reinserting the Rechargeable Battery Wand into the Mount
■ Match the direction of the arrow on the underside of the battery wand with the arrow on the battery mount.
■ Insert the nose of the battery wand into the cavity of the battery mount.
■ Push the battery wand flush into the mount until the battery snaps into place.
Problem The blind does not raise or lower evenly.
Solution Check inside the headrail. Make sure no obstructions keep the mechanism from turning.
Check that the li cords are not pinched or tangled.
Problem Li cords are bunching by the safety cord connector.
Solution Make sure the slats are in the open position. Raise and lower the blind to straighten the li cords.
Problem Li cords are stuck or jammed.
Solution Check the cords and the moveable pin in the cordlock mechanism inside the headrail of the blind. Make sure the
cords can move freely. If the cords are jammed, use a screwdriver or needle-nose pliers to move the pin and free the
cords.
Not this
socket

16
INSTALLATION
TROUBLESHOOTING
Problem Decorative tapes are wrinkled aer installation.
Solution Use a steamer to steam out the wrinkles. Wave the steamer in front of the tapes for a few seconds. Do not touch the
slats with the steamer. To avoid stretching the tapes, do not pull down on the bottom rail while steaming.
Problem When hanging, the slat pack appears to be skewed toward the cordlock side of the unit, particularly in an inside
mount installation.
Solution Slide the headrail in the end brackets in the opposite direction of the skew and adjust the tabs in the end brackets to
maintain the position of the unit, This will center the slat pack in the window.
Problem The blind does not operate using the programming button.
Solution Unplug the power cable from the motor, then plug it back in. A green LED light inside the programming button
housing should flash to indicate the motor has power.
Check that the batteries in the battery wand, satellite battery wand, or C-size satellite battery wand are correctly
inserted and fresh.
Check that the power source is securely connected to the power cable and the cables are not pinched or caught in
the headrail or installation brackets.
Problem The blind is not responding to the Automation remote.
Solution IMPORTANT: A blind will not operate until it is joined to a group.
Check that the correct group number is selected. The LED on that group number will light up. You can also check
which group number the blind is joined to on the remote in the Automation App. You can find this under MORE >
ACCESSORIES in the App.
Check if the batteries need to be replaced. If the batteries are completely drained, none of the lights will turn on. If
the batteries are running low, the inner ring buttons (open, close, right arrow, le arrow, stop) light up RED. In either
case, the batteries need to be replaced. The remote takes two CR2032 batteries.
Problem The blind is operating slowly or does not tilt completely.
Solution The batteries may be low in the battery wand, satellite battery wand, or C-size battery wand. Replace the batteries.
Check that the power source is securely connected to the power cable and the cables are not pinched or caught in
the headrail or installation brackets.
The blind may need to be reset. Refer to “Resetting the Blind, If Necessary” on page 13.
Problem The LED light behind the programming button of the transceiver assembly signals 8 red blinks.
Solution This is the low battery indicator. Replace the batteries in the battery wand.

17
INSTALLATION
CARE
Removing the Blind (If Necessary)
■ Fully raise the blind.
■ To remove the valance gently pull the valance up and towards you.
■ Push up on the bottom end of the bracket to release the locking tab.
■ Grab underneath the headrail using both hands and carefully pull the blind out of the end brackets.
Cleaning Procedures
Like any fine furnishings, Kirsch®Wood Blinds Collection should be cleaned regularly to keep them looking new.
Dusting
■ Dust regularly. Use a soft clean cloth, chemically-treated dust cloth, or dusting mitt. Lower the blind until it is full length, tilt
the slats almost all the way down, and dust. Then tilt the slats almost all the way up and dust. (Not closing the slats all the way
allows dusting where the slats overlap.)
■ Blinds may also be vacuumed. Use the brush attachment and tilt the slats up and down as described for dusting.
■ Another way to clean blinds is simply by wiping them with a soft, damp cloth.
Wood Blinds
■ Stained blinds, like wood furniture, should be treated periodically with lemon oil or other wood preservative to protect their
finish and enhance their luster.
IMPORTANT: Kirsch does not recommend ultrasonic cleaning of wood blinds.
A Note About Wood Products
Kirsch Wood Blinds Collection are true wood products, made from 100% hardwood. There will be variations in color, grain, and
texture that are characteristics of all woods. These variations will be especially visible in blinds with light color stains. The variations
are normal and are considered acceptable.

18
INSTALLATION
CHILD SAFETY
