KitchenAid 9KSM150 User manual

Stand Mixer
9KSM150
W11674488A.indb 1W11674488A.indb 1 6/9/2023 2:50:39 PM6/9/2023 2:50:39 PM

2
1Bowl Clamping Plate
2Beater Height Adjustment Screw
(not shown)
3Speed Control Lever
4Motor Head
5Attachment Hub
6Attachment Knob
7Locking Lever (not shown)
8Beater Shaft
9Bowl**
10 Pouring Shield*
11 2.8 L Stainless Steel Bowl*
12 Flat Beater*
13 Flex Edge Beater*
14 Wire Whip
15 Dough Hook
16 Pastry Beater* and Scraper*** *
PARTS AND FEATURES
*Included with select models only. Also available as an optional accessory.
**The Bowl design and material depend on the Stand Mixer model.
***Can also be used to scrape your Bowl.
5
7
6
4
3
2
1
9
8
10
11
13 14 1615
12
W11674488A.indb 2W11674488A.indb 2 6/9/2023 2:50:40 PM6/9/2023 2:50:40 PM

ENGLISH
3

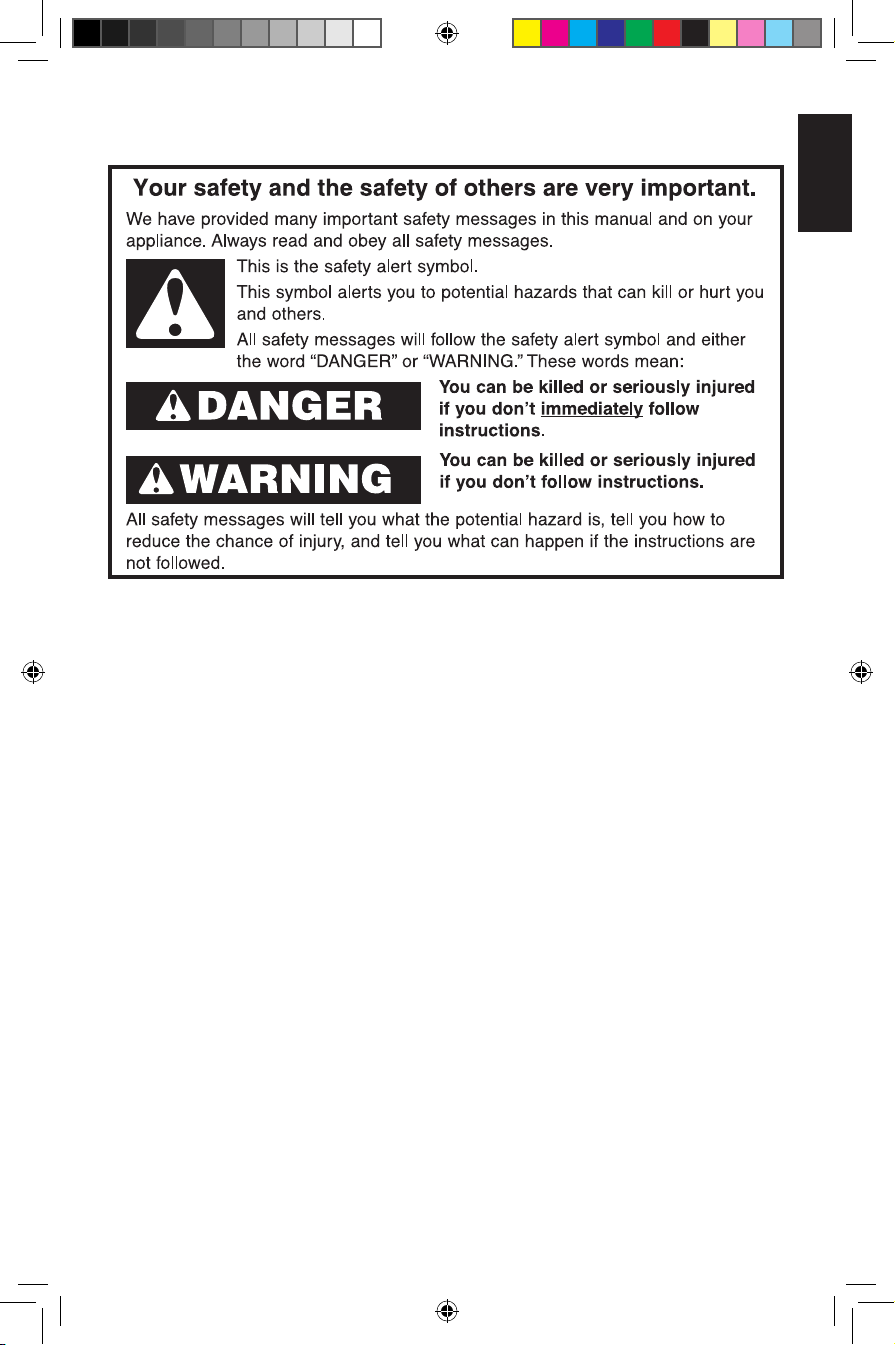

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions. Misuse of appliance may result in personal injury.
2. To protect against risk of electrical shock, do not put Stand Mixer in water or
other liquid.
3. This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they are closely supervised and instructed concerning use
of the appliance by a person responsible for their safety. Close supervision is
necessary when any appliance is used by or near children. Children should be
supervised to ensure that they do not play with the appliance.
4. Turn the appliance off (OFF/0), then unplug from the outlet when not in use,
before assembling or disassembling parts, and before cleaning. To unplug, grasp
the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well
as spatulas and other utensils, away from beater during operation to reduce
the risk of injury to persons and/or damage to the Stand Mixer.
6. Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions, or is dropped or damaged in any manner. Return
appliance to the nearest Authorised Service Facility for examination, repair, or
electrical or mechanical adjustment.
7. The use of accessories/attachments not recommended or sold by KitchenAid
may cause fire, electrical shock or injury to persons.
8. Do not use the appliance outdoors.
9. All accessories (beaters, Dough Hook and Whisk) should not be used for longer
than 15 minutes. When mixing extremely heavy loads the appliance should not
be operated for more than 10 minutes.
10. Do not let the cord hang over the edge of table or counter.
W11674488A.indb 3W11674488A.indb 3 6/9/2023 2:50:40 PM6/9/2023 2:50:40 PM

4
PRODUCT SAFETY
11. Remove the Beaters, Pastry Beater, Wire Whip, or Dough Hook from the Stand
Mixer before washing.
12. Allow the appliance to cool completely before putting on or taking off parts, and
before cleaning the appliance.
SAVE THESE INSTRUCTIONS
ELECTRICAL REQUIREMENTS
Voltage: 120 V
Frequency: 60 Hz
Power: 325 W
NOTE: The power rating for your Stand
Mixer is printed on the serial plate.
Do not use an extension cord. If the
power supply cord is too short, have
a qualified electrician or service technician
install an outlet near the appliance.
The maximum rating is based on the
attachment that draws the greatest
load (power). Other recommended
attachments may draw significantly
less power.
GETTING STARTED
ACCESSORY USE TO MIX SUGGESTED ITEMS
Flat Beater*
Flex Edge Beater*
Normal to heavy
mixtures
Cakes, creamed frostings, candies, cookies,
biscuits, pie pastry, meatloaf, mashed potatoes.
Pastry Beater* Cut butter into
flour
For pie dough, biscuits and other pastries,
mashing fruits and vegetables, and shredding
meats.
Wire Whip
Mixtures
that need air
incorporated
Eggs, egg whites, heavy cream, boiled frostings,
sponge cakes, mayonnaise, some candies.
Dough Hook
Mixing and
kneading yeast
doughs
Breads, rolls, pizza dough, buns.
ACCESSORY GUIDE
*Included with select models only. Also available as an optional accessory.
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove earth prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
W11674488A.indb 4W11674488A.indb 4 6/9/2023 2:50:40 PM6/9/2023 2:50:40 PM

ENGLISH
5
SPEED CONTROL GUIDE
Note:The Speed Control Lever can be set to obtain speeds 1, 3, 5, 7, and 9 if a finer
adjustment is required. Do not exceed Speed 2 when preparing yeast doughs as this may
cause damage to the Stand Mixer.
SPEED ACCESSORY ACTION DESCRIPTION
Stir Flat Beater*
Flex Edge Beater* Stir For starting all mixing procedures, slow stirring, and combining.
2
Pastry Beater* Stir Cut butter into flour to make pastry dough;
Mash fruits and vegetables.
Flat Beater*
Flex Edge Beater*
Slow mixing
For slow mixing, mashing, and faster stirring.
Dough Hook
To mix and knead yeast doughs, heavy
batters, and candies; mix thin or splashy
batters.
4
Flat Beater*
Flex Edge Beater*
Mixing,
Beating
For mixing semi-heavy batters, such
as cookies, or to combine sugar and
shortening. Medium speed for cake mixes.
Pastry Beater* For shredding meats.
Wire Whip For adding sugar to egg whites for
meringues.
6
Flat Beater*
Flex Edge Beater* Beating,
Creaming
For medium-fast beating (creaming),
or whipping. Use to nish mixing cake,
doughnut, and other batters. High speed for
cake mixes.
Wire Whip
For medium-fast whipping of ingredients
requiring incorporation of air, such as egg
whites.
8Wire Whip
Fast
beating,
Whipping
For whipping cream, egg whites,
and boiled frostings.
NOTE: To move the Speed Control Lever with ease, lift slightly up as you move it across
the settings in either direction.
PRODUCT ASSEMBLY
Turn the Stand Mixer off (OFF/0) and
Unplug.
1
Unlock and lift the Motor Head. Then,
lock** the head to keep it lifted.
2
*Included with select models only. Also available as an optional accessory.
**Locking option is available on select models.
W11674488A.indb 5W11674488A.indb 5 6/9/2023 2:50:40 PM6/9/2023 2:50:40 PM

6
PRODUCT ASSEMBLY
Place the Bowl* on the Clamping Plate
and twist to lock in place.
3
1
2
Slide and rotate the accessory, aligning
over the pin on the shaft.
4
Unlock the Motor Head and move it
down. Then, lock** the head to keep
it down. Before mixing, test lock by
attempting to raise the Motor Head.
5
(OPTIONAL) To adjust Beater to Bowl*
Clearance: Tilt and lock** the Motor
Head back. Turn the screw slightly
counterclockwise (left) to raise the
beater, or clockwise (right) to lower it.
NOTE: If you over-adjust the screw,
the Bowl* Lock Lever may not lock into
place.
(OPTIONAL) Place the Pouring
Shield***: From the front of the Stand
Mixer, place the Pouring Shield***
onto the Bowl* so that the Motor Head
covers the u-shaped gap in the shield.
This will position the Pouring Chute just
to the right of the Attachment Hub as
you face the mixer. Press lightly so that
the Easy Snap tabs snap the shield onto
the Bowl*.
*The Bowl design and material depend on the Stand Mixer model.
**Locking option is available on select models.
***Included with select models only. Also available as an optional accessory.
W11674488A.indb 6W11674488A.indb 6 6/9/2023 2:50:41 PM6/9/2023 2:50:41 PM

ENGLISH
7
PRODUCT USAGE
Plug it into an earthed outlet. Start with
lower speed to avoid splashing, and
increase speed gradually.
Refer to the “Speed Control Guide”
section.
1
Do not scrape the Bowl*while operating.
Scraping the Bowl*once or twice during
mixing is usually sufficient.
(OPTIONAL): Pour ingredients into the
Bowl* through the Pouring Chute.
2
*The Bowl design and material depend on the Stand Mixer model.
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove earth prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these
instructions can result in
death, fire, or electrical shock.
W11674488A.indb 7W11674488A.indb 7 6/9/2023 2:50:41 PM6/9/2023 2:50:41 PM

8
PRODUCT DISASSEMBLY
Turn the Stand Mixer off (OFF/0) and
unplug. Unlock and lift the Motor Head.
Then, lock* the head to keep it lifted.
1
(OPTIONAL): Lift the front of the Pouring
Shield** clear of the rim of the Bowl***.
Pull away from the Stand Mixer.
Press the accessory upward, turn it and
pull it away from the Beater Shaft.
2
Twist to unlock the Bowl*** from the
Clamping Plate.
3
Turn the Stand Mixer off (OFF/0) and
then Unplug.
1
KitchenAid offers a wide range of optional attachments such as the Spiralizer, Pasta
Cutters, or Food Grinder that may be attached to the Stand Mixer Attachment Hub as
shown here.
Remove the Attachment Hub cover.
2
*Locking option is available on select models.
**Included with select models only. Also available as an optional accessory.
***The Bowl design and material depend on the Stand Mixer model.
OPTIONAL ATTACHMENTS
W11674488A.indb 8W11674488A.indb 8 6/9/2023 2:50:41 PM6/9/2023 2:50:41 PM

ENGLISH
9
Insert attachment into Attachment Hub,
making certain that attachment power
shaft ts into the square Attachment
Hub socket.
3
Tighten the Attachment Knob by turning
it clockwise until the attachment is
secured to the Stand Mixer.
4
OPTIONAL ATTACHMENTS
IMPORTANT: Allow the appliance to cool completely before putting on or taking off
parts, and before cleaning the appliance. Do not immerse the Stand Mixer body in
water or other liquids.
CARE AND CLEANING
Turn the Stand Mixer off (OFF/0) and
then Unplug.
1
Dishwasher-safe parts, top rack only:
Stainless Steel Bowl, Bowl*,
Flat Beater**, Dough Hook, Flex Edge
Beater**, Pouring Shield**, Pastry
Beater**, and Scraper**.
2
Wipe the Stand Mixer body with a soft,
damp cloth.
3
Clean the Wire Whip thoroughly with
hot sudsy water and hand wash only.
4
*The Bowl design and material depend on the Stand Mixer model.
**Included with select models only. Also available as an optional accessory.
W11674488A.indb 9W11674488A.indb 9 6/9/2023 2:50:42 PM6/9/2023 2:50:42 PM

10
TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
If Stand Mixer warms up
during use
Under heavy loads with extended mixing time periods, you
may not be able to comfortably touch the top of the unit.
This is normal.
If the Flat Beater hits the Bowl Stop the Stand Mixer. See the “Product Assembly” section
and adjust the Beater to Bowl Clearance.
The Speed Control Lever does
not move smoothly or easily
To move the Speed Control Lever with ease, lift slightly up
as you move it across the settings in either direction.
If your Stand Mixer should fail
to operate, please check the
following
Is the Stand Mixer plugged in?
Is the fuse in the circuit to the Stand Mixer in working order?
If you have a Circuit Breaker Box, be sure the circuit is
closed.
Turn off the Stand Mixer for 10-15 seconds, then turn it back
on. If the Stand Mixer still does not start, allow it to cool for
30 minutes before turning it back on.
Note: If the problem cannot be corrected, See the “Warranty and Service” section.
Do not return the Stand Mixer to the retailer; retailers do not provide service.
©2023 All rights reserved.
KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere.
WARNING
Electrical Shock Hazard
Plug into an earthed outlet.
Do not remove an earth prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, re,
or electrical shock.
W11674488A.indb 10W11674488A.indb 10 6/9/2023 2:50:42 PM6/9/2023 2:50:42 PM
