KitchenAid 5KSM3311 User manual

5KSM3311
W10747072B_01_EN_v01.indd 1 4/18/16 4:01 PM

ENGLISH
| 5
TABLE OF CONTENTS
PARTS AND FEATURES.........................................................................................6
STAND MIXER SAFETY.........................................................................................7
Important Safeguards.....................................................................................7
Electrical Requirements..................................................................................9
Electrical Equipment Waste Disposal.............................................................9
USING THE STAND MIXER.................................................................................10
Choosing the Right Accessory......................................................................10
Speed Control Guide....................................................................................11
Assembling the Stand Mixer ........................................................................12
Operating the Stand Mixer ..........................................................................14
Disassembling the Stand Mixer....................................................................15
Optional Attachments ..................................................................................16
CARE AND CLEANING.......................................................................................17
Cleaning the Stand Mixer.............................................................................17
TROUBLESHOOTING..........................................................................................18
WARRANTY AND SERVICE ................................................................................19
W10747072B_01_EN_v01.indd 5 4/18/16 4:01 PM

6 | PARTS AND FEATURES
PARTS AND FEATURES
PARTS AND ACCESSORIES
Pouring shield*
Flex Edge
beater*
Wire whip
Dough hook
Speed control
*Accessory sold separately
Motor head
Attachment hub
Beater shaft
Flat
beater
Bowl
W10747072B_01_EN_v01.indd 6 4/18/16 4:01 PM

ENGLISH
STAND MIXER SAFETY | 7
Flat
beater
Bowl

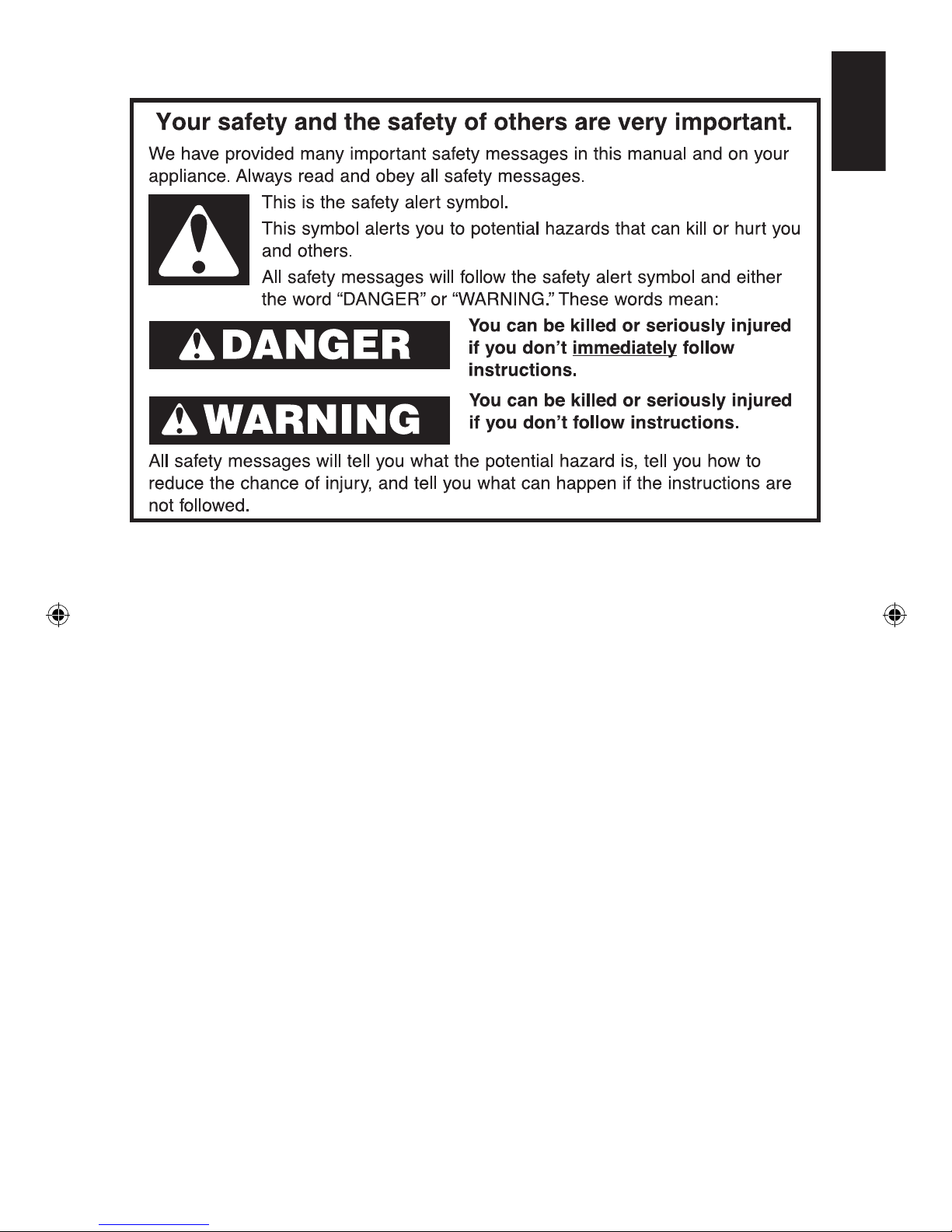

STAND MIXER SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including
the following:
1. Read all instructions. Misuse of appliance
may result in personal injury.
2. To protect against risk of electrical shock, do not put
Stand Mixer in water or other liquid.
3. Unplug the Stand Mixer from outlet when
not in use, before putting on or taking off parts,
and before cleaning.
4. This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
W10747072B_01_EN_v01.indd 7 4/18/16 4:01 PM

8 | STAND MIXER SAFETY
STAND MIXER SAFETY
5. This appliance is not intended for use by persons,
including children, with reduced physical sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instructions concerning use of the appliance in a safe
way and understand the hazards involved.
6. The appliance is not to be used by children. The
appliance and cord should be out of reach of children.
7. Avoid contacting moving parts. Keep hands, hair,
and clothing, as well as spatulas and other utensils,
away from beater during operation to reduce the risk
of injury to persons and/or damage to the Stand Mixer.
8. Do not operate any appliance with a damaged
cord or plug or after the appliance malfunctions
or has been damaged in any manner. Return
appliance to the nearest Authorized Service Facility
for examination, repair or adjustment.
9. The use of accessories not recommended or sold
by KitchenAid may cause re, electric shock or injury.
10. Do not use the Stand Mixer outdoors.
11. Do not let the cord hang over the edge of table
or counter.
12. Do not let the cord contact hot surfaces, including
the stove.
13. Remove the at beater, wire whip, or spiral dough hook
from the Stand Mixer before washing.
14. This appliance is intended to be used in household
and similar applications such as:
- staff kitchen areas in shops, offices or other
working environments.
- farm houses.
- by clients in hotels, motels and other residential
type environments.
- bed and breakfast type environments.
SAVE THESE INSTRUCTIONS
W10747072B_01_EN_v01.indd 8 4/18/16 4:01 PM

ENGLISH
STAND MIXER SAFETY | 9
STAND MIXER SAFETY
ELECTRICAL REQUIREMENTS
Voltage: 220-240 V
Frequency: 50-60 Hz
Wattage: 250 Watts
NOTE: The power rating for your
Stand Mixer is printed on the serial plate.
Do not use an extension cord. If the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet
near the appliance.
The maximum rating is based on the
attachment that draws the greatest
load (power). Other recommended
attachments may draw significantly
less power.
ELECTRICAL EQUIPMENT WASTE DISPOSAL
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol
. The various parts of the packing
must therefore be disposed of
responsibly and in full compliance
with local authority regulations
governing waste disposal.
Scrapping the product
- This appliance is marked in compliance
with European Directive 2012/19/EU,
Waste Electrical and Electronic
Equipment (WEEE).
- By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
- The symbol on the product or
on the accompanying documentation
indicates that it should not be treated
as domestic waste but must be taken
to an appropriate collection centre
for the recycling of electrical and
electronic equipment.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city
ofce, your household waste disposal
service or the shop where you purchased
the product.
W10747072B_01_EN_v01.indd 9 4/18/16 4:01 PM

10 | USING THE STAND MIXER
USING THE STAND MIXER
CHOOSING THE RIGHT ACCESSORY
ACCESSORY USE TO MIX: DESCRIPTION:
FLAT BEATER
FLEX EDGE BEATER*
Normal
to heavy
mixtures
Cakes, Creamed frostings, Candies,
Cookies, Biscuits, Pie pastry, Meat loaf,
Mashed potatoes
WIRE WHIP Mixtures
that need air
incorporated
Eggs, Egg whites, Heavy cream,
Boiled frostings, Sponge cakes,
Mayonnaise, some candies
DOUGH HOOK Mixing and
kneading yeast
doughs
Breads, Rolls, Pizza dough, Buns
*Accessory sold separately
W10747072B_01_EN_v01.indd 10 4/18/16 4:01 PM

ENGLISH
USING THE STAND MIXER | 11
USING THE STAND MIXER
SPEED CONTROL GUIDE
All speeds have the Soft Start®feature which automatically starts the Stand Mixer
at a lower speed to help avoid ingredient splash-out and “our puff” at start-up,
then quickly increases to the selected speed for optimal performance.
NOTE: The speed control can be set between the speeds listed in the chart to obtain
speeds 1, 3, 5, 7, and 9 if a finer adjustment is required. Do not exceed Speed 2 when
preparing yeast doughs as this may cause damage to the Stand Mixer.
SPEED ACCESSORY ACTION: DESCRIPTION:
½STIR For starting all mixing procedures, slow
stirring, combining, and mashing. Use to
add our and dry ingredients to batter,
and to add liquids to dry ingredients.
Do not use Speed 1 to mix or knead
yeast doughs.
1
2SLOW MIXING For slow mixing, mashing, faster stirring.
Use to mix and knead yeast doughs,
heavy batters, and candies; start
mashing potatoes or other vegetables;
cut shortening into flour; mix thin or
splashy batters.
4MIXING,
BEATING For mixing semi-heavy batters, such
as cookies. Use to combine sugar and
shortening, and to add sugar to egg
whites for meringues. Medium speed
for cake mixes.
6BEATING,
CREAMING For medium-fast beating (creaming),
or whipping. Use to finish mixing cake,
doughnut, and other batters. High
speed for cake mixes.
8FAST BEATING,
WHIPPING For whipping cream, egg whites,
and boiled frostings.
10 FAST WHIPPING For whipping small amounts of cream,
or egg whites; for final whipping of
mashed potatoes.
NOTE: To move the speed control lever with ease, lift slightly up as you move it across
the settings in either direction.
W10747072B_01_EN_v01.indd 11 4/18/16 4:01 PM

12 | USING THE STAND MIXER
USING THE STAND MIXER
ASSEMBLING THE STAND MIXER
1Check to be sure that the Stand
Mixer is unplugged, and the speed
control is turned to “0”. 2
Raise the motor head: Slide the
locking lever to the unlock position
and lift the motor head. Once lifted,
slide the locking lever to the lock
position to keep the motor head up.
3
Attach the bowl: Place the bowl on
the bowl clamping plate and gently
turn it in a clockwise direction to
lock it into place.
4
Attach any accessory: Slip the
accessory onto the beater shaft and
press upward as far as possible. Turn
the accessory counterclockwise to
hook the accessory over the pin on
the shaft.
NOTE: To move the speed control lever
with ease, lift slightly up as you move it
across the settings in either direction.
W10747072B_01_EN_v01.indd 12 4/18/16 4:01 PM

ENGLISH
USING THE STAND MIXER | 13
USING THE STAND MIXER
IMPORTANT: Your Stand Mixer is adjusted at the factory so that the at beater just
clears the bottom of the bowl. If, for any reason, the at beater hits the bottom of
the bowl or is too far away from the bowl, you can easily correct the clearance.
NOTE: When properly adjusted, the flat beater will not strike on the bottom or sides
of the bowl. If the flat beater or the wire whip is so close that it strikes the bottom of
the bowl, coating may wear off the beater or wires on the whip may wear.
(OPTIONAL) To adjust beater to
bowl clearance: Tilt the motor head
back; then turn the screw slightly
counterclockwise (left) to raise the
beater, or clockwise (right) to lower the
beater. Adjust the beater so that it just
clears the surface of the bowl. If you
over adjust the screw, the bowl lock
lever may not lock into place.
(OPTIONAL) Place the pouring shield*:
Slide the pouring shield* from the
front of the Stand Mixer over the
bowl until the pouring shield* is
centred. The bottom rim of the
pouring shield* fits inside of the
bowl. The pouring chute will be
just to the right of the attachment
hub as you face the Stand Mixer.
5
Lower the motor head: Slide the
locking lever to the unlock position
and guide the motor head down.
Make sure motor head is completely
down, then slide the locking lever
to the lock position. Before mixing,
test lock by attempting to raise the
motor head.
*Accessory sold separately
W10747072B_01_EN_v01.indd 13 4/18/16 4:01 PM

14 | USING THE STAND MIXER
USING THE STAND MIXER
OPERATING THE STAND MIXER
NOTE: The Stand Mixer may warm up during use. Under heavy loads with extended
mixing time, the top of the unit may become hot. This is normal.
1
Plug the Stand Mixer into a
grounded 3 prong outlet. Always
set the speed control lever on
lowest speed to start, then gradually
increase speed to avoid splashing
ingredients. See the “Speed control
guide” to select the best speed for
your recipe.
2
Do not scrape the bowl while the
Stand Mixer is operating. The bowl
and beaters are designed to provide
thorough mixing without frequent
scraping. Scraping the bowl once
or twice during mixing is usually
sufficient.
NOTE: To move the speed control lever
with ease, lift slightly up as you move it
across the settings in either direction.
W10747072B_01_EN_v01.indd 14 4/18/16 4:01 PM

ENGLISH
USING THE STAND MIXER | 15
USING THE STAND MIXER
DISASSEMBLING THE STAND MIXER
NOTE: The pouring shield* can be
used to avoid ingredients splashing
out of the bowl when mixing as well
as to easily pour ingredients in the
bowl while mixing.
1
Raise the motor head: Check to
be sure that the Stand Mixer is
unplugged, and the speed control is
turned to “0”; then slide the locking
lever to the unlock position and lift
the motor head. Once lifted, slide
the locking lever to the lock position
to keep the motor head up.
(OPTIONAL) Remove the pouring
shield*: Lift the front of the pouring
shield* clear of the rim of the bowl,
and pull away from the Stand Mixer.
(OPTIONAL) Pour ingredients into the
bowl through the pouring chute.
*Accessory sold separately
W10747072B_01_EN_v01.indd 15 4/18/16 4:01 PM

16 | USING THE STAND MIXER
USING THE STAND MIXER
OPTIONAL ATTACHMENTS
KitchenAid offers a wide range of optional attachments such as the spiralizer, pasta
cutters, or food grinders that may be attached to the Stand Mixer attachment power
shaft as shown here.
1Check to be sure that the Stand
Mixer is unplugged, and the speed
control is turned to “0”. 2Turn the attachment knob
counterclockwise to remove
attachment hub cover.
2
Remove the accessory: Turn the
speed control to “0”, unplug the
Stand Mixer, and tilt the motor head
back; then, press the accessory
upward as far as possible, then turn
the accessory clockwise and pull it
away from the beater shaft.
3Remove the bowl: Gently turn
the bowl counterclockwise to release
it from the bowl clamping plate.
W10747072B_01_EN_v01.indd 16 4/18/16 4:01 PM

ENGLISH
CARE AND CLEANING | 17
USING THE STAND MIXER
3
Insert attachment into attachment
hub, making certain that attachment
power shaft ts into the square
attachment hub socket. It may be
necessary to rotate the attachment
back and forth. When it is in the
proper position, the pin on the
attachment will t into the notch
on the hub rim.
4
Tighten the attachment knob
by turning it clockwise until the
attachment is completely secured
to the Stand Mixer. See the
Instructions manual that came
with your attachment for detailed
directions on using the attachment.
CARE AND CLEANING
CLEANING THE STAND MIXER
IMPORTANT: Do not wash the wire whip in the dishwasher. Do not immerse the Stand
Mixer body in water or other liquids. These parts should be hand washed.
1
Turn Stand Mixer off and unplug
before cleaning. Wipe the Stand
Mixer body with a soft, damp cloth.
Do not use household/commercial
cleaners. Wipe off the beater
shaft frequently to remove any
accumulation of residue. Do not
immerse in water.
2
The bowl, flat beater, dough hook,
flex-edge beater, and pouring shield*
(top shelf only) may be washed in a
dishwasher; or, clean them thoroughly
in hot, sudsy water and rinse
completely before drying. Do not
store beaters on the shaft.
*Accessory sold separately
W10747072B_01_EN_v01.indd 17 4/18/16 4:01 PM

18 | TROUBLESHOOTING
CARE AND CLEANING
3
The wire whip is not dishwasher
safe. Clean it throughly in hot, sudsy
water and rinse completely before
drying. Do not store the wire whip
on the shaft.
TROUBLESHOOTING
If your Stand Mixer should malfunction
or fail to operate, please check the
following:
1. The Stand Mixer may warm up
during use. Under heavy loads
with extended mixing time periods,
you may not be able to comfortably
touch the top of the unit. This
is normal.
2. The Stand Mixer may emit a pungent
odor, especially when new. This is
common with electric motors.
3. If the flat beater hits the bowl, stop the
Stand Mixer. See the “Assembling the
Stand Mixer” section and adjust the
beater to bowl clearance.
4. Is the Stand Mixer plugged in?
5. Is the fuse in the circuit to the Stand
Mixer in working order? If you have
a circuit breaker box, be sure the circuit
is closed.
6. Turn off the Stand Mixer for
10-15 seconds, then turn it back
on. If the Stand Mixer still does not
start, allow it to cool for 30 minutes
before turning it back on.
If the problem cannot be corrected:
See the “Warranty and service” section.
Do not return the Stand Mixer to the
retailer; retailers do not provide service.
W10747072B_01_EN_v01.indd 18 4/18/16 4:01 PM

ENGLISH
WARRANTY AND SERVICE | 19
WARRANTY AND SERVICE
CUSTOMER SERVICE
KITCHENAID STAND MIXER WARRANTY
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT
DAMAGES.
© 2016. All rights reserved.
Specications subject to change without notice.
Length of Warranty: KitchenAid Will Pay For: KitchenAid Will Not Pay For:
Europe, Middle East
and Africa:
5KSM3311
Five years full
warranty from
date of purchase.
The replacement parts
and repair labour
costs to correct
defects in materials or
workmanship. Service
must be provided by an
Authorized KitchenAid
Service Centre.
A. Repairs when Toaster is
used for operations other
than normal household
food preparation.
B. Damage resulting from
accident, alterations,
misuse, abuse, or installation/
operation not in accordance
with local electrical codes.
In U.K. and Ireland:
For any questions, or to find the nearest KitchenAid Authorized Service Centre,
please find our contact details below.
NOTE: All service should be handled locally by an Authorized KitchenAid
Service Centre.
Contact number for U.K. and Northern Ireland:
Tollfree number 0800 988 1266 (calls from mobile phones are charged standard
network rate) or call 0194 260 5504
Contact number for Ireland:
Tollfree number [phone]
E-mail contact for U.K. and Ireland:
Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom
of the page.
Address for U.K. and Ireland:
KitchenAid Europa, Inc.
PO BOX 19
B-2018 ANTWERP 11
BELGIUM
Number for general questions:
In other countries:
For all product related questions and after sales matters, please contact your dealer
to obtain the name of the nearest Authorized KitchenAid Service/Customer Centre.
For more information, visit our website at:
www.KitchenAid.co.uk
www.KitchenAid.eu
W10747072B_01_EN_v01.indd 19 4/18/16 4:01 PM

W10747072B_01_EN_v01.indd 20 4/18/16 4:01 PM
