Klafs TOUCHCONTROL User manual

Operating Instructions
TOUCHCONTROL

Contents Page
1. Concise description of the TOUCHCONTROL .................. 3
2. Intended Use ................................................. 4
3. General safety information ................................... 4
4. Technical data TOUCHCONTROL .............................. 4
5. TOUCHCONTROL Operation and Display Elements ........... 5
5.1. Switch On TOUCHCONTROL ........................................... 5
6. Menu bar ..................................................... 6
7. Cabin settings ................................................ 7
7.1. Cabin Selection and Setting Menu ........................................ 7
7.2. Adjusting the Bathing Time .............................................. 7
7.3. Setting the temperature ................................................. 7
7.4. Adjusting the Humidity .................................................. 8
7.5. Adjusting AQUAVIVA ................................................... 8
7.6. Set color light with LIFTLIGHT ............................................ 9
7.7. Adjusting Sky with Stars ................................................. 10
7.8. Adjusting the Reading Lamp ............................................. 10
7.9. Adjusting the Ventilation ................................................ 10
7.10. Adjusting the Scent ..................................................... 10
7.11. Set BELLAVEDA ........................................................ 11
7.12. Adjusting the sound .................................................... 11
7.13. Setting Bathing Type/Experience Bathing Type .............................. 12
7.14. Switch to menu Cabin Selection .......................................... 12
7.15. Saving Own Settings ................................................... 12
7.16. Set steam bath and start ................................................ 13
7.17. Set Caldarium and start ................................................. 13
7.18. Set mud bath and start .................................................. 14
7.19. Stop Bathing mode .................................................... 15
7.20. Switching Cabin Lighting On/Off ........................................ 15
7.21. Extras ................................................................ 15
7.22. Listening to Music ...................................................... 15
8. Service Settings ............................................... 16
8.1. Selecting the Service Settings ............................................ 16
8.2. Select Language ....................................................... 16
8.3. Setting Time .......................................................... 16
8.4. Setting the Water Hardness ............................................. 16
8.5. Setting the Monitor Brightness ............................................ 17
8.6. Setting a Password ..................................................... 17
8.7. Activation Period Screen Saver / Setting Password Prompt .................... 17
8.8. Cleaning the screen .................................................... 17
9. If something does not work .................................. 18
9.1. Error indication on the display ........................................... 18
10. Maintenance .................................................. 19
10.1. Cleaning the TOUCHCONTROL unit ...................................... 19
10.2. USB port ............................................................. 19
11. Addresses .................................................... 20

TOUCHCONTROL
PAGE 3
50701151/12.18
1. Concise description of the TOUCHCONTROL
The Klafs TOUCHCONTROL system offers you the possibility of comfortably operating your sauna
cabins. For various bathing types, there are preset standard Experience Programmes for your use.
You can adjust the settings of each standard program. These adjustments are stored in an individual
program.
The operating values of the cabins are changeable within the allowed adjustment ranges from the
control panel before and during the operation.
Depending on bathing type the following choices are available:
dTemperature.
dStart- and operational period.
dAir humidity.
dSpecial features such as for example AQUAVIVA.
.Functions can be activated depending on the cabin version.
Each type of bath in your Klafs sauna cabin should benefit your health and well-being.
Therefore: Bathe for the benefit of your health and your well-being!
This applies to:
dTemperature.
dBath duration.
dHumidity.
Orientate yourself not only on the given bathing times, but also on your condition.
Leave the cabin as soon as you no longer feel well.

TOUCHCONTROL
PAGE 4 50701151/12.18
2. Intended Use
The TOUCHCONTROL is designed for the wellness facilities tested and authorised by Klafs in
accordance with VDE (German Association for Electrics, Electronics and IT Technology e.V.) or TÜV
(Technical Control Association regulations).
The TOUCHCONTROL system is to be used only as intended. Adherence to the instructions for
operation, assembly and service as prescribed by the manufacturer is required as well.
The manufacturer is not responsible for the damage resulting from unauthorised use or arbitrary
changes to the control system. The user alone carries the risk.
The control system may only be operated and maintained by persons, who are familiar with its usage
and informed of the dangers involved. Follow the relevant German VDE regulations as well as other
generally recognized safety rules!
3. General safety information
Read and observe the operating and safety instructions before start-up!
dBefore opening the control system housing remove the power from the control system!
dInform Klafs Customer Service of problems that a certified electrician cannot repair!
dUse original Klafs spare parts only!
dArbitrary changes to the control system are not allowed!
dInstall the control system, in accordance with the assembly instructions!
dElectrical wiring inside the cabin and the cabin walls must have silicone insulation.
dBefore activating the control system always make sure that no inflammable objects are on or near
the sauna heater. FIRE RISK!
dDo not use the sauna to dry your laundry!
dNever pour concentrated aromatic oils or extracts directly onto the sauna heater. Only use the
indicated concentration (approx. 20-30 drops to 1 litre of water)!
dAs infusion agent it is only permissible to use Klafs' aromatic extract!
dNever store the bottle containing aromatic oils or infusion agent in the sauna cabin!
dRegularly check the sauna heater for damage.
dNever pour herbal extracts, as used in Softclima mode, directly into the evaporator. Outside of
the cabin, fill the evaporator bowl a quarter full with water and add the herbal extracts drop by
drop in accordance with the instructions on the bottle. Then put the evaporator bowl back on the
water tank!
4. Technical data TOUCHCONTROL
Electric supply line to
the power pack: 1/ N/ PE ~ 230 V, 50-60 Hz
Room conditions: Temperature 0 ºC to 25 ºC, max. 80 % relative humidity.

TOUCHCONTROL
PAGE 5
50701151/12.18

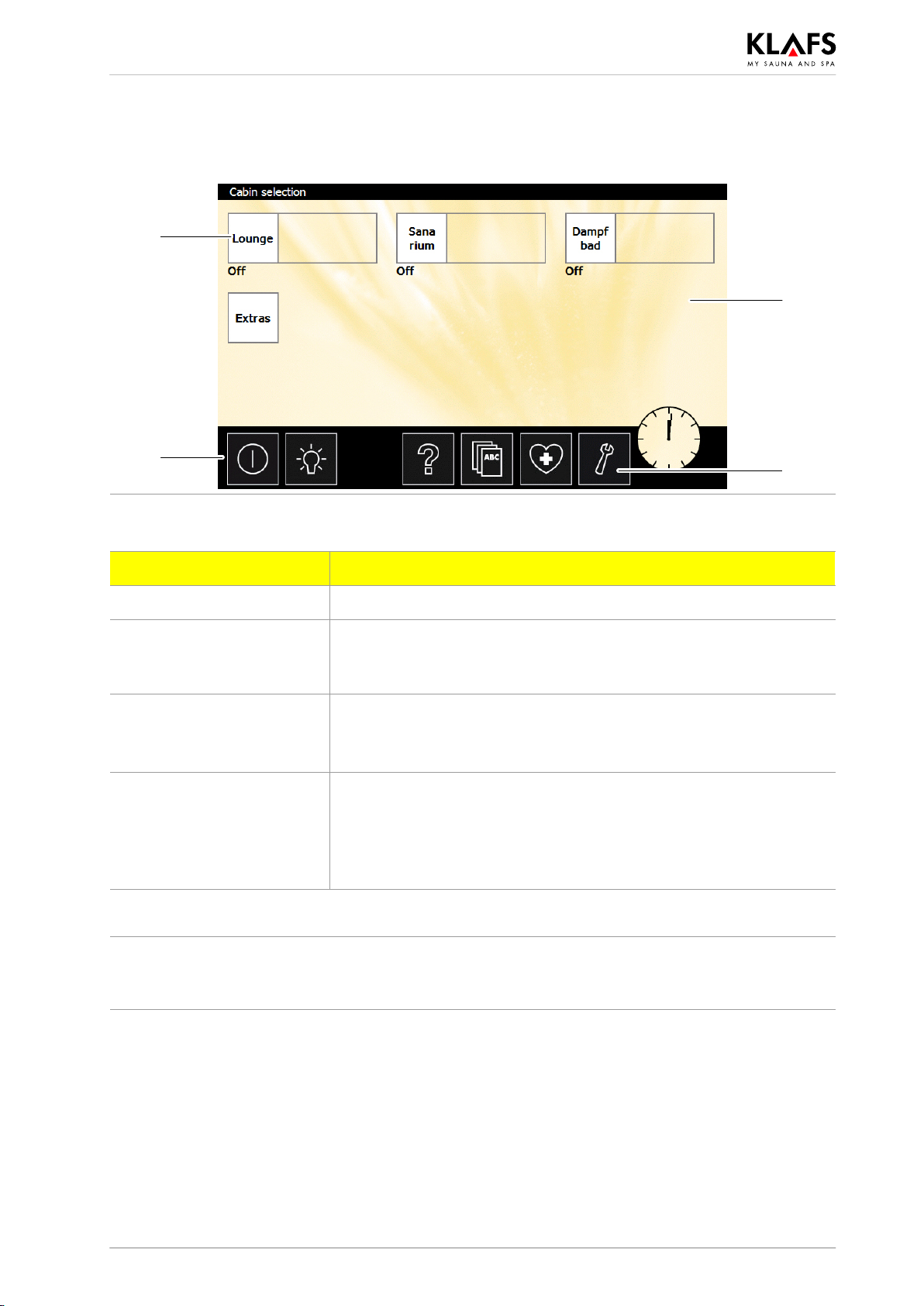

5. TOUCHCONTROL Operation and Display
Elements
1
2
34
.The cabin selection is displayed only if there is a choice to select between several cabins.
Otherwise the TOUCHCONTROL system starts with the bathing type selection.
Button: Function:
1. Touchscreen Touch-sensitive display and control monitor.
2. Current display Display of menus, menu overview, overview of current settings, as
well as explanations. Current values can be viewed or modified in
this field.
3. Main menu bar Change directly to the respective submenus with this bar.
.The menu bar can be different depending on the respective
menu.
4. Service Settings .The button for Service Settings is displayed only with the Cabin
Selection.
Press button in the menu Cabin Selection - switch to the submenu
Service Settings.
'Menu Service Settings - see Page 16.
5.1. Switch On TOUCHCONTROL
1. Touch the Touchscreen.
.The display shows a cabin selection (see above) i.e. the bathing type.

TOUCHCONTROL
PAGE 6 50701151/12.18
6. Menu bar
6.1. Overview
2 3 4 5 6 7 8
1
Button: Function:
1. Switch Off
TOUCHCONTROL Press button - switch Off the control system.
2. Cabin Lighting Press button - switch to the submenu Cabin Lighting or switch the
illumination of the selected cabin On or Off.
3. Back Press button - return to previous menu.
4. Help Press button - call up Help for the current menu.
5. Wellness ABC Press button - display of interesting information concerning the topic
Sauna.
6. Medical effect Press button - display of the respective type of sauna, bathing type
etc., explanation of the corresponding medical effect.
7. Start Press button - start the selected programme.
8. Time The button displays the current time.
Press button - call up menu to set the time/clock.

TOUCHCONTROL
PAGE 7
50701151/12.18

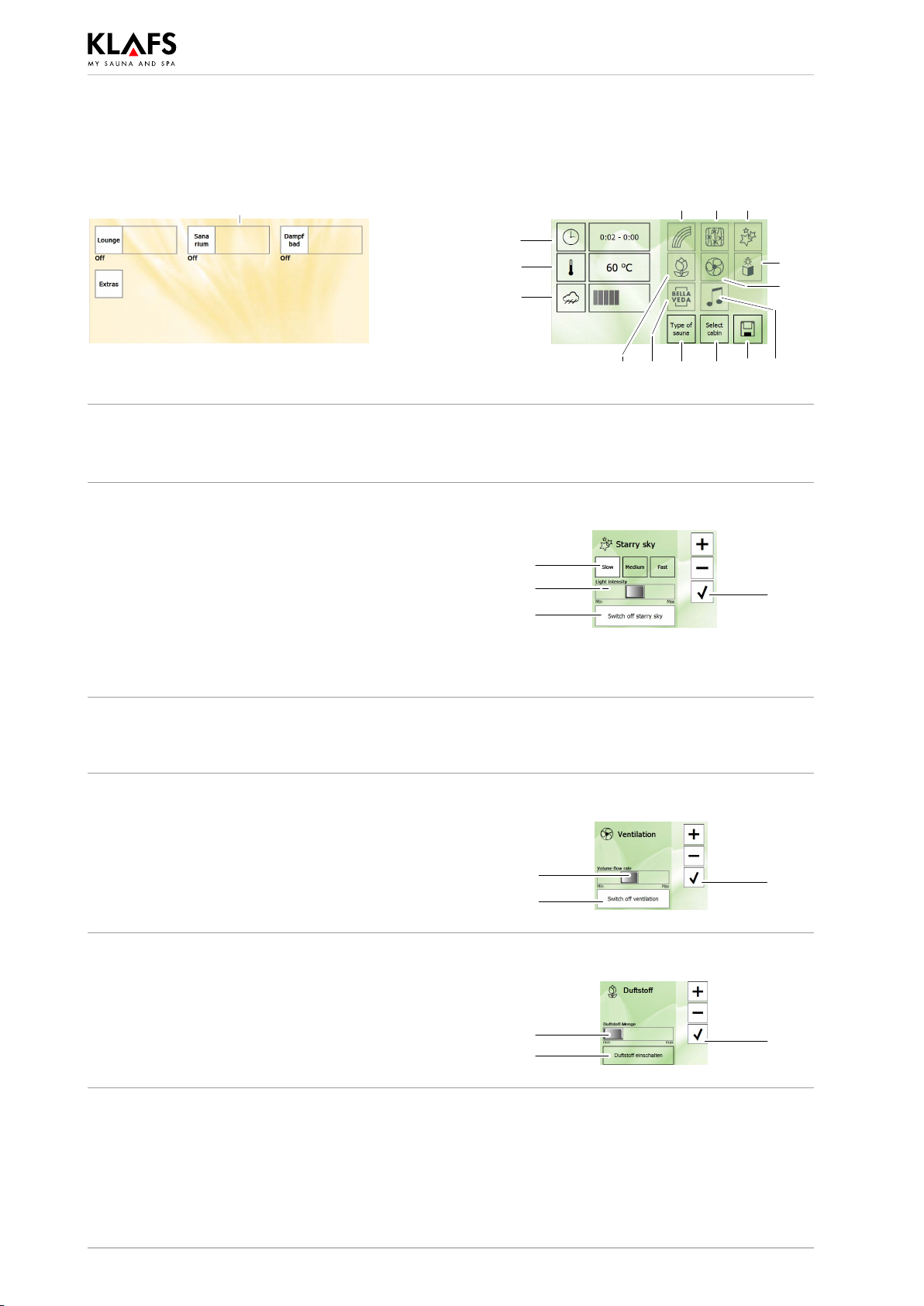

7. Cabin settings
A
B
E F G
L M
H
I
K
C
N
D
J O
7.1. Cabin Selection and Setting Menu
.Settings can be made only in menus that are part of the installation.
.Displayed when activating TOUCHCONTROL
.Displays an overview of the sauna cabins as
well as active current values.
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing
Type/Experience Bathing Type, which you wish
to change, see Page 12.
.Displayed after selecting the Bathing
Type/Experience Bathing Type.
.Displays an overview of the sauna
cabins as well as active current values.
.Active settings are displayed with a
white background (e.g. I)
1. With buttons (e.g. B) select the setting
you wish to change.
7.2. Adjusting the Bathing Time
1. Select menu Bathing Time with button (B).
2. Select start time (1) and set the start time
with +/- buttons (5-minute increments) or
with the controller (2).
3. Select end time (3
) and set the end time with +/- buttons (5-minute
increments) or
with the controller (2).
4. Confirm setting by pressing button (4).
1
2
3
4
7.3. Setting the temperature
1. Select menu Temperature with button (C).
2. Adjust the required temperature with +/-
buttons (6) or controller (5).
3. Confirm setting by pressing button (7). 57
6
Continued on the next page

TOUCHCONTROL
PAGE 8 50701151/12.18
7. Cabin settings
Continued
A
B
E F G
L M
H
I
K
C
N
D
J O
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.

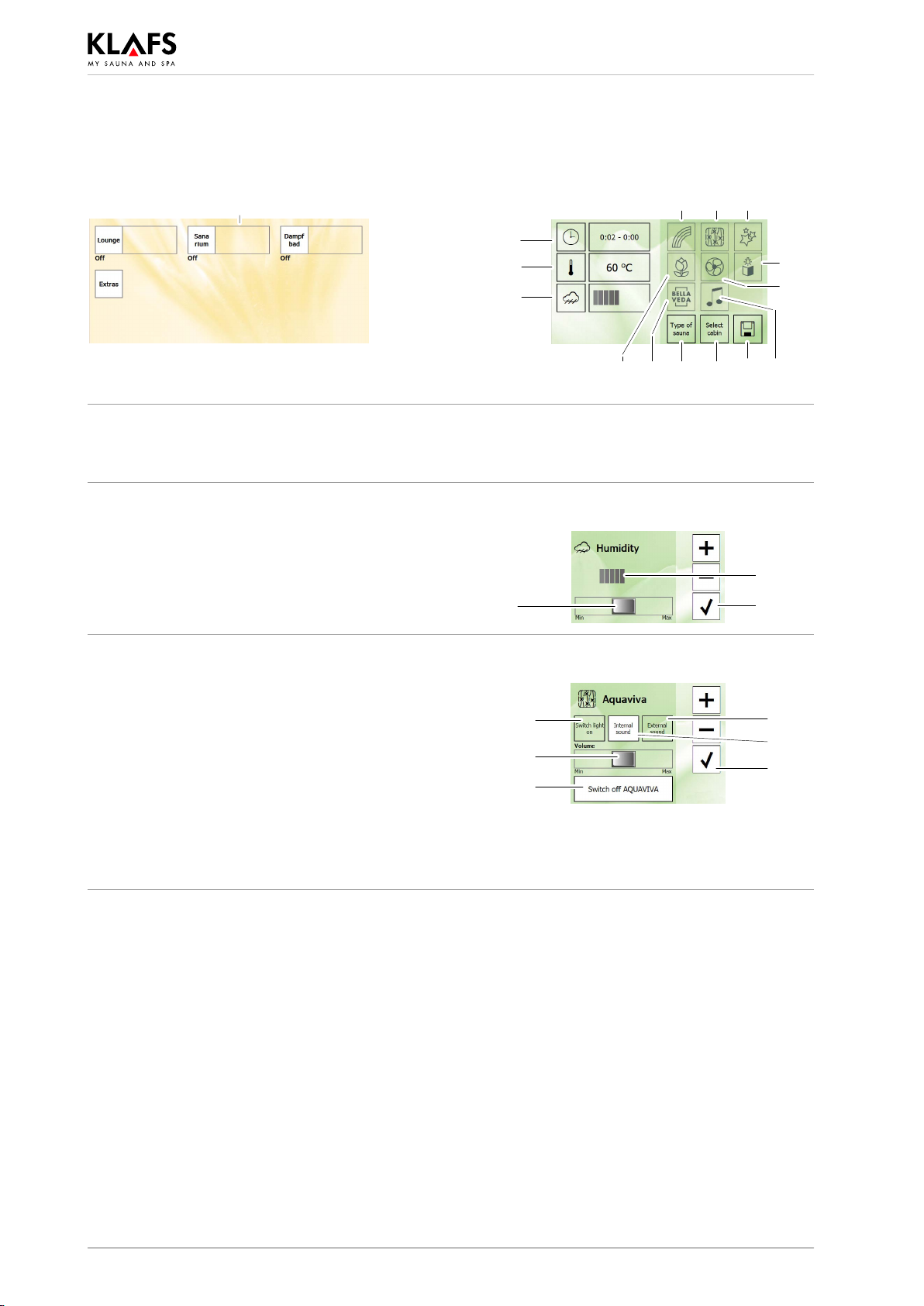

7.4. Adjusting the Humidity
1. Select menu Humidity with button (D).
2. Adjust the required Humidity (2) with buttons +/-
or controller (1).
3. Then confirm setting by pressing button (3).
2
3
1
7.5. Adjusting AQUAVIVA
1. Select menu AQUAVIVA with button (F).
2. Switch the light On/Off with button (4).
3. Switch the internal Sound On/Off with
button (5).
4. Switch the internal Sound On/Off with
button (6).
5. Adjust the required Volume with +/- buttons or
with the controller (7).
6. Confirm setting by pressing button (8).
7. Switch Aquaviva On/Off with button (9).
9
7
6
4
8
5
Continued on the next page

TOUCHCONTROL
PAGE 9
50701151/12.18
7. Cabin settings
Continued
A
B
E F G
L M
H
I
K
C
N
D
J O
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.
7.6. Set color light with LIFTLIGHT
Colour light
1. Select menu Color Light with button (E).
2. Switch On the Color Light with button (1).
1
3. Select Automatic mode with button (2).
4. Line (3) indicates the running Automatic mode.
.The color light changes color automatically. 2
3
5. Select Manual mode with button (4).
6. Adjust the required Color with +/- buttons or
with the controller (5).
7. Line (6) indicates the color selected.
8. Switch the selected color On/Off with
button (7).
.The color light switches On the colors selected.
4
6
57
LIFTLIGHT
1. Select menu Color Light with button (E).
2. Select function LIFTLIGHT with button (8).
3. Switch On function LIFTLIGHT with button (9).
.Both LP-lamps LIFTLIGHT are switched On
together with the red LP-lamp (10). 9
10
8
Continued on the next page

TOUCHCONTROL
PAGE 10 50701151/12.18
7. Cabin settings
Continued
A
B
E F G
L M
H
I
K
C
N
D
J O
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.
7.7. Adjusting Sky with Stars
1. Select menu Sky with Stars with button (G).
2. Adjust the twinkling speed of the stars with
buttons (1).
3. Adjust the required Light Intensity with +/- buttons
or with the controller (2).
4. Confirm setting by pressing button (3).
5. Switch the Sky with Stars mode On/Off with
button (4).
4
2
1
3
7.8. Adjusting the Reading Lamp
1. Switch the Reading Lamp On/Off with button (H).
7.9. Adjusting the Ventilation
1. Select menu Ventilation with button (I).
2. Adjust the air volume flow rate with +/- buttons
or with the controller (5).
3. Confirm setting by pressing button (6).
4. Switch the Ventilation On/Off with button (7).
5
7
6
7.10. Adjusting the Scent
1. Select menu Scent with button (J).
2. Adjust the required Scent quantity with +/-
buttons or with the controller (8).
3. Confirm setting by pressing button (9).
4. Switch Scent On/Off with button (10). 10
89
Continued on the next page

TOUCHCONTROL
PAGE 11
50701151/12.18
7. Cabin settings
Continued
A
B
E F G
L M
H
I
K
C
N
D
J O
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.
7.11. Set BELLAVEDA
1. Switch BELLAVEDA On/Off with button (K).
7.12. Adjusting the sound
1. Select menu Sound with button (N).
2. Select the desired sound with buttons (1 or 2).
3. Adjust the required volume with +/- buttons or
with the controller (3).
4. Confirm setting by pressing button (4).
5. With button (5) switch the sound On/Off.
1
24
35
Continued on the next page

TOUCHCONTROL
PAGE 12 50701151/12.18
7. Cabin settings
Continued
A
B
E F G
L M
H
I
K
C
N
D
J O
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.

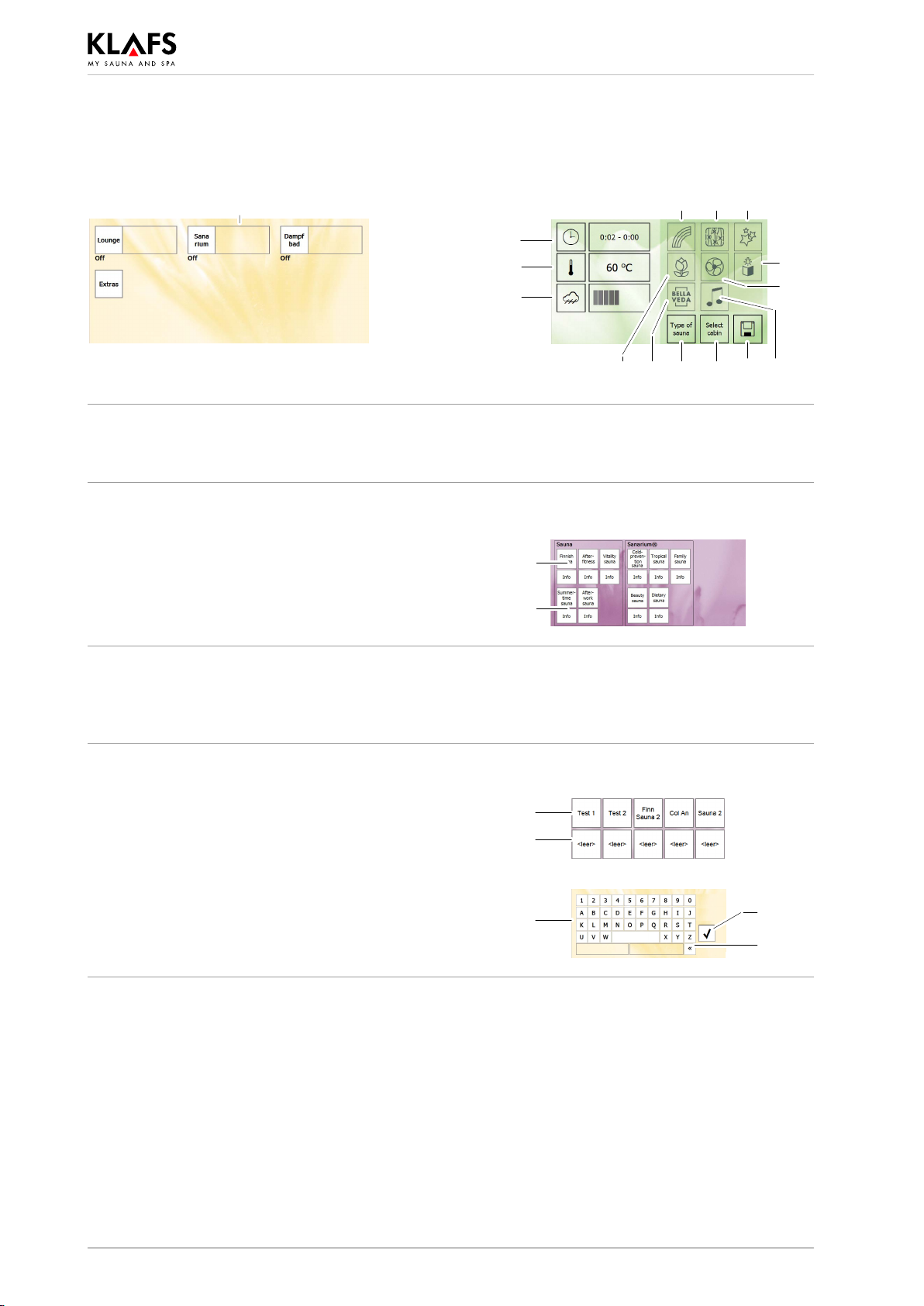

7.13. Setting Bathing Type/Experience Bathing Type
1. Select Bathing Type with button (L).
2. Select Bathing Type/Experience Bathing Type
(e.g. 1).
3. For information on the bathing types press the
corresponding Information button (e.g. 2).
1
2
7.14. Switch to menu Cabin Selection
1. Return to Cabin Selection with button (M) or via
the Back button in the menu bar, see Page 6.
7.15. Saving Own Settings
1. Select menu Save with button (N).
2. Select storage location. To do this overwrite the
existing programme (3) or create new
programme (4).
3. Enter name (5) for new programme. Cancel
input/s with arrow button (6).
4. Confirm input by pressing button (7).
5. After this, the programme may be called up in
the menu Bathing Types.
4
3
5
6
7
Continued on the next page

TOUCHCONTROL
PAGE 13
50701151/12.18
7. Cabin settings
Continued
A
B
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.

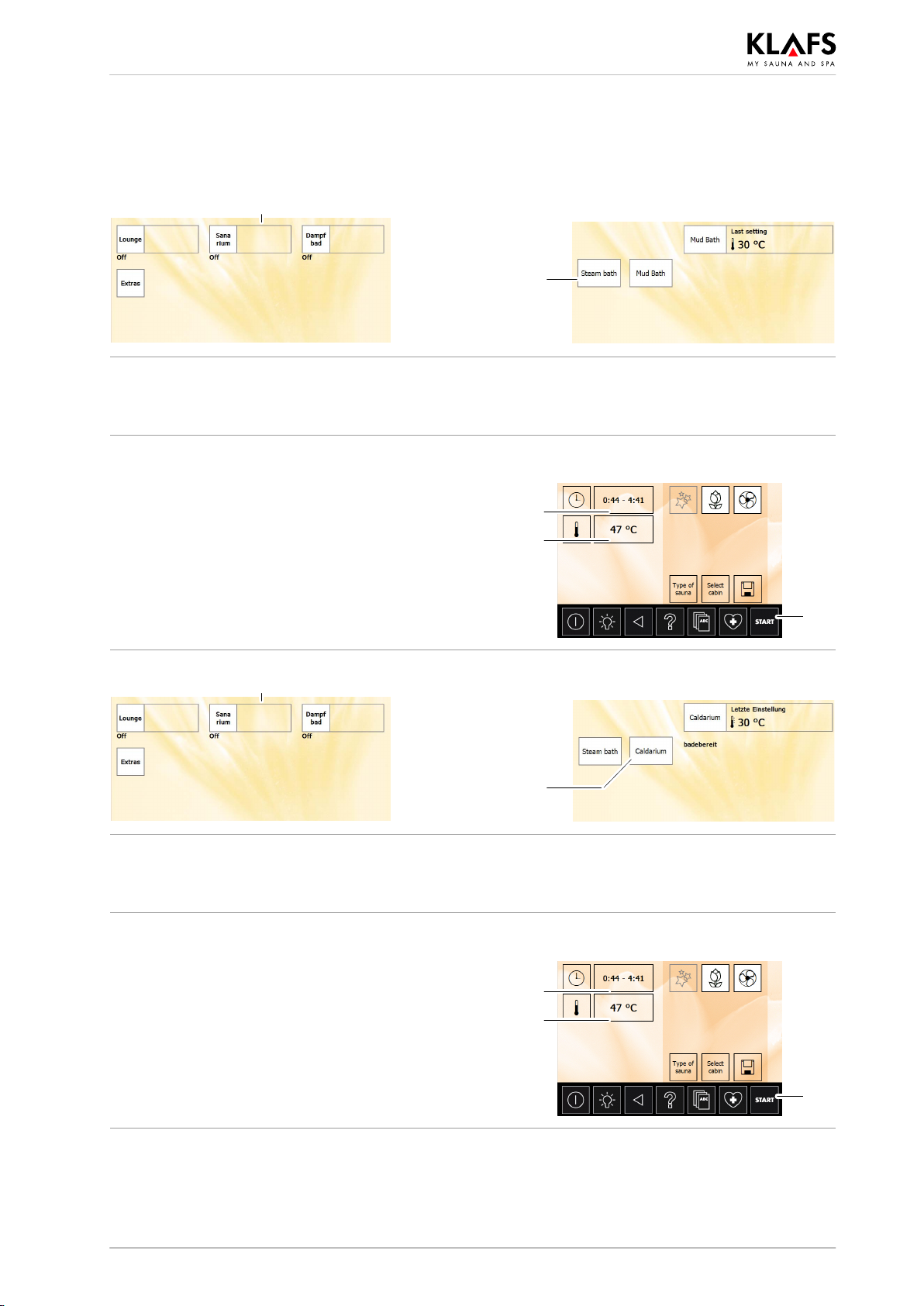

7.16. Set steam bath and start
1. Select steam bath with button (B).
2. Select and set the bathing time (1).
3. Select and set the bathing temperature (2).
4. Start steam bath with button (3).
.Steam bath: Minimum scent quantity = 1.
.SANARIUM: Minimum scent quantity = 0.
'See section 7.10., step 1. to 4.
2
1
3
A
C
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.
7.17. Set Caldarium and start
1. Select Caldarium with button (C).
2. Select and set the bathing time (4).
3. Start Caldarium with button (5).
4. Display bathing temperature (6). 5
4
6
Continued on the next page

TOUCHCONTROL
PAGE 14 50701151/12.18
7. Cabin settings
Continued
A
D
1. Select the required cabin via the buttons (i.e. A).
2. Select in the cabin-dependent menu the Bathing Type/Experience Bathing Type, which you
wish to change, see Page 12.
7.18. Set mud bath and start
1. Select steam bath with button (D).
2. Select and set the bathing time (1).
3. Start mud bath with button (2).
4. Display bathing temperature (3).
.Remaining time = application time + rest time +
cleaning time
2
1
3
Application time
5. Display (4) of remaining time.
6. Bar display (5) of application time.
5
4
Rest time
7. Display (6) of remaining time.
8. Bar display (7) of rest time.
7
6
Cleaning time
9. Display (8) of remaining time.
10. Bar display (9) of cleaning time.
9
8
Continued on the next page

TOUCHCONTROL
PAGE 15
50701151/12.18
7. Cabin settings
Continued
7.19. Stop Bathing mode
1. With button (1) call up menu End Bathing mode.
2. With button (2) end Bathing mode or cancel
menu with button (3).
3
2
1
7.20. Switching Cabin Lighting On/Off
.If you are already in a Cabin Menu, press
button (4) to directly switch On/Off the lighting
of the selected cabin. White background:
Lighting On.
1. In the menu bar select the button Lighting (4).
2. Select cabin, Lighting is switched On/Off.
3. Switch the Lighting of all cabins On/Off with
button (5).
4
5
7.21. Extras
1. In Cabin Selection select the button Extras (6).
2. Select Extras (7).
6
7
7.22. Listening to Music
1. A CD/DVD player may be connected at the jack
coupling (8).
.Available only in combination with AQUAVIVA.
8

TOUCHCONTROL
PAGE 16 50701151/12.18
8. Service Settings
A
B
D
F
C
E
G
H

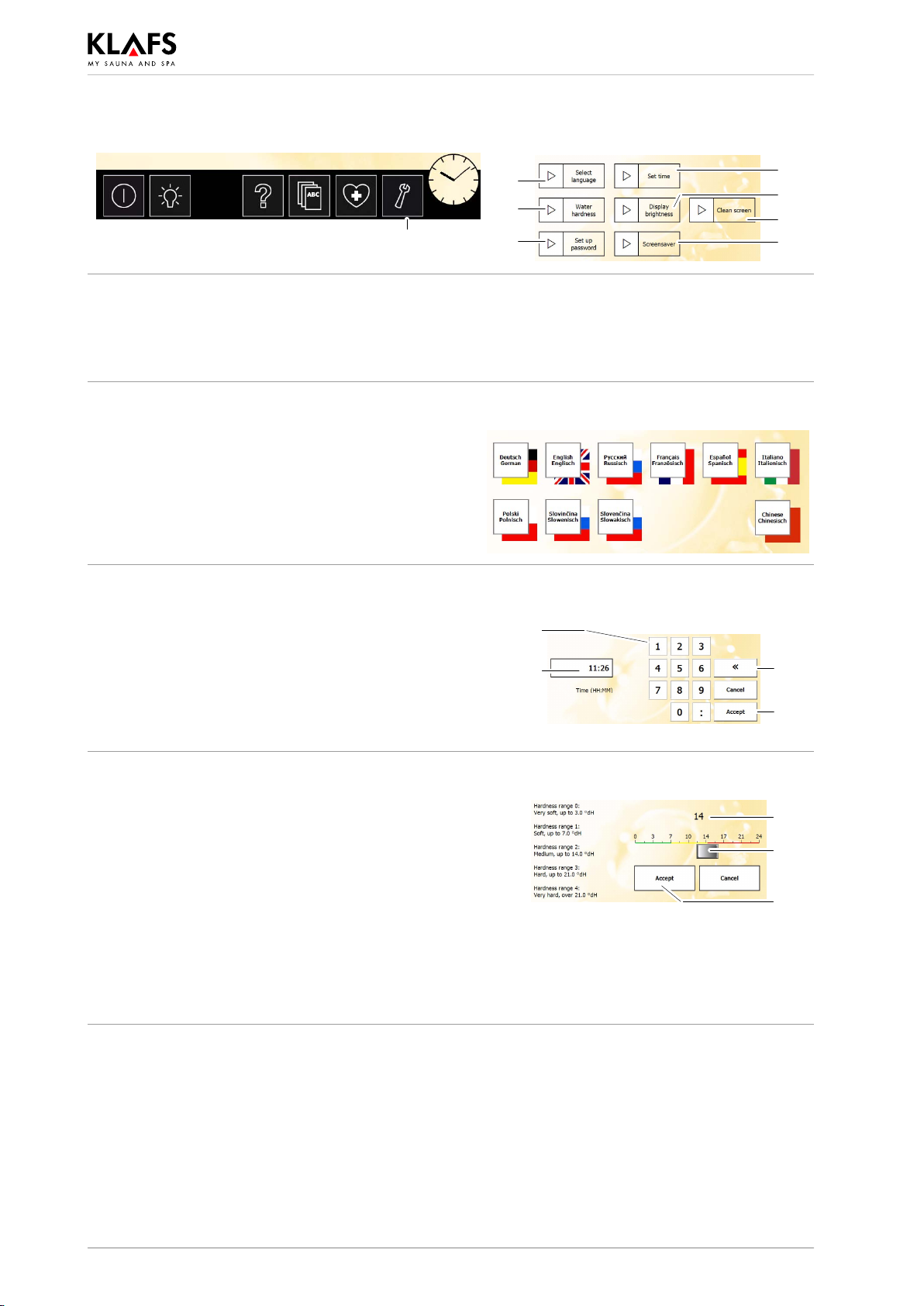

8.1. Selecting the Service Settings
1. Select the button Service Settings (A). The menu Service Settings is displayed for selecting further
submenus.
8.2. Select Language
1. Select the required Language in the submenu.
8.3. Setting Time
1. Select the button for Time Setting (C).
2. Press button (1) for setting Standard/Daylight
Saving Time.
3. Enter Time with buttons (2). Cancel incorrect
input with button (3).
4. Confirm setting by pressing button (4).
1
2
3
4
8.4. Setting the Water Hardness
.Check with local Water Supply Works for
hardness of water.
1. Press button Water Hardness (D).
.The hardness range is subdivided into four levels
in the left touch range.
.The currently selected hardness range (5) is
displayed.
2. Slide controller (6) to set the appropriate water
hardness.
3. Confirm setting by pressing button (7).
5
6
7
Continued on the next page

TOUCHCONTROL
PAGE 17
50701151/12.18
8. Service Settings
Continued
A
B
D
F
C
E
G
H
8.5. Setting the Monitor Brightness
1. Press button for Monitor Brightness (E).
2. Adjust the Monitor Brightness with controller (1).
3. Then confirm setting by pressing button (2). 2
1
8.6. Setting a Password
1. Press button Setting Password (F).
2. Enter the password (4 - 8 characters) twice (3)
and confirm with button (4). Press button (5) to
cancel incorrect input/s.
4
3
5
8.7. Activation Period Screen Saver / Setting Password
Prompt
1. Press button Screen Saver (G).
.The selected actual Activation Period Screen
Saver / Setting Password Prompt (6) is
displayed.
2. Set the (7) Activation Period Screen Saver /
Setting Password Prompt with the slide control.
With ”0”, the screen saver is switched Off.
3. Then confirm setting by pressing button (8).
6
8
7
8.8. Cleaning the screen
Clean TOUCHCONTROL at regular intervals.
For cleaning do not use any cloth made of microfibre!
Clean with a mild soap, water and a soft cloth.
Stubborn residue can be removed with isopropyl alcohol.
1. Press button for screen cleaning (H).
2. The touch panel is deactivated for 30 seconds.
Clean screen now.
.The touch panel displays the time remaining.

TOUCHCONTROL
PAGE 18 50701151/12.18
9. If something does not work
9.1. Error indication on the display
The Display shows the Error Messages of the sauna/s.
Repair and maintenance is to be carried out exclusively by Klafs Service personnel or
by a technician expressly authorised by Klafs!
No. Error Error elimination
TOUCHCONTROL cannot be switched On. Check the voltage supply.

TOUCHCONTROL
PAGE 19
50701151/12.18
10. Maintenance
10.1. Cleaning the TOUCHCONTROL unit
Clean the TOUCHCONTROL unit at regular intervals.
'See Page 17.
For cleaning do not use any cloth made of microfibre!
Clean with a mild soap, water and a soft cloth.
Stubborn residue can be removed with isopropyl alcohol.
10.2. USB port
1. The software is updated via the USB port (1).
1

You can also find
many accessories in
our online shop at
www.klafs.de
You can also find
many accessories in
our online shop at
www.klafs.de
TOUCHCONTROL
PAGE 20 50701151/12.18
11. Addresses
Wherever you are: KLAFS is near you.
We provide expert service.
KLAFS GmbH & Co. KG
Parent company Germany:
Erich‐Klafs‐Straße 1-3
D-74523 Schwäbisch Hall
Customer Service Tel. [phone]
Accessories/Spare parts Tel. [phone]
Switzerland:
KLAFS AG
Oberneuhofstr. 11
CH-6342 Baar/Zug
Tel. [phone]
Austria:
KLAFS GmbH
Sonnwiesenweg 19
A-6361 Hopfgarten/Tirol
Tel. [phone]
With your ”TOUCHCONTROL” we wish you a lot of fun, well being,
relaxation and regeneration.
Subject to technical modifications.
Reproduction in whole or in part is prohibited without the written permission of
KLAFS GmbH & Co. KG
Article number 50701151 / Release 12.18
