Ko Propo EX-NEXT User manual

INSTRUCTIONMANUAL
KONDO KAGAKU Co., Ltd. 2021 Ver.1.00
EX-NEXT
*Please refer barcode label for content.
*Please refer included manual for LDT grip unit.

2
Title Title Page Page
■ Table of Contents■ Table of Contents *Click the page number to jump to that page.
■ Table of Contents 2
■ For safe operation 3
■ Getting Started 5
●Transmitter Assembly 5
●Transmitter Dismantling 5
●How to attach Xpansion unit 6
■ Name of parts 7
■ Preparations 8
●Battery Installation 8
●Battery level Warning 8
■ Basic Operation 9
●STEERING 9
●THROTTLE 10
●ET(1-5)Key BT(1)Button 11
●Steering Wheel Adjustment 11
●Adjustment of the decrease angle adjuster 11
●Throttle trigger Adjustment 11
●Throttle Trigger Position Adjustment 11
●Adjustment of Trigger tension 11
●Colored Grip and Pad replacement. 12
●Unit Connector 12
●Power Switch 12
●Charging Jack 12
■ Procedures Prior to Operation 13
■ Display and Control Method for attaching the Xpansion unit 14
●Name of each parts and Basic Operation 14
●English and Japanese Menu setting 15
●Start up Screen and Initial Screen 16
●VR information setting 17
●RF Mode 18
●Pairing (for general receiver) 19
●Countermeasures Against Noise 20
●Fail-Safe Setting 21
●Battery Fail-safe setting 22
●Setting edit of ICS compatible servo 23
●Master unit Update ●Error Status 24
■Top menu 25
■□□ FUNCTION 27
● MODEL 27
MODEL SELECT 27
MODEL NAME 27
MODEL COPY 28
MODEL RESET 28
●TIMER 29
TIMER START 29
TRGSTART 29
LAP HISTORY 29
START/STOP KEY 29
LAP KEY 29
>>> 29
LAP NAVI 30
ALARM TIME 30
P.ALARM TIME 30
ALARM MODE 30
TIMER MODE 30
<<< 30
●KEYSET 31
●3-8CH 32
2WAY(2WAY) 32
3WAY(3WAY) 32
5WAY(5WAY) 33
ANALOG 33
GYRO 33
TWIN SERVO 34
4WS 34
AMP 35
T-MIX 36
●TLMY(Telemetry) 37
RF MODE 37
PAIRING 37
RESP(Response) 38
RELICS(Real time ICS) 39
READ ID 39
MODEL(Servo model) 39
BT F/S (Battery Fail-safe) 40
●SYSTEM 41
DISPLAY 41
BATTERY 41
BATTERY WARNING 42
CALCULATOR 43
SOUND 43
VR INFORMATION 43
CONFIG 44
DATA 44
ALL RESET 45
□■□STEERING 46
●TRAVEL 46
ST TRAVEL 46
ST BALANCE L R 46
DIRECT BALANCE 46
●TRIM 47
ST TRIM 47
ST SUBTRIM 47
ST TRIMRATE 47
●Trim and Sub trim Operation 48
●ST SPEED 49
ST TURN 49
ST RETURN 49
●DYNAMC 50
CURVE 50
PUNCH 50
●FEEL 51
ST FEEL 51
ST RESPONSE 51
●REVERSE 51
ST REVERSE 51
TH REVERSE 51
□□■THROTTLE 52
●TRAVEL 52
TH TRAVEL F 52
TH TRAVEL B 52
●TRIM 53
TH TRIM 53
TH SUBTRIM 53
TH TRIMRATE 53
●TH SPEED 54
TH TURN 54
TH RETURN 54
●DYNAMC 55
CURVE 55
PUNCH 55
●FEEL 56
TH FEEL 56
TH RESPONSE 56
●REVERSE 56
ST REVERSE 56
TH REVERSE 56
●CYCLE 57
ACCEL 57
ABS 57
●ATSTART 58
●OFFSET 59
●OVERRIDE 60
●BREAK IN 60
●HANDBRAKE 61
●PUSH 61
■ Repair policy FCC Statement 62
■ Specications 63

Due to the nature of radio controlled models, improper handling may lead to dangerous situations. Therefore please read the
following information carefully in order to ensure safe operation. Please also understand that KO Propo is not responsible for any
injuries or damage which result from noncompliance of these cautions and notices.

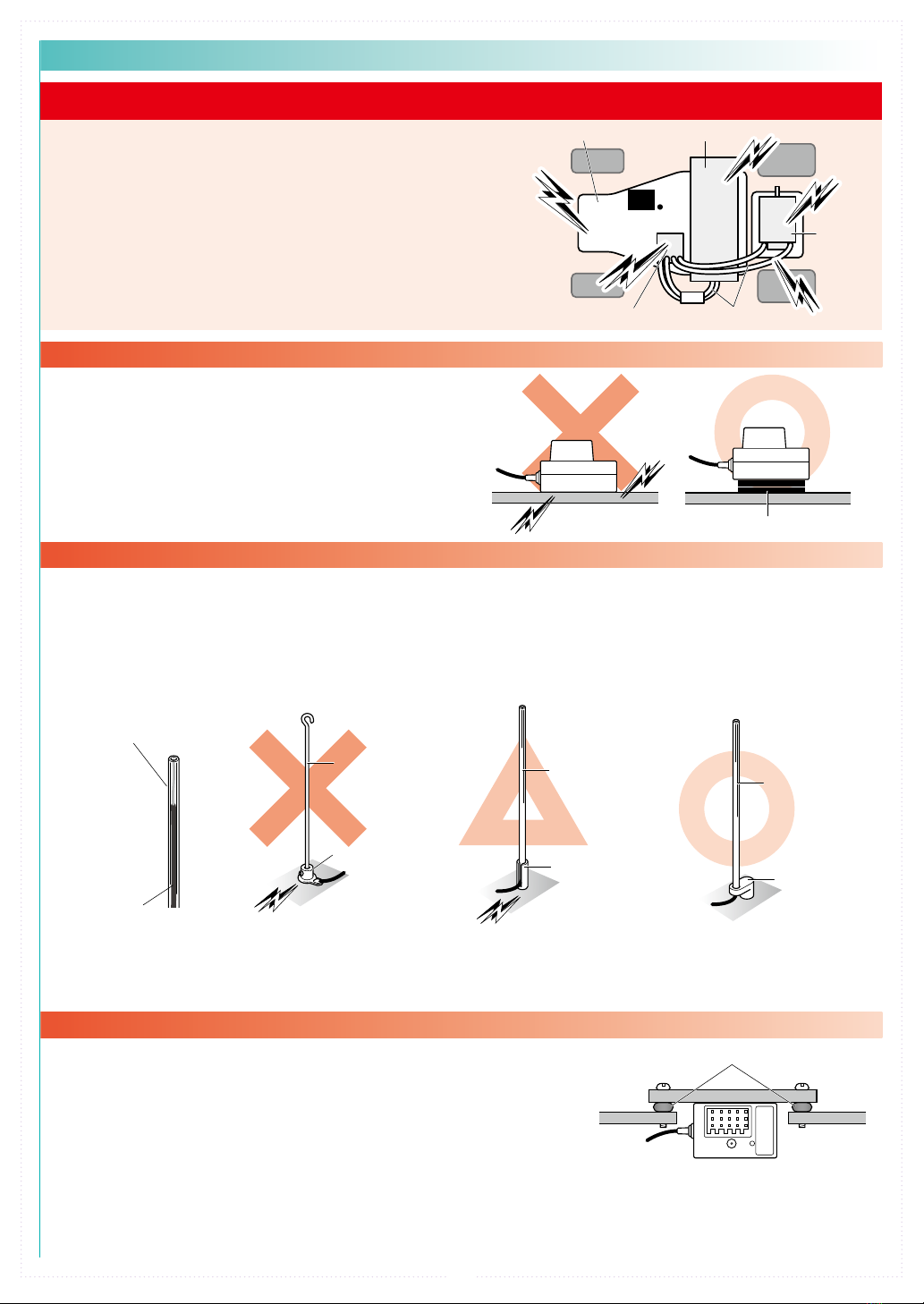

●When Installing Components
●Notes for Usage
●Make sure metal parts on the model (car chassis/ship hull) do not come into contact with
each other.
*Contact between metal parts may result in noise, which could cause the receiver to
malfunction and lead to an uncontrollable model.
●Do not cut or bundle the antenna cable.
*This may lower the receiver's sensitivity and lead to an uncontrollable model.
●Ensure correct polarity when installing transmitter and receiver batteries.
*Incorrect polarity may damage the product.
Warning! Improper handling/
usage may lead to a high probability of material damage as well as a possibility of
serious personal injury or even death.
Notice! Improper handling/
usage may lead to personal injury or material damage.
Warning!
Enforcement matters
Warning!
Prohibited matters
Warning!
Prohibited matters
Warning!
Enforcement matters
●Within Japan, this product is limited to usage with models which operate on the ground or
in the water.
*Do not use for other non-designated purposes.
●Ensure that all connectors (receiver, servo, switch, etc.) are connected securely.
*If connections become loose due to vibrations, it may lead to an uncontrollable model.
●Securely attach receiver with thick double-sided tape and ensure that it does not make
contact with other parts.
*Strong shocks or contact with other parts due to vibrations may lead to an uncontrollable
model.
●Check servo operation to ensure the push rod is not subject to excessive loads.
*Excessive loads may damage the servo or increase battery power consumption.
●Make sure to use the rubber grommet when attaching the servo and that the servo does
not contact the R/C equipment tray.
*If vibrations affect the servo, it may lead to damage or an uncontrollable model.
●Use in conjunction with genuine official KO Propo products.
*KO Propo is not responsible for any damages or injuries which result from use of this
product in combination with other manufacturer's products.
●Check to ensure that the selected model memory matches the model to be controlled.
*Using an incorrect memory may lead to an uncontrollable model.
●Make sure to stop the engine (disconnect motor cables) before changing transmitter
settings.
●Do not use when there is thunder.
*It is possible for lightning to strike the antenna.
●Do not use in the rain or in areas where water has accumulated.
*If water enters the product it may lead to an uncontrollable model.
●Do not use in the following locations:
1. Near R/C circuits (within 3km)
2. Near crowds, on streets, or near actual vehicles or ships.
3. Near high-voltage power lines or communication facilities.
*If signal interference, etc. causes an uncontrollable model, a serious accident may result.
●Do not use when your concentration levels are compromised by tiredness, alcohol,
medication, etc.
*Mistakes in judgment may result in serious accidents.
●Do not allow glow engine fuel or engine exhaust to contact the product.
*These may attack the plastic and damage the product.
3
■ For Safe Operation■ For Safe Operation

●Notes After Usage
●
Transmitter Battery Handling and Charging (separately available option)
Caution!
Enforcement matters
Caution!
Enforcement matters
Danger!
Enforcement matters
Danger!
Enforcement matters
*If there is battery fluid leakage, avoid contact with eyes as it may result in blindness. If contact with eyes occur, flush
with large amounts of water and seek medical attention immediately.
*When disposing batteries, Ni-Cd, Ni-MH, Li-Po, and Li-Fe batteries should be recycled in order to help protect the
environment.
Warning!
Enforcement matters
Caution!
Prohibited matters
●Do not touch engine, motor, ESC, etc. immediately after use as they may be hot.
*Doing so may lead to burns.
●When switching on, always turn on the transmitter first, followed by the receiver. Follow the reverse
order when switching off.
*If the wrong order is followed, it may lead to an uncontrollable model.
●Dismantling or modifying the RF Module (internalized in the case of the EX-NEXT) is prohibited and is
punishable by law.
*Doing so may lead to accidents such as short circuits and KO Propo Customer Service Department
may not accept dismantled/modified products for repair.
●Do not use this product in aircraft, hospitals, or near fire alarms or medical equipment.
*This may lead to malfunctions and result in serious accidents. Also, by law you must cease operation if
the product affects other wireless or electrical devices.
●2.4GHz transmitters must be registered with the Japan Radio Control Safety Association.
*The transmitter which you have purchases is already registered. Products which do not have proof of
registration are illegal.
●In the case of an R/C car, make sure to remove the battery pack after driving.
*If the car is switched on accidentally, it may lead to a fire or an uncontrollable model.
●Keep transmitters, batteries, and models away from small children.
*Chemical agents and the items themselves may cause personal injury.
●Remove batteries from transmitter if it will not be used for a considerable time.
*If batteries are left in the transmitter, battery leakage may result in damage.
●Do not store transmitter/receiver in the following conditions:
1. Extremely hot (over 40ºC) or cold (below 10ºC) temperatures.
2. Locations in direct sunlight.
3. Locations with high humidity.
4. Locations subject to vibrations.
5. Locations with lots of dust.
*These conditions may cause the case to deform and damage the product.
●Never short-circuit the battery connector.
*This may lead to a fire or explosion.
●Do not dispose batteries in fires.
*This is very dangerous and may lead to an explosion.
●Use KO Propo chargers to charge the battery and use the correct current (under 1A).
*Incorrect current may lead to battery damage, overheating, or leakage.
*Other manufacturer's chargers may not have a automatic cutoff function.
●Do not subject the battery to strong shocks.
*This may damage the battery and cause leakage or a short circuit.
●Do not dismantle or modify the battery.
*This may cause dangerous leakage of battery fluids.
●Keep away from water. Do not charge a wet battery.
*This may cause overheating and damage.
●Do not charge alkaline batteries.
*Alkaline and other single-use batteries cannot be recharged. Doing so may lead to fire and damage.
●Do not use wet hands when plugging in the charger's AC Adapter.
*This may result in electrical shocks.
4

①① ②
②
③
③
①① ②
②
③③
①①
②
②
5
■ Getting Started■ Getting Started
Insert the Grip Unit into the Master Unit, then attach
the Steering Unit.
Detach the Steering Unit,
then detach the Master
Unit.
Grip Unit
Master Unit
Master Unit
*Please be sure to do configuration.
Steering Unit
Steering Unit
●Transmitter Assembly ●Transmitter Dismantling
1.
1.
2.
2.
3.
3.
Remove the connector cover before use.
If storing the transmitter in dismantled form,
please remember to attach the connector covers.
Assembly may differ with the included set contents.
Please refer included manual for LDT unit. about LDT.
In the explanation drawing, the standard steering
wheel unit is used.
The drop extension unit is attached to EX-NEXT.
When a unit is exchanged, or when you use it for the first
time, please perform the VR information configuration
function (p.17).
Steering Unit
release button
Steering Unit
Release button
Grip Unit
Release button
Steering UnitSteering Unit
Lock leverLock lever
Steering Steering
UnitUnit
Lock leverLock lever
Grip unit Lock leverGrip unit Lock lever
<Legend> P : Pont : Notice

A
B
6

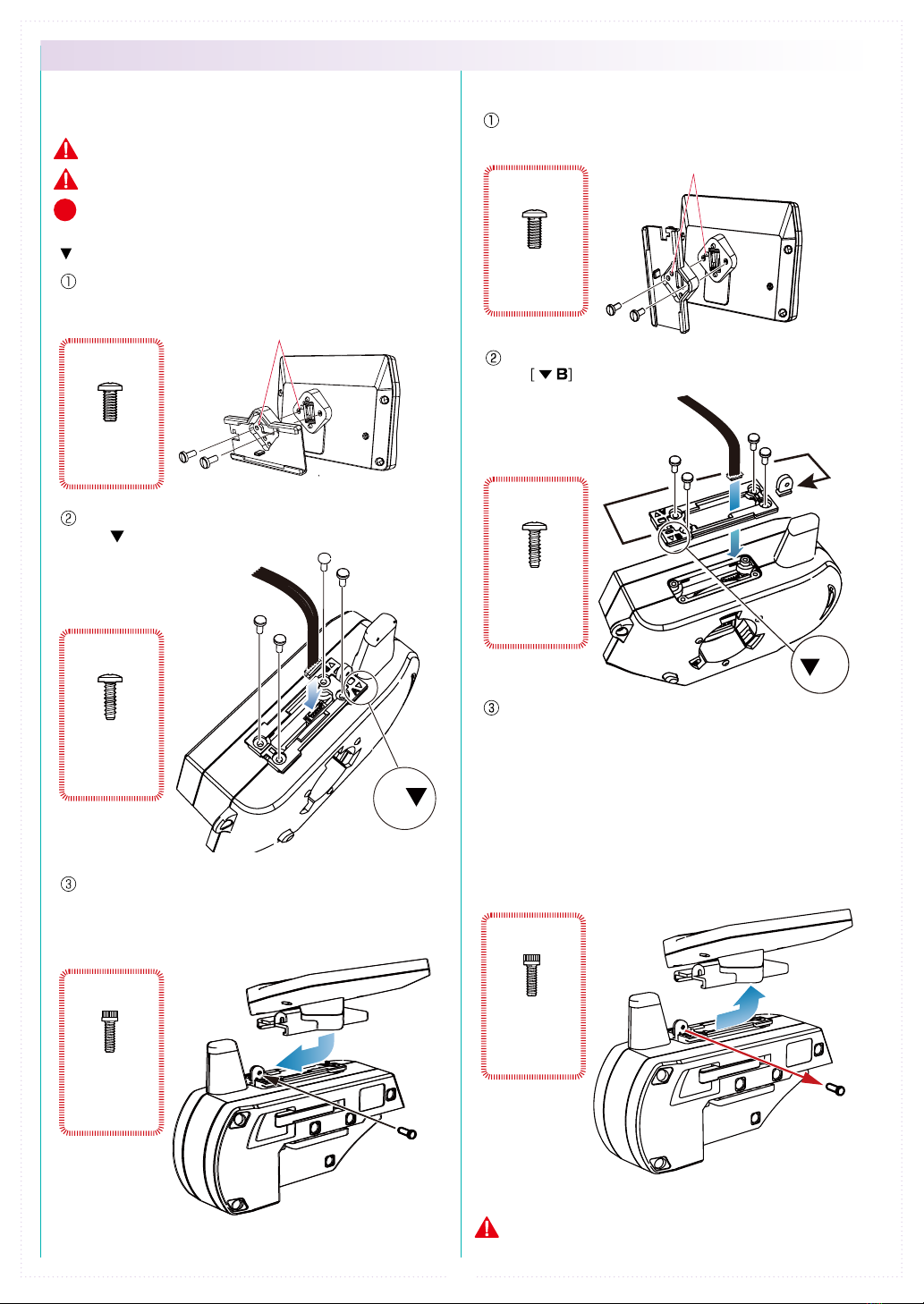

Attach the monitor bracket to the master unit.
*[A ]mark to the steering side.
Attach the monitor bracket to the master unit.
*Apply mark to the steering side.
Attach a monitor base parallel to Xpansion unit.
*Factory setting.
*The disassembly method is the same as side and front
positions
Attach the monitor base at a right angle to Xpansion
Unit. *Different Factory setting.
Attention to the marker.
Attention to the marker.
M2.6-6BH
M2.6-6BH
M2-6
Cap screw
M2-6
cap screw
screw used.
screw used.
screw used.
screw used.
screw used
screw used
x 2
x 2
x 1
x 1
x 4
x 4
2.6-8BH
Tapping
2.6-8BH
Self tapping
screw
Nut Holder
Connect the wire of the
Xpansion unit to the
master unit.
Connect the wire of the
Xpansion unit to the
master unit.
Attach expansion unit to a master unit.
Attach the Xpansion unit to the master unit.
*Attach the monitor base and bracket as shown in gure.
1. Remove M2-6 Cap Screw.
2. Slide the Xpansion like shown in the gure below
and take off.
While matching the edge of the base with the
dent of the bracket, slide it until the Xpansion unit
locks.
Set M2-6 Cap Screw for
xed.
1
1
2
A : Setting to the front
Xpansion unit can be mounted facing the
front or the side. The factory setting is
mounted to the front.
▼B : When mounting sideways
How to disassemble the Xpansion unit.
Remove the connector cover before use.
When assembling or disassembling the Xpansion unit to
EX-NEX, please turn off the EX-NEXT.
Be careful to not misuse the M2.6-6BH and 2.6-8BH tapping
screws.
Xpansion unit can be mounted in two different directions using
the monitor base and bracket.
P
●Installation of Xpansion unit
1
2
2

7
Antenna
EXP Connector Cover
Power switch (p.12)
Charging Jack(p.12)
LEDLED
Steering UnitSteering Unit
Release Button (p.5)Release Button (p.5)
Colored GrColored Grip
(p.12)
Colored Pad (p.12)
●ET Keys (1-5) and BT Button (1)
Functions may be assigned to the keys/button.
Guard Bar
Steering Unit
Lock lever
*Open the cover
Throttle Trigger(p.11)
Grip Unit
Lock lever
(p5)
Grip Unit
Release buttom
(p.5)
Throttle Trigger
Position Adjuster(p.11)
ET1ET1
(p.11)(p.11)
BT1BT1
(p.11)(p.11)
ET2ET2
(p.11)(p.11)
ET4ET4
(p.11)(p.11)
ET5 ET5 (p.11)(p.11)
ET3ET3
(p.11)(p.11)
■ Names of Parts■ Names of Parts
<Front View><Side View>
<Rear View>
The possible functions which each key/
button may be assigned to are different.

①①
①
①
②
②
②
②
8
■ Preparations■ Preparations
●Battery Installations ●Battery Level Warning
Battery Box
1.
2.
3.
R03/AAA/UM4
Batteries (4pcs.)
*Sold separately
Battery Box Cover
Press the tab on the bottom of the transmitter
to open battery box cover.
Remove the lock to pull out
battery box.
Install four R03/AAA/UM4
alkaline batteries while noting
their polarity, then replace
battery box.
Use batteries which have adequate remaining
capacity. Weak batteries mean lower transmitting
power and may result in malfunctions.
A warning will be displayed with the LED ashing and
an alarm will sound when battery voltage is less 4v.
When you see this warning, stop your model in a safe
area, turn it off and install new transmitter batteries.
When using a Li-Po / Li-Fe battery, be sure to
change the expansion battery setting (p.41)
because it is necessary to warn before the voltage
drops to 4V.

Neutral
Right
Max
Left
Ma
x
Neutral
Right
Max
Left
Max
→
Neutral
ET1
Right
Max
Left
Max
STEERING
TRAVEL
DYNAMC
TRIM SPEED
FEEL REVERS
ET1
ET1
ST REVERSE
TH REVERSE
REVS
NORM
REVERSE
9
The following function explanation is the case of factory
default settings. When changing KEYSET (key setting); the
following opinions change.

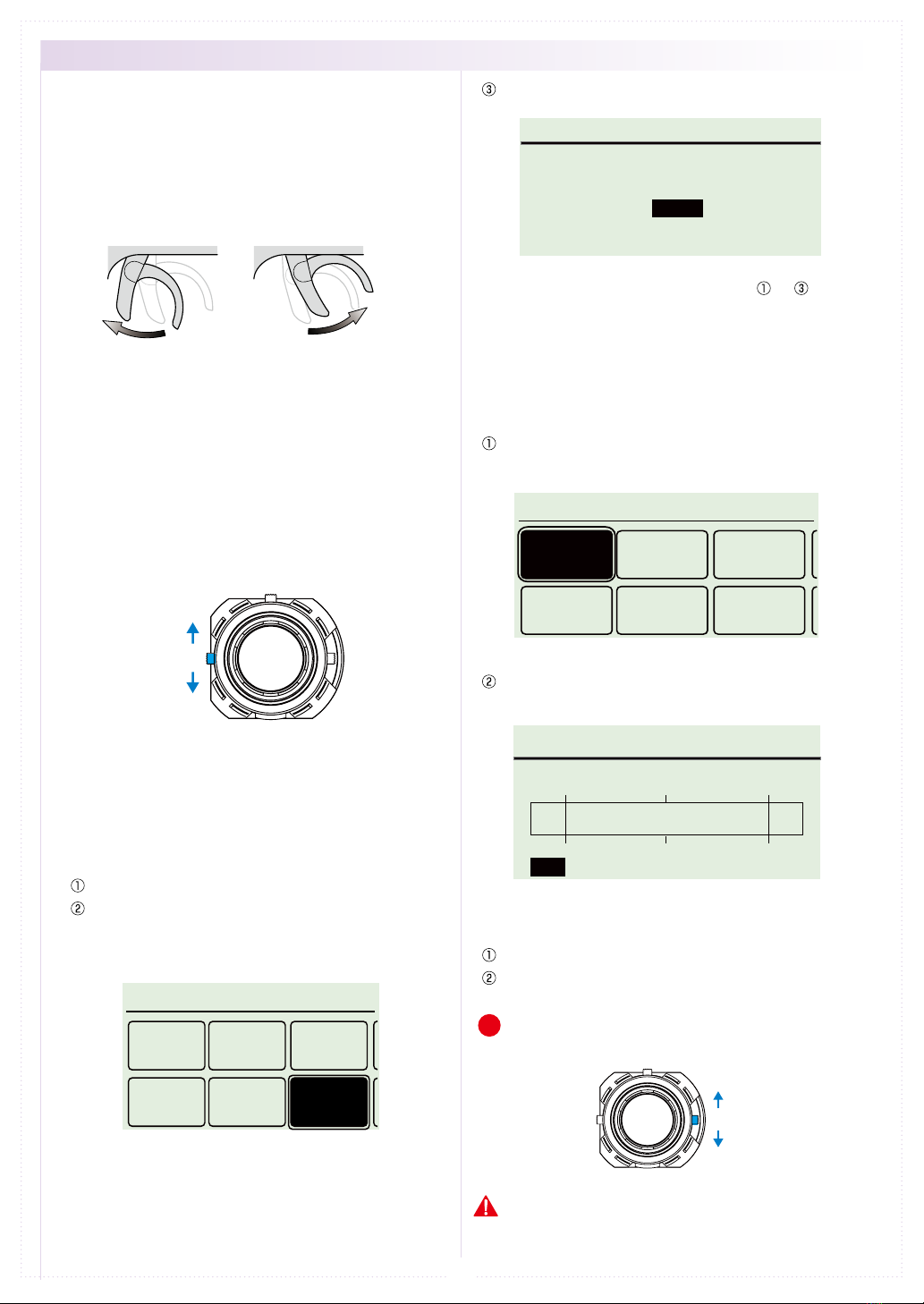

Turn the steering wheel in the right and left directions
to verify the servo (steering) connected to 1CH of the
receiver is operating.
Adjust the left/right steering angles independently.
This enables the turning radii to match up during cornering.
● Balance R(Right)
Hold steering wheel to all the right.
Push ET1 lever by 1 click, adjust the range of Steering
angle.
● Balance L(Left)
Hold steering wheel to all the Left.
Push ET1 lever by 1 click, adjust the range of Steering
angle.
Changing the output directional movement of the servo
when it is moving in the opposite direction.
(when a steering moves to the left while turning the
steering wheel to the right.)
Adjusts the neutral/center position of the steering angle
range. The function to make a ne adjustment so that a
car goes straight, operate the ET1 lever in the right and
left directions.
● A buzzer sound with a single beep sound when operated
to the right and left.
● A buzzer sound "Piro" is made when the center trim is
adjusted.
●When exceeding the setting range a "Pi-" sound can be
heard. Please look over your installation and linkage of
the servo horn.
<ex: Right>
■Steering Wheel
■Steering Balance
■Steering Reverse
■Steering Trim
●STEERING
Select [STEERING] on the initial screen and push
ENTER key.
Change setting from NORM to REVS.
Select [REVERSE] on the STEERING menu, and push
ENTER key.
MONITOR XT-TMG DR5.8V
MODEL NO.01
STEERING
THROTTLE
STEERING
FUNCTION THROTTLE
Hold steering wheel
to all the right
Hold steering wheel
to all the left
■ Basic operation■ Basic operation
To adjust the amount of steering for right and left at
one time, change steering travel (p.46) with ET4 dial.
The above function can be invalidated by turning "OFF"
direct balance (p.46).
P
P
* Return reverse setting, perform operation to to again.

Neutral
Neutral
ForwardR
evers
e
(Brake)
ET2
ET3
THROTTLE 1/3
TRIM
FEEL
TRAVEL SPEED
DYNAMC
REVERS
10
The following function explanation is the case of factory default
settings. When changing KEYSET (key setting); the following
opinions change
Operating trigger, the servo (ESC) connected to 2CH of
the receiver works forward and reverse function.
Modify the maximum amount of throttle brake movement
and forward acceleration movement.
● Travel F(Forward)
From initial screen select [THROTTLE] throttle and press
the ENTER key.
● Travel B(Brake)
Select [THROTTLE] throttle and press the ENTER key.
Select [TRAVEL B] on the THROTTLE menu, and push
ENTER key to adjust
Adjusts the neutral/center position of the throttle stroke
range.The function to make a ne adjustment, operate
ET2 lever in up and down.
● A buzzer sound with a single beep sound when
operated up or down.
● A buzzer sound "Piro" is made when the center trim is
adjusted.
● When exceeding the setting range a "Pi-" sound can be
heard. Please look over your installation and linkage of
the servo horn.
Changing the output directional movement of the servo
when it is moving in the opposite direction. (when the brake
is moving the forward throttle.)
*This function setting "REVERSE" is accessed in the
Steering menu.
Select Steering menu in the initial screen and push Enter.
Select [REVERSE] on the STEERING menu, and push
ENTER key.
* Return reverse setting, perform operation to to again.
Forward
Increase
Decrease
Reverse
■Trigger
■Throttle Travel
■Throttle Trim
■Throttle Reverse
●THROTTLE
For GP cars, a strong setting for the brake can damage the servo.
ST REVERSE
TH REVERSE
REVS
NORM
REVERSE
The setting of [TRAVEL B] can be changed by operating the ET3
lever.
P
Select [TRAVEL] on the THROTTLE menu, and push
ENTER key.
Change setting from NORM to REVS.
THROTTLE 1/3
SPEED
DYNAMC
TRIM
FEEL
REVERS
TRAVEL
N
B100%
TH TRAVEL
F 100％
TH TRAVEL

11
●Steering Wheel Adjustment
●Throttle Trigger Adjustment
●
Adjustment of the decrease angle adjuster
●Throttle Trigger Position Adjustment
●Adjustment of Trigger Tension
●ET Keys (1-5) and BT Button (1)
Adjust the tension of the steering wheel spring.
Functions may be assigned to the keys/button. For key
allocation, please refer to KEYSET key conguration (p.31).
Adjust the position and angle of the brake trigger to your
preferences.
The position of the throttle trigger may be adjusted to match
the user's hands.
Insert a 1.5mm hex wrench referring to the image below.
Rotate clockwise to increase tension and counterclockwise
to decrease it.
<How to Adjust>
Loosen the hex screws on the throttle trigger with a
1.5mm hex wrench.
Freely adjust the brake trigger position.
Tighten the hex screws to secure.
The steering sponge is removed.
Using a 2mm hexagonal wrench, insert into the two
holes of the steering wheel to adjust the angle you
prefer.
Perform the VR information conguration (p.17).
Replace the steering wheel sponge.
Loosen two screws on the rear side of the transmitter.
Slide the Throttle Trigger Position Adjuster as desired.
Tighten the loosened screws to secure.
<How to Adjust>
<How to Adjust>
Excessive counterclockwise rotation will result in the wheel being
unable to return to neutral position. In this case, rotate clockwise
until the wheel returns to neutral
The possible functions which each key/button may be
assigned to are different.
The trigger may loosen over time due to temperature, usage,
strong impacts, etc., we recommend you glue it in place. When
there are times that it is still loosens, please inquire to our service
department.
Hex Wrench
Throttle trigger
Brake lever
Throttle lever
Screws
Hex screws
Ball Joint
Throttle Trigger
Position Adjuster
Strength (tension) of the spring for the throttle trigger is
adjustable.
* Only Expert grip unit available.
Using a 1.5mm hexagonal wrench (not included) insert into the
lower part of the grip section. When turned clockwise (right) the
tension becomes stronger, counter-clockwise (left) it becomes
less.
<How to Adjust>
Hold the trigger lightly, insert the hexagonal wrench.

Insert the color pad / grip claws into the holes in the following
order. Note direction of these parts.
Be careful not to overtighten the aluminum screws, as the screws
may be damaged if they are overtightened.
Make sure the battery box or battery pack is removed before
replacing the colored grip and pad.
Be sure to attach it with the color pad to be replaced and the screw
of the length that matches the grip. If you make a mistake, the
battery or battery may be damaged.
Note direction of the grip plate.
①
②
③
12
●Charging Jack
●Unit Connector
●Power Switch
Using the charging jack, you can charge different batteries.
When using the Xpansion and an expert grip unit,A battery
stand, a rechargeable battery, a battery charger are necessary.
This product may be dismantled and therefore each unit
features their respective connectors. Dirty or damaged
connectors may result in malfunctions, so please handle them
carefully.
This product features a safety lock. The Master Unit and Grip
Unit cannot be detached when the Power Switch is in the ON
position. Turn off the transmitter before dismantling.
①.Conrm that the power switch is in the OFF position. If only
using the Grip Unit, make sure that the connector cover is
in place.
①.Make sure the battery is securely connected. If the
connection is loose, the battery may not charge completely.
Securely connect the charger plug to the charger jack.
①.Begin charging using a current of less than 1A.
<How to Recharge>
Make sure the power switch is in the OFF position when charging.
A short circuit may occur if the connector makes contact with metal
and lead to a serious accident.
Please use charger which can set current less 1A and it must
correspondent your kind of battery. You can use No.55055 TX
charging jack2 as chaging plug.(sold separately)
Take note of the charger plug's polarity in order to avoid damage.
Use a current of less than 1A to charge.
Do not attempt to charge if using alkaline batteries.
Doing so may result in battery leakage or cracking which will
damage the transmitter.
You can not charge the battery through the charging jack when
using a battery pack.
If using a battery pack, please note that it cannot be discharged via
the charger jack. Remove the battery pack from the transmitter to
discharge it.
After reading the battery pack manual, please use your battery.
discharged via the charger jack. Remove the battery pack from the
transmitter to discharge it.
Do not touch the unit connectors with your ngers. If connectors
become corroded due to grime, they may become inoperable. If
storing the transmitter in dismantled form. After prolonged use, a
black residue may build up on the connectors. Use cotton swabs
dipped in cleaning alcohol to remove. KO Propo's Customer
Service Department also handles transmitter maintenance.
Quick charger(Sold Separately)
Power Switch
Disassembly is not possible when the power is switch ON.
Forcefully trying to remove the Grip Unit while on will result in
damaging the locking mechanism.
P
●Colored Grip and Pad Replacement
Colored grip pad (optional) and Large/small grip pad
options are available.(LDT requires a another product)
Remove the two screws on each side of the grip to detach the
grip plates, then attach the colored grip and pad.

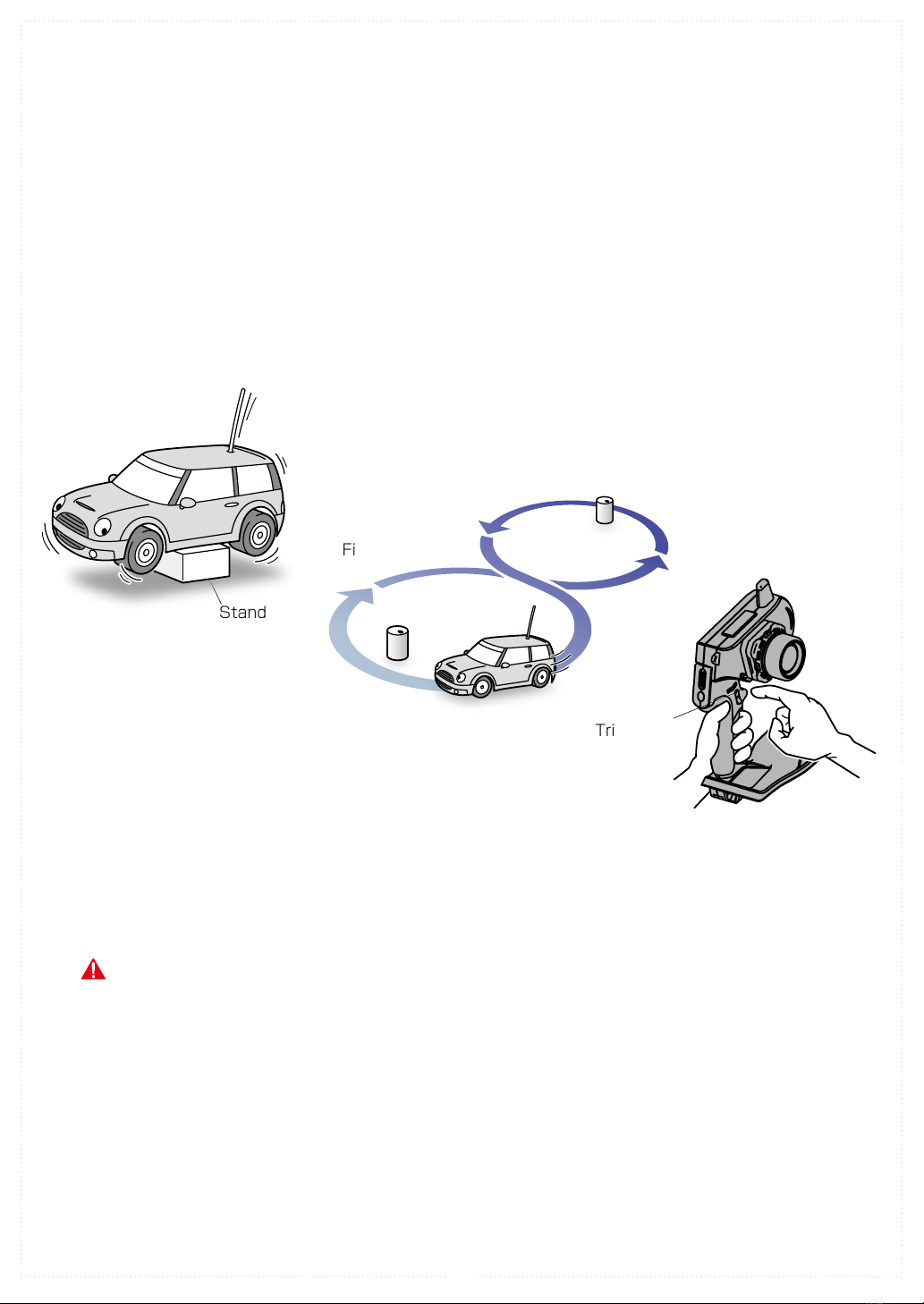

<How to Adjust>

Stand
Figure8Pattern
Trimlever
13
■ Procedures Prior to Operation■ Procedures Prior to Operation
1. Switching On
After ensuring that it is safe to do so, switch on the transmitter followed by the receiver.
2.Model Conrmation
Conrm the model which will be used.
3.Checking Movements
With the model's wheels lifted off the ground, operate transmitt er to check for proper
movement. While driving, use steering and throttle trims to make ne adjustments. Drive in a
gure 8 pattern t o check steering balance.
4.Switching Off
After a driving session, switch off the receiver,followed by the transmitter. Remove
the battery pack from the model.
After switching off, wait at least 5 seconds before switching on again to ensure proper operation.

67((5,1*
5(9(56
'<1$0&
75,0 63(('
)((/
75$9(/
MONITOR XT-TMG DR5.8V
MODEL NO.01
STEERING
THROTTLE
STEERING
FUNCTION THROTTLE
MONITOR XT-TMG DR5.8V
MODEL NO.01
STEERING
THROTTLE
FUNCTION
STEERING THROTTLE
14
Basic Operation 1: Selecting from a Menu
This explanation uses [Steering] as an example.
Use the R(>) key to move the cursor over [Steering].
Press the ENTER key to change to the Steering Menu screen
Basic Operation 2: Changing a Setting Value
This explanation uses [TURN 1] on the Steering Speed screen as an example.
Operate the R (>) key to set to [SPEED] (ST SPEED), and then press the ENT key to switch to the setting menu.
Operate the R (>) key for move the cursol to the value (100%) of [TURN1] (ST SPEED turn speed 1). (Figure left)
Press ENTER key to select it for modication.
The cursor starts ashing. Please change the value by operating R(>) and L(<) Key. (Figure right Changed to 50%)
Press ENT key when change value is nished.
■ Display and Control Method for attaching the Xpansion unit■ Display and Control Method for attaching the Xpansion unit
●Name of each parts and Basic operation.
BACK Key L(<) Key R(>) Key
Command button
Communication Port
Used for rmware upgrading.
Please refer to an update
manual for the details.
Used for rmware upgrading and ICS
communication.
Please refer to an update manual for the
details.
ENTKey
Controlling of the setting adjustments is done via the L(<) key, R(>)key, ENTER(ENT) key, and
BACK key.
ENT Key : Selecting item to be modied; Conrming a change after a setting change.
L(<)Key : Used to move cursor between m enu choices and to change a setting value.
Lowering a value (for L/R cases: raising toward L); Return to a previous menu item.
R(>)Key : Used to move cursor between menu choices and to change a setting value. Raising
value (for L/R cases: raising toward R); Proceed to next menu item.
BACK Key : Returning to previous screen; Canceling change.
L(<)Key+R(>)Key Pressing simultaneously : Reset value to factory setting.
Operation

15
●English and Japanese display language
The menu lettering of the transmitter can be changed from
English to Japanese by conguring
FUNCTION>SYSTEM>CONFIG>LANGUAGE.
* In this instruction manual, English is used for displaying
functions
From the initial screen select FUNCTION and press
the ENTER key.
From the FUNCTION menu, select SYSTEM and press
the ENTER key.
From the SYSTEM menu, select CONFIG and press the ENTER
key.
From the CONFIG menu, select JAPANESE to change the language
setting.
When the BACK key is pressed, the language changes to
Japanese.
Note1) is displayed as
couse by limt of chractor count.
Note1)
Note1)
If you want to change to English menu, change value
in the to
ENGLISH from Japanese.
How to change to Japanese
MONITOR XT-TMG DR5.8V
MODEL NO.01
STEERING
THROTTLE
FUNCTION
STEERING THROTTLE
FUNCTION
MODEL
3 - 8CH
TIMER KEYSET
TLMY SYSTEM
SYSTEM 1/2
CALC.
SOUND
BATTRY
VRINFO
DISPLAY
CONFIG
CONFIG
KEYSPEED
3
3
MENUSPEED
OPERATIONTIME
LANGUAGE
JAPANESE
USERTIMER
ELPASSEDTIME
3M
0H53M
0H53M
システム 1/2
ﾃﾞｨｽﾌﾟﾚｲ
サウンド
ﾊﾞｯﾃﾘｰ ｹｲｻﾝｷ
VRｲﾝﾌｫ
ｶﾝｷｮｳ
英語表記 カタカナ表記
FUNCTION セッテイ
MODEL モデル
TIMER タイマー
KEYSET キーセッテイ
3-8CH 3-8CH
TLMY テレメトリ
RFMODE RFモード
RESP レスポンス
RELICS リアルICS
BTF/S BTF/S
SYSTEM システム
DISPLAY ディスプレイ
BATTRY バッテリー
CALC. ケイサンキ
SOUND サウンド
VRINFO VRインフォ
CONFIG カンキョウ
DATA データ
RESET リセット
STEERING ステアリング
TRAVEL トラベル
TRIM トリム
SPEED スピード
DYNAMC ダイナミク（ス）
FEEL フィール
REVERS リバース
THROTTLE スロットル
TRAVEL トラベル
TRIM トリム
SPEED スピード
DYNAMC ダイナミク（ス）
FEEL フィール
REVERS リバース
PUSH プッシュ
CYCLE サイクル
ATSTRT ATスタート
OFFSET オフセット
BRK-OR オーバーＲ
BRK-IN ブレークイン
H-BRK ハンドBK
Operation

PUSH
XT-TMG
IJKLMNOP
V
16
Function Monitor: Functions that are active will be lit up.
Steering Monitor: Displays the position of the steering operation.
Throttle Trim Monitor: Displays the position of the throttle trim.
Top menu: Display three kinds of setting items
FUNCTION : Modify settings related to functions.
STEERING : Modify settings related to the steering.
THROTTLE : Modify settings related to the throttle.
RF Mode : RF mode which is being used is displayed.
Power Source Type : Selected battery mode is displayed.
Voltage: Displays the current power source voltage.
Model Number: Displays the currently selected model number.
Model Name: Displays the name of the currently selected model number.
●Startup Screen and Initial Screen
When the transmitter is switched on, the startup screen will display, followed by the initial screen.
* Pressing the ENTER key during the startup screen will allow you to proceed to the initial screen.
Version Information :
Displays the version of the program that is installed in the Msater Unit's CPU.
This product's performance may be upgraded via paid or free upgrades.
Check the KO Propo website for information regarding such upgrades
.(https://www.kopropo.co.jp)
* The upper row is the expansion version, and the lower row is the master unit version.
Please check the version upgrade guide to see which one to refer to.
Startup Screen
Initial Screen
OR Steering and Brake travel Override
AUT Throttle Auto Start
CYC Cycle Throttle Acceleration/Throttle ABS)
OFS Offset Drag Brake/Idle Up
PUSH : Push
When left side functions are not
active, "MONITOR" is displayed.
LP : Lipo Battery
LF : LiFe Battery
DR : R03/AAA/UM4 Alkaline Batteries
NI : Ni-MH Battery
XT-ADG : ADV (Highest speed, one way communication)
XT-TMG : TLMY (Middle speed, two way communication)
MX-FG : MX-F (Slowest speed, one way communication)
XT-ADF : ADV (Highest speed, one way communication and France mode)
XT-TMF : TLMY (Middle speed, two way communication and France mode)
MX-FF : MX-F (Slowest speed, one way communication and France mode)
(Notice) If you switch battery types, make sure to also change the [Battery] setting.

ST-LEFT
2078
2
ﾋﾀﾞﾘ
RIGHT
ﾐｷﾞ
NUT
ｾﾝﾀｰ
TH-HI
ｾﾞﾝｼﾝ
LOW
ﾌﾞﾚｰｷ
NUT
ｾﾝﾀｰ 2075
2072
OK?
YES
2198
2204
2194
VRINFOMATION VRｲﾝﾌｫﾒｰｼｮﾝ
ST-LEFT
3313
2
ﾋﾀﾞﾘ
RIGHT
ﾐｷﾞ
NUT
ｾﾝﾀｰ
TH-HI
ｾﾞﾝｼﾝ
LOW
ﾌﾞﾚｰｷ
NUT
ｾﾝﾀｰ 2075
1463
OK?
YES
2198
3949
487
VRINFOMATION VRｲﾝﾌｫﾒｰｼｮﾝ
Right Max
Left Ma
x
Foward
Max Reverse
Max
ST-LEFT
RIGHT
NUT
TH-HI
LOW
NUT
OK?
YES
ｘｘｘｘ
ｘｘｘｘ
ｘｘｘｘ
ｘｘｘｘ
ｘｘｘｘ
ｘｘｘｘ
VRINFOMATION
LOW
1204
-565
◇
◇
1765
-1749
ST-LEFT
RIGHT
NUT
TH-HI
NUT
OK?
YES
VRINFOMATION
17
●VR information setting
Adjust the steering and throttle resistance information.
*Please perform the VR information
conguration to calibrate your system.
○ When using EX-NEXT for the rst time.
○ When changing a steering unit for a different product or
when putting it back together.
○ When changing a grip unit for a different product or when
putting it back together.
○ When using and confusion has occurred in the positional
information.
1.Select [FUNCTION] on the initial screen and push
the ENTER key.
2.Select [SYSTEM] on the function screen and push
the ENTER key.
3.Select [VR INFO] on the system screen and push the
ENTER key.
4.Move the wheel slowly to the full left and right lock
(numbers will change as the steering is moved) and
release the wheel back to neutral.
5.Move the trigger slowly to the full throttle and full
brake positions (numbers will change as the throttle is
moved) and release the trigger back to neutral.
6.Then select YES (press ENTER) to adjust and save
the settings.
4.5.Move slowly to full stroke, then release
3.Example before setting
6.Small window [Yes] comes active.
*When operating the VR INFORMATION and pressing the
BACK key will cancel the operation.
For a detailed conguration procedure, please refer to
"VR Information" (p.43).

18
●RFMode(Radio waves mode)
EX-NEXT has 3 mode of radio method.
●RF mode
ADV: This is highest speed response in same category device. This give absolute advantage when using in the race.(*1)
TLMY: In the this mode, you can use telemetry/REAL TIME ICS.(*2)
You can know value of the each sensor from the receiver. You can adjust ICS settings of the servo through the transmitter.
MX-F: This mode is for using MR-8 receiver.
Please return RF mode to "MX-F" after change RF mode to "TLMY" and change response to the"MILD"(p.37-38)
*1: As of January 2021
*2:The telemetry function is able to use serial communication corresponded servo or device only.
How to use KR-420XT with MC-8.
Please set “TLMY” for the RF mode and set “MILD” for response function when using with
EX-NEXT. Then pair this receiver with MC-8.
Communication
Specifications
RF Mode
Width
of
Frequency
Initial Screen
Display
Compatible
Receivers
LED
Telemetry
XT Advance
Highest speed
one way communication
ADV
GENERAL FRANCE
XT-ADG XT-ADF
KR-420XT
Green Green
Flashing
Do not Correspond
XT Telemetry
Middle speed
two way communication
TLMY
GENERAL FRANCE
XT-TMG XT-TMF
KR-420XT
Blue Blue
Flashing
Correspond
MX-F
Slowest speed
one way communication)
MX-F
GENERAL FRANCE
MX-FG MX-FF
Yellow Yellow
Flashing
MR-8
Do not Correspond
This parameter can change value of the communication pattern of the EX-NEXT and receivers.
If you have direction by administrator of the track etc, please use France mode. Usually, please
use the General mode.
What is France (France mode) width setting?
Please do pairing function when the RF MODE is changed. (p.19)
P
P
P

BATT
BATT
点灯
19
●Pairing(for general RC car)
①.Turn off the transmitter and turn on again.
①.Check that the receiver's LED lights up again (indicating
pairing completion)
Press the Back key in the EX-NEXT.
Check that the receiver's LED lights up again (indicating
pairing completion)
Preparing the transmitter. Preparing the transmitter.
①.Press ENT key when FUNCTION is selected at the Initial
screen.
While pushing the ET2 lever up, power on. The pilot LED
lights up, release ET2 lever.
Please release the ET-2 lever when the initial screen is
displayed.
A case of pairing method with changed RF mode.
A case of pairing method without changed RF mode.
Preparing the receiver
Preparing the receiver
<Pairing Method 2>
<Pairing method 1>
<Pairing method 1 and 2 comon.>
①.Press ENT key when TLMY is selected at the FUNCTION
menu.
①.Move the cursor to PAIRING and press and hold ENT key.
①.Screen is change to the PARING and start sending the pairing
signal.
①.Receiver's LED lights up again (about
3sec) and light off and start ashing. It
means searching for transmitter signal.
①.Press ENT key when RFMODE is selected at the Telemetry menu.
①.Please set the RF MODE and WIDTH in the RF MODE
menu for you needs.
Change to pairing screen and start transmit power with
paring signal.
Change to pairing screen and start transmit power with paring signal.
ADV: Green / White TLMY: Blue / White
The EX-NEXT LED lights alternately in two colors
corresponding to
ADV: Green / White TLMY: Blue / White
This operation allows the receiver to memorize the transmitter information. You must perform this when using a
receiver for the rst time or when changing the EX-NEXT RF mode.
*There are two ways of pairing a receiver. Please use which ever method you feel is an easier operation.
1. 1.
2.
2.
3.
3.
ET2
Power ON
↓
↓
↓
MONITOR XT-TMG DR5.8V
MODEL NO.01
STEERING
THROTTLE
FUNCTION
STEERING THROTTLE
TIMER タイマー
TIMER
OFF
OFF
TIMER START
TRG START
LAP HISTORY
START/STOP KEY
LAP KEY
RF MODE
RF MODE:
WIDTH :
TLMY
GENERAL
PAIRING
FUNCTION
MODEL
3 - 8CH
TIMER KEYSET
TLMY SYSTEM
TELEMETRY
RELICS
BT F/S
RESP
RFMODE
①.Turn on the receiver. And thereceiver's LED
will be start ashing.
①.Check that the receiver's LED has lit up,
then release the setup button
①.Check that the receiver's LED lights up again
(indicating pairing completion)
Preparations for Operation
Preparations for Operation
If the LED ashes, the receiver is not getting
the EX-NEXT signal and the pairingprocedure
should be repeated.
①.Connect the receiver power source
while pressing the setup button.
①.Check that the receiver's LED has lit up,
then release the setup button.
①.Check that the receiver's LED lights up
again (indicating pairing completion
①.Receiver's LED lights up again (about
3sec) and light off and start ashing.
It means searching for transmitter
signal. Lit LED
Lit LED Flash

CarbonFiberChassis
Noise is generated in any area where a large amount of electric
current is flowing. Position the receiver and antenna cable as far
away from the motor, battery, ESC,
and their associated cables as possible. (Metal or carbon fiber
chassis components will also conduct electricity and generate
noise.)
Since R/C models are controlled via radio signals, taking appropriate
measures against noise generated by on-board equipment is of
utmost importance. Take adequate measures against noise so that
your machine can fully realize your driving potential.
Battery
Receiver
ESC SiliconCables
Motor
Noise
Noise
Noise
Noise
Noise
Noise
Noise
Noise
Noise
Noise
Keep antenna cable away from all sources of noise!
When installing the receiver to the chassis or R/C
equipment deck/tray, use two or more pieces of thick
double-sided tape to raise the receiver off the chassis
surface. By increasing the separation between the
receiver and the noise-generating carbon-fiber chassis
components, the effects of noise can be decreased.
Raise the antenna cable vertically from as high a position as possible. Insert the antenna cable into the antenna pipe so that the tip
of the antenna aligns with the end of the pipe. Make the length of cable which runs between the receiver and the pipe as short as
possible and position the antenna holder as close to the receiver as possible. Position the antenna cable away from sources of
noise such as the chassis and R/C equipment deck/tray. Use an antenna pipe and antenna mount that are made from plastic, since
metal parts will conduct noise.
Engine vibrations may damage the receiver. Make sure to attach a
grommet (receiver holder) to reduce the effects of such vibrations.
Do not attach the receiver directly to the chassis or R/C equipment
deck/tray with double-sided tape. Also position the receiver so that it
does not contact the heat and exhaust of the engine and muffler.
Plastic
Antenna Pipe Plastic
Antenna Pipe
Plastic
Antenna Holder
Grommet
Aluminum Antenna Holder
Aluminum Antenna Holder
Piano Wire
Double-Sided Tape
Antenna Cable
Signal Receiving Section
Noise
Noise
Noise
Noise
Noise
Noise
ノイズ
Noise
(Acceptable with FRP
or plastic chassis)
Soldered Lug Plate
● Receiver Installation on a Carbon Fiber Chassis
● Antenna Installation
● Installing Onto a Glow Engine Car
*Install the receiver so that its LEDs are visible.
*Install the receiver so that its LEDs are visible
*Do not bend or cut the antenna cable.
(This may break the antenna wire and deteriorate its performance.)
20
●Countermeasures Against Noise
