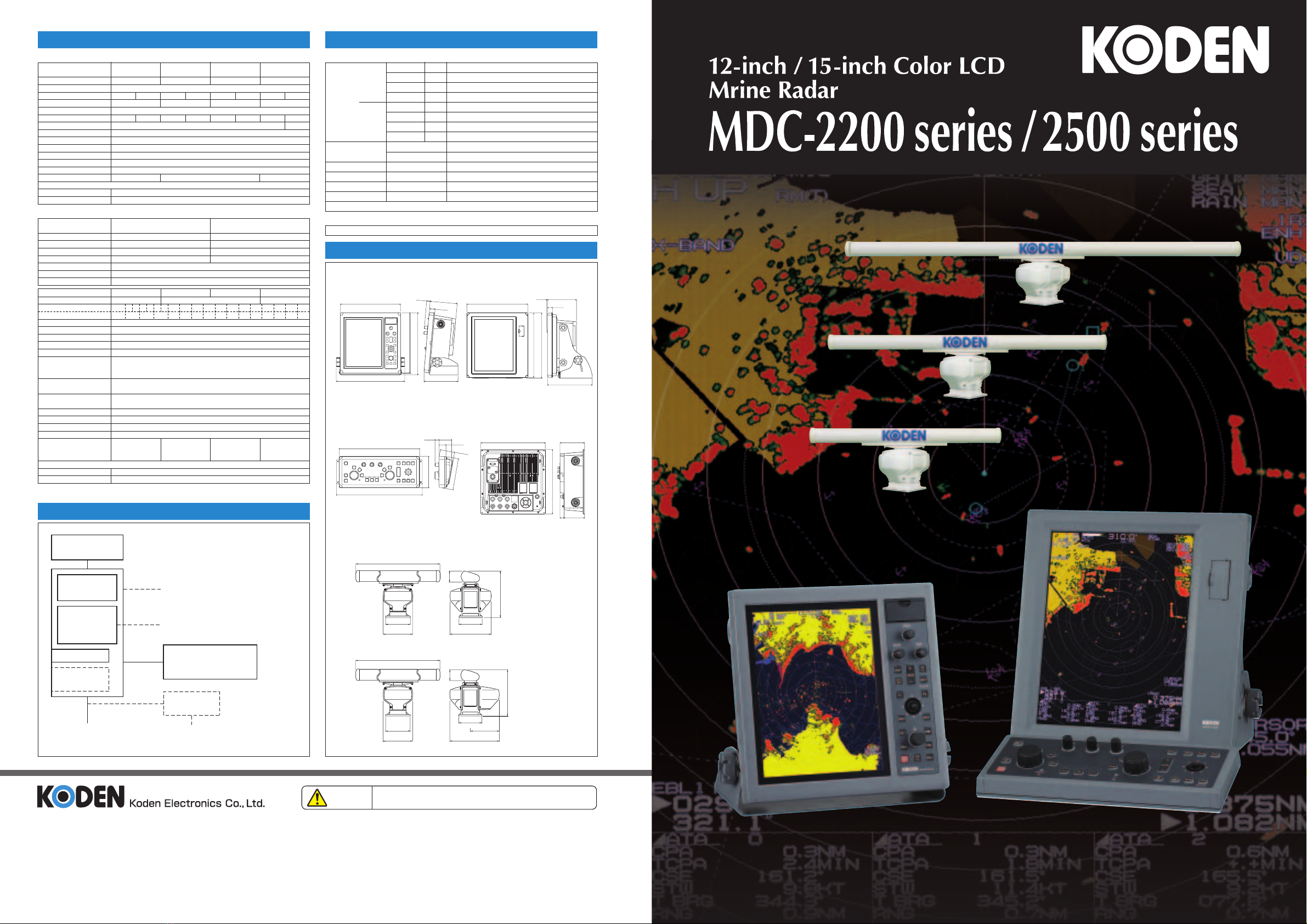

Koden MDC-2200 series User manual

14.01 Printed in Japan
Safety
precaution
To ensure proper and safe use of the equipment, please carefully
read and follow the instructions in the Operation Manual.
Tamagawa Office:
2-13-24 Tamagawa, Ota-ku, Tokyo, 146-0095 Japan
Tel: [phone] Fax: [phone]
Uenohara Office:
5278 Uenohara, Uenohara-shi, Yamanashi, 409-0112 Japan
Tel: [phone] Fax: [phone]
• Design and specifications are subject to change without notice.
For details, please contact:
www.koden-electronics.co.jp
[email protected]
Display unit:
Standard Equipment
RB716A / RB717A / RB718A with RW701A-03 / 04 / 06
RB719A
Antenna-scanner unit:
MRD-101 (MDC-2200 series) MRD-102 (MDC-2500 series)
Weight: 12.5 kg (27.5 lb)
EQUIPMENT LIST
For selecting cable, please contact your nearest distributor
Solid lines: Standard devices and connections
Dashed lines: Optional devices and connections
CONNECTIONS
DIMENSIONS AND WEIGHT
Unit: mm (inch)
Weight: 8.2 kg (18 lb)
Weight:
RB719A
6 feet: 29 kg (64 lb)
9 feett: 33 kg (73 lb)
Weight:
RB716A
3 feet: 21 kg (46 lb)
4 feet: 22 kg (49 lb)
RB717A / 718A
4 feet: 23 kg (51 lb)
6 feet: 25 kg (56 lb)
Weight: 2 kg (4.5 lb)
Operation unit:
Antenna- Scanner RB716A 4 kW MDC-2240, 2540 / BB
scanner unit RB717A 6 kW MDC-2260, 2560 / BB
unit RB718A 12 kW MDC-2210, 2510 / BB
RB719A 25 kW MDC-2220, 2520 / BB
Antenna RW701A-03 3 feet MDC-2240, 2540 / BB
unit RW701A-04 4 feet MDC-2240, 2260, 2210, 2540 / BB, 2560 / BB, 2510 / BB
RW701A-06 6 feet MDC-2260, 2210, 2520, 2560 / BB, 2510 / BB, 2520 / BB
RW701B-09 9 feet MDC-2220, 2520 / BB
Display unit MRD-101 MDC-2200 series
(Deselect BB type) MRD-102 MDC-2500 series
Operation unit MRO-102 MDC-2500 / BB series
Processor unit MRM-102 MDC-2500BB series
Connecting cable 242J159098B-15M 15 m
DC power cable CW-259-2M 2 m
Operation manual, Quick reference, Installation manual, Installation material, Spare parts
AIS interface, Gyro-Log interface, Power rectifier, AC power cable, Water protection RGB cable
Option
Analog RGB output (For external monitor)
Radar signal input / output (For slave display)
NMEA 0183 input / output
AIS signal input
External buzzer output
Display for BB type (Owner supplied)
Power rectifier
PS-010
Operation unit
MRO-102
(For MDC-2500 / BB series)
Optional
cable
100 / 115 VAC
200 / 230 VAC
10.8 to 41.6 VDC
(25 kW: 21.6 to 41.6 VDC)
ATA
AIS interface
AIS-120
Display unit
MRD-101 / 102
Antenna-scanner
unit
BB type
Processor unit
MRM-102
SPECIFICATIONS
320
± 3
(12 19/32)
320
±
3
(12 19/32)
122
± 3
(4 51/64)
102
± 3
(4 1/64)
20
(25/32)
Processor unit:
Weight: 5.1 kg (11.2 lb)
Model MDC-2240 MDC-2260 MDC-2210 MDC-2220
MDC-2540/BB MDC-2560/BB MDC-2510/BB MDC-2520/BB
Type RB716A RB717A RB718A RB719A
Antenna type Open antenna
Antenna length 3 feet 4 feet 4 feet 6 feet 4 feet 6 feet 6 feet 9 feet
Power output (Peak) 4 kW 6 kW 12 kW 25 kW
Output frequency 9410 MHz to 30 MHz
Horizontal beam width 2.5 ° 1.8 ° 1.8 ° 1.2 ° 1.8 ° 1.2 ° 1.8 ° 0.8 °
Vertical beam width 22 ° 25 °
Rotation 24 rpm or 48 rpm
IF center frequency 60 MHz
Range accuracy 8 meters or 1% of the range scale selected, whichever is the greater
Bearing accuracy 1 ° or less
Minimum detecting distance Within 25 m
Range resolution Within 25 m
Pulse width 0.08 us, 0.25 us, 0.8 us 0.08 us, 0.25 us, 0.5 us, 1 us 0.08 us, 0.3 us, 0.6 us, 1.2 us
Environmental
Operating temperature -25 ° C to +55 ° C
Water Protection IPX6
Model MDC-2240, 2540/BB MDC-2260, 2560/BB MDC-2210, 2510/BB MDC-2220, 2520/BB
Basic Range 0.125 to 48 NM 0.125 to 72 NM 0.125 to 96 NM
Range Scales
Range interval
Presentation modes Head-up, North-up*, Course-up*
Indication system PPI
Video levels 8 levels (colors)
Range unit NM, km,sm
Alarms Echo (IN / OUT), ATA / AIS (CPA / TCPA), Guard zone etc.
Functions Interference rejection, Target expansion, Zoom, 2 VRM, 2 EBL (true*/ relative), Floating EBL / VRM,
Cursor position (Lat / Lon**), Parallel cursor, Day / Night mode, Bearing (true*/ relative), Trail**, Past course**,
Mark**, Route**, RGB Monitor output, Slave display monitor input / output, External Buzzer output
Input data format and sentences NMEA 0183 Ver.1.5/2.0/3.0
BWC, DBT, DPT, DTM, GGA, GLC, GLL, GNS, HDG, HDM, HDT, MTW, RMA, RMB, RMC, RTE, VBW, VDR, VHW, VTG, WPL, ZDA
Output data format and sentences NMEA 0183 Ver.2.0
HDT, VHW, VTG, GLL, VDR, RSD, OSD, TTM, TLL
NMEA port(s) 3 (input 1, input / output 2)
AIS interface** 200 targets (Option)
ATA** 50 targets
Power supply 10.8 to 41.6 VDC
Power Consumption (at 24VDC) MDC-2240: 80 W or less MDC-2260: 110 W or less MDC-2210: 130 W or less MDC-2220: 170 W or less
MDC-2540: 100 W or less MDC-2560: 130 W or less MDC-2510: 150 W or less MDC-2520: 200 W or less
MDC-2540BB: 80 W or less MDC-2560BB: 110 W or less MDC-2510BB: 130 W or less MDC-2520BB: 180 W or less
Environmental
Operating temperature -15 ° C to +55 ° C
Water Protection IPX 5 (BB type with optional water protection RGB cable)
* Requires bearing data input.
** Requires bearing data, ship's speed data and latitude / longitude data input.
Model MDC-2240/2260/2210/2220 MDC-2540/2560/2510/2520
MDC-2540BB/2560BB/2510BB/2520BB
Display unit MRD-101 MRD-102 (Deselect BB type)
Display size / type 12.1" color TFT LCD 15" color TFT LCD (Deselect BB type)
Processor unit (BB type only) - MRM-102
Effective diameter 184 mm 228 mm
Display resolution 1024 x 768 pixels (XGA)
Off-centering Max. 66%
Echo area 2 types (Full screen, Inside of effective diameter)
Antenna-scanner unit
Display unit / Processor unit for BB type
MRO-102 (MDC-2500 / BB series) MRM-102 (MDC-2500BB series)
0.125
0.0625 0.125 0.25 0.5
0.25 0.5 0.75 1 1.5 23
0.75
4
1
6
1.5
8
2
12
3
16
4
24
6
32
8
48
12
64
16
72
18
96
24
321
± 3
(12 5/8)
364
± 3
(14 21/64)
145
±
3
(5 11/16)
19
(47/64)31
(1 13/64)
334
±
3
(13 9/64)
321
±
3
(12 5/8)
181
± 3
(7 1/8) 265
± 3
(10 27/64)
385
±
3
(15 11/64)
381
±
3
(14 63/64)
171
±
3
(6 3/4)
5
(11/64)
30
(13/16)
361
± 3
(14 13/64)
385
± 3
(15 5/32)
361
± 3
(14 13/64)
141
±
3
(5 35/64)
57
± 2
(2 1/4)
18.5
(47/64) 31
(1 7/32)
142
±
3
(5 37/64)
64
±
2
(2 17/32)
MAX.450
(17 3/4)
390
± 5
(15 3/8)
220
± 3
(8 11/16)
234
± 3
(9 3/16)
280
± 5
(11)
104
±
5
(4 1/8)
BOW
RW701A-03: 3 feet: 1034
± 5(40 11/16)
RW701A-04: 4 feet: 1346
± 10 (53)
RW701A-06: 6 feet: 1970
± 10 (77 9/16)
MAX.450
(17 3/4)
470
± 5
(18 1/2)
234
± 3
(9 3/16)
280
± 5
(11)
104
±
5
(4 1/8)
275
± 3
(10 13/16)
BOW
220
± 3
(8 11/16)
RW701A-06: 6 feet: 1970
± 10 (77 9/16)
RW701B-09: 9 feet: 2740
± 10 (107 7/8)

MDC-2200 series /MDC-2500 series
True trail function
The display shows exact movement of other vessels like
drawing tails, while land and buoys are shown as station-
ary objects even while your vessel is moving.
This makes it easy for you to distinguish moving from
stationary objects.
ATA with up to 50 targets as standard
The convenient ATA (Automatic Tracking Aid) function
comes as standard.
The latest movements of other vessels can be shown
instantaneously in vector form and numeric form, ensur-
ing safe navigation.
If the automatic acquisition zone is set, the targets up to
50 entering the zone will be locked automatically.
Map Overlay with
C-Map chart (NT+ or NT MAX)
C-Mapchart NT+orNT MAX(owner
supplied) is overlaid on the radar
screen to provide clear radar pictures
of coastlines, buoys, and other fea-
tures.**
Even in Head-up mode, the chart fol-
lows smoothly in accordance with
change of the heading of vessel.
Furthermore, waypoints, buoys, and
hazardous targets can be overlaid for
safer navigation.
C-MapNTMAX“WorldWide”back-
ground chart is built-in as standard.
** Basic chart information only. Extra
features of C-Map such as photo indi-
cation are not available.
AIS interface up to 200 targets as option
When connected with an AIS receiver, the radar displays
information on up to 200 targets including the vessel
name, heading, and speed of each vessel with an AIS
transmitter mounted.
Display of other vessels’ tracks to
plotter screen
When connected with a Koden Chart Plotter, other ves-
sels’ tracks locked with the ATA can be plotted on the
screen of plotter.
You can get other ships’ movements at a glance with this
function, which is highly useful and effective for group
fishing operation.
The number of the track plots depends on specification of
plotter.
Wide variation
Offered with two display sizes, a 12-inch display with
operation panel housed in a single compact case and a
convenient two piece 15-inch unit with separate key-
board for multiple installation locations. Both units have
high-resolution XGA (1024 x 768) grade LCD, which is
extraordinary for the 12-inch LCD display.
Antenna-Scanner Units are selectable from a wide vari-
ety of output powers and lengths to best fit your applica-
tion or site circumstances.
Black Box models also available.
•
12-inch (The highest resolution of the class)
MDC-2240: 4 kW, 3 feet / 4 feet Open
MDC-2260: 6 kW, 4 feet / 6 feet Open
MDC-2210: 12 kW, 4 feet / 6 feet Open
MDC-2220: 25 kW, 6 feet / 9 feet Open
•
15-inch
MDC-2540: 4 kW, 3 feet / 4 feet Open
MDC-2560: 6 kW, 4 feet / 6 feet Open
MDC-2510: 12 kW, 4 feet / 6 feet Open
MDC-2520: 25 kW, 6 feet / 9 feet Open
•
Black Box
MDC-2540BB: 4 kW, 3 feet / 4 feet Open
MDC-2560BB: 6 kW, 4 feet / 6 feet Open
MDC-2510BB: 12 kW, 4 feet / 6 feet Open
MDC-2520BB: 25 kW, 6 feet / 9 feet Open
MDC-2200 / 2500 series are high performance and multi-function Radars with the essence of Koden’s
advanced technology.
In all phases including accuracy, stability, and reliability, the series achieve the highest-grade in the market.
MDC-2500BB Black Box radars connect to any XGA or UXGA type display* (owner supplied).
* Monitors other than XGA / UXGA should have "Aspect" function to avoid improper image presentation.
High-end Radar series forming a class apart!
Display example with Koden Chart Plotter GTD-110 / 150
Slave display
One antenna can be operated from two displays. This is highly effective for navigation of a double ended vessel with
bridges in the bow and stern.
