Kogan Kapuriohepa User manual

TABLE OF CONTENTS
IMPORTANT SAFEGUARDS……………………………...…..……..1
MAIN PARTS…………………………………………………………………2

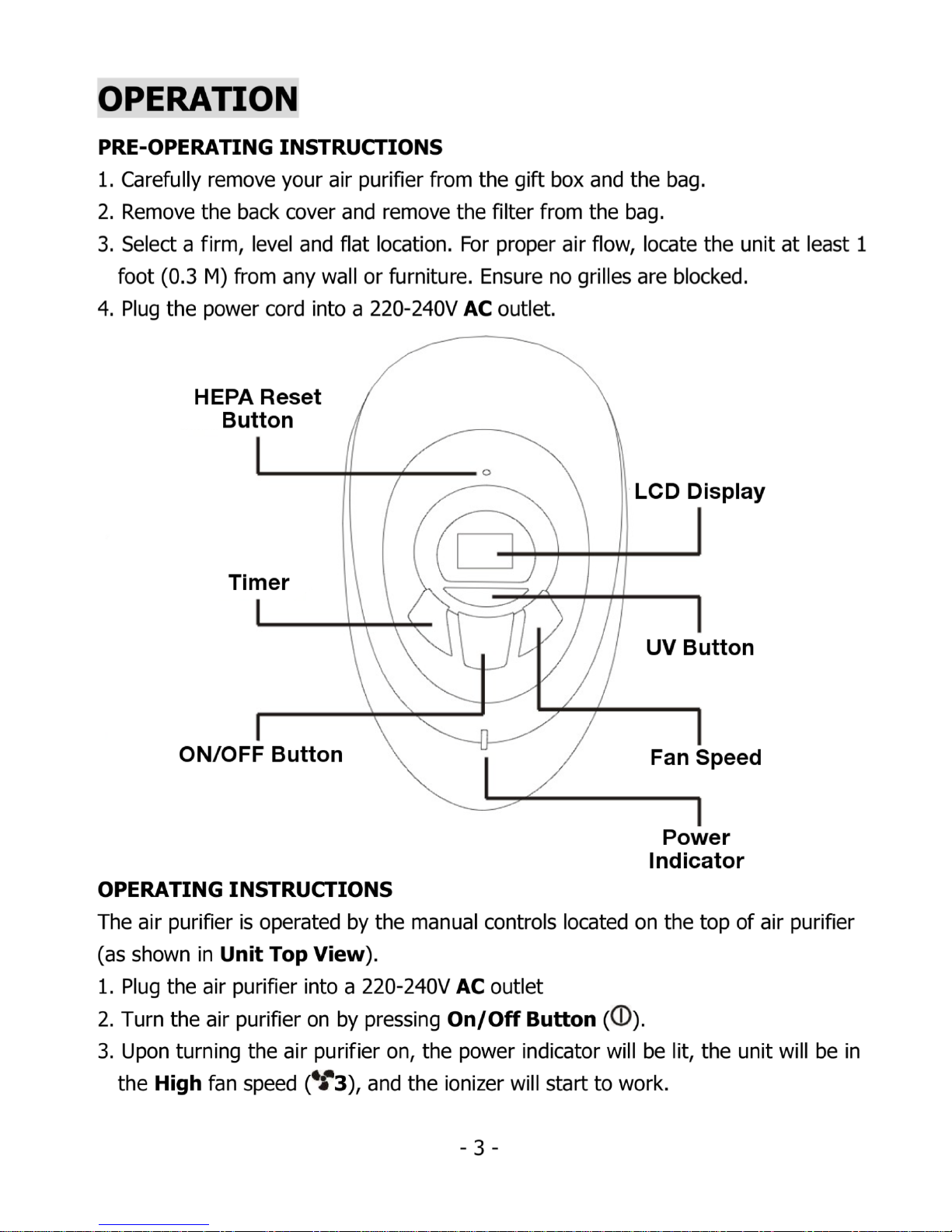

OPERATION………………………………………………………………….3
PRE-OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
CLEANING AND MAINTENANCE……………………………..……5
CLEANING PRE-FILTER…………………………………………..5
CLEANING HEPA FILTER…………………………………………6
REMOVING/INSTALLING UV LAMP…………………………..8
CLEANING AND MAINTENANCE……………………………..11
TROUBLE-SHOOTING………………………………………….………11

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING: RISK OF ELECTRICAL SHOCK
• Safety precautions should always be used when operating this or any
electrical appliance.
• Decrease the risk of electrocution, electric shock, injury or fire by
reading and following all of the warnings below.
• To reduce the risk of electric shock, do not attempt to service the air
purifier in any way other than to replace or clean the air filter.
• Read all instructions before operating the air purifier.
• This product operates at 220-240V, 50/ 60Hz.
• Do not run the power cord under carpets, and do not cover with throw
rugs, blankets or towels.
• This product is not intended to filter oil or grease from air.
• Always unplug the power cord from the electrical outlet when the air
purifier is not in use or when changing the filter.
• Never run the air purifier unless it is fully assembled.
• Do not alter the plug in any way.
• Always turn off the air purifier before unplugging the air purifier from
outlet.
• Do not place the cord near a heated surface.
• Never operate the air purifier if the plug or cord is damaged or appears
damaged. Only qualified service personnel should ever replace or
attempt to replace a damaged power cord.
• Never use the power cord to pick up, carry, drag, pull, or lift the air
purifier. Do not pull the cord against or around sharp corners and edges.
• Always remove the plug from its power outlet by holding onto the plug
itself and pulling gently.
• Never pull on the cord itself to unplug it from its power outlet.
• Use care when operating the air purifier by keeping all foreign objects,
fingers, body parts, hair, loose clothing and jewelry away from openings.
• Never touch the air purifier or its plug when your hands are wet.
- 1 -

Note:
Before operating the air purifier, make sure the air filters inside the air
purifier are not wrapped in plastic. When the air purifier is plugged in
you should hear a beep. Press the Power button to turn it on. If the air
purifier does not power on, ensure the front cover is installed
correctly.
Save these instructions!

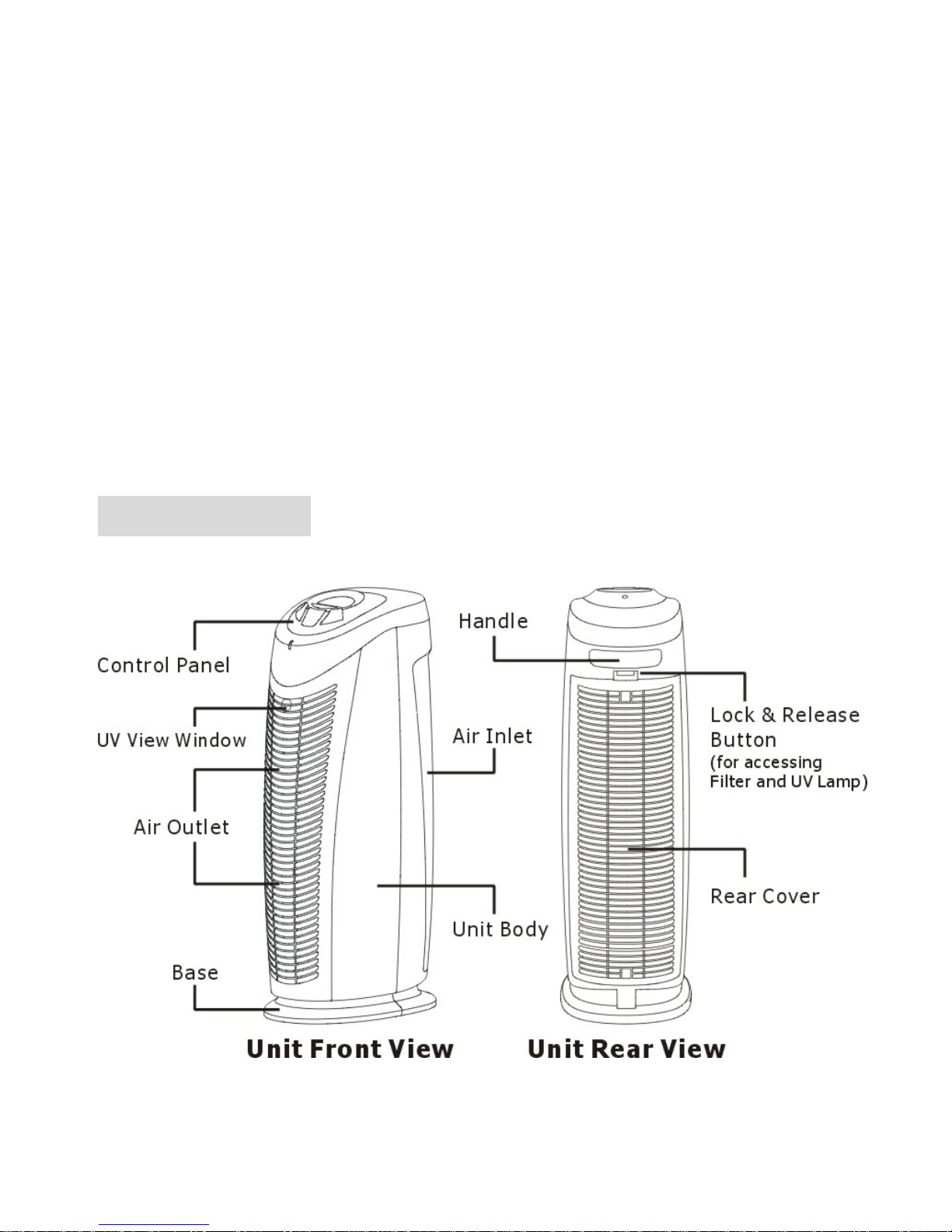

MAIN PARTS
- 2 -

To turn the air purifier on, press the On/Off Button( ),the ionizer also works,during the
air purifier working time,the ionizer is always working.
4. Pressing Fan Speed Button () at this point will set the air purifier into
Medium fan speed ( 2).
5. Pressing Fan Speed Button () again will set the air purifier into Low fan
speed ( 1).
6. Pressing Fan Speed Button () once more will set the air purifier back to High
fan speed ( 3).
7. To turn the air purifier off, press the On/Off Button ( ).
NEGATIVE ION FUNCTION :
UV LAMP FUNCTION
The UV-C germicidal lamp can kill harmful airborne bacteria and virus. This function
will work in any mode. Press the
UV Button (
:
) to start the UV lamp and stop the
UV lamp by pressing the
UV Button ( ) again.
UV LAMP RESET FUNCTION
If the UV lamp needs to be replaced, the UV icon on the LCD will illuminate and
flicker. After replacing the UV lamp, reset the UV lamp by pressing the
UV Button
(
:
) for a few seconds, the UV icon will stop flickering and the new UV lamp will start
to work. Check from the UV view window (Unit Front View in page 2), if the UV lamp
still lights, it should not be replaced.
HEPA RESET FUNCTION
If the HEPA filter needs to be cleaned, HEPA Reset icon on LCD will illuminate and
flicker. After cleaning the HEPA filter, RESET the HEPA filter by using a pin or needle
to press the
HEPA RESET Button (
:
), then the icon will stop flickering. For
instructions on how to clean the HEPA filter see the
CLEANING HEPA FILTER
on
page 6.
- 4 -

CLEANING AND MAINTENANCE

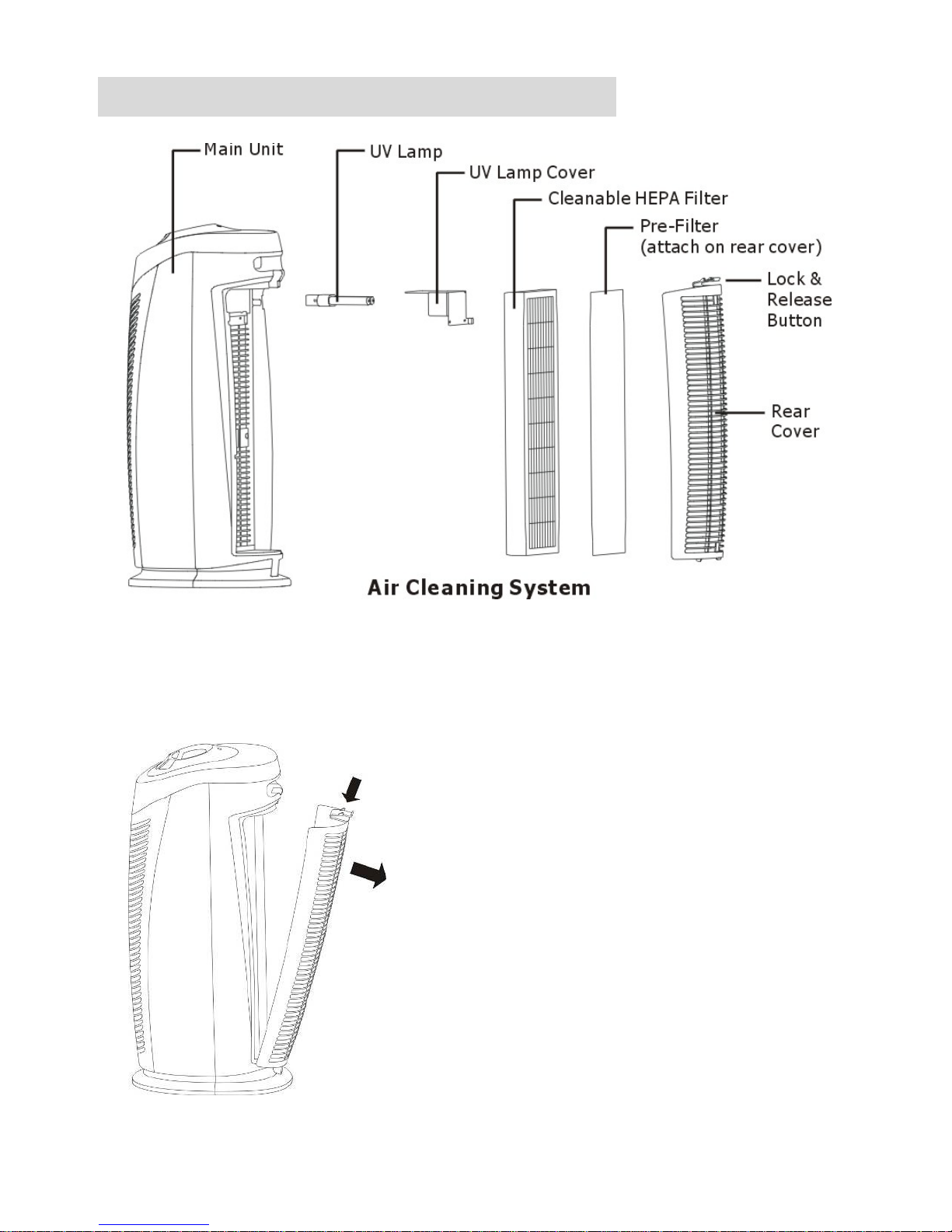

CLEANING PRE-FILTER (See Air Cleaning System)
1. Turn off and unplug the unit;
2. Press the Lock & Release Button and remove the Rear Cover from the unit;
NOTE: The unit will shut off after the rear cover is removed.
- 5 -

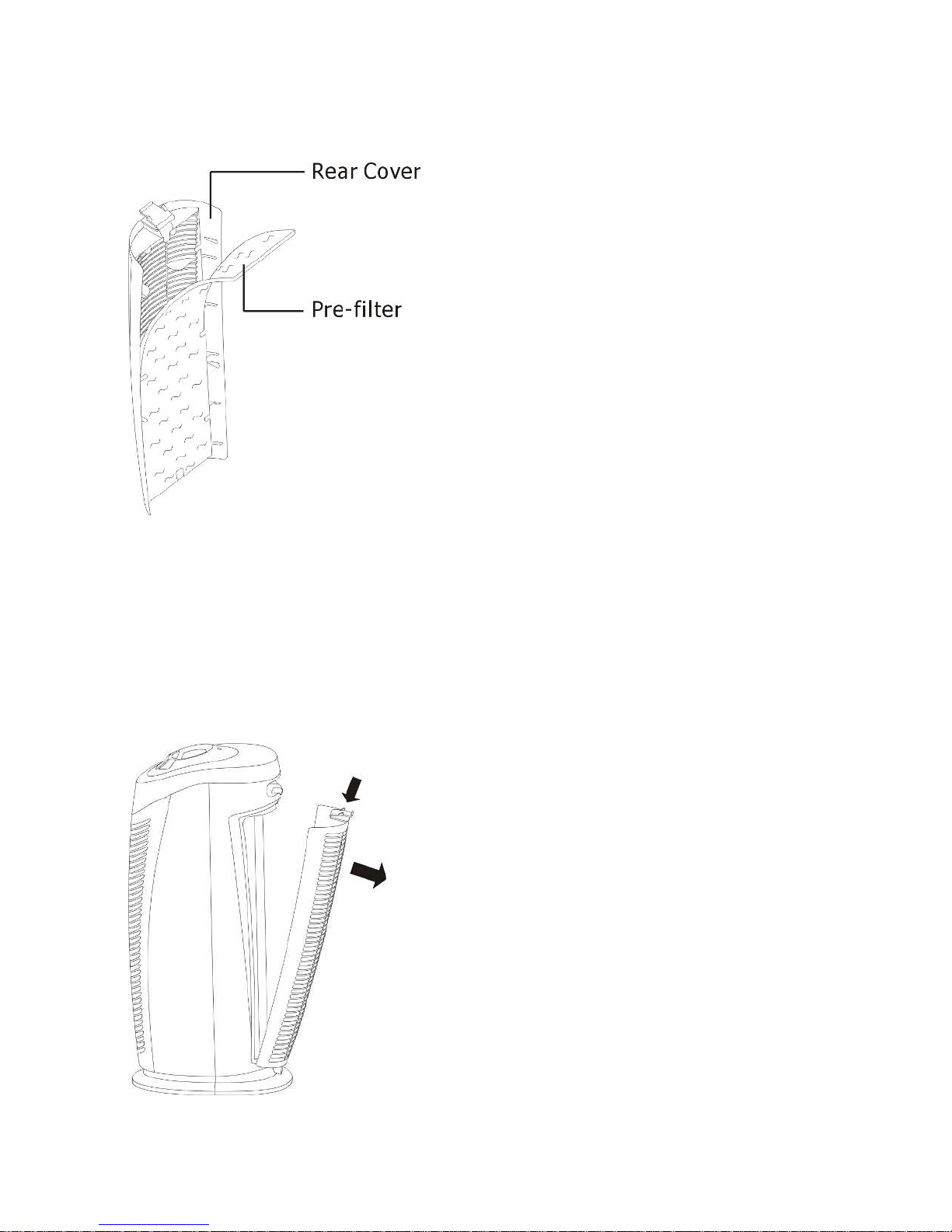

3. Remove the pre-filter from the rear cover. Clean the pre-filter with the vacuum
brush attachment of your vacuum cleaner. This will remove lint and dirt from the
filter. Use a clean, damp, soft cloth to wipe the pre-filter again.
NOTE: Clean the pre-filter often if possible.
4. After cleaning, reattach the pre-filter to the rear cover, and install the rear
cover back to unit and securely latch in place.
CLEANING HEPA FILTER (See Air Cleaning System)
1. Turn off and unplug the unit;
2. Press the Lock & Release Button and remove the Rear Cover from the unit;
NOTE: The unit will shut off after the rear cover is removed.
- 6 -

3. Remove the HEPA filter.
4. Use the brush attachment with your vacuum cleaner to clean the filter.
CAUTION: Do not use water or any household cleaner to clean the HEPA filer.
NOTE: The HEPA filter can be used continuously for up to two years. When the
HEPA filter turns from white to black, it should be replaced with a new one. If the
HEPA filter is still white, it does NOT need to be replaced.
- 7 -

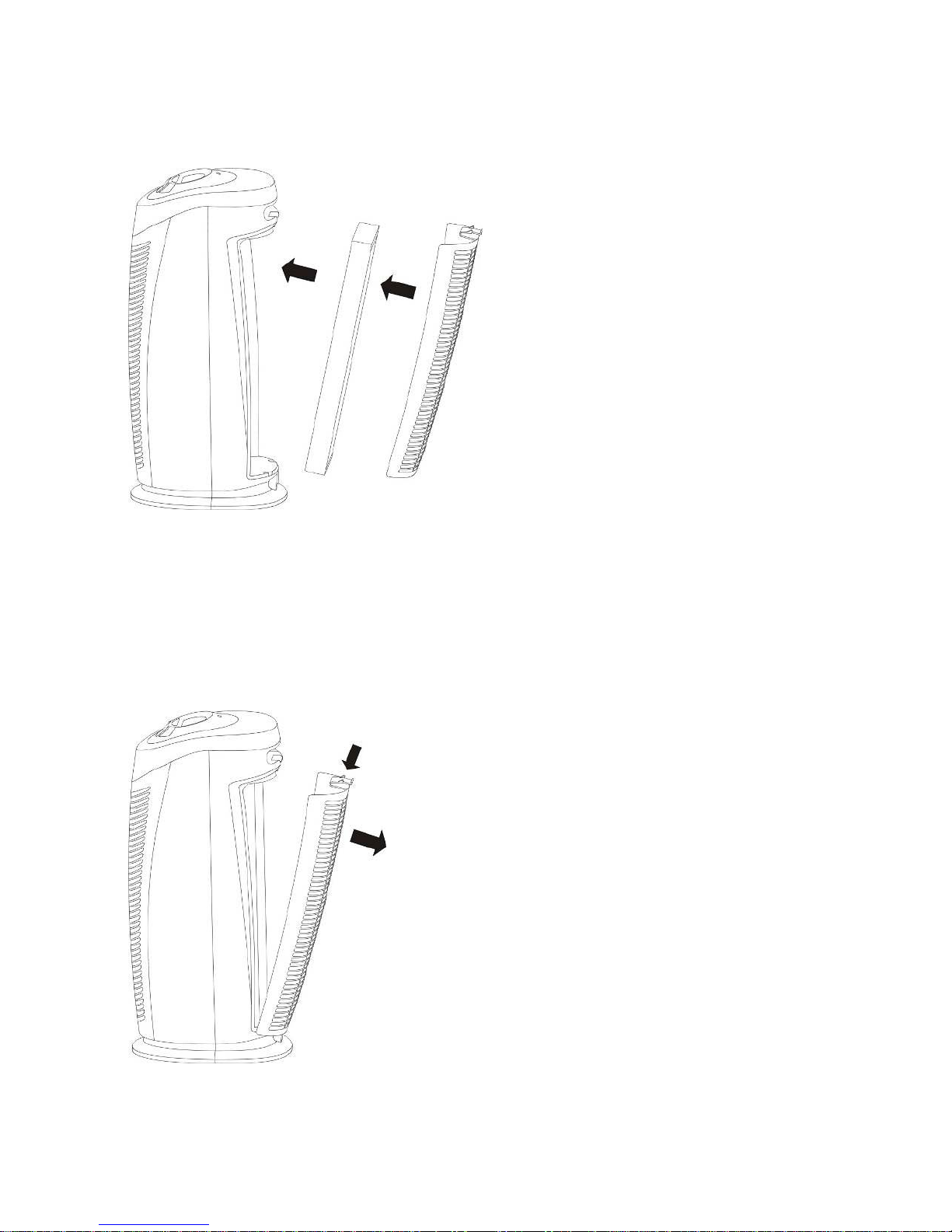

5. Depending upon your filter type, either it will only fit in one way or reference the
arrow on the side of the filter. Install the rear cover back to unit and securely latch
in place.
NOTE: Both of filter and rear cover must be installed otherwise the purifier will not
power on.
REMOVING/INSTALLING UV LAMP (See Air Cleaning System)
1. Turn off and unplug the unit.
2. Press the Lock & Release Button and remove the Rear Cover from the unit.
NOTE: The unit will shut off after the rear cover is removed.
- 8 -

3. Remove the HEPA filter.
4. Use a screwdriver to remove the two screws and detach the UV lamp cover.
- 9 -

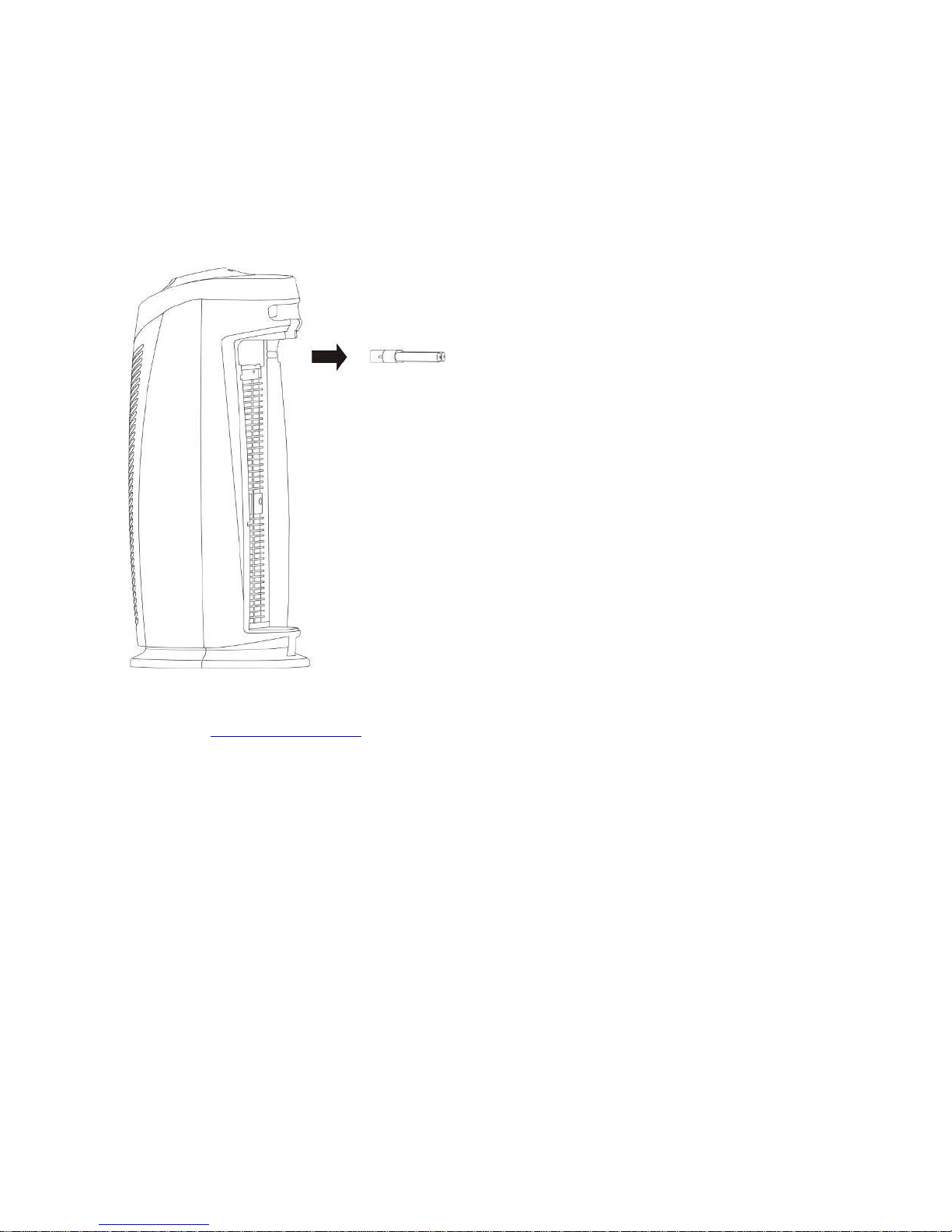

5. Grasp the UV lamp and pull it straight out from the lamp socket. The lamp is made
of quartz so it is stronger than a standard UV lamp,however we recommend
reaching in toward the base since it is easier to remove from here than pulling on
the end of the lamp. If you have rubber gloves or something similar that has a
non-slip grip that is preferable. You should minimize the contact time with your
fingers on the glass.
CAUTION: The UV lamp is a glass product, please handle it carefully. Please
reference www.kogan.com for more information in regards to the safest way
to replace the UV lamp.
6. Take a new UV lamp and insert it into the lamp socket. Simply press in on the end
of the glass lamp to lock into place. Re-install the UV lamp cover (the large metal
face should be above the uv lamp and align the two screw holes with the back of
the air purifier), then re-install the filter and rear cover.
-10 -

CLEANING AND MAINTENANCE
1. The air purifier should be checked at least once every month. More frequent
cleaning may be required depending upon environmental conditions.
2. Clean the HEPA filter and pre-filter with the vacuum brush attachment of your
vacuum cleaner. This will remove lint and dirt. See CLEANING PRE-FILTER and
CLEANING HEPA FILTER on page 5 to 6.
3. Check the UV lamp from the UV view window (Unit Front View in page 2). If the
UV lamp needs to be replaced, see REMOVING/INSTALLING UV LAMP on
page 8.
4. Use a clean, dry, soft cloth to wipe the external surface of unit.
NOTE: Do not stick any foreign objects or your fingers inside the unit.
CAUTION: Do not use any chemical or harsh cleaners, etc., as they will
damage the product. NEVER use ALCOHOL OR SOLVENTS.
TROUBLE SHOOTING TIPS
If the air purifier shuts off unexpectedly, safety features may have been activated to
prevent damage or injury. If this happens:
1. Be sure the air purifier is plugged into a working electrical outlet;
2. Check to be sure the UV lamp and UV lamp cover are firmly seated in place;
3. Check to be sure the HEPA filter is firmly seated in place;
4. Check to be sure the rear cover is latched firmly in place.
NOTE: IF YOU CONTINUE TO EXPERIENCE A PROBLEM, PLEASE CONTACT THE
THE KOGAN CUSTOMER SUPPORT TEAM IN REGARDS TO THE WARRANTY. DO
NOT ATTEMPT TO TAKE APART THE UNIT BY YOURSELF. DOING SO MAY
VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL
INJURY.
- 11 -
