Kogan KAHTP20WHTA User manual

2000W GLASS PORTABLE
ELECTRIC PANEL HEATER
KAHTP20WHTA

 Remove packaging and make sure the heater is intact and undamaged before
using it. If in any doubt, do not use the heater, but instead contact the Kogan.com
customer support team.
 Packaging materials (plastic bags, polystyrene, staples etc.) must be kept out of
reach of children as they could be hazardous.
 The heater must only be used by responsible adults. For their safety, children and
persons with reduced mental capacities must not use this appliance unless under
the supervision of a responsible adult.
 Before connecting the heater, check the power cable to ensure that it is not
damaged.
 This heater must only be used for the purpose for which it has been manufactured,
i.e. for additional electrical heating in rooms. Any other use is considered improper
use and therefore dangerous and will void your warranty. Kogan.com are not
responsible for any damage caused by improper, incorrect or unreasonable use.
 If the appliance is faulty and/or operating incorrectly, switch it off and unplug it,
then contact the Kogan.com customer support team.
 Switch the appliance off at the wall socket and unplug it when not in use or before
carrying out cleaning or maintenance.
 Do not use the appliance near sources of water such as baths, showers or pools,
and do not touch the appliance with wet or damp hands or feet
 Do not use the heater in the presence of potential flammable or explosive liquids or
gases.
 Unwind the entire length of the power cord to avoid overheating.
 Check that the electric capacity of the system and the power outlets in your home
are adequate for the maximum power stated on the plate. If in doubt, contact a
qualified electrician.
 Do not leave the heater plugged in when it is not required. Unplug the heater from
the mains after it has been switched off.
 Do not obstruct the ventilation or heat dispersion openings.
WARNING:
Keep Batteries Out Of
Reach Of Children
SAFETY & WARNINGS

 The power cord on this appliance must not be replaced by the user. If the cord is
damaged or requires replacement, contact the Kogan.com customer support
team.
 Avoid anything having direct contact with the hot surfaces of the heater. Check
that the power cord is not placed in front of the hot air outlet grille.
 Do not use near bathtubs, showers or basins.
 Use in an upright position only.
 Keep the suction grille clean.
 Do not use the heater directly below a fixed power outlet.
 Do not cover the heater with anything at all.
 Some parts of the heater can become very hot and cause burns. Particular
attention must be given when used near children and vulnerable people.
 Keep the heater and the power cord out of reach of children.

Foot Assembly
Put the feet into the heater’s housing, then secure them with the supplied ST4 3x10 screws.
To move the appliance, switch it off and disconnect it from the power mains, then wait for
the heater to cool down.
Use the side gripping points for transport.
Wall Assembly
Note that the heater must be installed at least 15cm above the floor and 50cm below the
ceiling.
 Make two holes (515mm apart for the 2000W heater)
 With a diameter of 8mm and a depth of 40mm, insert the supplied anchors in the
holes, then use a screwdriver to tighten the screws supplied with the anchors.
These screws must protrude from the anchor. You can then hang the heater using
the hook holes on the back of the unit.
ASSEMBLY
Note:
Before drilling, make sure there are no wires or pipes located under the wall.

Touch screen buttons located on the product correspond to the remote control.
OVERVIEW
Power
Displ
ay
Tem
perature
Timer
+ Button
- Button

Power
When the heater is plugged in, press POWER to set the functions. The right part of the
display will show “ ” Press POWER again to reset the functions. The right part of the
display will now show the “ ” and “ “symbols.
Mode
Press “5-mode” to regulate the low ( ) and high ( ) temperature power mode.
Temperature
The internal temperature is displayed every time the heater is turned on. The temperature
can be set when the heater is either in standby mode or actively heating. When the room
temperature reaches the set level, the high temperature power stops and the low
temperature power mode will remain active.
When the room temperature is 2 degrees over the set temperature, both the high and low
temperature power modes will stop operating. The heater will begin operating again only
when the temperature decreases 2 degrees with respect to the set temperature. The
temperature regulation range is 15°C - 35°C.
Power
The timer button can be set to start or stop the heater at the desired time, with a timer
interval between of between 1 to 24 hours.
Operating Sound
The heater will emit a beep tone upon each successful operation setting.
Memory
The heater can store the last temperature setting in its memory. This temperature will be
shown at start-up. If the power settings are different, start-up reset will go to those set as
default.

Insert the plug into a suitable power socket.
Turn on the side switch. A beep will be emitted and the temperature icon °C and the timer
icon ‘ ’ will appear on the display. The figure to the right of the temperature icon will
show the room temperature with the time set at '0'. The machine will go into stand-by.
 Press POWER and the low temperature icon ( ) will appear. The appliance is
now working in low heat power mode.
 Press MODE: Low temperature ( ) and high temperature ( ) can be selected.
 Shutdown: the icons will not be lit up.
Temperature selection: °C
Press the temperature button and the °C icon will flash. Press + or - to select the desired
temperature within the range of 15°C and 35°C. The temperature indicator will remain lit for
a short time.
Timer Selection: press the timer button and the ' ' icon will flash. Press + or - to select the
desired ON or OFF range from between 1 and 24 hours. The remaining time will appear.
LCD room temperature display: the appliance will stop when the temperature exceeds 2
degrees with respect to the set temperature.
Press POWER and the room temperature will appear, the timer will show “0”. Temperature
powers will switch off and the appliance will go into standby.
Rated Voltage AC 230V~, 50/60Hz
Power 2000W
OPERATION
SPECIFICATIONS

 Before carrying out routine cleaning, switch the heater off and disconnect the main
power. Use a soft, damp cloth only. Do not use abrasive cleaning chemicals.
 Do not EVER submerge any parts of the heater in water.
 No parts of the heater are able to be repaired by customers, as this can be
hazardous and will void your warranty. Contact the Kogan.com customer support
team if the heater operates in any manner that does not appear normal.
Disposal
This marking indicates that this appliance should not be disposed with other
house-hold wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.
MAINTENANCE

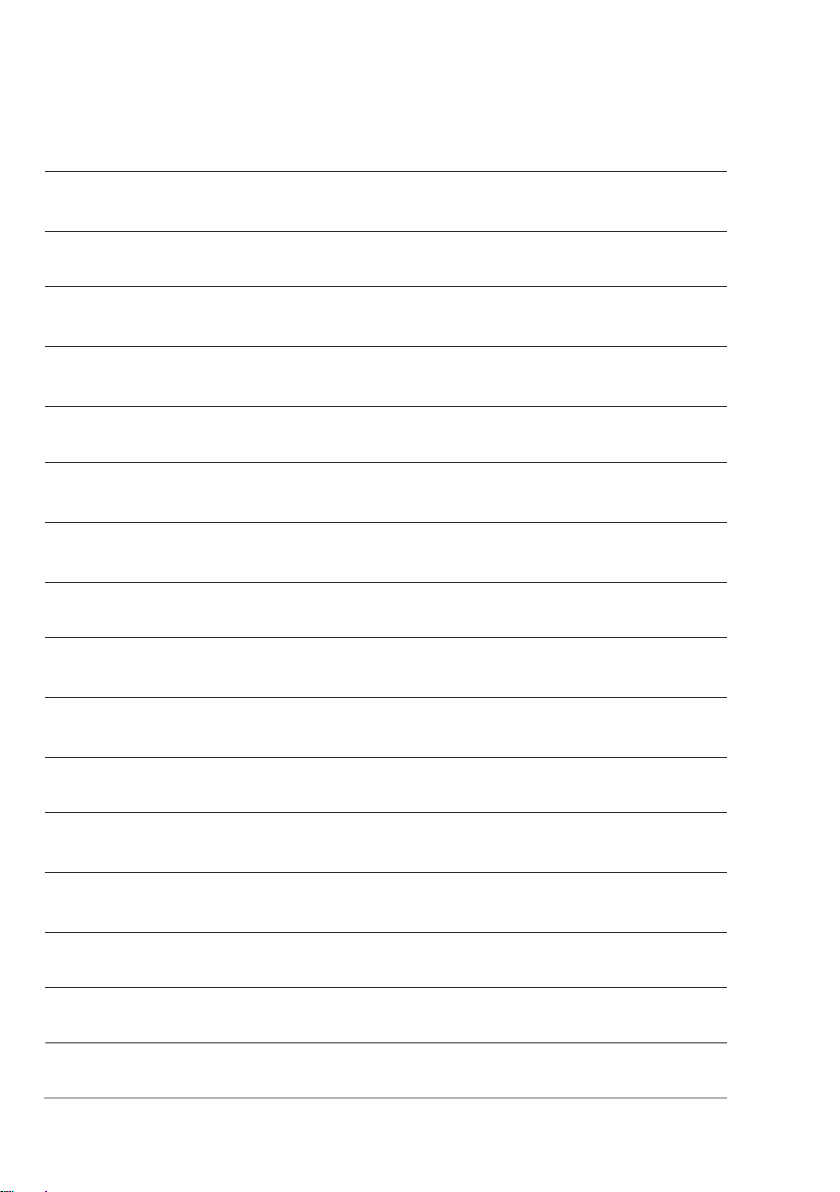

NOTES

Need more information?
This is a Quick Start Guide and we hope that this
has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
