Kohler K-1315 User manual

Installation Guide
Bath Whirlpool
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-1315, K-1316 K-1335, K-1336
1022405-2-C

Important Information
WARNING: When using electrical products, basic precautions should always be followed, including
the following:
DANGER: Risk of electric shock. Connect only to circuits protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked ″Earth/Ground″is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB). The GFCI or ELCB protect against line-to-ground shock hazard. Use a 220 - 240 V, 20
A, 50/60 Hz dedicated service for the whirlpool.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
whirlpool. Do not relocate the whirlpool pump, or make other modifications to the whirlpool system,
as this could adversely affect the performance and safe operation of the whirlpool. Kohler Co. shall not
be liable under its warranty or otherwise for personal injury or damage caused by any such
unauthorized modification.
Features
Components include a pump, heater, control and illuminated switch (user keypad).
Connections and Service Access
Before installation, ensure proper access to the final connections.
1022405-2-C 2 Kohler Co.

Product Information (cont.)
NOTICE: Provide generous, unrestricted service access to the pump. You must provide access for
servicing the pump and controls. The access must be located immediately next to the pump. Study the
roughing-in information packed with the whirlpool.
Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Electrical Requirements .......................................................... 2
Product Notices ................................................................ 2
Features ..................................................................... 2
Connections and Service Access ................................................... 2
Thank You For Choosing Kohler Company .............................................. 3
Before You Begin ................................................................. 4
Tools and Materials ............................................................... 4
Prepare the Site ................................................................. 5
Prepare the Site ................................................................. 6
Prepare the Whirlpool ............................................................. 6
Install the Corner Post ............................................................. 7
Attach the Receptor/Bench to the Whirlpool ............................................. 7
Attach the End Panel to the Whirlpool ................................................. 7
Secure the Whirlpool to the Stud Framing ............................................... 8
Cut the Pump Banding Straps ....................................................... 8
Secure the Bench or End Panel ...................................................... 9
Secure the Nailing-in Flanges and Install the Optional Apron Frame ........................... 9
Secure the Corner Post Adjustment Bracket ............................................. 9
Install the Plumbing ............................................................... 9
Install the Shower Door ........................................................... 10
Make Electrical Connections ........................................................ 10
Install the Whirlpool Trim Kit ........................................................ 11
Test Run the Whirlpool ............................................................ 11

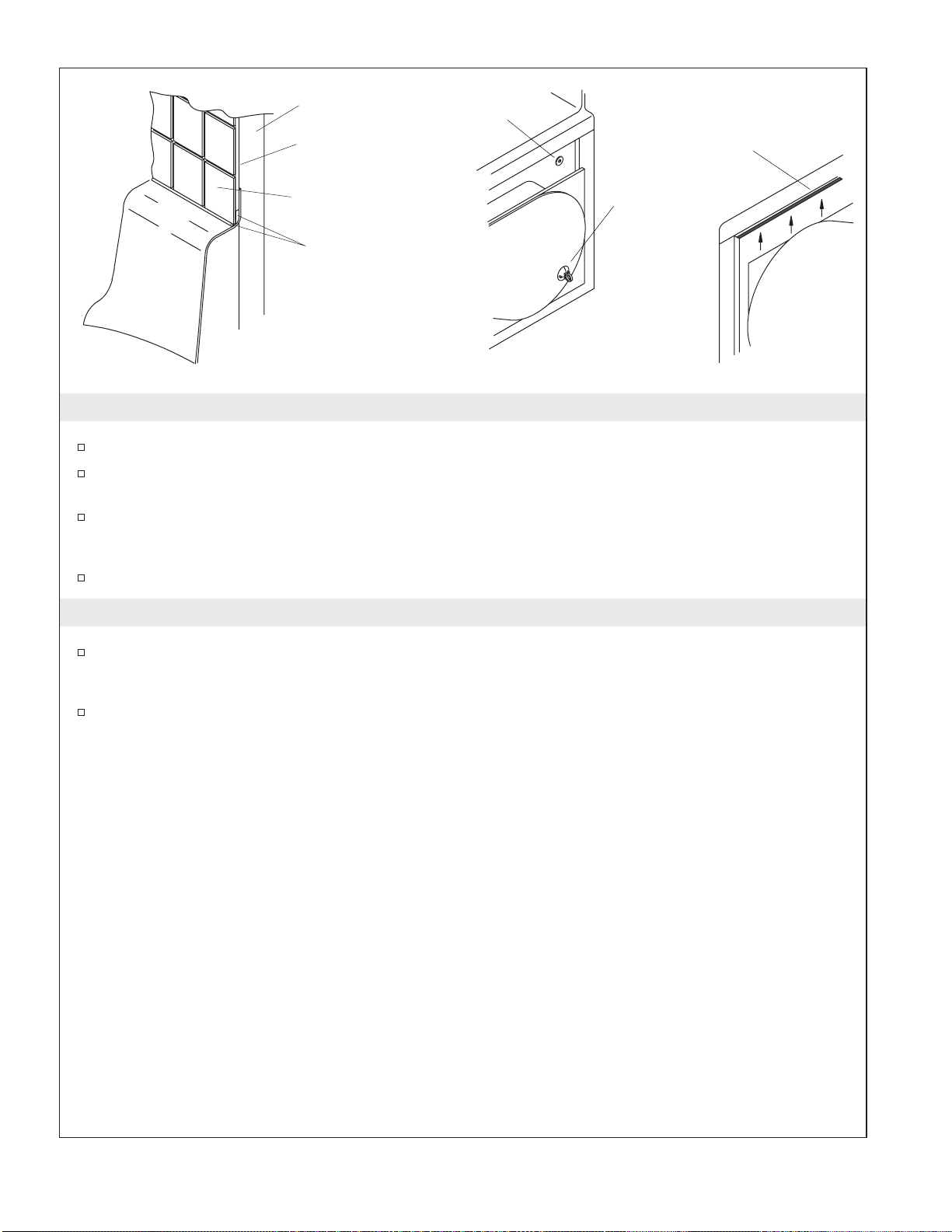

Complete the Finished Wall ........................................................ 12
Clean-Up After Installation ......................................................... 12
Confirm Proper Operation .......................................................... 13
Operating Sequence ............................................................. 13
Troubleshooting Procedures ........................................................ 13
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please don’t hesitate to
contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler
Company.
Kohler Co. 3 1022405-2-C

Before You Begin
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
We recommend this whirlpool for corner installation.
Inspect the whirlpool for damage before you begin installation.
You must install this whirlpool to an adequately supported, level subfloor.
Confirm adequate support for a rim-mounted faucet; large faucets that may be inadvertently used
as a means of support are not appropriate or safe for this installation.
You must have all required components (whirlpool, receptor/bench, apron, and/or end panel) at
the job site before beginning the installation.
Do not tighten hardware or secure the nailing-in flanges until instructed to do so.
If you are combining this whirlpool with a receptor, bench, apron, and/or end panel, be sure to
install in this order:
•1. Attach the bench (if used) to the receptor, and install the receptor.
•2. Install the whirlpool, and attach to the receptor.
•3. Install the end panel to the whirlpool.
•4. If used, install the optional apron to the whirlpool.
•5. Tighten all the hardware, and secure the flanges.
•6. Install the shower door to the receptor.
Tools and Materials
Plus:
• Conventional woodworking tools and materials
• Drop cloth
• 2x4's
Square
Measuring Tape Pencil Tin Snips
Pipe WrenchSafety Glasses
Silicone Sealant Level
1022405-2-C 4 Kohler Co.

1. Prepare the Site
Concrete Construction
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your
whirlpool for specific floor loading requirements.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
Install an access panel to allow the pump to be serviced.
Construct brick or concrete supports.
Provide a 1/16″(2 mm) gap between the whirlpool rim and the concrete or brick framing. Frame
the floor, or construct a frame for a raised installation, in accordance with the roughing-in
information packed with the whirlpool.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
Optional apron may be used or you may use
brick or concrete with an approved tile backing.
Typical access
panel
Corner Installation
Install an access panel to allow
the pump to be serviced.
Kohler Co. 5 1022405-2-C

2. Prepare the Site
Wood Construction
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your
whirlpool for specific floor loading requirements.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
The whirlpool should be installed in a corner installation. Construct 2x4 stud framing designed for
your particular installation. Frame the floor, or construct a frame for a raised installation in
accordance with the roughing-in information packed with the whirlpool.
Install an access panel to allow the pump to be serviced.
Position the plumbing according to the roughing-in information. Cap the supplies, and check for
leaks.
3. Prepare the Whirlpool
If this installation requires a shower receptor, install it now according to the instructions included
with the receptor.
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
Typical access
panel
Construct 2x4
stud framing
according to
roughing-in
information.
Verify that the subfloor
offers adequate support,
and is flat and level.
1022405-2-C 6 Kohler Co.

4. Install the Corner Post
CAUTION: Risk of product damage. Do not force the corner post into position, or use it to adjust the
whirlpool height or level.
Position the corner post in the unsupported front corner of the whirlpool so the three large holes are
toward the side of the unit. Identify the predrilled holes in the wood block on the underside of the
whirlpool. Secure the corner post to the block with the two screws provided. Tighten securely.
If it is necessary to adjust the height of the corner post, loosen the two hex nuts securing the corner
post top bracket in place. Slide the adjustment bracket up or down as needed to achieve a good fit.
You may need to repeat this step for the bottom bracket. Hand tighten the hex nuts.
If this whirlpool will be assembled to a receptor and bench, proceed to the “Attach the
Receptor/Bench to the Whirlpool” section. If the whirlpool will be installed alone, proceed to the
installation instructions packed with the optional apron and end panel. Then proceed to the “Attach
the End Panel to the Whirlpool” section.
5. Attach the Receptor/Bench to the Whirlpool
Whirlpool/Receptor Combinations Only
If you have not yet assembled the bench to the receptor, do so now by following the instructions
packed with the receptor. Then lift the whirlpool slightly along the outside end, and insert the
bench top flange into the groove underneath the whirlpool rim.
Position the bench so the side flange is behind the corner post. Align the three fastener holes in the
bench with the holes in the corner post, and loosely fasten the bolts and hex nuts.
Use a carpenter’s square to square the corner post, whirlpool, receptor, and bench with the floor.
Secure the corner post firmly to the floor with two screws.
6. Attach the End Panel to the Whirlpool
Whirlpool Only Installations
Lift the whirlpool slightly along the outside end, and insert the end panel top flange into the groove
underneath the whirlpool rim.
Position the end panel so the side flange is behind the corner post. Align the three fastener holes in
the end panel with the holes in the corner post, and loosely fasten the bolts and hex nuts.
Use a carpenter’s square to square the corner post, whirlpool, and end panel with the floor. Secure
the corner post firmly to the floor with two screws.
Three
Large
Holes
Predrilled
Holes
Then adjust the corner
post height by loosening
the hex nuts.
First position and
install the corner post
in the front corner of
the whirlpool.
Lift the whirlpool
slightly, and insert
the receptor/bench
or end panel.
Fit the top flange
into the groove.
Receptor/Bench
or End Panel
Screw Three Fastener Holes
Screw
Side Flange
Wood BlockTop Flange
Attach the Receptor/Bench or End Panel
Washer
Hex Nut
Screws
Corner Post
Adjustable Bracket
Whirlpool Front Corner
Install the Corner Post
Kohler Co. 7 1022405-2-C

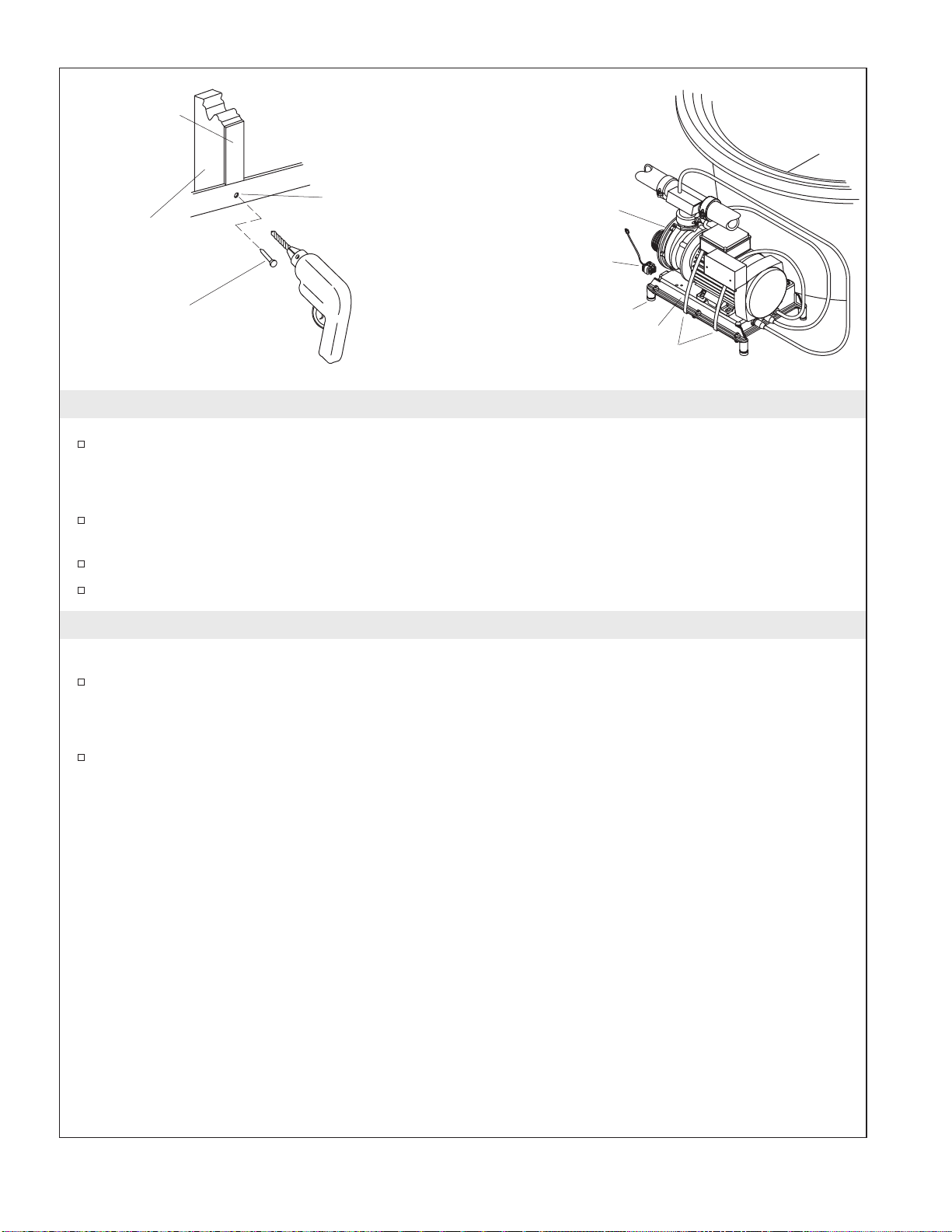

7. Secure the Whirlpool to the Stud Framing
Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support
feet.
NOTE: Do not secure the side (vertical) nailing-in flange at this time.
Drill a small pilot hole through the nailing-in flange at each stud. Add shims between the nailing-in
flange and the studs as needed to eliminate gaps.
Nail 1/4″(6 mm) thick furring strips to the studs to shim out to the edge of the nailing-in flange.
Use #6 large-head galvanized nails to secure the back nailing-in flange to the studs.
8. Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.
Use tin snips to cut the two pump banding straps from the whirlpool pump.
NOTE: Do not raise the pump higher than it was before you cut the pump banding straps. If the pump is
raised too high, it will not prime properly. Make sure the rubber isolation feet are in place.
To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the
shipping bracket after the pump banding straps are cut. The pump control contains rubber isolation
feet to reduce pump noise.
Nail 1/4" (6 mm)
thick furring strips
to the back studs.
Drill a small hole
through the back
nailing-in flange
at each stud.
Use #6 large-head galvanized
nails to secure the back
nailing-in flange to the studs.
Wood Installation Shown
Stud Pump
Wiring
Harness
Rubber Isolation Feet
Control
Cut the pump banding straps.
1022405-2-C 8 Kohler Co.

9. Secure the Bench or End Panel
Tighten the bench or end panel bolts and hex nuts which are loosely assembled to the corner post.
10. Secure the Nailing-in Flanges and Install the Optional Apron Frame
Drill a small pilot hole through the side nailing-in flange at each stud. Add shims between the side
nailing-in flange and the studs as needed to eliminate gaps.
Nail 1/4″(6 mm) thick furring strips to the side studs to shim out to the edge of the nailing-in
flange.
Use #6 large-head galvanized nails to secure the side nailing-in flange to the studs.
Repeat these steps for the receptor/bench or end panel.
Install the optional apron frame according to the instructions packed with the apron.
11. Secure the Corner Post Adjustment Bracket
Securely tighten the corner post adjustment bracket nuts.
12. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
Back Side of
Bench or Side
Panel
Corner Post Adjustment
Bracket Nuts
Tighten the
hex nuts.
Nail 1/4" (6 mm) thick furring
strips to the side studs.
Drill small holes through
the side nailing-in flange
8" (20.3 cm) apart.
Use #6 large-head galvanized
nails to secure the side nailing-in
flange to the studs.
Stud
Corner Post
Kohler Co. 9 1022405-2-C

13. Install the Shower Door
Install the shower door according to the instructions packed with the shower door.
14. Make Electrical Connections
NOTE: The whirlpool model number is printed on a label near the whirlpool pump. This label also
identifies the electrical rating of the whirlpool. All whirlpools come equipped with a wiring junction box
and will only operate at 220 V through 240 V and at 50 Hz or 60 Hz.
WARNING: Risk of electric shock. To reduce the risk of electric shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
This will provide additional protection against line-to-ground shock hazard. A 220 - 240 V, 20 A, 50/60
Hz dedicated circuit is required.
WARNING: Risk of electric shock. Make sure the power has been disconnected before performing the
following procedures.
The whirlpool controls and system have been prewired at the factory. A licensed electrician should
make a routine service connection to the junction box.
Connect service to the junction box. The junction box contains blue, brown and green with a yellow
stripe colored wires and a ground lug.
Provide a separate equipment earthing conductor for the earth lug located inside the junction box.
The earthing conductor must not be connected to any current-carrying conductor. Follow local
electrical codes. Bond in accordance with national and local codes.
A wiring harness has been prewired at the factory, allowing communication between the keypad, all
features, and the control. No additional wiring is required, but ensure that all wires are securely
fastened.
NOTE: Your wiring harness includes an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
Ground (Green with
Yellow Stripe)
60 Hz 50 Hz From Control
L1 L1 Brown
L2 N Blue
Electrician to
provide suitable
strain relief.
The junction box should be
wired as shown. Bond in accordance with
national and local codes.
Wire Connectors
From Control
Supply Brown
Blue
1022405-2-C 10 Kohler Co.

15. Install the Whirlpool Trim Kit
Install the whirlpool trim kit according to the instructions packed with the trim kit. Pay particular
attention to the jet installation steps below - they are very important and are included here to help
you obtain smooth, trouble-free jet operation.
NOTE: The jet O-ring must be correctly positioned, must be lubricated, and must be in good condition to
permit easy rotation and proper operation of the jet.
Install the O-ring onto the first shoulder of the jet. Lubricate the O-ring with silicone lubricant to
prevent noisy operation of the jet.
Carefully insert the jet into the housing, and lightly push and rotate the jet until it snaps into
position. Do not force the jet.
NOTE: When installed correctly, the jet should turn smoothly both clockwise and counterclockwise.
16. Test Run the Whirlpool
Check all electrical connections, and make sure the electrical power to the whirlpool is turned on.
Make sure all union connections to the pump and heater are securely hand tightened.
Verify that the pump banding straps have been cut, and that the pump control is resting directly on
the subfloor. Ensure that the rubber isolation feet are in place.
Fill the whirlpool to a level at least 2″(5.1 cm) above the top of the highest jet.
Operate the whirlpool for 5 minutes (refer to the ″Operating Sequence″section) and check all
whirlpool piping connections, on the back side, for leaks.
For additional information on whirlpool operation, see ″Confirm Proper Operation″section.
Slide the O-Ring
onto the first
shoulder of the jet.
Inspect and
lubricate the
O-Ring.
Insert the jet into the housing,
and lightly push and rotate
until it snaps in position.
Housing
Kohler Co. 11 1022405-2-C

17. Complete the Finished Wall
If you have not already done so, carefully remove any protective tape from the whirlpool rim.
Cover the framing with water-resistant wall material. Seal the joints between the whirlpool rim edge
and the water-resistant wall material with silicone sealant.
Tape and mud the water-resistant wall material. Install the finished wall to the water-resistant wall
material. Seal the joints between the whirlpool rim and the finished wall material with silicone
sealant.
Install the faucet trim according to the instructions packed with the trim.
18. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. If necessary, use warm water and a liquid detergent to clean the surface of the
whirlpool, user keypad and remote control.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.
Whirlpool
Concrete Wall
or Studs
Water-Resistant
Wall Material
Finished Wall
Apply silicone
sealant to the joint
between the
whirlpool and the
finished wall.
Tile should be within 1/4"
(6 mm) of deck surface.
Press the
suction cup
onto the
bottom
corner of the
apron, then
pull steadily
outward.
Reinstall the apron by pressing
the apron against the seal, then
swing in the apron bottom.
Apron
Fastener
1022405-2-C 12 Kohler Co.

19. Confirm Proper Operation
Fill the Whirlpool
NOTE: Please read these steps carefully before you operate your whirlpool.
Turn the jet trim rings fully counterclockwise. Position the jet nozzles so they face down toward the
basin.
Fill the whirlpool to a water level at least 2″(5.1 cm) above the top of the highest jet.
NOTE: The water temperature in the whirlpool should not exceed 104° F (40° C). The heater will
automatically turn off as the water temperature approaches 104° F (40° C) and will remain off until the
water cools.
20. Operating Sequence
NOTE: A built-in heater automatically helps to maintain the water temperature when the whirlpool is
running, as long as the water temperature does not exceed 104° F (40° C). The heater will disengage at
higher temperatures.
IMPORTANT! Please refer to your Homeowners Guide for detailed instructions on the user keypad and
optional remote control.
Press the Power On/Off button to turn on the whirlpool. The whirlpool will start at medium flow.
Increase or decrease the water flow by pressing either the up or down arrow buttons on the keypad.
An indicator bar in the center of the keypad shows the water flow volume.
Adjust each jet for optimum air/water mixture. Turn the jet trim clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
Press the heater button to turn the heater off and back on. When illuminated, the indicator light
shows that the water temperature will be maintained up to 104° F (40° C).
Press the Power On/Off button a second time to turn the whirlpool off.
NOTE: A built-in timer automatically stops the pump and motor after approximately 20 minutes of
operation.
21. Troubleshooting Procedures
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Indicator Bar -
Shows water
flow volume
Power On/Off
Heater On/Off Heater Indicator Light
Increases Flow
Decreases Flow
Lighted User Keypad
Turn the jet trim
clockwise to
decrease the flow.
Turn the jet trim
counterclockwise to
increase the flow.
Kohler Co. 13 1022405-2-C

Troubleshooting Procedures (cont.)
Troubleshooting the Whirlpool System
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when power button
is pressed or outer ring is
rotated.
A. No power to control. A. Check wiring and connect
power.
B. GFCI or ELCB tripped. B. Reset GFCI or ELCB.
C. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
D. User keypad does not work. D. Replace user keypad.
E. Control does not work. E. Replace control.
2. Motor starts, but all jets are not
functioning. A. Jet is closed. A. Rotate jet trim counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is illuminated, but
does not respond to buttons or
outer ring.
A. Control program is locked. A. Reset GFCI or ELCB.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
4. User keypad indicator bar
keeps scanning at power-up. A. Control program is locked. A. Reset GFCI or ELCB.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
5. User keypad is illuminated, but
pump won’t start. A. Power cord from pump to control is loose, disconnected
or damaged.
A. Check wiring for proper
connections.
B. Pump does not work. B. Replace pump.
C. Control does not work. C. Replace control.
6. Motor runs but pump won’t
prime (cavitates). A. Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nut(s) on
intake side of pump.
C. Motor/pump does not work. C. Replace motor/pump.
D. Control does not work. D. Replace control.
7. Pump stops before 18 minutes. A. GFCI or ELCB tripped. A. Identify source of fault, and
correct. Reset GFCI or ELCB.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage
and allow motor to cool.
8. Pump does not automatically
stop after 22 minutes. A. 20-minute timer inadvertently disabled. A. See service manual.
9. Pump won’t turn off when the
power button on user keypad
is pressed.
A. User keypad does not work. A. Replace user keypad.
1022405-2-C 14 Kohler Co.

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Control does not work. B. Replace control.
10. Pump operates but variable
speed feature does not work. A. Motor/pump does not work. A. Replace motor/pump.
B. Control does not work. B. Replace control.
11. Bath water cools while pump
is operating. A. Water temperature above 104° F (40° C). A. Allow bath water to cool.
B. Heater is turned off on user
keypad. B. Turn heater on.
C. Wiring from heater to control is
loose, disconnected or
damaged.
C. Check wiring for proper
connections.
D. Heater does not work. D. Replace heater.
E. Control does not work. E. Replace control.
12. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with tin snips.
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall
jet.
13. Remote control (if equipped)
does not work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness.
C. Remote control not
programmed correctly. C. See homeowners guide or service manual.
D. Remote control does not work. D. Replace remote control.
E. Control does not work. E. Replace control.
Kohler Co. 15 1022405-2-C

Guide d’installation
Baignoire à hydromassage
Renseignements importants
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base devraient
toujours être observées, incluant ce qui suit :
DANGER : Risque d’électrocution. Raccorder uniquement à des circuits protégés par un Disjoncteur
de Fuite de Terre (GFCI) ou à un Disjoncteur de Mise à la Terre (ELCB).
Les matériaux de construction et le câblage doivent être posés loin de la pompe et des autres composants
conducteurs de chaleur de l’unité.
Installer de façon à permettre l’accès pour l’entretien.
Un connecteur à pression pour câbles marqué ″Terre/Masse″est fourni dans le compartiment de câblage.
Afin de réduire les risques de choc électrique, raccorder le connecteur à une borne de terre du panneau de
service électrique avec un câble en cuivre ayant la même dimension que le fil conducteur qui alimente cet
équipement.
Un connecteur à pression par câble est prévu à l’extérieur de la boîte de jonction de la pompe ou de la
commande de cet appareil afin de permettre la connexion entre l’appareil et toutes autres surfaces de métal
avoisinantes, tel que requis par les normes locales.
Une mise à la terre est requise. L’appareil doit être installé et mis à la terre par un représentant qualifié.
AVERTISSEMENT : Risque d’électrocution. Tous les raccords électriques devraient être réalisés par un
électricien agréé.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous plaît
lire avec attention toutes les instructions avant de commencer l’installation, y compris les conditions
suivantes:
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Information sur le produit
Branchements électriques requis
Cette installation électrique doit avoir deux Disjoncteurs-Interrupteur de Fuite de Terre (GFCI) ou deux
Disjoncteurs mis à la Terre (ELCB). Les disjoncteurs GFCI ou le ELCB protègent contre un risque
d’électrocution. Raccorder la baignoire à hydromassage à une alimentation indépendante de 220/240 V, 20
A, 50/60 Hz.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux ou un mauvais fonctionnement de la baignoire à hydromassage. Ne pas déplacer la
pompe d’hydromassage ou effectuer d’autres modifications au système d’hydromassage car celà
pourrait affecter les performances et la sécurité de la baignoire à hydromassage. Kohler Co. décline
toute responsabilité sous ses garanties quant à toutes blessures ou dommages causés par des
modifications non autorisées.
Kohler Co. Français-1 1022405-2-C

Information sur le produit (cont.)
Caractéristiques
Les composants comprennent une pompe, un chauffeau, un contrôle et un voyant lumineux (clavier de
l’utilisateur).
Connexions et accès pour l’entretien
S’assurer d’avoir suffisamment d’accès pour les connexions finales avant l’installation.
AVIS : Fournir un large accès non restraint de service à la pompe. Prévoir suffisamment d’accès pour
l’entretien futur de la pompe et des commandes. L’accès doit être situé tout près de la pompe. Étudier le
plan de raccordement qui accompagne la baignoire à hydromassage.
Sommaire
Renseignements importants ......................................................... 1
Information sur le produit ........................................................... 1
Branchements électriques requis ................................................... 1
Notices du produit .............................................................. 1
Caractéristiques ................................................................ 2
Connexions et accès pour l’entretien ................................................ 2
Merci d’avoir choisi la compagnie Kohler ............................................... 2
Avant de commencer .............................................................. 3
Outils et matériels ................................................................ 3
Préparer le site .................................................................. 4
Préparer le site .................................................................. 5
Préparer la baignoire à hydromassage ................................................. 5
Installer le support d’angle .......................................................... 6
Installer le receveur/banc à la baignoire à hydromassage ................................... 6
Installer le panneau d’extrémité à la baignoire à hydromassage ............................... 6
Sécuriser la baignoire à hydromassage au cadrage de montant .............................. 8
Sectionner les sangles de retenue de la pompe .......................................... 8
Sécuriser le banc ou le panneau d’extrémité ............................................. 9
Sécuriser les brides et installer le cadre du bandeau optionnel ............................... 9
Sécuriser le support de réglage du montant en angle ...................................... 9
Installer la plomberie .............................................................. 9
Installer la porte de douche ........................................................ 10
Faire les raccordements électriques .................................................. 10
Installer le kit de garniture de la baignoire à hydromassage ................................. 11
Tester la baignoire à hydromassage .................................................. 11
Compléter le mur fini ............................................................. 12
Nettoyage après installation ........................................................ 12
Confirmer le bon fonctionnement .................................................... 13
Séquence d’opération ............................................................ 13
Procédures de dépannage ......................................................... 14
Merci d’avoir choisi la compagnie Kohler
Nous apprécions votre engagement envers la qualité Kohler. Veuillez prendre s’il vous plaît quelques
minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter à nous contacter en cas de
problème d’installation ou de fonctionnement. Nos numéros de téléphone et notre adresse du site internet
sont au verso. Merci encore d’avoir choisi la compagnie Kohler.
Kohler Co. Français-2 1022405-2-C

Avant de commencer
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par la tuyauterie ou par la pompe ou utiliser la tuyauterie ou la pompe pour supporter la baignoire.
Nous recommandons cette baignoire à hydromassage pour une installation dans un coin.
Avant l’installation, inspecter la baignoire à hydromassage pour en déceler tout dommage.
Cette baignoire à hydromassage doit être installée sur un sol nivelé adéquat.
Confirmer un support adéquat pour le robinet à montage sur rebord; les gros robinets qui auraient
été utilisés par inadvertance comme moyen de support ne sont pas appropriés ou sécuritaires pour
cette installation.
Tous les composants requis (baignoire à rydromassage, receveur/banc, bandeau et/ou panneau
d’extrémité) doivent être présents dans l’espace de travail avant de commencer l’installation.
Ne pas serrer la boulonnerie ou fixer les brides de cloutage avant l’instruction de le faire.
Si la baignoire à hydromassage est combinée avec un receveur, un banc, un bandeau, et/ou un
panneau d’extrémité, bien suivre l’ordre suivant d’installation:
•1. Installer le banc (si utilisé) au receveur, puis installer ce dernier.
•2. Installer la baignoire à hydromassage, puis raccorder au receveur.
•3. Installer le panneau d’extrémité à la baignoire à hydromassage.
•4. Installer le bandeau optionnel (si utilisé) à la baignoire à hydromassage.
•5. Serrer la boulonnerie et sécuriser les brides.
•6. Installer la porte de douche sur le receveur.
Outils et matériels
Plus:
• Outils conventionnels de menuiserie et
matériels
• Bâche de protection
• 2x4'
Équerre
Mètre ruban Crayon à papier Cisaille de Ferblantier
Clé à tubesLunettes de protection
Joint en silicone Niveau à bulle
1022405-2-C Français-3 Kohler Co.

1. Préparer le site
Construction en béton
AVIS : Un support adéquat doit être fourni. Consulter le guide du raccordement emballé avec la baignoire
à hydromassage pour les spécifications de préparation du sol.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par le rebord.
S’assurer que le sol constitue un support adéquat pour la baignoire à hydromassage et que le
plancher soit plat et nivelé.
Installer un panneau d’accès pour un entretien futur de la pompe.
Construire des supports en brique ou béton.
Fournir un dégagement de [1/16″(2 mm)] entre le rebord de la baignoire à hydromassage et le
cadre en brique ou ciment. Cadrer le sol ou construire un cadre pour une installation surélevée, en
accordance avec le plan de raccordement fourni avec la baignoire à hydromassage.
Déterminer l’emplacement de la plomberie selon le plan de raccordement fourni. Boucher les
alimentations et vérifier s’il y a des fuites.
Un bandeau optionnel, de la brique ou
du béton peuvent être utilisés avec un
support carrelé approuvé.
Panneau
d'accès
typique
Installer un panneau d'accès
pour un entretien futur de la
pompe.
Installation en angle
Kohler Co. Français-4 1022405-2-C

2. Préparer le site
Construction en bois
AVIS : Un support adéquat doit être fourni. Consulter le guide du raccordement emballé avec la baignoire
à hydromassage pour les spécifications de préparation du sol.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à hydromassage
par le rebord.
S’assurer que le sol constitue un support adéquat pour la baignoire à hydromassage et que le
plancher soit plat et nivelé.
La baignoire à hydromassage doit être installée dans un coin. Construire un cadre de montage de
2x4 pour cette installation particulière. Cadrer le sol ou construire un cadre pour une installation
surélevée en concordance avec le plan de raccordement fourni avec la baignoire à hydromassage.
Installer un panneau d’accès pour un entretien futur de la pompe.
Positionner la plomberie selon l’information du plan du raccordement. Boucher les alimentations et
vérifier s’il y a des fuites.
3. Préparer la baignoire à hydromassage
Lorsque l’installation nécessite un receveur de douche, les instructions d’installation incluses avec le
receveur.
Installer le drain sur la baignoire à hydromassage selon les instructions du fabricant. Ne pas
connecter le siphon à ce moment.
Placer un chiffon propre ou matière similaire à la base de la baignoire à hydromassage. S’assurer de
ne pas rayer la surface de la baignoire à hydromassage.
Panneau
d'accès
typique
Construire un
cadre de
montage de
2x4 en suivant
l'information
du plan de
raccordement.
Vérifier que le sous-
plancher offre un
support adéquat et qu'il
soit plat et nivelé.
1022405-2-C Français-5 Kohler Co.
