Kohler Memoirs K-723 User manual

Installation Guide
Bath with Airjets
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página“ Español-1”
K-723, K-724
1143444-2-A

Important Information
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of electric shock. To reduce the risk of electrical shock, connect only to circuits
protected by a Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD).
WARNING: Risk of electric shock. A qualified electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
NOTICE: Follow all local plumbing and electrical codes.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
Building materials and wiring should be routed away from the blower body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked “Earth/Ground” is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
Electrical Requirements
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a hazard.
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD). The GFCI or RCD protects against line-to-ground shock hazard. Use a 220-240 V, 15 A, 50/60 Hz
dedicated service for the bath with airjets.
An equipment grounding terminal is provided in the field wiring compartment. To reduce the risk of electric
shock, this terminal must be connected to the grounding means provided in the electric supply panel with a
conductor equivalent in size to the circuit conductors supplying this equipment.
Install this unit in accordance with the Canadian Electrical Code, Part I.
Product Notices
WARNING: Risk of personal or property damage. Unauthorized modification may cause unsafe
operation or effect performance of the bath with airjets. Do not relocate the blower motor, or
make other modifications to the bath system in the absence of kit or other published instructions, as
this could adversely affect the performance and safe operation of the product. Kohler Co. shall not
be liable under its warranty or otherwise for personal injury or damage caused by any such
unauthorized modification. Refer to the ″Before You Begin″section for blower motor relocation
requirements, recommendations, and section coverage information.
NOTICE: Keep the area around the blower motor clean and free of debris. Ensure that the area around
the blower motor is free of sawdust, insulation, dirt, or other small loose debris. Such material could plug
the blower motor air ducts and reduce the air flow through the blower.
Factory Assembled Features
Factory assembled components include a blower motor, air harness, control, check valve, butterfly valves,
chromatherapy lights (if provided), electrical harnesses, and an illuminated user keypad. Other than power
wiring and plumbing, no assembly is required.
1143444-2-A 2 Kohler Co.

Important Information (cont.)
Connections and Service Access
NOTICE: Provide unrestricted service access to the blower motor. You must provide access for servicing
the blower motor and controls. The access must be located immediately next to the blower motor. Study
the roughing-in information packed with the bath with airjets.
Before installation, ensure that there is proper access to the blower motor and final connections. If the blower
motor is installed in an enclosed area, an access panel is required at the blower motor. This panel should be
at least 34″(86.4 cm) wide and 15″(38.1 cm) high.
Table of Contents
Important Information .............................................................. 2
Tools and Materials ............................................................... 3
Before You Begin ................................................................. 3
Prepare the Site - Wood Construction .................................................. 6
Prepare the Site - Concrete Construction ............................................... 7
Prepare the Bath ................................................................. 7
Install the Bath With Airjets .......................................................... 8
Cut the Blower Banding Straps ....................................................... 9
Install the Plumbing ............................................................... 9

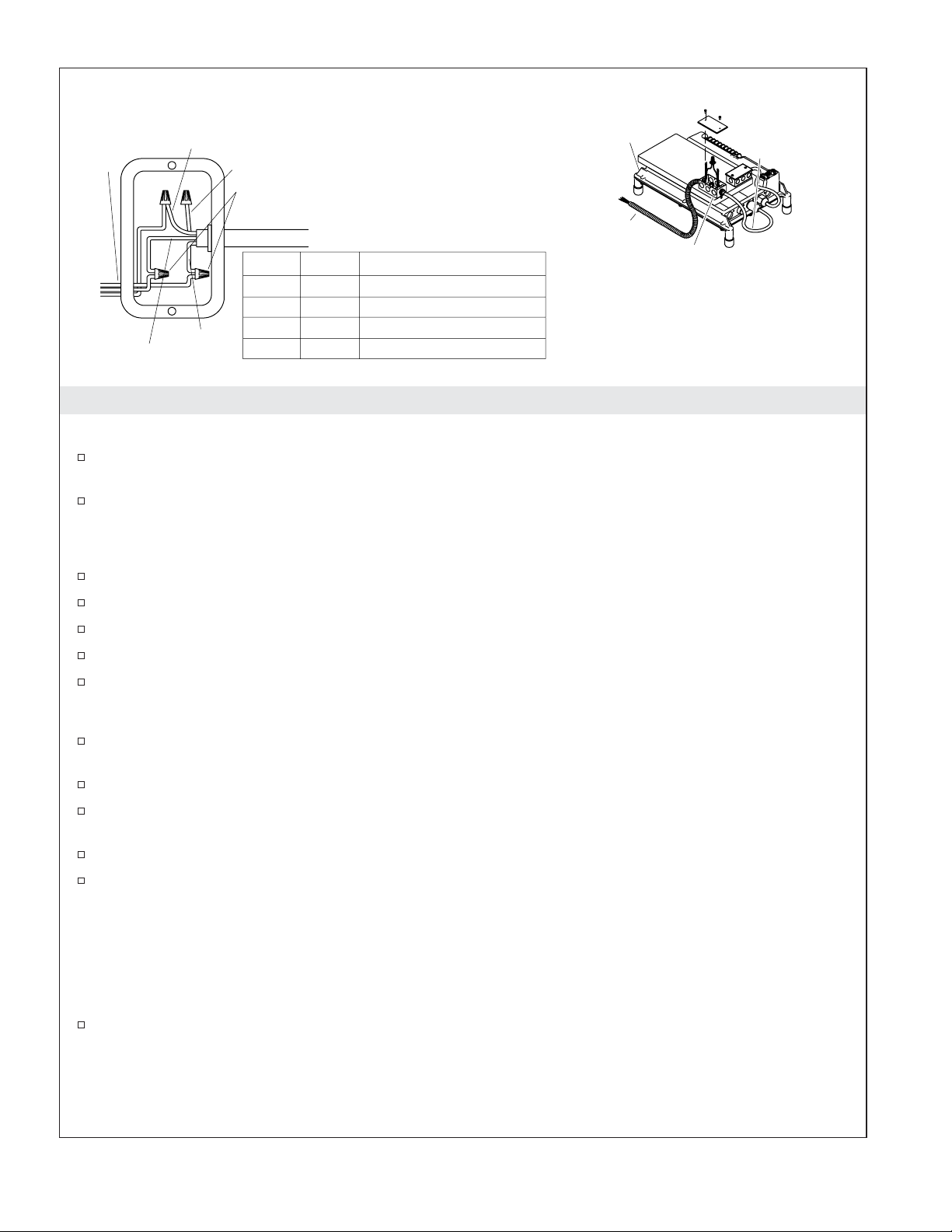

Make Electrical Connections - Standard ............................................... 10
Remove Blower Motor Check Valve - Remote ........................................... 11
Mount Blower Motor and Check Valve - Remote ......................................... 12
Terminate Blower Power Cable - Remote .............................................. 13
Install Blower Cord at Control - Remote ............................................... 15
Make Supply Power Connections - Remote ............................................ 16
Test Run the Bath With Airjets ...................................................... 16
Complete the Finished Wall/Deck .................................................... 19
Complete the Concrete Installation ................................................... 19
Clean-Up After Installation ......................................................... 19

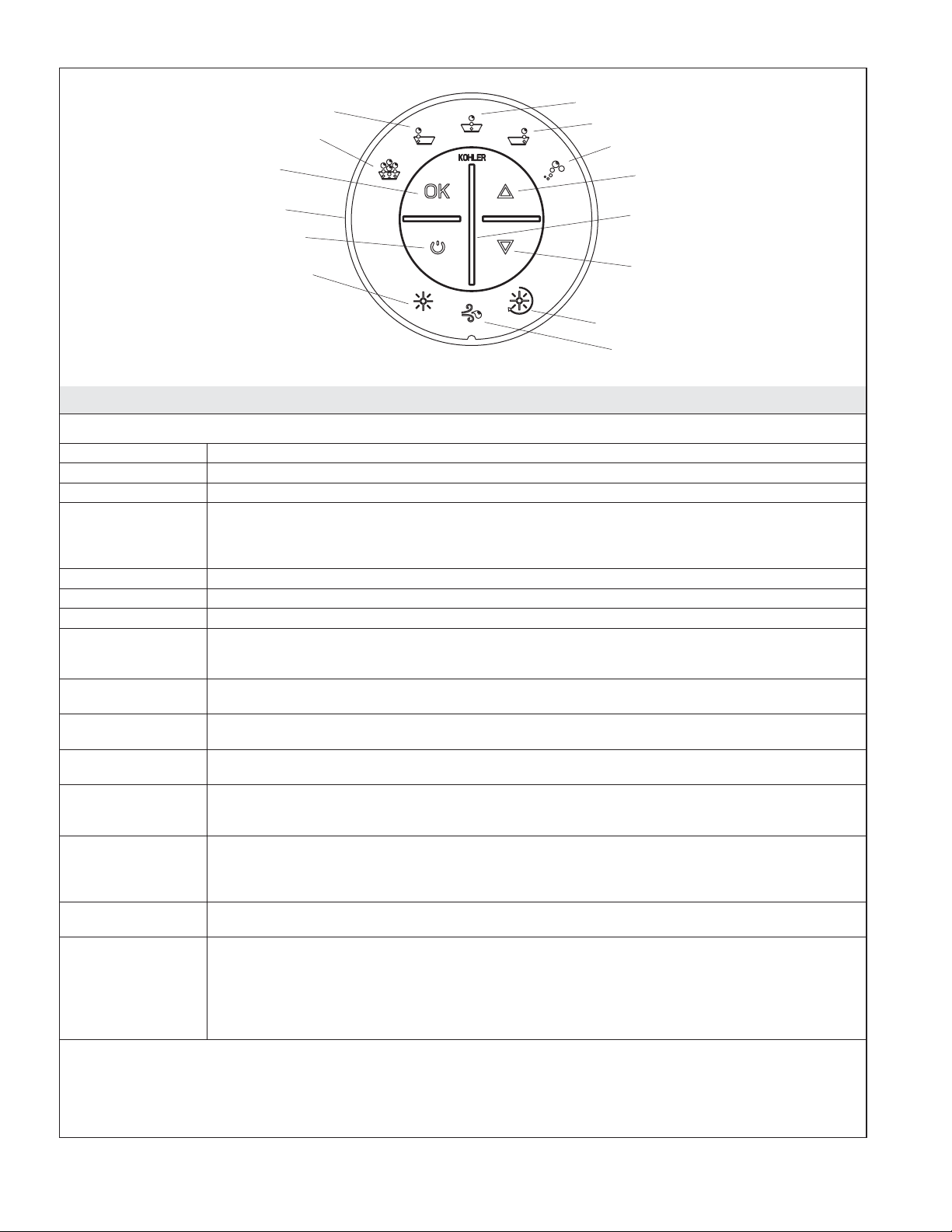

Using the Keypad ............................................................... 20
Tools and Materials
Before You Begin
WARNING: Risk of personal injury. This cast iron bath is extremely heavy. Obtain sufficient help
to carefully lift and move it.
Plus:
• Conventional woodworking or concrete
installation tools and materials
• Drop cloth
• Metal shims
• 2x4s
Silicone Sealant Measuring Tape Pencil Tin Snips Level
Safety Glasses Pipe Wrench
Kohler Co. 3 1143444-2-A

Before You Begin (cont.)
CAUTION: Risk of product damage. Do not lift the bath by the harness or blower motor, or use
the harness or blower motor for structural support of the bath.
NOTE: This bath allows the blower motor and check valve to remain on the bath support board (standard
installation) that it is shipped or to be relocated in another location (remote installation). Refer to the
sections, noted as ″Standard’ or ″Remote″, throughout this installation guide for your applicable
installation.
For Standard and Remote Installations
Please read the installation, operating, and safety instructions carefully to familiarize yourself with
the required tools, material, and installation sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly mistakes.
The variety of installations possible with this bath may require framing procedures other than those
described in this manual.
Confirm adequate mounting and connection space for the faucet specified for your installation.
We recommend this product for alcove installation.
Inspect the bath for damage before you begin installation.
You must install this bath to an adequately supported, level subfloor.
For Remote Installations

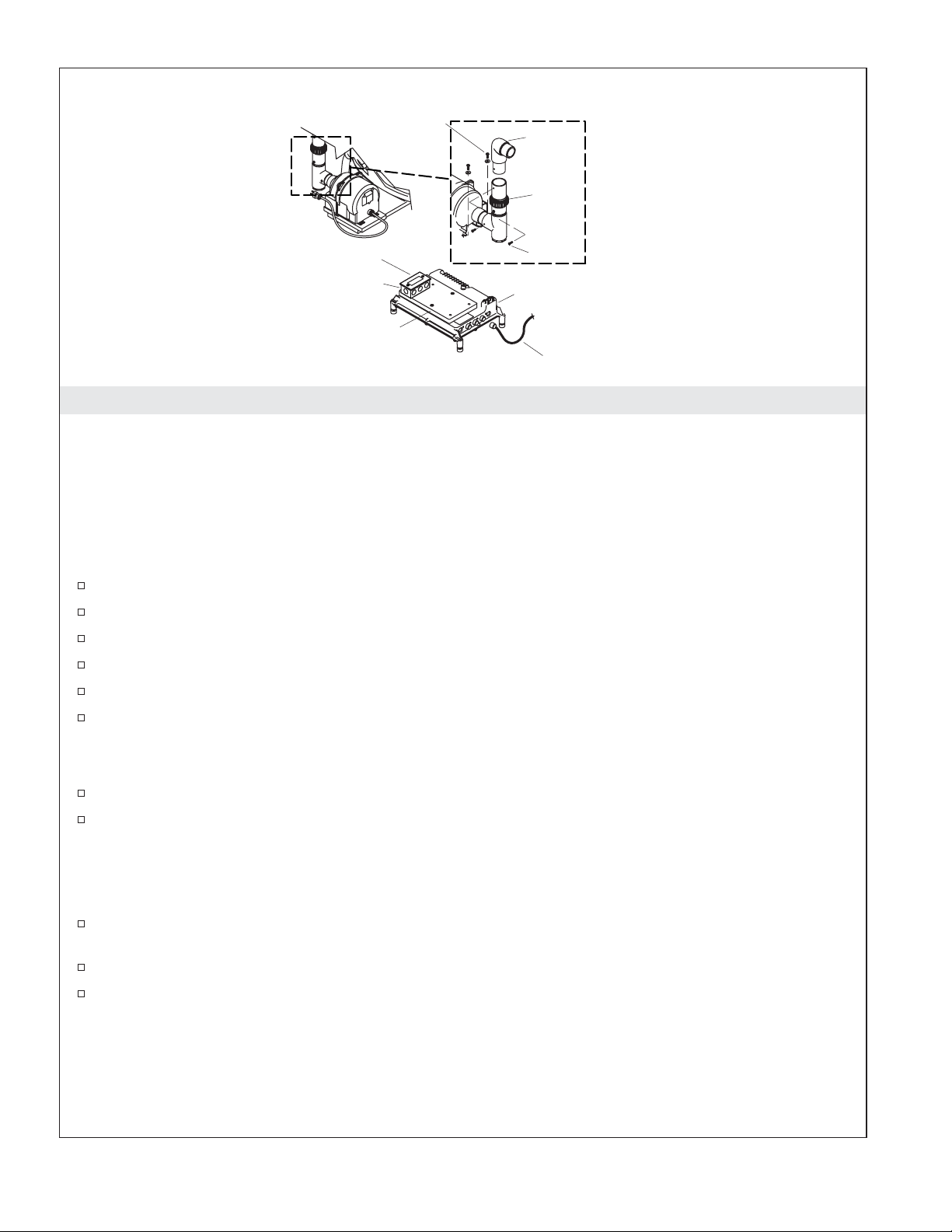

When mounting the blower motor and check valve in a remote location, choose a space as close to
the bath as possible to maximize bath performance. Pay attention to the following requirements and
recommendations:
•The blower motor must be mounted horizontally at least 1-1/2″(3.8 cm) above the floor. Do not
mount the blower motor with the blower motor discharge pointing up.
•1-1/2″PVC or equivalent rigid piping should be used.
•The piping installation must meet the requirements of local plumbing or building codes. Ensure that
the installation does not reduce the fire rating of any walls. Piping must be supported at intervals
along the length in accordance with local codes.
•Ensure that the blower motor location is clean and free of dust or debris.
•If appropriate, install an additional access panel for blower motor maintenance.
•The 18 AWG minimum power cable to the blower motor must meet the requirements of the
applicable electrical or building codes. Ensure that the installation does not reduce the fire rating of
any walls.
•The power cord must be supported at intervals along the length in accordance with local codes.
Power cords may not rest on surfaces or floors that are subject to flooding.
•All material needed for the relocation must be supplied by the installer.
Additional tools and materials:
•Electrician pliers.
•Assorted screwdrivers.
•Adjustable wrench.
•Drill and bits to install the blower mounting fasteners.
•18 AWG non-metallic sheathed cable, two conductors with ground, with support clips, as required.
•One 4″(10.2 cm) x 2″(5.1 cm) electrical junction box with cover, gasket, and mounting screws.
•Three strain reliefs. One must fit the blower motor cover with standard NPT (National Pipe Thread)
threads. The other two must fit the holes in the new junction box.
•Six wire connectors (wire nuts or equivalent).
•1-1/2″PVC or other rigid pipe with: fittings, unions, PVC cement (or equivalent fastening method),
and support clips, as required.
•Four fasteners (such as flathead wood screws or concrete anchors) to mount the blower motor.
1143444-2-A 4 Kohler Co.

Before You Begin (cont.)
•Solid copper 8 gauge bonding wire, 36″(91.4 cm).
Kohler Co. reserves the right to make revisions in the design of products without notice, as specified
in the Price Book.
Kohler Co. 5 1143444-2-A

1. Prepare the Site - Wood Construction
CAUTION: Risk of property damage. Do not support the bath by the rim.
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your bath
for specific floor loading requirements.
NOTICE: Provide adequate ventilation and a minimum of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient air for the blower. Do not install the blower motor
closer than 1″(2.5 cm) from the wall or other objects.
Make sure the flooring offers adequate support for your bath, and verify that the subfloor is flat and
level.
The bath may be used in an alcove installation. Construct 2x4 stud framing designed for your
particular installation. Frame the floor in accordance with the roughing-in information packed with
the bath.
Provide an access panel to service the blower motor and control.
Position the plumbing according to the roughing-in information. Cap the supplies, and check for
leaks.

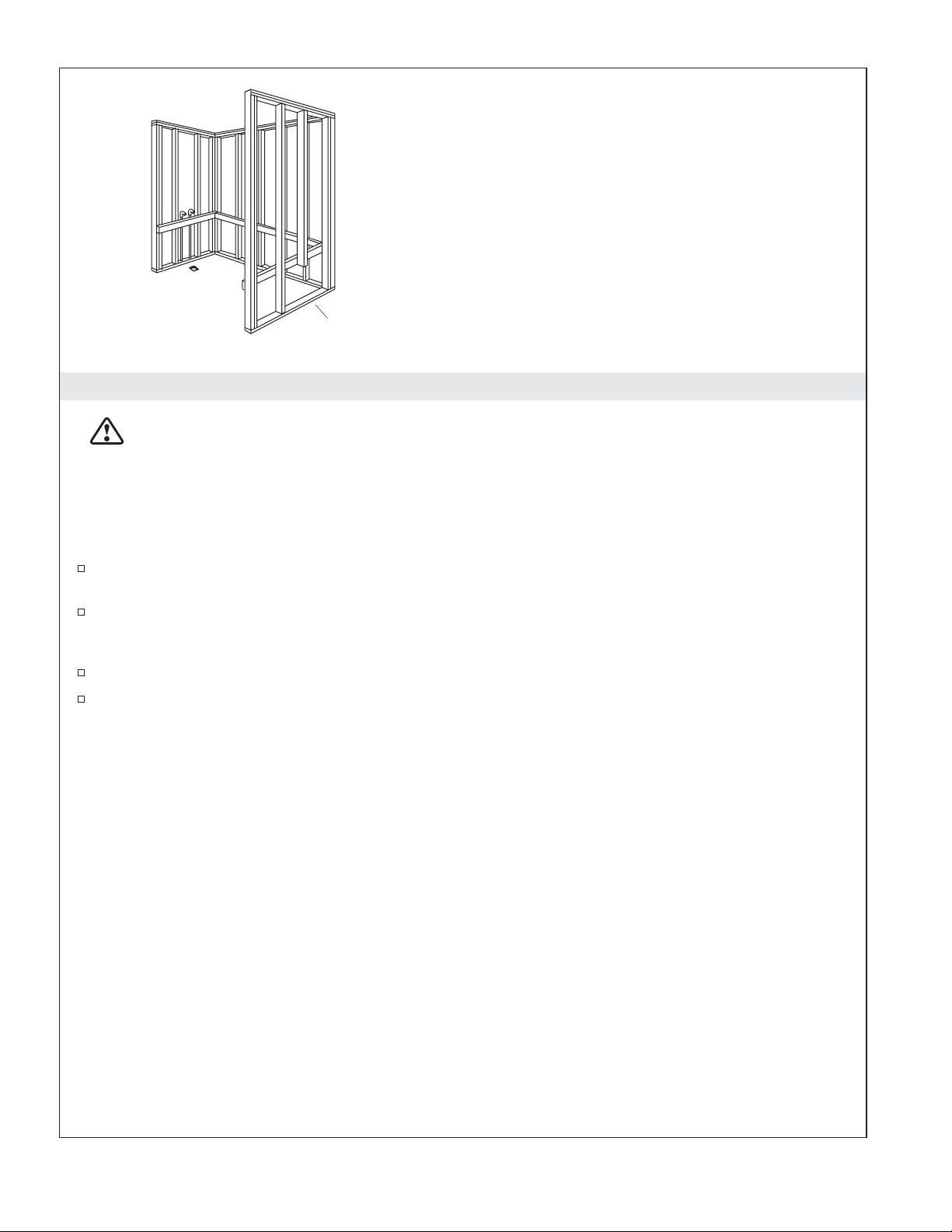

Construct 2x4
stud framing
according to
the roughing-in
information.
Position
the rough
plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level.
Typical access panel
1143444-2-A 6 Kohler Co.

2. Prepare the Site - Concrete Construction
CAUTION: Risk of property damage. Do not support the bath by the rim.
NOTICE: Adequate floor support must be provided. Consult the roughing-in sheet packed with your bath
for specific floor loading requirements.
NOTICE: Provide adequate ventilation and a minimum of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient air for the blower. Do not install the blower motor
closer than 1″(2.5 cm) from the wall or other objects.
Make sure the flooring offers adequate support for your bath, and verify that the subfloor is flat and
level.
Provide an access panel to service the blower motor and control.
Construct brick or concrete supports.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
3. Prepare the Bath
Position a clean drop cloth or similar material in the bottom of the bath to protect the finish. Ensure
that the airjets are covered. Be careful not to scratch the surface of the bath.
NOTE: This bath allows the blower motor and check valve to remain on the bath support board (standard
installation) it is shipped on or to be relocated to another location (remote installation). Refer to your
applicable installation, standard or remote, throughout this installation guide.
Follow the appropriate installation steps for either standard or remote blower installations.
Typical Access Panel
Install an access panel to allow
the blower to be serviced.
Bath may be installed next to the wall.
Kohler Co. 7 1143444-2-A

4. Install the Bath With Airjets
WARNING: Risk of personal injury. This cast iron bath is extremely heavy. Obtain sufficient help
to carefully lift and move it.
CAUTION: Risk of product damage. Do not lift the bath by the harness or blower, or use the
harness or blower for structural support of the bath.
CAUTION: Risk of product damage. Do not support the bath by the rim.
Install the drain to the bath according to the drain manufacturer’s instructions. Do not connect the
trap at this time.
Carefully move the bath into position. Insert the drain tailpiece into the trap.

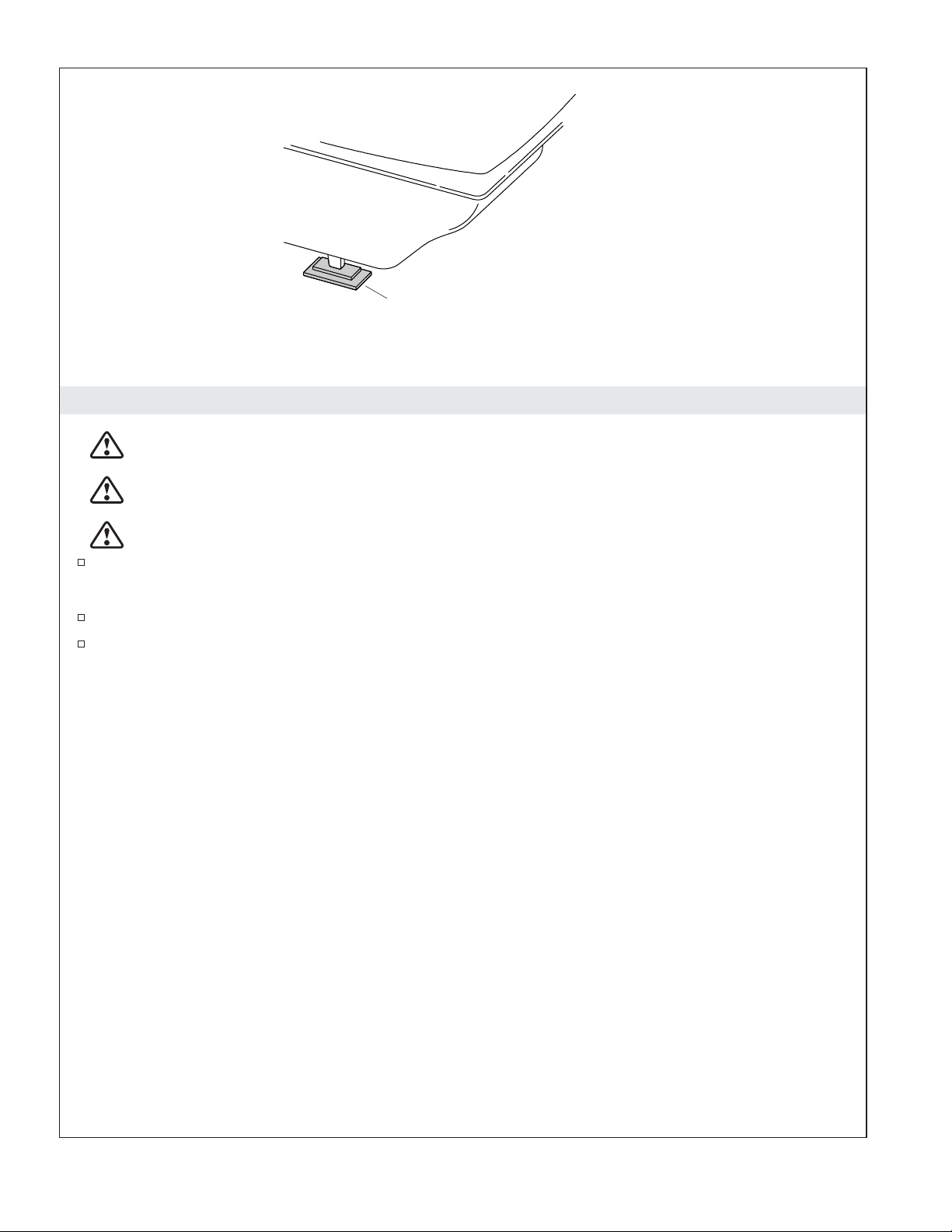

Level the bath by fitting metal shims under the bath feet as needed. Check for level along the top of
the bath, and across the drain side. If the feet are not accessible from the back or side, move the
bath in and out of position to shim it properly. Make sure the bath is resting on all four feet.
Level by fitting metal shims
under the feet.
1143444-2-A 8 Kohler Co.

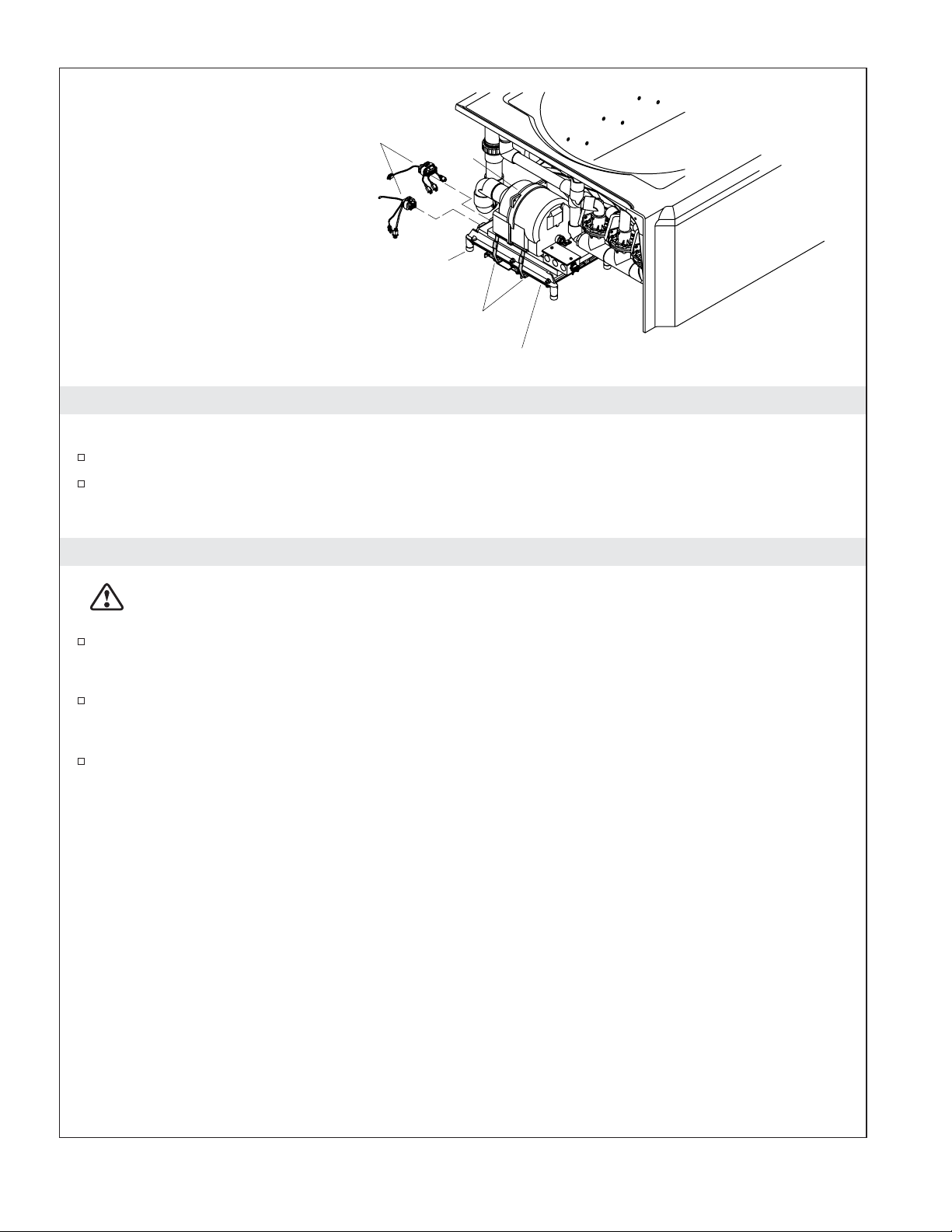

5. Cut the Blower Banding Straps
IMPORTANT! This step is necessary to make your Kohler bath operate more quietly.
Use tin snips to cut the two blower banding straps from the blower.
To minimize noise and vibration, be sure the blower is not in direct contact with the shipping
bracket after the banding straps are cut. The blower control contains rubber isolation feet to reduce
blower noise.
6. Install the Plumbing
CAUTION: Risk of property damage. A watertight seal must exist on all bath drain connections.
The watertight seal will prevent property damage.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTE: To simplify future maintenance, provide access to all plumbing connections.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the bath, and check the drain connections for leakage.
Wiring Harnesses
Cut the banding straps.
Control
Rubber Isolation Feet
Blower
Motor
Kohler Co. 9 1143444-2-A

7. Make Electrical Connections - Standard
NOTE: The product model number is printed on a label on the blower side of the bath. This label also
identifies the electrical rating of the product. All baths come equipped with a wiring junction box and are
designed to operate between 220 VAC and 240 VAC at either 50 Hz or 60 Hz.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before
performing the following procedures. Refer to the “Important Information” section.
WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the blower to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD). This
will provide additional protection against line-to-ground shock hazard. A 220-240 V, 15 A, 50/60 Hz
dedicated circuit is required.
NOTICE: The load neutral is not used. There should be no connection to the load neutral terminal on the
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD). The green wire with the
yellow stripe is the equipment ground and needs to be connected to the neutral bus in the main circuit
breaker box.
NOTICE: The bath control and system have been pre-wired at the factory. A qualified electrician should
make a routine service connection to the junction box.
Connect service to the control power junction box. The junction box contains blue, brown, and green
with a yellow stripe colored wires. Follow local electrical codes. Bond in accordance with national
and local codes.
NOTE: A wiring harness has been pre-wired at the factory. No additional wiring is required, but ensure
that all wires are securely fastened.
NOTE: Your wiring harness includes an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
Control Power
Junction Box
Blue (L1)
Wire Connector
Ground
(Green with
Yellow Stripes)
From Control
Brown (L2)
Wire Connectors
Electrician to provide
suitable strain relief cable.
* Connections to be Made
at the Circuit Breaker
Typical Wiring Connection for North America
Control
Check Valve
Blower Motor Cord
Control
Power Supply
External Power
Field Wiring
(From Junction Box
to GFCI Breaker)
* Equipment Ground
* Line Neutral
(White
Curly Wire)
Neutral Bus
(In Breaker Box)
S/N
240 V
120 V
120 V
*L2
240 V
*L1
Typical Two-Pole
Circuit Breaker
with GFCI
Breaker Box
L2
L1
N
120/240 VAC Source
Bond in accordance with national and
local codes. Open bonding lugs are
located at the top of the junction box.
No Connection
(Load Neutral)
1143444-2-A 10 Kohler Co.

8. Remove Blower Motor Check Valve - Remote
NOTICE: This section applies only to installations in which the blower motor and check valve are
being relocated from the shipping position on the support board.
NOTICE: Do not cut the blower harness for this installation.
NOTICE: You must relocated the check valve with the blower motor.
Remove the Blower Motor
Disconnect the blower motor electrical plug from the control.
Remove any cable ties that support the blower motor cord.
Remove and retain the retaining screw holding the blower harness on the blower motor discharge.
Remove and retain the four motor mounting screws from the blower adapter baseboard.
While restraining the tee with one hand, slide the blower motor away from the tee.
Remove the blower motor from the bath.
Remove the Check Valve
Remove and retain the upper retaining screw at the check valve.
Remove the check valve and attached PVC elbow from the bath.
Prepare the Site
NOTE: Refer to the ″Before You Begin″section for detailed requirements for the blower motor relocation.
Prepare the site where the blower motor will be installed. The site must be within 15’ (4.5 m) of the
bath.
As appropriate, install an access panel to service the blower motor.
As appropriate to the installation, prepare the routing paths for the PVC piping and the new blower
motor power cable. Follow all applicable codes.
Elbow
Screw
Baseboard
Control
To Blower Motor
Cover
Junction
Box
Blower Motor
Mounting Screws
Blower Motor
Electrical Plug
Check
Valve
Kohler Co. 11 1143444-2-A

9. Mount Blower Motor and Check Valve - Remote
NOTE: The blower motor must be mounted horizontally 2″(5.1 cm) above the floor. Do not mount the
blower motor with the blower motor discharge pointing up.
NOTE: The check valve must be relocated with the blower motor. At the new location, the check valve
must be no lower than 24″(61 cm) below the rim of the bath. The check valve must be within 12″(30.5
cm) of the blower motor. The check valve must be oriented vertically with the flow arrow pointing up.
NOTE: Refer to the ″Before You Begin″section for other detailed requirements for the blower motor
relocation.
At the new blower motor location, install a minimum 1-1/2″(3.8 cm) high block (not supplied) for
the blower motor support.
Use the blower motor as a template to mark the location of the four mounting bolts or screws.
Drill four 1/8″(3 mm) pilot holes for the blower motor mounting screws.
Install and support PVC or other 1-1/2″rigid piping (not supplied) between the blower motor
location and the bath air harness.
Connect the new piping to the existing air harness without modifying the air harness. Align the new
pipe and secure the connection with PVC cement. Allow the PVC cement to cure according to the
manufacturer’s instructions.
Connect the check valve assembly to the new piping. Align the new pipe with the check valve
assembly and drill a hole for the existing mounting screw. Use silicone or equivalent sealant at the
connection and reuse the screw that was removed previously. Allow the sealant to cure according to
the manufacturer’s recommendations.
Apply silicone or equivalent sealant to the lower connection of the check valve assembly.
Align the blower motor with the lower connection of the check valve assembly. Position the motor
on the support block. Reinstall the retaining screw. Allow the sealant to cure according to the
manufacturer’s recommendations.
Fasten the blower motor to the new support block with the retained mounting screws.
Check Valve
Screw
Screw
Blower Motor
Mounting Screws
1-1/2" Rigid piping
(not supplied)
1-1/2" (3.8 cm) Min
1143444-2-A 12 Kohler Co.

10. Terminate Blower Power Cable - Remote
Route the Blower Power Cable
Route two conductors with ground 18 AWG or equivalent power cable (not supplied) between the
bath and blower motor locations. Follow all applicable electrical and fire codes. Ensure that the
cable jacket meets applicable code requirements and the cable is properly supported and protected.
Prepare the Blower for Remote Installation
Loosen the cable strain-relief nut on the blower motor. Push the nut back on the cable to provide
clearance for removal of the cover.
Remove the two access cover screws from the back of the blower motor. As you are loosening the
screws, check periodically if the cover can be slid back on the electrical cable.
When the cover is loose, use electrician pliers or equivalent to cut the electrical cable at a point
about 4″(10.2 cm) from where the cable disappears into the blower motor housing.
Pull the free end of the electrical cord through the cover, insert, and strain relief nut.
Discard the existing strain relief nut and insert.
Reconnect the blower motor plug to the control.
Install a standard NPT threaded strain relief to the blower motor cover.
Temporarily store the removed components in a safe location.
Terminate the New Power Cable at the Blower Motor
At the blower motor 4″(10.2 cm) pigtail lead, strip back the cable jacket about 3″(7.6 cm).
Using a wire nut, cap off the unused brown conductor in the cable jacket.
At the newly installed blower motor power cable, strip back the cable jacket about 2″(5.1 cm).
For installations in the United States, mark any white conductors with red or black tape as required
by the NEC.
Strip the wire insulation about 3/8″(1 cm) from the blower motor pigtail leads and from the power
cable leads.
Route the new power cable leads through the blower motor access cover and strain relief.
Using wire nuts or other approved termination methods, terminate the conductors as follows:
•Connect the black pigtail lead to the L1 conductor of the power cable.
•Connect the blue pigtail lead to the L2 conductor of the power cable.
Access Cover
Blower Motor
Plug Strain
Relief
Remove screws, remove cover
and cut existing cable at about 4"
(10.2 cm) from the blower motor.
Kohler Co. 13 1143444-2-A

Terminate Blower Power Cable - Remote (cont.)
•Connect the green with yellow stripe pigtail lead to the grounding or earthing conductor of the
power cable.
With the two screws, reinstall the access cover on the blower motor.
Tighten the strain relief on the power cable at the blower motor.
Remove any dust or debris from the blower motor area.
1143444-2-A 14 Kohler Co.

11. Install Blower Cord at Control - Remote
Install the Second Junction Box on the Control
Install a second junction box with external bonding lug, two strain reliefs, and a cover (not
supplied) on the blower adapter board on the control.
Connect a solid copper 8 gauge bonding wire from the bonding lug on the new junction box to the
spare bonding lug on the control. Follow all local electrical codes.
Reconnect the Blower Motor Power Cord
If required, reconnect the blower motor power cord at the control.
Route the power cord through a strain relief on the second junction box. Tighten the strain relief.
At the end of the cut power cord, strip back the cable jacket about 3″(7.6 cm).
Using a wire nut, cap off the unused brown conductor in the cable jacket.
Strip the wire insulation about 3/8″(1 cm) of the remaining wires from the control.
Terminate the New Power Cable
Route the new power cable from the blower through the other strain relief on the second junction
box. Tighten the strain relief.
Strip back the cable jacket about 3″(7.6 cm).
For installations in the United States, mark the white wire with either red or black electrical tape as
required by the NEC.
Strip the end of the wires about 3/8″(1 cm).
Use approved termination devices to terminate the conductors as follows:
•Terminate the black pigtail lead to the L1 conductor of the power cable.
•Terminate the blue pigtail lead to the L2 conductor of the power cable.
•Terminate the green with yellow stripe pigtail lead to the grounding or earthing conductor of the
power cable.
•Terminate the brown wire with a wire nut. The brown wire is not used.
Install the cover on the new junction box.
Wire Nut
Blue Black
Brown
Strip back the jackets about
3" (7.6 cm) on the field cable
and on the blower motor pigtail.
Then cut the unused fourth
conductor brown wire off
at the point that the
cable jacket ends.
From Control50 Hz
60 Hz
L1
L2
L1
N
GND
NC
GND
NC
Green w/Yellow Stripe
Brown
Black
Blue
Ground (Green with
Yellow Stripe)
From Control
Cable to
Blower
Motor
New Field
Cable To
Blower Motor
Install junction box with cover
and bonding lug (not provided).
Route the cut end of the cord to
the new junction box. Add strain relief.
Blower Adapter
Board
Second
Junction Box
Blower
Motor Pigtail
Second Junction Box Control Power Junction Box
Kohler Co. 15 1143444-2-A

12. Make Supply Power Connections - Remote
WARNING: Risk of electric shock. To reduce the risk of electric shock, connect the control to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD). This
will provide additional protection against line-to-ground shock hazard. A dedicated 220-240 V, 15 A,
50/60 Hz circuit is required.
WARNING: Risk of electric shock. Make sure the power has been disconnected before performing
the following procedures.
NOTE: The model number and electrical rating for the bath is printed on a label near the bath blower
motor.
Ensure that the control power supply cord is properly routed to the control power junction box. The
control power supply cord contains a brown wire (Line 1), a blue wire (Line 2), and a green wire
with a yellow stripe (ground or earth).
Install a strain relief (not provided) for the power supply cable to the control power junction box.
Route the power supply cable to the control power junction box.
As required, strip the jacket and wire insulation on both cables to make the connections.
For installations in the United States, mark any white conductor in the supply power wiring with
red or black tape as required by the NEC.
Connect service to the control power junction box.
Provide a separate equipment earthing or grounding conductor to the spare earth/ground lug
located on the control power junction box. This conductor must not be connected to any
current-carrying conductor. Follow local electrical codes.
Bond in accordance with national and local codes.
Clean the area of all dust and debris.
All wiring harnesses have been pre-wired at the factory. Ensure that all wires are securely fastened.
NOTE: Your wiring harness includes an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
13. Test Run the Bath With Airjets
NOTE: If the bath is not operating properly, consult the ″Troubleshooting″section of this guide before
calling a qualified service representative.
NOTE: For additional information on operating the bath, see the ″Operate User Keypad″section.
Power Supply Cable
Blower Motor Cord
Control Power Supply
Control Power Junction Box
Second Junction Box
(added for Remote Blower)
Check Valve
New Field Cable To Blower Motor
Typical Remote Blower Installation
Remote Blower
1143444-2-A 16 Kohler Co.

Test Run the Bath With Airjets (cont.)
Preliminary Checks
Temporarily remove all access panels.
Ensure that the area around the blower is free of sawdust, insulation, dirt, or other small loose
debris.
Verify the union connection at the check valve is securely hand tightened.
Verify the air harness connections from the blower to the butterfly valves are properly connected
and supported.
Verify the piping from the check valve to the butterfly valves is properly connected and supported.
Ensure that the cable ties or other clips are supporting the air supply harness and electrical
harnesses at the bath.
Ensure any unused electrical connectors are supported above the floor.
Check all electrical connections. Verify the electrical power to the bath is turned on.
Ensure all air harness connections are tightened.
Verify that the blower banding straps have been cut, and that the blower control is resting directly
on the subfloor. Make sure the rubber isolation feet are in place.
Confirm Blower Operation
Remove the protective drop cloth from the bath.
Fill the bath to a level at least 2″(5.1 cm) above the top of the highest airjet.
Press the power button on the user keypad.
Observe that the user keypad icons illuminate. The air flow mode icon and the chromatherapy cycle
icon (if provided) will illuminate green. The Zone 1, Zone 2, and Zone 3 icons are also illuminated
green since all three zones are activated.
Observe that the blower motor starts at a midrange speed.
If provided, verify that all four chromatherapy lights are illuminated. The cycling of colors may not
be readily apparent as the cycle time may be rather long.
NOTE: The purge cycle mode cannot be selected while there is water in the bath.
Rotate the outer ring through each of the available icon positions.
As each icon is selected to activate each mode, verify the icon begins flashing green. If the mode is
not operating, the icon will flash blue.
As each icon is deselected, verify each icon stops flashing.
Select and activate the air flow mode icon.
Press the up or down button to verify the air flow increases or decreases.
Stop the blower.
Check for water leakage at the bath, the bath drain, and the air harness.
Confirm the Individual Zone Control
Select and deactivate Zone 1.
Verify the air stops flowing in the corresponding zone.
Activate Zone 1.
Repeat for Zones 2 and 3.
Check all air harness connections for leaks.
Kohler Co. 17 1143444-2-A

Test Run the Bath With Airjets (cont.)
Confirm the Surge Mode Operation
NOTE: The surge mode cycles the speed of the blower motor between minimum and maximum settings,
as shown on the indicator bar on the user keypad. Six cycle times are available, ranging from about 10
seconds to about one minute. In this mode, the cycle time can be controlled using the up or down button
on the user keypad. The surge mode will operate with any zone or all zones selected.
Select and activate the surge mode.
Verify that the air flow cycles between minimum and maximum.
Increase or decrease the speed of the surge cycle by pressing the up or down button.
Press the power button on the user keypad.
Operate the Chromatherapy Cycle (if equipped)
Rotate the outer ring to the chromatherapy icon, then press ″OK″. The chromatherapy lights will
automatically and continuously cycle through the eight colors; white, violet, indigo blue, aqua blue,
green, yellow, orange and red. One cycle through all eight colors takes approximately one minute.
Press ″OK″while the chromatherapy mode is active to turn off the chromatherapy lights.
Rotate the outer ring to the chromatherapy specific color icon, then press ″OK″. Use the up or down
arrows to reach the desired color.
Press ″OK″again to turn off the chromatherapy lights.
Operate the Automatic Purge Cycle
NOTE: The automatic purge cycle occurs after the bath is drained. It operates at low speed for about two
minutes to remove any residual water from the air harness.
If required, fill the bath to a level at least 2″(5.1 cm) above the top of the highest airjet.
Drain the bath.
When the water level drops below the level sensor probes, verify that the blower starts at low
speed.
After about two minutes, verify that the blower motor stops.
Operate the Manual Purge Cycle
With the bath drained, rotate the outer ring to the purge cycle icon.
Press the ″OK″icon.
Observe that the blower starts in the purge cycle. Residual water will blow out from the air harness.
After the blower has operated for about two minutes, observe that the blower stops.
Place the protective drop cloth over the bath.
Turn off the power to the bath.
1143444-2-A 18 Kohler Co.

14. Complete the Finished Wall/Deck
If you have not already done so, carefully remove the protective tape from the bath rim.
Cover the framing with water-resistant wall/deck material. Seal the joints between the bath rim
edge and the water-resistant wall/deck with silicone sealant.
Tape and mud the water-resistant wall/deck material. Install the finished wall/deck to the
water-resistant wall/deck material. Seal the joints between the bath rim and the finished wall/deck
material with silicone sealant.
Install the faucet trim according to the instructions packed with the trim.
15. Complete the Concrete Installation
If you have not already done so, carefully remove the protective tape from the bath rim.
Apply mortar and tile to any wall, deck, and surround material as needed.
Apply a bead of sealant where the tile meets the bath surface.
Install the faucet trim according to the instructions packed with the trim.
16. Clean-Up After Installation
Clean the area around the blower motor of all dust and debris.
Use warm water and a liquid detergent to clean the surface of the bath. Do not use abrasive
cleansers, as they may scratch and dull the bath surface. Do not use powdered cleaners unless the
cleaner is fully dissolved in water. Solid substances could block the airjets. Do not use bleach or
ammonia cleaning solutions. Chemically active cleaning solutions can damage the bath surface.
Refer to the Homeowners Guide for normal cleaning recommendations.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any bath surfaces for long periods of
time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.
Bath
Stud Framing or
Concrete Wall
Silicone
Sealant
Water-Resistant
Wall Material
Finished Wall
Install the finished wall
material 1/16" (2 mm)
above the enameled
surface.
Kohler Co. 19 1143444-2-A

17. Using the Keypad
Available modes/features will be illuminated in blue. Active modes will be illuminated in green.
Power On/Off Turns the blower motor on and off.
Outer Ring Rotate the outer ring to the desired mode. The selected mode will flash blue.
OK Activates the desired mode. The active mode will flash green.
Air Flow Mode Air flow is directed through any combination of the airjets in the selected zones. Adjust
the air flow with the arrow buttons. When the surge mode is selected, the air flow mode
stops. When the air flow mode is selected while operating in the surge mode, the surge
mode stops.
Zone 1 Selects or deselects the air flow through Zone 1.
Zone 2 Selects or deselects the air flow through Zone 2.
Zone 3 Selects or deselects the air flow through Zone 3.
Surge Mode When active, the air flow ramps up from minimum to maximum and then down again to
minimum. Adjust the surge speed between 10 seconds and 60 seconds by using the up or
down buttons. Select or deselect zones when in the surge mode.
Up Arrow Increases the air flow when the air flow mode is active. Increases the pulse speed when
the surge mode is active.
Indicator Bar Shows the air flow volume when operating in the air flow mode. Shows the surge speed
when operating in the surge mode.
Down Arrow Decreases the air flow when the air flow mode is active. Decreases the pulse speed when
the surge mode is active.
Chromatherapy
Cycle Rotate the outer ring to select this mode, then press OK. The chromatherapy lights will automatically and continuously cycle through eight colors. One cycle through all eight
colors takes approximately one minute. Only one of the two keypads controls this mode.
Purge Mode Select to initiate the purge mode manually. The purge cycle will not start if there is water
in the bath. The purge mode blows any residual water out of the air harness. The blower
motor starts and runs at a low speed for about two minutes. An automatic purge cycle
occurs when the bath is drained and the water level falls below the level sensors.
Chromatherapy
Specific Color Rotate the outer ring to select this mode. Press OK, press the up or down arrow to select a color, then press OK again. Only one of the two keypads controls this mode.
Sleep Mode To enhance your bathing experience, the keypad is programmed to darken after
approximately 15 seconds of inactivity. Only the last feature selected will remain
illuminated. To resume normal operation, press any key or turn the outer ring.
Approximately 60 seconds after all equipment is turned off, the keypad will darken
completely to conserve power. Press the power button or turn the outer ring to reactivate
the keypad.
Air Flow Mode
Activates Mode Selected
Power On/Off
Indicator Bar
Decrease Flow or Surge
Increase Flow or Surge
Zone 1 Zone 2
Zone 3
Surge Mode
Purge Mode
Chromatherapy Specific
Color (if provided)
Chromatherapy Cycle
(if provided)
Rotate Outer Ring to
Access Desired Mode
1143444-2-A 20 Kohler Co.
