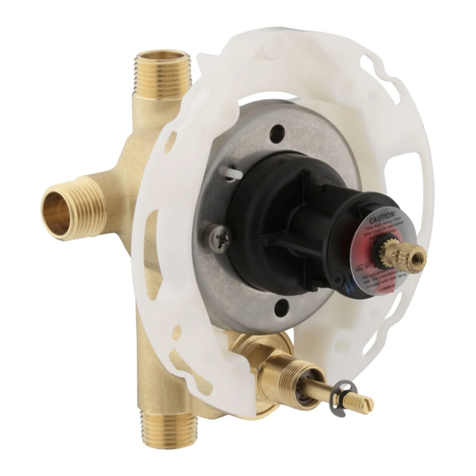

Kohler K-305 Assembly instructions

Homeowners Guide
Pressure-Balancing Valves
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página ″Español-1”
K-304 K-305
114811-5-B

IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: Risk of scalding or other severe injury.
•Before completing installation, the installer must set the
maximum water temperature setting of this valve to minimize the
risks associated with scalding hazards according to ASTM F 444.
•Do not install a shut-off device on either outlet of this valve. The
installation of any such device may create a cross-flow condition
at the valve and affect the water temperature.
•Factors that change the temperature of the water supplied to the
valve, such as seasonal water temperature changes, and water
heater replacement or servicing, will change the maximum water
temperature supplied by the valve and may create a scalding
hazard. The pressure-balanced valve will not compensate for
changes in the water supply temperature; adjust the maximum
water temperature setting of this pressure-balanced valve when
such changes occur.
•Pressure-balanced valves may not provide protection against
scalding if there is a failure of other temperature-limiting devices
elsewhere in the plumbing system.
WARNING: Risk of product damage. Only silicone based
lubricants should be used with these valves. Use of petroleum
based lubricants on the valve is harmful to the O-rings, seals,
and plastic components. Use of petroleum based lubricants will
void the warranty.
The installer is responsible for installing the valve and adjusting the
maximum water temperature of this pressure-balanced valve
according to instructions.
This valve meets or exceeds ANSI A112.18.1 and ASSE 1016.
If you do not understand any of the installation or temperature
adjustment instructions in this document, in the United States please
contact our Customer Service Department at 1-800-4-KOHLER.
Outside the U.S., please contact your distributor.
IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in
the adjacent box and on the valve label. Then insert these instructions
into the plastic bag included with the valve package, and attach the
plastic bag to the valve handle for the homeowner’s reference.
114811-5-B 2 Kohler Co.

IMPORTANT INSTRUCTIONS (cont.)
NOTICE TO HOMEOWNERS! This device has been preset by
_______________________ of _______________________________ to
ensure a safe maximum temperature. Any change in the setting may
raise the discharge temperature above the limit considered safe, and
lead to scalds.
Date: ______________
Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Kohler Co. 3 114811-5-B

Adjustments
CAUTION: Risk of personal injury. The water temperature
should never be set above 120° F (49° C).
Turn the valve clockwise to the full open position and let the hot
water run for several minutes. Position a thermometer in the
water stream and check the temperature.
For minor water temperature changes, adjust the setscrew, and
recheck the water temperature.
For major water temperature changes, remove the O-ring and
collar from the valve stem. Slowly rotate the valve stem until the
desired water temperature is reached.
Reinstall the collar on the valve stem with the setscrew against
the side of the tab.
Reinstall the O-ring, rotate the valve stem counterclockwise to
shut the water off, and recheck the water temperature.
NOTE: After adjustment, complete the required information on the
valve label.
Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak- and drip-free during normal residential use for as long as the
original consumer purchaser owns his or her home. If the faucet
should leak or drip during normal use, Kohler Co. will, free of charge,
mail to the purchaser the cartridge necessary to put the faucet in good
Setscrew
Tab
Valve Stem
Collar
Valve Label
O-Ring
Tab
Collar
Setscrew
HiFlow Valve
All Other Valves
114811-5-B 4 Kohler Co.

Lifetime Limited Warranty — USA and Canada (cont.)
working condition. This warranty applies only to KOHLER faucets
installed in the United States of America, Canada or Mexico (North
America).
Kohler Co. also warrants all other aspects of the faucet or accessories
(″Faucet″)*, (except gold, non-PVD Vibrant
®
, non-chrome finishes) to be
free of defects in material and workmanship during normal residential
use for as long as the original consumer purchaser owns his or her
home. If a defect is found in normal residential use, Kohler Co. will, at
its election, repair, provide a replacement part or product, or make
appropriate adjustment. Damage to a product caused by accident,
misuse, or abuse is not covered by this warranty. Improper care and
cleaning will void the warranty.** Proof of purchase (original sales
receipt) must be provided to Kohler Co. with all warranty claims.
Kohler Co. is not responsible for labor charges, installation, or other
incidental or consequential costs. In no event shall the liability of
Kohler Co. exceed the purchase price of the Faucet.
If the Faucet is used commercially or is installed outside of North
America or if the finish is gold, non-PVD Vibrant or non-chrome,
Kohler Co. warrants the Faucet to be free from defects in material and
workmanship for one (1) year from the date the product is installed,
under Kohler Co.’s standard one-year limited warranty.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
Kohler Co. and/or seller are providing these warranties in lieu of all
other warranties, expressed or implied, including but not limited to
the implied warranties of merchantability and fitness for a particular
purpose. Kohler Co. and/or seller disclaim any liability for special,
incidental or consequential damages.
Some states/provinces do not allow limitations of how long an implied
warranty lasts or the exclusion or limitation of such damages, so these
limitations and exclusions may not apply to you. This warranty gives
the consumer specific legal rights. You may also have other rights that
vary from state/province to state/province.
Kohler Co. 5 114811-5-B

Lifetime Limited Warranty — USA and Canada (cont.)
This is Kohler Co.’s exclusive written warranty.
*Trend
®
faucets; MasterShowerTM tower; BodySpaTM systems and
components; WaterHavenTM tower, systems and components; polished
gold, non-PVD Vibrant and non-chrome finishes; fittings; all items
within the ″Fixture Related″section of the Kohler Faucets Price Book,
drains, Duostrainer
®
sink strainers, soap/lotion dispensers; and faucets
used in commercial settings and outside North America, are covered
by Kohler Co.’s one-year limited warranty. Electronic faucets, valves
and controls are covered by a five-year limited warranty.
**Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, waxes, alcohol, solvents or other products not recommended for
chrome. This will void the warranty.
One-Year Warranty — Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
114811-5-B 6 Kohler Co.

One-Year Warranty — Mexico (cont.)
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 7 114811-5-B

Service Parts
**Finish/color code must be specified when ordering.
78399
A
A
A
A
A
B
Body
1049657
Body
78726
Body
1025672
Body
77133
Stem
77133
Stem
77133
Stem
77131
Washer
77131
Washer 77131
Washer
77132
Washer
77132
Washer 77132
Washer
77130
Nut
77130
Nut 77130
Nut
1000929
Body 79638 Body
71933
Cap
71933
Cap
71933
Cap
71933
Cap
114811-5-B 8 Kohler Co.

**Finish/color code must be specified when ordering.
77759
Cap
78722
Plate
77585
O-Ring
73933
O-Ring
21980
Screw
20959
Screw 40933
O-Ring
20493
O-Ring
20494
Spring
50715
E-Ring
59681
Stem
78665
Bonnet
1006041
Seat
89773
Diverter
500520
29296
O-Ring 42043
O-Ring
75740
Collar
79478
Collar
B
A
Pressure
Balancing
Unit
Kohler Co. 9 114811-5-B

Guide du propriétaire
Régulateurs manométriques
INSTRUCTIONS IMPORTANTES
À LIRE ET À LAISSER AU CLIENT
AVERTISSEMENT : Risque de brûlures ou de blessures graves.
•Avant de commencer l’installation, l’installateur doit régler la
température maximale de l’eau de cette valve pour réduire au
minimum les risques de brûlures, ceci conformément à la norme
ASTM F 444.
•Ne pas installer un dispositif d’arrêt sur les sorties de cette valve.
L’installation d’un tel dispositif peut créer une condition de débit
croisé au régulateur et modifier la température de l’eau.
•Les facteurs qui changent la température de l’eau fournie à cette
valve, tels que les changements de température d’eau saisonniers,
et le remplacement ou l’entretien du chauffeau, changeront la
température maximale de l’eau fournie par le régulateur et
pourront présenter un danger de brûlures. La valve à pression
équilibrée ne compensera pas les changements de température
d’alimentation d’eau; ajuster la température maximale de cette
valve à pression équilibrée si de tels changements se produisent.
•Les valves à pression équilibrée peuvent ne pas assurer une
protection contre les brûlures en cas de défaillance d’autres
dispositifs de limitation de température installés ailleurs sur le
réseau de plomberie.
AVERTISSEMENT : Risque d’endommagement du produit.
Seuls des lubrifiants à base de silicone devraient être utilisés
avec ces valves. L’usage de lubrifiants à base de pétrole sur la
valve est nuisible pour les joints toriques, les étanchéités, et les
composants en plastique. L’usage de lubrifiants à base de pétrole
annulera la garantie.
L’installateur est responsable de l’installation de la valve et du
réglage de la température maximale de l’eau de cette valve à pression
équilibrée conformément aux instructions.
Cette valve satisfait ou excède les exigences des normes ANSI
A112.18.1M et ASSE 1016.
Kohler Co. Français-1 114811-5-B
