Kohler 1093479-2-B Assembly instructions

Installation and Care Guide
Cleansing Seat with Remote Control
Français, page “Français-1”
Español, pagina “Español-1”
1093479-2-B

IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE
USING
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
DANGER: To reduce the risk of electrocution:
Do not place or store this product where it can fall or be pulled
into a bath or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING: To reduce the risk of burns, electrocution, fire,
or injury to persons:
Close supervision is necessary when this product is used by or
near children, the elderly, or invalids. Children should not be
permitted to use or touch this appliance. Do not leave children
unattended in any room where this product is installed. Adjust
the temperature of the toilet seat for the elderly, those who are
incapacitated, or persons with sensitive skin.
Use this product only for its intended purpose as described in the
manual. Do not use attachments not recommended by Kohler Co.
Never operate this product if it has a damaged cord or plug, if it
is not working properly, if it has been dropped or damaged, or
dropped into water.
Install this product properly by following the installation
procedure.
Only authorized persons can install or repair the unit. Do not
attempt to service this appliance yourself, doing so could void the
warranty.
Keep the cord away from heated surfaces.
Never drop or insert any object into any opening or hose.
Do not use outdoors or where aerosol spray products are being
used or where oxygen is administered.
1093479-2-B 2 Kohler Co.

IMPORTANT SAFEGUARDS (cont.)
Connect this product to a properly grounded outlet only. See the
“Grounding Instructions” section.
SAVE THESE INSTRUCTIONS

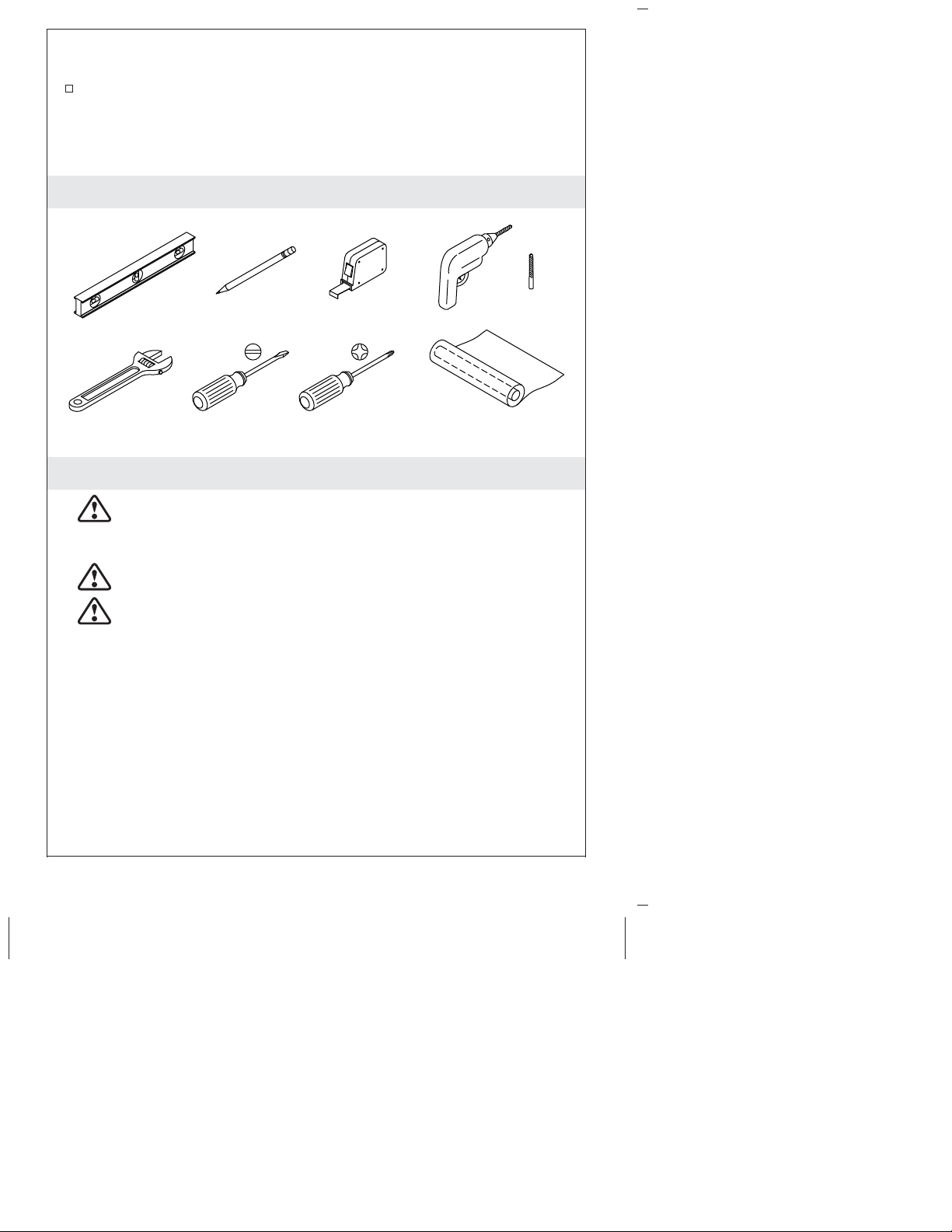

Tools and Materials
Before You Begin
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI)*.
WARNING: Risk of electric shock. Do not immerse or flush
the product with water.
CAUTION: Risk of property damage. Damaged water
connections may leak. Do not push or pull on the water
supply connections between the seat and the water supply
stop.
IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface.
NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed.
NOTICE: Do not use an extension cord with this product.
Plastic Wrap
1/16", 1/4"
Kohler Co. 3 1093479-2-B

Before You Begin (cont.)
NOTICE: Do not install this seat in areas where water may freeze
in the pipes. If this is not feasible, make arrangements to keep the
pipes warm so that water remaining in the seat will not freeze
during storage or during the winter. Allow the unit to warm to
room temperature before reinstalling or using.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
NOTICE: Do not block the air openings. To avoid product damage,
keep the air openings free of debris, such as lint and hair.
Observe all local plumbing, electrical, and building codes.
Only connect the seat to a cold water supply of drinking quality
at a pressure of 20 (139 kPa) - 80 psi (551 kPa).
Unplug the seat and drain the seat if the functions of the seat will
not be operated for an extended period of time.
*Outside North America, this device may be known as a Residual
Current Device (RCD).
1093479-2-B 4 Kohler Co.

Grounding Instructions
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
DANGER: Risk of electric shock. Improper use of the
grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt whether the product is properly grounded.
NOTICE: Follow local codes when determining the connection
type. The temporary connection may not be permitted by local
electrical codes.
NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed.
Preferred Connection
Connect the grounding plug into a grounded outlet that has the
same configuration as the plug.
Grounded
Outlet
Cover
Screw
Adapter
Grounding
Plug
Grounding
Screw Tab
Temporary ConnectionPreferred Connection
Kohler Co. 5 1093479-2-B

Grounding Instructions (cont.)
Temporary Connection
NOTICE: Unless the outlet cover screw is grounded through the
house wiring, attaching the adapter grounding screw tab to the
cover screw will NOT ground the unit. If there is any doubt
whether the cover screw is grounded, have it checked by a qualified
electrician or service professional.
A temporary connection with a two-prong adapter may be used
where local codes permit, provided the adapter is grounded.
1093479-2-B 6 Kohler Co.

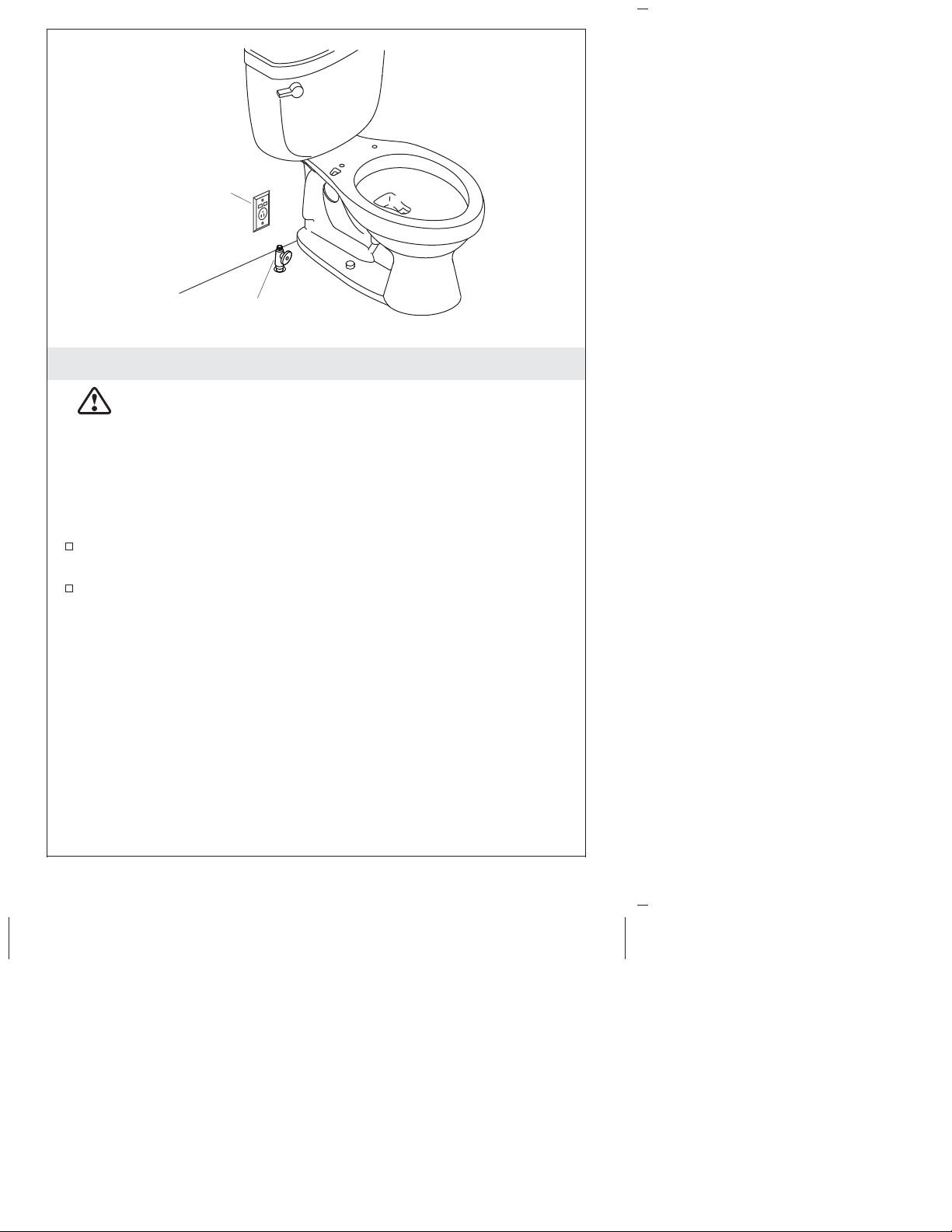

1. Install an Electrical Outlet
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 Amp Ground-Fault Circuit-Interrupter (GFCI)*.
NOTICE: Do not use an extension cord with the product.
NOTE: Follow local codes when determining the electrical outlet
location.
Install a 120 V GFCI*-protected electrical outlet within 12″(305
mm) of the toilet to accommodate the length of the power cord.
Do not plug in the seat until instructed to do so.
*Outside North America, this device may be known as a Residual
Current Device (RCD).
Supply Stop
GFCI/RCD-Protected
Receptacle
Kohler Co. 7 1093479-2-B

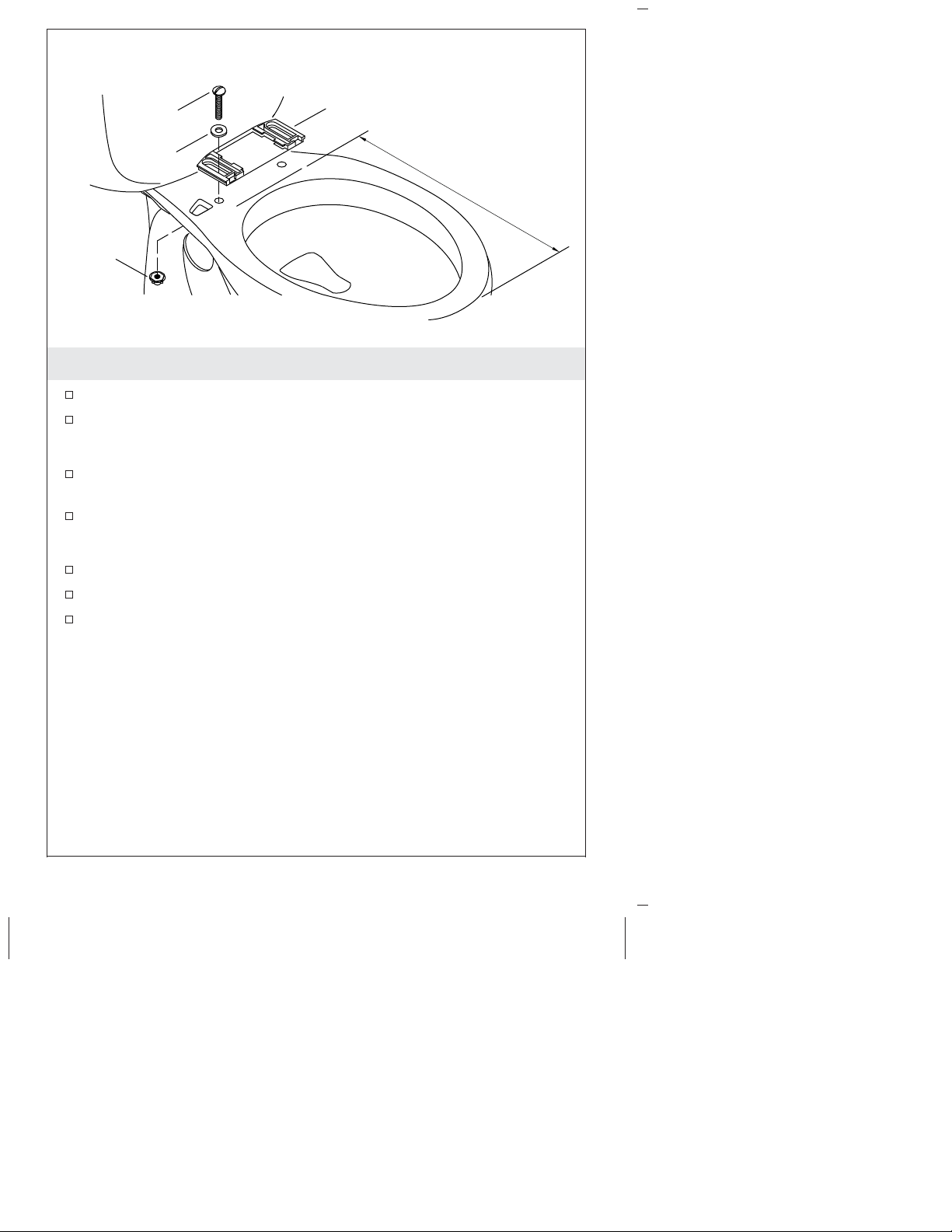

2. Install the Mounting Plate
Position the mounting plate over the mounting holes on the bowl.
Position the washers to rest in the mounting plate grooves.
For Toilets with Threaded Mounting Holes
Insert the bolts through the washers and thread into the
mounting holes.
Do not fully tighten at this time.
For All Other Installations
Insert the bolts through the washers and into the mounting holes.
Thread a nut onto each bolt.
Do not fully tighten at this time.
Mounting Plate
17-1/4"
438 mm
Bolt
Washer
Nut
1093479-2-B 8 Kohler Co.

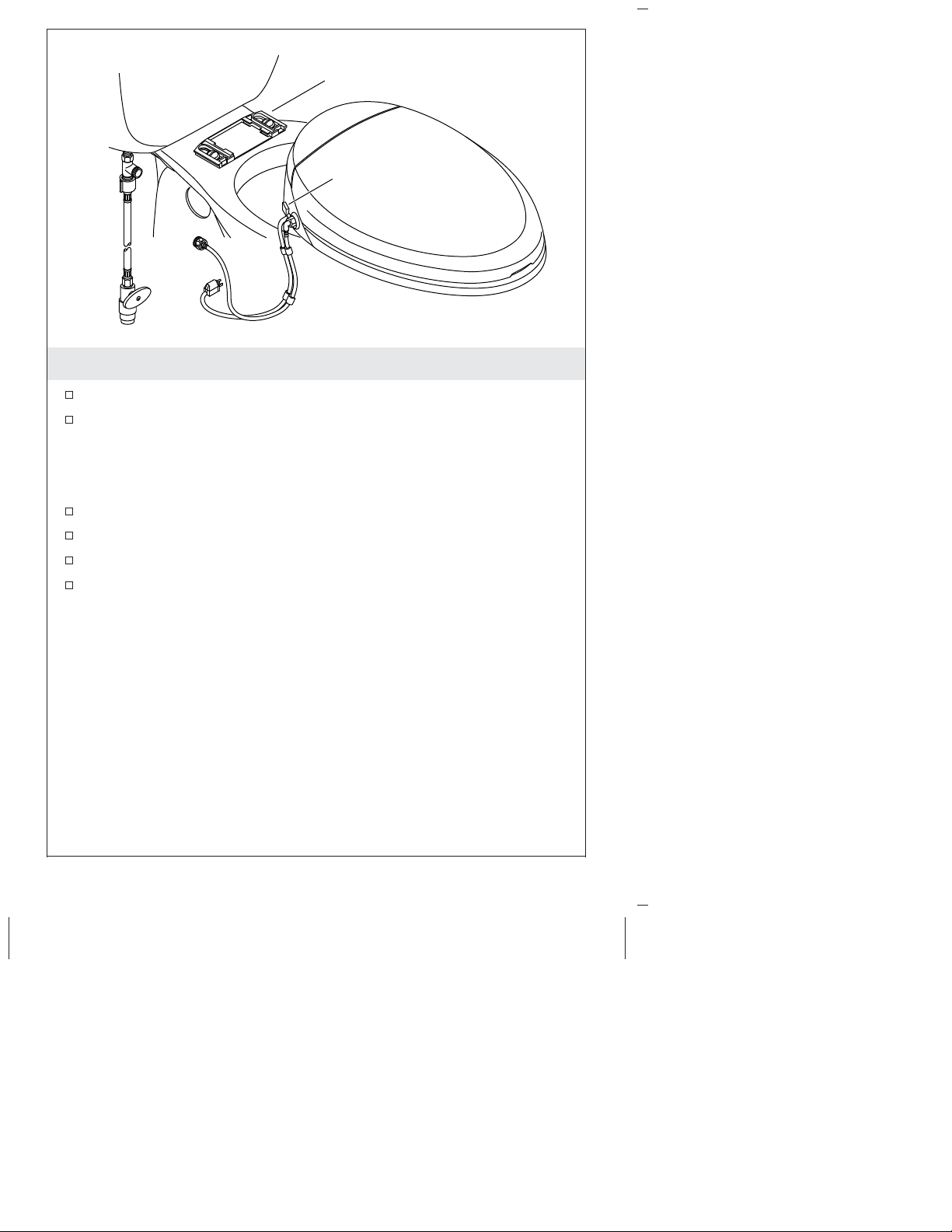

3. Install the Seat
When installing the seat to the K-3608 toilet, run the power cord
and supply line through the opening in the toilet.
NOTE: For the K-3607 toilet, route the cord and supply line
alongside the inside tank wall to not interfere with the fill valve
operation.
When installing the seat to the K-3607 toilet, run the power cord
and supply line through the opening in the tank, through the
tank and out the opening in the back of the tank.
Slide the seat onto the mounting plate until it snaps in place.
NOTE: The mounting plate may need to be adjusted to properly
align the seat.
To adjust the seat position, remove the seat by pressing in the
release button and sliding the seat forward.
Reposition the mounting plate as needed.
Reinstall the seat. Repeat the adjustment procedure as needed
until the seat is properly aligned.
Mounting
Plate
Supply Line
K-3607
K-3608
Power Cord
Release Button
Kohler Co. 9 1093479-2-B

Install the Seat (cont.)
Once the seat is positioned as desired, remove the seat and
tighten the mounting plate.
Reinstall the seat.
1093479-2-B 10 Kohler Co.

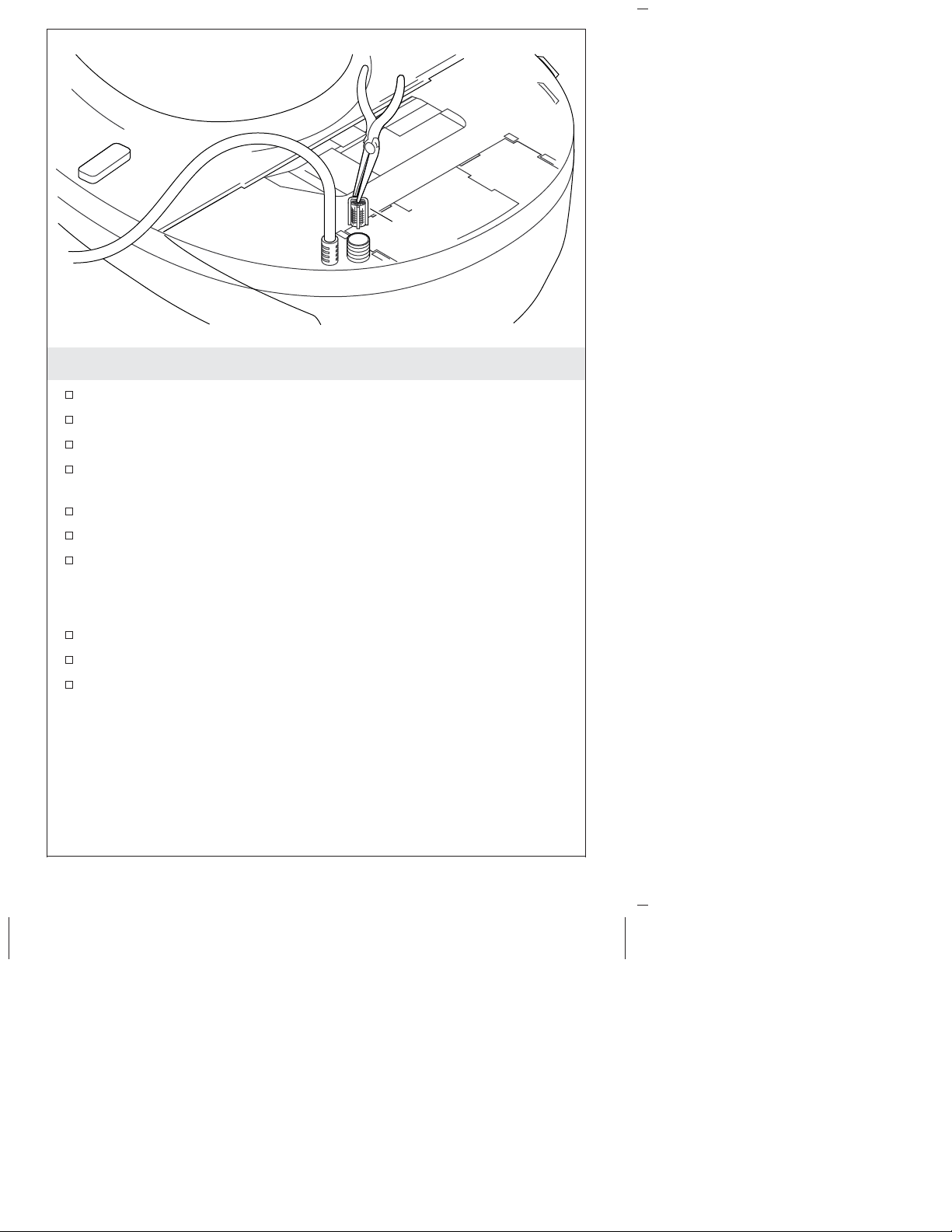

4. Connect the Water Supply
CAUTION: Risk of property damage. Do not push or pull
on the water connection between the seat and the water
supply stop. This will prevent water leakage.
NOTICE: Use care to avoid cross threading or overtightening the
connections. Use an adjustable wrench to tighten one-quarter turn
past hand-tight.
Confirm that the gasket is in place in the T-valve. Install if
needed.
Connect the T-valve to the water inlet on the toilet tank.
Connect the seat hose to the T-valve.
Connect the supply hose to the T-valve and supply stop.
Turn on the water supply.
Check all connections for leaks and make any adjustments as
needed.
Hose
Gasket
T-Valve
Supply Stop
Hose
Kohler Co. 11 1093479-2-B

5. Install the Remote Holder
Choose a mounting location for the remote control holder that is
easily accessible while sitting on the seat.
The remote control holder can be installed using screws or
double-sided tape. Follow the instructions for your chosen
installation method.
Install Using Screws
Position the remote control holder at the desired mounting
location with the rectangular indent toward the bottom (as
shown).
Using a pencil, mark the two mounting hole locations.
For installation to stud or other wood surface: Drill 1/16″holes
at the marked locations.
For installation using wall anchors: Drill 1/4″holes at the
marked locations and install anchors.
Position the holder so the rectangular indent is toward the bottom
and secure with the screws.
Install the caps to cover the screws.
Position the remote control into the holder with the user preset
icons facing up.
Install Using Double-Sided Tape
Remove the paper from one side of each of the tape squares.
Remote Holder
If used, apply tape here.
Anchors Screws
Remote
Covers
1093479-2-B 12 Kohler Co.

Install the Remote Holder (cont.)
Install a tape square in each of the rectangular areas located on
the back of the remote control holder.
NOTE: Before mounting the remote control holder, verify that the
rectangular indent is toward the bottom.
Remove the paper from the tape squares.
Press the remote control holder into place.
Position the remote control into the holder with the user preset
icons facing up.
Kohler Co. 13 1093479-2-B

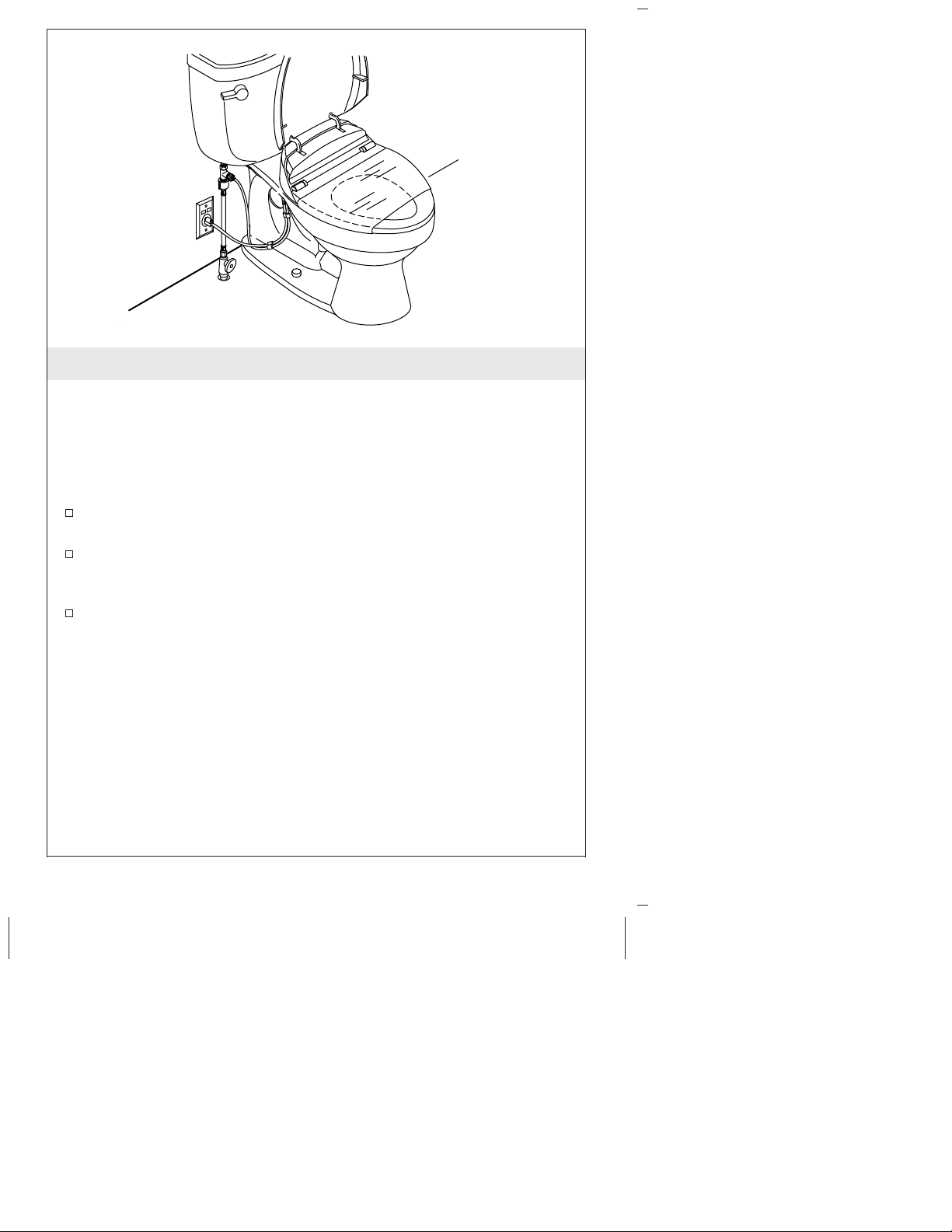

6. Installation Checkout
NOTE: Covering the seat with plastic wrap is optional. You can test
the features while sitting on the cleansing seat or covering the wand
with your hand.
NOTE: When testing the features, activate the sensor with your
hand by pressing on the right side (facing the toilet) of the seat, or
by sitting on the seat.
Wrap the seat with plastic wrap. This will prevent water from
spraying beyond the toilet during testing.
Plug the power cord into the electrical outlet. The seat will go
through a power-up sequence. The seat will go silent when the
power-up is complete.
Proceed to the “Remote/Keypad Diagram” and “Operation”
section to test the various seat functions.
Plastic Wrap
1093479-2-B 14 Kohler Co.

Remote/Keypad Diagram
N
L
I
J
D
G
C
G
Q
P
O
F
M
K
H
E
C
B
A
ENERGY-SAVE
LIGHT
POWER
AIR SPEEDAIR TEMP.
SEAT TEMP.H20 TEMP.
NOZZLE
BACKWARD
STOP
PULSATE
OSCILLATE
REAR
FRONT
TESERP
D
Remote
Panel
NOZZLE
FORWARD
DEODORIZER
Kohler Co. 15 1093479-2-B

Operation
A – Preset 1: Setting the Presets – While sitting on the seat, press
and hold the preset icon for 3 seconds to store the current settings
to memory. One of the following functions must be in use in
order to store the preset: front wash, rear wash, or air speed. The
following will be saved at your current settings: wand position,
water pressure, water temperature, seat temperature, air
temperature, and air speed. Using the Presets – If the preset icon
is pressed while sitting on the seat, the front wash, rear wash, or
air speed will start at your stored settings. If the preset icon is
pressed while the seat is not occupied, the seat will gradually
(approximately 2 minutes) change to your preset temperature.
B – Preset 2: Same as Preset 1
C – Front: Press the icon to activate the “Front” wash function
and change the flow level (low, medium, and high).
D – Rear: Press the icon to activate the “Rear” wash function and
change the flow level (low, medium, and high).
E – Oscillate: Press the icon to begin the wand moving forward
and backward. Press the icon a second time to stop the nozzle
movement.
F – Pulsate: Press the icon to begin alternating the flow. Press the
icon a second time to stop the pulsating flow and return the flow
rate to the previously selected flow.
G – Stop: Press this icon to stop the “Front” wash, “Rear” wash,
or “Air Speed” functions.
H – Nozzle Backward: Pressing this icon will retract the wand.
I – Nozzle Forward: Pressing this icon will extend the wand.
J – Deodorizer: Pressing this icon activates or deactivates the
automatic deodorizer feature.
K – H2O Temp: This icon changes the temperature of the water
spray from low (95°F, 35°C), to medium (99.5°F, 37.5°C), to high
(104°F, 40°C), to OFF.
L – Seat Temp: This icon changes the temperature of the seat
from low (95°F, 35°C), to medium (99.5°F, 37.5°C), to high (104°F,
40°C), to OFF.
M – Air Temp: This icon changes the heated air temperature from
low (100°F, 37.7°C), to medium (122°F, 50°C), to high (140°F,
60°C), to OFF.
N – Air Speed: This icon changes the heated air speed from low,
to medium, to high.
1093479-2-B 16 Kohler Co.

Operation (cont.)
O – Energy Save: Pressing this icon turns the energy save
function on or off. After 24 hours of inactivity, the power
indicator LED changes from green to amber and the heated seat
temperature changes to the lowest setting. After 48 hours of
inactivity the heated seat temperature will switch to off. Once the
seat is activated, the power indicator LED light will change to
green, the temperature changes to the previous user setting, and
the timer restarts the energy save mode.
P – Power: Pressing this icon turns the seat controls on or off.
Q – Light: This icon turns the LED night light feature on or off.
The lights are sensor activated and the room must be sufficiently
dark for the lights to activate.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
IMPORTANT! Do not immerse product in water.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Use a soft, dampened sponge or cloth to wipe surfaces clean.
Remove the cleaner quickly after applying. Rinse and dry any
overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Never use an abrasive material such as a brush or scouring pad
to clean surfaces.
For detailed cleaning information and products to consider, visit
kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
Kohler Co. 17 1093479-2-B

Clean the Nozzle
NOTE: The spray wands can only be extended for cleaning when
the seat is not activated or occupied.
Raise the cover and seat.
Press the “FRONT” icon on the panel to extend that spray wand
forward for cleaning.
Clean the spray wand with a soft-bristled brush.
Press the “FRONT” icon on the panel again to retract the spray
wand.
Repeat above steps for the “REAR” spray wand.
Wand in
extended position
1093479-2-B 18 Kohler Co.

Remove the Seat
Turn off the water supply at the supply stop.
Flush the toilet to relieve any pressure from the water supply
hose.
NOTE: The seat will contain water until drained. Refer to the
″Drain the Seat″section.
Unplug the seat from the electrical outlet.
Disconnect the water supply hose from the T-valve.
Push in the release button.
Slide the seat forward to disengage the seat from the mounting
plate.
Mounting Plate
Release Button
Kohler Co. 19 1093479-2-B

Clean the Screen
Remove the seat.
Turn off the water supply at the supply stop.
Disconnect the water supply hose from the seat.
Using a long-nosed pliers carefully remove the screen from the
seat inlet.
Clean the screen with a soft-bristled brush.
Reinstall the screen.
Reinstall the seat.
IMPORTANT! Risk of product damage. Use care not to crossthread
the connection.
Reconnect the water supply hose to the seat.
Turn on the water supply.
Check all connections for leaks and make any adjustments as
needed.
Screen
1093479-2-B 20 Kohler Co.
