Kohler K-T16225 Assembly instructions

Homeowners Guide
Single-Control Bath and Shower Trim
Mproduct numbers are for Mexico (i.e.
K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-T16225 K-T16233
K-T16234 K-T16235
K-16246
1059598-5-C

IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: Risk of scalding or other severe injury.
•Before completing installation, the installer must set the
maximum water temperature setting of this valve to minimize the
risks associated with scalding hazards according to ASTM F 444.
•Do not install a shut-off device on either outlet of this valve. The
installation of any such device may create a cross-flow condition
at the valve and affect the water temperature.
•Factors that change the temperature of the water supplied to the
valve, such as seasonal water temperature changes, and water
heater replacement or servicing, will change the maximum water
temperature supplied by the valve and may create a scalding
hazard. The pressure-balanced valve will not compensate for
changes in the water supply temperature; adjust the maximum
water temperature setting of this pressure-balanced valve when
such changes occur.
•Pressure-balanced valves may not provide protection against
scalding if there is a failure of other temperature-limiting devices
elsewhere in the plumbing system.
NOTICE: Only apply silicone based lubricants to these valves. Do
not use petroleum based lubricants. Petroleum based lubricants will
harm the O-rings, seals, and plastic components.
The installer is responsible for installing the valve and adjusting the
maximum water temperature of this pressure-balanced valve
according to instructions.
This valve meets or exceeds ANSI A112.18.1 and ASSE 1016.
If you do not understand any of the installation or temperature
adjustment instructions in this document, in the United States please
contact our Customer Service Department at 1-800-4-KOHLER.
Outside the U.S., please contact your distributor.
1059598-5-C 2 Kohler Co.

IMPORTANT INSTRUCTIONS (cont.)
IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in
the adjacent box and on the valve label. Then insert these instructions
into the plastic bag included with the valve package, and attach the
plastic bag to the valve handle for the homeowner’s reference.
NOTICE TO HOMEOWNERS! This device has been preset by
_______________________ of _______________________________ to
ensure a safe maximum temperature. Any change in the setting may
raise the discharge temperature above the limit considered safe, and
lead to scalds.
Date: ______________
Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company
product reflects the true passion for design, craftsmanship, artistry, and
innovation Kohler Company stands for. We are confident its
dependability and beauty will surpass your highest expectations,
satisfying you for years to come.
All information in this guide is based upon the latest product
information available at the time of publication. At Kohler Company,
we strive to fulfill our mission of improving the level of gracious living
for each person who is touched by our products and services. We
reserve the right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to
the care and cleaning instructions.
Your Kohler Bath Faucet
Your new bath and shower trim blends elegant styling and beauty
with exceptional performance and reliability. Each trim kit is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
Kohler Co. 3 1059598-5-C

Care and Cleaning (cont.)
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537 and press 1 for Kohler Products and then 3 for
Literature.
1059598-5-C 4 Kohler Co.

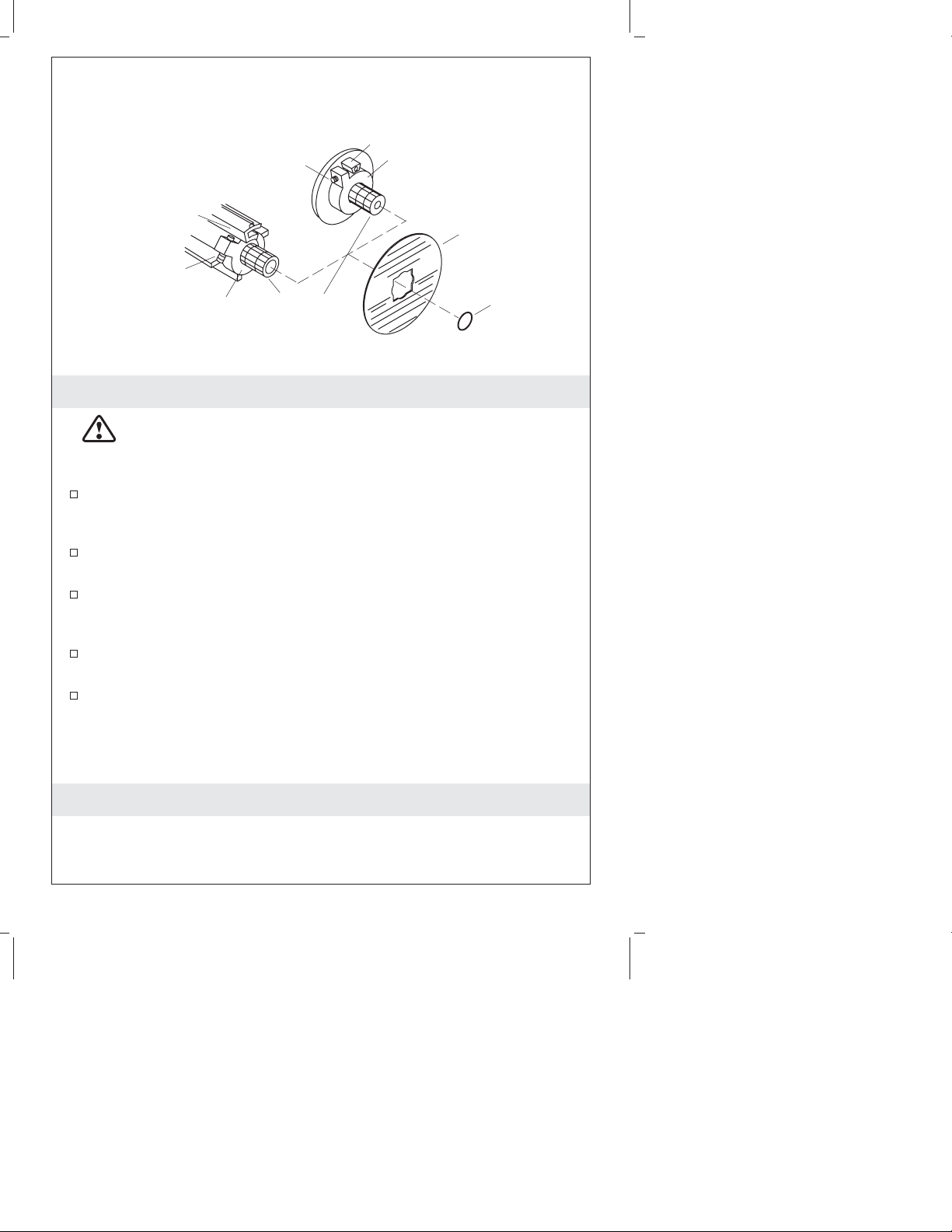

Optional Temperature Limiting Adjustment
CAUTION: Risk of personal injury. Do not set the water
temperature above 120°F (49°C). Setting the water
temperature at or below this temperature will minimize the
risk associated with scalding hazards.
Turn the valve clockwise to the full open position and let the hot
water run for several minutes. Position a thermometer in the
water stream and check the temperature.
For minor water temperature changes, adjust the setscrew, and
recheck the water temperature.
For major water temperature changes, remove the O-ring and
collar from the valve stem. Slowly rotate the valve stem until the
desired water temperature is reached.
Reinstall the collar on the valve stem with the setscrew against
the side of the tab.
Reinstall the O-ring, rotate the valve stem counterclockwise to
shut the water off, and recheck the water temperature.
NOTE: After adjustment, complete the required information on the
valve label.
Lifetime Limited Warranty
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should

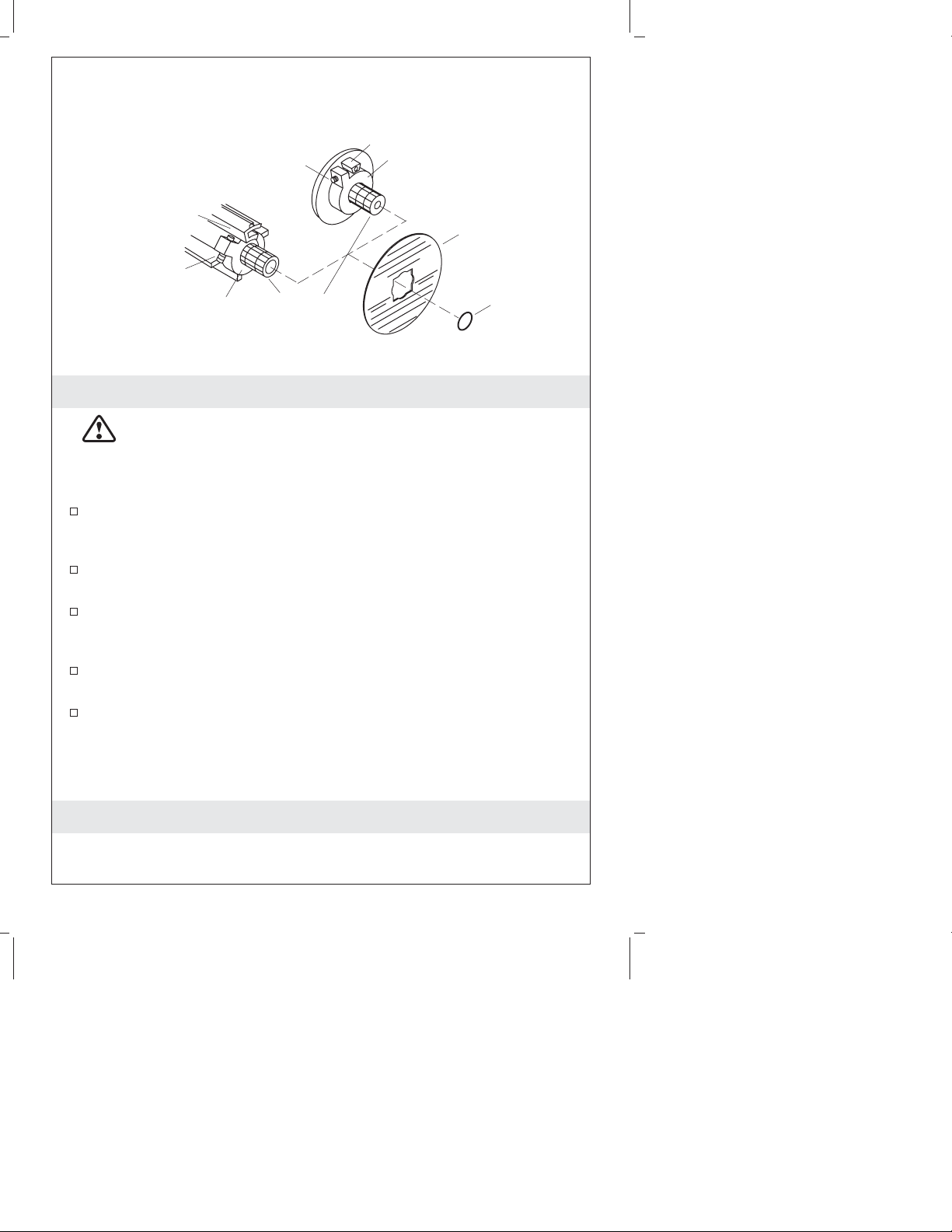

Setscrew
Tab
Valve Stem
Collar
Valve Label
O-Ring
Tab
Collar
Setscrew
HiFlow Valve
All Other Valves
Kohler Co. 5 1059598-5-C

Lifetime Limited Warranty (cont.)
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
1059598-5-C 6 Kohler Co.

Lifetime Limited Warranty (cont.)
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
Kohler Co. 7 1059598-5-C

One-Year Warranty (cont.)
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
1059598-5-C 8 Kohler Co.

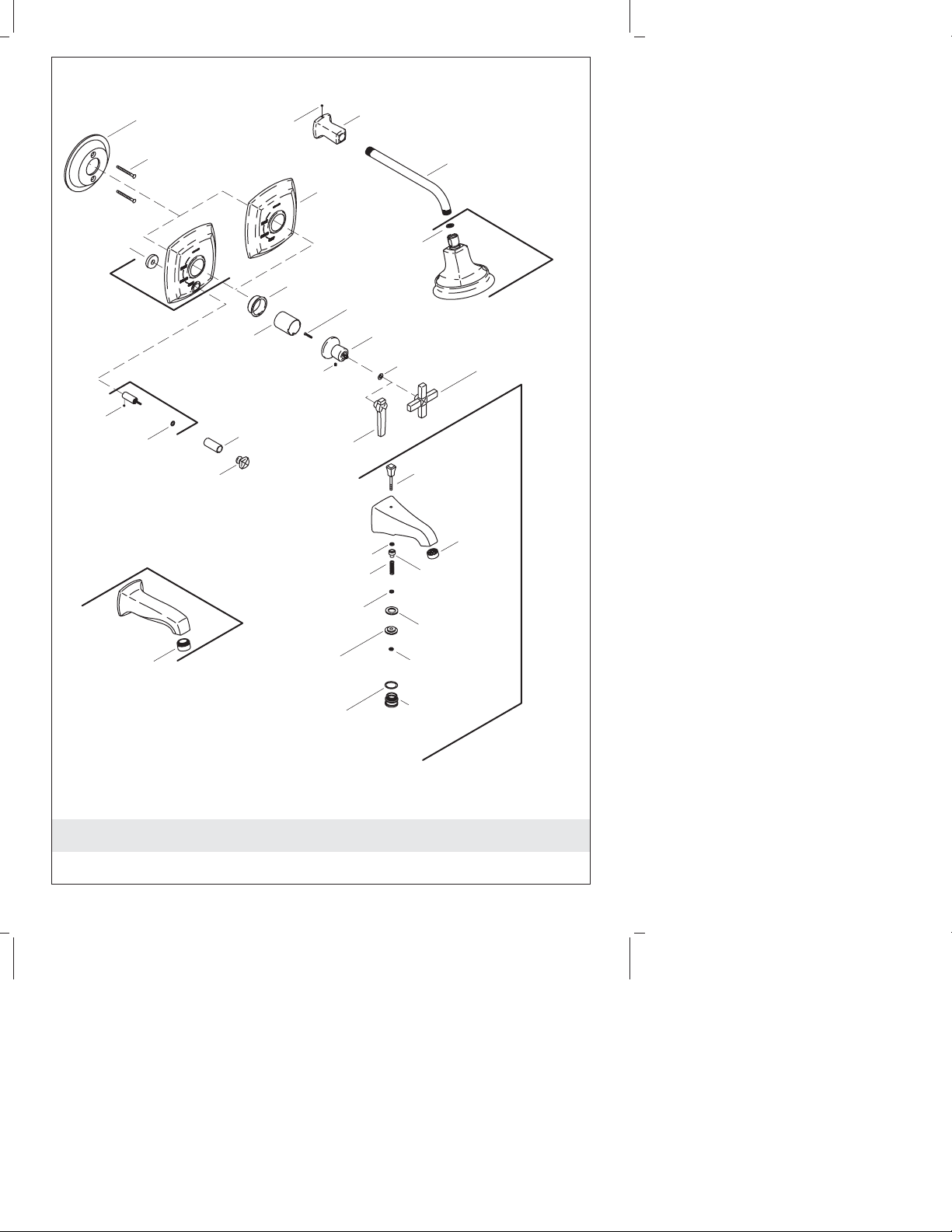

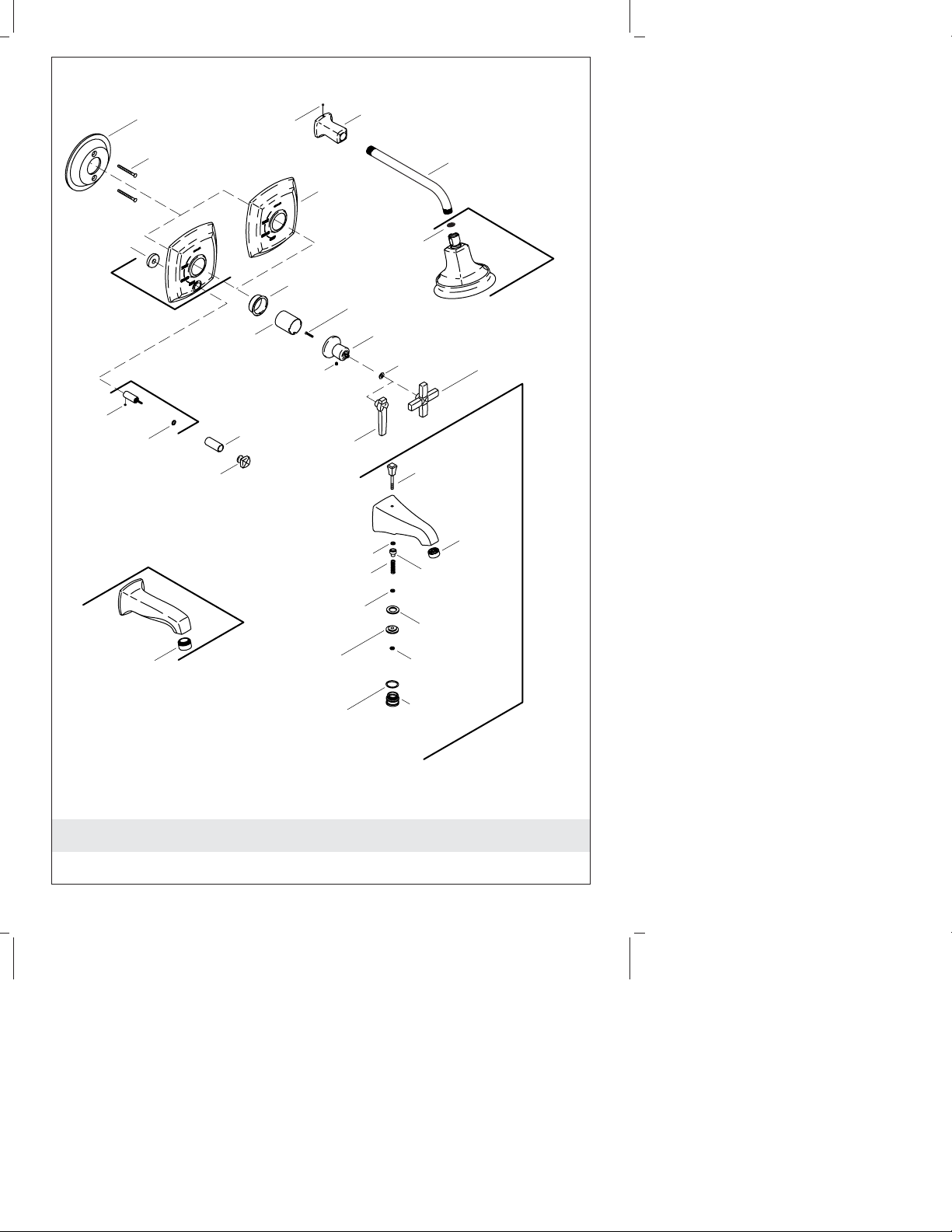

Service Parts
**Finish/color code must be specified when ordering.
87118**
Collar
87448**
Sleeve
59429
Screw
1054803**
Bonnet
1052428**
Handle
1052429**
Handle
1044432
Washer
56283
Setscrew
1078518**
Diverter Button
1049051**
Knob
42045
O-Ring
78678**
Guide
58259
Screw
1061386**
Escutcheon
59638
Gasket
1054804**
Escutcheon
1032319**
Shower Arm
79676
1053098**
Escutcheon
1049316**
Showerhead
1043143**
Aerator
1060821**
Spout
34453
Setscrew
87117
Backing Plate
52705
Screw
Screen
Washer
50713
Cup Washer
1059027
Spring
51290
Gasket
41517
Nut
59347
Seal Plate
59391
Washer
73646
Bushing
1021950**
Spout
86507
Cap
86508
1021951**
Lift Rod
Stream
Breaker
38676
O-Ring
Kohler Co. 9 1059598-5-C

Guide du propriétaire
Baignoire mono-contrôle et garniture de
douche
INSTRUCTIONS IMPORTANTES
À LIRE ET À CONSERVER POUR LE
CLIENT
AVERTISSEMENT : Risque de brûlures ou autres blessures
graves.
•Avant de commencer l’installation, l’installateur doit régler la
température maximale de l’eau de cette valve pour réduire au
minimum les risques de brûlures, ceci conformément à la norme
ASTM F 444.
•Ne pas installer un dispositif d’arrêt sur les sorties de cette valve.
L’installation d’un tel dispositif peut créer une condition de débit
croisé au régulateur et modifier la température de l’eau.
•Les facteurs qui changent la température de l’eau fournie à cette
valve, tels que les changements de température d’eau saisonniers,
et le remplacement ou l’entretien du chauffe-eau, changeront la
température maximale de l’eau fournie par le régulateur et
pourront présenter un danger de brûlures. La valve à pression
réguléene compensera pas les changements de température
d’alimentation d’eau; ajuster la température maximale de cette
valve à pression équilibrée si de tels changements se produisent.
•Les valves à pression équilibrée peuvent ne pas assurer une
protection contre les brûlures en cas de défaillance d’autres
dispositifs de limitation de température installés ailleurs sur le
réseau de plomberie.
AVIS : Seuls des lubrifiants à base de silicone devraient être
appliqués à ces valves. Ne pas utiliser de lubrifiants à base de
pétrole. Des lubrifiants à base de pétrole peuvent endommager les
joints-toriques, les joints et les composants en plastique.
L’installateur est responsable de l’installation de la valve et du
réglage de la température maximale de l’eau de cette valve à pression
équilibrée conformément aux instructions.
Kohler Co. Français-1 1059598-5-C
