Disassemble/Reassemble the Faucet
NOTE: Cover the drain with the plastic cap (provided) or towel to
avoid losing small parts during this procedure.
Disassemble
For K-7515, K-7517, K-7519, K-13460, K-13462, K-13466, K-13468,
K-13472, K-13474, K-45344, and K-45345 only, use the 2.5 mm hex
wrench provided to remove and retain the screw from the handle.
Remove and retain the handle with the spring washer.
Remove and retain the screw from the back of the faucet.
IMPORTANT! Take care to avoid scratching the sensor lens when
removing the spout.
Slide the spout forward and off the body.
Reassemble
Slide the spout over the body until the base of the spout is flush
against the mounting surface.
Reinstall the screw into the back of the faucet.
Handle
Spring
Washer
Screw
Handle Body
Screw
Back of Faucet
1244026-5-A 2 Kohler Co.

Disassemble/Reassemble the Faucet (cont.)
For K-7515, K-7517, K-7519, K-13460, K-13462, K-13466, K-13468,
K-13472, K-13474, K-45344, and K-45345 only, reinsert the handle
with spring washer into the faucet. Reinstall the screw to secure
the handle to the faucet.
If the Hybrid Energy Cell (HEC) has just been replaced, wait
approximately 2 minutes to allow the faucet to cycle through the
automatic sensing distance.
If the power was interrupted, wait approximately 2 minutes to
allow the faucet to cycle through the automatic sensing distance.
Kohler Co. 3 1244026-5-A

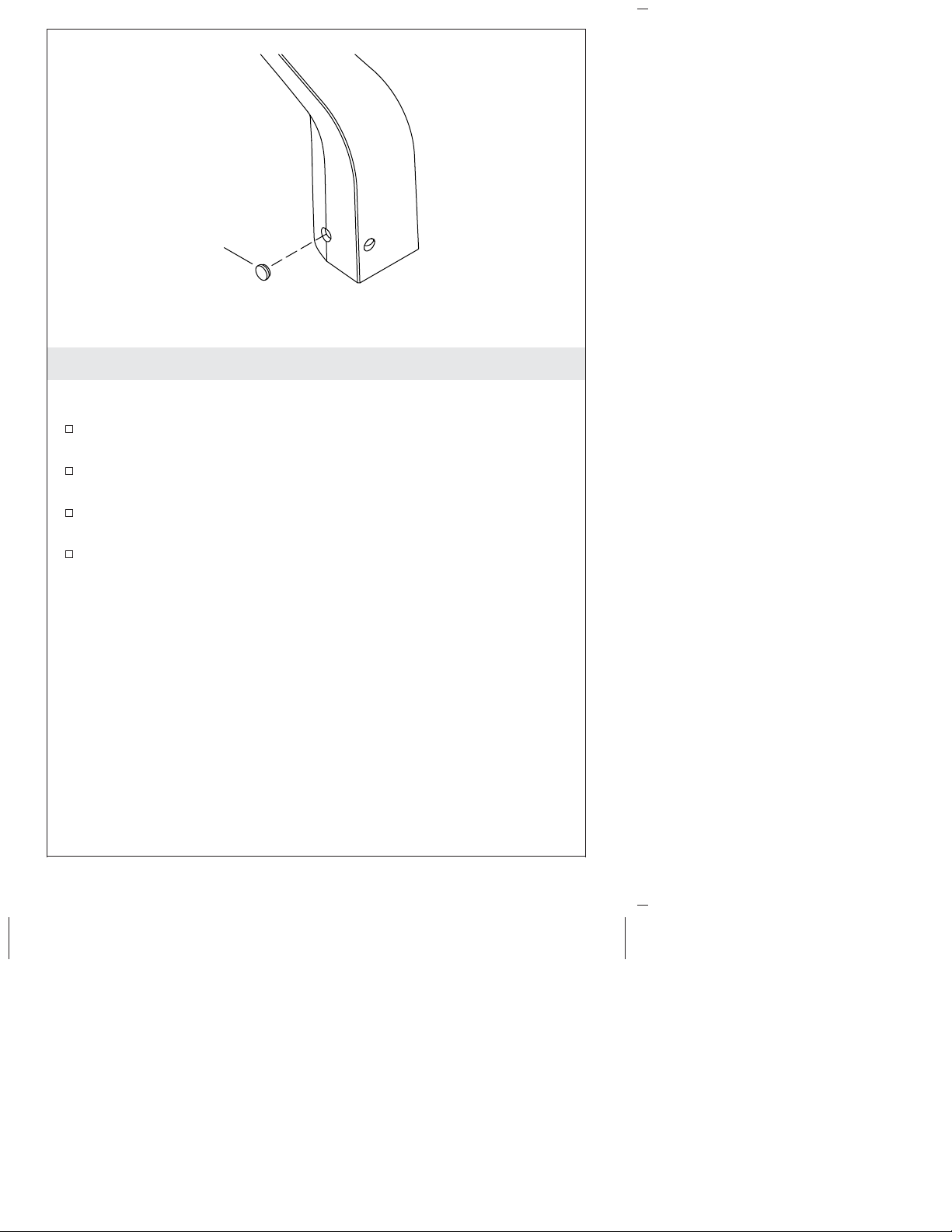

Removing the Vandal Resistant Plug
NOTE: Disassemble the faucet following the steps in the
″Disassemble/Reassemble the Faucet″section.
From inside the faucet body, use a screwdriver to pop out the
vandal-resistant plug button.
If you are adjusting the temperature, go to the ″Temperature
Limiting Adjustment″section and follow the instructions.
If you are installing the handle assembly, refer to the illustration
in the ″Temperature Limiting Adjustment″section.
Position the plug button and firmly press into place.
Vandal-Resistant
Plug Button
1244026-5-A 4 Kohler Co.

Temperature Limit Adjustment
CAUTION: Risk of personal injury. Scalding may result if
the temperature limit is not properly set.
NOTE: The water temperature does not need to be adjusted if the
water temperature is below 105°F (41°C).
NOTE: Use a thermometer rated for 120°F (49°C) or greater.
NOTE: When using a tempered water supply, install the
vandal-resistant plug button.
Adjust the Water Temperature Limit – Handle Installations
Turn on the water and adjust to full hot by turning the handle
toward the back of the faucet until it stops.
Determine the water temperature using a thermometer. If the
temperature exceeds 105°F (41°C), complete the following steps.
NOTICE: Do not rotate the handle when removing the screw.
Using the 2.5 mm hex wrench provided, remove and retain the
handle screw.
Remove and retain the handle with the spring washer.
Handle
Screw
Vandal-Resistant
Plug Button
Spring
Washer
Kohler Co. 5 1244026-5-A

Temperature Limit Adjustment (cont.)
Insert the handle at the desired maximum temperature. If the
handle is inserted horizontally: This is the maximum hot
temperature, where the water will be the same temperature as the
water from the hot water supply. If the handle is inserted
vertically (shown): This is the lowest cold temperature, where the
water will be the same temperature as the water from the cold
water supply.
NOTICE: Do not rotate the handle when reinstalling the screw.
Reinstall the spring washer into the handle, then attach the
handle to the faucet.
Secure the handle to the faucet with the screw.
Adjust the Water Temperature Limit – Vandal-Resistant Installations
NOTE: Save the handle to adjust the water temperature at a later
date.
Using the handle, adjust the water to the desired temperature.
Using the 2.5 mm hex wrench provided, remove and retain the
screw, spring washer, and handle.
Position the vandal-resistant plug button and firmly press into
place.
1244026-5-A 6 Kohler Co.

Service the Battery
Applies to K-13460, K-13461, K-13466, K-13467, K-13472, and
K-13473.
Disassemble the faucet to access the battery case. Refer to the
″Disassemble/Reassemble the Faucet″section.
Using a small torx screwdriver, remove and retain the two screws
from the battery case cover.
Insert two AAA Alkaline batteries (not provided) into the battery
case.
Reinstall the two screws into the battery case.
Reassemble the faucet.
Wait approximately 2 minutes to allow the faucet to cycle through
the automatic sensing distance before use.
Battery Case
Battery Cover
Screws
AAA Alkaline batteries
Kohler Co. 7 1244026-5-A

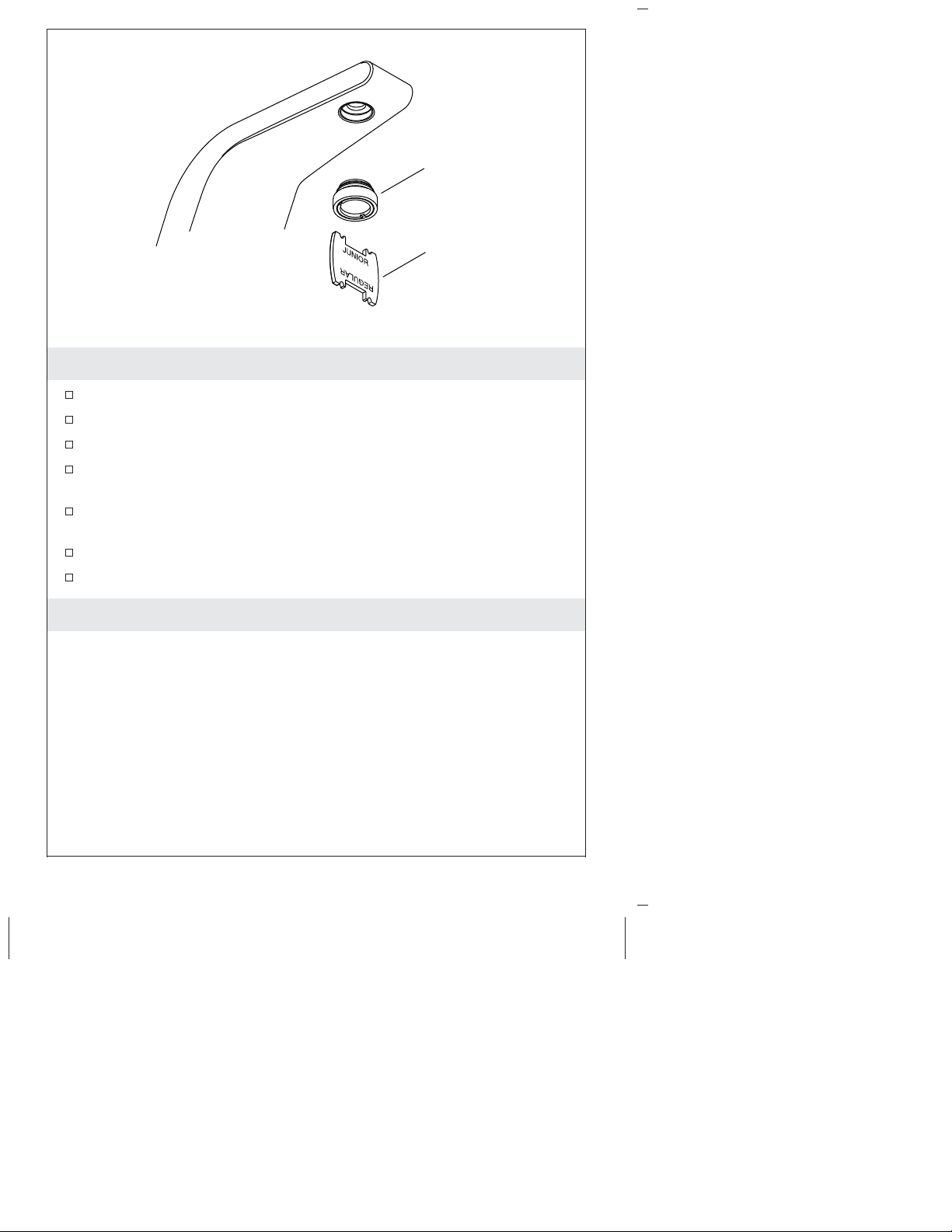

Remove Aerator
Using the key provided, remove the aerator from the spout.
If applicable, uncover the drain.
Turn on the water supply and check for leaks.
Allow the water to run through the spout for about 1 minute to
remove any debris. Check for leaks and adjust as needed.
Temporarily cover the sensors on the faucet or close the water
supplies.
Using the key provided, reinstall the aerator to the spout.
Uncover the sensors on the faucet or turn on the water supplies.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
Aerator
Key
1244026-5-A 8 Kohler Co.

Care and Cleaning (cont.)
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
Warranty
KOHLER
®
Electronic Faucets, Valves and Controls
FIVE-YEAR LIMITED WARRANTY
Kohler Co. warrants that its electronic faucets, valves and controls will
be free of defects in material and workmanship during normal
residential use for five years from the date the product is installed.
This warranty applies only to electronic faucets, valves and controls
installed in the United States of America, Canada and Mexico (″North
America″).
If a defect is found in normal residential use, Kohler Co. will, at its
election, repair, provide a replacement part or product, or make
appropriate adjustment where Kohler Co.’s inspection discloses any
such defect. Damage caused by accident, misuse, or abuse is not
covered by this warranty. Improper care and cleaning will void the
warranty*. Proof of purchase (original sales receipt) must be provided
to Kohler Co. with all warranty claims. Kohler Co. is not responsible
for labor charges, installation, or other incidental or consequential costs
other than those noted above. In no event shall the liability of Kohler
Co. exceed the purchase price of the faucet, valve or control.
If the electronic faucets, valves or controls are used commercially or are
installed outside of North America, Kohler Co. warrants that the
faucet, valve or control will be free from defects in material and
workmanship for one (1) year from the date the product is installed,
with all other terms of this warranty applying except duration.
If you believe that you have a warranty claim, contact your Home
Center, Dealer, Plumbing Contractor or E-tailer. Please be sure to
provide all pertinent information regarding your claim, including a
complete description of the problem, the product, model number, the
date the product was purchased, from whom the product was
purchased and the installation date. Also include your original invoice.
Kohler Co. 9 1244026-5-A

Warranty (cont.)
For other information, or to obtain the name and address of the service
and repair facility nearest you, write Kohler Co., Attn: Customer Care
Center, Kohler, Wisconsin 53044 USA, or by calling 1-800-4-KOHLER
(1-800-456-4537) from within the USA and Canada, and
001-800-456-4537 from within Mexico, or visit www.kohler.com within
the USA, www.ca.kohler.com from within Canada, or
www.mx.kohler.com in Mexico.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some
states/provinces do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of such damages, so
these limitations and exclusions may not apply to you. This warranty
gives the consumer specific legal rights. You may also have other
rights that vary from state/province to state/province. This warranty
is to the original consumer purchaser only, and excludes product
damage due to installation error, product abuse, or product misuse,
whether performed by a contractor, service company, or the
consumer.
This is Kohler Co.’s exclusive written warranty.
*Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, waxes, alcohol, solvents or other products not recommended
for chrome. This will void the warranty.
Troubleshooting
Symptoms Probable Causes Recommended Action
1. No water flow
immediately after
installation.
A. Water is not
turned on or the
water pressure is low.
A. Verify that the water
supply is turned on and
that pressure is at least
20 psi (137 kPa).
B. Power is not
connected or batteries
are incorrectly
installed.
B. Plug in the power
supply or check the
batteries for correct
installation.
1244026-5-A 10 Kohler Co.

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
C. Incorrect
installation. C. Verify that the faucet is mounted as
instructed in the
installation guide.
Ensure that the sensor
eyes are above the rim
of the sink. Refer to the
installation instructions.
2. No water flow. A. Filter is plugged. A. Turn off the water.
Disconnect the fittings
from the flex hoses.
Remove and clean the
filter screens.
B. Sensor eyes are
dirty. B. Wipe the sensor eyes with a damp soft cloth.
Wipe dry with a dry
soft cloth.
C. The aerator is
plugged. C. Remove and clean the aerator. For
calcium/mineral
deposits, soak the
plastic insert in a 50:50
mix of water and
vinegar. Soak only the
plastic insert.
D. Sensor eyes are
scratched. D. Replace the sensor assembly.
E. A flex hose is
kinked. E. Check the flex hoses to make certain they are
not kinked. If a flex
hose is kinked,
disconnect it, straighten,
and reconnect.
F. Power was
interrupted, batteries
were replaced, or
Hybrid Energy Cell
(HEC) has just been
replaced.
F. Wait 2 minutes after
the power is restored as
the sensor cycles
through the automatic
sensing distance.
G. HEC or battery
life is expired. G. Replace the HEC, power supply, or
batteries (two standard
AAA batteries and 1.5V
alkaline battery).
Kohler Co. 11 1244026-5-A

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
H. Bleed hole in the
diaphragm is
plugged or debris
exists on the seal.
H. Remove the spout
body. Clean or replace
the diaphragm.
I. Wires are pinched
or damaged. I. Check the wires for damage. Verify the
wires are tucked inside
the spout. Replace the
assembly with damaged
wires if needed.
J. There is a loose
connection. J. Check the solenoid and sensor connections.
Confirm the arrows are
aligned and connections
are secure.
K. There is water
leaking internally. K. Determine the cause of the leak. Check for
corrosion on
connections. Inspect the
valve O-ring for
damage. Replace if
needed. Clean the
terminals. Replace
damaged parts.
L. Solenoid is not
working. L. Install a new solenoid service kit.
3. Low flow. A. Filter is plugged. A. Clean or replace the
filters.
B. Supply pressure is
low. B. Check incoming water pressure. Pressure
should be at least 20 psi
(137 kPa).
C. Aerator is
plugged. C. Remove the aerator and clean it. For
calcium/mineral
deposits, soak the
aerator plastic insert in
a 50:50 mixture of
vinegar and water. Soak
only the insert and no
other components.
1244026-5-A 12 Kohler Co.

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
4. There is no power
to the faucet. A. Ground Fault Circuit Interrupter
(GFCI) or Residual
Current Device
(RCD) is tripped.
A. Reset the GFCI or
RCD.
B. The AC power is
not plugged in. B1. The AC power is not connected. Connect
the AC power.
B2. Measure the
voltage. There should
be 5V at 1.2A. If there is
no power or insufficient
power replace the AC
unit.
C. HEC or batteries
are dead. C. Replace the HEC or batteries (two standard
AAA batteries and 1.5V
alkaline battery).
5. Constant water
flow. A. Filter is plugged. A. Clean or replace the filters.
B. HEC or batteries
are dead. B. Replace the HEC or batteries (two standard
AAA batteries and 1.5V
alkaline battery).
C. The AC power
source is unstable,
off, or a circuit is
tripped.
C. Disconnect and
reconnect the power.
Wait 2 minutes after the
power is restored as the
sensor cycles through
the automatic sensing
distance.
D. Diaphragm seal is
damaged or dirty. D. If the diaphragm is cut or torn, order a new
diaphragm assembly.
Clean or replace the
diaphragm.
E. Solenoid is
plugged or is not
working.
E. Remove debris from
the solenoid or install a
new solenoid assembly.
Kohler Co. 13 1244026-5-A

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
6. Sporadic water
flow. A. The faucet is angled incorrectly to
deck or misaligned
with user area.
A. Verify that the faucet
is mounted according to
the installation
instructions. Ensure that
the faucet is installed in
a position that is above
the rim of the sink.
B. The wires are
pinched or damaged. B. Remove the spout and verify that the
wires are tucked inside
the spout before
reassembling.
7. Water is leaking
onto the deck. A. The valve O-ring is missing, cut, or
damaged.
A. Replace the O-ring.
8. Sensor flashes
once
approximately
every 2 seconds.
The product
continues to
operate.
A. The HEC,
batteries, or voltage is
low.
A. Replace the HEC,
power supply, or
batteries (two standard
AAA batteries and 1.5V
alkaline battery).
9. Sensor flashes
once
approximately
every 2 seconds.
The product does
not operate.
A. The HEC,
batteries, or voltage is
insufficient to allow
the product to
operate.
A. Replace the HEC,
power supply, or
batteries (two standard
AAA batteries and 1.5V
alkaline battery).
1244026-5-A 14 Kohler Co.

Guide du propriétaire
Robinet de lavabo de salle de bains
Kohler Co. Français-1 1244026-5-A

Désassembler/Réassembler le robinet
REMARQUE: Couvrir l’écoulement avec le capuchon en plastique
(fourni) ou une serviette pour éviter de perdre des pièces de petite
taille durant l’opération.
Désassembler
Pour les modèles K-7515, K-7517, K-7519, K-13460, K-13462,
K-13466, K-13468, K-13472, K-13474, K-45344 et K-45345
seulement, utiliser la clé hexagonale de 2,5 mm fournie pour
retirer puis conserver la vis de la poignée. Retirer et conserver la
poignée avec la rondelle élastique.
Retirer et conserver la vis de l’arrière du robinet.
IMPORTANT! Veiller à ne pas rayer la lentille du capteur lors de la
dépose du bec.
Faire glisser le bec vers l’avant et le dégager du corps.
Réassembler
Faire glisser le bec par-dessus le corps jusqu’à ce que la base du
bec soit à ras de la surface de fixation.
Poignée
Rondelle
élastique
Vis
Poignée Corps
Vis
Arrière du robinet
1244026-5-A Français-2 Kohler Co.

Désassembler/Réassembler le robinet (cont.)
Reposer la vis dans l’arrière du robinet.
Pour les modèles K-7515, K-7517, K-7519, K-13460, K-13462,
K-13466, K-13468, K-13472, K-13474, K-45344 et K-45345
seulement, réinsérer la poignée avec la rondelle élastique dans le
robinet. Réinstaller la vis pour sécuriser la poignée sur le robinet.
Si la cellule d’énergie hybride (HEC) vient d’être remplacée,
attendre 2 minutes environ afin de permettre au robinet
d’effectuer un cycle par la distance de détection automatique.
Si l’alimentation a été interrompue, attendre 2 minutes environ
afin de permettre au robinet d’effectuer un cycle par la distance
de détection automatique.
Kohler Co. Français-3 1244026-5-A

Retrait du bouchon anti-vandalisme
REMARQUE: Désassembler le robinet en suivant les étapes de la
section ″Désassembler/Réassembler le robinet″.
À partir de l’intérieur du corps du robinet, utiliser un tournevis
pour faire sortir le bouchon anti-vandalisme.
Si l’on effectue un réglage de température, aller à la section
″Réglage de la température limite″et suivre les instructions.
Si l’on installe l’ensemble de poignée, se référer à l’illustration
dans la section ″Réglage de la température limite″.
Positionner le bouchon et appuyer fermement dessus pour le
mettre en place.
Bouchon
anti-vandalisme
1244026-5-A Français-4 Kohler Co.

Réglage de la température limite
ATTENTION: Risque de blessures. Un mauvais réglage de
la limite de température peut provoquer des brûlures.
REMARQUE: La température de l’eau n’a pas besoin d’être réglée
si elle est inférieure à 105°F (41°C).
REMARQUE: Utiliser un thermomètre d’une capacité de 120 °F
(49 °C) ou plus.
REMARQUE: Lors de l’utilisation d’une arrivée d’eau tempérée,
installer le bouchon anti-vandalisme.
Réglage de la température limite de l’eau – Installations de poignée
Ouvrir le robinet d’eau et le régler à entièrement chaud en
tournant la poignée vers l’arrière du robinet jusqu’à ce qu’elle
s’arrête.
Déterminer la température de l’eau en utilisant un thermomètre.
Si la température dépasse 105°F (41°C), suivre les étapes
ci-dessous.
AVIS: Ne pas faire tourner la poignée durant le retrait de la vis.
Utiliser la clé hexagonale de 2,5 mm fournie pour retirer et
conserver la poignée.
Retirer et conserver la poignée avec la rondelle élastique.
Poignée
Vis
Bouchon
anti-vandalisme
Rondelle
élastique
Kohler Co. Français-5 1244026-5-A

Réglage de la température limite (cont.)
Insérer la poignée à la température d’eau maximum souhaitée. Si
la poignée est insérée horizontalement: Ceci est la température
chaude maximum, où l’eau sera à la même température que celle
de l’eau provenant de l’arrivée d’eau chaude. Si la poignée est
insérée verticalement (selon l’illustration): Ceci est la
température froide la plus basse, où l’eau sera à la même
température que celle de l’eau provenant de l’arrivée d’eau froide.
AVIS: Ne pas faire tourner la poignée lors de la réinstallation de la
vis.
Réinstaller la rondelle élastique dans la poignée, puis attacher la
poignée sur le robinet.
Sécuriser la poignée sur le robinet avec la vis.
Régler la température limite de l’eau – Installations anti-vandalisme
REMARQUE: Conserver la poignée pour régler la température de
l’eau à une date ultérieure.
Utiliser la poignée pour régler l’eau à la température souhaitée.
Utiliser la clé hexagonale de 2,5 mm fournie pour retirer la vis, la
rondelle élastique et la poignée, et les conserver.
Positionner le bouchon anti-vandalisme et appuyer fermement
dessus pour le mettre en place.
1244026-5-A Français-6 Kohler Co.
