IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE
USING
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface. Provide adequate ventilation
when bathing to avoid damage to the electronic components due to
high humidity levels.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not apply excessive
force to the spray wands.
IMPORTANT! Risk of product damage. In areas where water may
freeze in the pipes, make arrangements to keep the pipes warm.
Any water remaining in the seat may freeze during winter storage.
Allow the unit to warm to room temperature before reinstalling or
using.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed, as it may cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
DANGER: To reduce the risk of electrocution:
Do not place or store this product where it can fall or be pulled
into a bath or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
1321454-5-A 2 Kohler Co.

IMPORTANT SAFEGUARDS (cont.)
WARNING: To reduce the risk of burns, electrocution, fire,
or injury to persons:
Close supervision is necessary when this product is used by or
near children, the elderly, or invalids. Adjust the temperature of
the seat for the elderly, those who are incapacitated, or persons
with sensitive skin.
Use this product only for its intended use as described in this
manual. Only use attachments recommended by Kohler Co.
Never operate this product if it has a damaged cord or plug, if it
is not working properly, if it has been dropped, damaged, or
dropped into water. Return the product for examination and
repair.
Keep the cord away from heated surfaces.
Never block the air openings of the product or place it on a soft
surface, such as a bed or couch, where the air openings may be
blocked. Keep the air openings free of lint, hair, and the like.
Never use while sleeping or drowsy.
Never drop or insert any object into any opening or hose.
Do not use outdoors or where aerosol spray products are being
used or where oxygen is administered.
Connect this product to a properly grounded outlet only. See the
“Grounding Instructions” section.
This product conforms to applicable provisions of US 21 CFR,
Chapter 1, Subchapter J, Radiological Health.
SAVE THESE INSTRUCTIONS
Features
Remote Control - The remote control allows the user to operate
the cleansing seat without coming into contact with it.
Cleansing Wash - Front or rear wash with oscillating action, and
massage wash. The water temperature and water pressure are
adjustable.
Dryer - Air dryer for use after cleansing. The air temperature can
be adjusted.
Kohler Co. 3 1321454-5-A

Features (cont.)
Seat and Cover Open/Close- The seat and cover can be set to be
opened and closed automatically. You can also open and close the
seat and cover with the remote control, or manually.
Heated Seat - When activated, this feature keeps the seat warm.
The temperature setting is adjustable.
Deodorizer - Removes or reduces odors from the air when
activated.
Power Saving - There are three power savings levels: low, high,
and off.
Night Light - A sensor in the seat automatically detects the room
lighting intensity and adjusts the night light accordingly.
Removable Seat - The seat removes easily for cleaning.
1321454-5-A 4 Kohler Co.

Operation

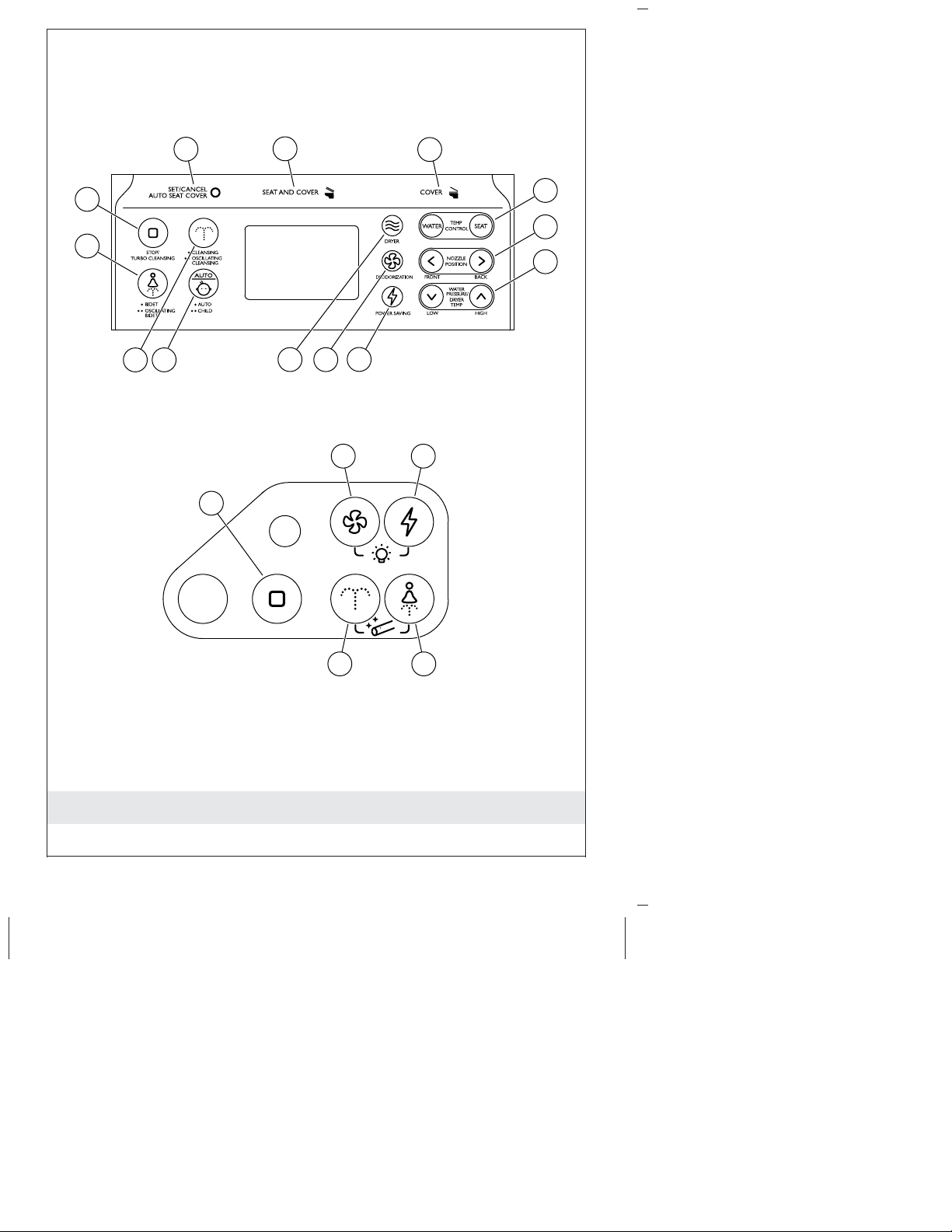

Remote Control
ABC
D
E
FIJ
K
GH
L
M
Panel
N
RQ
P
O
Kohler Co. 5 1321454-5-A

Operation (cont.)
NOTE: Make sure that three AA batteries are installed correctly in
the remote control.
NOTE: Replace the batteries if the battery indicator display blinks.
NOTE: Seat cover mode is preset by the manufacturer to open and
close automatically when a user approaches or leaves the toilet area.
A - Set/Cancel Auto Seat Cover: Touch this icon one time to turn
off the automatic seat open and close feature. Touch the icon a
second time to turn the automatic open and close feature on
again.
B - Seat and Cover: This is the manual open and close icon for
the seat and cover. Touch this icon to manually open and close
the seat and cover.
C - Cover: This is the manual open and close icon for the cover
alone. Touch this icon to manually open and close the cover.
D - Stop/Turbo Cleansing: Stops the front wash, rear wash, or
deodorizer features. The deodorizer automatically reactivates after
a short period when the seat sensor detects the next user. If
desired, touch this icon when no features are in operation to start
a 2-minute high-pressure rear massage.
E - Bidet/Oscillating Bidet: Activates the rear wash feature.
Touch the icon a second time to activate the oscillation feature.
Operation will stop automatically after 2 minutes, and can be
resumed by pressing the icon again.
F - Cleansing/Oscillating Cleansing: Activates the front wash
feature. Touch the icon a second time to activate the oscillation
feature. Operation will stop automatically after 2 minutes, and
can be resumed by pressing the icon again.
G - Auto/Child: Touch the ″AUTO/CHILD″icon once to turn on
the automatic cleansing feature. During the auto cleansing mode,
oscillating cleansing will run for 2 minutes, followed immediately
by 5 minutes of dryer time. The water pressure, water
temperature, seat temperature, and dryer air temperature used
during the previous visit will be applied. Touch the
″AUTO/CHILD″icon a second time to activate the automatic
child user features. The water pressure, water temperature, seat
temperature, and dryer temperature will all operate at their
lowest settings. The child wash feature will run for 1 minute, and
the dryer will operate for 2 minutes. Except for water pressure,
you can adjust all the ″AUTO/CHILD″mode features during
operation.
1321454-5-A 6 Kohler Co.

Operation (cont.)
H - Dryer: Touch the ″DRYER″icon to turn on the heated air
dryer feature. The dryer will stop after about 5 minutes, or you
can touch the ″STOP″icon to turn off the dryer feature at any
time. With the dryer running, touch the up or down arrow icons
to adjust the warm air temperature. You can adjust the warm air
temperature to one of five settings: Off, Very Low, Low, Medium,
or High.
I - Deodorization: The deodorizer feature turns on automatically
when the seat is occupied. The deodorizer will turn off
automatically about 1 minute after the user leaves the seat, or will
turn off after 15 minutes of continuous use. Press the
deodorization icon to manually turn on and off the deodorizer.
J - Power Saving: Touch the ″POWER SAVING″icon to change
the power-saving setting. You can adjust the power-saving mode
to one of three settings: Low Econo, High Econo, or Off. In Low
Econo mode, the seat temperature is set at 82°F (28°C) until the
user manually changes the seat temperature. After the user stands
and leaves the seat, the temperature will return to 82°F (28°C). In
High Econo mode, the seat temperature and most of the icon
lights will be off until the user manually increases the seat
temperature. High Econo mode will continue for 8 hours from the
time the mode is selected.
K - Temp Control: Touch the ″WATER″or ″SEAT″icon to adjust
the water or seat temperature setting. You can adjust the
temperature to one of five settings: Off, Very Low, Low, Medium,
or High.
L- Nozzle Position: With the bidet or cleansing features in
operation, use the ″FRONT″or ″BACK″arrow icons to adjust the
spray wand position out or in. There are three spray wand
position options.
M- Water Pressure/Dryer Temp: With the bidet or cleansing
features in operation, use the ″LOW″or ″HIGH″arrow icons to
adjust the cleansing water pressure. You can adjust the water
pressure to one of four settings: Very Low, Low, Medium, or
High. The water pressure used during the previous visit is saved
for the next user.
Kohler Co. 7 1321454-5-A

Operation (cont.)
Adjusting Touch Sensitivity - You can change the touch
sensitivity of the icons on your remote control. Touch and hold
the ″DEODORIZATION″icon for at least 3 seconds until the
″User Setup″screen appears. Use the up or down arrow icons to
highlight the touch sensitivity setup column. Then use the
increase or decrease arrow icons to adjust the touch sensitivity to
one of seven sensitivity levels. Touch the ″STOP″icon to save the
setting and close the ″User Setup″screen.
LCD Lighting Time - You can change the length of time the LCD
light stays on after you touch an icon. Touch and hold the
″DEODORIZATION″icon for at least 3 seconds until the ″User
Setup″screen appears. Use the up or down arrow icons to
highlight the LCD lighting time setup column. Then use the
increase or decrease arrow icons to adjust the LCD lighting time
to one of five settings: Off, 3 seconds, 5 seconds, 8 seconds, or 10
seconds. Touch the ″STOP″icon to save the setting and close the
″User Setup″screen.
LCD Display Time - You can change the length of time the LCD
display stays on after you touch an icon. Touch and hold the
″DEODORIZATION″icon for at least 3 seconds until the ″User
Setup″screen appears. Use the up or down arrow icons to
highlight the LCD display time setup column. Then use the
increase or decrease arrow icons to adjust the LCD display time
to one of three settings: 10 seconds, 20 seconds, or Continuous
On. Touch the ″STOP″icon to save the setting and close the ″User
Setup″screen.
Night Light: Simultaneously touch and hold the ″POWER
SAVING″and ″DEODORIZATION″icons for 3 seconds to turn on
and off the night lighting feature. A sensor in the seat
automatically detects the room lighting, and adjusts the night
light accordingly.
N- Stop: Press the ″STOP″icon to stop the front wash, rear wash,
or deodorizer features. The deodorizer automatically reactivates
after a short period when the seat sensor detects the next user.
O - Deodorization: Touch the deodorizer icon to initiate
automatic deodorizer operation when the seat is in use. The
deodorization process will stop automatically about 1 minute
after you stand and leave the seat.
1321454-5-A 8 Kohler Co.

Operation (cont.)
P - Power Saving: Touch the ″POWER SAVING″icon to change
the power-saving setting. You can adjust the power-saving mode
to one of three settings: Low Econo, High Econo, or Off. In Low
Econo mode, the seat temperature is set at 82°F (28°C) until the
user manually changes the seat temperature. After the user stands
and leaves the seat, the temperature will return to 82°F (28°C). In
High Econo mode, the seat temperature and most of the icon
lights will be off until the user manually increases the seat
temperature. High Econo mode will continue for 8 hours from the
time the mode is selected.
Q - Cleansing: Press this icon to activate the front wash feature.
Press the icon a second time to activate the oscillation feature.
Operation will stop automatically after 2 minutes, and can be
resumed by pressing the icon again. See the ″Remote Control
Operation″section to adjust the spray wand position.
R - Bidet: Activates the rear wash feature. Press the icon a second
time to activate the oscillation feature. Operation will stop
automatically after 2 minutes, and can be resumed by pressing
the icon again. See the ″Remote Control Operation″section to
adjust the spray wand position.
Open the Seat - A sensor will detect when you approach the seat
and will open the seat automatically. You can also choose to open
the seat manually if you prefer.
Close the Seat - Close the seat manually, or use the remote
control to set the seat to close automatically. The seat is designed
to close slowly. Do not force the seat to close faster.
Kohler Co. 9 1321454-5-A

Clean the Spray Wand
Raise the lid and seat.
Press and hold the front and rear wash buttons on the side panel
for several seconds until the spray wand stops in the fully
extended position.
Remove and retain the spray wand cleaning cover.
Clean the spray wand with a soft-bristled brush and hot water.
Pull the spray wand tip to remove the tip from the nozzle body.
Clean the nozzle with a soft-bristled brush and hot water.
Turn the nozzle body counterclockwise to remove it from the
spray wand.
Clean the exposed spray wand nozzle and inside the nozzle body
with a soft-bristled brush and hot water.
Securely handtighten the nozzle body in the clockwise direction
to reinstall it to the spray wand.
Hold the nozzle body firmly with one hand, and press the nozzle
tip firmly back onto the nozzle body.
Pull back the nozzle cleaning cover, and close the seat and cover.
Press the stop button to retract the spray wand.
Spray
Wand
1321454-5-A 10 Kohler Co.
