Kohler K-146 Assembly instructions

Homeowners Guide
Single-Control Bath and Shower Trim
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-146 K-T6808
K-T6809 K-T6810
117108-5-B

IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: Risk of scalding or other severe injury.
•Before completing installation, the installer must set the
maximum water temperature setting of this valve to minimize the
risks associated with scalding hazards according to ASTM F 444.
•Do not install a shut-off device on either outlet of this valve. The
installation of any such device may create a cross-flow condition
at the valve and affect the water temperature.
•Factors that change the temperature of the water supplied to the
valve, such as seasonal water temperature changes, and water
heater replacement or servicing, will change the maximum water
temperature supplied by the valve and may create a scalding
hazard. The pressure-balanced valve will not compensate for
changes in the water supply temperature; adjust the maximum
water temperature setting of this pressure-balanced valve when
such changes occur.
•Pressure-balanced valves may not provide protection against
scalding if there is a failure of other temperature-limiting devices
elsewhere in the plumbing system.
WARNING: Risk of product damage. Only silicone based
lubricants should be used with these valves. Use of
petroleum based lubricants on the valve is harmful to the
O-rings, seals, and plastic components. Use of petroleum
based lubricants will void the warranty.
The installer is responsible for installing the valve and adjusting the
maximum water temperature of this pressure-balanced valve
according to instructions.
This valve meets or exceeds ANSI A112.18.1 and ASSE 1016.
If you do not understand any of the installation or temperature
adjustment instructions in this document, in the United States please
contact our Customer Service Department at 1-800-4-KOHLER.
Outside the U.S., please contact your distributor.
117108-5-B 2 Kohler Co.

IMPORTANT INSTRUCTIONS (cont.)
IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in
the adjacent box and on the valve label. Then insert these instructions
into the plastic bag included with the valve package, and attach the
plastic bag to the valve handle for the homeowner’s reference.
NOTICE TO HOMEOWNERS! This device has been preset by
_______________________ of _______________________________ to
ensure a safe maximum temperature. Any change in the setting may
raise the discharge temperature above the limit considered safe, and
lead to scalds.
Date: ______________
Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Bath Faucet
Your new bath and shower trim blends elegant styling and beauty
with exceptional performance and reliability. Each trim kit is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
Kohler Co. 3 117108-5-B

Care and Cleaning (cont.)
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537 and press 1 for Kohler Products and then 3 for
Literature.
117108-5-B 4 Kohler Co.

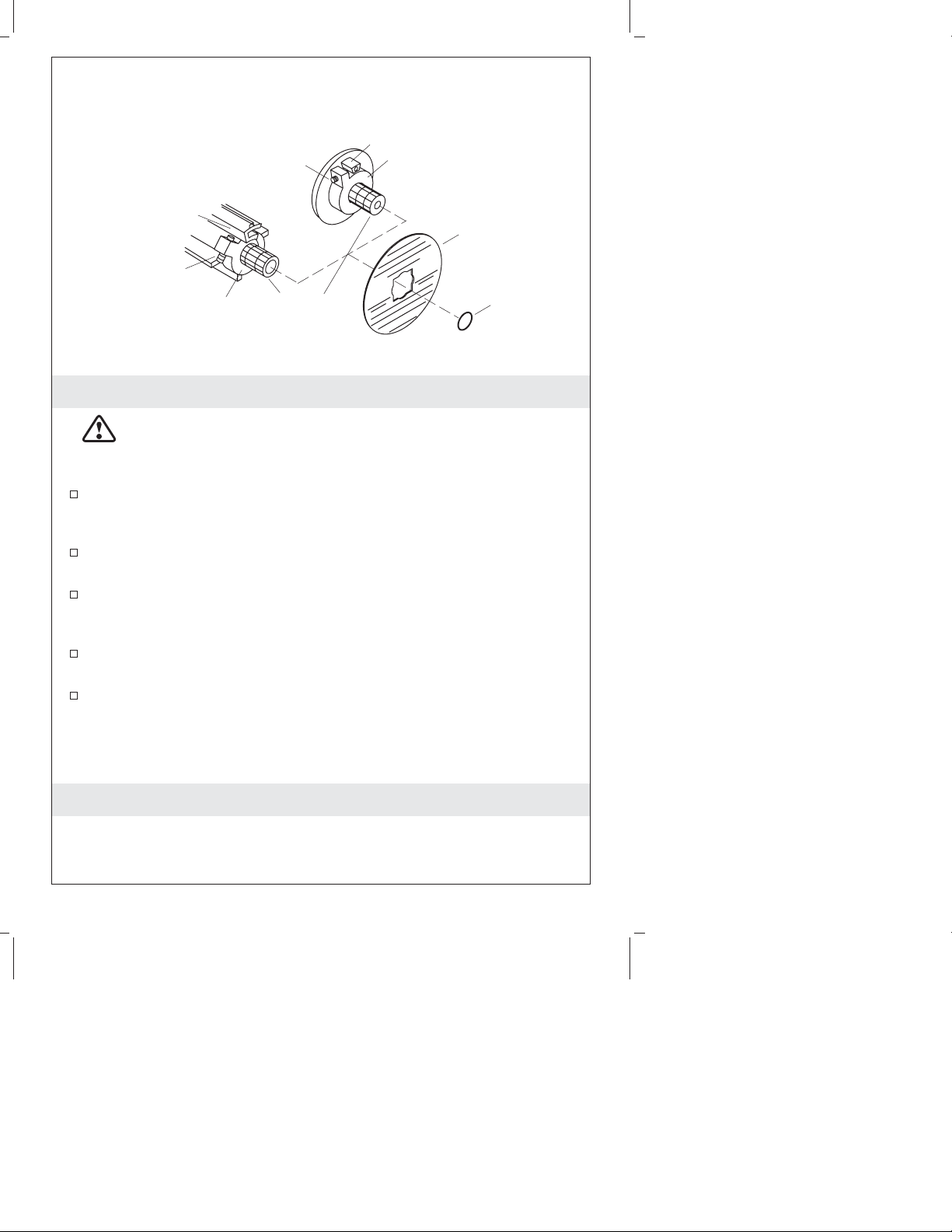

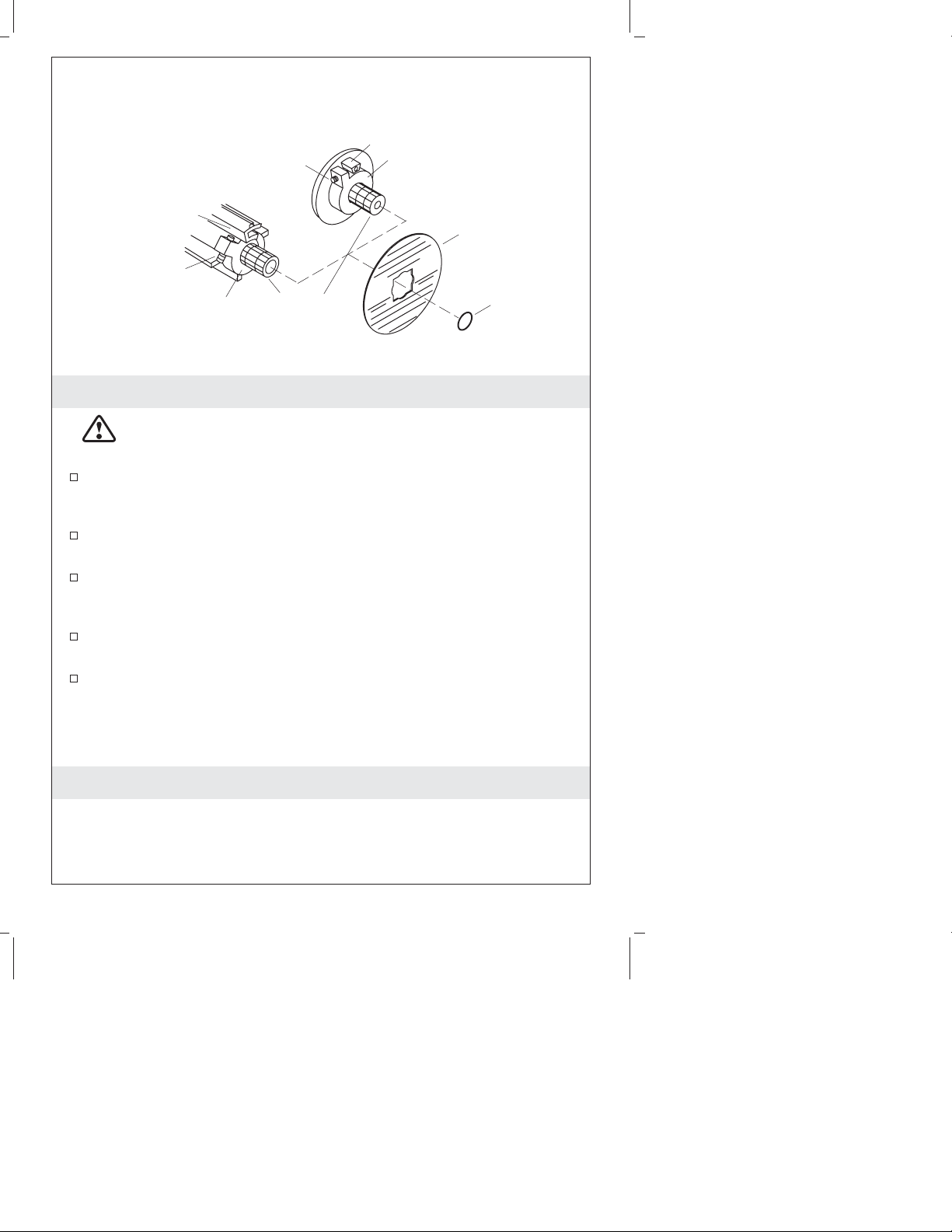

Adjustments
CAUTION: Risk of personal injury. Do not set the water
temperature above 120°F (49°C). Setting the water
temperature at or below this temperature will minimize the
risk associated with scalding hazards.
Turn the valve clockwise to the full open position and let the hot
water run for several minutes. Position a thermometer in the
water stream and check the temperature.
For minor water temperature changes, adjust the setscrew, and
recheck the water temperature.
For major water temperature changes, remove the O-ring and
collar from the valve stem. Slowly rotate the valve stem until the
desired water temperature is reached.
Reinstall the collar on the valve stem with the setscrew against
the side of the tab.
Reinstall the O-ring, rotate the valve stem counterclockwise to
shut the water off, and recheck the water temperature.
NOTE: After adjustment, complete the required information on the
valve label.
Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
Setscrew
Tab
Valve Stem
Collar
Valve Label
O-Ring
Tab
Collar
Setscrew
HiFlow Valve
All Other Valves
Kohler Co. 5 117108-5-B

Lifetime Limited Warranty — USA and Canada (cont.)
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
117108-5-B 6 Kohler Co.

Lifetime Limited Warranty — USA and Canada (cont.)
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
Kohler Co. 7 117108-5-B

One-Year Warranty (cont.)
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
117108-5-B 8 Kohler Co.

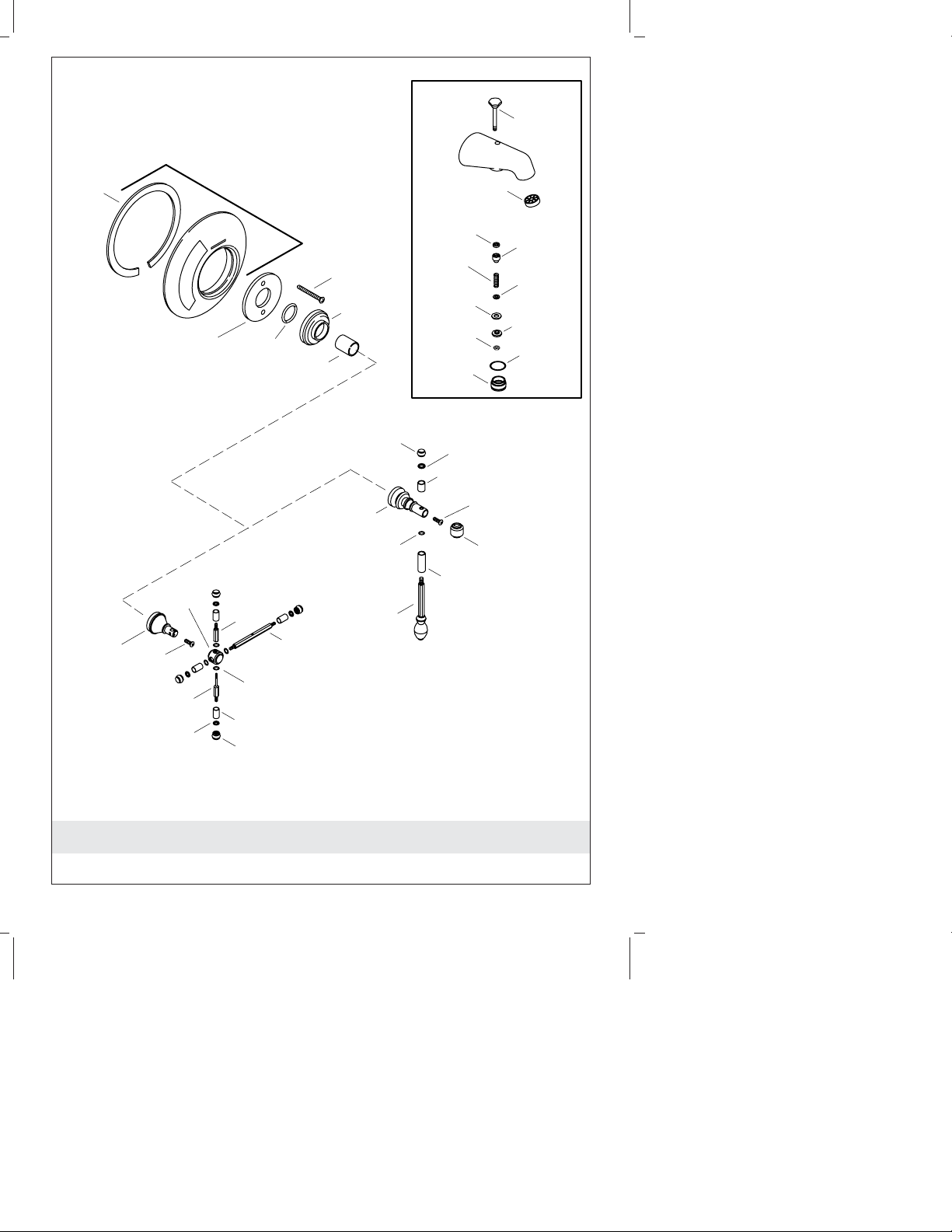

Service Parts
**Finish/color code must be specified when ordering.
75372
42290
Gasket 75460**
Escutcheon
36644**
Escutcheon
76010**
Sleeve
52705**
Screw
36645**
Washer 48694
O-Ring
36635**
Cap
77876
Washer
36639**
Sleeve
58891
Screw
36631**
Cap
36646**
Bonnet
75372
O-Ring
36640**
Sleeve
36622**
Handle
55739**
Arm
O-Ring
55740**
Sleeve
36635**
Cap
77876
Washer
55852**
Stud
58891
Screw
55774**
Bonnet
55734**
Cap 55738**
Stud
20536**
Lift Rod
38808
Stream Breaker
50713
Washer 73646
Bushing
1059027
Spring 59391
Washer
51290
Gasket 59347
Seal Plate
41517
Nut 38676
O-Ring
38711
Cap
73744**
Spout
Kohler Co. 9 117108-5-B

**Finish/color code must be specified when ordering.
36728**
Escutcheon
41364
O-Ring
36638**
Sleeve
36662**
Collar
32966**
Setscrew
1020007**
Shower Arm
1078427**
Nut
52843
Washer
29266
Washer
29497
Spring
24981
Packing
29520
Washer
35719
Washer
29548**
Nut 29476**
Screw
29508**
Handle
20960
O-Ring
29426**
Crank
29420
Plunger
29424
Ring
29428**
Washer
29422
Tube
1078429**
Showerhead
29429
O-Ring 58003**
Face
29418**
Screw
29501
Washer
57346**
Ball Joint
58314**
Showerhead
117108-5-B 10 Kohler Co.
