Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Bidet Faucet
Your new bidet faucet blends elegant styling and beauty with
exceptional performance and reliability. Each faucet is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Your bidet faucet is used for partial bathing. The user sits on the rim of
the bowl facing the faucet. Fresh water enters the bidet in a stream
from the bidet faucet. A drain retains water in the bowl if desired.
The bidet may also be used as a footbath. It is roomy and low enough
to use easily while sitting on a chair.
Care and Cleaning
For best results, keep the following in mind when caring for your
Kohler product:
•Test First - Always test your cleaning solution on an
inconspicuous area before applying it to the entire surface.
•Do Not Let Cleaners Soak - Do not allow cleaners to sit or soak
on the product.
•Avoid Abrasive Materials - Use a soft, dampened sponge or
cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
•Wipe Clean - Wipe surfaces clean and rinse completely with
water immediately after applying cleaners. Rinse and dry any
overspray that lands on nearby surfaces.
1050856-5-A 2 Kohler Co.

Care and Cleaning (cont.)
Care Tip: The ideal cleaning technique is to
always blot dry any water from metal surfaces.
Allowing water to evaporate on metal will
form water deposits. It is important to use a
dabbing action to dry metal, not an abrasive or
rubbing action. Cleaning with a damp sponge
and blot drying should keep your product
looking beautiful.
Chrome, Solid Color, and Vibrant
®
PVD Color/Finishes – Faucets and
Fittings:
•Do not use cleaners containing ammonia, bleach, or acid.
•Use a mild detergent such as dishwashing soap. Do not use
abrasive cleaners.
•Rinse and be sure to blot the entire surface dry.
•Consider using Comet
®
Bathroom Cleaner, Windex
®
Original, or
Fantastik
®
Antibacterial All Purpose Cleaner.
Vitreous China Faucets:
•Rinse thoroughly and use a soft cloth to wipe the product after
each use.
•Soft abrasive cleaners may be used when necessary to clean
vitreous china products. Strong abrasive cleaners will scratch and
dull the surface.
•Consider using Comet
®
Bathroom Cleaner, Windex
®
Original, or
Fantastik
®
All Purpose.
NOTICE: Failure to comply with these cleaning instructions may
void Kohler’s warranty obligations.
NOTE: Success with cleaners and procedures is dependent upon
such factors as the hardness and temperature of the water, using
exact quantities of ingredients, changes in cleaning formulas, and
the condition of the product being cleaned. Since there are variations
within these factors, Kohler cannot guarantee the effectiveness of the
formulas mentioned.
Kohler Co. 3 1050856-5-A

Optional Temperature Limiting Adjustment
NOTE: The water temperature does not need to be adjusted if the
maximum water temperature is below 105°F (41°C).
Lift and turn the lever handle to the full hot position.
Determine the temperature using a thermometer. If the
temperature exceeds 105°F (41°C), complete the following steps.
Using a flat-blade screwdriver, carefully pry the plug button off
the lever handle.
Loosen the setscrew on the handle with a hex wrench, then
remove the handle and bonnet.
Note the position of the locking ring relative to the inner geared
ring.
NOTE: To avoid damage to the locking ring during removal, pry
each side of the locking ring off the inner geared ring with an equal
and even technique.
Gradually pry each side of the locking ring up off the inner
geared ring and onto the valve stem with a flat-blade screwdriver.
Rotate the valve stem clockwise to increase temperature, or
counterclockwise to decrease temperature.
Reinstall the locking ring into the inner geared ring.
Reinstall the bonnet and handle to the faucet body.
Test the setting and make any adjustments as needed.

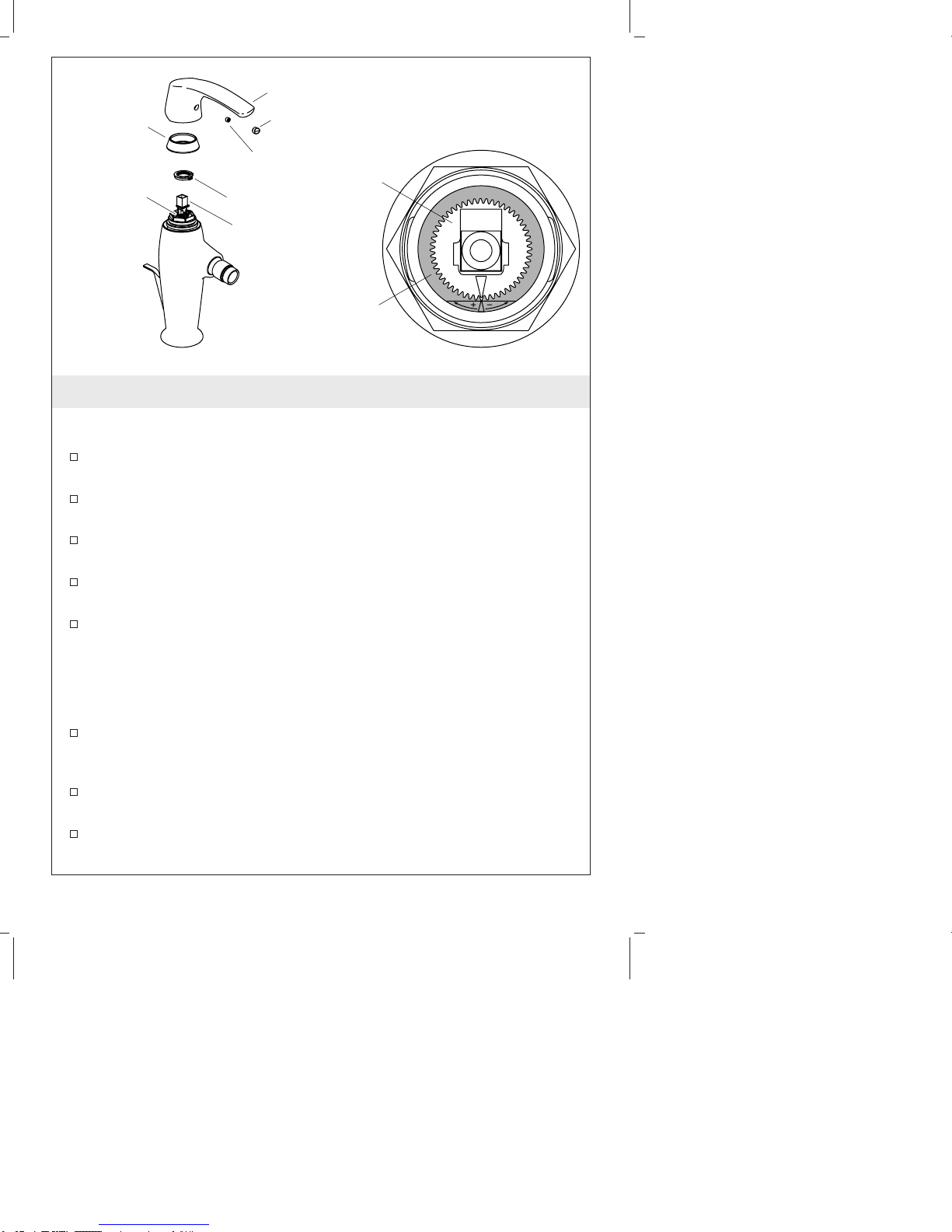

Setscrew
Plug Button
Handle
Bonnet
Inner
Geared
Ring
Inner
Geared
Ring
Locking
Ring
Locking Ring
Valve Stem
1050856-5-A 4 Kohler Co.

Optional Temperature Limiting Adjustment (cont.)
After all adjustments have been made, use a hex wrench to
tighten the setscrew.
Press the plug button into place.
Lifetime Limited Warranty - USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak- and drip-free during normal residential use for as long as the
original consumer purchaser owns his or her home. If the faucet
should leak or drip during normal use, Kohler Co. will, free of charge,
mail to the purchaser the cartridge necessary to put the faucet in good
working condition. This warranty applies only to KOHLER faucets
installed in the United States of America, Canada or Mexico (North
America).
Kohler Co. also warrants all other aspects of the faucet or accessories
(″Faucet″)*, (except gold, non-PVD Vibrant
®
, non-chrome finishes) to be
free of defects in material and workmanship during normal residential
use for as long as the original consumer purchaser owns his or her
home. If a defect is found in normal residential use, Kohler Co. will, at
its election, repair, provide a replacement part or product, or make
appropriate adjustment. Damage to a product caused by accident,
misuse, or abuse is not covered by this warranty. Improper care and
cleaning will void the warranty.** Proof of purchase (original sales
receipt) must be provided to Kohler Co. with all warranty claims.
Kohler Co. is not responsible for labor charges, installation, or other
incidental or consequential costs. In no event shall the liability of
Kohler Co. exceed the purchase price of the Faucet.
If the Faucet is used commercially or is installed outside of North
America or if the finish is gold, non-PVD Vibrant or non-chrome,
Kohler Co. warrants the Faucet to be free from defects in material and
workmanship for one (1) year from the date the product is installed,
under Kohler Co.’s standard one-year limited warranty.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
Kohler Co. 5 1050856-5-A

Lifetime Limited Warranty - USA and Canada (cont.)
from within Canada and 001-877-680-1310 from within Mexico.
Kohler Co. and/or seller are providing these warranties in lieu of all
other warranties, expressed or implied, including but not limited to
the implied warranties of merchantability and fitness for a particular
purpose. Kohler Co. and/or seller disclaim any liability for special,
incidental or consequential damages.
Some states/provinces do not allow limitations of how long an implied
warranty lasts or the exclusion or limitation of such damages, so these
limitations and exclusions may not apply to you. This warranty gives
the consumer specific legal rights. You may also have other rights that
vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
*Trend
®
faucets; MasterShowerTM tower; BodySpaTM systems and
components; WaterHavenTM tower, systems and components; polished
gold, non-PVD Vibrant and non-chrome finishes; fittings; all items
within the ″Fixture Related″section of the Kohler Faucets Price Book,
drains, Duostrainer
®
sink strainers, soap/lotion dispensers; and faucets
used in commercial settings and outside North America, are covered
by Kohler Co.’s one-year limited warranty. Electronic faucets, valves
and controls are covered by a five-year limited warranty.
**Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, waxes, alcohol, solvents or other products not recommended for
chrome. This will void the warranty.
One-Year Warranty - Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
1050856-5-A 6 Kohler Co.

One-Year Warranty - Mexico (cont.)
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 7 1050856-5-A

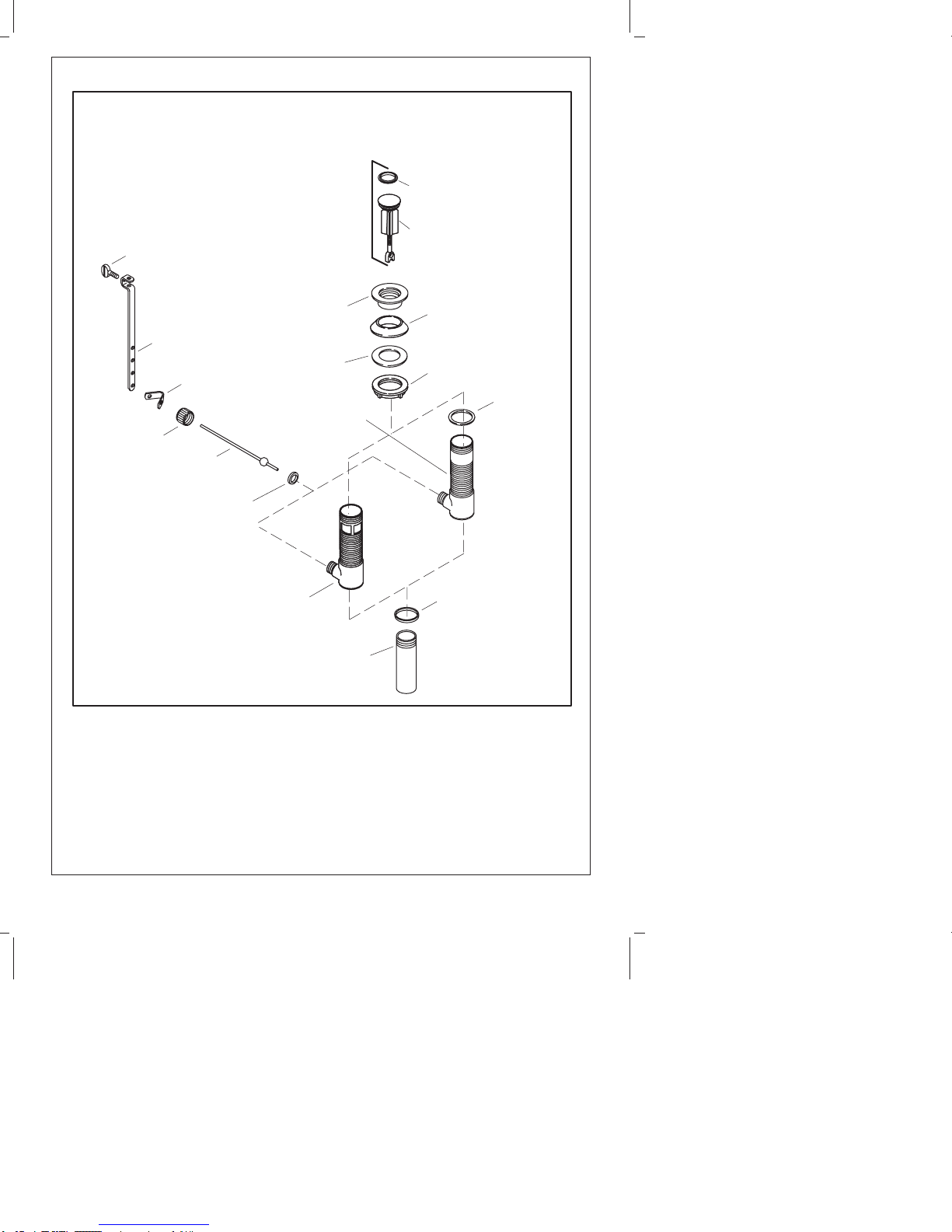

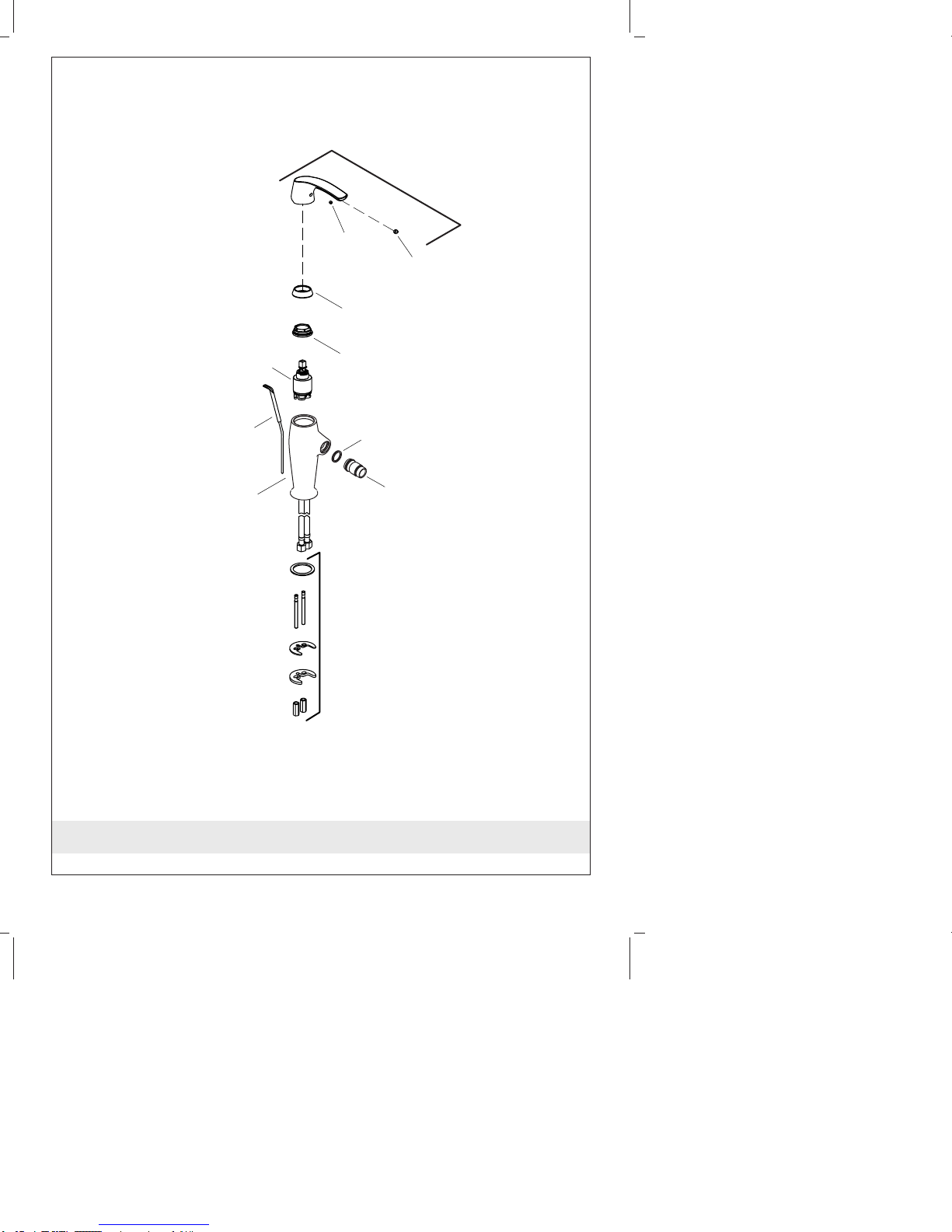

Service Parts
1054253**
Spray
836939
Plug
833438
Screw
1046018**
Handle
**Finish/colorcodemustbespecifiedwhenordering.
865222**
Bonnet
865221**
Nut
1017426
Valve
1055742
Bracket
898783**
Lift Rod
Not Available as a Service Part
1054023
Washer
1050856-5-A 8 Kohler Co.

1037022**
1036932**
1037346
1035564
40228
1025645**
1037390
1025642
1036351**
1030925
1025639**
1035348**
1025678
1025650
1035350**
Stopper
Trim Ring
Screw
Link
Clip
Nut
Rod
Washer
Tailpiece
Washer
Body
Nut
Washer
Seal
Fin
(Metal stopper fins with overflow)
1037023** (Plastic stopper fins with overflow)
Drain
(Metal)
1037021** (Plastic) 1025656
O-Ring
1035351** (Metal stopper fins without overflow)
(With Overflow)
1032296**
Body (Without Overflow)
1025654
Washer
**Finish/color code must be specified when ordering.
Kohler Co. 9 1050856-5-A

Guide du propriétaire
Robinet de bidet mono-contrôle
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la ligne the Bold Look of Kohler. Le travail soigné
des artisans de Kohler vous fera apprécier une rare combinaison de
performances prouvées et une sophistication gracieuse, qui vous
satisferont pour les années à venir. La fiabilité et la beauté de votre
produit Kohler surpasseront vos plus grandes espérances. Chez Kohler,
nous sommes fiers du rendement de nos produits et nous savons que
vous le serez aussi.
Veuillez prendre s’il vous plait quelques minutes pour consulter ce
guide du propriétaire. Prêter une attention toute particulière aux
instructions d’entretien et de nettoyage.
Toute l’information dans ce manuel est basée sur la dernière disponible
au moment de la publication. Chez Kohler, nous veillons constamment
à améliorer la qualité de nos produits. Nous nous réservons le droit
d’apporter des modifications aux caractéristiques, emballages et
disponibilités des produits à tout moment, et ce sans préavis.
Votre robinet de bidet Kohler
Votre nouveau robinet combine un style élégant et une beauté avec une
performance et une fiabilité exceptionnelles. Chaque robinet est conçu
avec précision et fabriqué avec des matériaux de haute qualité, pour
garantir un fonctionnement sans problème, même dans des régions aux
conditions d’eau extrêmes.
Votre robinet de bidet est utilisé pour des toilettes partielles.
L’utilisateur s’asseoit sur le rebord de la cuvette tout en faisant face au
robinet. De l’eau fraîche jaillit verticalement du robinet du bidet dans
la cuvette de ce dernier. Le drain retient l’eau dans la cuvette si désiré.
Le bidet peut aussi être utilisé comme bain de pieds. Il est spacieux et
suffisamment bas pour l’utiliser tout en s’asseyant sur une chaise.
Entretien et nettoyage
Pour de meilleurs résultats, prendre ce qui suit en considération lors
de l’entretien de votre produit Kohler:
•Tester d’abord - Toujours tester la solution de nettoyage sur une
surface la moins évidente avant de l’appliquer sur la totalité de la
surface.
Kohler Co. Français-1 1050856-5-A
