Kohler K-3396 Assembly instructions

Homeowners Guide
Professional Cook Sink
K-3396
1032055-5-A

Important Safety Instructions
Save these instructions.
The Kohler Professional Cook Sink (PRO CookSink
®
) incorporates
several safety features, both active and passive, in order to prevent
injury or property damage. A number of design features make the cook
sink easy and safe to use. For your safety, the cook sink unit is listed
by Underwriters Laboratory (UL).
Some of the active safety features are as follows:
The Kohler Cook Sink does not operate until the unit is turned on
and the power is set.
The Kohler Cook Sink has a red indicator that operates at about
140° F (60° C) to alert the operator that the pot is hot.
Over-temperature protection is provided for the Kohler Cook Sink
at about 250° F (121° C). At that point, all 10 power LEDs flash.
The LEDs continue to flash until the temperature decreases. If the
unit is not manually turned off within about two minutes, the
heating element shuts off. If the cook sink cools down below the
high temperature alarm setpoint and the temperature control
remains unchanged, the heater will turn on again.
If the unit overheats and cools down 10 cycles in a row, another
protective feature will turn off the control and reset the
temperature setpoint. The power switch must be pressed again in
order to operate the unit.
When using electrical appliances, basic safety precautions should
always be followed. These include the following:
Read all instructions.
Do not operate the cook sink if it malfunctions or has been
damaged in any way. Do not operate any appliance with a
damaged cord or plug. Contact the nearest authorized service
facility for examination, repair, or adjustment.
Be sure your appliance’s electrical service has been installed
properly and has been grounded by a qualified electrician.
To reduce the risk of fire, do not store anything directly on,
underneath, or above of the cook sink when the appliance is in
operation.
To reduce the risk of fire, do not store flammable items in, under,
or above the cooking vessel.
1032055-5-A 2 Kohler Co.

Important Safety Instructions (cont.)
To reduce the risk of fire, do not mount the cook sink over or
beneath any portion of a heating or cooking appliance.
Refer to the troubleshooting section if the unit does not operate
properly.
Do not repair, replace, or service any part of the cook sink unless
specifically recommended. All servicing should be referred to a
qualified technician.
Do not use drain cleaner in the cook sink drain.
Close supervision is necessary when cooking vessel is used by or
near children. Children should not be allowed to sit or stand on
or near any part of the appliance.
This product is intended for residential (household–type) use
only.
Do not store items of interest to children in cabinets above or
near the cook sink – children climbing on or over the unit to
reach items could be seriously injured.
Provide adequate ventilation around the cook sink to prevent
steam damage to surrounding surfaces.
Do not use the cook sink for other than its intended use.
Never use your appliance for warming or heating the room.
Do not use a plunger on the cook sink drain or any associated
sink drain while the cooking vessel is in use.
Use only water. Do not use the cook sink with cooking oil.
Do not operate the cooking vessel without water.
Do not add water to hot cooking vessel, splattering could occur.
Do not force cookware into the cooking vessel.
Use only accessory equipment recommended by Kohler
Company. The use of accessory attachments that are not
recommended by Kohler Company may cause injuries or
property damage.
Do not touch hot surfaces. Use handles or knobs.
Do not use outdoors.
Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
Kohler Co. 3 1032055-5-A

Thank You For Choosing Kohler Company (cont.)
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler sink will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the Care and Cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
How to Use This Manual
This manual is designed to help you troubleshoot and repair any
problems that may develop with the operation of this product. If a
problem occurs:
Refer to the ″Troubleshooting″section to determine a probable
cause.

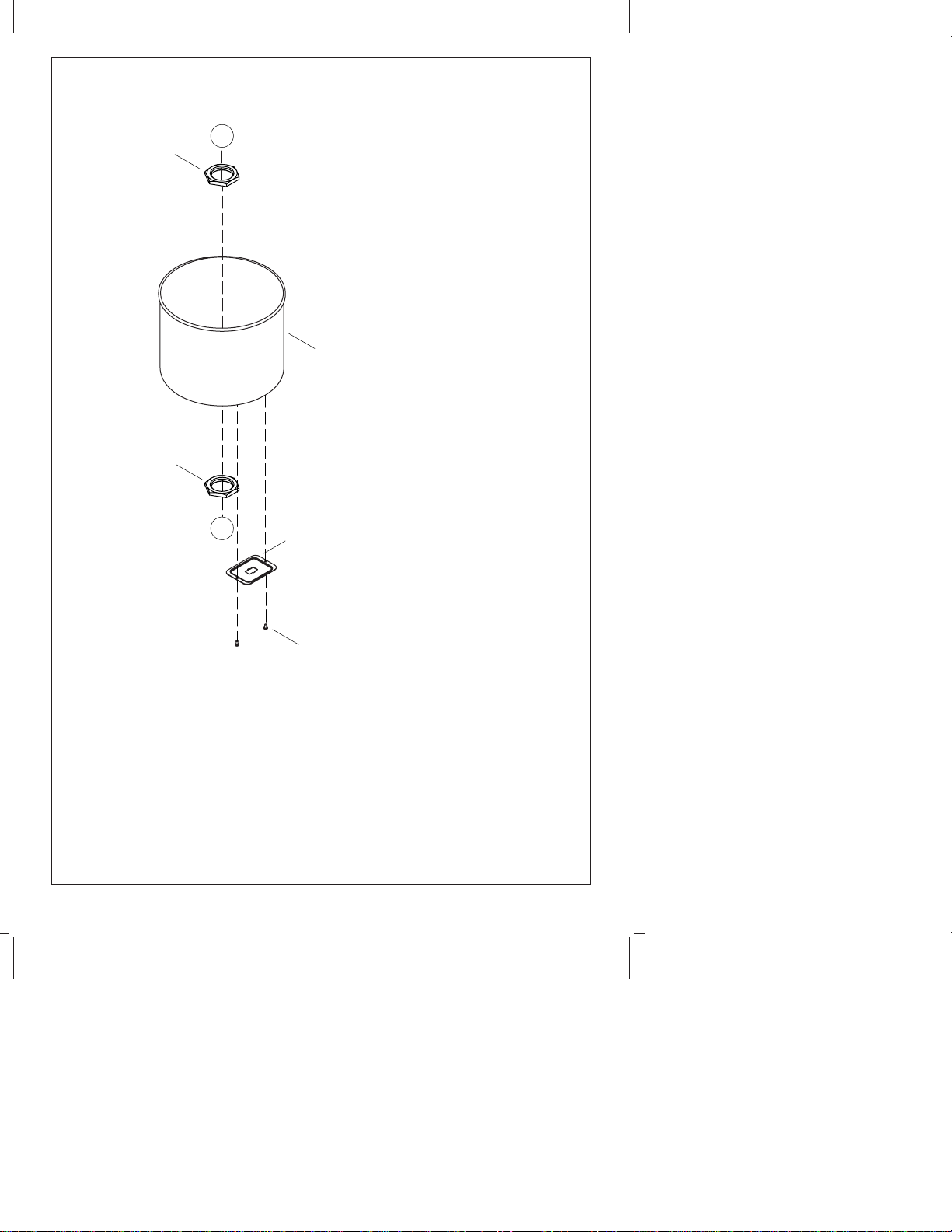

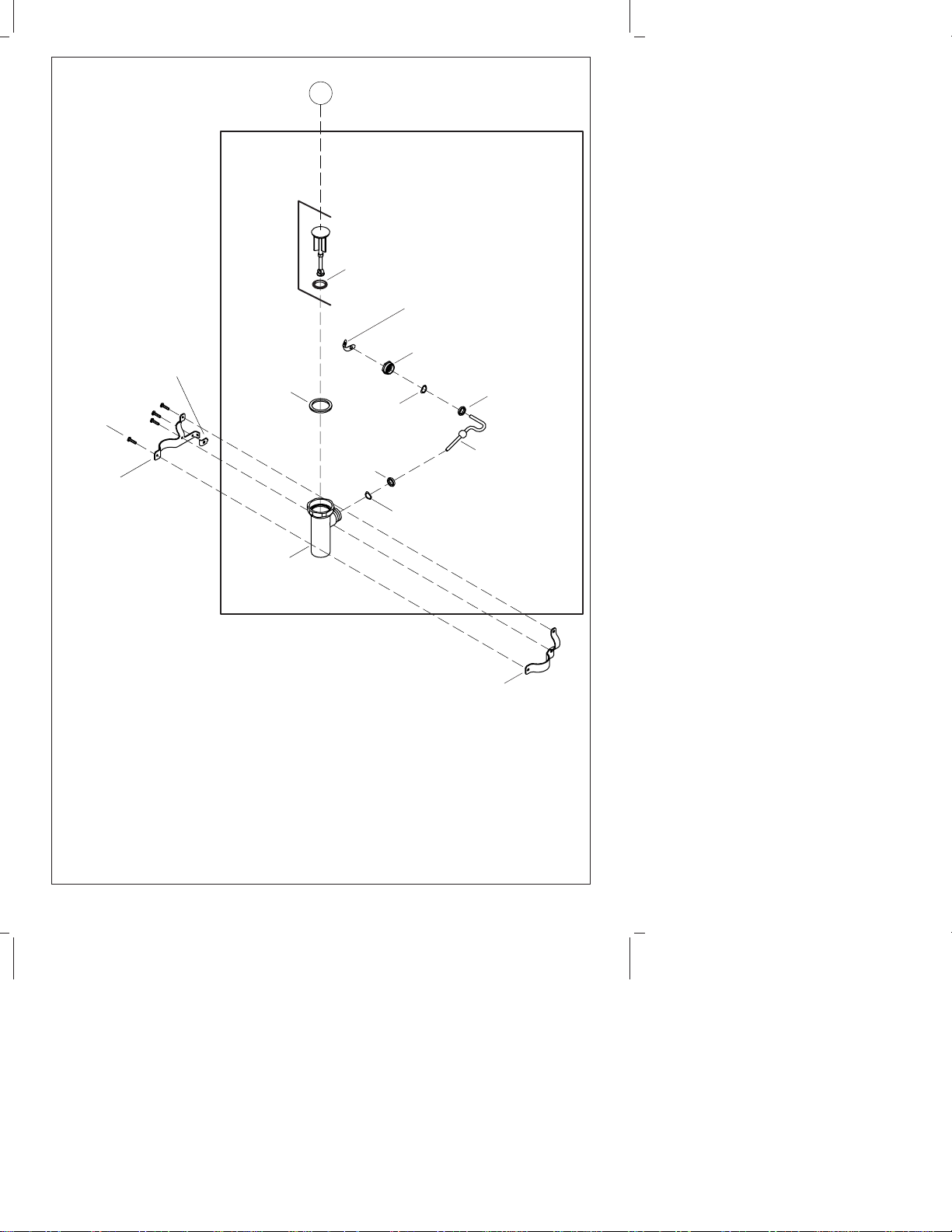

Check the ″Service Parts″section to determine the part numbers
for any replacement parts necessary.
Use the information on the back cover of this manual to contact
Kohler Company to order parts, or for help if you cannot correct
the problem.
Care and Cleaning
Stainless Steel Cook Sink
Rinse your stainless steel sink thoroughly after each use. Use a dabbing
action to dry with a clean, soft cloth. Do not use an abrasive or
rubbing action, as that may scratch or dull the finish.
If you use cleaners containing chlorides, which may corrode stainless
steel, make sure you rinse the surface immediately after each use. Do
not allow cleaners to remain in contact with the sink for long periods
of time.
Avoid using metal scouring pads, as they may cause rust stains in the
sink. Do not use cleaners containing abrasive cleansers, ammonia,
acids, waxes, alcohol, or solvents on this surface, as they may damage
1032055-5-A 4 Kohler Co.

Care and Cleaning (cont.)
the finish.
If using a rubber sink mat, be sure to remove it when not washing
dishes. Organic particles may decay under the mat, causing the sink to
stain.
If the surface becomes excessively dirty, consider a general purpose
cleaner such as: Mr. Clean
®
Top Job with Ammonia, Spic and Span
Liquid; Fantastik
®
All Purpose, Formula 409
®
All Purpose, or Lysol
®
Anti-Bacterial Kitchen Cleaner
™
.
If your stainless steel colored finish becomes excessively dirty, consider
cleaning with Dow Scrubbing Bubbles
®
Liquid or Bleach Free Soft
Scrub
®
.
Kohler Co. 5 1032055-5-A

Cook Sink Operating Instructions
Drain knob - Turn counterclockwise to open the cook sink drain,
clockwise to close.
Power setting LEDs - Lights to show relative temperature setpoint.
Power up button - Press once to increase heating temperature a little.
Hold down to increase heating temperature a lot.
Power switch - Press to turn on power to the unit. Press again to turn
power off.
Power down button - Press once to decrease heating temperature a
little. Hold down to decrease heating temperature a lot.
Hot pot indicator - Lights at about 140° F (60° C) to alert the operator
that the pot is hot.
Important Notes
Property damage may occur if the water is allowed to boil off or
if the unit is operated without water. Before operating, fill the
cooking vessel with a minimum of 2 quarts (1.9 L) of water (1/4
full).
Drain water immediately after cooking.
Do not completely drain water from the cooking vessel while the
unit is on.
Hot Pot Indicator
Power Down Button
Drain Knob
Power Setting LEDs
Power Up Button
Power Switch
1032055-5-A 6 Kohler Co.

Important Notes (cont.)
Do not store anything, especially flammable materials, near the
underside of the cooking vessel.
Do not use steel wool on the cooking vessel or cookware.
Do not cut food in the cookware.
Kohler Co. 7 1032055-5-A

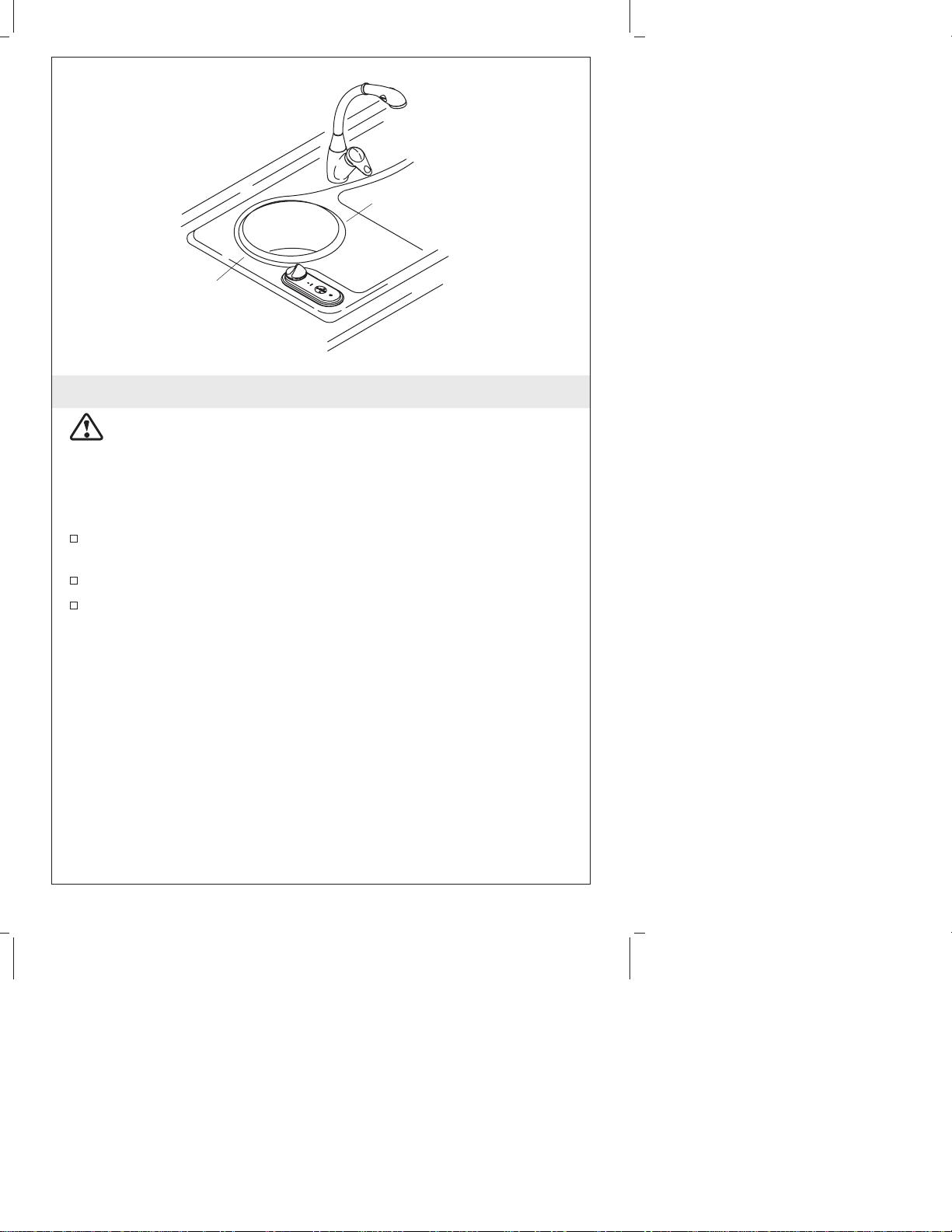

Preparing to Cook
CAUTION: Risk of property damage. Do not turn unit on
without water in it.
The cooking vessel should not be operated with less than a minimum
of 2 quarts (1.9 L) water in it. This fills the vessel about 1/4 full.
Perform the following preparations:
Close the drain by turning the drain knob clockwise to the closed
position.
Fill the cooking vessel at least 1/4 full with water.
Turn the trim ring so that the steam escape groove faces toward
the sink basin or other drainage area.
Groove
Trim Ring
1032055-5-A 8 Kohler Co.

Cooking
CAUTION: Risk of property damage. This cook sink is designed
to be used with cookware that is immersed into the heating
water in the cook sink. Do not use the cook sink to cook foods
directly. Food residues may not be easily removed.
A single flashing power setting LED is an indication that the cook sink
is ready to operate. The cook sink will start to operate as soon as
temperature setting is increased above the minimum.
CAUTION: Risk of personal injury. Do not add water if all 10
LEDs are flashing. This indicates an over-temperature condition
that could flash water into steam. Turn the unit off.
CAUTION: Risk of personal injury. Use care when moving
cookware into or out of the operating unit.
CAUTION: Risk of personal injury. Risk of personal injury.
Handle all hot cookware using pot holders or other protective
gear.
CAUTION: Risk of product damage. Do not completely drain
water from the cooking vessel while the unit is on.
The cook sink has over-temperature protection. If the sink’s
temperature increases above about 250° F (121° C), all 10 power setting
LEDs start flashing. If the temperature remains high for more than two
minutes, the cook sink stops heating automatically. Refer to the
Hot Pot Indicator
Power Down Button
Drain Knob
Power Setting LEDs
Power Up Button
Power Switch
Kohler Co. 9 1032055-5-A

Cooking (cont.)
″Important Safety Instructions″section for more information.
Add water to the cooking vessel so it is at least 1/4 full.
Push the power switch.
Observe that the bottom power setting LED is flashing.
Press the power up button to increase the temperature setpoint.
When the desired temperature is reached, you may reduce the
heat applied by pressing the power down button.
If desired, push and turn the drain knob counterclockwise for a
short period of time to drain excess water. Turn the knob
clockwise when the water has drained.
If desired, add more water in order to make up for any losses.
1032055-5-A 10 Kohler Co.

After Cooking
The unit should not be allowed to stand for long periods with water in
it, particularly in areas that have hard water. Draining the unit
promptly reduces the buildup of mineral deposits.
The unit will only drain while the drain knob is held in the open
position.
Some localities may have restrictions upon the temperature of water
drained into the sewer system. It may be desirable to allow the water
to cool somewhat before draining.
The hot pot indicator remains illuminated until the cook sink
temperature drops below about 140° F (60° C).
The trim ring and cookware can be removed and washed in the
dishwasher. Refer to the ″Care and Cleaning″section for more
information about cleaning the unit.
When cooking is completed, press the power switch to stop
cooking.
Observe that all 10 power setting LEDs are extinguished.
Turn the drain knob counterclockwise to open the drain.
Rinse the unit out with mild soap and water after each use.
Hot Pot Indicator
Power Down Button
Drain Knob
Power Setting LEDs
Power Up Button
Power Switch
Kohler Co. 11 1032055-5-A

Service Parts
**Finish/color code must be specified when ordering.
97450
Trim Ring
1036350
Cooking Basin
97467
Seal
S1-97090
Mounting Ring
87774
Spring
63270
Washer
97475
Spacer
97400
Nut A
B
7257
Mount Kit
(4 ea.)
1036276
Sensor Kit
1032055-5-A 12 Kohler Co.

**Finish/color code must be specified when ordering.
1036352
Housing
1004466
Locknut
1004646
Panel
1004466
Locknut
97698
Screw
A
C
Kohler Co. 13 1032055-5-A

**Finish/color code must be specified when ordering.
1022620
1036758
Bezel
96967
Seal
1032630
Panel
97484
Screw
1036768
Controller Assembly
1032298
Screw
Junction Box Cover
1022621
Junction Box
1022625
Controller Plate
1022494
Drain Knob
86810
Ground Screw
B
1032055-5-A 14 Kohler Co.

**Finish/color code must be specified when ordering.
38745
Wave Washer
38745
Wave Washer
1004988
Cable Mounting Bracket
1011041
Cable Bracket
1008219
Screw
1004987
Cable Mounting Clip
38744
Washer
38744
Washer
1004470
38743**
Retainer Nut
41950**
Tailpiece
41550
Gasket
78172** 78063
Stopper
1004985**
Drain Assembly
Seal
40228
Clip
C
Ball and Trip
Lever Assembly
Kohler Co. 15 1032055-5-A

Troubleshooting Guide
Troubleshooting Tips
NOTE: This troubleshooting guide is for general aid only. For
warranty service, contact your dealer or wholesale distributor.
Troubleshooting Table
Symptoms Recommended Action
1. The cook sink does
not hold water. A. Operate the drain by turning the drain knob open and closed several times. Then,
close the drain.
B. If the cook sink still does not hold water,
ensure that the drain cable is connected at
both ends and operates freely as described
in the installation guide.
C. If the problem persists, contact a Kohler
Authorized Service Representative.
2. Water drains
slowly from sink
or does not drain.
A. The drain or trap is probably plugged.
Clean out the drain or trap.
B. If the problem persists, contact a Kohler
Authorized Service Representative.
3. Water leaks from
under sink. A. Check if the drain or trap connections are loose or damaged. If necessary, tighten or
replace the connections.
B. If the problem persists, contact your local
plumber.
4. The cook sink does
not heat water and
no display
indications are
present.
A. Check that the specified power is supplied
to the cook sink. Close any tripped circuit
breaker.
B. If the circuit breaker opens again, contact
your local electrician.
C. If you do not feel comfortable checking for
power at the cook sink control box, contact
your local electrician.
D. If power is present at the controller,
contact a Kohler Authorized Service
Representative.
5. The cook sink does
not heat water and
normal display
indications are
present.
A. Check that the specified power is supplied
to the cook sink. Close any tripped circuit
breaker.
1032055-5-A 16 Kohler Co.

Troubleshooting Guide (cont.)
Symptoms Recommended Action
B. If the problem persists, contact a Kohler
Authorized Service Representative.
6. The cook sink
controller
repeatedly stops
heating after a few
minutes.
A. This is normal operation if there is no
water in the sink. Check for the presence
of water. If there is no water, carefully add
water using care to avoid stream flashing.
B. If the problem persists, contact a Kohler
Authorized Service Representative.
7. The cook sink
operates but the
cook sink
controller display
indications do not
display normally
as described in the
″Cook Sink
Operating
Instructions″
section.
A. Contact a Kohler Authorized Service
Representative.
If you can’t correct the problem on your own, contact your local
Kohler dealer. If you need to locate a Kohler Authorized Service
Representative in the United States, call our Customer Service
Department at 1-800-4-KOHLER (1-800-456-4537).
For general information, call one of the following numbers:
In the U.S.A., call 1-800-4-KOHLER (1-800-456-4537)
In Mexico, call 001-877-680-1310
In Canada, call 1-800-694-5590
To make fixing the situation easier for both you and us, be sure to
provide all the pertinent information. This could include a complete
description of the problem, the product name, the model number, the
color or finish, and the date the product was purchased.
One-Year Limited Warranty — USA and Canada
KOHLER
®
plumbing fixtures, faucets and fittings are warranted to be
free of defects in material and workmanship for one year from date of
installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one year after installation. Kohler
Co. is not responsible for removal or installation costs.
Kohler Co. 17 1032055-5-A

One-Year Limited Warranty — USA and Canada (cont.)
To obtain warranty service, contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the
USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from
within Mexico.
Implied warranties including that of merchantability and fitness for
a particular purpose are expressly limited in duration to the duration
of this warranty, Kohler Co. disclaims any liability for special,
incidental or consequential damages. Some states/provinces do not
allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of special, incidental or consequential damages
so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other
rights which vary from state/province to state/province.
This is our exclusive written warranty.
Notes:
1. There may be variation in color fidelity between catalog images and
actual plumbing fixtures.
2. Kohler Co. reserves the right to make changes in product
characteristics, packaging or availability at any time with out notice.
COPYRIGHT © 1999, 2000, 2001, 2002 BY KOHLER CO.
Cooking Vessel Five-Year Limited Warranty
KOHLER
®
PRO COOK
™
COOKING VESSEL FIVE-YEAR LIMITED
WARRANTY
KOHLER PRO Cook cooking vessels installed in residential settings are
warranted to be free of defects in material and workmanship for five
years from the date of installation. The KOHLER sink and the
KOHLER PRO Cook cooking vessels used in commercial settings are
warranted to be free of defects in material and workmanship for one
year from the date of installation under Kohler’s one-year limited
warranty.
Kohler Co. will, at its election, repair, replace, or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal residential usage. Kohler Co. is not responsible for
removal or installation costs.
To obtain warranty service, contact Kohler Co., either through your
Dealer or Plumbing Contractor, Home Center or E-tailer, or by writing:
1032055-5-A 18 Kohler Co.

Cooking Vessel Five-Year Limited Warranty (cont.)
Kohler Co., Attn: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the
USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from
within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims all liability for special, incidental, or consequential
damages. Some states/provinces do not allow limitations on how long
an implied warranty lasts, or the exclusion or limitation of special,
incidental or consequential damages, so these limitations and
exclusions may not apply to you. This warranty gives you specific
legal rights. You may also have other rights which vary from
state/province to state/province.
This is our exclusive written warranty.
One-Year Warranty — Mexico
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
Kohler Co. 19 1032055-5-A

One-Year Warranty — Mexico (cont.)
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
1032055-5-A 20 Kohler Co.
