Thank You For Choosing Kohler Company
Thank you for choosing a Kohler product. Kohler craftsmanship offers you a
rare combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We are very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay special
attention to the care and cleaning instructions.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
1338634-T01-E
2
Kohler Co.

Warning
Note
●
●
●
□Risk of product damage. The product may be damaged if the nozzle is applied with
excessive force.
□The installation should be subject to the instructions before the power is connected.
□Risk of electric shock or product damage. Do not immerse the product into water.
□When an electrical product is used, especially when children are near, the following
basic safety precautions shall be followed:
Do not place or store this device where it can fall or be dropped into a bath or sink.
Do not place in or drop into water or other liquid.。
Do not touch any product dropped into the water, unplug immediately.
□Keep power cord far from heated surface.
□Prevent water splash on power plug.
1. CAUTIONS AND WARNINGS
Please read the cautions and warning carefully and observe accordingly.
Warning: any misuse from ignoring the content of this label may cause
serious injury or death.
Note: any misuse from ignoring the content of this label may cause personal
injury or product damage.
□
□Risk of product damage. The power shall not be connected before the work is
finished. Otherwise it may lead to product failure.
Danger-Reduce risk from electric shock:
□Do not operate this device if following occasions occurred: damaged cord or
plug; if it is not working properly or if it has been dropped into water.
□In case the power cord is damaged; to avoid danger, product should be replaced
by the manufacturer or the professionals from its maintenance department or
similar departments.
□Risk of product damage. Do not install at a place where it may be splashed by water.
□Risk of product damage. Do not install the product at a place with excessive
humidity, where moisture may condense at the surface of the product. Please
maintain that the usage environment is under adequate ventilation, so as to
prevent damage to electronic components.
□Risk of product damage or property loss. Water leakage may happen if the water
pipe connector is pulled or pressed with excessive force.
This product must be installed safely. Connect only to dedicated 220V~, 50Hz, 10A
circuit protected by Ground-Fault Circuit-Interrupters (GFCI’s) or Earth-Leakage
Circuit-Breakers (ELCB’s).
Kohler Co.
3
1338634-T01-E

●
●
●
●
●
□This device complies with the method described in the manual. Do not use
attachments not recommended by Kohler Co.
□Do not lean on cover when use this device to prevent product from damage.
□Following the installation procedure and install the product properly.。
□
□
□
Do not drop or insert any substance to pipeline or any opening holes.
□UV sterilization devices should be installed and maintained by qualified servicemen.
□Please use the water supply hose accompanying with new machine. The old hose
assembly shall not be used again.
Water hose and internal water leak from inside out.
When product is cracked or damaged
When abnormal sound or obvious odor appears.
Product smokes.
Abnormal product heating problem
Cautions and warning (cont.)
□Risk of product damage. The part of the pipe where water may be frozen should
be protected by thermal insulation. Any water left in the product may be frozen
during the winter season. Please keep the product in room temperature before
reinstallation or usage.
□The thermal protector may be out of order during storage or transportation in warm
climate which can lead to product failure. Please ensure the product cools to room
temperature before reinstallation or usage.
●
●
●
Prevent any exposed skin contact with heated seat too long to prevent low
temperature burning.
Children, elders or those with disabilities from their body, sensitivity or mental
disabilities should not use or get close to this product unless under close tutelage.
Children are forbidden to use or touch this product. Do not leave children alone in
a room with such product.
For those children and the elderly who are unable to adjust the temperature, they
should ask for help to adjust seat temp, water temp and wind temp of toilet cover
to proper gears.
This product shall be repaired by professionals only. The warranty will become
invalid if you try to repair this product by yourself.
When install the product in the room, a stop valve shall be installed in a close
proximity. For emergency circumstances, the water inlet valve shall be stopped
without using any tools; otherwise unexpected failure may cause the loss to the
customer.
□Do not use this product outdoor or in a place where a particle mist spray device is
used, neither at a place using oxygen supply.
□When user cut power supply off, if reactivation of power supply is required, please
wait until the end of “beep……” indication, and then turn on power supply again.
□Stop using product if any of the circumstances observed below. Shut power off and
stop water inlet valve immediately.
WARNING - To reduce the risk of low grade burns, electric shock, fire or
injury to persons
1338634-T01-E
4
Kohler Co.

2. Specification
Min water pressure 0.07Mpa (dynamic pressure)
Max water pressure 0.74Mpa
Water pressure
Rated voltage 220V~, 50Hz
Power cord length About 1.5m
Rated power* 1070W
Max instantaneous power About 1600W
Product outline dimension About 530mm x 454mm x 159mm
Product weight About 5.0kg
Inlet water temp 1-35℃
Operation Environment 1-40℃
Rear wash/kid wash YES, adjustable dial
Front wash YES, adjustable dial
Defecation wash YES, adjustable dial
Water flow (water pressure 0.2Mpa)
Max rear wash shall be no less than 500mL/min
Adjust clean water temp OFF, adjustable 5 dials (ambient temp, about 31-39°C)
Clean Cleaning time (max.) About 300s
Nozzle position adjustment 5 dials
Pulsate massage ON/OFF
Oscillate ON/OFF
Thermal fuse
Backflow prevention Check valve
Temp adjustment OFF, adjustable 5 dials (ambient temp, about 31-39°C)
Safety device Thermal fuse
Cover Slow swing
Seat Slow swing
Comfort
Deodorizing function Yes
Temp adjustmen
t OFF, adjustable 5 dials (ambient temp, about 38-52°C)*
Dryer Safety device Thermal fuse
Nozzle self-clean Yes
Quick dismantle Push release button
Sanitation Antibacterial material Cover and seat
UV sanitize Yes
Water inlet filter For K-31333T-0/K-31334T-0
Other safety devices Circuit-Breakers
Control panel Located on side panel
Seating detection Located inside seat
Night light Yes
IOT function For K-31331T-XP-0/K-29683T-XP-0
Kid seat For K-31334T-0
* Power value testing condition: dynamic pressure 0.2Mpa, inlet water temp 15°C.
Measured 50mm around dryer outlet.*
Water overtemp
protection
Safety
device
Thermal
prevention
Other
function
Kohler Co.
5
1338634-T01-E

3. Keypad and Panel Diagram
Cover (antibacterial*)
Seat (antibacterial*)
BCFG
L
ADEHIJK
*Antibacterial: the seat and cover contains long term inorganic anti-bacteria material which will inhibit bacteria growth on
surface, this does not represent the mildew and other incidental effects. The antibacterial rate is more than 90%. (Perform
test in accordance with GB21551.2-2010 requirements. Testing lab: China household electrical appliances testing institute;
electromechanical products testing technology center of Shanghai Entry-Exit inspection and quarantine bureau.)
1338634-T01-E
6
Kohler Co.

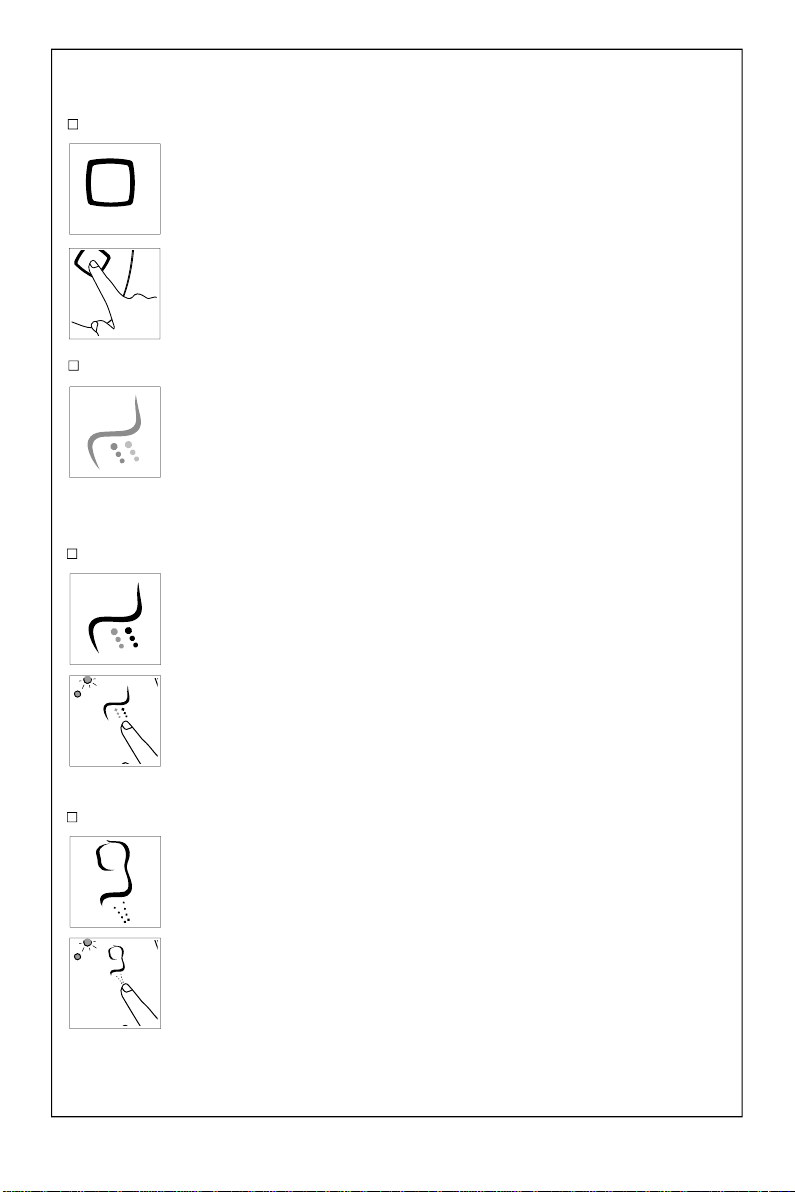

A – STOP
B – FRONT WASH
4. Side Panel Function Intruoduction
C – REAR WASH
D – KID WASH
Press this button to stop flush or dryer function when flush or dryer
function is activated.
When seated, auto activates deodorizer function. Press stop button
to deactivate deodorizer function. The deodorizer function will not be
activated before re-seated.
Hold and press stop button for 2s to close Bidets. Press any button
on side panel, or seated to light side panel up.
When seated, press front wash to activate front wash (female only),
and display current wash strength.
Press FRONT WASH button again to change wash strength when
front wash function is activated. The wash strength shall be changed
per min dial, min-mid dial, mid dial, mid-max dial, max dial, mid-max
dial circulation.
It will stop automatically after 5 minutes of continuous flushing.
When seated, press REAR WASH to activate rear wash and display
current wash strength.
The Bidet is equipped with wide oscillate function. If you want to use
wide oscillate function, please hold both REAR+POWER buttons for
2s on side panel, then activate rear wash oscillate mode.
Press REAR WASH button again to change wash strength when front
wash function is activated. The wash strength shall be changed per
min dial, min-mid dial, mid dial, mid-max dial, max dial, mid-max dial
circulation.
It will stop automatically after 5 minutes of continuous flushing.
When seated, press KID WASH button to activate kid wash and
display current wash strength. Press KID WASH button again to
change wash strength when front wash function is activated. The
wash strength shall be changed per min dial, min-mid dial, mid dial,
mid-max dial, max dial, mid-max dial circulation. It will stop
automatically after 5 minutes of continuous flushing.
When use kid seat provided by K-31334T-0 or unable to seat on the
Bidet due to other reasons, hold and press KID WASH button for 2s
to activate kid wash. Wash strength display and selection as above.
Press STOP to deactivate wash function under this circumstances, or
It will stop automatically after 5 minutes of continuous flushing. Activate
dryer function after stop wash for 2 min.
Note: K-31334T-0 product is better for kid wash function. Refer to kid
seat page for specific kid seat usage and notice.
Kohler Co.
7
1338634-T01-E

Indicating LED displays current dryer temp. Press DRYER button
again, dryer temp shall be circulated per MIN dial, MIN-MID dial, MID
dial, MID-MAX dial, MAX dial, MID-MAX dial sequence. It will auto
stop after 4 min consecutive work.
Press DEFECATION WASH button again to change wash strength
when front wash function is activated. The wash strength shall be
changed per min dial, mid dial, max dial circulation.
It will stop automatically after 5 minutes of continuous flushing.
Note: when above wash function is activated, dryer and deodorizer function will be
automatically stopped.
F – WATER TEMP
Press WATER TEMP button to set water temp for wash functions. Each
click shall be circulated per OFF, LOW dial, LOW-MID dial, MID dial,
MID-MAX dial, MAX dial, MID-MAX dial sequence. Setup water temp
and change over water temp parameter indicating light. If it is OFF, the
indicating light is not illuminated.
G – MASSAGE
Press MASSAGE button to activate MASSAGE (massage + oscillate)
in the flush state.
Each click shall be circulated per MASSAGE, OSCILLATE, MASSAGE
+ OSCILLATE, stop MASSAGE + OSCILLATE sequence and light
corresponding LED up. If MASSAGE + OSCILLATE is OFF, the
indicating light is not illuminated.
H – SEAT TEMP
Press SEAT TEMP button to set seat temperature. Each click shall be
circulated per OFF, MIN dial, MIN-MID dial, MID dial, MID-MAX dial,
MAX dial, MAX-MID dial sequence to set seat temp and change over
seat temp parameter indicating LED. If ring temp is OFF, the indicating
light is not illuminated.
E – DEFECATION WASH
When seated, press DEFECATIOND WASH to activate defecation
wash and display current wash strength.
I – DRYER
When seated, press DRYER to activate dryer function. Stop dryer
function immediately if wash function is in use.
1338634-T01-E
8
Kohler Co.

Bidet nozzle
*
Low-mid
small indicator
lights up and
medium
indicator flashes
Mid
small and
medium indicators
light up
simultaneously
Mid-high
small and
medium indicators
light up; large
indicator flashes
High
small, medium
and large
indicators light up
simultaneously
J -POSITION
Press wand POSITION button to activate wand move function in the
flush state; press POSITION button again to change wand position,
the position shall be circulated per MIN, MIN-MID, MID, MID-MAX,
MAX, MID-MAX distance sequence.
K -SANITIZE
Activate sanitize function for 45min UV sanitizing by press SANITIZE
button when unseated. Press STOP button or seat on the Bidet to
stop this function.
Auto UV sterilization function will be activated and start sterilizing
nozzle when unseated for a long time. The process shall be 45min.
No sterilization function shall be activated after this process in another
24hrs.
L -USERS
Change over or preset users: each click shall change over to different
users and retrieve default set.
Storage:select user, hold USERS button to save 4 wash states, dryer
parameter and seat temp parameter. One short beep indicates
successful storage.
Installation instructions
Low
small
indicator
lights up
UV radiation range
UV sterilization (refers to the ultraviolet sterilization generated by UV lamp): During UV working cycle, the bacteria on nozzle
surface will be eliminated by irradiation. The antibacterial rate is more than 99%. (Measured after one UV working cycle, it
was measured within 20mm×8mm irradiation area. Perform test in accordance with GB /T 23131 requirements, UV radiation
zone was shown in the diagram, UV working cycle activation mode refers to users guide. Testing lab: China household
electrical appliances testing institute.)
Kohler Co.
9
1338634-T01-E

2.
3.
4.
5.
6.
Auto deodorizing function (ON/OFF)
Press and hold rear wash button for 2s to activate or deactivate deodorizing function.
Deactivate: long beep.
Activate: short beep.
Prolonged seating indication function (ON/OFF)
Press and hold MASSAGE button for 2s to activate or deactivate prolonged
seating indication function.
Deactivate: long beep.
Activate: short beep.
When seated, the buzz will generate a beep for indication every 15min, the
indication will be stopped by holding the STOP button or wait for a while.
Energy saving function (ON/OFF)
Press and hold seat temp for 2s to activate (short beep)/deactivate (long
beep) energy saving function. Seat temp LED flashing indicates energy
saving function is ON, seat temp LED stop flashing indicates energy saving
function is OFF. When seated, energy saving mode is cancelled. One week
after the activation, the seat performs an automatic detection in user’s
habitual routine. Starting from the second week, the seat automatically gets
itself into Energy Save mode when it is in idle, depending on the detected
user routine of the first week. During the third week, the seat bases its
judgment on the data collected during the previous week to decide when
it enters into Energy Save mode. It works the same for the following weeks.
Wand auto sanitize function (ON/OFF)
Press and hold SANITIZE button for 2s to activate or deactivate auto sanitize
function.
Deactivate: long beep.
Activate: short beep.
After a long idle period, Bidet will perform sanitize function by activating UV
sanitize function automatically. The duration is 45min, No sterilization function
shall be activated after this process in another 24hrs.
Power off Function (ON/OFF)
Press and hold STOP button for 2s to deactivate toilet. Press any key on side
key board or light side key board up when seated.
Night light function (ON/OFF)
Press and hold front wash button for 2s to activate or deactivate night light
function.
Deactivate: long beep, night light OFF.
Activate: short beep, night light is controlled by ambient light (night light ON when
ambient light is dark, vice versa).
Press and hold button Function Introduction
1.
1338634-T01-E
10
Kohler Co.
