REVE
INSTALLATION INSTRUCTIONS
WALL-HUNG TOILET
K-24766T-S/K-24767T-S/K-24768T-S/K-24769T-S
K-24770T-S/K-24698T-S/K-24697T-S/K-24699T-GS
K-23132T-CPS/K-23132T-BNS/K-23133T-CPS/K-23133T-BNS/K-25445T-NS
BEFORE YOU BEGIN
·
·
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information-please leave instructions for the
consumer.
ORDERING INFORMATION
REVE WH Toilet (HT100 TL IWT) ........................K-24766T-S
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HYDRO-TOWER 100
Touchless In-Wall Tank.................K-6281T-RES
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (HT200 PNE IWT).....................K-24767T-S
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HYDRO-TOWER 200 PNE
In-Wall Tank ................................K-20007T-RES
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (HT300 PNE IWT).....................K-24768T-S
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HYDRO-TOWER 300 PNE
In-Wall Tank ................................K-20010T-RES
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (HT300 MEC IWT) ....................K-24769T-S
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HYDRO-TOWER 300
In-Wall Tank W/ Frame .................K-4179T-RES
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (HT100 MEC IWT) ....................K-24770T-S
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HYDRO-TOWER 100
In-Wall Tank W/ Frame .................K-6284T-RES
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (HT100 PNE IWT).....................K-24698T-S
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HYDRO-TOWER 100 PNE
In-Wall Tank W/ Frame ...............K-22524T-RES
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
·
·
·-
·
( 100 ).........K-24766T-S
.....................................K-5051T
100
.........................K-6281T-RES
.................................K-17183T-CP
( 200 )................K-24767T-S
.....................................K-5051T
200
...............................K-20007T-RES
.................................K-17183T-CP
( 300 )................K-24768T-S
.....................................K-5051T
300
...............................K-20010T-RES
.................................K-17183T-CP
( 300 )................K-24769T-S
.....................................K-5051T
300
........................................K-4179T-RES
.................................K-17183T-CP
( 100 )................K-24770T-S
.....................................K-5051T
100
........................................K-6284T-RES
.................................K-17183T-CP
( 100 )................K-24698T-S
.....................................K-5051T
100
...............................K-22524T-RES
.................................K-17183T-CP
-1-
©
©
Copyright Kohler China Investment Co., Ltd. 2020
2020
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
2 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA 256410
8 256410
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC 110400
1 110400
:
POST CODE:
POST CODE:
1268139-T01-D

REVE WH Toilet (HT100 TL IWT) ........................K-24697T-S
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HYDRO-TOWER 100 Touchless
In-Wall Tank W/ Bevel FP ...........K-21298T-RES
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (BEAM M FV) .........................K-24699T-GS
Includes Bowl...............................................K-24919T-GS
Includes BEAM Manual Toilet/Squat
Flush Valve ......................................K-77681K-G
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (BEAM SR D/CP).................K-23132T-CPS
Includes Bowl.............................................K-23134T-DPS
Includes BEAM Toilet Sensor (DC)..............K-30947T-CP
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (BEAM SR D/BN).................K-23132T-BNS
Includes Bowl.............................................K-23134T-DNS
Includes BEAM Toilet Sensor (DC)..............K-30947T-BN
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet(BEAM SR A/CP) ..................K-23133T-CPS
Includes Bowl.............................................K-23134T-APS
Includes BEAM Toilet Sensor (AC) ..............K-30948T-CP
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet (BEAM SR A/BN) .................K-23133T-BNS
Includes Bowl.............................................K-23134T-ANS
Includes BEAM Toilet Sensor (AC) ..............K-30948T-BN
Includes REVE Quiet-close Toilet Seat........K-17183T-CP
REVE WH Toilet W/O ST
(HT201 P, 3.5/5.0) .............................................K-25445T-NS
Includes REVE Wall-hung Toilet Bowl..................K-5051T
Includes HT201 PNE IWT
W/F 3.5/5.0L(REVE WH) ...............K-25440T-RE
( 100 ).........K-24697T-S
.....................................K-5051T
100
.......................K-21298T-RES
.................................K-17183T-CP
( ) ...................K-24699T-GS
..........................................................K-24919T-GS
.........................................................K-77681K-G
.................................K-17183T-CP
( , )................K-23132T-CPS
........................................................K-23134T-DPS
........................................K-30947T-CP
.................................K-17183T-CP
( , / ) ....K-23132T-BNS
.......................................................K-23134T-DNS
........................................K-30947T-BN
.................................K-17183T-CP
( , )................K-23133T-CPS
........................................................K-23134T-APS
........................................K-30948T-CP
.................................K-17183T-CP
( , / ) ....K-23133T-BNS
........................................................K-23134T-ANS
........................................K-30948T-BN
.................................K-17183T-CP
( 201 , 3.5/5.0 ) .........................K-25445T-NS
.....................................K-5051T
201
, 3.5/5.0 ( )..................K-25440T-RE
-2-
TOOLS AND MATERIALS REQUIRED
(Not supplied)
·254mm adjustable wrench
Metal file (file cut)
Tape measure
Tubing cutter
Level
Hacksaw
Putty knife
Screwdriver
Straight pipe coupling
Connection packing
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
254mm
NOTES
·
·
·
·
·
·
·
·
·
Observe all local plumbing and building codes.
Shut off the water supply.
Seat post holes are on 200mm centers.
Passageways is longer than 57mm.
Ensure have the correct roughing-in dimensions.
.
Be very careful while working with vitreous china products.
Vitreous china can break or chip if the bolts or nuts are
overtightened, or if carelessly handled.
Carefully inspect the new bowl for any sign of damage.
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
This product complies with Q/KCI-006-2018 and GB
25502-2017.
Water Efficiency Grade 1 for K-24766T-S/K-24767T-S/K-
24768T-S/K-24769T-S/K-24770T-S/K-24698T-S/K-
24697T-S/K-23132T-CPS/K-23132T-BNS/K-23133T-
CPS/K-23133T-BNS/K-25445T-NS.
Water Efficiency Grade 2 for K-24699T-GS.
See
Fig.#1
·
·
·
·
·
·
·
·
·
200mm
57mm
1
ASME(A112.19.2-2018)
Q/KCI-006-2018 GB 25502-2017
K-24766T-S/K-24767T-S/K-24768T-S/K-24769T-S/K-
24770T-S/K-24698T-S/K-24697T-S/K-23132T-CPS/K-
23132T-BNS/K-23133T-CPS/K-23133T-BNS/K-25445T-
NS 1
K-24699T-GS 2
1268139-T01-D

-3-
ROUGHING-IN
Unit: mm
:
Reference Value
Fig.#1
1
Kohler reserves the right to change marked dimensions without prior notice.
102
55
350 315
215
230
295
340
355
400
558
365 200
460
1. Install Flushing Mechanism
1-1. Install The Tank
1) Turn the water supply off before installing the new toilet.
2) Install the concealed tank system in wall before decorating
the wall.
3) Install the tank system per tank's installation instructions.
Refer to installation instructions of in-wall tank for SKU
of faceplate.
Note:
1-2. Install Manual Valve Or Sensor
Refer to installation instructions of manual valve or sensor for
the installation of flushing mechanism.
INSTALLATION
Fig.#2
2
1.
1-1.
1)
2)
3)
1-2.
1268139-T01-D

-4-

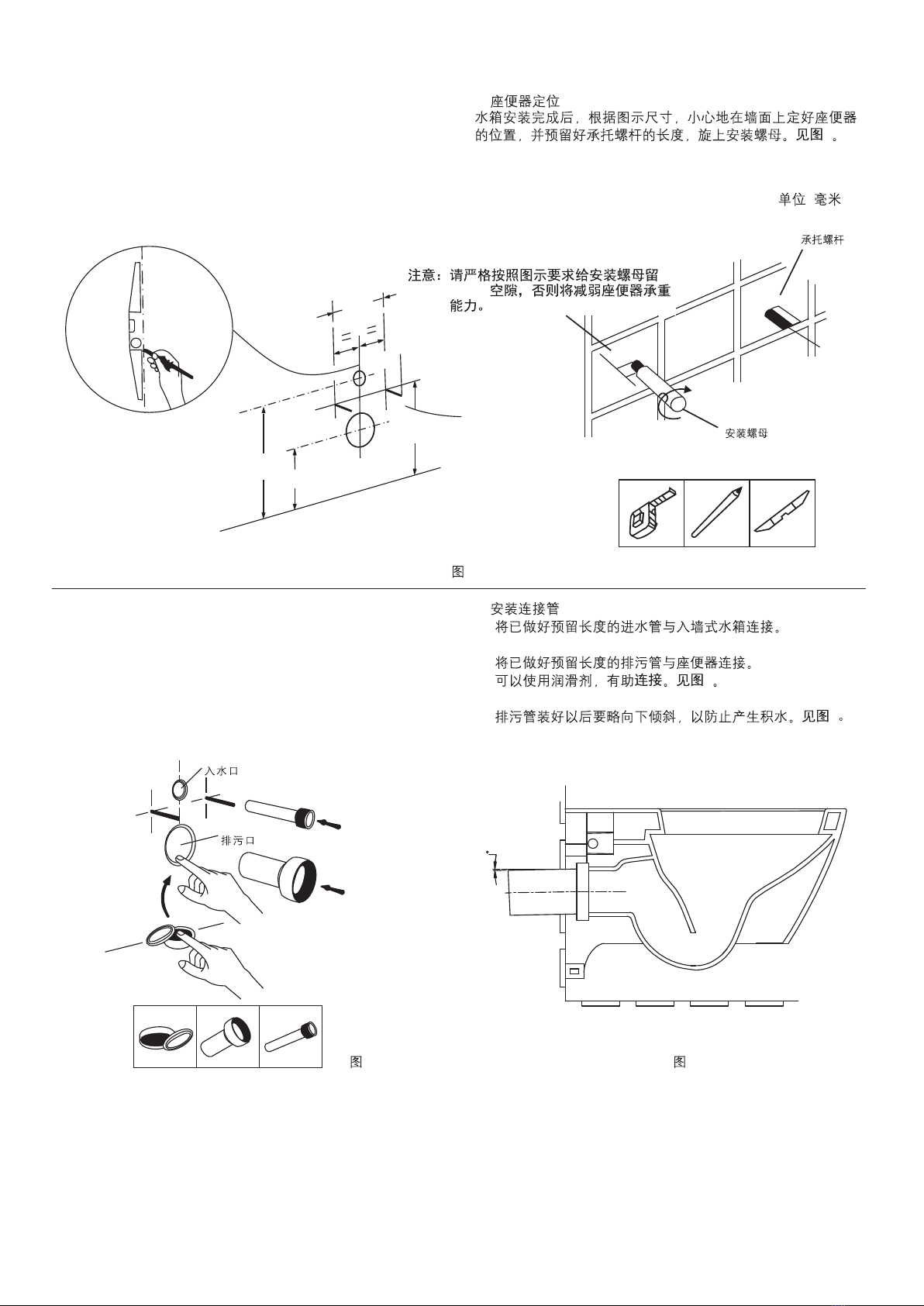

2. Set The Spacing Of The Bowl
After you install the tank, be careful to set the spacing of set
aside the length for carrier studs and tighten nut. The bowl on
wall according to the dimensions as shown. See Fig. #3.
2.
3
Fig.#3
3
350
315
Unit: mm
:
230
215
35
Nut
10
Carrier Stud
NOTE: Please reserve 10mm space for
the nut strictly according to the
picture. Otherwise, it will greatly
affect the loading capacity of the
toilet.
10mm
3. Attach Connection Pipe
1) Attach inlet pipe which set aside the length to the
concealed tank.
2) Attach outlet pipe to the toilet.
3) You may apply some lubricant to help connect smoothly.
4) Please tilt the outlet pipe a little after it is installed to
prevent water storage.
See Fig. #4.
See Fig.#5.
3.
1)
2)
3) 4
4) 5
Fig.#4
4
Fig.#5
5
Inlet
Outlet
1
1268139-T01-D

-5-
4. Install The New Toilet
1) Install the accessory kit into the installing hole.
2) Place the new toilet on the wall through the carrier.
3) Use wrench to tighten accessories and level the toilet.
Then finish fixation.
4) Insert the cap into installing hole. See Fig. #6.
4.
1)
2)
3)
4) 6
Fig.#6
6
5. Apply sealant to make sure the bowl,s edge seals to the
wall. See Fig. #7.
5. 7
Fig.#7
7
6. Install the toilet seat according to its installation instructions. 6.
1268139-T01-D

-6-

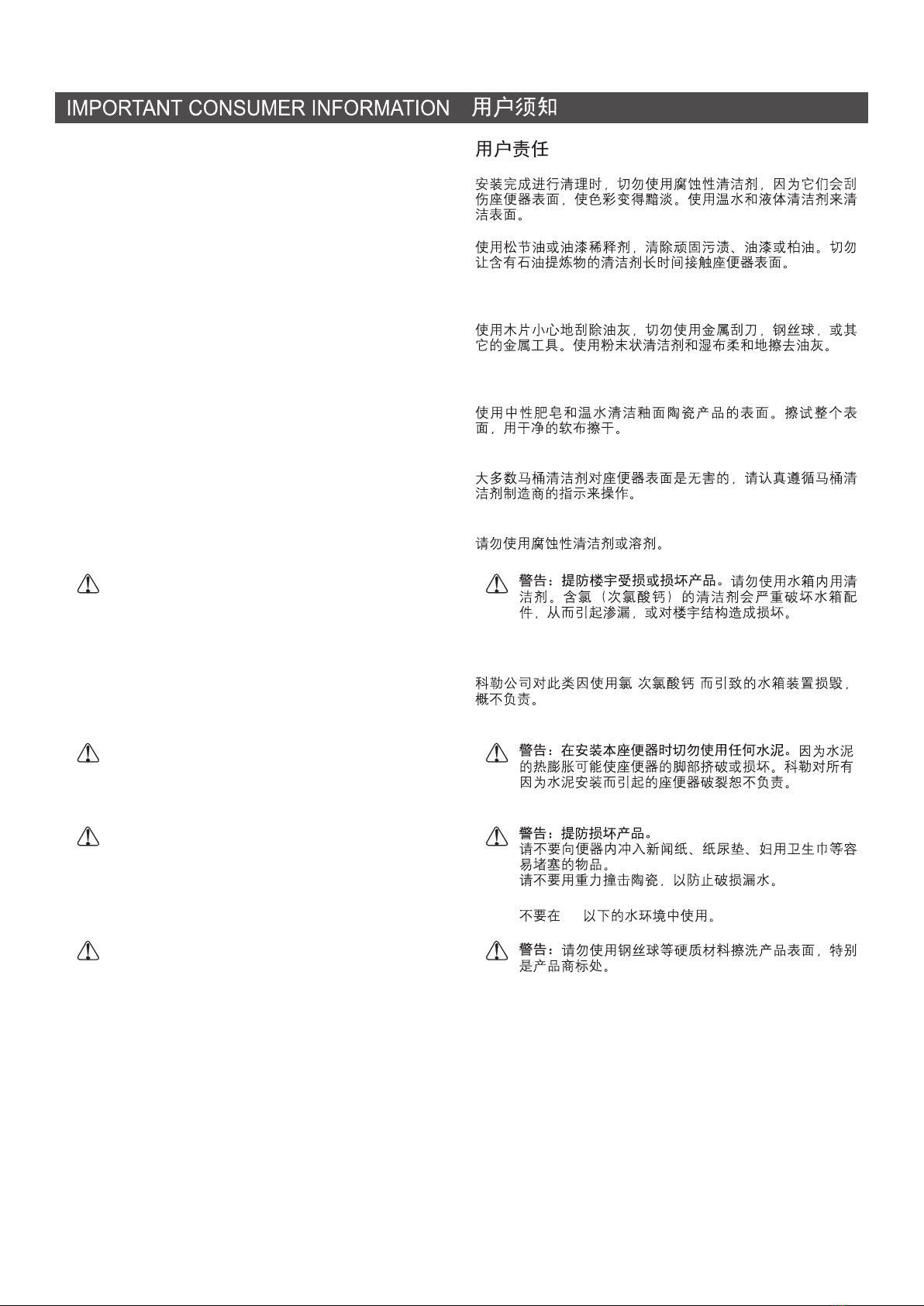

CONSUMER RESPONSIBILITIES
When cleaning up after installation, do not use abrasive
cleansers, as they may scratch and dull the toilet surface.
Use warm water and a liquid detergent to clean the surface.
Remove stubborn stains, paint, or tar with turpentine or paint
thinner. Do not allow cleaners containing petroleum distillates
to to remain in contact with any toilet surface for long periods
of time.
Remove plaster by carefully scraping with a wood edge. Do
not use metal scrapers, wire brushes, or other metal tools.
Use a powder type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.
Clean the outside surface of your vitreous china product with
mild soap and warm water. Wipe the entire surface
completely dry with a clean, soft cloth.
Most toilet bowl cleaners are not harmful to the vitreous china
surface of the toilet bowl. Please follow the bowl cleaner
manufacturer is instructions carefully.
Do not use abrasive cleaners or solvents.
()
0C
o
WARNING: Risk of property or product damage.
Do not use in-tank cleaners. Products containing
chlorine (calcium hypochlorite) can seriously damage
fittings in the tank. This damage can cause leakage
and property damage.
Kohler Company shall not be responsible or liable for any
damage to these tank fittings caused by the use of cleaners
containing chlorine (calcium hypochlorite).
'
Please do not use hard materials (like
scouring pad) to clean product surface, especially the
product logo.
CAUTION:
CAUTION: Don t use any cement while installing
the toilet.
WARNING: Risk of product damage.
Heat expansion of the toilet may damage
the feet of the toilet. Kohler will not be responsible for
any damage because of using cement.
Do not throw into the toilet what is easy to block it,
such as newspaper, paper pilch, sanitary towel.
Do not bump the vitreous china with great force to
prevent it from damaging and leaking.
Do not use the product in the water below 0 C.
o
1268139-T01-D

-1-
HYDRO-TOWER 201 201
INSTALLATION INSTRUCTIONS
IN-WALL TANK
K-25439T-PNE/K-25440T-PNE/K-25440T-RE/K-25440T-VAW/K-25440T-VL
K-25440T-DNW/K-25440T-PM/K-25440T-RU/K-25440T-ML/K-25441T-PNE
K-25442T-PNE/K-25443T-PNE/K-25443T-RE/K-25443T-EA
K-25443T-PM/K-25443T-RU/K-25443T-ML/K-25444T-PNE
K-20341T-PNE/K-75890T-PNE/K-23055T-PNE/K-24149T/K-24151T
!
!
!
!
!
Read installation guide in illustration and word file carefully, and install the tank according to instructions in the guide to avoid
product damage and installation inconvenience caused by inappropriate operation.
All data contained is based upon the last product information available at the time of publication. Kohler Company reserves
the right to implement changes of product characteristics, packaging and availability at any time without further notice.
Do not apply erosive cleanser and solvent in the tank, which will damage tank spares and result in leakage in the tank.
Kohler will not be responsible for any damage related to above mentioned cleanser or solvent. Mild detergent can be used.
Do not apply spares that are not provided by Kohler, and please note that glass adhesive tape shall not be applied to the
installation of Kohler spares. Kohler will not be responsible for any damage related to installation with spares not provided by
Kohler.
This product complies with GB26730-2011.
!
!
!
!
!GB26730-2011

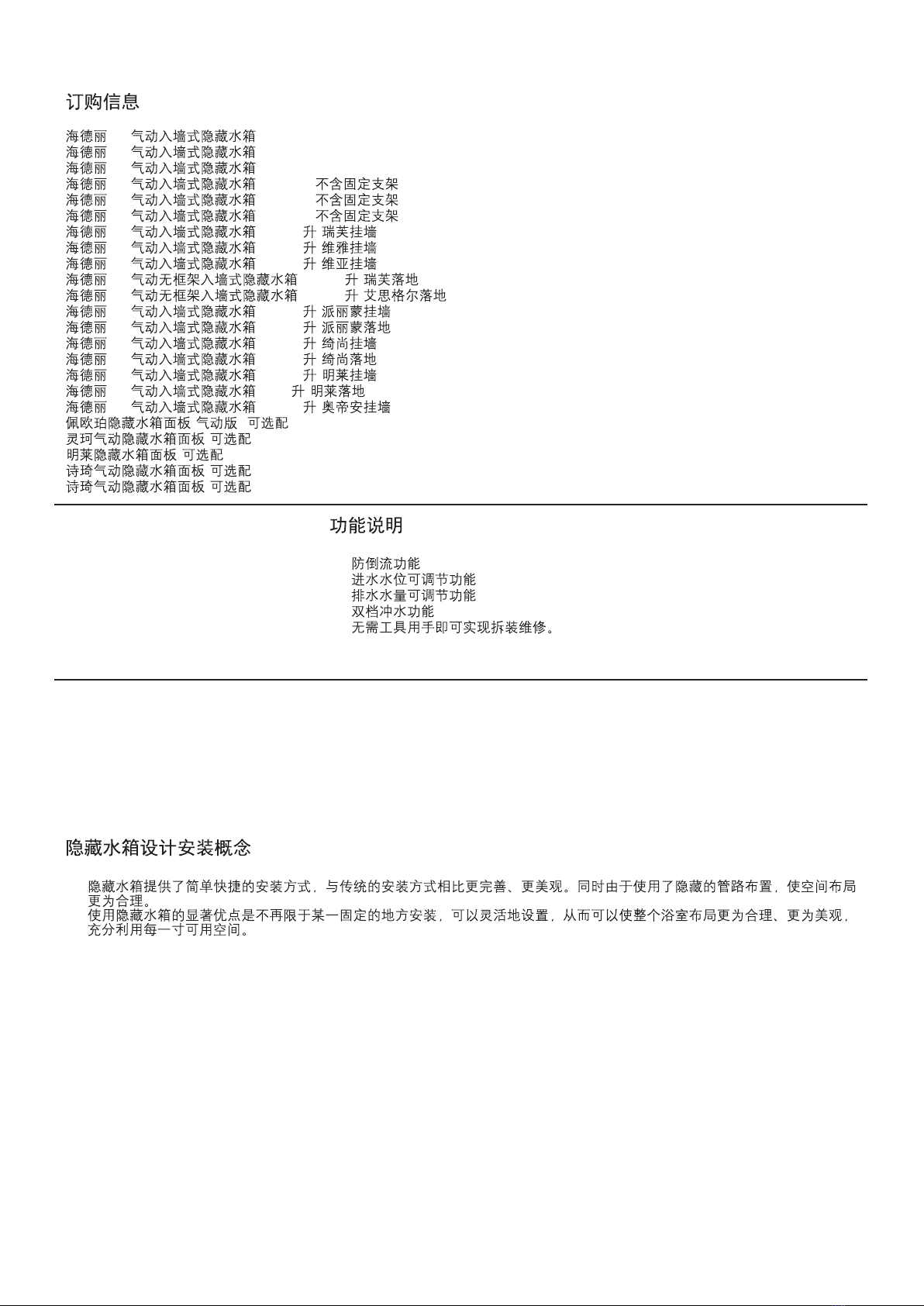

Ordering Information
HT201 PNE IWT W/F 2.6/4.0 ..............................................................................................................................K-25439T-PNE-NA
HT201 PNE IWT W/F 3.0/4.5 ..............................................................................................................................K-25440T-PNE-NA
HT201 PNE IWT W/F 3.0/6.0 ..............................................................................................................................K-25441T-PNE-NA
HT201 PNE IWT W/O F 2.6/4.0 ..........................................................................................................................K-25442T-PNE-NA
HT201 PNE IWT W/O F 3.0/4.5 ..........................................................................................................................K-25443T-PNE-NA
HT201 PNE IWT W/O F 3.0/6.0 ..........................................................................................................................K-25444T-PNE-NA
HT 201 PNE IWT W/F 3.5/5.0L(REVE WH) ..........................................................................................................K-25440T-RE-NA
HT 201 PNE IWT W/F 3.5/5.0L(VIA WH) ...........................................................................................................K-25440T-VAW-NA
HT 201 PNE IWT W/F 3.5/5.0L(VEIL WH).............................................................................................................K-25440T-VL-NA
HT 201 PNE IWT W/O F 3.5/5.0L(REVE WF).......................................................................................................K-25443T-RE-NA
HT 201 PNE IWT W/O F 3.5/5.0L(ESCALE WF)...................................................................................................K-25443T-EA-NA
HT 201 PNE IWT W/F 3.0/4.5L(PARLIAMENT WH)............................................................................................K-25440T-PM-NA
HT 201 PNE IWT W/O F 3.0/4.5L(PARLIAMENT WF) .........................................................................................K-25443T-PM-NA
HT 201 PNE IWT W/F 3.0/4.5L(REACH UP WH) ................................................................................................K-25440T-RU-NA
HT 201 PNE IWT W/O F 3.0/4.5L(REACH UP WF)..............................................................................................K-25443T-RU-NA
HT 201 PNE IWT W/F 3.0/4.5L(ML WH) ..............................................................................................................K-25440T-ML-NA
HT 201 PNE IWT W/O F 3.0/4.5L(ML WF)............................................................................................................K-25443T-ML-NA
HT 201 PNE IWT W/F 3.5/5.0L(ODEON WH) ..................................................................................................K-25440T-DNW-NA
PEBBLE PNEUMATIC IN-WALL TANK FACEPLATE (NOT SUPPLIED) ...............................................................K-20341T-PNE
LYNK PNEUMATIC FACEPLATE (OPTIONAL) .......................................................................................................K-75890T-PNE
MODERN LIFE SMALL FACEPLATE (OPTIONAL)..................................................................................................K-23055T-PNE
SKIM PNE IWT FACEPLATE(OPTIONAL)........................................................................................................................K-24149T
SKIM PNE IWT FACEPLATE(OPTIONAL)........................................................................................................................K-24151T
BEFORE YOU BEGINBEFORE YOU BEGIN
KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436
( ) 158 200436
©
©
Copyright Kohler China Investment Co., Ltd. 2019
2019
1402749-T01-A

201 ,2.6/4.0L .............................................................................................................K-25439T-PNE-NA
201 ,3.0/4.5L .............................................................................................................K-25440T-PNE-NA
201 ,3.0/6.0L .............................................................................................................K-25441T-PNE-NA
201 ,2.6/4.0L( ) .....................................................................................K-25442T-PNE-NA
201 ,3.0/4.5L( ) .....................................................................................K-25443T-PNE-NA
201 ,3.0/6.0L( ) .....................................................................................K-25444T-PNE-NA
201 ,3.5/5.0 ( ) .............................................................................................K-25440T-RE-NA
201 ,3.5/5.0 ( ) ..........................................................................................K-25440T-VAW-NA
201 ,3.5/5.0 ( )..............................................................................................K-25440T-VL-NA
201 ,3.5/5.0 ( )...................................................................................K-25443T-RE-NA
201 ,3.5/5.0 ( )............................................................................K-25443T-EA-NA
201 ,3.0/4.5 ( ) .........................................................................................K-25440T-PM-NA
201 ,3.0/4.5 ( ) .........................................................................................K-25443T-PM-NA
201 ,3.0/4.5 ( ) .............................................................................................K-25440T-RU-NA
201 ,3.0/4.5 ( ) .............................................................................................K-25443T-RU-NA
201 ,3.0/4.5 ( ) .............................................................................................K-25440T-ML-NA
201 ,3/4.5 ( ) ................................................................................................K-25443T-ML-NA
201 ,3.5/5.0 ( ) ......................................................................................K-25440T-DNW-NA
( )( )........................................................................................................................K-20341T-PNE
( )..................................................................................................................................K-75890T-PNE
( ).........................................................................................................................................K-23055T-PNE
( ) ..........................................................................................................................................K-24149T
( ) ..........................................................................................................................................K-24151T
!
!
Design And Installation Concept Of In-wall Tank
!
!
Installation of in-wall tank is much easier and nice-looking comparative to that of traditional tank. Meanwhile, the space
layout will be more reasonable due to the application of in-wall tank pipes and connectors.
The most remarkable advantage of in-wall tank is that the installation will never be limited to certain area, and can be
installed wherever as you wish, which will make the bathroom layout more reasonable and nice-looking, and make good use
of every inch of the bathroom space.
!
!
!
!
!
Function Explanation
!
!
!
!
!
Anti flow-backwards
Adjustment of inlet water level
Adjustment of flushing volume
Single/double gear
Assemble, disassemble and
maintenance can be done without
tools.
flushing
-2-
1402749-T01-A

-3-
!
!
!
!
!
!
!

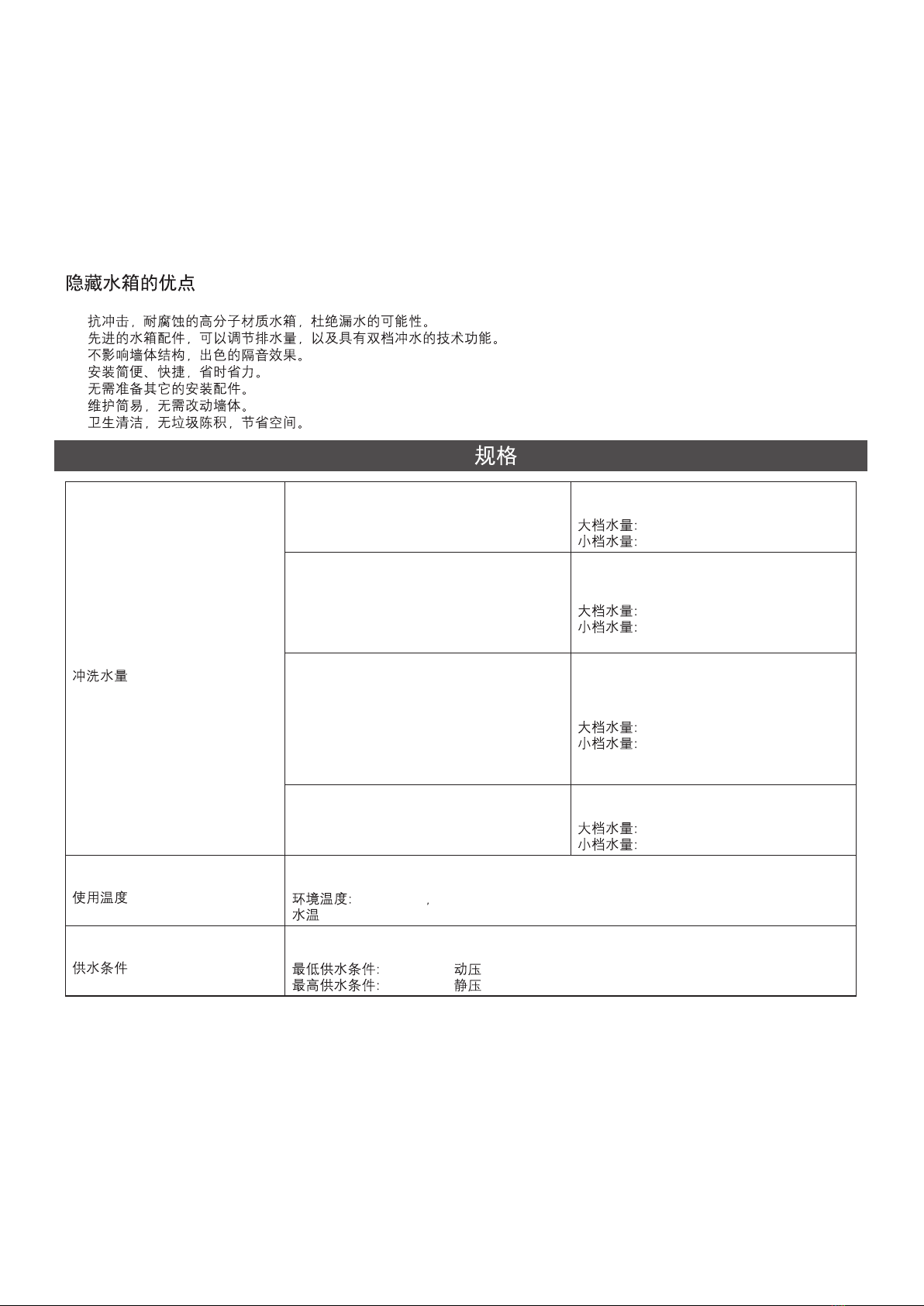

Advantages Of In-wall Tank
!
!
!
!
!
!
!
Made of macromolecular materials that prevents corrison and leaking.
Will not affect the structure of the wall and provides excellent sound insulation.
Easy installation and time efficient.
.
.
Clean, garbage free, and space .
Advanced water tank fitting, which makes possible the adjustment of the water discharge and double flush.
Do not need to prepare any other spare parts
Easy maintenance and servicing
saving
SPECIFICATIONS
Liter per flushing
Temperature
Environmental temperature: 1 ~55
Water temperature: 1 ~45
°C °C,
°C °C
°C °C
°C °C
1 ~55
1 ~45
Full flushing volume:
Half flushing volume:
6L
3L
6L
3L
.0
.0
.0
.0
K-25440T-PNE-NA
K-25440T-PM-NA
K-25440T-RU-NA
K-25440T-ML-NA
K-25443T-PNE-NA
K-25443T-PM-NA
K-25443T-RU-NA
K-25443T-ML-NA
K-25440T-RE-NA
K-25440T-VAW-NA
K-25440T-VL-NA
K-25440T-DNW-NA
K-25443T-RE-NA
K-25443T-EA-NA
K-25441T-PNE-NA
K-25444T-PNE-NA
Full flushing volume: 4.5L
Half flushing volume: 3 L
.0
.0
4.5L
3L
Full flushing volume: 5 L
Half flushing volume: 3.5L
.0
.0
5L
3.5L
K-25439T-PNE-NA
K-25442T-PNE-NA
Full flushing volume: 4 L
Half flushing volume: 2.6L
.0
.0
4L
2.6L
Water Supply
Min water supply: 0.02MPa (dynamic pressure)
Max water supply: 0.74MPa (static pressure)
0.02MPa ( )
0.74MPa ( )
1402749-T01-A

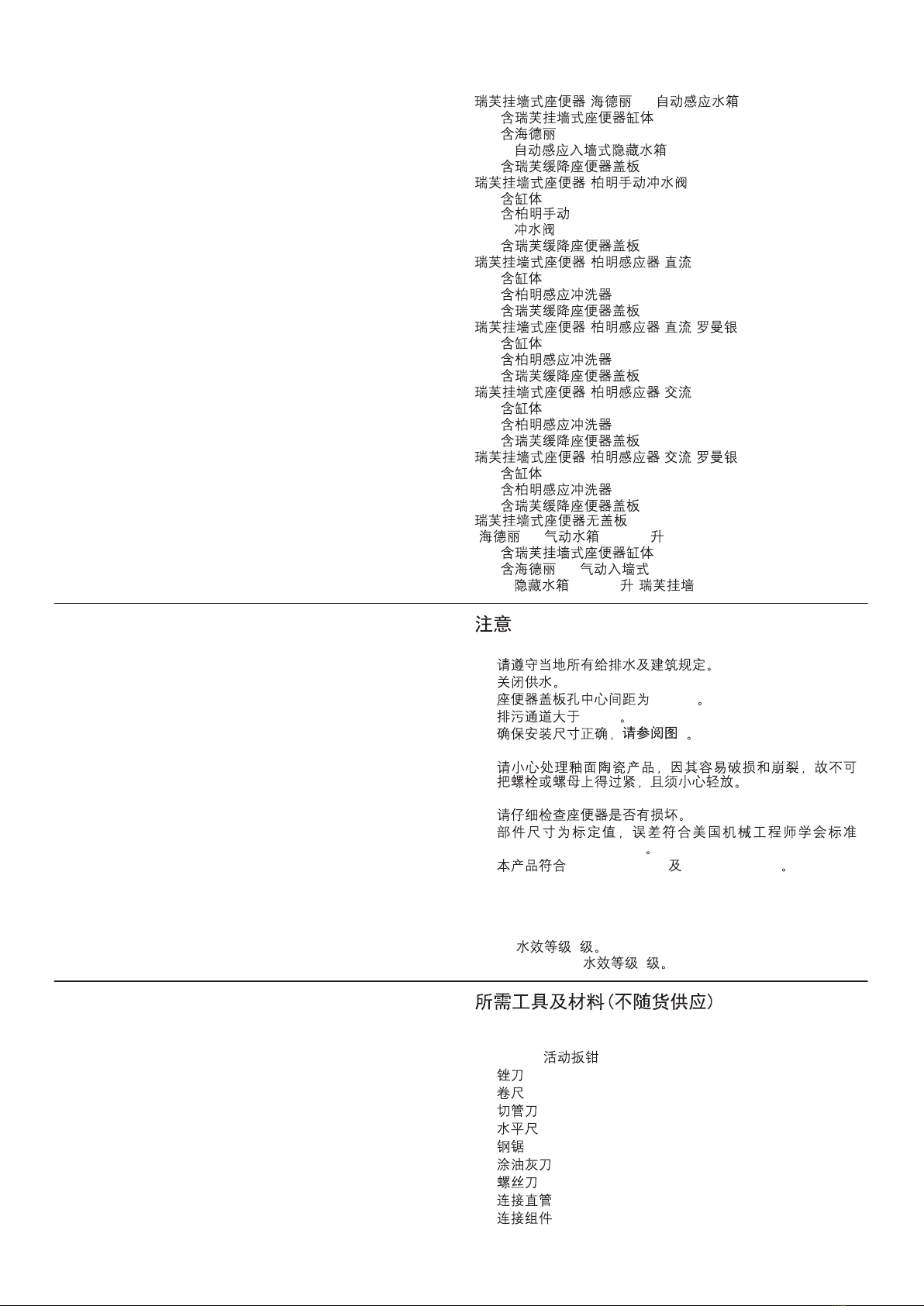

RECOMMENDES TOOLS AND MATERIALSRECOMMENDES TOOLS AND MATERIALS
!
!
!
!
!
!
!
!
!
!
!
!
!
Open end/adjustable wrenches
Allen wrench
Knife
File
Hacksaw
Masonry
Level
Screw driver
Insulation tape
Tape measure
Seal tape
Bushing
Lubricant
!
!
!
!
!
!
!
!
!
!
!
!
!
/
-4-
ROUGHING-IN
UNIT: mm
Reference Value
K-25439T-PNE/K-25440T-PNE/K-25440T-RE/K-25440T-VAW
K-25440T-VL/K-25440T-DNW/K-25440T-PM/K-25440T-RU/K-25440T-ML/K-25441T-PNE
Installed with
K-20341T-PNE
K-20341T-PNE

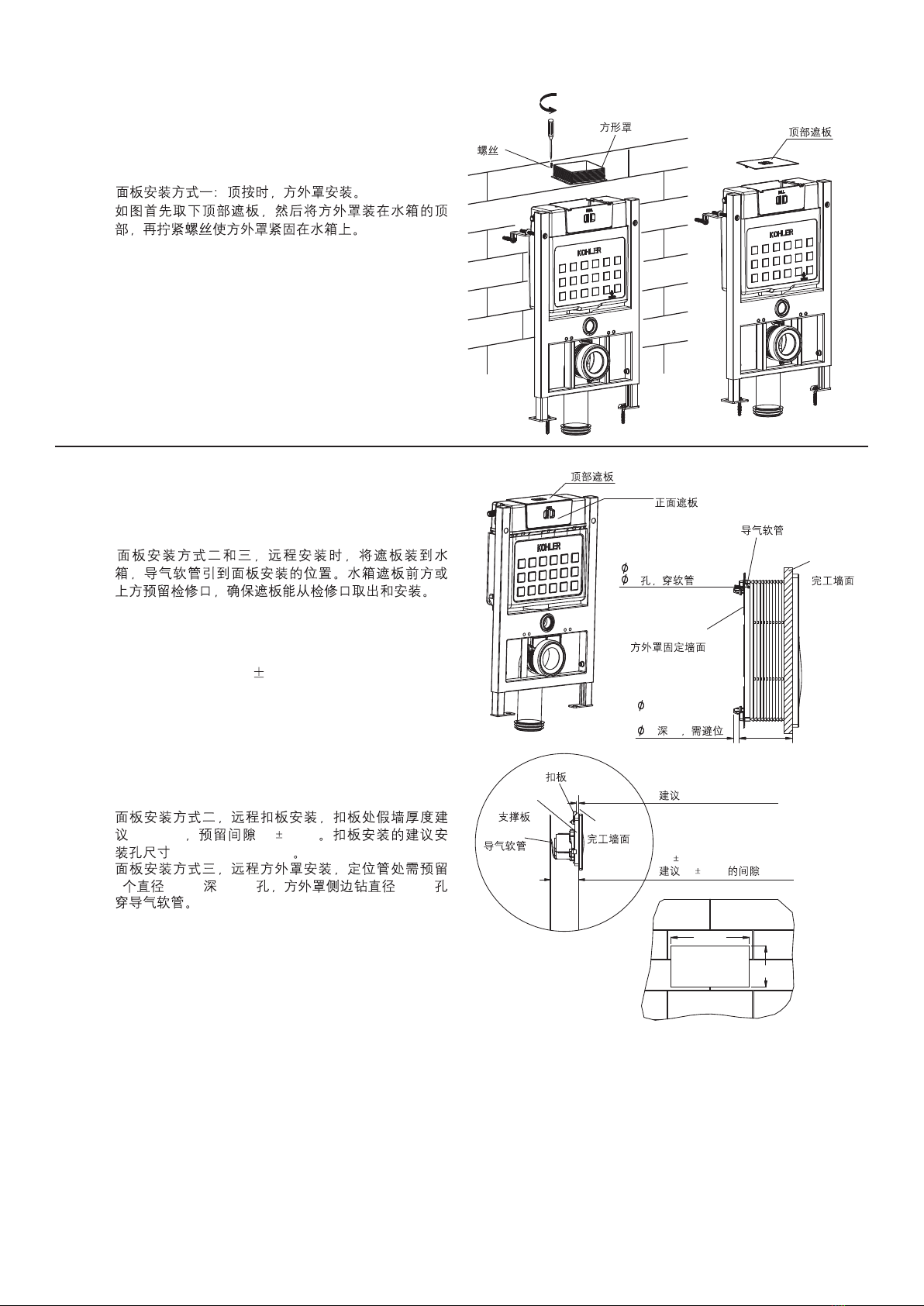

Method one:
Press from top
Method two:
Remote plate installation
Method three:
Remote installation
of mask
Method four:
Press from front
478 3
138 3
438 3
180 3
230 3
90 1
Air hose
Finished
floor
Air hose Air hose
Pinch
plate
Suggested faceplate
installation area
R1000mm
Suggested faceplate
installation area
R1000mm
Height Suggested / 800 5
711 4
35 3
100 3
Suggested/ 80 3
205
89~160
Air hose Pinch plate Finished wall
85~120
150~210
20~72
1402749-T01-A

-5-
225 1 225 1
160 1
160 1
K-20341T-PNE K-75890T-PNE
K-25442T-PNE/K-25443T-PNE/K-25443T-RE/K-25443T-EA
K-25443T-PM/K-25443T-RU/K-25443T-ML/K-25444T-PNE
Installed with K-20341T-PNE
K-20341T-PNE
Method one:
Press from top
Method two:
Remote plate installation
Method three:
Remote installation of mask
Method four:
Press from front
463 2 151 3
138 3
462 2
248 2
180 2
438 2 Air hose
Air hose
Air hose
Air hose
Pinch
plate
Pinch plate
Suggested faceplate
installation area
R1000mm
Suggested faceplate
installation area
R1000mm
59 1
Finished wall
Finished Floor
Height to floor is decided by bowl.
K-23055T-PNE
155.5 1
51 1
K-24149T/K-24151T
225 1
160 1
20~72
Suggested/ 80 3
Kohler reserves the right to change marked dimensions without prior notice.

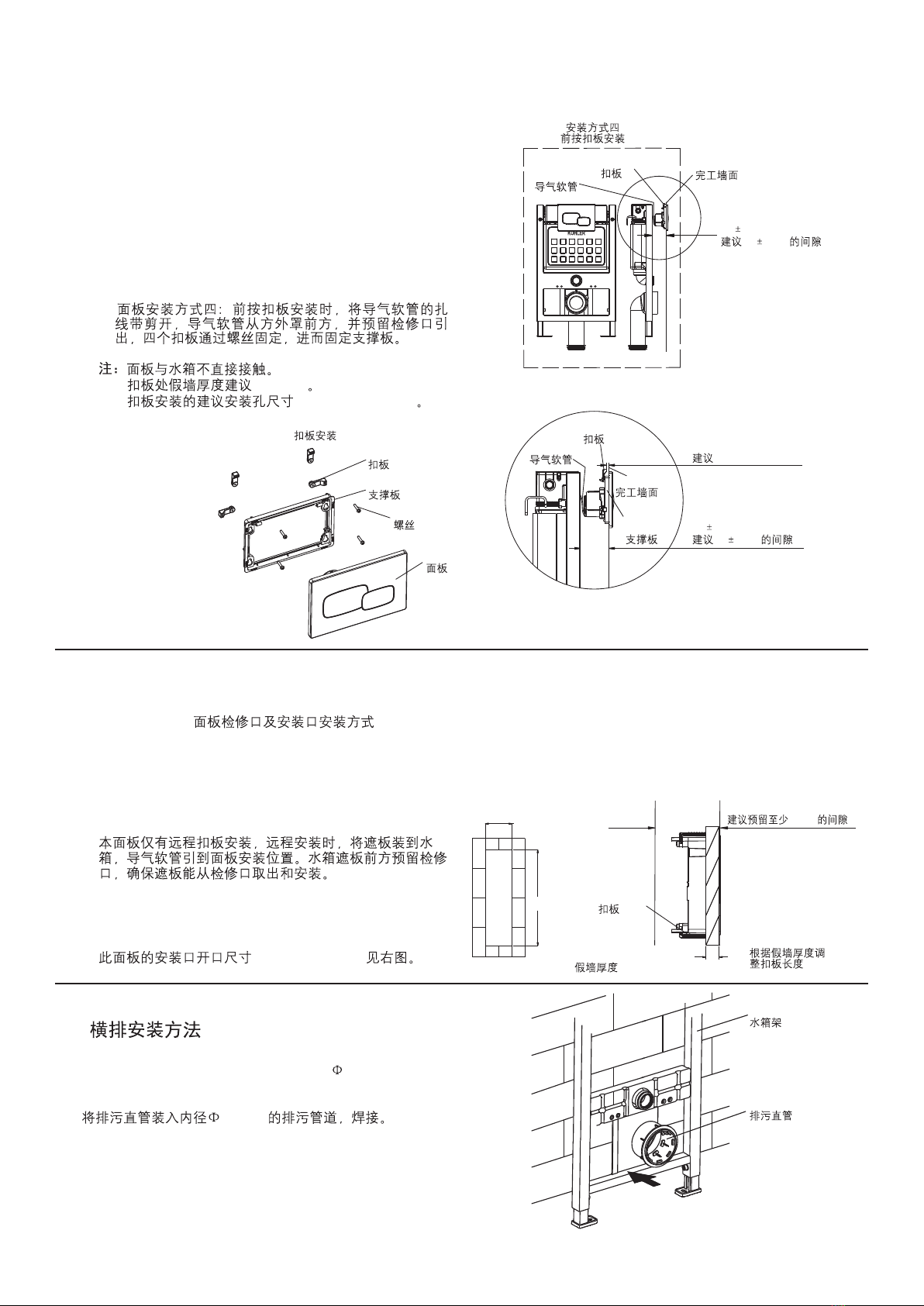

Floor Discharge Installation Method
Three discharge pipe installation methods based on actual
situation: A, B, C, adjust position by screw driver. Snap
discharge pipe lower end into discharge port.
ABC
B
C
A
Discharge
Elbow
Discharge
Elbow
Discharge
Elbow
Water Tank
Bracket
Water Tank
Bracket
Water Tank
Bracket
Drain outlet 90mm, welding
90mm
Drain outlet 110mm
110mm
Drain outlet 110mm, welding
110mm
1402749-T01-A

Nut
Frame Screw
Screw Cap
-6-

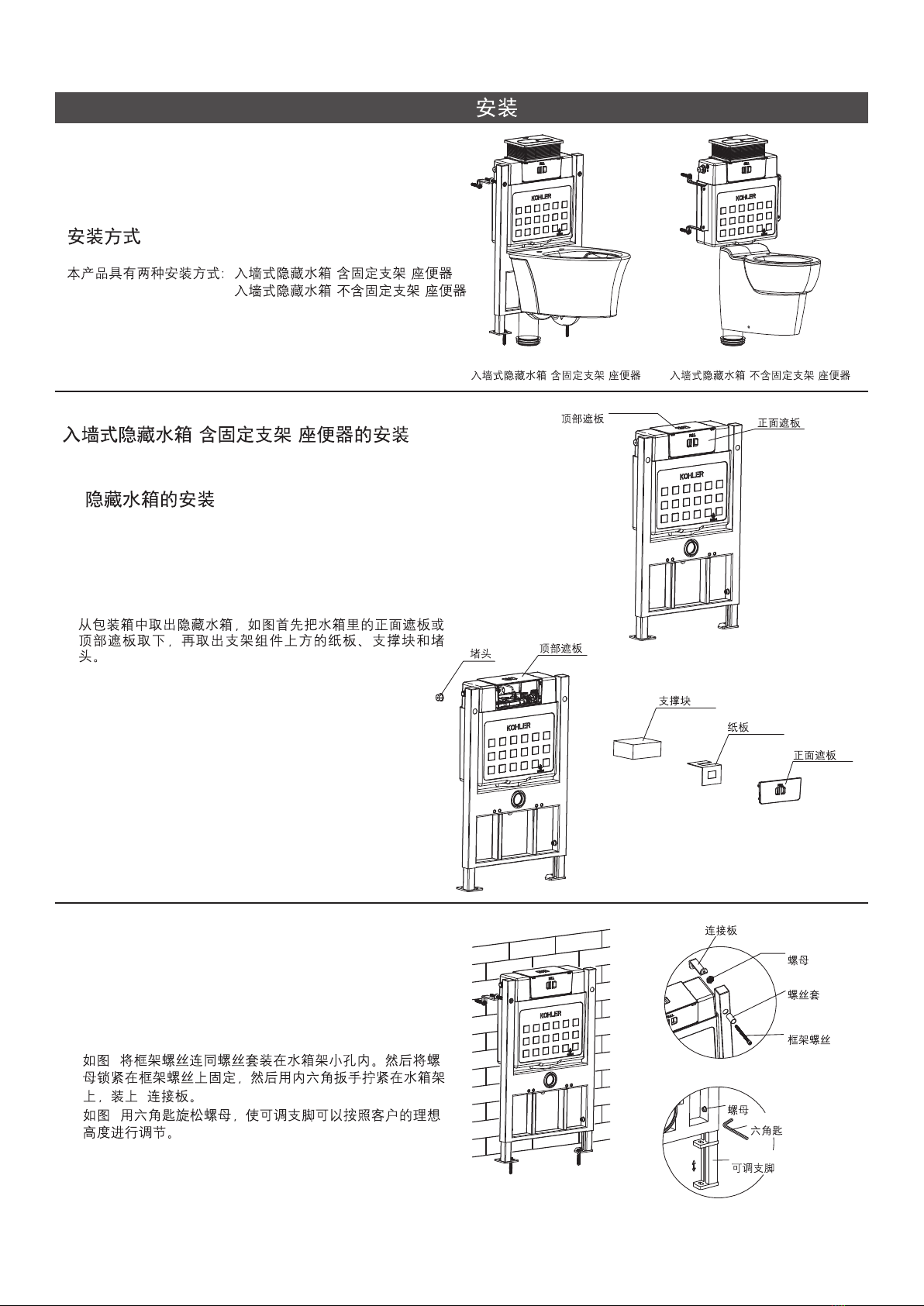

INSTALLATION
Way of Installation
There are two ways to install this product: in-wall tank with
frame & in-wall tank without frame
()
()
In-wall Tank Without Frame
()
In-wall Tank With Frame
()
Installation For In-wall Tank With Frame
A. Installation of In-wall Tank
()
A.
1. Remove in-wall tank from packing box. Remove front cover
board or top cover board inside water tank first as shown.
Then remove paper board, support block and plug above
bracket assembly.
1.
2. Insert the frame screw and screw cap in the holes of fixing
frame, lock the frame screw with nut, then tighten the
frame screws on the fixing frame with medium Allen key as
shown in illustration A, Install Z-connecting plate.
Loosen the bolts with medium Allen key as shown in
illustration B, and adjust the height of the adjustable
bracket according to customer's requirements.
2. A
Z
B
A
B
Plug Cover,Top
Cover,Front
Supporting Board
Nut
Medium Allen Key
Adjustable Bracket
Cover,Top Cover,Front
Paper Board
Z-connecting Plate
Z
1402749-T01-A

-7-
A
B
3. Drill four holes with diameter of 12mm and depth of 80mm
with churn drilling as shown, and fill in the holes with
expanding bolt cap and tighten the screw.
3. 12mm 80mm
4. Tighten the hexagonal long screw with medium Allen key
as shown in illustration A.
Tighten the screw of adjustable brackets with medium
Allen key as shown in illustration B, and tighten the long
screw with spanner.
NOTE: Ensure the tank to remain level.
4. A
B
Hexagonal Screw
Loosen Tighten
Level
Medinm Allen Key
Adjustable Bracket
Spanner
Screw
Screw
Screw
Expanding Bolt Cap
Expanding Bolt Cap
Washer
Washer
B. Floor Discharge Installation Method
B.
1. Three discharge pipe installation methods based on actual
situation: A, B, C, adjust position by screw driver. Snap
discharge pipe lower end into discharge port.
1. ABC
B
C
A
Discharge
Elbow
Discharge
Elbow
Discharge
Elbow
Water Tank
Bracket
Water Tank
Bracket
Water Tank
Bracket
Drain outlet 90mm, welding
90mm
Drain outlet 110mm
110mm
Drain outlet 110mm, welding
110mm
1402749-T01-A

-8-
2. Tighten the long screw into the holes of the tank bracket
and cover the drainage hole with the big cap, cover the
inlet hole with the small cap.
2.
Inlet Hole
Drainage Hole
Big Cap
Tank Bracket
Small Cap
Long Screw
3. Connect tap water braided tube on the top of water tank for
water supply as shown.
Note: 1. Ensure water tank internal valve is OFF.
2. Suggestion: connect a temporary rubber or plastic
hose on valve, flush water supply pipeline. Ensure
water is clean, no residual sand stone or fouling
inside pipeline.
3.
1.
2.
Water Pipe
Connecting Pipe
1) K-20341T-PNE/K-75890T-PNE/K-24149T/K-24151T
Access Panel Installation Methods:
There are four ways to install access panel:
Method one: Press from top
Method two: Remote plate installation: fix four plates
with screws
Method three: Remote installation of mask
Method four: Press from front: fix four plates with screws
1)
:
K-20341T-PNE/K-75890T-PNE/K-24149T/K-24151T
Method three:
Remote installation of mask
Method four:
Press from front
Method one:
Press from top
Method two:
Remote plate installation
4. According to different faceplates,there are different
installations of access panel as below.
4.
20~72
Air hose
Pinch
plate
Suggested faceplate
installation area
R1000mm
Air hose
Suggested faceplate
installation area
R1000mm
Air hose
Pinch plate
Finished
wall
Suggested/
80 3
1402749-T01-A

-9-
A. Method one: Install mask when pressing from top.
Remove top plate, then install the rectangular shield
on the top of the tank, and tighten the screw to fix the
mask to the tank.
A.
Cover,Top
Screw
Mask
B. Methods two and three: During remote installation, fix
the cover onto the tank and pull the air hose to the
panel. Reserve access panel at front or top to ensure
removal and installation of cover.
Method two: During remote plate installation,
7~20mm thickness is recommended for the wall of
the pinch plate and 80 3mm gap is reserved.
Method three: During remote installation of mask, 4
holes with diameter of 10mm and depth of 12mm are
needed to be reserved at the locating hose. Drill
10mm holes through air hose on the side of mask.
Recommended installation hole size of
X mm to remote plate installation.201 136
B.
7~20mm 80 3mm
4 10mm 12mm 10mm
Xmm201 136
Cover,Top
Cover,Front
80 3mm gap reserved
80 3mm
Air hose
Pinch plate
Finished wall
Supporting
Board
Air hose
Finished
wall
Fix Mask Onto Wall
78
7~20mm recommended
7~20mm
10 Hole through hose
10
10 Depth 12,
Space reserved
10 12
201
136
+2
0
+2
0
+2
0
+2
0
+2
0
+2
0
1402749-T01-A

C. Installation of P-trap
C.
1. Insert drainage pipe with inner diameter 110mm into
drain elbow and weld.
1. 110mm
-10-
C. Method four: Cut apart the cable of the air hose. Pull
it out from the front of the tank and meanwhile
reserve the access panel. Fix the four plates with
screws and then fix the support board.
No direct contact between the faceplate and the
tank.
7~20mm thickness recommended for the wall of
the pinch plate.
Note:
Recommended installation hole size of
X mm to remote plate installation.201 136
C.
7~20mm
Xmm201 136
Pinch plate installation
Screw
Air hose
Air hose
Pinch plate
Pinch plate
Pinch plate
Finished wall
Finished wall
Faceplate
Supporting Board
Supporting
Board
Method four:
Press from front
7~20mm recommended
7~20mm
+2
0
+2
0
+2
0
+2
0
+2
0
+2
0
+2
0
+2
0
2) K-23055T-PNE access panel installation and installation
hole size
2) K-23055T-PNE
There is only remote installation with K-23055T-PNE,
During remote installation, fix the cover onto the tank
and pull the air hose to the panel. Reserve access panel
at front to ensure removal and installation of cover.
Recommended installation hole size of
146 .X41 mm
146 X 41 mm
41
146
+2
0
+2
0
Pinch Plate
Wall Thickness 7~40mm
7~40mm
Adjust length of
pinch plate in
accordance with
wall thickness
At least 80mm gap reserved
80mm
Water Tank Bracket
Drainage Pipe
80 3mm gap reserved
80 3mm
80 3mm gap reserved
80 3mm
1402749-T01-A

-11-
2. Tighten the long screw into the holes of the tank bracket
and cover the drainage hole with the big cap, cover the
inlet hole with the small cap.
2. Long Screw
Water Inlet
Drainage Hole
Big Cap
Water Tank Bracket
Small Cap
3.
3. When finishing the brickwork of the wall, take out the big
and small caps, and eliminate unwanted mask with a sharp
knife, if there is mask.
Reserve access panel at front or top of the tank.Note:
D. Installation of Toilet
D.
1. Install the inlet pipe to the lavatory as shown, and mark on
the pipes at the back side of the tank with a ruler and a
pencil, and reserve appropriate space according to the
distance from the back of the tank to the inlet hole on the
wall.
1.
Inlet Pipe
Drainage Pipe
Mask
Big Cap
Small Cap
Access Panel
Access Panel
2.
Inlet Pipe
Reserved Space
Drainage Pipe
2. Eliminate unwanted part of the inlet pipe according to the
marks of reserved space ,and rasp a smooth surface with
files.
1402749-T01-A

-12-
3. Install the big and small leak-proof gaskets on inlet pipe
and outlet pipe ,then install it to corresponding pipes on the
toilet tank.
3.
Small Leak-proof Gasket
Inlet Pipe
Drainage Pipe
Big Leak-proof Gasket
4. 48mm-58mm of the long screw shall be reserved outside
the wall as shown in the illustration. if the long screw
outside the wall is not long enough or much longer than
that needed, it should be adjusted with screwdriver or by
hand. Then apply lubricant to drainage pipe and limber
pipe to ensure a smooth installation.
4. 48mm-58mm 48mm-58mm
Long Screw
Lubricant
5. Install the toilet as shown in the illustration, and use a spirit
level to ensure the lavatory to remain level.
5.
Spirit Level
Gasket
Long Screw
Reversed Lock
Hexagonal Nut
Decoration Cap
6. Install the reserved lock, gasket, hexagonal nut and
decoration cap onto long screw according to the order
shown in the illustration.
Please refer to the installation instructions of toilet.Note:
6.
1402749-T01-A

-13-
E. Faceplate Installation
E.
1)
1)
OPEN
When tighten four locknuts on supporting board, adjust
to "OPEN" mark as shown.
Supporting Board
Locknut
According to different faceplates, there are different faceplate
installations as below:
1. K-20341T-PNE/K-75890T-PNE/K-24149T/K-24151T
installation
1. K-20341T-PNE/K-75890T-PNE/K-24149T/K-24151T
2) Tighten four screws to "LOCK" mark after installing
supporting board as shown.
2) LOCK
3) Install the big flush air hose and small flush air hose to
the cover.
Cut the excessive parts of the air hose if necessary
and fix it onto the tank fastener.
Put the lock on the cover directly on the
reversed lock on supporting board, then push the cover
and lock it. The installation shall begin from bottom to
top.
Note:
3)
Faceplate
Lock Faceplate
Supporting
Board
Connect to air hose Fastener
1402749-T01-A

-14-

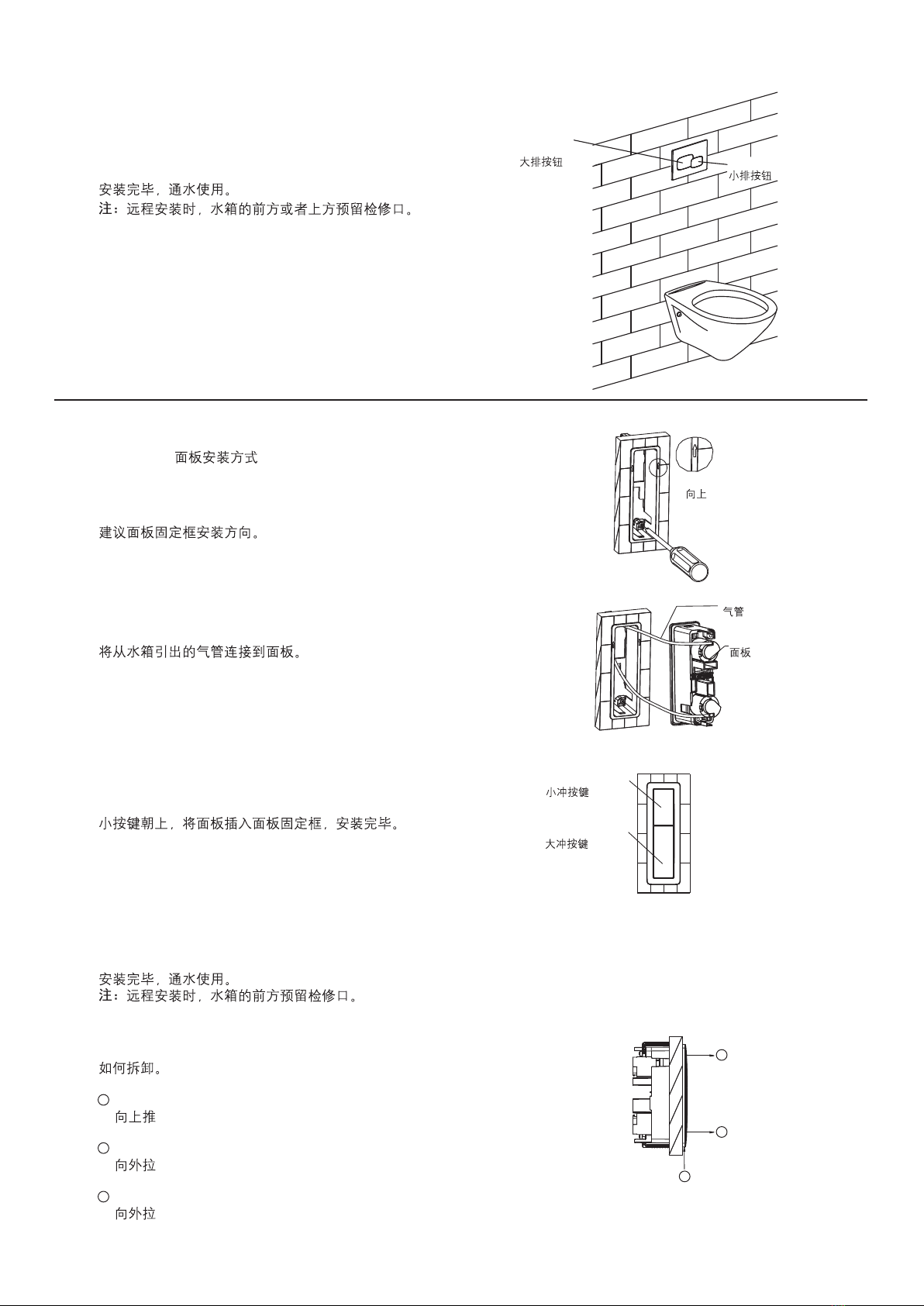

4) It is ready to use when connected to water supply after
installation.
Reserve access panel at front or top of the tank in
remote installation.
Note:
4)
Half Flush Button
Full Flush
Button
2. K-23055T-PNE installationn
2. K-23055T-PNE
Up
1) .
1)
Suggested faceplate fixed frame installation direction
3
2
1
3
2
1
Half Flush Button
Air Hose
Faceplate
Full Flush Button
2) .
2)
Connect air hose to faceplate from water tank
3)
3)
Insert faceplate into faceplate fixed frame with half flush
upward. Installation is completed.
4) It is ready to use when connected to water supply after
installation.
Reserve access panel at front of the tank in remote
installation.
4)
5)
5)
How to remove.
Push Up
Pull Out
Pull Out
1402749-T01-A
