Installation and Care Guide
Dual-Flush
Two Piece Toilet


K-45363R, K-45363X, K-98830H

1177695-X2-E 2 Kohler Co.

Thank You For Choosing Kohler Company
Thank you for choosing Kohler. Kohler craftsmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.
  
 
 
 
 

  

 


 

Kohler Co. 3 1177695-X2-E
Before You Begin
CAUTION: Risk of personal injury or product damage. Handle with
care. Product can break, chip, or cause injury if handled carelessly.

Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: Some installation parts might not be provided.
NOTE: The toilet pictured in the installation steps may dier from the model
being installed.
 
 

 
 

¨Observe all local plumbing and building codes.
¨Prior to installation, unpack the new product and inspect it for damage.
Return the product to its protective carton until you are ready to install it.
¨Use the template supplied with the product.
¨Failure to follow these precautions may result in a poor installation.
¨ If the existing toilet does not have a supply shut-o valve below the tank,
install one before installing the new toilet.
¨Do not use white cement or high lime content cements to install this toilet.
The expansion of cement due to a rise in temperature may make the toilet
crack or cause damage. Kohler is not responsible for any damage caused by
installation with the use of cement.
¨Fixture dimensions are nominal and conform to tolerances established by
Standards TIS.
CAUTION: Risk of property or product damage. Turn on the water
and allow water to ow through the supply pipe to ush the system of
any debris before connecting ll valve.

1177695-X2-E 4 Kohler Co.


 

¨ 
¨ 

¨ 
¨ 
¨  

¨  
 

¨ 

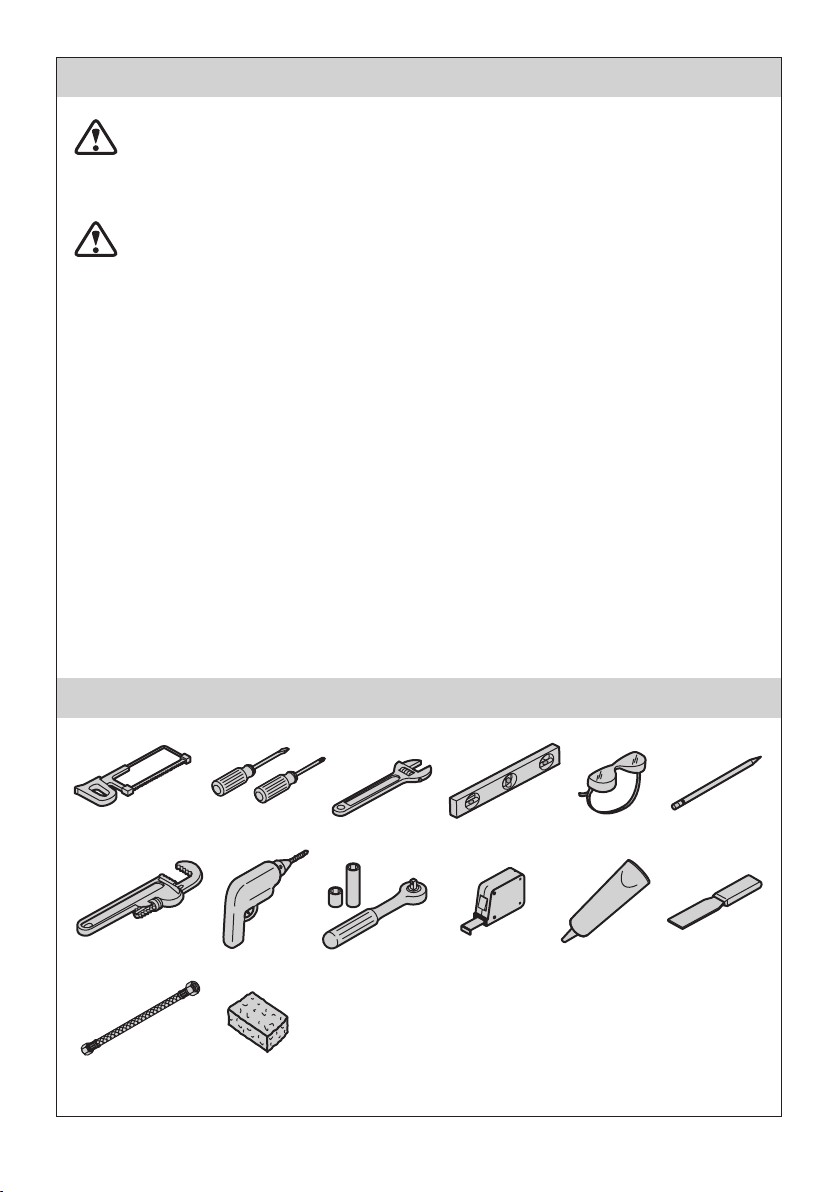

Tools/




Kohler Co. 5 1177695-X2-E
Installation/
Position the template.
2
1
Template
3
3/8"
Install or relocate the supply and outlet as necessary to comform to the roughing-in
dimensions.
Position the template on the floor to
ensure the template against the wall.
ติดตั้งหรือเปลี่ยนตําแหนงของทางนํ้าดีและทางนํ้าออก ใหเหมาะกับระยะการติดตั้งของสุขภัณฑ
กำหนดตำแหนงกระดาษแมแบบ
Insert the anchors. Positions
as shown on the template and install.
4
สวมพุก วางอุปกรณยึดขาฐาน
ตามตําแหนงในกระดาษแมแบบ
จากนั้นทําการติดตั้ง
กําหนดตําแหนงกระดาษแมแบบบนพื้น
ใหแนใจวา วางกระดาษแมแบบชิดผนัง
กระดาษแม่แบบ
1/2" 1/2"
200
mm/มม. 200
mm/มม.
185
mm/มม.
216
mm/มม. 216 mm/มม.
305
mm/มม.
P-Trap
ท่อนํ�าทิ�งออกผนัง
S-Trap
ท่อนํ�าทิ�งลงพื�น
Anchor
พุก

1177695-X2-E 6 Kohler Co.
Installation/
5 6
Thread the supply hose onto the tank.
ประกอบสายนํ�าดีเข้ากับถังพักนํ�า
Position the gasket over the
flush valve nut and threads.
ขันนอตเข้ากับวาล์วนํ�าออก จากนั�นจึง
สวมประเก็น
7 8
Position the tank on the bowl.
จัดตําแหน่งถังพักนํ�าบนโถสุขภัณฑ์
Slide the hose guide onto the hose, with
the flared end last. Slide the two inserts
into the flared of the hose guide.
สวมปลอกฝาครอบสายนํ�าดีเข้ากับสายนํ�าดี
สวมประกอบฝาครอบทั�งสองเข้าไปใน
ปลอกฝาครอบ
Hose Guide
ปลอกสายน้ำดี
9
Slide the metal washers and
the rubber washers onto the bolts.
สวมแหวนรองและแหวนยาง
เข้ากับโบลท์
Rubber
Washer
แหวนยาง
Washer
แหวนรอง

Kohler Co. 7 1177695-X2-E
Installation/
ปุ่มกด
Buttons
12
Thread the bolts into the bowl through
the bolt holes in the bottom of the tank.
Tighten the bolts using a screwdriver.
Do not overtighten.



อย่าขันแน่นเกินไป

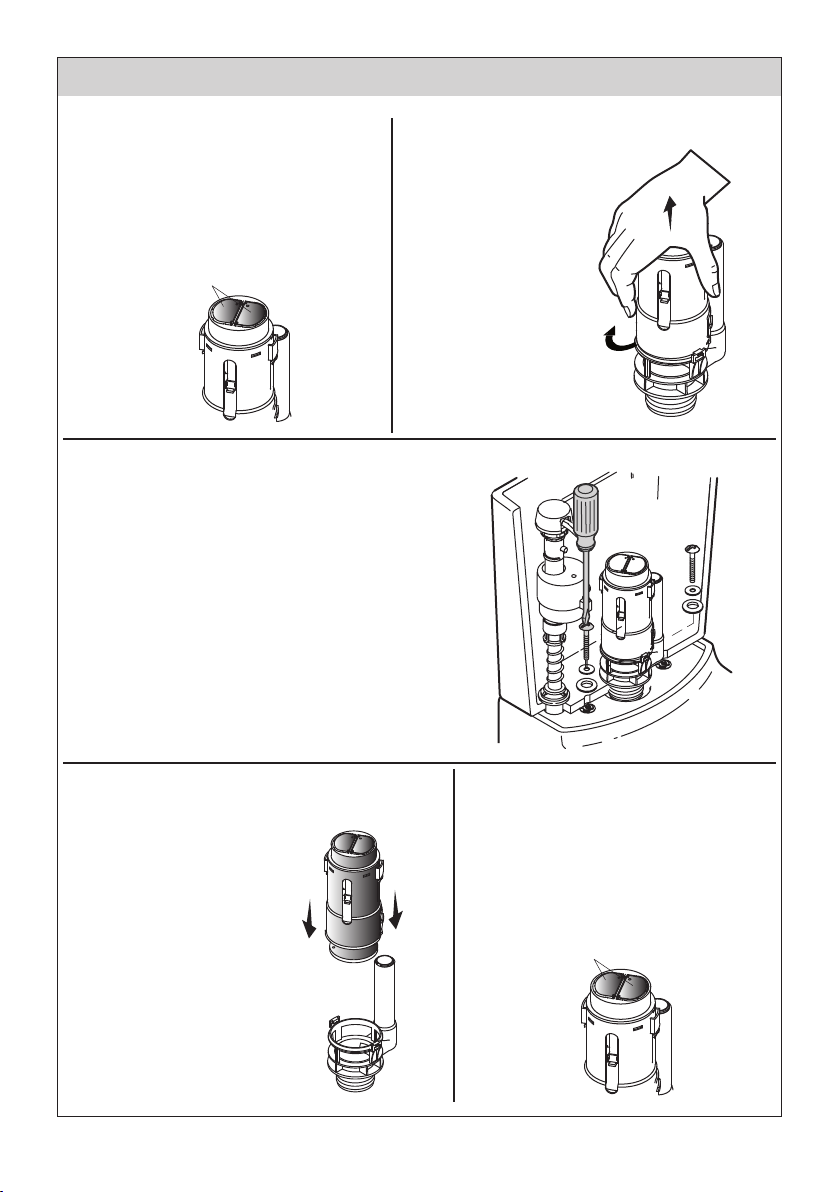

10 11
Note the position of the colored
buttons for reinstallation.


Squeeze the tabs
and pull straight
up on the canister.



ปุ่มกด
Buttons
13 14
Reinstall the canister
so it snaps into place.


Rotate the canister so that
the colored buttons are in their
original positions.



1177695-X2-E 8 Kohler Co.
Installation/

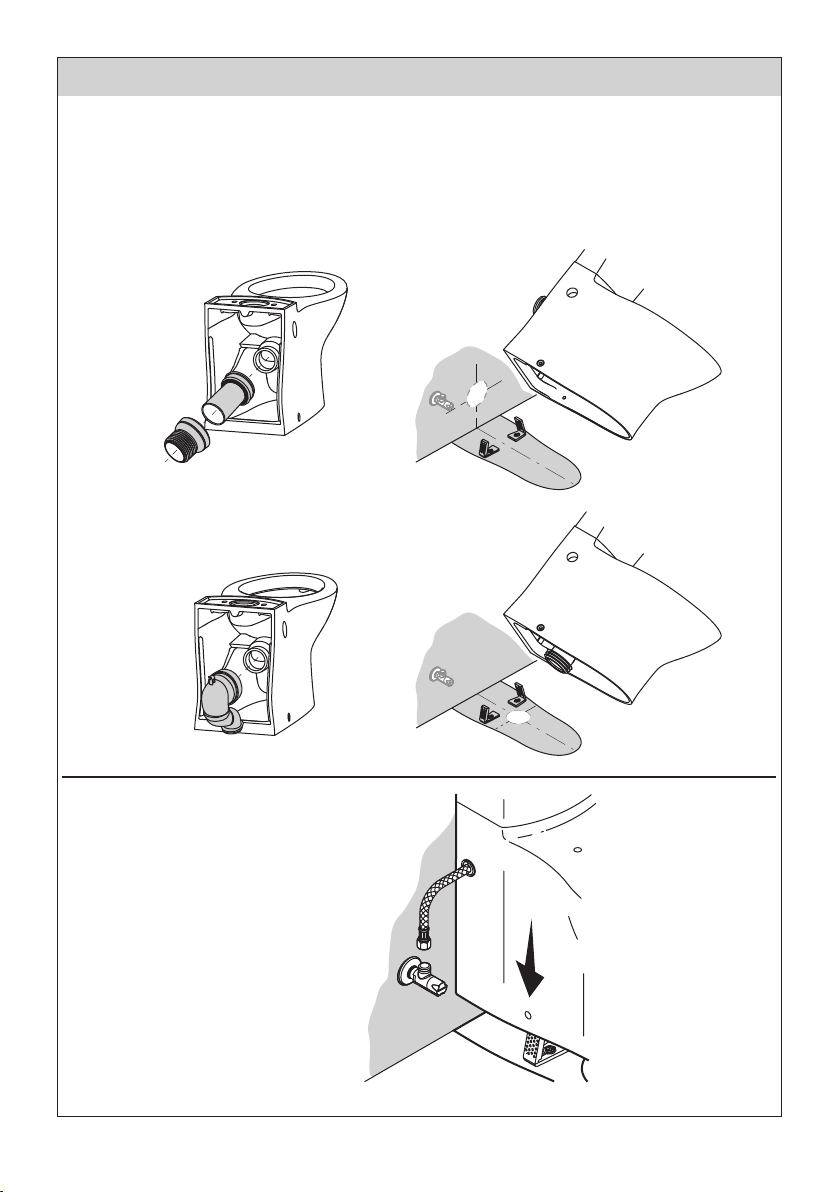

16
15 Connect the connector on the bowl. Carefully till backward untill connector and
waste pipe touch.

Align connector and carefully lower
over brackets.



Connector to Wall
ติดตั�งออกผนัง
Connector to Floor
ติดตั�งกับพื�น

Kohler Co. 9 1177695-X2-E
Installation/

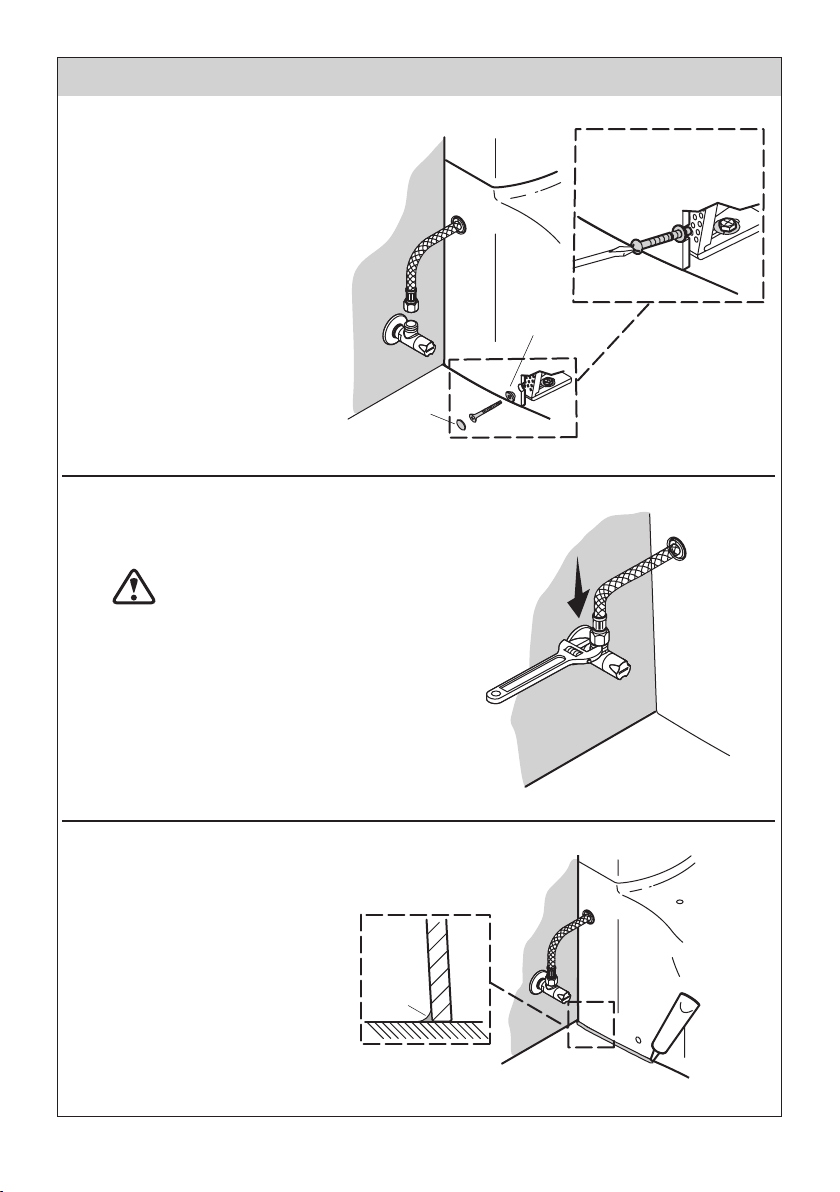

Cap
Bushing
ฝาปิด
Caulk
ยาแนว
ปลอก
Install the scews into the bracket
and tighten evenly.
Do not overtighten.
สวมสกรูเข้ากับอุปกรณ์ยึดขาฐาน
จากนั�นขันให้แน่น
อย่าขันแน่นเกินไป
CAUTION: Turn on the water and
allow water to flow through the supply pipe
to flush the system of any debris before
connecting fill valve.
18
Connect supply and turn on the water.
ต่อสายนํ�าดีและเปิดวาล์วนํ�า
17
19
Caulk silicone around base.
ยาแนวซิลิโคนรอบขอบโถสุขภัณฑ์
ข้อควรระวัง:



1177695-X2-E 10 Kohler Co.

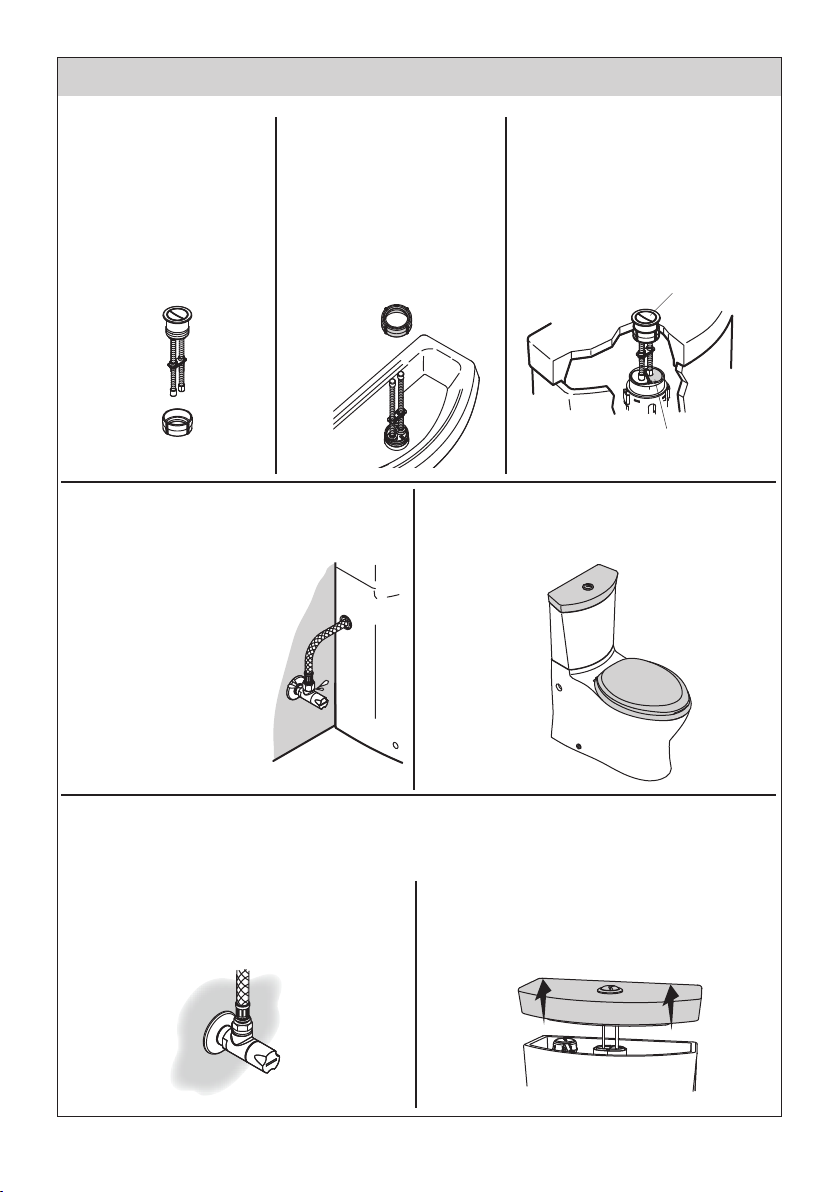

Remove the nut
from push button
kit.


Flush several times
and check for leaks.
Do not overtighten!


อย่าขันแน่นจนเกินไป!
20 Tighten the nut to
the push button under
the tank cover.



21 Install the tank cover.
Adjust the rod length
if needed.


22
Install the seat.

23 24

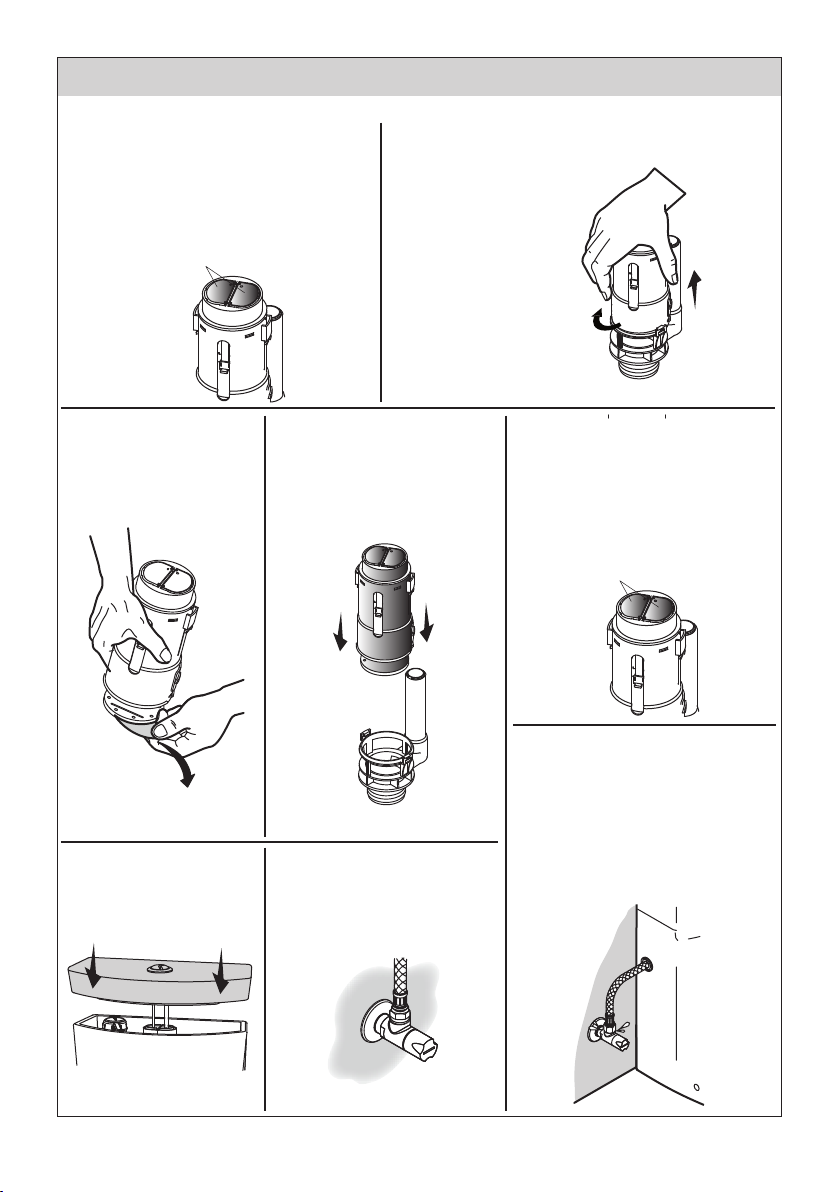

1Shut off the water supply. Remove the tank cover. 2
เปลี�ยนซีลยาง
Replace the Seal
 
Blue button on the right.

Big Button
ปุ่มใหญ่
Installation/

Kohler Co. 11 1177695-X2-E
Replace the Seal/




Remove and
replace the seal.
5


Reinstall the canister so
it snaps into place.
6


Rotate the canister so that
the colored buttons are
in their original positions.
7

Reinstall the
tank cover.
8
Turn on the water supply.
9


อย่าขันนอตแน่นเกินไป
Flush several times and
check for leaks.
Do not overtighten!
10
3 4


Squeeze the tabs and
pull straight up
on the canister.
Note the position of the colored
buttons for reinstallation.
ปุ่มกด
Buttons
ปุ่มกด
Buttons

1177695-X2-E 12 Kohler Co.
Care and Cleaning
For best results, keep the following in mind when caring for your product:
• Carefully read the cleaner product label to ensure the cleaner is safe for use
on the material.
• Always test your cleaning solution on an inconspicuous area before applying
to the entire surface.
• Wipe surfaces clean and rinse completely with water immediately after
cleaner application. Rinse and dry any overspray that lands on nearby
surfaces.
• Do not allow cleaners to sit or soak on the surface.
• Use a soft, dampened sponge or cloth. Never use an abrasive material such as
a brush or scouring pad to clean surfaces.
• Be careful not to leave staining materials in contact with the surface for
extended periods of time.
• The ideal cleaning technique is to rinse thoroughly and blot dry any water
from the surface after each use.
WARNING: Risk of property or product damage. Do not use in-tank
cleaners in your toilet. Products containing chlorine (calcium hypochlorite)
can seriously damage ings in the tank. This damage can cause leakage
and property damage.

Kohler Co. 13 1177695-X2-E

 

•   

•  

•  

• 
•      

• 
•   


 



1177695-X2-E 14 Kohler Co.
Troubleshooting Guide
Symptoms Recommended Action
Poor ush. A. Adjust the tank water level to match the waterline.
B. Fully open the water supply shut-o valve.
C. Clear obstructions from the trapway, jet, or bowl rim
holes.
D. Clear obstructions from the waste line.
No ush. A. Make sure the push buon rods are in place. Adjust as
needed.
The ll valve turns
on/o by itself or
it runs, allowing
water to enter the
tank.
A. Adjust push buon rods for proper slack so the ush
valve seal isn’t held o the ush valve.
B. Clean or replace the ush valve seal if it is worn, dirty,
or misaligned with the valve seat or ush valve seat
is damaged.
C. Remove the tank and tighten the ush valve nut if
ush valve gasket is leaking. Do not overtighten. If
leakage continues, replace the gasket.
D. Clean the ll valve seal of debris or replace the seal
assembly.
E. Replace the ll valve if the valve oat sinks.
F. Adjust the tank water level if it is too high.
Long tank ll cycle. A. Fully open the water supply shut-o valve.
B. Clean the valve inlet, valve head, or supply line. Flush
lines.
Noisy tank ll cycle. A. Partially close the water supply shut-o valve if the
water pressure to the toilet is too high. Check the
toilet performance following any such adjustment.
B. Remove dirt or obstructions from the valve head.
Flush lines.

Kohler Co. 15 1177695-X2-E

 

 




 



 

 
  
   









   









 

