Kohler K-4737 Assembly instructions

Homeowners Guide
Toilet Seat with Bidet Functionality
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-4737
1097712-5-A

IMPORTANT SAFEGUARDS
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING
DANGER: To reduce the risk of electrocution:
•Do not place or store this appliance where it can fall or be pulled
into a bath or sink.
•Do not place in or drop into water or other liquid.
•Do not reach for a product that has fallen into water. Unplug
immediately.
•Do not use while bathing.
WARNING: To reduce the risk of low-grade burns, electric
shock, fire, or injury to persons:
•Close supervision is necessary when this appliance is used by or
near the very young, the elderly, or invalids. Children should not
be permitted to use or touch this appliance. Do not leave children
unattended in any room where this product is installed. Adjust
the temperature of the toilet seat for the elderly, those who are
incapacitated, or persons with sensitive skin.
•Use this appliance only for its intended purpose as described in
the manual. Do not use attachments not recommended by Kohler
Co.
•Never operate this appliance if it has a damaged cord or plug, if
it is not working properly, if it has been dropped, damaged, or
dropped into water. Return the product to a service center for
examination and repair.
•Keep the cord away from heated surfaces.
•Never block the air openings of the product or place it on a soft
surface, such as a bed or couch, where the air openings may be
blocked. Keep the air openings free of lint, hair, and the like.
•Never use while sleeping or drowsy.
•Never drop or insert any objects into any opening or hose.
1097712-5-A 2 Kohler Co.

IMPORTANT SAFEGUARDS (cont.)
•Do not use outdoors or where aerosol (spray) products are being
used or where oxygen is administered.
•Connect this product to a properly grounded outlet only. See
Grounding Instructions.
•Install this product properly by following the installation
procedure.
•Only authorized persons can install or repair the unit. Do not
attempt to service this appliance yourself, doing so could void the
warranty.
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded. Connect only to a dedicated
120 V AC, 60 Hz circuit protected by a minimum 15 A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current
Device (RCD).
WARNING: Risk of electric shock or product damage. Do
not immerse or flush the product with water.
CAUTION: Risk of property damage: Do not push or pull
on the water connection to prevent water leakage.
CAUTION: Risk of property damage: In areas where water
may freeze in the pipes, make arrangements to keep the
pipes warm. Any water remaining in the seat may freeze
during storage during the winter. Allow the unit to warm to
room temperature before reinstalling or using.
NOTICE: Risk of product damage:
•Do not install this product in a location exposed to excessive
moisture where condensation might form on the product surface.
Provide adequate ventilation when bathing to avoid damage to
the electronic components due to high humidity levels.
•Do not apply excessive force to the spray wands. Product may
break.
•Do not install this seat in a location where water might be
splashed on the product.
•Do not supply electrical power to the unit until the plumbing
installation work has been completed. It could cause the product
to malfunction.
Kohler Co. 3 1097712-5-A

IMPORTANT SAFEGUARDS (cont.)
•Allow the unit to cool to room temperature before installation or
operation. The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
User Instructions
•Before installation or for long-term storage of this product, protect
the product by storing it in its original carton. Failure to do so
may result product damage (such as scratches, loss of function)
and/or dangerous situations (such as damage to the cord).
•Verify the power cord and water hose are not susceptible to
damage. Ensure the clips (provided) are attached evenly along the
water hose and power cord. If the clips were not installed, attach
them at this time. This will prevent twisting or damage to the
water hose and power cord and will extend the life of the
product.
SAVE THESE INSTRUCTIONS
Grounding Instructions
•This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
DANGER: Risk of electric shock. Improper use of the
grounding plug can result in a risk of electric shock.
•If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
•Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt as to whether the product is properly grounded.
Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company
product reflects the true passion for design, craftsmanship, artistry, and
innovation Kohler Company stands for. We are confident its
1097712-5-A 4 Kohler Co.

Thank You For Choosing Kohler Company (cont.)
dependability and beauty will surpass your highest expectations,
satisfying you for years to come.
All information in this guide is based upon the latest product
information available at the time of publication. At Kohler Company,
we strive to fulfill our mission of improving the level of gracious living
for each person who is touched by our products and services. We
reserve the right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to
the care and cleaning instructions.
Specifications
Water supply pressure 20 psi (139 kPa) - 80 psi (551 kPa)
Maximum electrical rating 120 VAC / 60 Hz / 450 W
Power cord length 3.61’ (1.1 m)
Water heater rating 400 W
Cleaning
Wand Spray Flow
Posterior flow, plus aeration .11 gpm (.40 lpm) - .21 gpm (.80 lpm)
Anterior flow, plus aeration .11 gpm (.40 lpm) - .21 gpm (.80 lpm)
Number of spray wands 2
Cleaning water temp Off/95°F (35°C)/98.6°F (37°C)/102.2°F
(39°C)
Pulsate cleaning On/Off
Safety Devices
Reservoir overheating
prevention Heating element thermal fuse high temp thermal cut-out, float switch
Back-flow prevention Check valve
Comfort
Heated Seat
Heater rating 40 W
Temperature
adjustment Off/95°F (35°C)/98.6°F (37°C)/102.2°F (39°C)
Safety adjustment Thermal fuse, heating element thermal cut-out
Warm Air Blower
Maximum fan air flow 7.8 cfm (0.22 m^3/min)
Kohler Co. 5 1097712-5-A

Specifications (cont.)
Heater rating 240 W
Temperature
adjustment Off/104°F (40°C)/122°F (50°C)/136.4°F (58°C)
Safety adjustment Thermal fuse, heating element thermal cut-out
Deodorizer
Maximum fan air flow 8.5 cfm (0.24 m^3/min)
Cover closing Slow-close
Seat closing Slow-close
Sanitary
Self-cleaning nozzle Automatically performs rinse cycle before
and after each use
Quick-release body Lever activated by push button
Anti-microbial material Seat and nozzle parts
Other
Power switch On/Off
Energy save On/Off
Safety/User sensor Touch type - switch hidden in seat
Night lighted bowl 2 blue LED’s - Auto On/Off
1097712-5-A 6 Kohler Co.

Wiring Requirements
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD). If the product is not
grounded or a higher voltage circuit is used, electric shock,
fire, or personal injury may occur.
NOTICE: This product is factory equipped with a specific electrical
cord and plug to permit connection to a proper electric circuit. Make
sure that the product is connected to an outlet having the same
configuration as the plug. Do not use an adapter with this product.
Do not modify the plug provided – if it will not fit the outlet, have
the proper outlet installed by a qualified electrician. If the product
must be reconnected for use on a different type of electric circuit, the
reconnection should be made by qualified service personnel.
NOTICE: Do not use an extension cord with this product.
NOTICE: Consult your local electrical codes before determining the
connection type and the electrical outlet location. The temporary
connection may not be permitted by local electrical codes and the
electrical outlet location may be specified.
NOTICE: Do not plug in the seat until instructed to do so. This will
avoid possible product malfunction.

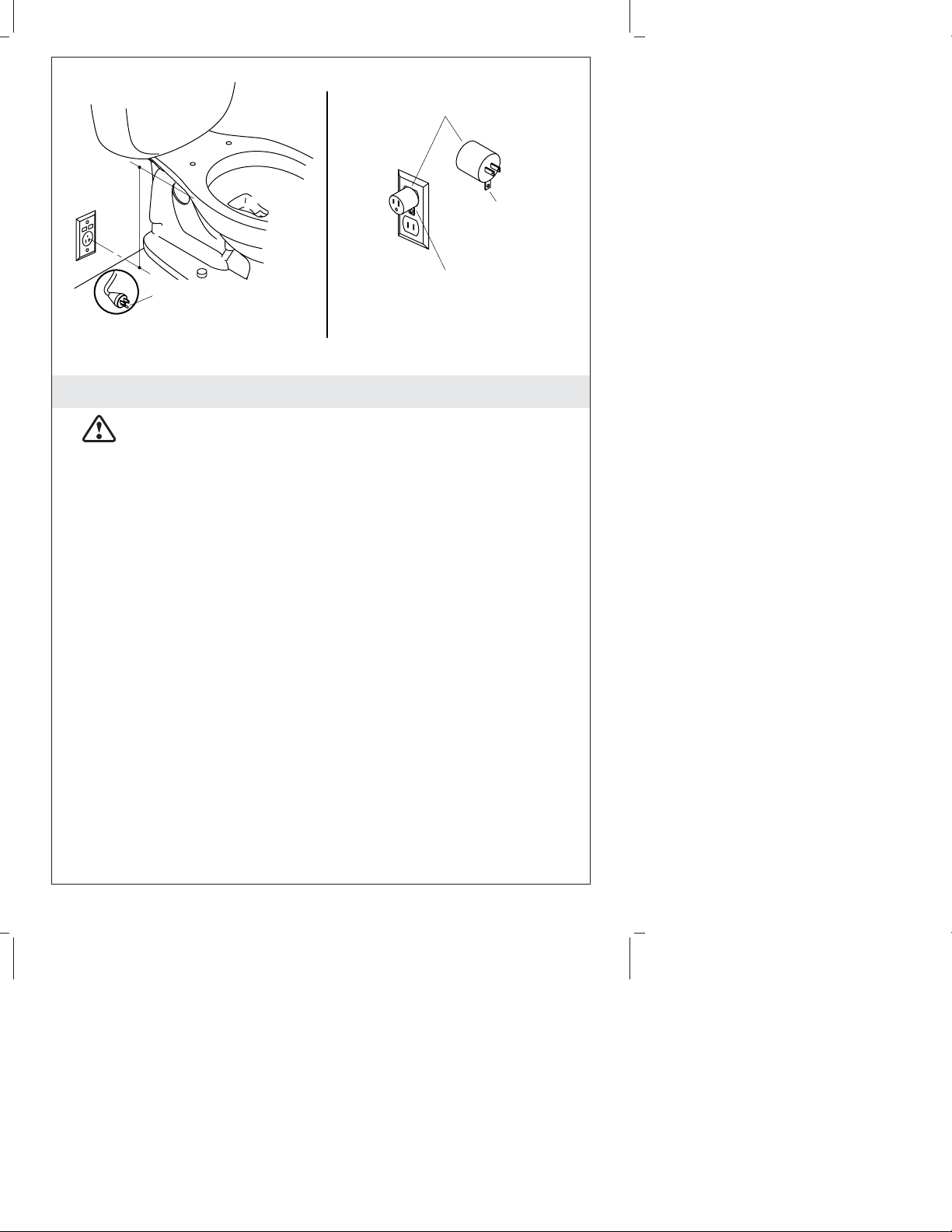

Cover Screw
Adapter
Temporary ConnectionPreferred Connection
Grounding
Screw Tab
12"
(30.5 cm)
Grounding Pin
Kohler Co. 7 1097712-5-A

Wiring Requirements (cont.)
Preferred Connection
Determine the electrical outlet location. The electrical outlet
should be located within 12″(30.5 cm) of the toilet to
accommodate the length of the power cord. An extension cord
cannot be connected to the seat’s power cord.
Route the electrical wires, then install and ground the electrical
outlet. This electrical outlet must be a dedicated, nominal 120
VAC, 60 Hz circuit protected by a minimum 15 A Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD). Do
not insert the plug into the electrical outlet at this time.
Temporary Connection
NOTICE: Unless the cover screw is grounded through the house
wiring, attaching the adapter grounding screw tab to the cover
screw will NOT ground the unit. If there is any doubt whether
cover screw is grounded, have it checked by a qualified electrician
or service professional.
A temporary connection with a two-prong adapter may be made
where local codes permit, provided that the adapter is grounded.
1097712-5-A 8 Kohler Co.

Test the Functions
Wrap the toilet seat with plastic wrap. This will prevent water
from spraying from the toilet during testing.
Plug the power cord into the electrical outlet. The seat will go
through a power-up sequence where the power indicator LED
will flash amber. Once power-up sequence is complete and the
tank is full, the indicator will turn green.
Face the toilet, then place your hand or a damp wash cloth on the
right side of the seat approximately 1/3 from the front of the seat
(as illustrated).
Proceed to the ″Keypad and Panel Diagram″and “Operation”
sections in the Homeowner’s Guide to test the various seat
functions.
Power Button
Plastic Wrap
Clips
Kohler Co. 9 1097712-5-A

Keypad and Panel Diagram
J
H
I
E
G
F
D
C
B
A
Keypad
Panel
STOP
AIR TEMP.
PULSATE
FRONT
WATER TEMP.
SEAT TEMP.
REAR
ENERGY-SAVE
POWER
LIGHT
1097712-5-A 10 Kohler Co.

Operation
A – Stop: Press this icon to stop the activated function of cleaning
or warm air blower. The deodorization function is activated when
the seat sensor detects a user. Press this icon to turn off the
deodorize function. The deodorize function will reactivate for the
next user.
B – Air Temp: Press the icon to cease the flushing action if the
flushing function is launched after sitting. The indicator will
display the current wind temperature. When the dry function is
activated, hold the Air Temp icon to change the wind temperature
and change the cycle of the wind level from off, to lower (104°F
(40°C)), to medium (122°F (50°C)), to high (136.4°F (58°C)). This
function will stop automatically after 4 minutes of continuous
drying.
C – Pulsate: Press the icon to activate the pulse massage function
if the front or rear function has already been activated. This
function will be invalid if the front or rear function is not
activated.
D – Rear: Press the icon to activate the rear wash function and
display the current washing strength. Press and hold this icon to
change the wash level from off (room temperature), to low (95°F
(35°C)), to medium (98.6°F (37°C)) to high (102.2°F (39°C)) once it
is activated. The maximum continuous wash time is 1 minute.
E – Front: Press this icon to activate the front wash function and
display the current wash strength. Press and hold this icon to
change the wash level from off (room temperature), to low (95°F
(35°C)), to medium (98.6°F (37°C)) to high (102.2°F (39°C)) once it
is activated. The maximum continuous wash time is 1 minute.
F – Water Temp: Press this icon to select and set the temperature
of the water in the toilet tank during the power on status. Every
time the icon is pressed, the temperature level will change from
off (room temperature), to low (95°F (35°C)), to medium (98.6°F
(37°C)) to high (102.2°F (39°C)).
G – Seat Temp: Press this icon to select and set the temperature
of the seat during the power on status. Every time the icon is
pressed, the temperature level will change from off (room
temperature), to low (95°F (35°C)), to medium (98.6°F (37°C)) to
high (102.2°F (39°C)).
H – Power: Press this icon to activate (long audible sound) or
disconnect (short audible sound) the seat power.
Kohler Co. 11 1097712-5-A

Operation (cont.)
I – Light: Press this icon to shift between the night lamp being off
(long audible sound) or automatic (short audible sound). In the
off mode, the night lamp is deactivated. In the automatic mode,
the night lamp will activate with detection of surrounding light
and remain on for 5 seconds after the surrounding light is no
longer detected.
J – Energy-Save: Pressing this icon turns the energy save function
on or off. After 24 hours of inactivity, the power indicator LED
changes from green to amber and the heated seat temperature
changes to the lowest setting. After 48 hours of inactivity, the
heated seat temperature will switch to off. Once the seat is
activated, the power indicator LED light will change to green, the
temperature changes to the previous user setting, and the timer
restarts the energy save mode.
1097712-5-A 12 Kohler Co.

Clean the Nozzle
NOTE: The spray wands can only be extended for cleaning when
the seat is not activated or occupied.
Raise the cover and seat.
Pull out one of the wands and hold for cleaning.
Clean the spray wand with a soft-bristled brush.
Release the wand to allow the wand to retract.
Repeat above steps for the other spray wand.
Wand in
extended position
Kohler Co. 13 1097712-5-A

Change the Deodorization Block
NOTICE: Use care when removing the deodorization cover. Excess
force may cause damage to the deodorization cover.
Remove and retain the deodorization cover by pressing the clip.
Remove and discard the original deodorization block.
Install the new deodorization block.
Reinstall the cover.
Push the clip to
remove cover.
Remove the deodorization block.
1097712-5-A 14 Kohler Co.

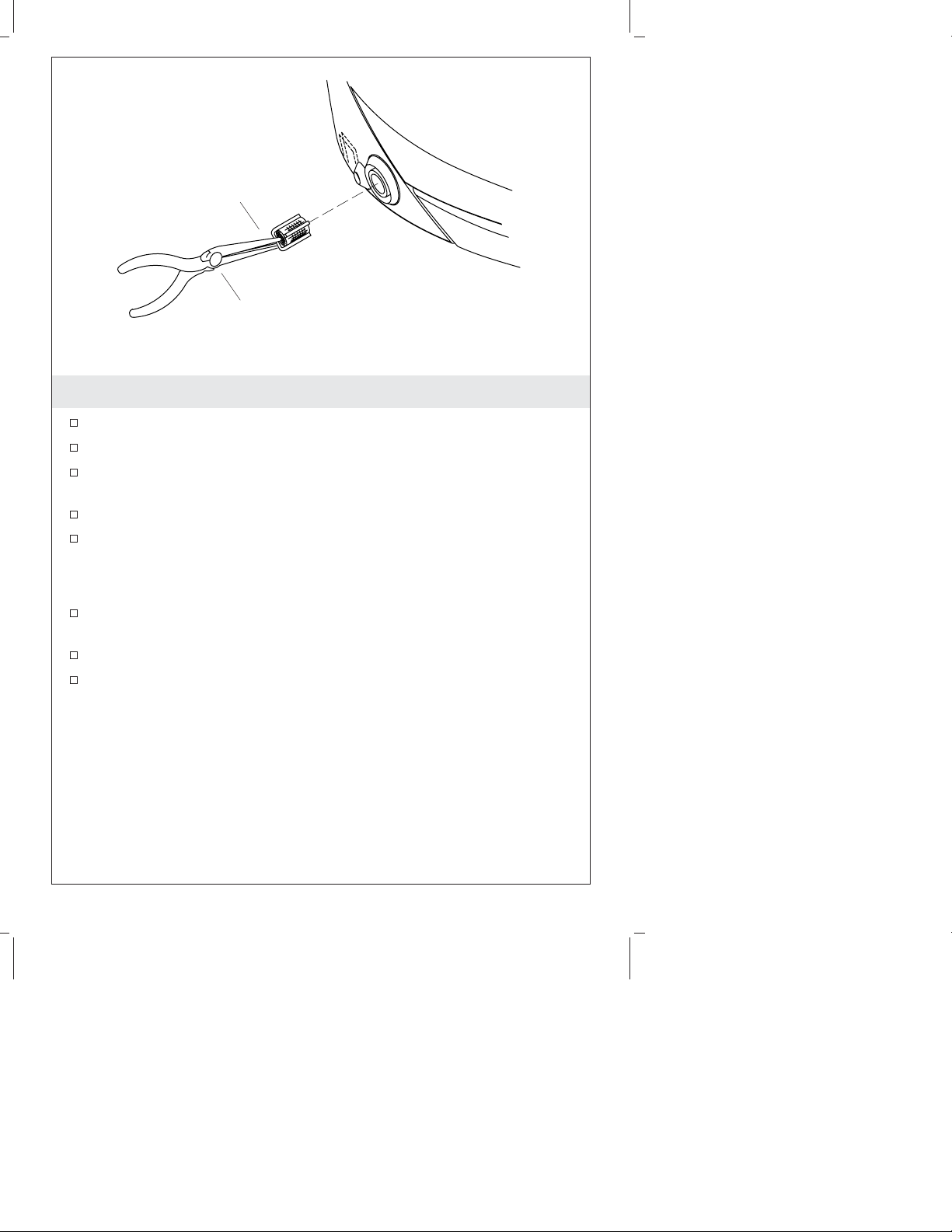

Clean the Screen
Turn off the water supply at the supply stop.
Disconnect the water supply hose from the seat.
Using a long-nosed pliers carefully remove the screen from the
seat inlet.
Clean the screen with a soft-bristled brush.
Reinstall the screen.
NOTICE: To avoid product damage, use care not to crossthread the
connection between the waster supply hose and the seat.
Turn the water supply hose 1/4 turn past hand tight to reconnect
the water supply hose to the seat.
Turn on the water supply.
Check all connections for leaks and make any adjustments as
needed.
Screen
Long-Nosed Pliers
Kohler Co. 15 1097712-5-A

Remove the Seat
Turn off the water supply at the supply stop.
Flush the toilet to relieve any pressure from the water supply
hose.
NOTE: The seat will contain water until drained. Refer to the ″Drain
the Water from the Seat″section.
Unplug the seat from the electrical outlet.
Disconnect the water supply hose from the T-valve.
Push in the release button.
Slide the seat forward to disengage the seat from the mounting
plate.
FRONT
REAR
PULSATE
STOPH2OTEMP.
SEATTEMP.
Release Button
Mounting Plate
1097712-5-A 16 Kohler Co.

Drain the Tank
NOTICE: Drain the water from the seat if the seat will not be used
for long periods of time, or there is the possibility of freezing
temperatures.
Turn off the water supply and unplug the unit.
Remove the seat from the toilet. Refer to the ″Remove the Seat″
section.
Use a coin to rotate the drain plug counterclockwise 1/4 turn.
Remove the drain plug.
Drain the water from the seat.
Reinstall the drain plug.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
IMPORTANT! Do not immerse product in water.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately
after applying cleaner. Rinse and dry any overspray that lands on
nearby surfaces.
Drain Hole
Remove plug
with coin.
Kohler Co. 17 1097712-5-A

Care and Cleaning (cont.)
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in
material and workmanship for one year from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one (1) year after installation. Kohler
Co. is not responsible for removal or installation costs. Use of in-tank
toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler,
WI 53044, USA, or by calling 1-800-4KOHLER (1-800-456-4537) from
within the USA and Canada, and 001-877-680-1310 from within Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY. KOHLER CO. AND/OR
SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states/provinces do not
allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other
rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
Troubleshooting
This troubleshooting guide is for general aid only. A Kohler Authorized
Service Representative or qualified electrician should correct any
electrical problems. For warranty service, contact your dealer or
wholesale distributor.
1097712-5-A 18 Kohler Co.

Troubleshooting (cont.)
General Functions
Symptoms Probable Causes Recommended Action
1. Functions are
not working. A. A power failure occurred. A. Wait until the power is restored.
B. The power cord is
disconnected. B. Insert the power cord into an electrical
outlet.
C. The LED power
indicator is off. C. Press the ″Power″ icon.
2. Power light is
not on. A. Power cord may be loose or
disconnected.
A. Check the power
cord connection.
B. Ground-Fault
Circuit Interrupt
(GFCI) may be
tripped.
B. Reset the GFCI and
locate the problem.
C. Circuit breaker has
been tripped. C. Reset the circuit breaker and locate
the problem.
D. None of the above
actions correct the
symptom.
D. Contact a Kohler
Service
Representative.
3. Seat is loose. A. Screws and nuts
are loose. A. Tighten the screws and nuts according
to the installation
guide.
4. Water does not
spray out of
spray wands or
nozzles.
A. Seat does not
detect user. A. Sit on the seat.
B. Water supply stop
closed. B. Open the water supply stop.
C. Water supply
screen plugged. C. Clean the screen according to the
installation guide.
D. None of the above
actions correct the
symptom.
D. Contact a Kohler
Service
Representative.
Cleansing Functions
Symptoms Probable Causes Recommended Action
1. No water flow. A. The water supply
stop is closed. A. Open the water supply stop.
Kohler Co. 19 1097712-5-A

Troubleshooting (cont.)
Cleansing Functions
Symptoms Probable Causes Recommended Action
B. The seat sensor is
not detecting the
user.
B. See activating the
seat information in
the ″Operation″
section.
2. The water
pressure is low. A. The screen is clogged. A. See the ″Clean the Screen″section.
3. Water stops
flowing from
the spray wand
before I am
finished
cleansing.
A. One minute after
pressing one of the
icons, washing
automatically
stops.
A. Press the ″Rear″or
″Front″icon again.
B. The seat sensor is
not detecting the
user.
B. See activating the
seat information in
the ″Operation″
section.
4. Dripping
sounds are
heard before
and after using
the cleansing
functions.
A. The unit is running
through the pre- or
post- use cleansing
cycle.
A. No action needed.
Deodorizer Function
Symptoms Probable Causes Recommended Action
1. The Deodorizer
feature does
not operate.
A. The user has
pressed ″Stop″
icon.
A. Refer to the ″Stop″
icon in the
″Operation″section.
B. The seat sensor is
not detecting the
user.
B. Refer to the ″Stop″
icon in the
″Operation″section.
2. Odor is not
removed. A. The ″Deodorizer″ is off. A. Refer to the ″Stop″ icon in the
″Operation″section.
B. Some people are
more sensitive to
odor.
B. None
1097712-5-A 20 Kohler Co.
