Kohler MODERN LIFE K-21841T User manual

-1-
MODERN LIFE
INSTALLATION INSTRUCTIONS
TOUCHLESS WALL HUNG URINAL 3L
(3L)
K-21841T( )/K-21841T-C05( )
TOUCHLESS WALL HUNG URINAL W/ELECTROLYZED WATER 1L/AC
( ) (1L)
K-21841T-WEW
TOUCHLESS WALL HUNG URINAL W/ELECTROLYZED WATER 3L/AC
( ) (3L)
K-21841T-EW
TOUCHLESS WALL HUNG URINAL W/ELECTROLYZED WATER & IOT 0.5L/AC
( ) (0.5L)
K-21841T-YXEW
!
!
!
!
!
!
!
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information -
.
please leave instructions for the
consumer
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
The product complies with GB/T 6952-2015.·
Observe all local plumbing and building codes.
Carefully inspect the new urinal for damage.
Site preparation may require additional tools and
hardware.
Handle with care. Vitreous china can break
or chip if the product is handled carelessly.
CAUTION: Risk of personal injury or product
damage.
!
!
!
!
!
!
!
-
ASME (A112.19.2-
2018)
GB/T 6952-2015
·
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Open end/adjustable wrenches
Tape measure
Basin wrench
Pipe wrench
Square
Level
Pliers
Socket wrench with sockets
Screw driver
Seal tape
Drill
Sealant
/
RECOMMENDED TOOLS AND MATERIALS (NOT SUPPLIED)RECOMMENDED TOOLS AND MATERIALS (NOT SUPPLIED)
()
BEFORE YOU BEGIN
BEFORE YOU BEGIN
©
©
Copyright Kohler China Investment Co., Ltd. 2019
2019
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
2 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA 256410
8 256410
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC 110400
1 110400
:
POST CODE:
POST CODE:
1323700-T01-B

-2-
SPECIFICATIONS
Model
K-21841T(DC w/o Electrolyzed Water 3L)
K-21841T-C05(AC w/o Electrolyzed Water 3L)
K-21841T-WEW(AC with Electrolyzed Water 1L)
K-21841T-EW(AC with Electrolyzed Water 3L)
K-21841T-YXEW(w/Electrolyzed Water & IOT AC 0.5L)
Power
DC power unit 4 "AA" size alkaline batteries (Batteries For Largess)
AC/DC transformer input AC 220V 50/60Hz (Sold Separately)
AC/DC Switch Power input AC 220V 50/60Hz
Liter per flushing
Water pressure at 0.18~0.55 MPa: Average no more than 0.5L
Water pressure at 0.1 MPa: no more than 0.5L
Water pressure at 0.18~0.55 MPa: no more than 1L
Water pressure at 0.1 MPa: no more than 1L
Average
Water pressure at 0.18~0.55 MPa: no more than 3L
Water pressure at 0.1 MPa: no more than 3L
Average
Temperature Environmental temperature: 1 to 55
Starting pressure 0.05Mpa~0.86MPa
Sensing distance 70 cm away from sensor
Testing time About 4 seconds
Flushing Mode Dual flushing (3L)
Flushing after used (0.5L/1L)
Note: the sensing distance in the table is measured with a 30x30cm board as the reflecting surface.
Sterilized water (refers to the tap water containing hypochlorite generated by chlorine ions after ionization): wash bowl
surface by sterilized water generated within working cycle, reduce bacteria growth on the urinal surface.
Different water quality might cause different sterilization effect.
K-21841T-YXEW contains a wireless transmission module with the model approval code: CMIIT ID:2018DP2230.
2
·
·
·
30x30cm
K-21841T-YXEW CMIIT ID:2018DP2230
2
·
·
·
K-21841T ( ) (3L)
K-21841T-C05 ( ) (3L)
K-21841T-WEW( ) ( ) ( ) (1L)
K-21841T-EW( ) ( ) ( ) (3L)
K-21841T-YXEW( ) ( ) ( ) ( ) ( ) (0.5L)
4 5 (AA 4)
220V AC 50/60Hz
220V AC 50/60Hz
0.18~0.55MPa 0.5L
0.1MPa 0.5L
0.18~0.55MPa 1L
0.1MPa 1L
0.18~0.55MPa 3L
0.1MPa 3L
155
0.05Mpa~0.86MPa
70cm
4
(3L)
(0.5L/1L)
1323700-T01-B

-3-
ROUGHING-IN
Unit:mm
Reference Value
Kohler reserves the right to change marked dimensions without prior notice.
Fig.1
1
Waste Pipe
Floor
404
600
Supply
190
45
140 115 318
697
168
9
135
307 343
Notice: To ensure an effective flush performance,
strongly recommended inner diameter of
water supply (including water meter, valve,
etc.) is no less than 25mm, and supplied
water pressure (sensor inlet dynamic
pressure) is 0.18MPa ~0.55MPa.
(
) 25mm (
) 0.18MPa ~0.55MPa
Notice: a. The dimensions above are just for reference.
b. * Indicates the location of inlet pipe, while inlet
connector size is G 1/2.
c. * Recommended dimensions for installation only,
please adjust according to actual situation.
*
I
a.
b. * G 1/2
c. **
1323700-T01-B

-4-
(
)
!
!
!
NOTE:
For Retrofit Installations
For New Installations
If a pre-existing waste pipe will be used and will result
in an acceptable rim height (refer to the rough-in dimensions),
follow the retrofit installation instructions.
Turn the water supply line off, remove the existing urinal,
then cap off the water supply line inside the wall.
Install waste pipe as necessary to conform to the
roughing-in dimensions.
Install adequate support framing for the hangers as
needed.
!
!
!
Fig.2a
2a Fig.2b
2b
PREPARE THE SITEPREPARE THE SITE
Drain Connection
Wall Hangers
Wall
No objects in the
Sensor before
1500mm
1500mm
No objects in the
Sensor before
1000mm
1000mm
Clapboard suggest
reference length is 450mm
450mm
Clapboard suggest
reference length is 450mm
450mm
450 450
1500 1000
800
No object within 800mm of the
width of the sensor bilateral symmetry
800mm
800
No object within 800mm of the
width of the sensor bilateral symmetry
800mm
Electronic components are pre-installed in factory.
Electronic Components InstallationElectronic Components Installation
1323700-T01-B

-5-
Install the Greeting light Assembly
(For K-21841T-WEW/K-21841T-EW/K-
21841T-YXEW)
Install the screw screwing in ceramic hole with hexagonal nut
locking, then the mounting bracket with lock nut installed,
after greeting light power connection to observe on the
ground icon is in accordance with the recommended size,
such as is not in conformity with the loosen locking nut can
adjust bracket that icon to recommended size.
(K-21841T-WEW/K-21841T-EW/K-21841T-
YXEW )
Fig.3
3
Fig.4
4
Control Box
Connector
Connector
Connector
Connector
Hex Nut
Nut
Bracket
Notes:
Light icon size reference value.
(Must be Recommended dimensions for installation)
300 15mm
505 20mm
149 10mm
Estimated about 620 20mm
to the wall
620 20mm
INSTALLATION
Install and uninstall the sensor controller
a. Install the sensor controller box.
b. Install the screw.
c. Connect the sensor wire.
Install and uninstall the Fixture, Valve
Assembly
Unscrew the screws on the Fixture, Valve Assembly. Remove
the Fixture, Valve Assembly from the urinal by moving it.
a.
b.
c.
1323700-T01-B

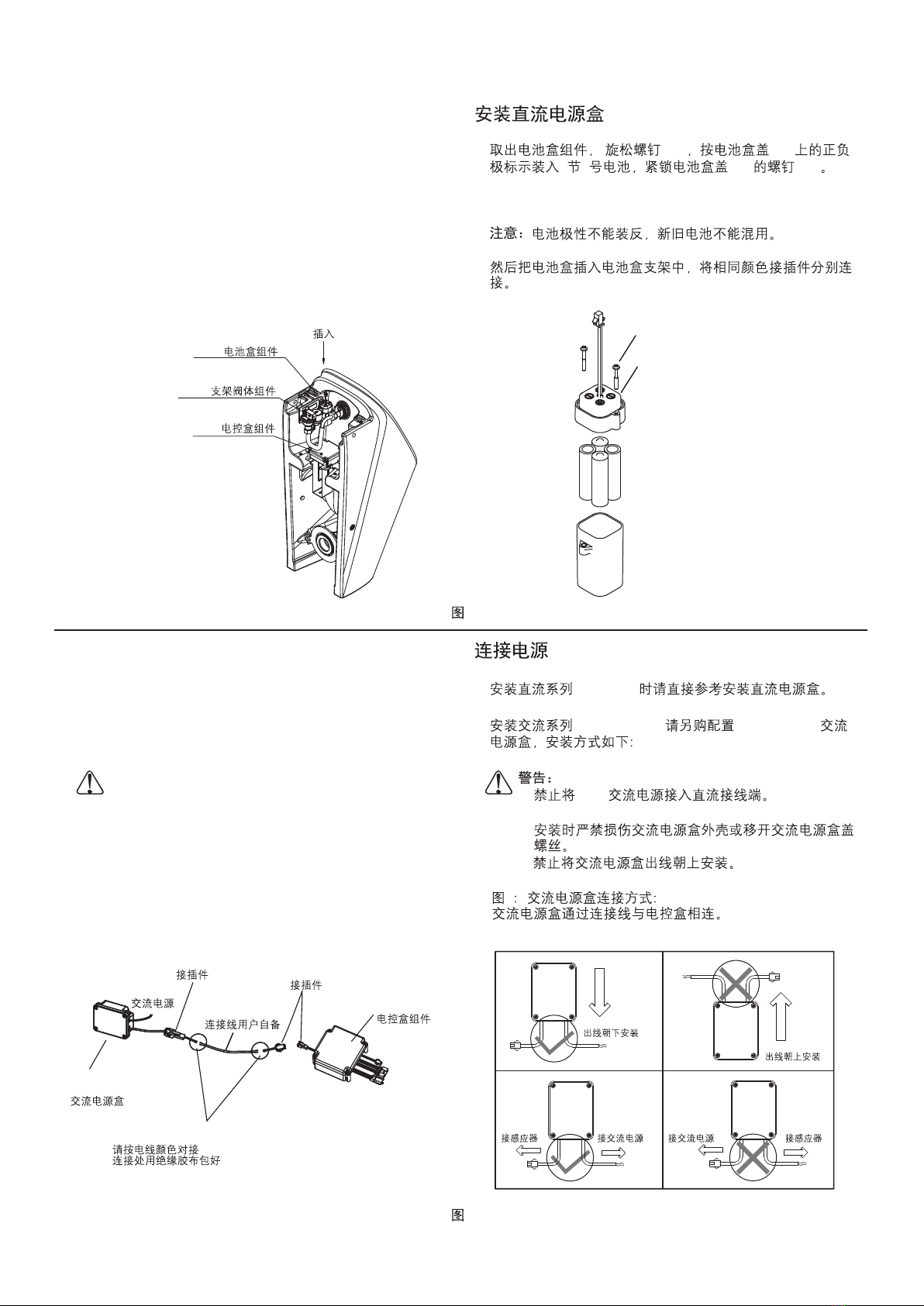

Install DC Power Unit
1. Take out battery case assy., and loosen the screws (17).
Place 4 AA batteries into the battery case according to
negative and positive electrode marks on the battery case
cover (18). Tighten the screws on the battery case cover
(18).
do not mistake the battery electrodes, and do not
use the new and used batteries together.
2. Then insert the battery pack in the battery box bracket,
connect each colored connector to the corresponding
connector of the same color.
NOTE:
Power Connection
1. Please directly reference to install DC Power Unit when
installing K- 21841T (DC).
2. Please match K-16305T-NA AC power unit when installing
K-21841T-C05. The way of installation is as below:
1. (17) (18)
4 5 (18) (17)
2.
1. K- 21841T
2. K-21841T-C05 K-16305T-NA
-6-
Fig.5
5
Install
Battery Box Asm
Bracket, Valve Asm
Control Box Asm
17
18
CAUTION:
a. Do not connect 220V AC Power supply to DC wiring
terminal.
b. Do not damage the covering of AC power unit or
remove screws to avoid leakage.
c. Outlet of AC power unit upward prohibited.
A. Fig.6: AC power unit connect way:
AC power unit is connected to electric control box by
connection wire.
a. 220V
b.
c.
A. 6
Fig.6
6
AC
Connector
Wire prepared
by customer
Connector
Connect with the same color wire,
and protect connect area by insulation tape.
16305T-NA
AC Power Unit
Control Box Assy.
Outlet Downwards
Outlet Upwards
Connect to
Sensor
Connect to
Sensor
Connect to AC
Power Supply
Connect to AC
Power Supply
1323700-T01-B

-7-

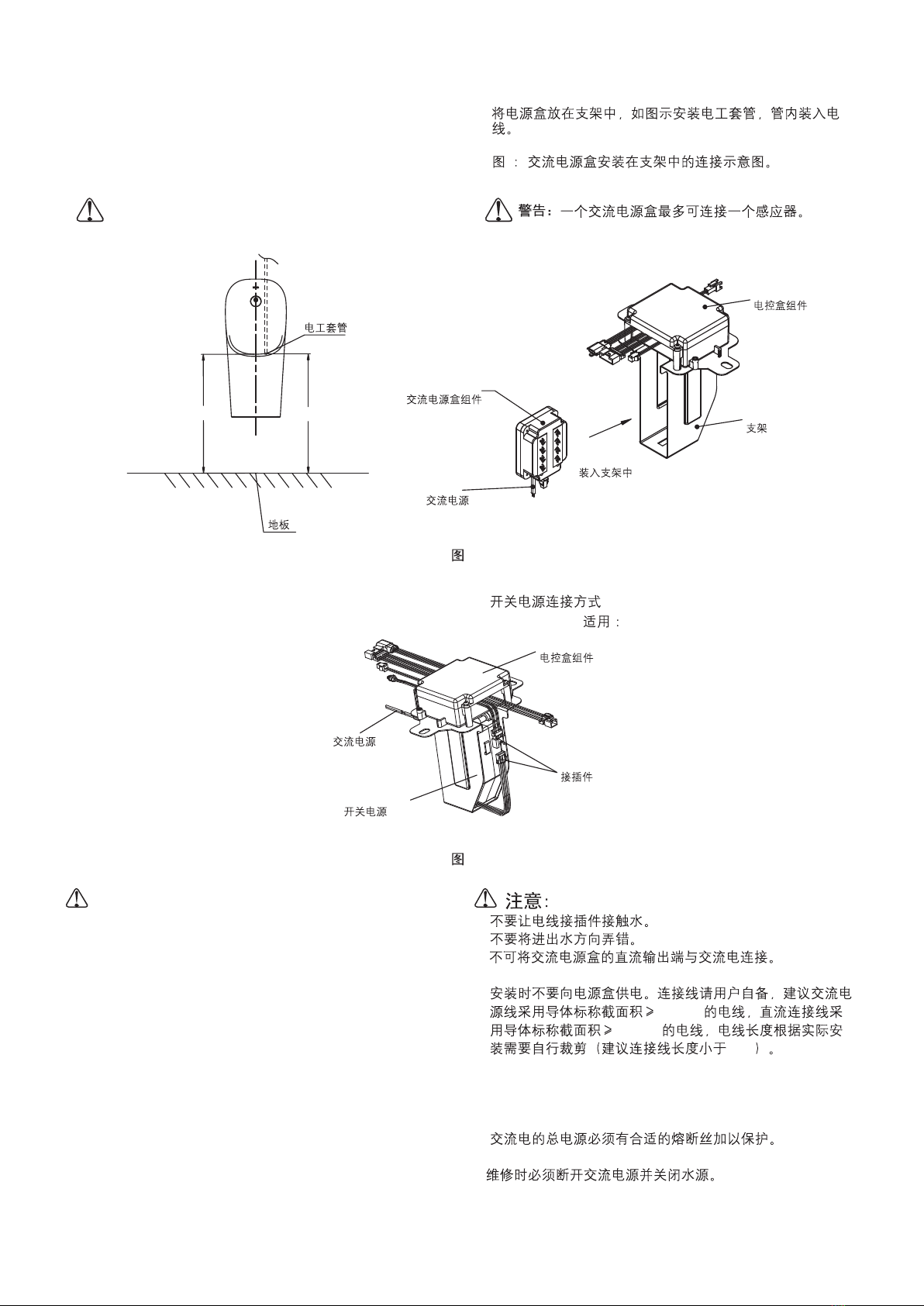

3. AC/DC Switch Power connect way (for K-21841T-WEW/K-
21841T-EW/K-21841T-YXEW):
3. (K-21841T-WEW/K-21841T-EW/K-
21841T-YXEW )
AC
Control Box
Connector
Switch Power
Fig.8
8
B. When installing the power uint in the bracket, please layout
bushing according to Fig.7 and thread wire through the
bushing.
Fig.7: Connection sketch while installing power uint in the
bracket.
One AC power unit can supply one
sensors at most.
CAUTION:
B.
7
Fig.7
7
Notice:
a. Keep the connector away from water.
b. Don't mistake the direction of inlet and outlet.
c. Do not connect the DC output of AC power unit to AC
power supply.
d. Do not connect to power supply while installing.
Connection line is not supplied. AC connection wire with
insulating sleeving is recommended. Wire of which the
nominal section area of conductor is not less than 0.5mm
is also recommend. DC connection line use wire of which
the nominal section area is not less than 0.3mm . It is cut
according to acted installation requirements (The length of
cut wire is recommended less than10m).
e. The head AC power supply must be protected with
appropriate fuse.
f. Please confirm the AC power supply and water supply
should be shut off before maintaining the products with AC
power related.
2
2
a.
b.
c.
d.
0.5mm
0.3mm
10m
e.
f.
2
2
AC Power Unit
AC Power
AC
Install in
the bracket
Bracket
Control Box Asm
Bushing
Floor
600 602
1323700-T01-B

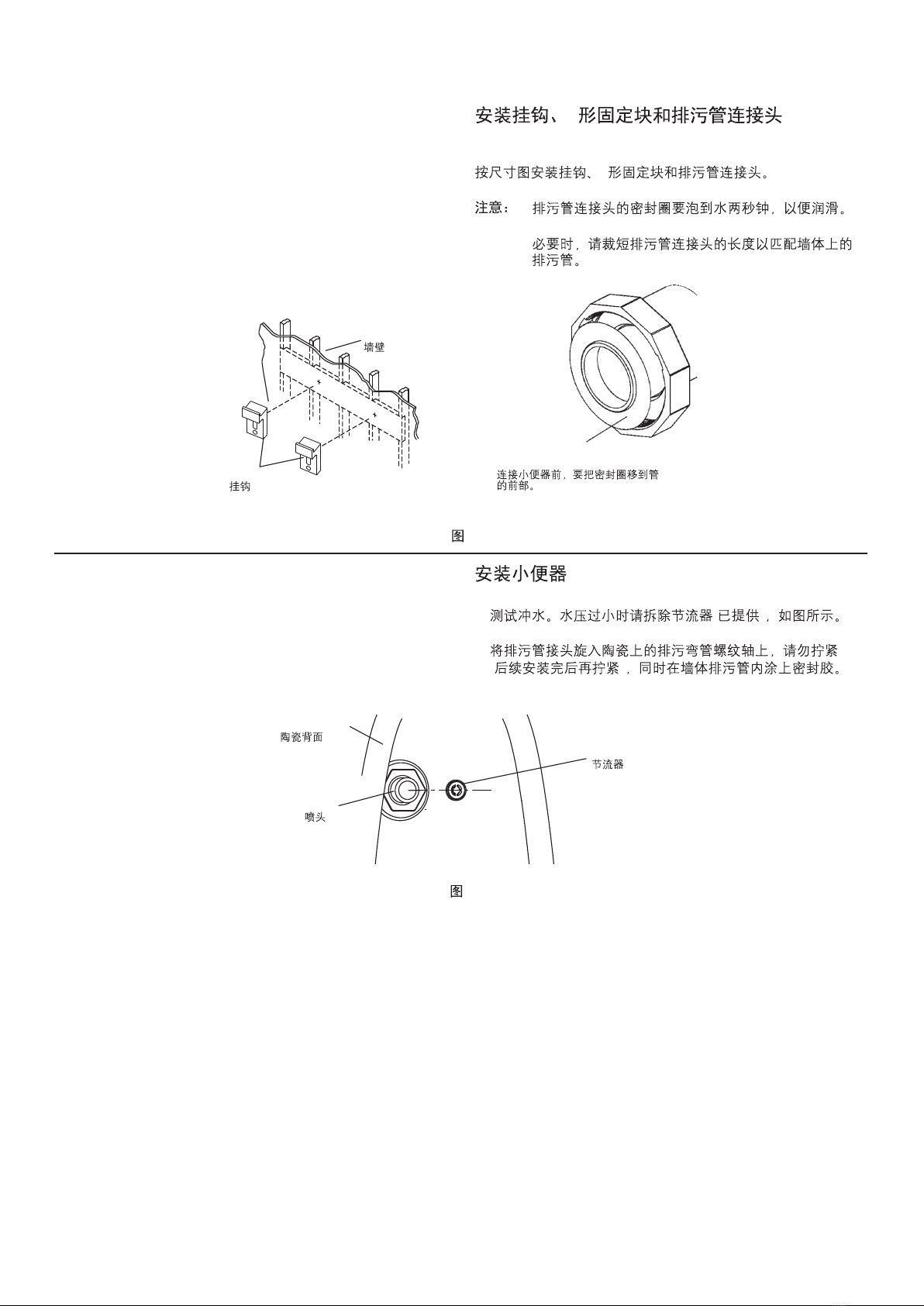

Install hangers, L shape block and waste
pipe connector
Install hangers, L shape block and waste pipe connector
according to RI.
1. Gasket of waste pipe connector shall be soaked
into water for 2 seconds to lubricate.
2. Shorten the connector if necessary to match the
waste pipe on the wall.
NOTE:
L
L
1.
2.
Fig.9
9
Wall Hangers
Wall
Move the gasket to front of the pipe
before connecting to the urinal.
Install urinal
Fig.10
10
1. Flush testing. Remove the regulator (supplied) if water
press is too low.
2. Screw the connector into the sheath on the waste pipe. Do
not tighten(tighten after installation is finished). Apply
silicone sealant on the inside of the waste pipe on the wall.
1. ( )
2.
()
Back of Urinal
Regulator
Nozzle
-8-
1323700-T01-B

3. Connect inlet pipe with corner valve.
4. Lift the urinal and insert the connector into the waste pipe
on the wall.
5. Hang the urinal onto the hangers. If the hangers need to be
adjusted, please fisrt take down the urinal.(Refer to Adjust
the hanger)
6. Check the connector and the waste pipe. If necessary,
rotate the waste pipe connector to ensure smooth
installation.
7. Push the urinal against the wall and tighten the 2 screws of
the hanger. Adjust the gap between urinal and wall by
adjusting the screws upwards and downwards(see Fig.11b).
8. Tighten the urinal with the L shape bracket on the wall with
the 2 screws through the screws holes on the side.
9. Tighten the connector with the sheath of the waste pipe.
10. Apply silicone sealant between urinal and wall.
3.
4.
5.
()
6.
7. 2
( 11b)
8. 2 L
9.
10.
Fig.11a
11a
Fig.11b
11b
Screw Hole
Big Nut
Screw
Wall Hangers
Fig.12
12
Adjust the hanger
1. As shown in the picture below, firmly press the hanger with
the bolt through the waist-shaped hole.
1.
Fixing Hole
Waist-shaped Hole
-9-
1323700-T01-B

-10-
Fig.13
13
2. As shown in the picture below, if the position of the urinal
needs to be adjusted, please take down the urinal and
knock the hanger slightly to adjust its position upwards and
downwards.
2.
Adjust Upwards and Downwards
3. After the position of the urinal is decided, completely fix the
hanger with the bolt through the fixing holes on the hanger.
3.
Install Urinal Cover
See Fig.#14
NOTE:
CAUTION:
1. Open urinal cover lock package and remove contents. Fix
hook and screw as shown.
2. Put urinal cover on the urinal.
3. Use supplied locking tool to install and tighten the screw.
4. Check that the urinal cover is properly locked.
Using a 5/8" wrench, assemble and tighen nut,
washer and lock nut on both sides of urinal.
Risk of chipping or breaking urinal. Do not
overtighen screws on urinal.
14
1.
2.
3.
4.
5/8"
Hook
Nut
Washer
Screw
Sleeve
Fig.14
14
1323700-T01-B

Fig.#15
15
Install fragrance porcelain
(for K-21841T-YXEW only)
1. Insert the scent top into the plug.
2. Take out the tube. Fill fragrance into
the tube. Do not overfill to avoid
overflow.
3. Insert the plug into the tube.
4. Insert the tube into the hole on the
urinal cover.
Be careful when filling
fragrance into the tube. Do not drop it
onto the electrical components to
avoid short circuit and malfunction.
Caution:
(
K-21841T-YXEW)
1.
2.
3.
4.
Notice: The first 2 minutes with power is the standby time for
adjusting sensing distance. Persons or subjects
should avoid standing before the sensor (See Fig.2).
The sensor will not flush during.
2
(2)
USER'S GUIDEUSER'S GUIDE
Electrolyzed Water
The urinal will take a flush Electrolyzed Water every two
hours. If the urinal is used during flushing, the electrolysed
water will stop.
2
Light Indicator
When detected someone near to the urinal 1 meter, the light
turn on 10 seconds. Guide the man standing position, avoid
the urine drop to the ground.
1
10
Deodorizing Flushing
The urinal will take a flush automatically when it's used 3 or 4
times in 2 minutes.
Replacement of Batteries
When the batteries run out, please remove the Battery Box
Assembly by following the battery installation steps and then
replace the batteries.
2 3-4
-11-
1323700-T01-B

-12-
Fig.16
16
MAINTENANCE
Clean the Filter Screen
If the flushing volume reclines sharply after installation or
used for a long time with no cause from water pressure, the
filter may need a wash. Please operate as following steps:
Remove the fixed cap
a. Turn off the water supply and power
supply before cleaning the filter.
b. Avoid damaging or losing the filter during
cleaning.
Caution:
and take out the filter, clean the filter
and then reinstall it.
a.
b.
Filter
Fixed Cap
TROUBLESHOOTING
No flushing
1. No power or mistake connected.
2. Out of electricity.
3. Sensor no working.
1. Check the power connect.
2. Replace batteries.
3. Check connector connect or Replace
sensor.
No flashing
Light indicator no bright
Buzzer alarm
1. The small hole of valve core is blocked.
2. The filter of valve core is blocked.
1. No power or mistake connected.
2. Position Light broken.
1. Out of electricity(the buzzer will sound every 2s).
2. Battery low voltage(the buzzer will sound every
6s).
1. Clean the small hole of valve core with
thin steel wire.
2. Wash the filter of valve core with a brush.
1. Check the power connect.
2. Replace Light indicator.
1. Replace batteries.
2. Replace batteries.
Please make following checks before repair:
Symptoms Probable causes Corrective actions
No flushing or poor
flushing
1. Adjusting bolt not fully open
2. Low water pressure.
3. Filter is obstructed.
1. Open the adjusting bolt.
2. Improve water supply.
3. Clean the filter.
1.
2.
3.
1.
2.
3.
1.
2.
1.
2.
1.
2.
1. 2s
2. 6s
1.
2.
1.
2.
1.
2.
3.
1.
2.
3.
1323700-T01-B

-13-
IMPORTANT CONSUMER INFORMATION
CONSUMER RESPONSIBILITIES
Do not directly flush the sensor with water. The sensor is an
electronic instrument.
Keep the sensor clean.
Do not use eradicator, abrasive powder or oil, acid or alkali
liquid detergent.
Do not spray air freshener, disinfectant or other kinds of
odious removing, cleaning organic liquid to the sensor directly.
Urinal is designed for use with potable water.
Avoid water that includes a lot of contaminants or acid/lakali
water and impure water.
When AC power unit is connected to 220V AC power supply,
corresponding protective measures should be taken.
Please confirm no water penetration at the connection area of
AC wire, and the connection area is not easy to be affected
by damp.
Don't connect power unit to AC power supply until the sensor
installation is finished.
220V
The head AC power supply must be protected with
appropriate fuse.
Please confirm the AC power supply and water supply should
be shut off before maintaining the products with AC power
related.
All electrical connection must be compliance with related
regulation and codes.
All installation staff should be well familiar with installation
instruction.
If you live in a hard water area, make certain that the holes in
the toilet rim are kept clean to ensure proper flushing. Toilet
bowl cleaners should be used at least once a week. Use a
long-handled brush to clean the rim holes, and to clean as far
into the trap as possible to prevent mineral deposits from
forming.
Most toilet bowl cleaners are not harmful to the vitreous china
surface of the urinal. Please follow the bowl cleaner
manufacturer's instructions carefully.
Do not use abrasive cleaners or solvents.
Do
not use cleaners inside the wash basin. Products
containing chlorine (calcium hypochlorite) can seriously
damage fittings in the urinal. This damage can cause
leakage and property damage.
Kohler Company shall not be responsible or liable for any
damage to these urinal fittings caused by the use of cleaners
containing chlorine (calcium hypochlorite).
WARNING: Risk of property or product damage.
1323700-T01-B

WARNING
WARNING: Risk of product damage.
Never spit phlegm and throw stub or
something else into the urinal.
Do not throw into the urinal what is easy to block it,
such as newspaper, paper pilch.
Do not bump the vitreous china with great force to
prevent it from damaging and leaking.
Do not use the product in the water below 0 C.
o
CAUTION: Please do not use hard materials (like
scouring pad) to clean product surface, especially the
product logo.
0C
o
-14-
1323700-T01-B
