Skippa
Mobility Scooter
Owner Manual

Page 2 Komfi Rider Skippa
CATALOGUE
I. SAFETY GUIDELINES.........................................................................................3
II. SPECIFICATION ...............................................................................................5
III. YOUR TRAVEL SCOOTER ................................................................................6
IV. OPERATION...................................................................................................9
V. DISASSEMBLY AND ASSEMBLY........................................................................11
VI. BATTERY AND CHARGING..............................................................................14
VII. COMFORT ADJUSTMENTS.............................................................................15
VIII. CARE AND MAINTENANCE........................................................................... 17
IX. FAULT DIAGNOSIS ......................................................................................... 18
X. WARRANTY .................................................................................................... 20

Page 3 Komfi Rider Skippa
I. SAFETY GUIDELINES
WARNING! An authorized Provider or qualified technician must perform the
initial setup of this scooter and must perform all of the procedures in this
manual.
The symbols below are used throughout this owner's manual and on the scooter to identify
warnings and important information. It is very important for you to read them and
understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to
follow designated procedures can cause either personal injury, component
damage, or malfunction.
MANDATORY! These actions should be performed as specified. Failure to
perform mandatory actions can cause personal injury and/or equipment
damage.
PROHIBITED! These actions are prohibited. These actions should not be
performed at any time or in any circumstances. Performing a prohibited action
can cause personal injury and/or equipment damage.
GENERAL
MANDATORY! Do not operate your new Travel Scooter for the first time
without completely reading and understanding this owner’s manual and the
Consumer Safety Guide.
Your Travel Scooter is a state-of-the-art life-enhancement device designed to increase
mobility. We provide an extensive variety of products to best fit the individual needs of the
Travel Scooter user. Please be aware that the final selection and purchasing decision
regarding the type of Travel Scooter to be used is the responsibility of the Travel Scooter
user who is capable of making such a decision and his/her health care professional (i.e.,
medical doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has
properly fitted the Travel Scooter to the user and has assisted the prescribing health care
professional and/or the authorized Provider in the instruction process for the use of the
product.

Page 4 Komfi Rider Skippa
There are certain situations, including some medical conditions, where the Travel Scooter
user will need to practice operating the Travel Scooter in the presence of a trained
attendant. A trained attendant can be defined as a family member or care professional
specially trained in assisting a Travel Scooter user in various daily living activities.
As you begin using your Travel Scooter during daily activities, you will probably encounter
situations in which you will need some practice. Simply take your time and you will soon be
in full and confident control as you manoeuvre through doorways, on and off elevators, up
and down ramps, and over moderate terrain.
Additional general information can be found on the supplemental information sheets and
booklets included in your Owner’s Package. Please fully read and review the information,
and keep it readily available for future reference.
Below are some precautions, tips, and other safety considerations that will help you become
accustomed to operating the Travel Scooter safely.
PRE-RIDE SAFETY CHECK
Get to know the feel of your Travel Scooter and its capabilities. We recommend that you
perform a safety check before each use to make sure your Travel Scooter operates smoothly
and safely.
Perform the following inspections prior to using your Travel Scooter:
■Check the condition of the tyres. Make sure they are not damaged or excessively
worn.
■Check all electrical connections. Make sure they are tight and not corroded.
■Check all harness connections. Make sure they are secured properly.
■Check the brakes to ensure they operate properly.
■Check the battery condition meter to ensure the batteries are fully charged.
■Ensure the manual freewheel lever is in drive mode before sitting on the Travel
Scooter.
If you discover a problem, contact your authorized Provider for assistance. Please refer to
the Contact Information insert in your Owner’s Package.

Page 5 Komfi Rider Skippa
II. SPECIFICATION
Model Reference
Boot Scooter 12AH
User Weight Capacity
21.5st / 135kg
Heaviest component when disassembled
16kg
Total weight with battery
44kg (with battery)
Speed (Maximum)
4 Mph / 6kph
Pre-Charged Range
6-8 miles / 9-12km*
Max climbing angle
10°±1°
Min. turning radius
4-wheel: 1350mm / 53’’
Overall length
4-wheel: 1070mm / 42’’
Overall width
4-wheel: 490mm / 19’’
Seat height
Adjustable
Front Tyre
200 x 50 mm PU Puncture proof
Rear Tyre
200 x 70 mm PU Puncture proof
Ground clearance –mid frame
70mm / 3’’
Battery
2 x 12AH 12V
Charger
2 Amp off-board
Driving System
Direct drive (the rear wheel)
Brake System
Automatic Electromagnetic brake
Control Method
By throttle lever; Dynamic 45A
Optional Extra –Supper Batteries
2 x 21AH Batteries –10-12mi/16-19km*
*Subject to user weight and terrain

Page 6 Komfi Rider Skippa
III. YOUR TRAVEL SCOOTER
①TILLER CONSOLE
②BASKET
③FRONT LIGHT
④TILLER ADJUSTMENT KNOB
⑤BUMPER
⑥SHROUD
⑦REAR WHEEL
⑧ARM REST
⑨SEAT
● DETAILS
①BATTERY GAUGE ②KEY SWITCH ③LIGHT SWITCH
④HAND GRIP ⑤SPEED ADJUSTMENT DIAL ⑥THROTTLE CONTROL LEVER ⑦HORN

Page 7 Komfi Rider Skippa
■TILLER CONSOLE
The tiller console houses all controls needed to drive your Travel Scooter, including the key
switch, throttle control lever, horn button, speed adjustment dial, and the battery gauge.
●Key Switch
Insert the key into the key switch and turn it clockwise to power up (turn on) your Travel
Scooter. Turn the key counter clockwise to power down (turn off) your Travel Scooter.
WARNING! If the key is moved to the “off” position while your Travel
Scooter is in motion, the electronic brakes will engage and your Travel
Scooter will come to an abrupt stop!
● Battery Gauge
When the key is fully inserted into the key switch and turned clockwise to power up your
scooter, this meter indicates approximate battery strength.
The battery condition meter on the tiller console indicates the approximate strength of your
batteries using a colour code. From left to right on the meter, green indicates fully charged
batteries, yellow a draining charge, and red indicates that an immediate recharge is
necessary.
● Speed Adjustment Dial
This dial allows you to preselect and limit your Travel Scooter’s top speed in the range of
0Km/h～6Km/h.
The image of the tortoise represents the slowest speed setting.
The image of the hare represents the fastest speed setting.
● Light Switch
This switch controls your Travel Scooter’s lighting system.
Toggle the switch forward to turn on the lighting system.
Toggle the switch rearward to turn off the lighting system.
● Throttle Control Lever
This lever allows you to control the forward speed and the reverse speed of your Travel
Scooter up to the maximum speed you pre-set with the speed adjustment dial.
Place your right hand on the right hand grip and your left hand on the left hand
grip. To move forward, use either of the following:

Page 8 Komfi Rider Skippa
■Use your left thumb to push the left side of the throttle control lever.
■Use your right hand fingers to pull back on the right side of the throttle control lever.
To move rearward, use either of the following:
■Use your right thumb to push the right side of the throttle control lever.
■Use your left hand fingers to pull back on the left side of the throttle control lever.
Release the lever and allow your Travel Scooter to come to a complete stop before
pushing the other side of the lever to move in reverse. When the scooter is moving in
reverse, the reverse beeper will sound.
When the throttle is completely released, it automatically returns to the centre “stop”
position and engages your Travel Scooter’s brakes.
● Horn Button
This button activates a warning horn. Your Travel Scooter must be turned on for the horn to
be operational. Do not hesitate to use the warning horn when doing so may prevent
accident or injury.
● Charger Power Cord Receptacle
The 3-pin end of the charger power cord plugs into this
receptacle.
● Re-set Button
There is a re-set button under the charging port. The re-set
button will be released to protect the motor and electronic
control system if overloading occurs due to climbing a
steep/long hill etc. Allow several seconds then press the
re-set button to resume driving.
● Manual Freewheel Lever
Whenever you need or want to push your Travel Scooter for short distances, you can put it
in freewheel mode.
Freewheel lever
1. Locate the manual freewheel lever at the top
right of the rear section.
2. Push forward on the manual freewheel lever
to disable the drive system and the brake
system. You may now push your Travel
Scooter.
3. Push the manual freewheel lever rearward to reengage the drive and the brake systems;
this takes your Travel Scooter out of freewheel mode.
Charging Port Re-set button

Page 9 Komfi Rider Skippa
WARNING! Before placing your Travel Scooter into or taking it out of freewheel
mode, remove the key from the key switch. Never sit on a Travel Scooter when it
is in freewheel mode. Never put a Travel Scooter in freewheel mode on any
incline.
WARNING! When your Travel Scooter is in freewheel mode, the braking system is
disengaged.
■Disengage the drive motors only on a level surface.
■Ensure the key is removed from the key switch.
■Stand to the side of the scooter to engage or disengage freewheel mode. Never
sit on a scooter to do this.
■After you have finished pushing your Travel Scooter, always return it to the
drive mode to lock the brakes.
●Motor/Transaxles Assembly
The motor /transaxle assembly is an electromechanical unit that converts electrical
energy from your travel scooter’s batteries into the controller mechanical energy
that drives the travel scooter’s wheels.
● Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of your travel scooter.
They are bolted to the frame at the rear of the travel scooter.
IV. OPERATION
● BEFORE GETTING ONTO YOUR TRAVEL SCOOTER
Keep your batteries fully charged and avoid deeply discharging your batteries.
Never leave the manual freewheel lever in the forward position unless you are manually
pushing your Travel Scooter.
●GETTING ONTO YOUR TRAVEL SCOOTER
1. Make certain that the key is removed from the key switch.
WARNING! Never attempt to get onto or off of your Travel Scooter without
first removing the key from the key switch. This will prevent the Travel Scooter
from moving if accidental throttle control lever contact is made.
2. Stand at the side of your Travel Scooter.
3. Disengage the seat rotation lever and rotate the seat until it is facing you.
4. Make certain that the seat is secured into position.
5. Position yourself comfortably and securely in the seat.
6. Disengage the seat rotation lever and rotate the seat until you are facing forward.

Page 10 Komfi Rider Skippa
7. Make certain that the seat is secured into position.
8. Make certain that your feet are safely on the floorboard.
● OPERATING YOUR TRAVEL SCOOTER
WARNING! The following can adversely affect steering and stability while
operating your Travel Scooter:
■Holding onto or attaching a leash to walk your pet.
■Carrying passengers (including pets).
■Hanging any article from the tiller.
■Towing or being pushed by another motorized vehicle.
WARNING! Keep both hands on the tiller and your feet on the floorboard
at all times while operating your Travel Scooter. This driving position gives
you the most control over your vehicle.
■Set the speed adjustment dial to your desired speed.
■Press your thumb against the appropriate side of the throttle control lever.
■The electromechanical disc park brake automatically disengages and the Travel Scooter
accelerates smoothly to the speed you preselected with the speed adjustment dial.
■Pull on the left hand grip to steer your Travel Scooter to the left.
■Pull on the right hand grip to steer your Travel Scooter to the right.
■Move the tiller to the centre position to drive straight ahead.
■To stop, slowly release the throttle control lever. The electronic brakes will automatically
engage when your Travel Scooter comes to a stop.
● GETTING OFF OF YOUR TRAVEL SCOOTER
1. Bring your Travel Scooter to a complete stop.
2. Remove the key from the key switch.
WARNING! Never attempt to get onto or off of your Travel Scooter without
first removing the key from the key switch. This will prevent the Travel Scooter
from moving if accidental throttle control lever contact is made.
3. Disengage the seat rotation lever and rotate the seat until you are facing toward the
side of your Travel Scooter.
4. Make certain that the seat is secured into position.
5. Carefully and safely get out of the seat and stand to the side of your Travel Scooter.
6. You can leave the seat facing to the side to facilitate boarding your Travel Scooter next
time.

Page 11 Komfi Rider Skippa
V. DISASSEMBLY AND ASSEMBLY
The travel scooter includes the front section, rear section, battery pack, seat and basket.
Please follow the following steps of disassembly and assembly.
①Front section
②Rear section
③Battery Pack
④Seat
⑤Basket
● Disassembly Procedures
1. Remove the key from the key switch.

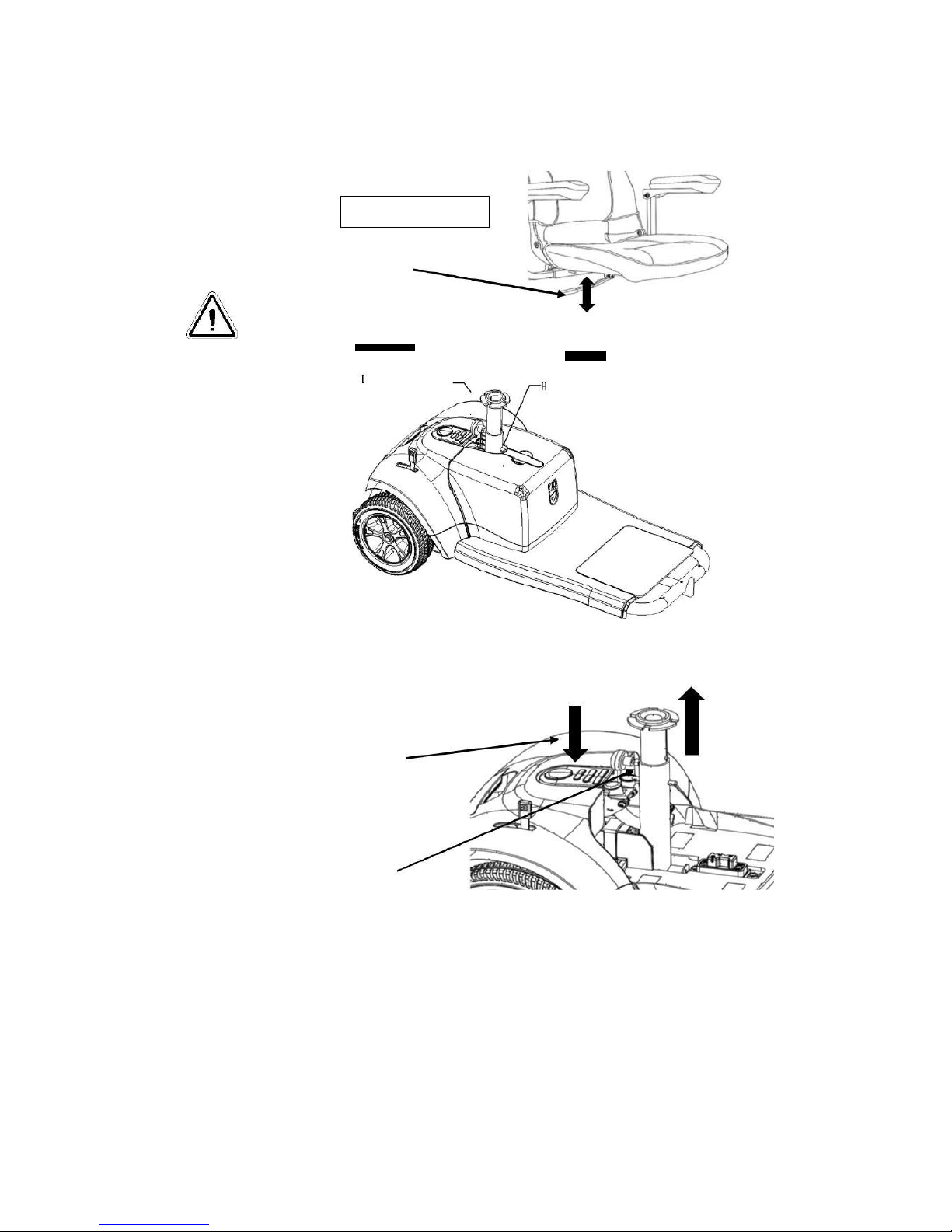

2. Remove the seat by pulling up the seat rotation lever and lifting it straight up off the
scooter. If you encounter resistance, disengage the seat rotation lever and swivel the seat
back and forth while lifting up.

Page 12 Komfi Rider Skippa
3. Remove the battery pack by lifting the pack straight up and off of the Travel Scooter.
Seat rotation lever
Warning! Pull the release level on the top of battery pack and move it
forward and watch not to trap your hand.
flange of seat post
Hand of battery
Frame Separation
Press the release level with one hand and lift up the seat tube to slowly separate the
two sections of the Travel Scooter.
Release level
Seat post

Page 13 Komfi Rider Skippa
● Assembly
NOTE: Before attempting assembly, tilt the rear half of the Travel Scooter slightly back on
the anti-tip wheels.
1. Tilt the rear half of the Travel Scooter slightly back on the anti-tip wheels.
2. Use the seat post to lift the front section as you align the frame tubes of the front
section with the lower frame hooks of the rear section.
3. Once the frame tubes are over the lower frame hooks, lower the front section and pivot
the rear section, pressing down the frame release lever simultaneously.
4. Raise the tiller and fully tighten the tiller adjustment knob.
5. Reinstall the battery pack.
6. Reinstall the seat and rotate it until it is secured into place.

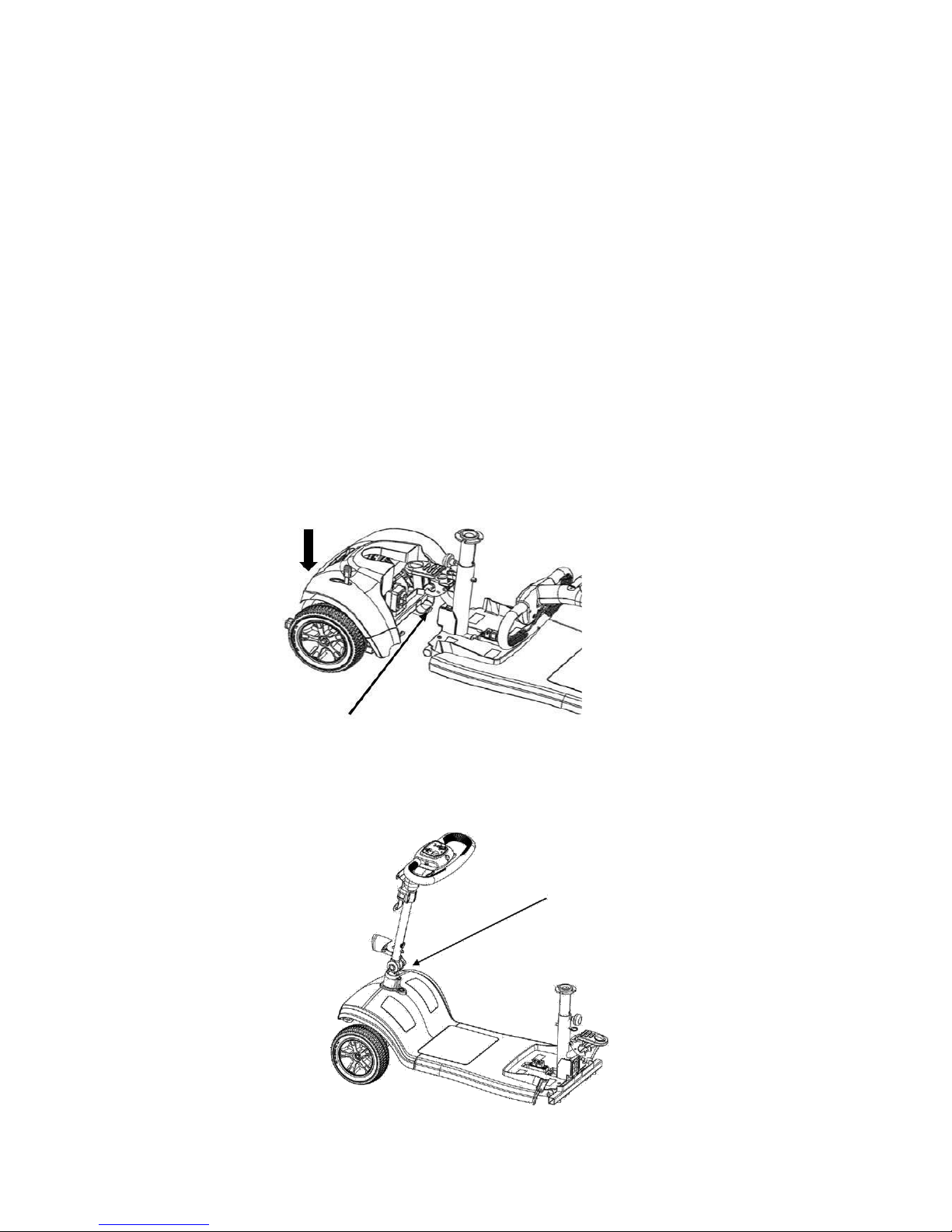

Frame hook
NOTE: Prior to moving your travel scooter, please make sure the tiller is fixed securely.
Tiller Control knob

Page 14 Komfi Rider Skippa
VI．BATTERIES AND CHARGING
BATTERIES AND CHARGING
Your Travel Scooter requires 2 x 12 volt lead acid batteries that are sealed and maintenance
free. They are recharged by the supplied off-board charging system.
■Charge your Travel Scooter’s batteries for at least 10 to 12 hours prior to using it
for the first time.
■Keep the batteries fully charged to keep your Travel Scooter running smoothly. If the
scooter is unused for a long period of time, then the batteries should be charged
regularly once a week to keep the batteries at full status.
WARNING! Do not attempt to open the battery charger case. If the battery
charger does not appear to be working correctly, contact your authorized
Provider.
Charging your batteries
The charger specification is DC24V/2.0Amp.

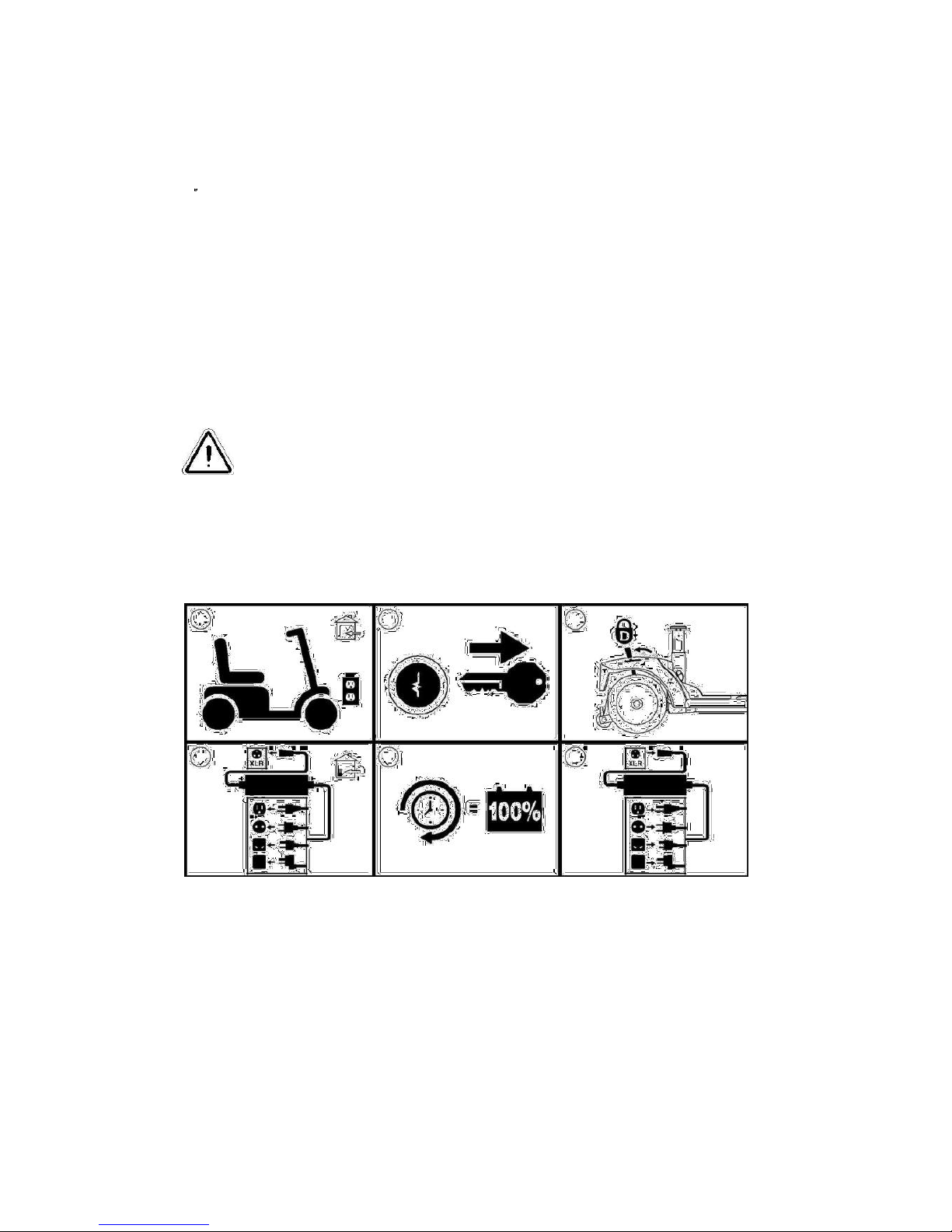

Follow the 6 easy steps to charge your batteries safely:
123
456

Page 15 Komfi Rider Skippa
WARNING! Chargers are selected precisely for particular applications and are
especially matched to the type, size, and chemical formulation of specific
batteries. For the safest and most efficient charging of your Travel Scooter’s
batteries, we recommend use of the charger supplied as original equipment
with your product only. Any charging method resulting in batteries being
charged individually is especially prohibited.
WARNING! Do not attempt to disassemble the battery from the battery
pack or refit the battery.
WARNING! If your battery charger has not been tested and approved for
outdoor use, then do not expose it to adverse or extreme weather
conditions. If the battery charger is exposed to adverse or extreme
weather conditions, then it must be allowed to adjust to the difference in
environmental conditions before use indoors. Refer to the manual
supplied with the battery charger for more information.
VII．COMFORT ADJUSTMENT

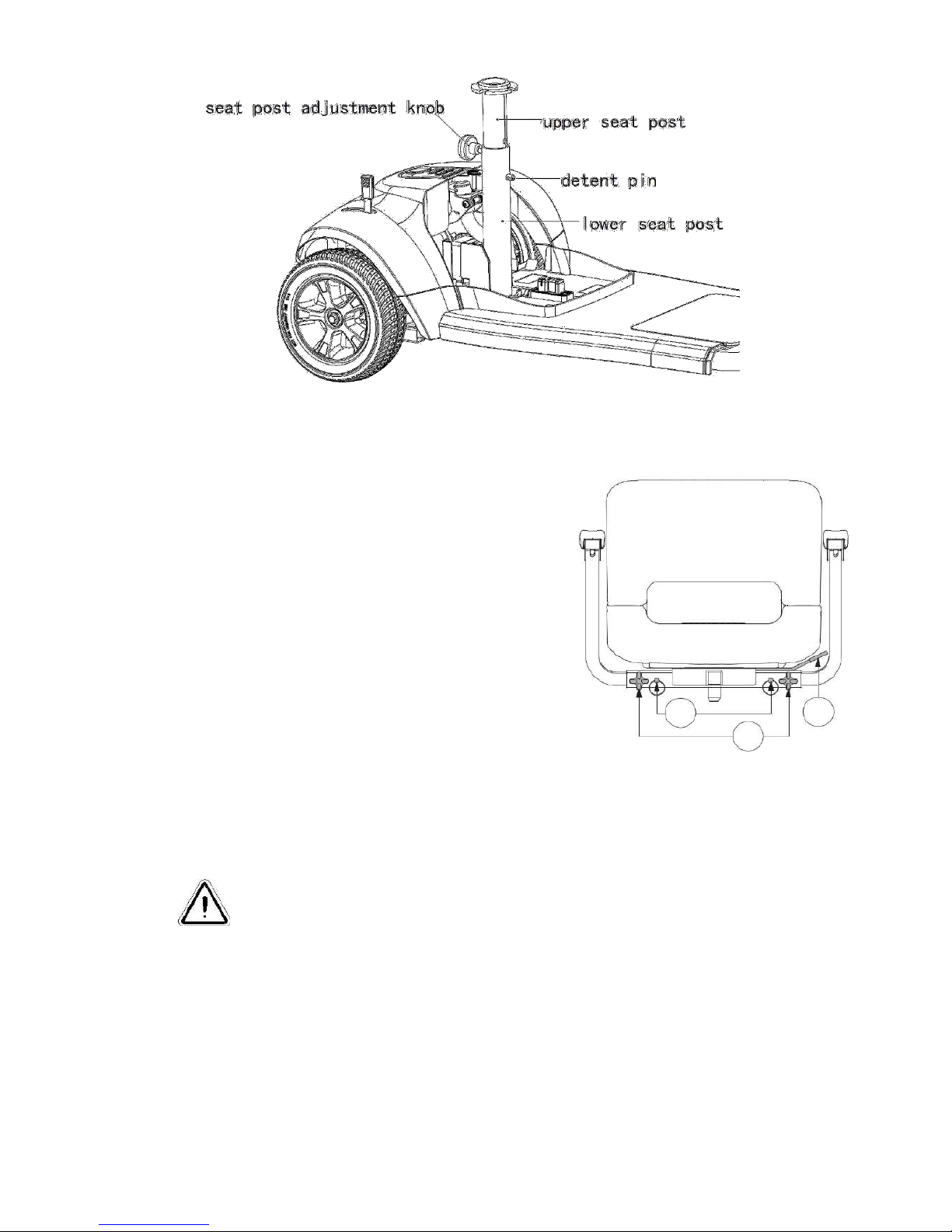

● SEAT HEIGHT ADJUSTMENT
1. Remove the seat and battery pack from the Travel Scooter.
2. Loosen seat post adjustment knob, pull and remove the detent pin from the lower portion
of the seat post.
3. Raise or lower the upper seat post to the desired seat height.
4. While holding the upper seat post at that height, align the adjustment holes of the upper
and lower seat post.
5. Fully insert the detent pin and tighten the seat post knob.
6. Replace the battery pack and seat.

Page 16 Komfi Rider Skippa
● ARMREST WIDTH ADJUSTMENT
The armrest width can be adjusted inward or
outward.
1. Loosen the armrest adjustment knobs.
2. Use the attached ring to pull and remove the
detent pin.
3. Slide the armrests in or out to the desired
width.
4. Align the adjustment holes on the seat frame
and armrest, then re-insert the detent pin.
5. Tighten the armrest adjustment knobs.
● TILLER ANGLE ADJUSTMENT
2
3
1
WARNING! Remove the key from the key switch before adjusting the tiller
or the seat. Never attempt to adjust the tiller or the seat while the Travel
Scooter is in motion.
1．Loosen the tiller angle adjustment knob.
2. Adjust the tiller to the desired position.
3. Tighten the tiller adjustment knob.

Page 17 Komfi Rider Skippa
VIII．CARE AND MAINTENANCE
● Clean the battery
1．Turn「OFF」。
2．Open the battery pack and take out the battery, clean it
3. If there is white powder existing on the terminal connections, please clean it then re-
assemble the pack.
Note: If the scooter is unused for a long period of time, then the batteries should be
charged regularly once a week to keep the batteries at full status.
● Storage
If you plan on not using your Scooter for an extended period of time, it is best to:
■Fully charge its batteries prior to storage.
■Store your Scooter in a warm, dry environment.
■Avoid storing your Scooter where it will be exposed to temperature extremes.
WARNING! Always protect batteries from freezing temperatures and never charge
a frozen battery. Charging a frozen battery can result in damage to the battery.

Page 18 Komfi Rider Skippa
● Maintenance
1．Regularly check all wiring connections. Regularly check all wiring insulation, including
the charger power cord, for wear or damage. Have your authorized Provider repair or
replace any damaged connector, connection, or insulation that you find before using
your Travel Scooter again
2．You should keep electrical connections away from sources of dampness, including
direct exposure to water or bodily fluids and incontinence. Check electrical components
frequently for signs of corrosion and replace as necessary.
3．Use a damp cloth and mild, non-abrasive cleanser to clean the plastic and metal
parts of your Travel Scooter. Avoid using products that may scratch the surface of your
Travel Scooter. If necessary, clean your product with an approved disinfectant. Make
sure the disinfectant is safe for use on your product before application.
DISPOSAL OF YOUR SCOOTER
Your Scooter must be disposed of according to applicable local and national statutory
regulations. Contact your local waste disposal agency or authorized service centre for
information on proper disposal of packaging, metal frame components, plastic components,
electronics, and batteries.
IX. FAULT DIAGNOSIS
DIAGNOSTIC FLASH CODES
The diagnostic flash codes for your Travel Scooter are designed to help you perform basic
troubleshooting quickly and easily. A diagnostic flash code will sound in the event one of the
conditions listed below develops. Depending on the model you own, your Travel Scooter will
communicate by one of the coding methods as follows:
1. A flash code will begin with a series of fast flashes directly followed by slower flashes
which indicates the actual code. The flash code is only flashed once. To repeat the flash
code, remove the key, then reinsert it and turn it to the “on” position, OR
2. A flash code will identify the condition, pause, then repeat the flash code. The flash code
will continue to alert you in this manner until the scooter is turned off.
NOTE: Your Travel Scooter will not run unless the flash code condition is resolved and the
Travel Scooter has been turned off, then turned back on

Page 19 Komfi Rider Skippa
FLASH CODE
CONDITION
SOLUTION
1
Battery voltage is too low to operate
the travel scooter.
Charge batteries.
2
Battery charge is too low.
Charge batteries.
3
The battery voltage is too high to
operate the scooter or the charger is
still connected to the off-board
charger port.
Unplug charger and/or turn key off,
then back on again. If traveling down
a slope reduce speed to the minimum
setting.
4
Current limit time out.
Turn the scooter off for a few
minutes, then turn back on.
5
The manual freewheel lever is in the
forward freewheel position.
Remove the key from the key switch,
then push the manual freewheel
lever to the drive position and restart
the scooter.
6
Throttle control lever not at centre
position at start up.
Verify that the batteries are fully
charged. If the batteries are fully
charged then return the throttle
control lever to centre position, turn
the scooter off then back on.
7
Speed Pot error
Contact your authorized dealer for
assistance.
8
Motor voltage error
Contact your authorized dealer for
assistance.
9
Other internal errors
Contact your authorized dealer for
assistance.

Page 20 Komfi Rider Skippa
Skippa
Mobility Scooter
Owner Manual
