INSTALLATION MANUAL
9J06-9621-01
<Important>
Be sure to correctly follow the procedures in order as explained in this Installation Manual.
If you do not follow the procedure in order, the image trouble may occur.
I. Outline of Installation Procedures
When installing the machine and associated options as a system, follow the order shown on the upper.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
Installation Manual and perform the procedures correctly.
• When placing the machine on the floor, make sure to use the Paper Feed Cabinet or the Desk to secure
the performance and the quality of the product.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
• Lifting the machine in an awkward position or transporting it in a poorly balanced position could result in
personal injury. When transporting the machine, assign an adequate number of persons to the job and
ensure that each person can take a good position of not being excessively loaded.
(mass: approx. 103 kg (227 lb))
FK-502
SA-501
EK-702
MK-706
DF-608
MT-501
WT-501
SD-503
✱Electron System Options
PC-103 PC-203 DK-502
Machine
PC-403
Dehumidifier Heater 1C
Electron System Options
OT-601
OC-501SP-501
FS-514 PK-510
ML-501
VK-501
FK-502
IC-406
VI-503
EM-309
SC-503
9J06IXC001DA
Applied Machine:

E-2

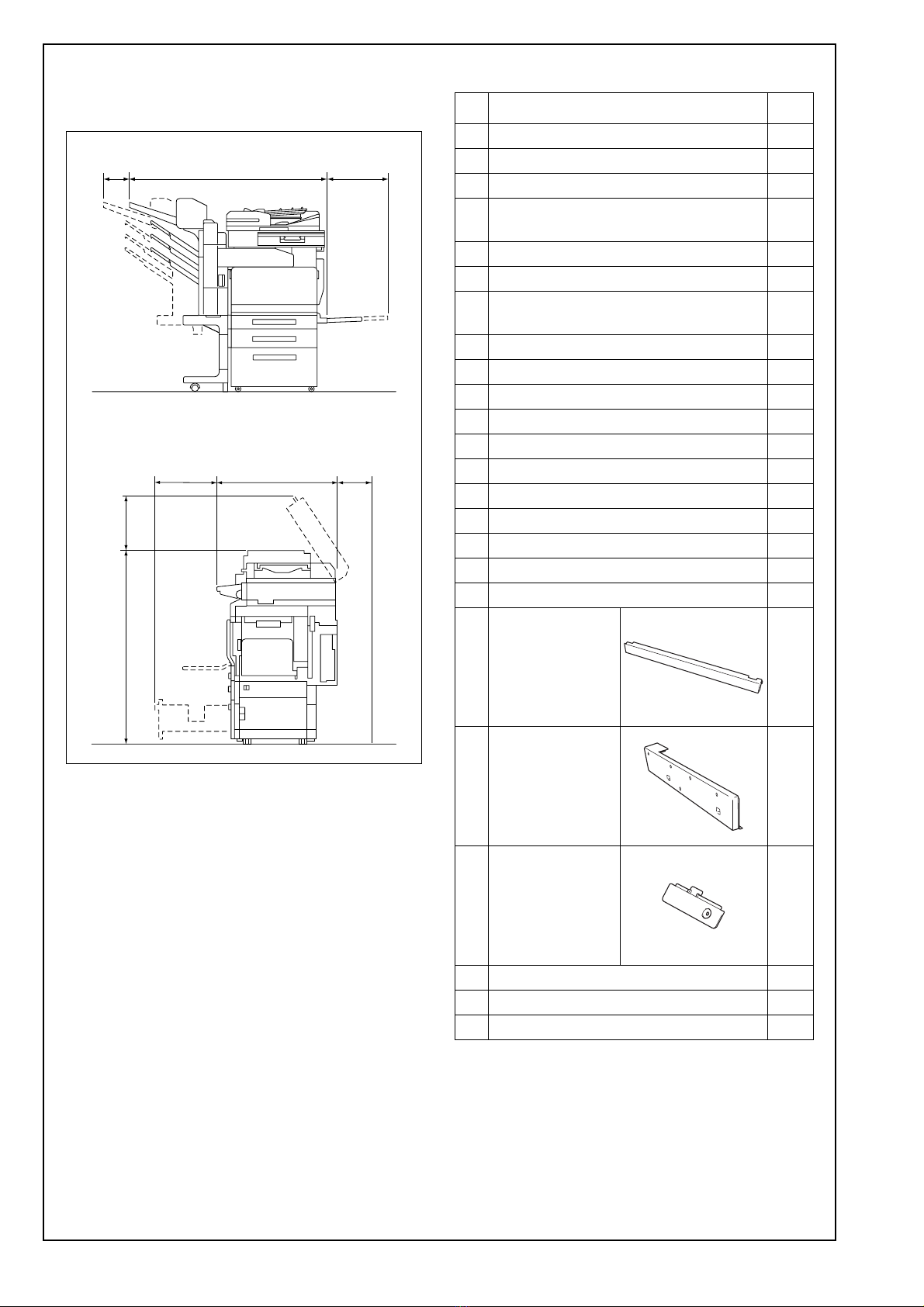

II. Installation Space (unit: mm (inch))
bizhub C352 + FS-514 + SD-503 + DF-608
+ PC-403
III. Pre-installation Check Items
1. Select a level and stable place for installing the
machine.
2. Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
3. Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
4. Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
5. Avoid a hot and humid environment, or a place
exposed to direct sunlight.
6. Avoid a dusty location, or a place near volatile
and flammable substances.
7. Avoid a poorly ventilated place.
IV. Accessory parts
* Varies depending on the applicable marketing
area.
9J06IXC139DA
190
(7-1/2)
1212
(47-11/16)
341
(13-7/16)
394
(15-1/2)
755
(29-3/4)
100
(3-15/16)
1208
(47-9/16)
372
(14-5/8)
No. Name Q’ty
1. Imaging Unit (IU): Y,M,C,BK 4
2. User’s Guide Holder 1
3. User’s Guide (Copy Operations) 1
4. User’s Guide
(Network Scanner Operations) 1
5. User’s Guide (Box Operations) 1
6. User’s Guide (Fax Operations) 1
7. User’s Guide
(Enlarge Display Operations) 1
8. Quick Guide (Printer Controller) 1
9. Installation Manual 1 set
10. Drawer Label 1
11. Label (Legal Restrictions on Copying) * 1
12. Label (Super G3 Label) 1
13. Cap A (round-head) 2
14. Cap B (square-head) 2
15. Power Cord * 1
16. Cord Clamp * 1
17. Screw * 1
18. Connector Cover 1
19. Cover
(Mounted when
neither the Paper
Feed Cabinet nor
the Desk is
mounted.)
1
20. IR Left Cover
(For mounting the
Reverse
Automatic
Document
Feeder.)
1
21. Decorative Cover
(For mounting the
Reverse
Automatic
Document
Feeder.)
1
22. Power cord instruction * 1
23. CD-ROM * 4
24. Harness for the Dehumidifier Heater 1
9J06IXC029DA
9J06IXC027DA
9J06IXC028DA

E-3
Note:
• Keep the Harness for the Dehumidifier Heater
at hand. It is necessary for mounting the Dehu-
midifier Heater.
• Keep the IR left cover and Decorative cover at
hand. They are necessary for mounting the
Reverse Automatic Document Feeder.
• Keep the Label (Super G3 Label) at hand. It is
necessary for mounting the FAX Kit.
V. Removing the Machine
1. Open the shipping carton and remove the IU car-
ton and machine carton.
2. Pull out the handles.
3. Holding onto the portions shown in the illustra-
tion, remove the machine while maintaining a
level position.
Note:
Machine mass: 103 kg/227 lb
Make available collective manpower of an appro-
priate size for transporting the machine.
Install the Drawer Cover furnished with the Paper
Feed Cabinet (1 or 2 Way Paper Feed Cabinet)
first before attaching the machine to Paper Feed
Cabinet. (two screws furnished with the Paper
Feed Cabinet)
When attaching the machine, as the reference fit
the machine with the corner A and B of the Paper
Feed Cabinet.
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation. 9J06IXC002DA
9J06IXC003DA
4061IXC119DA
Drawer Cover
A
B

E-4
VI. Removing Protective Tape, Packing
and Other Shipping Materials
1. Remove protective tape from different parts of the
machine.
2. Remove the packing bracket.
3. Remove the protective sheet.
4. Slide out the 1st drawer and remove protective
tape and packing materials from the inside of the
drawer.
5. Slide out the 2nd drawer and remove protective
tape from the inside of the drawer.
9J06IXC004DB
9J06IXE006DB
9J06IXC007DB
9J06IXC008DB
9J06IXC135DA
9J06IXC136DA

E-5
VII. Installing the IU

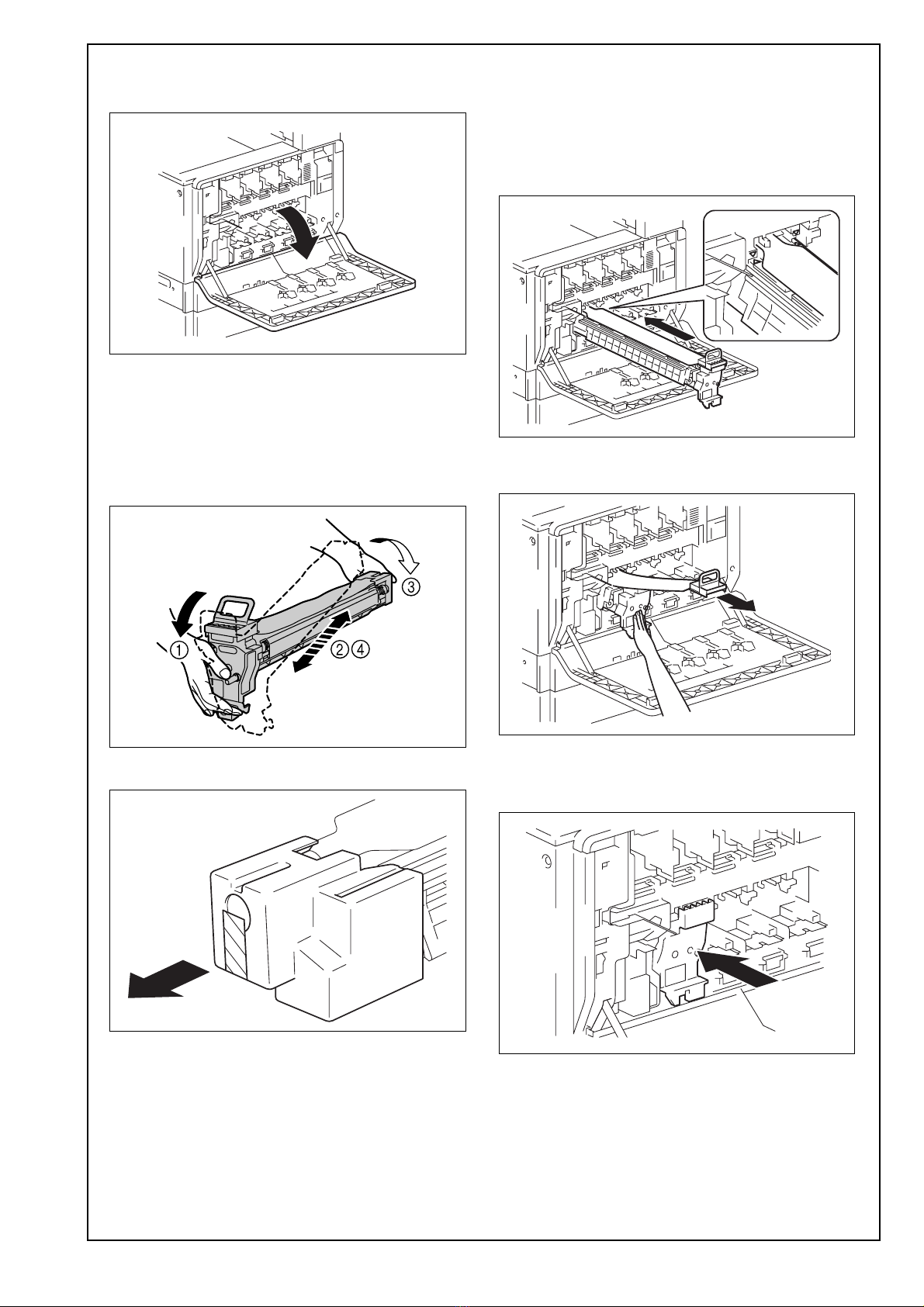

1. Open the front door.
2. Tilt the IU to the left and, in that condition, shake it
over a small stroke twice. Then, tilt the IU to the
right and, in that condition, shake it over a small
stroke twice.
Note:
Shake the IU adequately. Otherwise, it may cause
trouble.
3. Remove the top cap of the IU.
4. Keeping the IU in the level position, insert it all
the way as far as it will go.
Note:
• Make sure that the color is same between
inserting port and the IU.
• Make sure that the blue label position of the IU
is matched with the one of the machine side.
5. Lift up the IU handle and pull out the photo con-
ductor sheet slowly holding the IU.
6. Push the IU all the way in.
Note:
Make sure that the IU is pushed all the way in.
7. Using the same procedure, install all IUs.
9J06IXC009DA
4062MXC002HB
9J06IXC137DA
9J06IXC010DA
9J06IXC011DA
9J06IXC012DA

E-6
VIII. Installing the Toner Cartridge
Note:
Since cartridge is not furnished with the machine,
purchase toner cartridge (of different colors) sepa-
rately.
1. Shake the Toner Cartridge up and down five to
ten times.
Note:
Shake the cartridge adequately. Otherwise, it may
cause trouble.
2. Insert the toner cartridge into the machine.
Note:
• Make sure that the color is same between
inserting port and the toner cartridge.
• Make sure that the blue label position of the
toner cartridge is matched with the one of the
machine side.
3. Push the toner cartridge all the way in.
Note:
Make sure that the toner cartridge is pushed all the
way in.
4. Using the same procedure, install the toner car-
tridges for other colors of toner.
5. Close the front door.
6. Take out the filter and install it in position.
Note:
The filter is packed in the box of a black toner car-
tridge.
8938MXC003HA
9J06IXC013DA
9J06IXC014DA
9J06IXC015DA
9J06IXC138DA

E-7

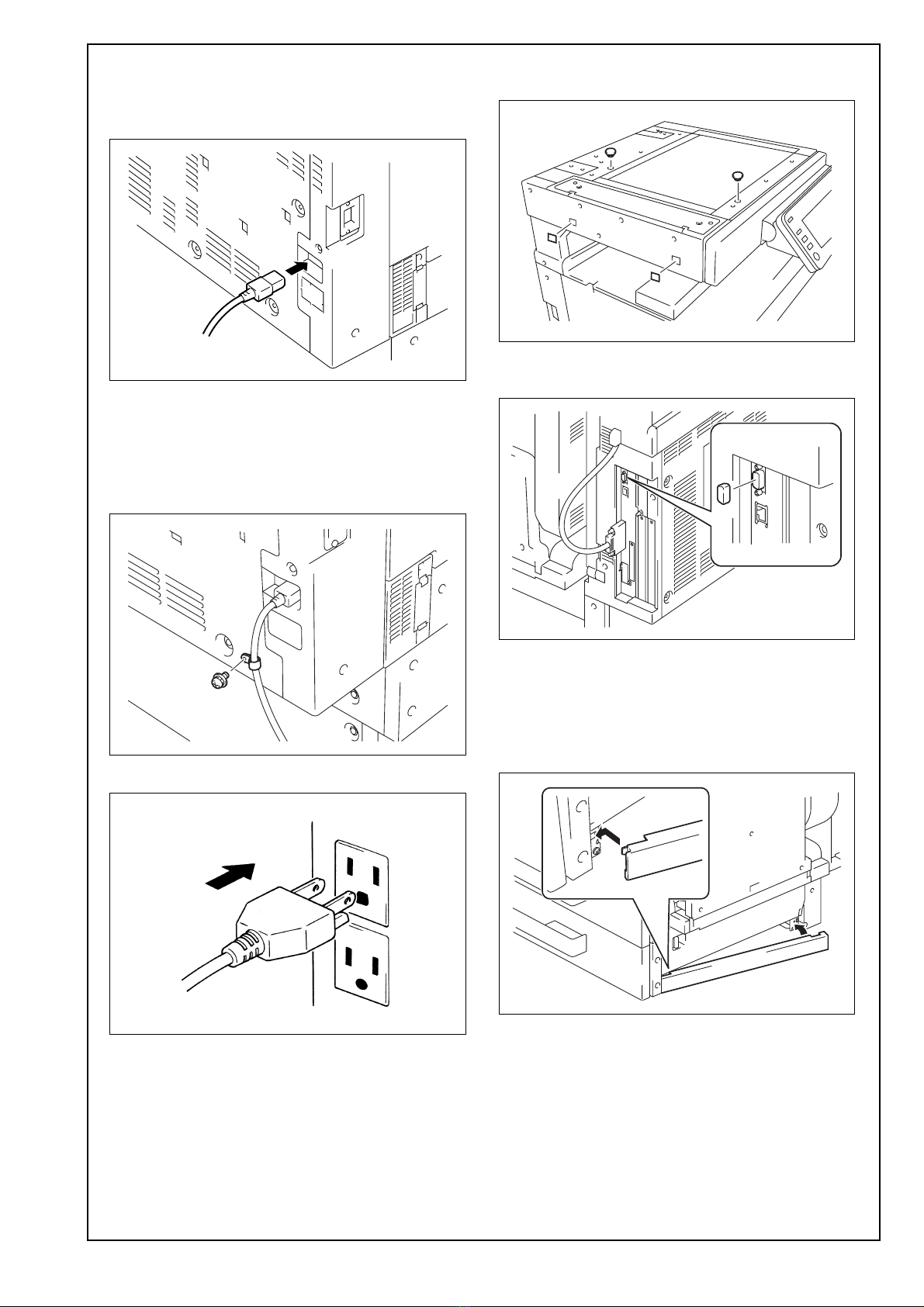

IX. Connecting the Power Cord and
Mounting the Accessory parts
1. Connect the power cord.
2. Fit the cord clamp furnished with the machine
over the power cord (one screw furnished with
the machine).
Note:
This step may not be performed depending on the
applicable marketing area.
3. Plug the power cord into the power outlet.
4. Attach the cap A and B furnished with the
machine.
5. Attach the connector cover furnished with the
machine.
6. Install the cover furnished with the machine to the
machine at the location shown on the right.
Note:
This operation should be performed only when the
Paper Feed Cabinet and the Desk are not
mounted.
4038IXC028DA
9J06IXC025DA
C4004U139CA
9J06IXC016DB
9J06IXC017DA
9J06IXC018DA

E-8
X. Installing the User’s Guide Holder
Install the user’s guide holder.
XI. Mounting the Original Cover
Install the Original Cover.

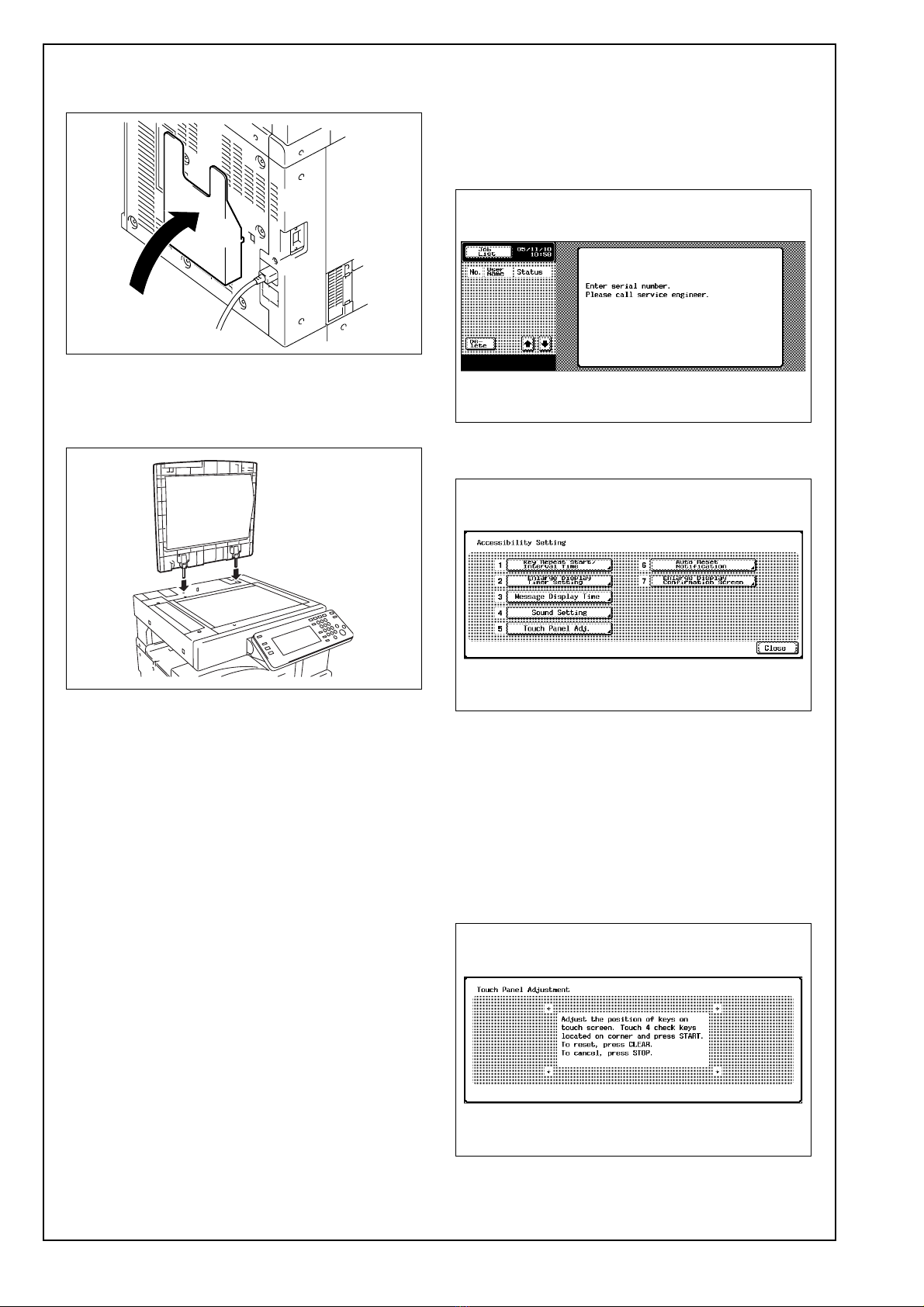

XII. Adjusting Touch Panel
1. Turn ON the Main Power Switch and then Sub
Power Switch.
Note:
Turning power ON will display the screen below.
Ignore the message and proceed to the step 2.
2. Press the accessibility key.
3. Touch “Touch Panel Adj.”
4. Using a ballpoint or similar device, lightly touch
the center of the + markers at four places on the
Touch Panel.
(Any specific marker can be the first one.)
Note:
Pressing the touch panel hard may cause dam-
age.
* When all the markers at four places have been
touched, the start key turns green and lights up
steadily green.
5. Press the start key.
6. Touch “Close.”
4038IXC026DA
9J06IXC019DA
9J06IXE141DA
9J06IXE196DA
4037IXE530DA

E-9
XIII. Setting Gradation Adjust
1. Set that A3 or Ledger paper is loaded in
the drawer.
2. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
3. Select “Imaging Process Adjustment.”
4. Touch “Gradation Adjust.”
5. Touch “High Compression Mode” and press the
start key.
A test pattern will then be produced on the A3
or Ledger paper.
6. Place the test pattern face down on the original
glass.
7. Place about ten sheets of A3 or Ledger
paper on the test pattern placed on the original
glass.
Lower the original cover, if the machine is so
equipped.
8. Press the start key.
The machine will start reading the test pattern.
9. When the machine completes reading the test
pattern, the “Gradation Adjust” screen will reap-
pear.
10. Repeat steps from 5 through 8 to let the
machine read the test pattern two times.
11. Touch “Gradation Mode” and press the start key.
A test pattern will then be produced on the
A3 or Ledger paper.
12. Place the test pattern face down on the original
glass.
9J06IXE073DA
4037IXE534DA
9J06IXC021DA
9J06IXC020DA
4037IXE532DA
9J06IXC022DA

E-10
13. Place about ten sheets of A3 or Ledger
paper on the test pattern placed on the original
glass.
Lower the original cover, if the machine is so
equipped.
14. Press the start key.
The machine will start reading the test pattern.
15. When the machine completes reading the test
pattern, the “Gradation Adjust” screen will reap-
pear.
16. Repeat steps from 11 through 14 to let the
machine read the test pattern two times.
17. Touch “Resolution Mode” and press the start
key.
A test pattern will then be produced on the
A3 or Ledger paper.
18. Place the test pattern face down on the original
glass.
19. Place about ten sheets of A3 or Ledger
paper on the test pattern placed on the original
glass.
Lower the original cover, if the machine is so
equipped.
20. Press the start key.
The machine will start reading the test pattern.
21. When the machine completes reading the test
pattern, the “Gradation Adjust” screen will reap-
pear.
22. Repeat steps from 17 through 20 to let the
machine read the test pattern two times.
23. Touch “END.”
9J06IXC020DA
4037IXE533DA
9J06IXC023DA
9J06IXC020DA

E-11
XIV. Date/Time Setting
1. Make sure that the Service Mode screen is dis-
played.
2. Display the Date & Time Setting screen.
(To display the Date & Time Setting screen, press
Stop →1 →1 →4 →4 →Clear on the Control
Panel.)
3. Press the clear key.
4. Enter the data for the year, month, day, and time-
of-day from the 10-key pad.
5. Touch “Entry.”
Note:
Touching the Entry key returns the figures in the
Date & Time Setting screen to 0 and Date & Time
Setting has been completed.
6. Touch “END.”
7. Touch “Exit” on the Service Mode Screen.
8. Select the Date/Time Setting function as follows:
Utility/Counter →Administrator Setting →Enter
the Administrator Password (Default Setting:
12345678) →System Setting →Date/Time Set-
ting.
9. Select the item you want to set and press the
clear key.
10. Enter the data for the year, month, day, and
time-of-day from the 10-key pad.
11. Touch “OK.”
12. Touch “Exit.”
XV. Install Date

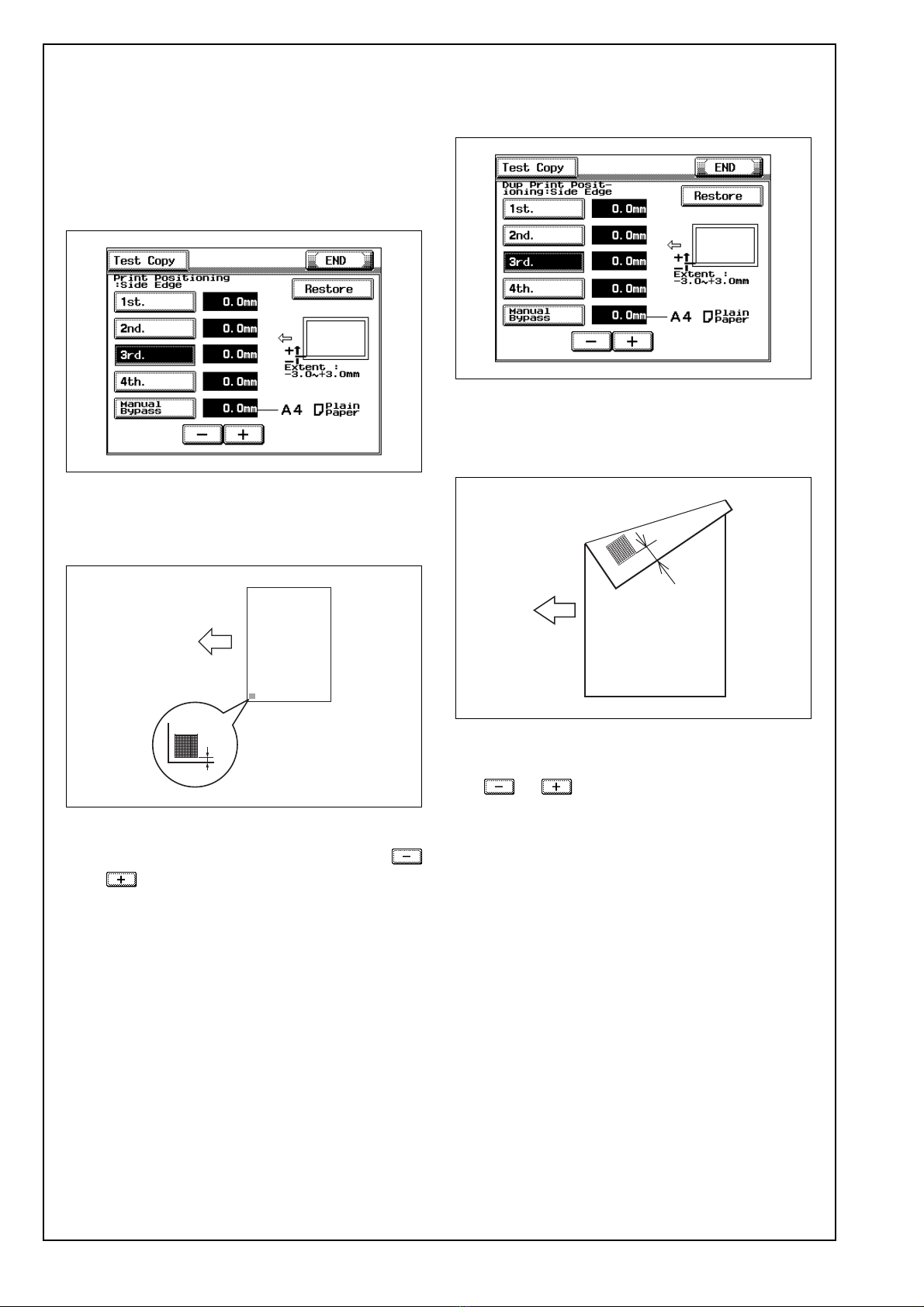

1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Select the Install Date function as follows:
System 1 →Install Date.
3. Press the clear key.
4. Enter the data for the year, month, and day from
the 10-key pad.
5. Touch “Entry.”
Note:
Touching the Entry key returns the figures in the
Install Date screen to 0 and Install Date has been
completed.
6. Touch “END.”
XVI. Serial Number Input
1. Select the Serial Number Input function as fol-
lows: System 1 →Serial Number.
2. Making sure that “Printer” is selected on the
screen, enter the serial number of the printer from
the 10-key pad.
3. Following the same procedure, enter the serial
numbers of all other units.
Note:
“Scanner” and “Duplex” do not need to be input.
4. Touch “END.”
4037IXE566DA
4037IXE536DA
4037IXE567DA
4037IXE568DA

E-12
XVII. Unit Change
Note:
This function allows the user to select the type of
message that will appear when the replacement
time arrives for each of the different units.
1. Select the Unit Change function as follows:
System 2 →Unit Change.
2. Select the appropriate message type for each
unit.
3. Touch “END.”
XVIII. List Output
1. Load the 1st drawer with A4 or Letter
paper.
2. Touch “List Output.”
3. Touch the “Machine Management List” and press
the start key.
The list will be output.
4. Output “Adjustments List”, “Service Parameter”,
and “Fax Setting List” also by pressing the
respective display and pressing the start key.
5. Touch “END.”
6. Touch “Exit” on the Service Mode Screen.
7. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
XIX. Affixing the Drawer Labels
Affix the drawer label.
For loading the paper as well as setting the paper
type, refer to the User’s guide.
XX. Affixing the Label (Legal Restrictions
on Copying)
Affix the label (Legal Restrictions on Copying) to the
position shown below.
Note:
This step may not be performed depending on the
applicable marketing area.
4037IXE535DA
9J06IXE197DA
9J06IXE198DA
4038IXC029DA
Drawer Label
9J06IXC026DA
Label

E-13
XXI. Adjusting Registration of Paper
Source Options
<1 Way Paper Feed Cabinet, Large Capacity Cabi-
net>
1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Select the function to be used as follows:
Machine →Printer Area
→Print Positioning: Side Edge →3rd.
3. Press the start key.
A test print will be produced.
4. Measure width A from the edge of the paper to
the pattern printed on the test print and check that
it falls within the specified range.
Specifications: 3.0 mm ± 1.0 mm
5. If the measured width A falls outside the specified
range, enter the correction value using the
or key.
6. Produce another test print and check to see if
width A falls within the specified range.
7. Select the function to be used as follows:
DUP Print Positioning: Side Edge →3rd.
8. Press the start key.
A test print will be produced.
9. Measure width A of the test pattern on the back-
side of the test print produced and check that it
falls within the specified range.
Specifications: 3.0 mm ± 2.0 mm
10. If the measured width A falls outside the speci-
fied range, enter the correction value using the
or key.
11. Produce another test print and check to see if
width A falls within the specified range.
12. Touch “END.”
13. Touch “Exit” on the Service Mode screen.
14. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
4037IXE322DA
4061IXC147DA
A
Paper Exit
Direction
4037IXE323DA
4061IXC152DA
A
Paper Exit
Direction

E-14
<2 Way Paper Feed Cabinet>
1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Select the function to be used as follows:
Machine →Printer Area
→Print Positioning: Side Edge →3rd.
3. Press the start key.
A test print will be produced.
4. Measure width A from the edge of the paper to
the pattern printed on the test print and check that
it falls within the specified range.
Specifications: 3.0 mm ± 1.0 mm
5. If the measured width A falls outside the specified
range, enter the correction value using the
or key.
6. Produce another test print and check to see if
width A falls within the specified range.
7. Select the function to be used as follows:
DUP Print Positioning: Side Edge →3rd.
8. Press the start key.
A test print will be produced.
9. Measure width A of the test pattern on the back-
side of the test print produced and check that it
falls within the specified range.
Specifications: 3.0 mm ± 2.0 mm
10. If the measured width A falls outside the speci-
fied range, enter the correction value using the
or key.
11. Produce another test print and check to see if
width A falls within the specified range.
* Perform the same adjustment procedure also for
the “4th.”
12. Touch “END.”
13. Touch “Exit” on the Service Mode screen.
14. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
4037IXE324DA
4061IXC147DA
A
Paper Exit
Direction
4037IXE325DA
4061IXC152DA
A
Paper Exit
Direction

E-15
XXII. Check through Test Print
Make operation checks using “Setting Information
Print.”
1. Select the function to be used as follows:
Utility/Counter →User Setting →Printer Setting
→Print Reports.
The types of the test prints that can be printed will
be displayed.
2. Touch “Configuration Page.”
3. Touch A4 size and press the start key.
Check that the machine produces the corre-
sponding printed page.
4. Touch “Close” twice and then “Exit.”
XXIII. Connecting Cables
1. Using the network cable (category 5), make cable
connections between the network device (HUB)
and the machine.
2. Check LEDs for lighting conditions.
LED1:
Should light up steadily if the link network con-
nection has been made.
LED2:
Should blink according to the communications
status of the ACT network.
XXIV. Network Setting
Make the TCP/IP address setting for the network.
Note:
Consult the network administrator for the setting
value to be entered and make settings as
required.
1. Select the function to be used as follows:
Utility/Counter →Administrator Setting →Enter
the Administrator Password →Network Setting
→TCP/IP Setting →Fwd.
2. Touch “Manual Input” of IP Address Setting
Method and make the following settings.
IP Address: IP address of the controller
Subnet Mask: Subnet mask of the network, to
which the machine is connected
Default Gateway: IP address of the default gate-
way
3. Turn OFF and ON the Main Power Switch.
4. Select the function to be used as follows:
Utility/Counter →Administrator Setting →Enter
the Administrator Password →Network Setting
→Detail Setting →PING Confirmation, and
make the operation check of TCP/IP.
LED1
LED2
Ethernet 10BaseT/100BaseTX Networkport
9J06IXC024DA

E-16
WT-501 Working Table
INSTALLATION MANUAL
I. Accessory parts II. Installing the Working Table
1. Remove the two rubber caps at the locations on
the left side surface of the machine shown on the
right.
2. Install the Bracket to the Working Table
(four screws A furnished with the Working Table).
3. Install the Working Table to the machine at the
location shown on the left (four screws B fur-
nished with the Working Table).
No. Name Shape Q’ty
1. Working Table
1
2. Bracket
1
3. Screw A
(4 × 8 mm) 4
4. Screw B
(4 × 18 mm) 4
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
4036U028AA
4036U029AA
4036U034AA
4036U030AA
9J06IXC074DA
9J06IXC075DA
9J06IXC076DA
