Konica Minolta Magicolor 2300 DL Manual

magicolor 2300
Series
Repacking Guide
®
1760504-001A

Trademarks
KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered
trademarks of KONICA MINOLTA HOLDINGS, INC.
magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING
SOLUTIONS U.S.A., INC. All other trademarks are the property of their respective
owners.
Copyright Notice
Copyright © 2004 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., Marunouchi
Center Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights
Reserved. This document may not be copied, in whole or part, nor transferred to any
other media or language, without written permission of KONICA MINOLTA BUSINESS
TECHNOLOGIES, INC.
Manual Notice
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make
changes to this manual and to the equipment described herein without notice.
Considerable effort has been made to ensure that this manual is free of inaccuracies
and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
makes no warranty of any kind including, but not limited to, any implied warranties of
merchantability and fitness for a particular purpose with regard to this manual.
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for,
or liability for, errors contained in this manual or for incidental, special, or
consequential damages arising out of the furnishing of this manual, or the use of this
manual in operating the equipment, or in connection with the performance of the
equipment when so operated.

Storing the Printer 1
Attention
Failure to follow these instructions could result in voiding your
warranty.
Storing the Printer
Unplug the printer when storing it for an extended period. Protect it from
extremes in temperature and humidity, and from dust.
Relocating Your Printer
Occasionally, you may have to move your printer to a different location, either
nearby or to a distant location. To avoid damage to your printer, we advise
you to follow the next instructions very carefully.
1Turn off your printer.
2Remove the power cord and all interface cables.
3If you are moving to a distant location, follow the instructions for repacking
the printer. (See “Repacking the Printer” on page 2).
4Relocate the printer.
WARNING!
Your printer weighs approximately 62 lbs (28 kg). Be sure to have
help when lifting and moving it.
5Unpack and set up the printer in its new location.
Use the unpacking and setup instructions in the Installation Guide.
6Reconnect the power cord and all interface cables.
" We strongly suggest that you save the packaging materials in case
you ever need to move or ship the printer.
You can also refer to the Service & Support Guide for sources of service and
support in many areas of the world. The most up-to-date worldwide
information can be found at printer.konicaminolta.com/support.

Repacking the Printer2
Repacking the Printer
Attention
Failure to follow these instructions could result in voiding your warranty.
If you need to relocate or ship your printer after it’s been installed, follow the
procedures in this chapter to prevent damage to the printer and to keep your
warranty valid.
Attention
KONICA MINOLTA cannot be held responsible for damage to your
printer during shipment that results from the improper packaging of
your printer. You must use the instructions given in this section before
repacking the printer in its original shipping carton with the original
packing materials. If you do not have your original outer packaging, you
must order the appropriate Replacement Packaging Kit:
If you’re relocating or returning the printer, you must also request a
magicolor 2300 Series Repacking Kit 2600733-100. This kit includes
special packaging for the OPC drum cartridge and transfer belt unit.
These supplies must be replaced prior to shipping the printer. If you
need replacement packaging, in the Americas, call the Spares
department at [phone] extension 2530 and request the kit(s)
above. For locations outside the Americas, refer to
printer.konicaminolta.com.
If you have been instructed to return the printer to KONICA MINOLTA
PRINTING SOLUTIONS U.S.A., INC. by a customer support
representative in the Americas, be sure to write the RMA (Return
Merchandise Authorization) number you received on the outside of both
the printer and consumables cartons before shipping them. If the RMA
number is not prominently visible on the outside of the return inventory,
we will not accept receipt.
You can also have a KONICA MINOLTA authorized service provider
uninstall and repack your printer, or you can upgrade to on-site service.
For prices and availability, call 1 [phone] in the Americas or see
printer.konicaminolta.com worldwide.
Kit Name Part Number
magicolor 2300 DL Replacement Packaging Kit 2600723-100
magicolor 2350 Replacement Packaging Kit 2600723-200
magicolor 2300W Replacement Packaging Kit 2600723-300

Repacking the Printer 3

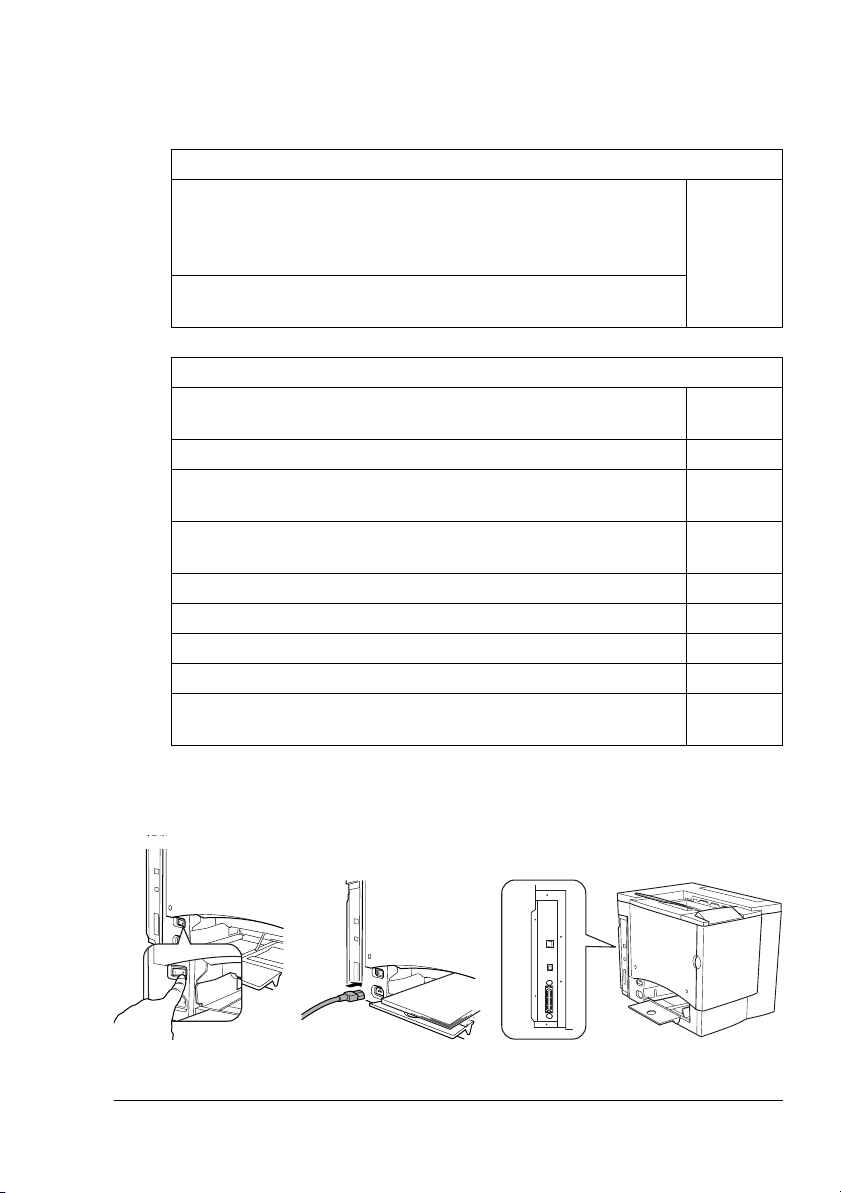

What’s Involved?
Repacking your printer for shipment involves the following steps. Each is
described in more detail in the following sections.
A. Turn off the Printer, Unplug the Power Cord, and
Remove the Interface Cables
Obtain Proper Packaging:
Original packaging or replacement packaging
magicolor 2300 DL Replacement Packaging Kit 2600723-100
magicolor 2350 Replacement Packaging Kit 2600723-200, or
magicolor 2300W Replacement Packaging Kit 2600723-300
page 2
Repacking kit
magicolor 2300 Series Repacking Kit 2600733-100
Prepare the Printer for Shipment:
A. Turn off the printer, unplug the power cord, and remove the
interface cables.
page 3
B. Remove the media and the tray 1 media support. page 4
C. Remove the duplex option and lower feeder unit, if attached,
and repack them separately.
page 4
D. Remove the waste toner bottle, plug the openings, and
dispose of it according to your local regulations.
page 7
E. Remove the OPC drum cartridge and repack it. page 7
F. Remove the transfer belt and repack it. page 8
G. Insert the fuser separators. page 9
H. Repack the printer for shipment. page 11
I. Repack the OPC drum cartridge and transfer belt for
shipment.
page 13

Repacking the Printer4
B. Remove the Media and the Tray 1 Media Support
1Remove the media.
Place it in its original packaging and store in a cool, dark place on a level
surface. Avoid moisture, excess humidity, direct sunlight, excess heat
(above 95° F/35° C), and dust.
2Lift the media support from the three
holes in Tray 1 and remove the media
support.
C. Remove the Options (if Attached)
Duplex Option
 If you don’t have a duplex option installed, skip to the next section.
1If you have a lower feeder unit
attached, you first need to open the
lower right-side door.
2Pull the right-side door release
lever, and open the right-side door.



Repacking the Printer 5
3Unhook the support wire.
4Close the right-side door.
5Open the duplex option’s cover and
loosen the two thumbscrews until the
duplex option moves freely away from
the right side of the printer.
6Lift duplex option up and away from
the printer.
7Install the original right-side cover
that came with the printer with two
screws.
8Repack the duplex option in its
original shipping carton for storage or
shipment.
If you’re returning the printer for
service, you don’t need to return
the duplex option, unless the
problem is with the duplex option.

Repacking the Printer6

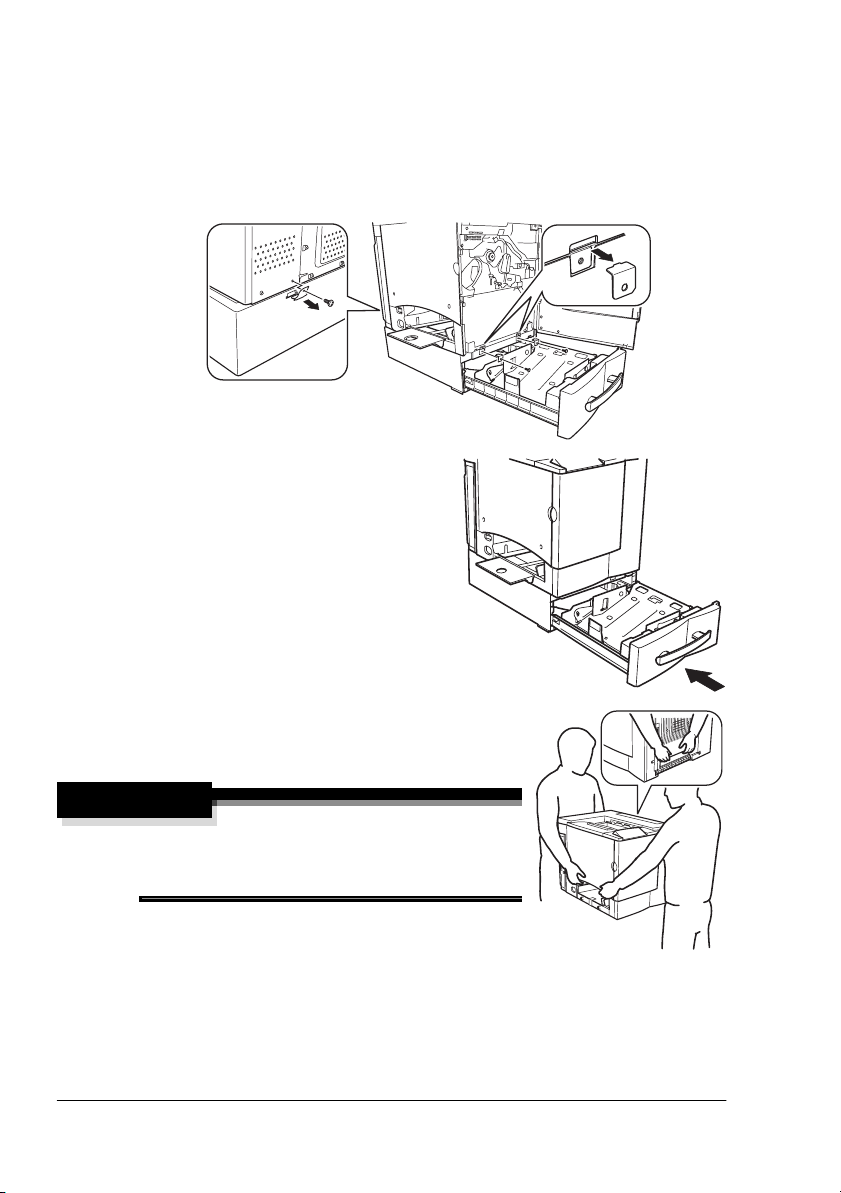

Lower Feeder Unit
 If you don’t have a lower feeder unit installed, skip to the next section.
1Slide tray 2 out of the printer and remove the media.
2Remove the brackets (two at the front and one at the back) used to attach
the lower feeder unit to the printer.
3Slide the tray back into the printer.
4With the help of another person, lift
the printer by its carrying grips, and
place it on a flat surface.
WARNING!
Your printer weighs approximately 62 lbs
(28 kg). Be sure to have help when lifting
and moving it.
5Repack the lower feeder unit in its original
shipping carton for storage or shipment.
 If you’re returning the printer for service, you don’t need to return
the lower feeder unit unless instructed to do so.

Repacking the Printer 7
D. Remove the Waste Toner Bottle, Plug the Openings,
and Dispose of It According to Your Local Regulations
1Open the printer’s front door, grasp the waste toner bottle’s handle, and
pull the waste toner bottle outward and upward.
2Carefully remove the waste toner bottle.
Keep the waste toner bottle upright
while the openings are not covered,
so the toner does not spill.
3Place the removed waste toner bottle,
with the openings facing up, on a
stable surface (not the printer).
4Remove the two caps by turning them
counterclockwise.
5Secure the two caps onto the two
openings by turning them 
clockwise.
6Dispose of the used waste toner bottle.
WARNING!
Dispose of the used waste toner bottle properly according to your
local regulations (do not dispose of it by burning).

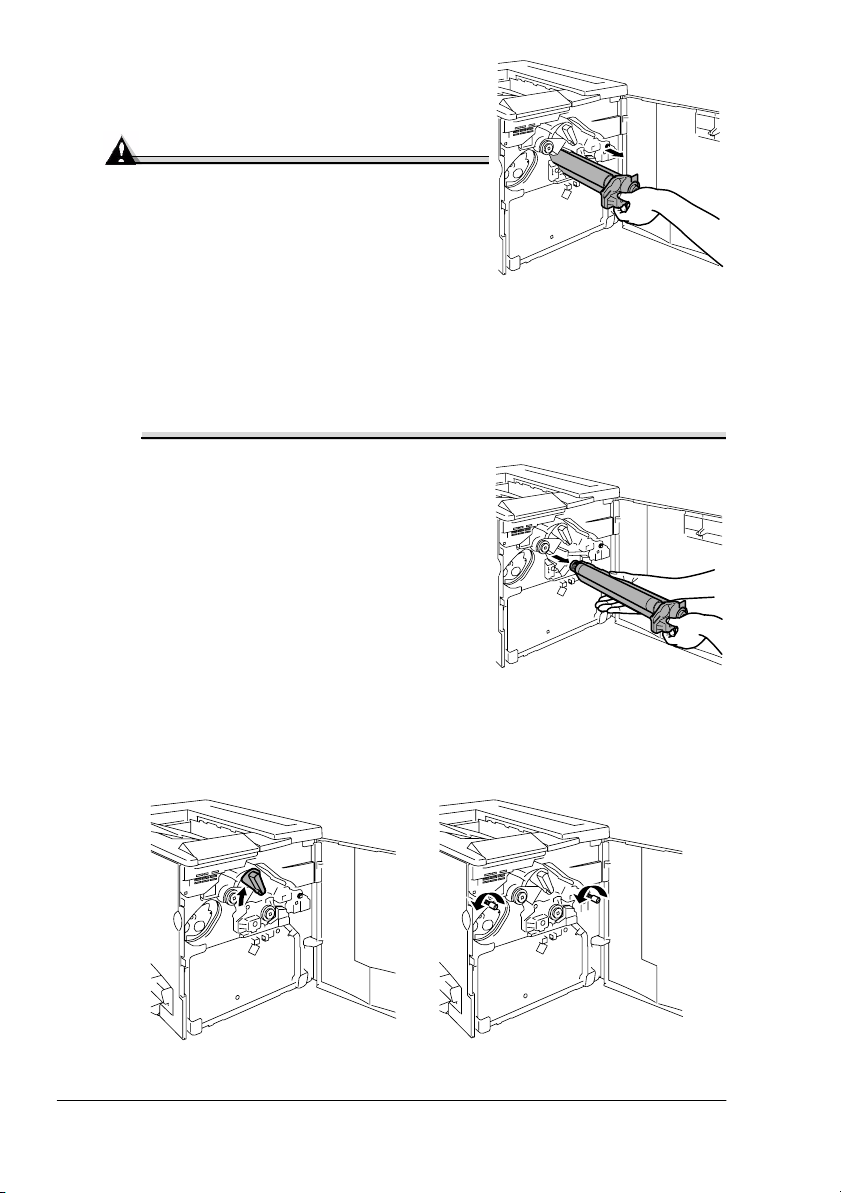

E. Remove the OPC Drum Cartridge
1Rotate the transfer belt release lever
clockwise to the top (11 o’clock) position.
 This releases the pressure on the
transfer belt unit.

Repacking the Printer8
2Grasp the release lever on the OPC drum
cartridge, and then pull the cartridge
straight out about 6 inches (152 mm).
Attention
The OPC drum is extremely sensitive
to bright light and direct sunlight. Any
exposure to light should be avoided, or
permanent damage could result.
Any damage resulting from mis-
handling of the OPC drum will void the warranty of the OPC drum.
Also, handle the cartridge carefully by its sides so you don’t touch
the surface (the green part) of the drum. The drum is also extremely
sensitive to hand oils and scratches, both of which reduce print
quality.
3Support the bottom of the drum with your
hand, then carefully pull the cartridge
toward you and remove it.
4Place the OPC drum cartridge in the
protective bag supplied in the repacking
kit (magicolor 2300 Series Repacking Kit
2600733-100).

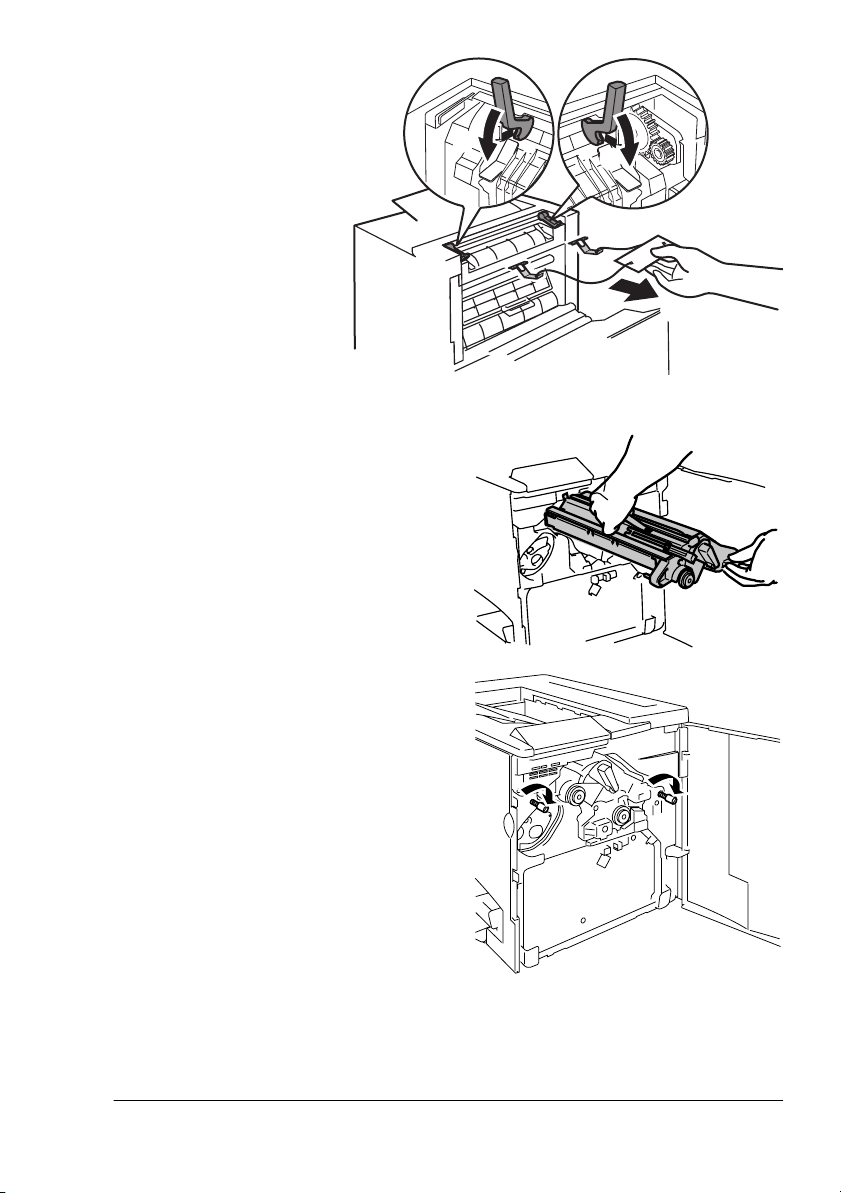

F. Remove the Transfer Belt
1With the front door open and transfer belt release lever at its top
(11 o’clock) position, loosen the two thumbscrews.

Repacking the Printer 9
2Grasp the transfer belt and pull it
straight out and then lift it up.
3Place the transfer belt and
thumbscrews in the protective
bag supplied in the repacking kit
(magicolor 2300 Series
Repacking Kit 2600733-100).
4Replace the packaging and
tape, then close the front door.

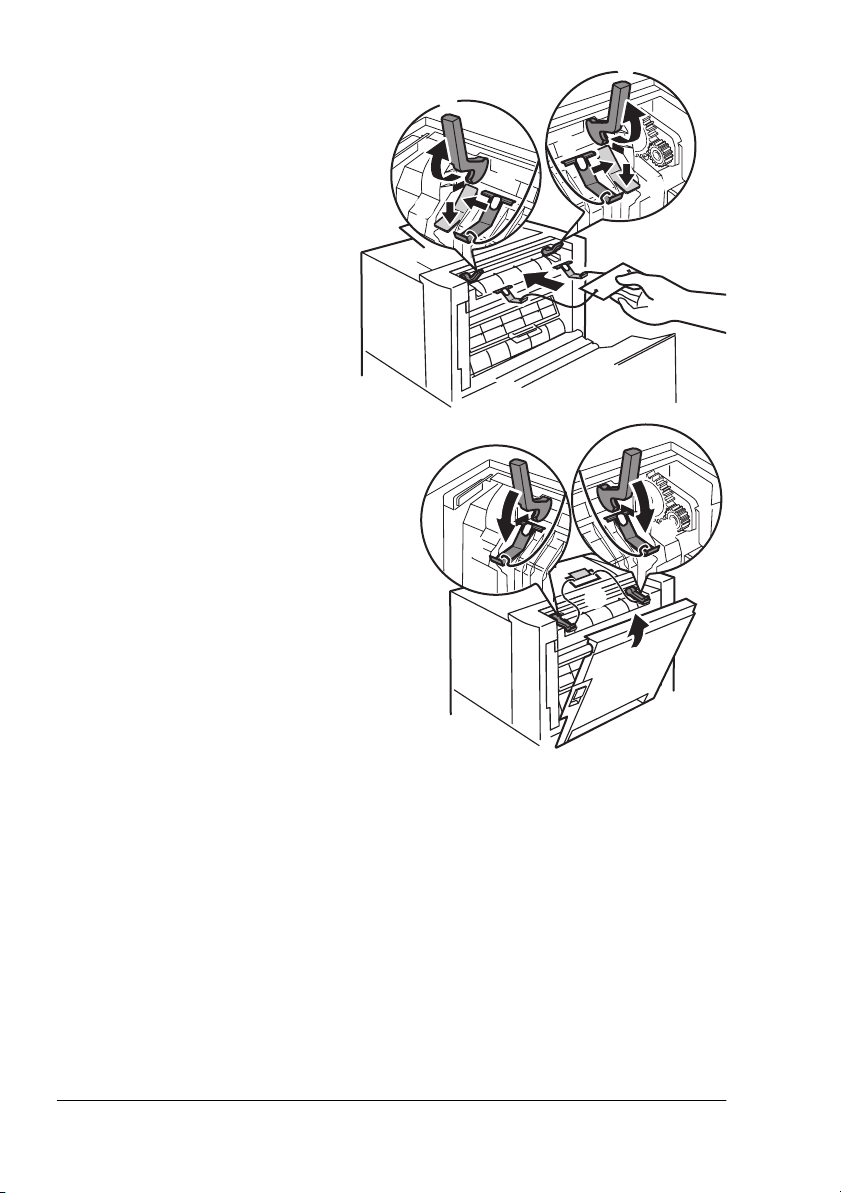

G. Insert the Fuser Separators
Attention
The fuser separators keep the two long rollers inside the fuser from
maintaining continuous contact. To protect the fuser unit and ensure
future print quality, it is very important that the fuser separators be
reinstalled in the printer if it is to be shipped or if it is to be turned off
and/or stored for more than six weeks.
1Pull the right-side door release, and then
open the right-side door.

Repacking the Printer10
2Position the cardboard
label next to the
printer.
3Open the two green
levers at the top of the
fuser unit.
4Insert the fuser
separators into the
holes underneath
the levers.
5Close the two green
levers .
6Tape the cardboard label to
the top of the printer.
7Close the right-side door .











Repacking the Printer 11

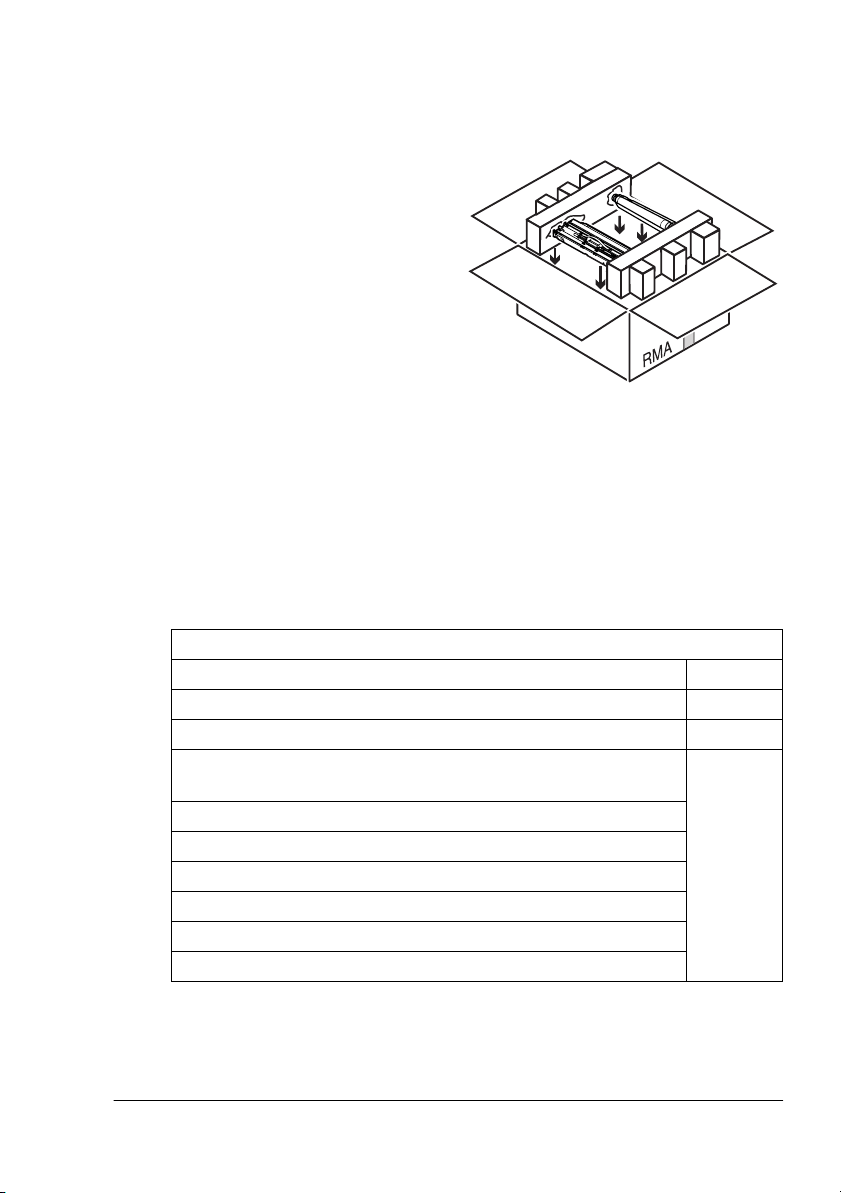

H. Repack the Printer for Shipment
Use your own original packaging or order the appropriate Replacement
Packaging Kit. (Refer to the chart on page 2.)
1Replace the tape and packaging.

Repacking the Printer12
2Place the lower cushions
into the shipping carton.
3Place the printer’s plastic
bag over the printer.
4Pack the printer for
shipment as shown.
5If you’re also shipping the
power cord and any
manuals with the printer,
place them in the shipping
carton.
 Don’t ship these
items if you’re
returning the printer
for service.
6Securely tape the top flaps
of the shipping carton
closed.
7Ship the printer.
If you return the printer for
service in the Americas, be
sure to write the RMA
(Return Merchandise
Authorization) number you
received from your
customer support
representative on the
outside of the carton before shipping the printer.

Reinstalling the Printer 13
I. Repack the OPC Drum Cartridge and Transfer Belt Unit
for Shipment
1Order the magicolor 2300 Series Repacking Kit 2600733-100.
2Place the OPC drum cartridge
and transfer belt unit (in their
protective bags) in the
appropriate position in the box
supplied in the repacking kit.
If you return the printer for
service in the Americas, be
sure to also write the RMA
(Return Merchandise
Authorization) number you
received from your customer
support representative on the outside of the box before shipping the
consumables.
3Securely tape the top flaps of the box closed.
Reinstalling the Printer
If you are shipping the printer to another location, follow steps A–J below to
reinstall the printer once received.
Reinstall the Printer:
A. Unpack the printer carton. page 14
B. Remove the fuser separators. page 14
C. Reinstall the transfer belt unit. page 15
D. Install the OPC drum cartridge and return the transfer belt
release lever to its correct position (7 o’clock).
page 16
E. Install a new waste toner bottle.
F. Replace the toner cartridges.
G. Install the tray 1 media support and load the media.
H. Reconnect the power cord and cables.
I. Install the options.
J. Turn the printer on.

Reinstalling the Printer14
A. Unpack the Printer Carton
Refer to the magicolor 2300 DL, magicolor 2350, or magicolor 2300W
Installation and User’s Guides.
B. Remove the Fuser Separators
1Pull the right-side door release , and
then open the right-side door .
2Open the two green levers at
the top of the fuser unit.
3Slide the two fuser separators up
and out from under the
green levers.









Reinstalling the Printer 15
4Remove the
separators and
the attached
label .
5Close the two
green levers .
6Close the
right-side door.
C. Reinstall the Transfer Belt Unit
1With the front door open,
remove the transfer belt unit
from its protective bag and
reinsert it.
2Tighten the two thumbscrews.



Reinstalling the Printer16
3Rotate the transfer belt release
lever counterclockwise to its
correct (7 o’clock) position.
4Close the front door.
Steps D. through J.
Refer to the magicolor 2300 DL, magicolor 2350, or magicolor 2300W
Installation and User’s Guides.
 The printer must complete a 150-second calibration cycle after
a consumable has been replaced.
If you open the door before the message window reads IDLE/
MAGICOLOR
2300DL (magicolor 2300 DL), MAGICOLOR 2350/
IDLE (magicolor 2350), or the Ready indicator stays on (magicolor
2300W), the printer stops and repeats the calibration cycle.
